GRILL Letter Lighting "BRONCO"

[Gtrekker]

Installing the Oracle lighted letters today. Plan to connect them to my running lights.

Any idea which wire is the hot wire for the running light? Maybe a screen shot of the schematic....

Sorry, I think my tester found a new home....

Picture - I copied it. Thanks for that.

Sponsored



[Ig_bronco]

Installing the Oracle lighted letters today. Plan to connect them to my running lights.

Any idea which wire is the hot wire for the running light? Maybe a screen shot of the schematic....

Sorry, I think my tester found a new home....

Picture - I copied it. Thanks for that.

Can't u just wire it to the parking/ambers?



[Gtrekker]

Can't u just wire it to the parking/ambers?

Yeah, I just may. We'll see once I finish with the letter install, pull a headlight and work out my power. Thx....



[Migs1313]

@ORACLE Lighting showed another member but cant find the thread



[SuzH]

Can't u just wire it to the parking/ambers?

I’m installing today, as well. Did you find an answer to hooking up to the parking lights?



[Gtrekker]

I’m installing today, as well. Did you find an answer to hooking up to the parking lights?

Not, yet.... the passenger side headlight connection is right there, just pulling airbox. Using / installing a quick disconnect next to my camera disconnect so it wont be missed when pulling grill again.



[Ig_bronco]

I’m installing today, as well. Did you find an answer to hooking up to the parking lights?

Considering mine are still missing in action no clue. I was gonna find the left front amber and look for the hot. If I cant find it I'll do what bronco life did and run it to the aux as a plan b. Wouldn't be a bad look to have the bronco followed by the 6 fog lights



[Gtrekker]

Considering mine are still missing in action no clue. I was gonna find the left front amber and look for the hot. If I cant find it I'll do what bronco life did and run it to the aux as a plan b. Wouldn't be a bad look to have the bronco followed by the 6 fog lights

Yeah, I get it. Passenger side looks easiest, pull headlight and the amber light is there. Need to save remaining aux switches for new bumper(s) lights. But, may just run a QD to an aux set wire until.... Beer break!!!



[SuzH]

So we are at the power stage. Everything all on a wired together. I’ve never done anything like this so it’s been a lot of researching how to do this and that. Here isn’t a lot of info out there yet on these and the Bronco. I hot glued the wires in place after I got the all connected. They aren’t going anywhere!
I’m confused as to the wiring the power. Do you connect to he lavender wire and then connect to the yellow orange=aux 6? Thanks for your help.



[Gtrekker]

So we are at the power stage. Everything all on a wired together. I’ve never done anything like this so it’s been a lot of researching how to do this and that. Here isn’t a lot of info out there yet on these and the Bronco. I hot glued the wires in place after I got the all connected. They aren’t going anywhere!
I’m confused as to the wiring the power. Do you connect to he lavender wire and then connect to the yellow orange=aux 6? Thanks for your help.

Run the lights Red wire to the

So we are at the power stage. Everything all on a wired together. I’ve never done anything like this so it’s been a lot of researching how to do this and that. Here isn’t a lot of info out there yet on these and the Bronco. I hot glued the wires in place after I got the all connected. They aren’t going anywhere!
I’m confused as to the wiring the power. Do you connect to he lavender wire and then connect to the yellow orange=aux 6? Thanks for your help.

Hey, lavender wire? Wheres that?

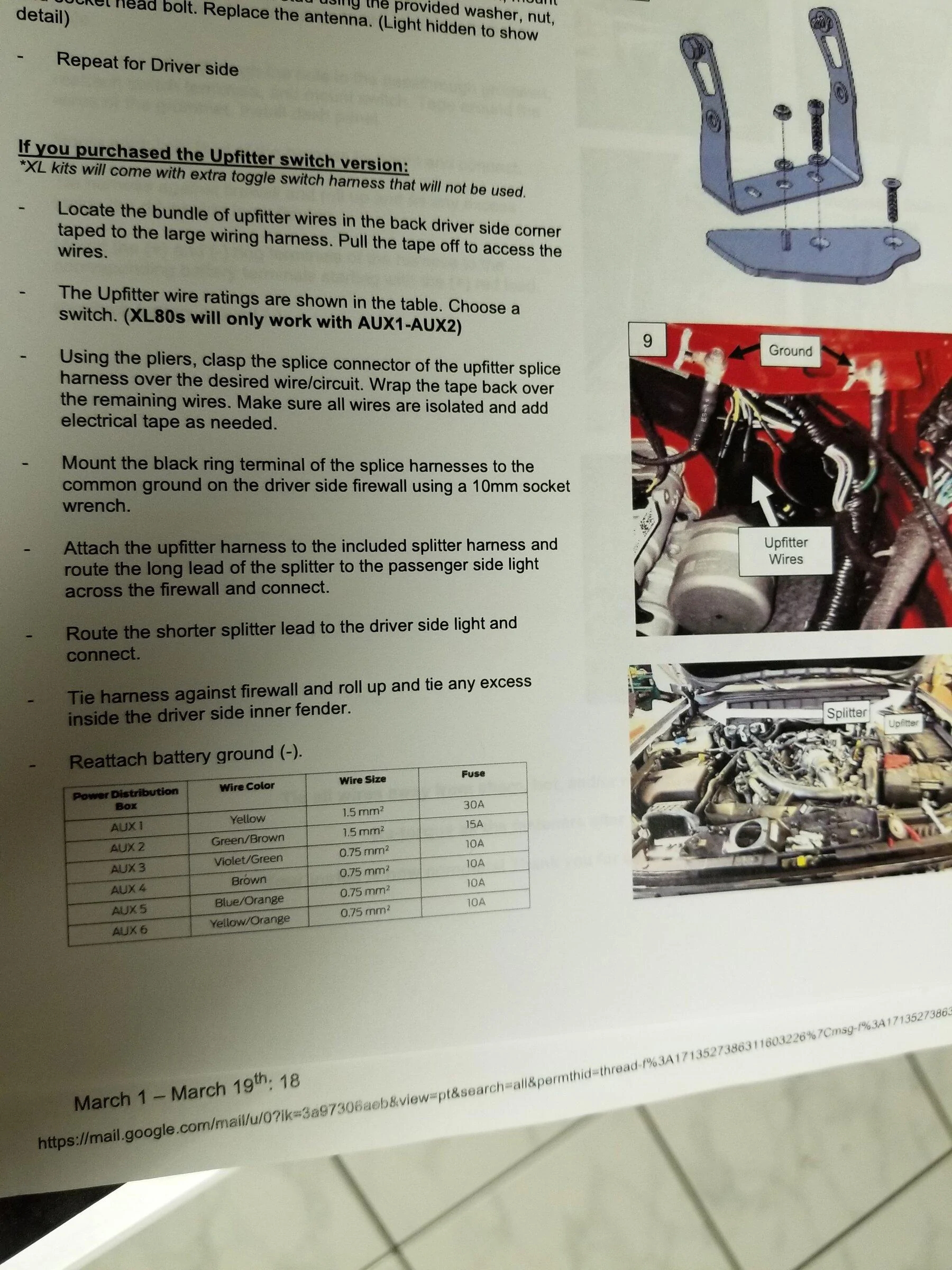

Take the red wire from the letters (spliced all together) and connect it to the yellow/orange (aux 6). Take all the blacks from the letter and connect them to a ground.



[SuzH]

Run the lights Red wire to the

Hey, lavender wire? Wheres that?

Take the red wire from the letters (spliced all together) and connect it to the yellow/orange (aux 6). Take all the blacks from the letter and connect them to a ground.

Thank you so much!!! We’ve been working on all sorts of projects today on the Bronco. I’ve watched every video I could find. Evilletruck hooked to the lavender wire up front above the C by the grill. And said he also connected to one of the colored aux switches. Two places??? And the other videos just say they hooked them up. Just not how or where. Thank you again for your help! Hope to have a pic of it all lit up soon!



[Gtrekker]

Thank you so much!!! We’ve been working on all sorts of projects today on the Bronco. I’ve watched every video I could find. Evilletruck hooked to the lavender wire up front above the C by the grill. And said he also connected to one of the colored aux switches. Two places??? And the other videos just say they hooked them up. Just not how or where. Thank you again for your help! Hope to have a pic of it all lit up soon!

Oh, I gotcha.... using the on in the grill, a non power. Glad to hear its sorted... post pics...
