Sponsored

ICON Billet Rear Upper & Lower Control Arms

OP
OP
Dusty

Dusty

Base
Well-Known Member
Joined
Feb 29, 2016
Threads
31
Messages
982
Reaction score
4,937
Location
Mentone, CA
Vehicle(s)
70, 71 & '21 Broncos
Your Bronco Model
Base
Clubs

Thank you Dusty...yes, these and the RPG ones are definitely works of art! And the VMC and the cutting tools to build these are not cheap either!
I saw the RPG ones and yeah those are nice too. The aftermarket is stepping up its game for the Bronco :)
Sponsored



Silver-Bolt

Wildtrak
Well-Known Member
First Name
Bill
Joined
Jul 15, 2020
Threads
32
Messages
3,066
Reaction score
5,030
Location
Portland, OR & Eureka, MT
Vehicle(s)
2024 f-250 Tremor 6.7L HO, 2023 Wildtrak
Your Bronco Model
Wildtrak
Clubs

Icon makes some excellent components. What is the material on the rock sliders on the lowers? Aluminum inserts?
UHMW ultra high molecular weight polyethylene . High strength low friction plastic. Great for sliding across rocks. When it wears out just replace it.


goatman

Well-Known Member
First Name
Richard
Joined
Jul 3, 2021
Threads
8
Messages
552
Reaction score
1,523
Location
Bakersfield
Vehicle(s)
A bunch of Jeeps
Your Bronco Model
Undecided
Clubs

Hmm...you can replace / change / etc ball ends with DOM (the tubing has a threaded insert welded in). Skids are definitely a plus to this style...I guess I am struggling the function is "better"? The DOM route would be considerably less expensive. @goatman where you at?

Lots of bling there. They are pretty cool looking. I agree, they won't work any better than steel tubing doing the same thing. I think I said this in another thread, but you have to really want the rod ends, rather than bushings. The noise and harshness will be different, though maybe not by much. These are cool, and I wouldn't mind having them on my Bronco, however to the question of functionality to me they are bling. The Bronco doesn't have enough travel to make rod ends necessary. So, what is being gained besides looking cool, and being part of a later total suspension package. It is yet to be determined how much actual travel any new suspension can get. And to be determined how much abuse the stock arms and bushings can take. These arms are stronger, no question. So would thicker DOM arms with Johnny Joints that would allow the same movement and not be as harsh, and much less expensive.

OP
OP
Dusty

Dusty

Base
Well-Known Member
Joined
Feb 29, 2016
Threads
31
Messages
982
Reaction score
4,937
Location
Mentone, CA
Vehicle(s)
70, 71 & '21 Broncos
Your Bronco Model
Base
Clubs

Lots of bling there. They are pretty cool looking. I agree, they won't work any better than steel tubing doing the same thing. I think I said this in another thread, but you have to really want the rod ends, rather than bushings. The noise and harshness will be different, though maybe not by much. These are cool, and I wouldn't mind having them on my Bronco, however to the question of functionality to me they are bling. The Bronco doesn't have enough travel to make rod ends necessary. So, what is being gained besides looking cool, and being part of a later total suspension package. It is yet to be determined how much actual travel any new suspension can get. And to be determined how much abuse the stock arms and bushings can take. These arms are stronger, no question. So would thicker DOM arms with Johnny Joints that would allow the same movement and not be as harsh, and much less expensive.
Good analysis. Yes, just by themselves, on this Bronco, these arms are something akin to tits on a boar. I can't see a good use case for installing them by themselves under normal circumstances, unless you just want jewelry (which I alluded to LOL). In this case though, they were installed to test fitment and get a little bit of road and trail time on them just for testing purposes. They will eventually be part of a more complete suspension system, where, the hope is, they will work in concert with ICON's coilovers and other components to provide great performance. ICON's engineering department shared with me some pretty impressive travel and articulation numbers that they believe they can get out of their complete suspension system, based on the 3D CAD models. I won't get ahead of them and repeat any of those numbers before they are able to confirm them with actual parts on the car, which should be coming soon. But the heim joints used in these arms are part of that strategy of milking as much travel as possible out of the factory suspension geometry, in other words, with bolt-in parts that don't require cutting off brackets and welding in new ones to change the pivot points. For the front upper control arms, they have designed a brand new version of their Delta Joint to squeeze even more travel out of the front than their current ball joint would allow. The limiting factors will then transfer to other systems such as drive shaft and CV joint angles, and, in my and other non-Badlands owners' cases, sway bars. I don't know if they are working on a sway bar disconnect but I've suggested it.

For the question of ride harshness or road noise due to the heim joints, I haven't noticed any in the 24 hours or so since these have been put on. In that time I've only driven it about 50 miles though. Heims can wear over time though; I replaced the ones in my Rubicon at about 50K miles. But there's no readily apparent difference in noise and ride harshness out of the box. These arms do have a "multi-durometer" bushing at one end so perhaps that is enough to mitigate.

As for whether these billet arms would perform any better than a tubular arm of similar specs, no they probably wouldn't. Geometry is geometry, it doesn't care what the stick is made of, as long as it's strong enough to handle whatever forces are applied to it. That's why ICON usually offers their components in both tube and billet styles, and I'm guessing they will eventually have tubular versions of these Bronco control arms as well. I will say that I've had bushing housings split apart on steel tubular control arms before. but I don't know whether these would be any stronger or weaker in that regard. They do look beefier around the bushing area.


Raptor911

Raptor
Well-Known Member
First Name
Raptor911
Joined
Jun 17, 2020
Threads
162
Messages
5,352
Reaction score
11,818
Location
Broadlands, VA
Vehicle(s)
2021 F150 Raptor, 2022 Wildtrak
Your Bronco Model
Raptor
A ton of companies are making these >> RPG, SVC, ADD .. etc ...


Sponsored

goatman

Well-Known Member
First Name
Richard
Joined
Jul 3, 2021
Threads
8
Messages
552
Reaction score
1,523
Location
Bakersfield
Vehicle(s)
A bunch of Jeeps
Your Bronco Model
Undecided
Clubs

Good analysis. Yes, just by themselves, on this Bronco, these arms are something akin to tits on a boar. I can't see a good use case for installing them by themselves under normal circumstances, unless you just want jewelry (which I alluded to LOL). In this case though, they were installed to test fitment and get a little bit of road and trail time on them just for testing purposes. They will eventually be part of a more complete suspension system, where, the hope is, they will work in concert with ICON's coilovers and other components to provide great performance. ICON's engineering department shared with me some pretty impressive travel and articulation numbers that they believe they can get out of their complete suspension system, based on the 3D CAD models. I won't get ahead of them and repeat any of those numbers before they are able to confirm them with actual parts on the car, which should be coming soon. But the heim joints used in these arms are part of that strategy of milking as much travel as possible out of the factory suspension geometry, in other words, with bolt-in parts that don't require cutting off brackets and welding in new ones to change the pivot points. For the front upper control arms, they have designed a brand new version of their Delta Joint to squeeze even more travel out of the front than their current ball joint would allow. The limiting factors will then transfer to other systems such as drive shaft and CV joint angles, and, in my and other non-Badlands owners' cases, sway bars. I don't know if they are working on a sway bar disconnect but I've suggested it.

For the question of ride harshness or road noise due to the heim joints, I haven't noticed any in the 24 hours or so since these have been put on. In that time I've only driven it about 50 miles though. Heims can wear over time though; I replaced the ones in my Rubicon at about 50K miles. But there's no readily apparent difference in noise and ride harshness out of the box. These arms do have a "multi-durometer" bushing at one end so perhaps that is enough to mitigate.

As for whether these billet arms would perform any better than a tubular arm of similar specs, no they probably wouldn't. Geometry is geometry, it doesn't care what the stick is made of, as long as it's strong enough to handle whatever forces are applied to it. That's why ICON usually offers their components in both tube and billet styles, and I'm guessing they will eventually have tubular versions of these Bronco control arms as well. I will say that I've had bushing housings split apart on steel tubular control arms before. but I don't know whether these would be any stronger or weaker in that regard. They do look beefier around the bushing area.
If there is a bushing on one end, that would take care of nearly all noise and harshness. And, you wouldn't really notice any on normal streets, it would be rougher street and pot holes and dirt roads. Pics don't show both ends of the arms. I would be happy with an arm with some type of good bushing on one end and rod ends on the other. It's all pretty cool to see so many top companies jumping on products to make the Bronco better.

I am so interested in aftermarket sway bar solutions, since I'm backing off getting a Badlands back to a basesquatch to save money to potentially put into suspension stuff. I'm used to kicking Wrangler ass in my XJ's and I want to continue that with my Bronco. 😁 :ROFLMAO::ROFLMAO:

OP
OP
Dusty

Dusty

Base
Well-Known Member
Joined
Feb 29, 2016
Threads
31
Messages
982
Reaction score
4,937
Location
Mentone, CA
Vehicle(s)
70, 71 & '21 Broncos
Your Bronco Model
Base
Clubs

Pics don't show both ends of the arms.
Oops, let me remedy that oversight :)

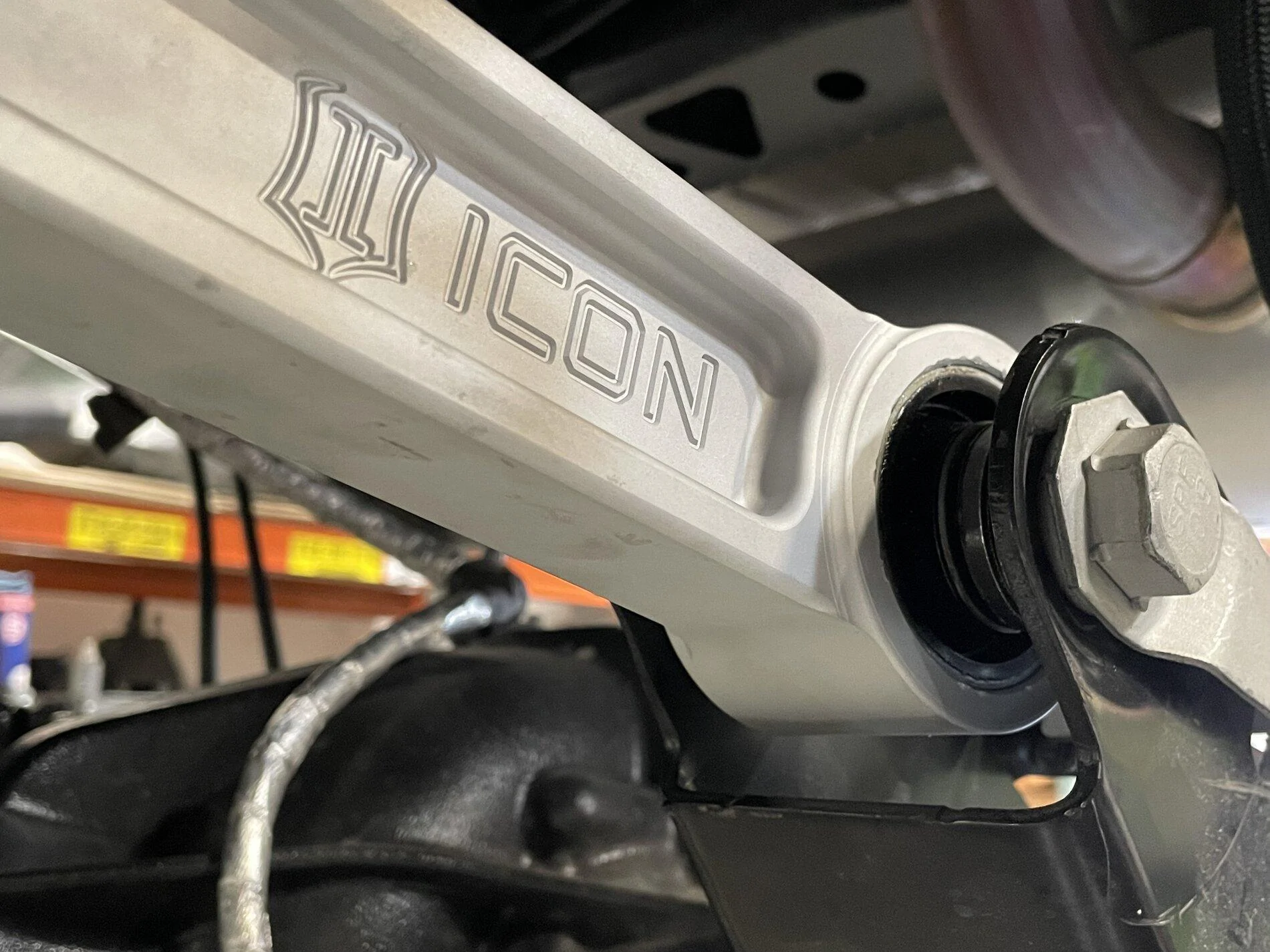

Ford Bronco ICON Billet Rear Upper & Lower Control Arms IMG_0747.JPG


I am so interested in aftermarket sway bar solutions, since I'm backing off getting a Badlands back to a basesquatch to save money to potentially put into suspension stuff. I'm used to kicking Wrangler ass in my XJ's and I want to continue that with my Bronco. 😁 :ROFLMAO::ROFLMAO:
Yeah even a manual quick-disconnect would be fine, IMO.


BAUS67

Base
Well-Known Member
First Name
redneck
Joined
Jan 3, 2020
Threads
22
Messages
4,531
Reaction score
13,133
Location
Central PA
Vehicle(s)
88 5.0 LX, 08 F-150 Stepside, 22 Expl Timberline
Your Bronco Model
Base
Clubs

Camburg is through production. Same kind of setup.





😁😁


TRMFAM

First Edition
Well-Known Member
First Name
Rob
Joined
Jul 13, 2021
Threads
1
Messages
334
Reaction score
473
Location
OK
Vehicle(s)
66 & 73 Bronco, 21 MDX A-Spec, 20 Raptor
Your Bronco Model
First Edition
Clubs

Lots of bling there. They are pretty cool looking. I agree, they won't work any better than steel tubing doing the same thing. I think I said this in another thread, but you have to really want the rod ends, rather than bushings. The noise and harshness will be different, though maybe not by much. These are cool, and I wouldn't mind having them on my Bronco, however to the question of functionality to me they are bling. The Bronco doesn't have enough travel to make rod ends necessary. So, what is being gained besides looking cool, and being part of a later total suspension package. It is yet to be determined how much actual travel any new suspension can get. And to be determined how much abuse the stock arms and bushings can take. These arms are stronger, no question. So would thicker DOM arms with Johnny Joints that would allow the same movement and not be as harsh, and much less expensive.
Ok same as I was thinking and yes they are very sexy. My eb I run 1/4 wall dom with Johnny joints also. I like the bling but if significant $$ difference I am fine with tubing and applying the savings to something else! I will just have to accept I won’t win any show and shine contests! Lol


HoosierDaddy

Badlands
Well-Known Member
First Name
Eric
Joined
Mar 6, 2016
Threads
37
Messages
5,529
Reaction score
14,118
Location
Indiana
Vehicle(s)
68&69 Broncos, 21 AMB Base 2dr, 23 VB BL 4dr
Your Bronco Model
Badlands
Clubs

WOW, those are nice.
I'm new to this game, ICON is a new name but I kept hearing of their great reputation for quality parts.
Now I see why the more experienced keep suggesting to wait a year or so for the HQ aftermarket companys to catch up vs buying some of the stuff you see available now.

Their wheels are on my short list also... ICON, Method, Fuel and RTR.


Sponsored

JBHillCountry

Black Diamond
Well-Known Member
First Name
Justin
Joined
May 13, 2021
Threads
0
Messages
105
Reaction score
251
Location
Fredericksburg, Tx
Vehicle(s)
2021 Land Cruiser, 2022 F250, 2022 Tahoe Z71
Your Bronco Model
Black Diamond
WOW, those are nice.
I'm new to this game, ICON is a new name but I kept hearing of their great reputation for quality parts.
Now I see why the more experienced keep suggesting to wait a year or so for the HQ aftermarket companys to catch up vs buying some of the stuff you see available now.

Their wheels are on my short list also... ICON, Method, Fuel and RTR.
I run Icon on all my Superduties. Great parts and great customer service. Highly recommend.


goatman

Well-Known Member
First Name
Richard
Joined
Jul 3, 2021
Threads
8
Messages
552
Reaction score
1,523
Location
Bakersfield
Vehicle(s)
A bunch of Jeeps
Your Bronco Model
Undecided
Clubs

Oops, let me remedy that oversight :)

Ford Bronco ICON Billet Rear Upper & Lower Control Arms IMG_0747.JPG

I do really like the double adjusters, that is very functional and a great way to do it. The arms are adjustable, and can be adjusted without removing the arms. So, pinion angles can be adjusted and the axle can be squared up without removing the arms. Nice.


BossMann

Badlands
Well-Known Member
Joined
Aug 27, 2020
Threads
10
Messages
632
Reaction score
1,129
Location
Louisville
Vehicle(s)
2009 Honda Pilot
Your Bronco Model
Badlands
ICON , I think, bought Donahoe years ago… my Tacoma coilovers. those things were top quality. Assume Icon CO’s are now also top quality.


TexAZ

Badlands
Well-Known Member
Joined
Jul 20, 2020
Threads
1
Messages
65
Reaction score
143
Location
AZ
Vehicle(s)
F-150
Your Bronco Model
Badlands
@Dusty
Any updates on these or any more info from ICON?


Dusty at ICON

Base
Well-Known Member
Squatch Sponsor (Level 3)
First Name
Dusty
Joined
Oct 4, 2021
Threads
18
Messages
395
Reaction score
1,279
Location
Riverside, CA
Vehicle(s)
2021 Bronco Base 2-Door
Your Bronco Model
Base
@Dusty
Any updates on these or any more info from ICON?
I'll answer under my ICON account. Yeah these are getting close to release. That might come shortly after Thanksgiving. There have been some slight changes in the design and installation procedure that they were finalizing this week. I'm not sure if you've seen any of the third party reports from SEMA, but some of them showed off our show Bronco there which has these arms as well as prototypes of some of our other upcoming items. The production version of these arms is actually a bit updated from the early prototype that's on my 2-door, that you see in these photos. We'll go over all the info when we do the product release on them.

As for other products in the pipeline, we're also working on a tubular version, which will come in at an easier price point than these machined billet arms, along with both billet and tubular versions of our front upper control arm utilizing our patented Delta Joint. All of these items will eventually be part of complete suspension kits including our coilovers in several "stage" levels. We're also working on some more affordable, entry-level components including the Level-Lift spacer kit I'm running on mine, which will be released very soon. On top of all that we also have bumpers and armor in development.

I wish I could give you more specific dates or details on our Bronco roadmap, but I can't at this time.
Sponsored






Top
