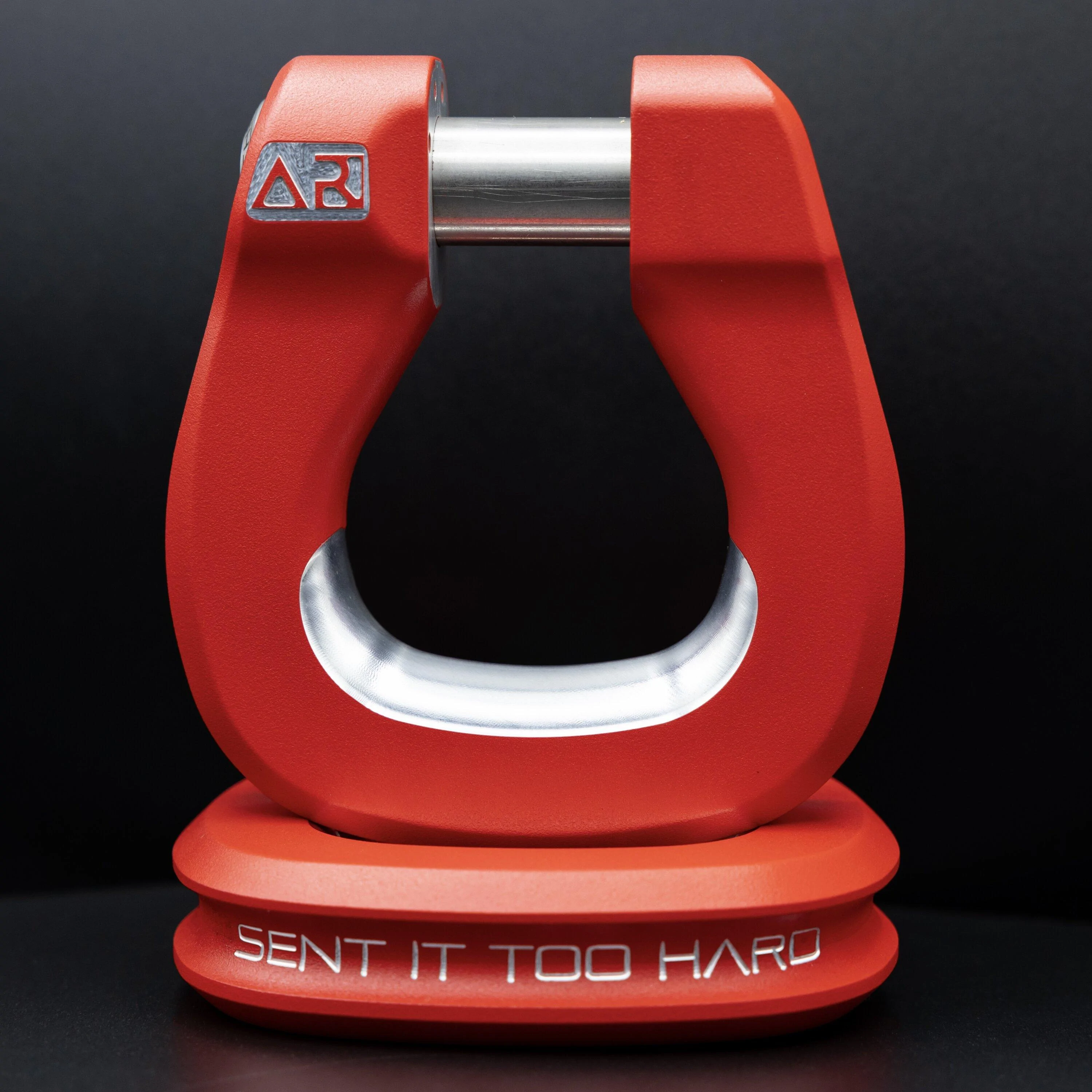

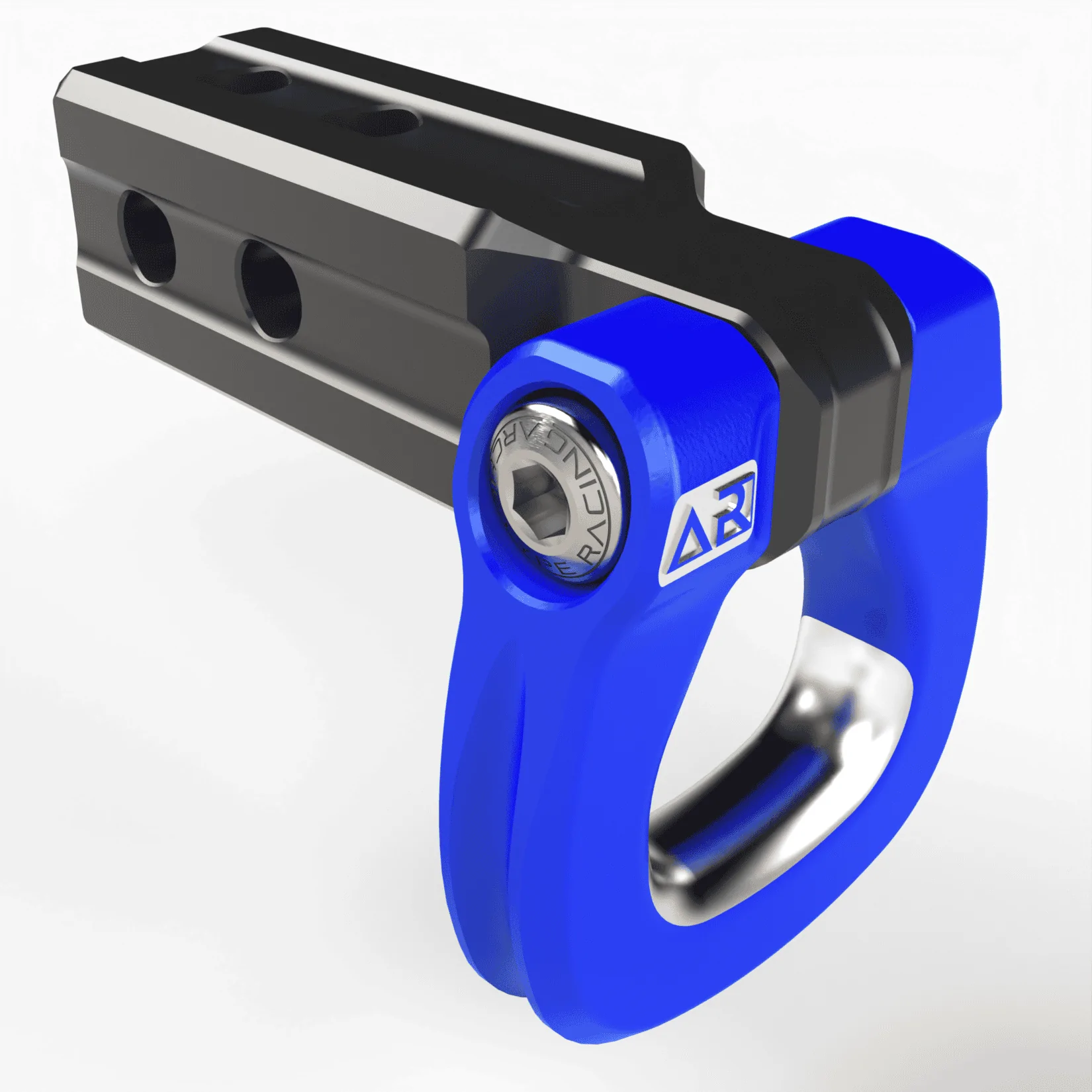

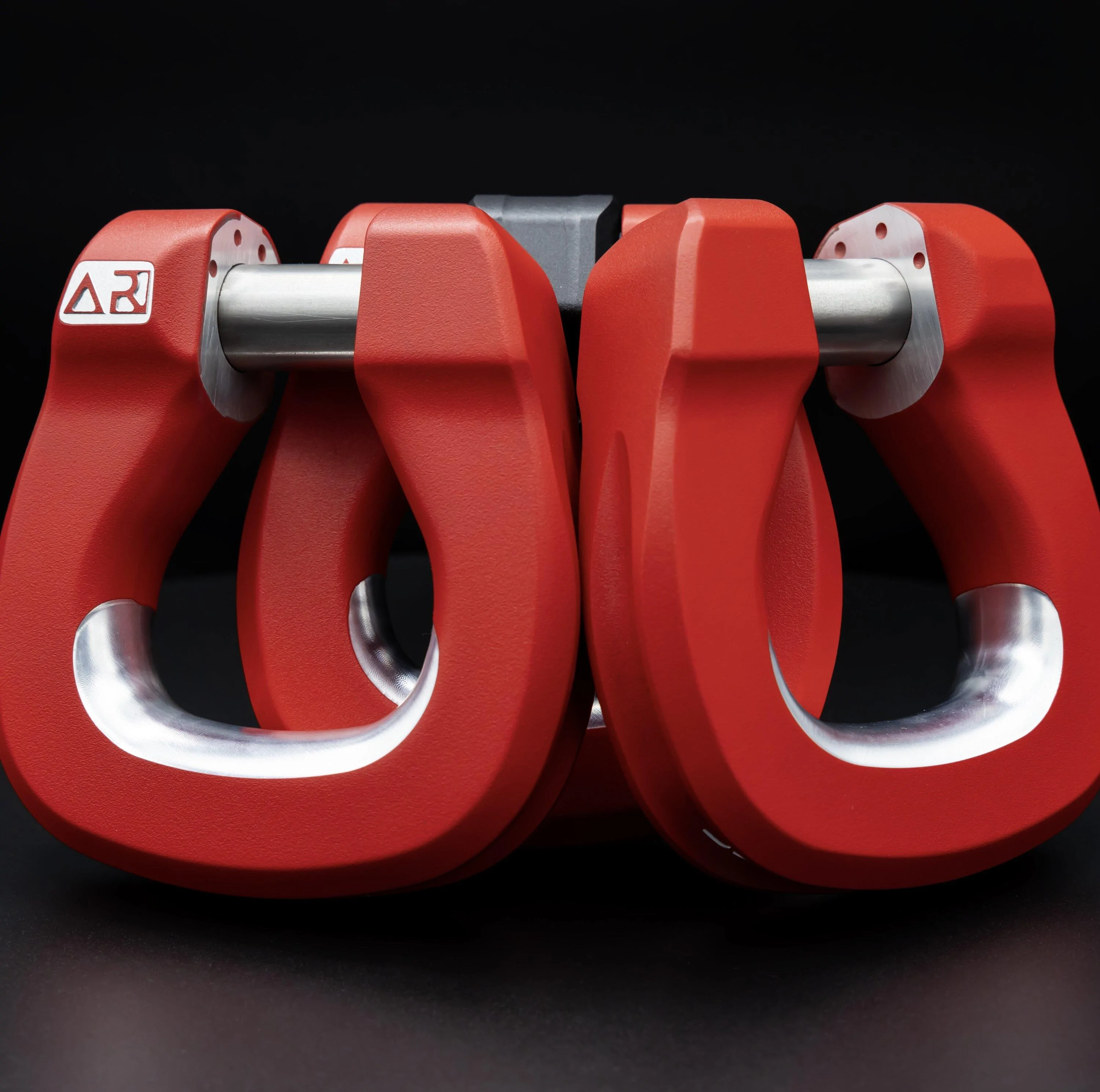

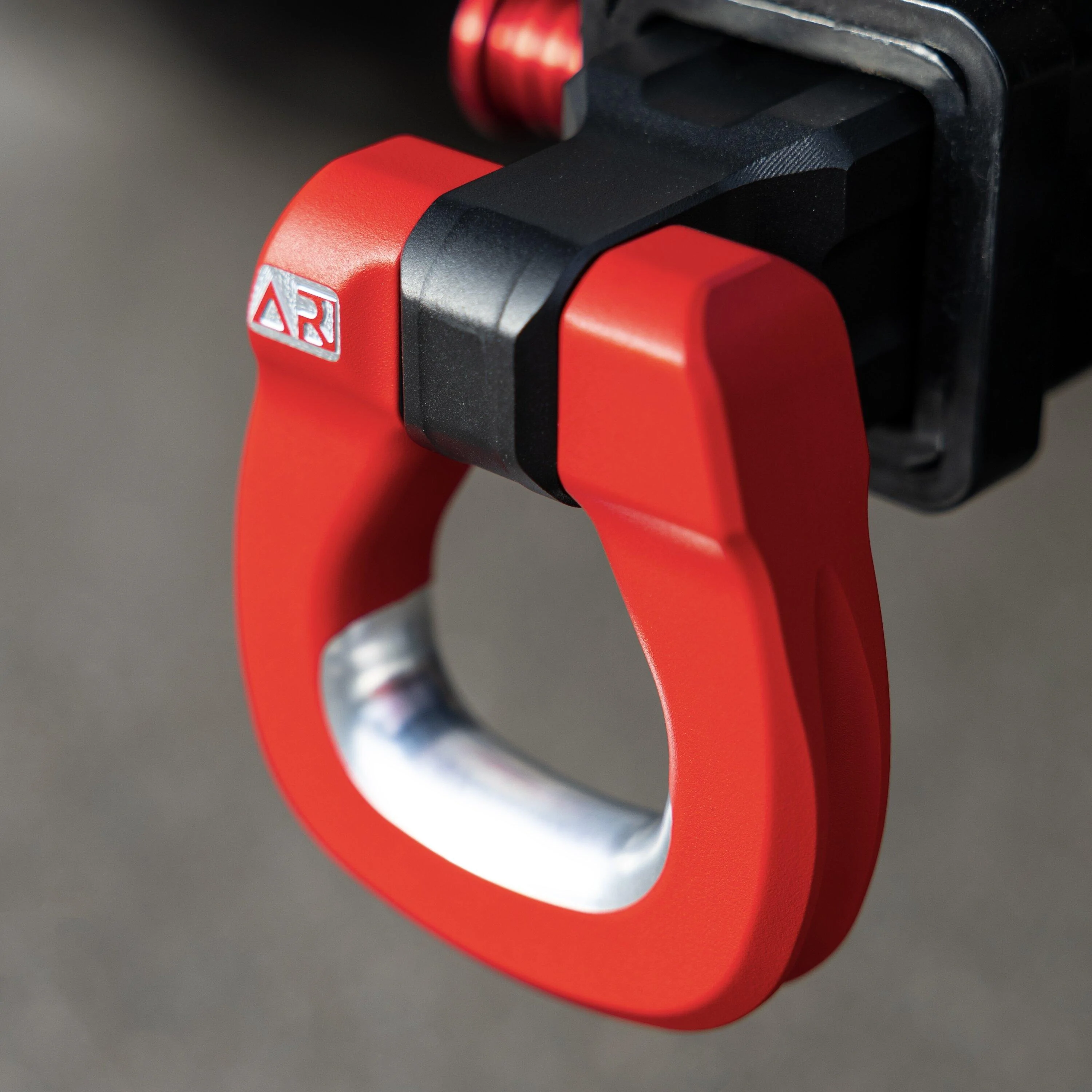

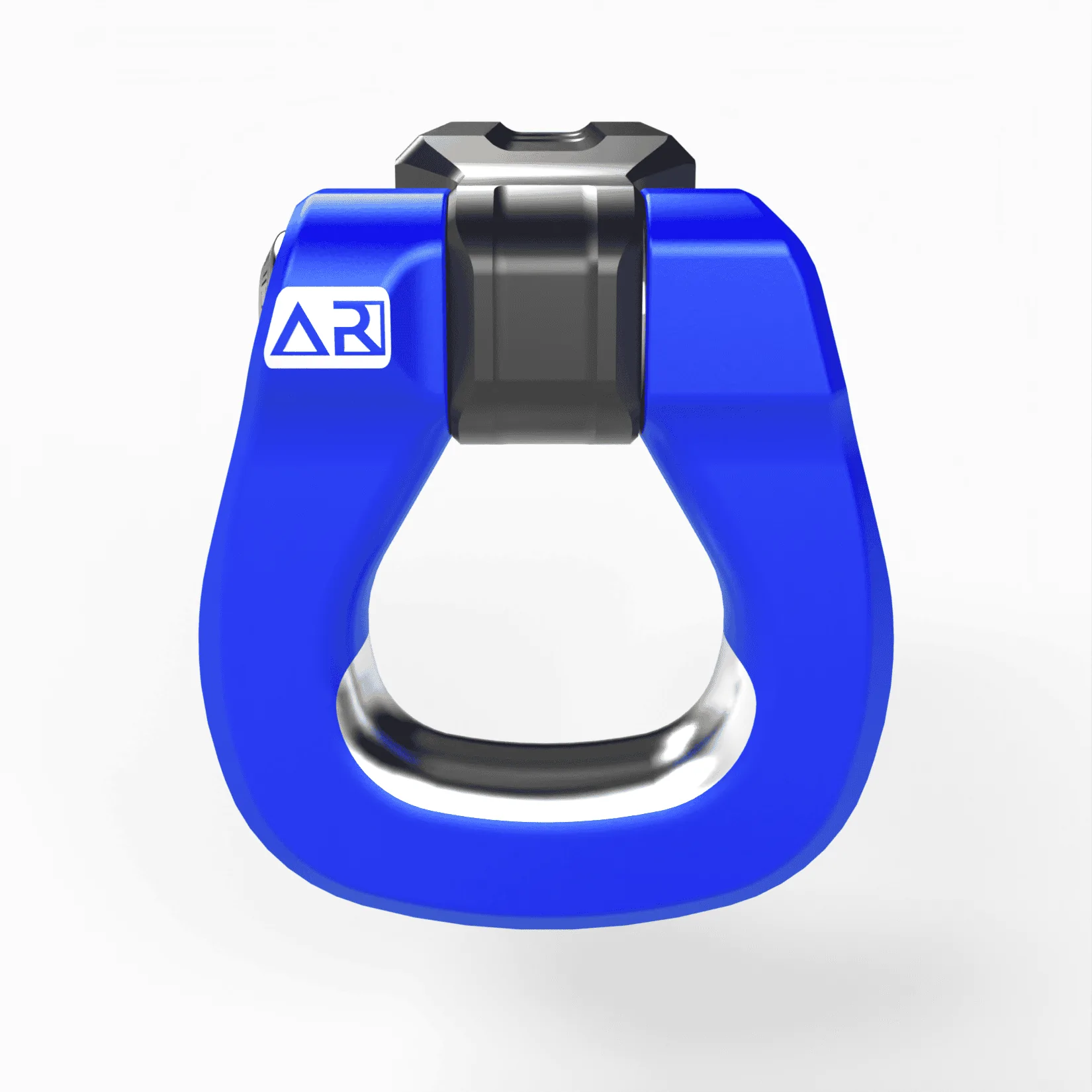

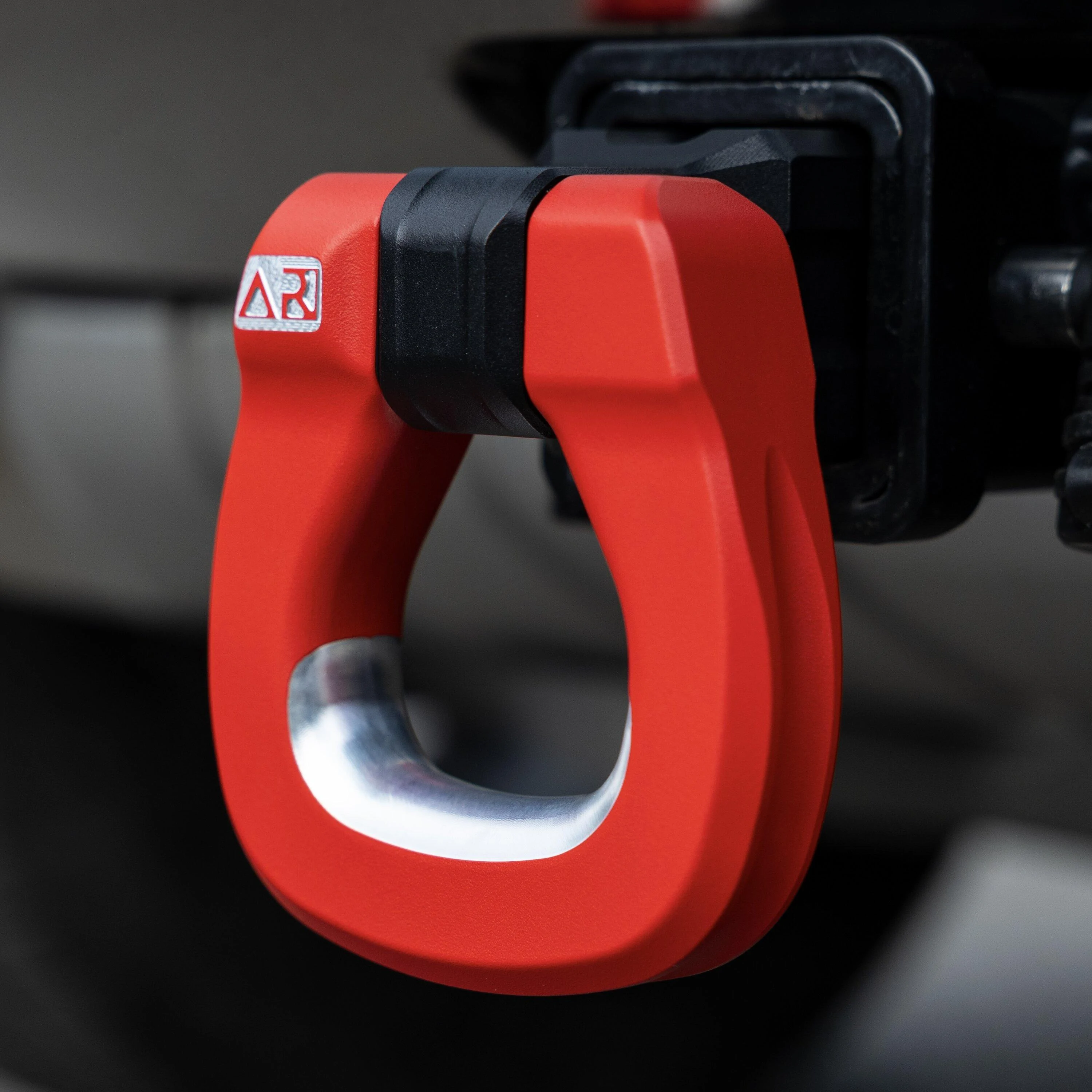

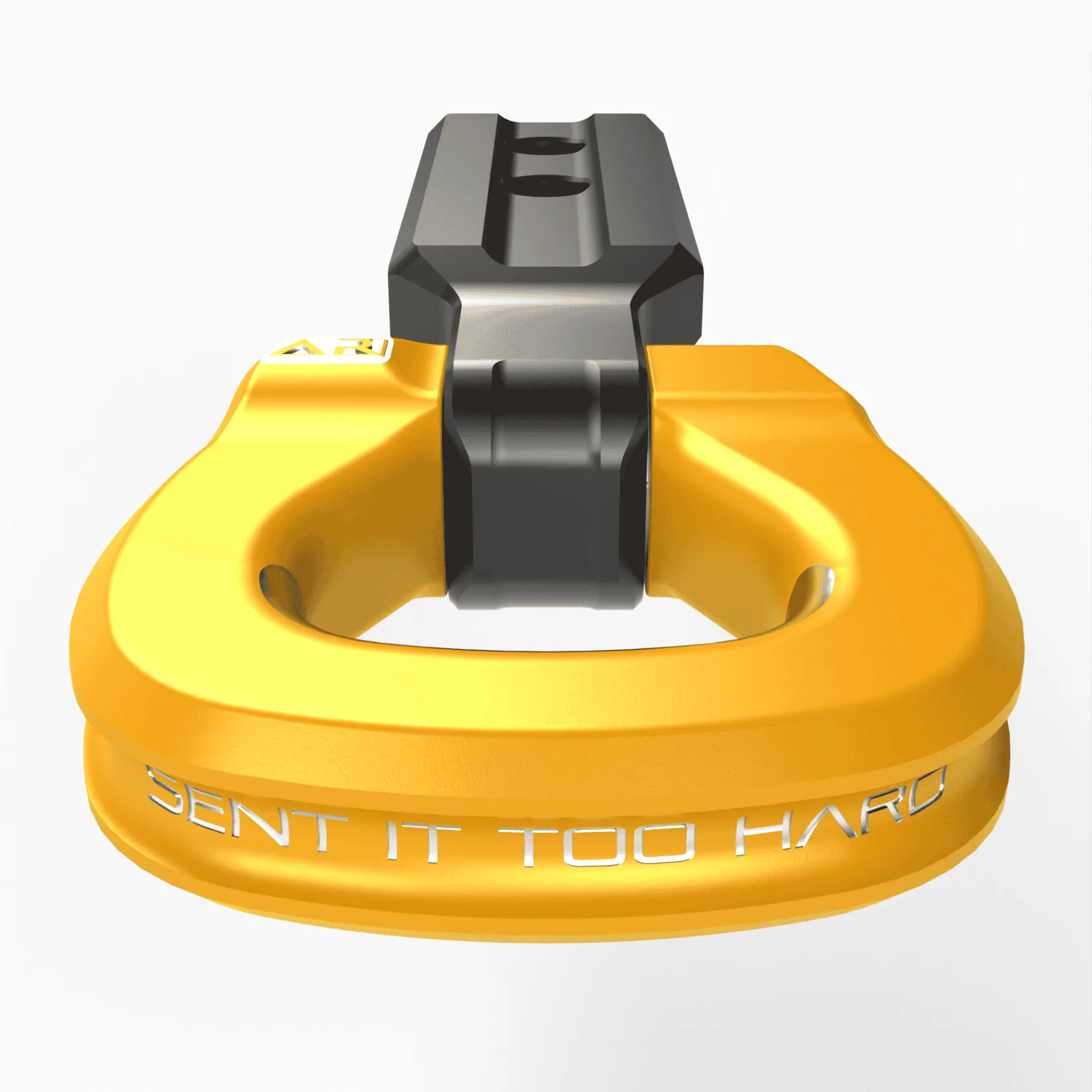

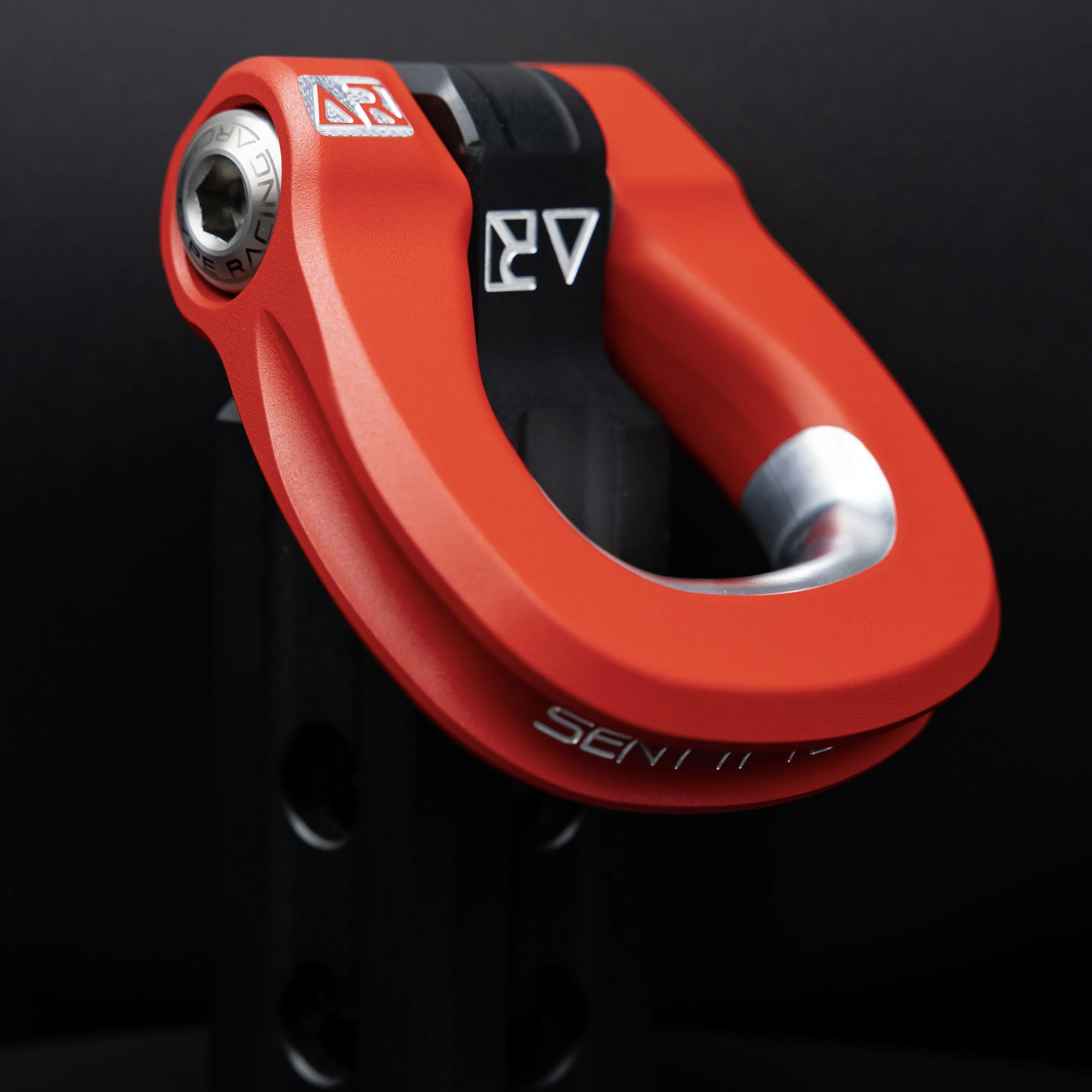

These designs have been completed for a while. We're just now making chips. We went back in and redesigned the OEM frame mounted recovery points and smaller SITH shackle pair for the front. Smaller to better suit the eyes of some. Just like the OG SITH, these are handed shackles. The OG SITH are also more of a statement piece with a classy presence to them. We toned that down on the SBD version. The bolt is still chunky 3/4" 316 Stainless. The overall clean and OEM+ look is intact.

Where it gets spicy is the integration between our 7075 billet mount point and SITH SBD Shackles. The tolerance is money, since they're both machined parts. Both 7075 billet machined parts, might I add. This allows us to integrate the spring loaded detent feature of our SITH-R. Those of you that have one, know what I'm talking about. The shackle doesn't swing. The spring detent holds it in place.

Once they're machined, the next step is off to powdercoat. This first set will be powdercoated in a 'Code Orange' powdercoat. If there's a local to us Raptor out there that wants to get in on an opportunity to get these installed on their BRAPTOR in exchange for some photos, you know where to find me.

Sponsored



[Grumpy]

Curtis you have these in blue like I have now?



[WarthogJr]

Working load limit?



[EIGHTLUG]

Curtis you have these in blue like I have now?

If you give me the Prismatic code for the blue, I can make it happen.



[MrGreen55]

These designs have been completed for a while. We're just now making chips. We went back in and redesigned the OEM frame mounted recovery points and smaller SITH shackle pair for the front. Smaller to better suit the eyes of some. Just like the OG SITH, these are handed shackles. The OG SITH are also more of a statement piece with a classy presence to them. We toned that down on the SBD version. The bolt is still chunky 3/4" 316 Stainless. The overall clean and OEM+ look is intact.

Where it gets spicy is the integration between our 7075 billet mount point and SITH SBD Shackles. The tolerance is money, since they're both machined parts. Both 7075 billet machined parts, might I add. This allows us to integrate the spring loaded detent feature of our SITH-R. Those of you that have one, know what I'm talking about. The shackle doesn't swing. The spring detent holds it in place.

Once they're machined, the next step is off to powdercoat. This first set will be powdercoated in a 'Code Orange' powdercoat. If there's a local to us Raptor out there that wants to get in on an opportunity to get these installed on their BRAPTOR in exchange for some photos, you know where to find me.
View attachment 498379




View attachment 498380

View attachment 498381

Hey any chance we can see a side by side old vs new?



[EIGHTLUG]

Working load limit?

Our FEA provided data of 9,800 lbs WLL. I’d still want to get live empirical data around fatigue and failure thresholds.

Hey any chance we can see a side by side old vs new?

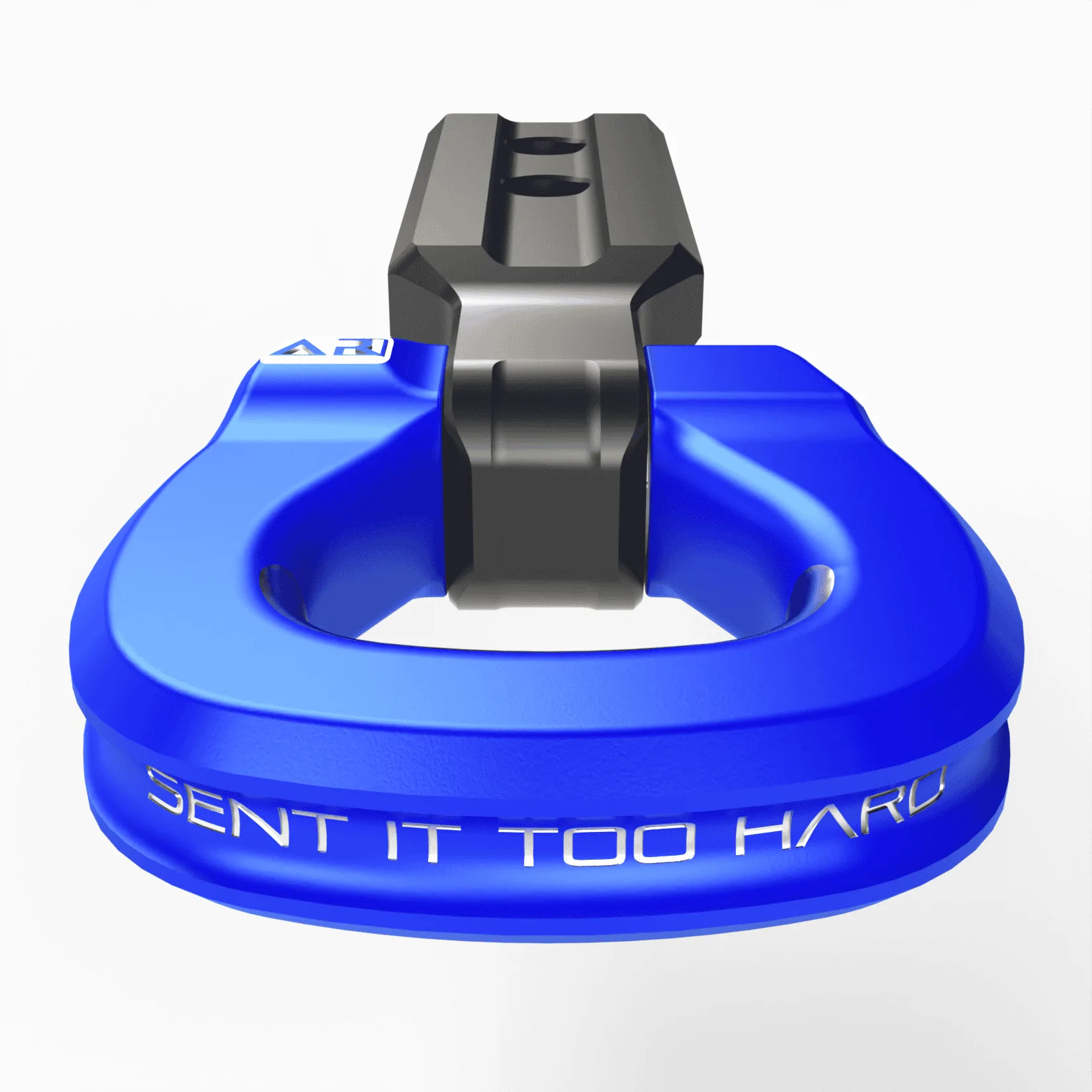

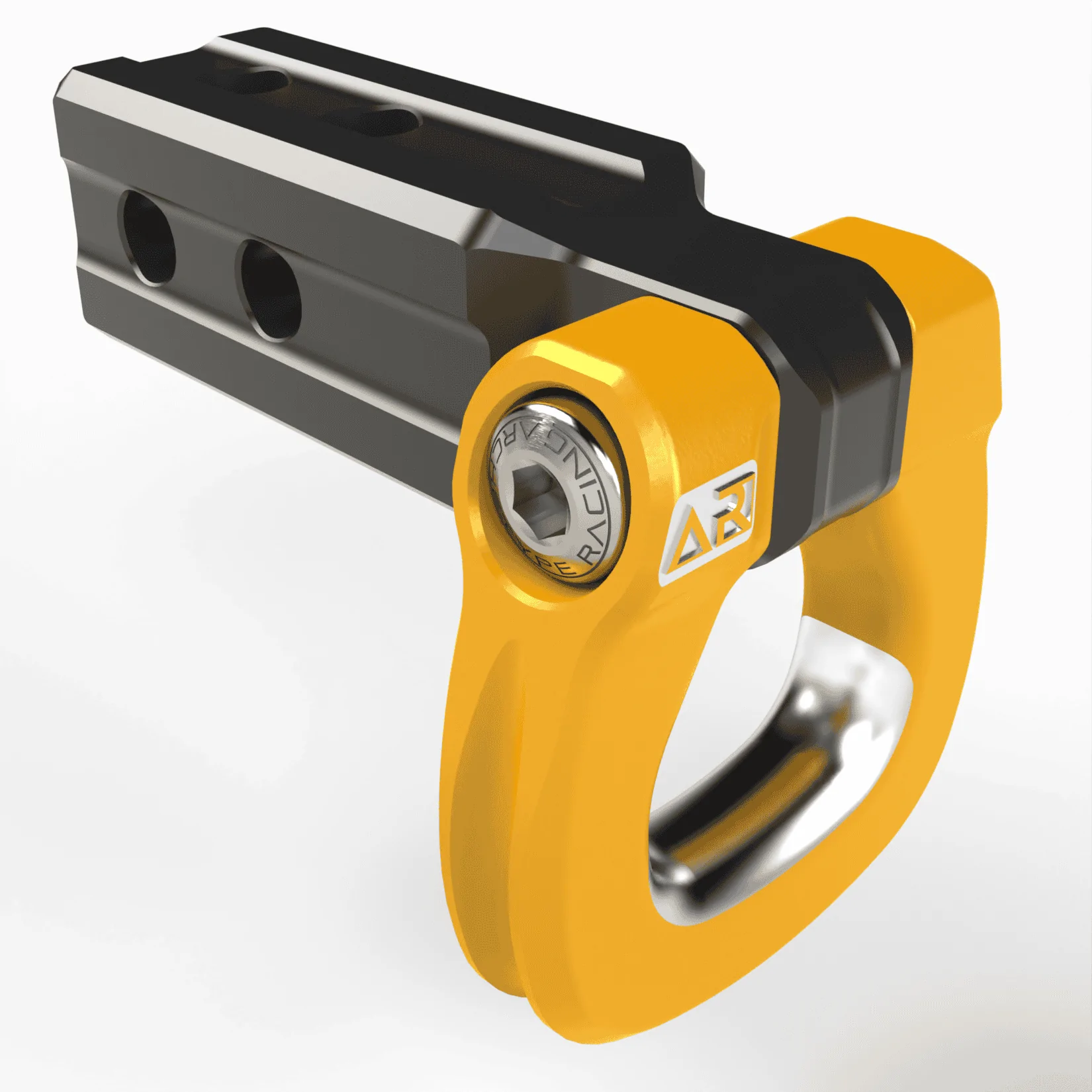

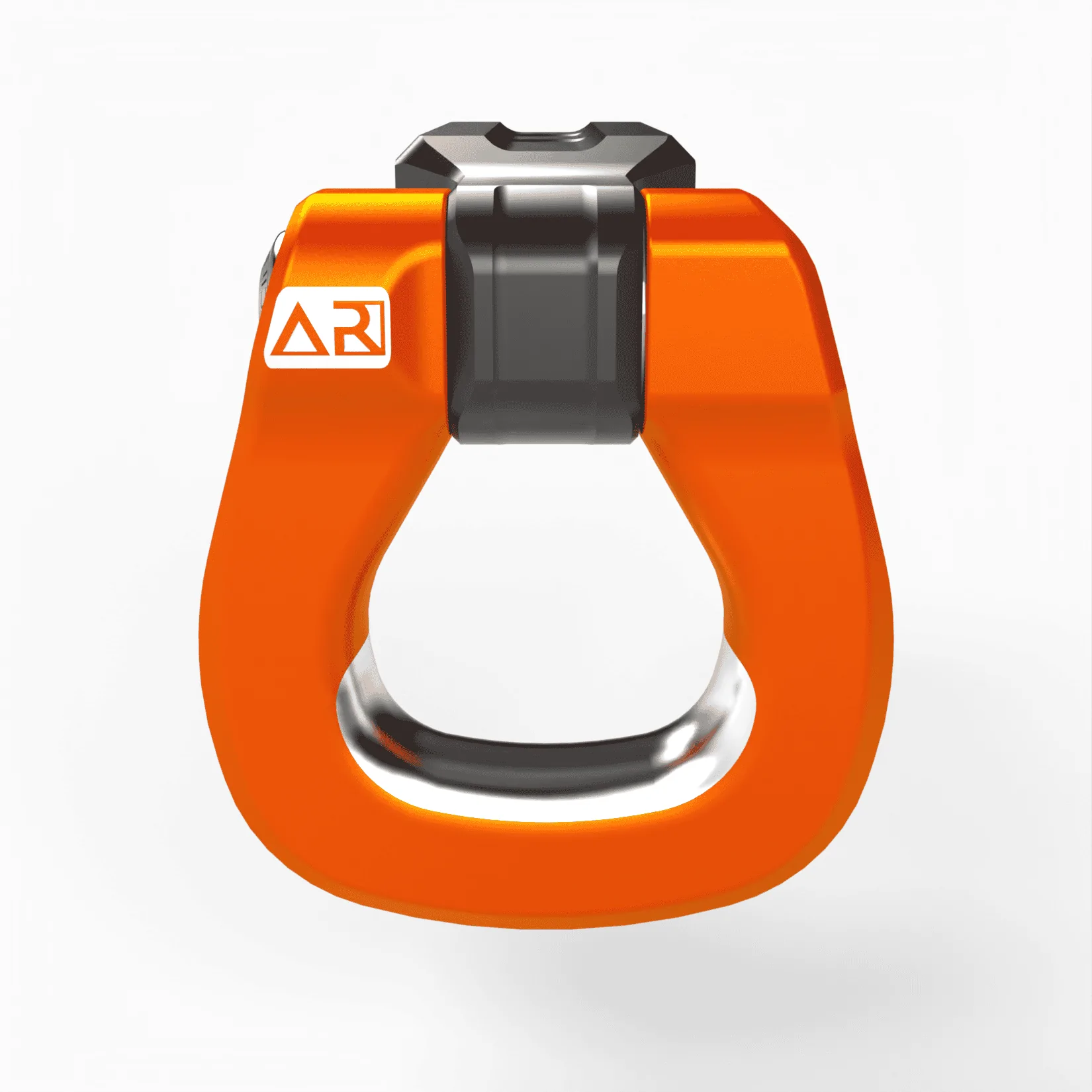

Good call. I meant to have this is Post 1, but couldn’t locate the render. Here it is. I’ll also add it to the main post.
