4DR Overland drawer & sleeping platform DIY build

campbebc

Outer Banks
Well-Known Member
First Name
Ben
Joined
Jan 24, 2021
Threads
8
Messages
460
Reaction score
652
Location
Boulder, CO
Vehicle(s)
2017 Ford Focus RS
Your Bronco Model
Outer Banks
I got inspired to build a drawer setup that could be extended to form a sleeping platform for any trips that we don't want to setup the old fashioned tent. I watched lots of YouTube videos and took lots of inspiration from this thread, thanks @Jabberwock. The main goals were as follows:
  1. Sleeping platform that could fit two people (my wife and I, I'm 5'11") and be installed in a few minutes over top of the rear seats
  2. Sleeping platform that could be carried in the trunk so that all seats could be utilized
  3. Two drawers, one wide enough to fit our Coleman 2-burner stove, and tall enough to fit some of our standard gear (propane, cooking bowls, etc)
  4. Securable to the factory trunk tie-down points
  5. Look OEM-esque
  6. Not rattle

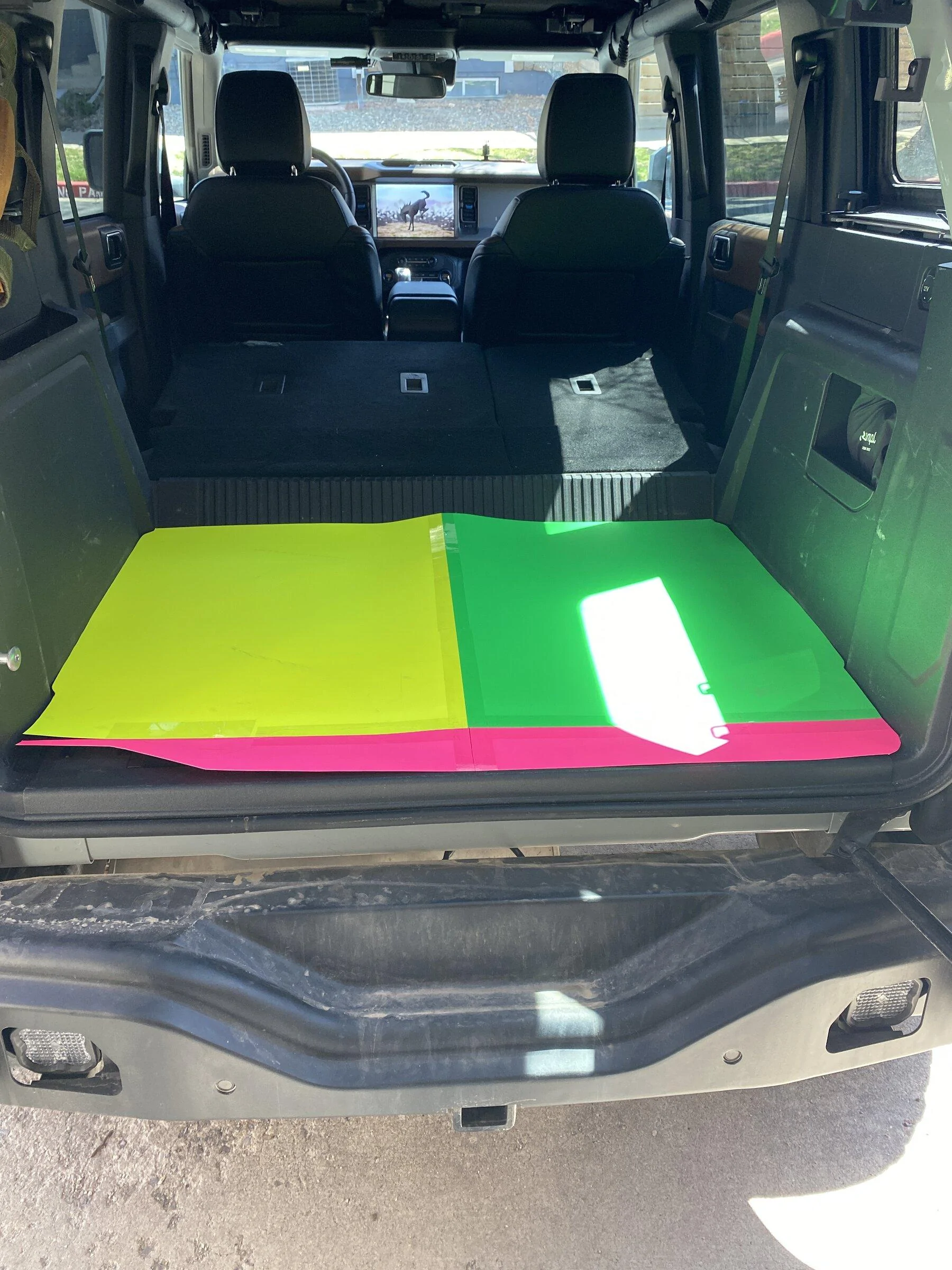

This was my first ever real project working with wood so I had to buy a decent number of new hand tools, drill bits, etc and learn some new skills. Sticking with the "measure three times, cut once" principle, I'm proud of the result and it has met all of our needs. Pictures below are of the finished product:

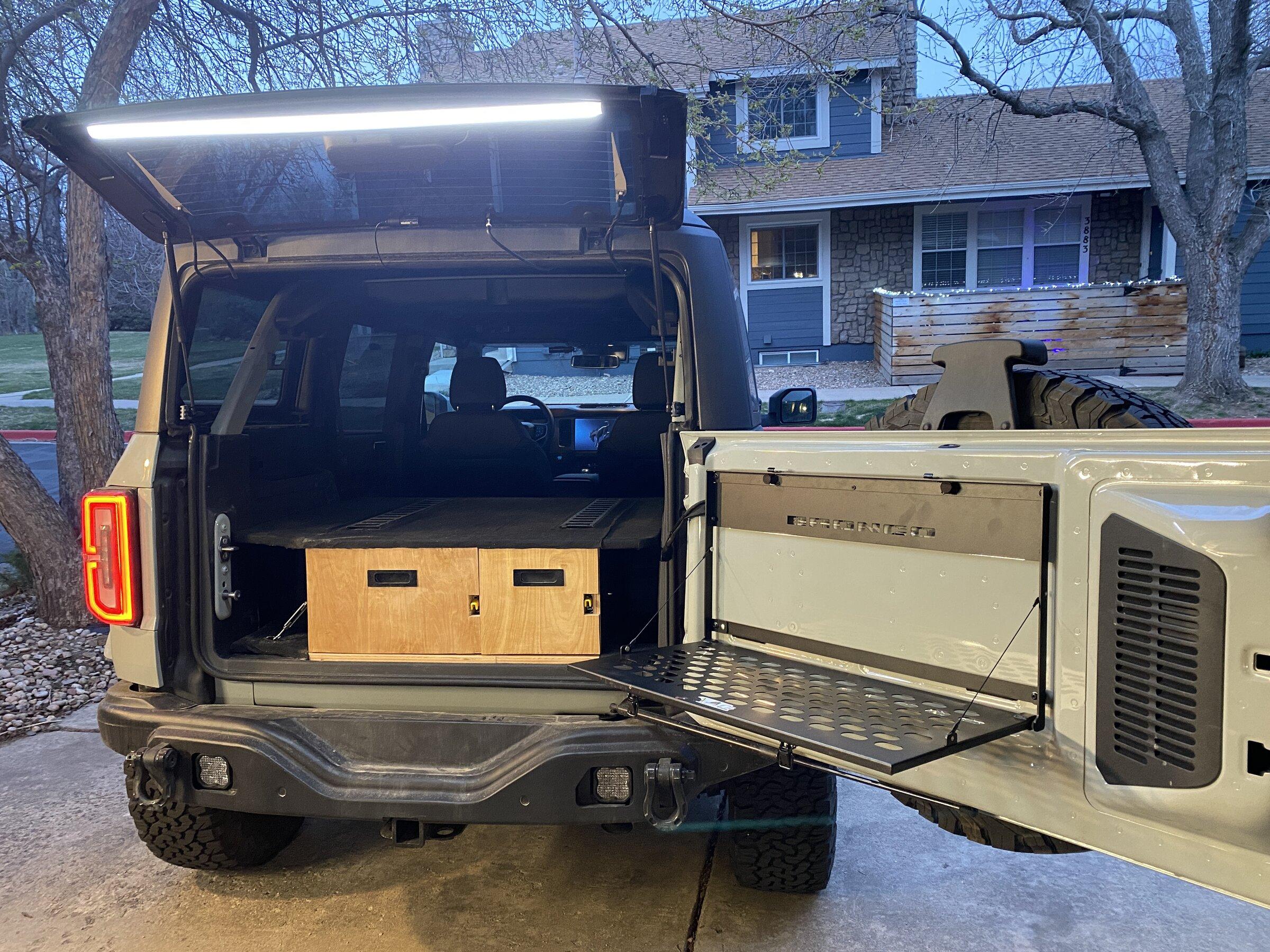

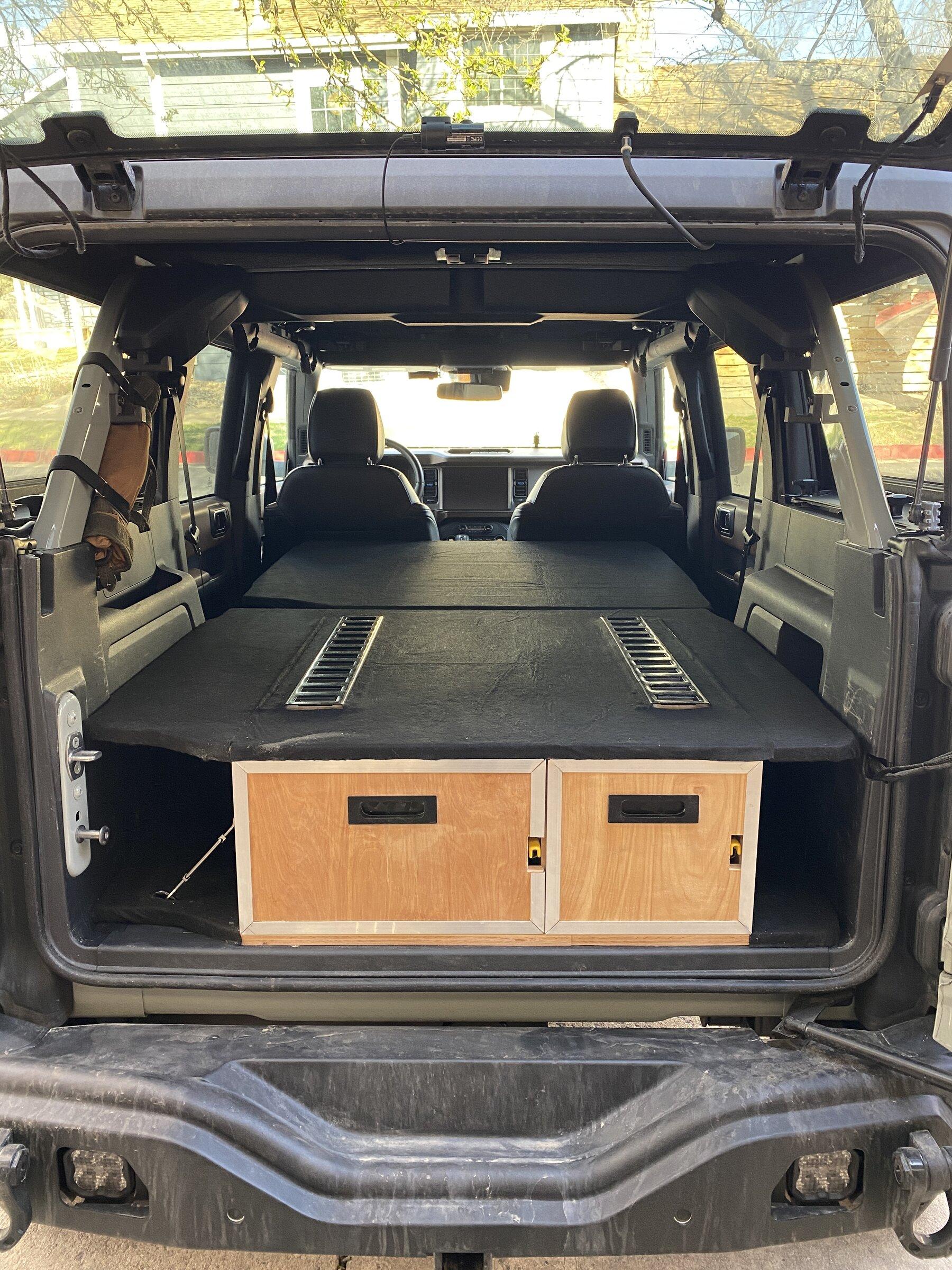

Ford Bronco 4DR Overland drawer & sleeping platform DIY build 0C69585E-4DB4-4F09-ADB4-0D315D59B480

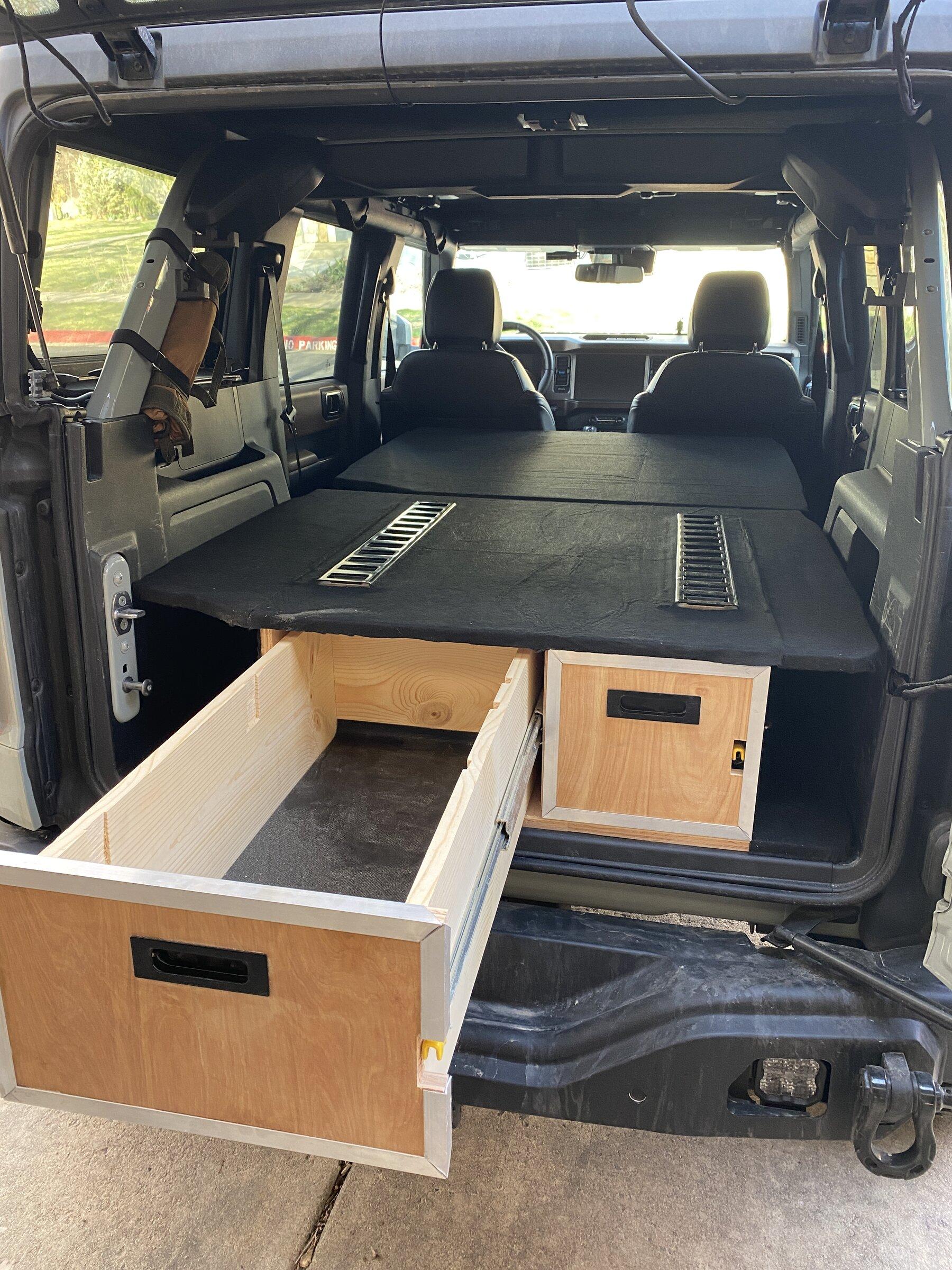

Ford Bronco 4DR Overland drawer & sleeping platform DIY build 99BF8A8F-F636-4E5A-B2E4-35B956C7B5DD

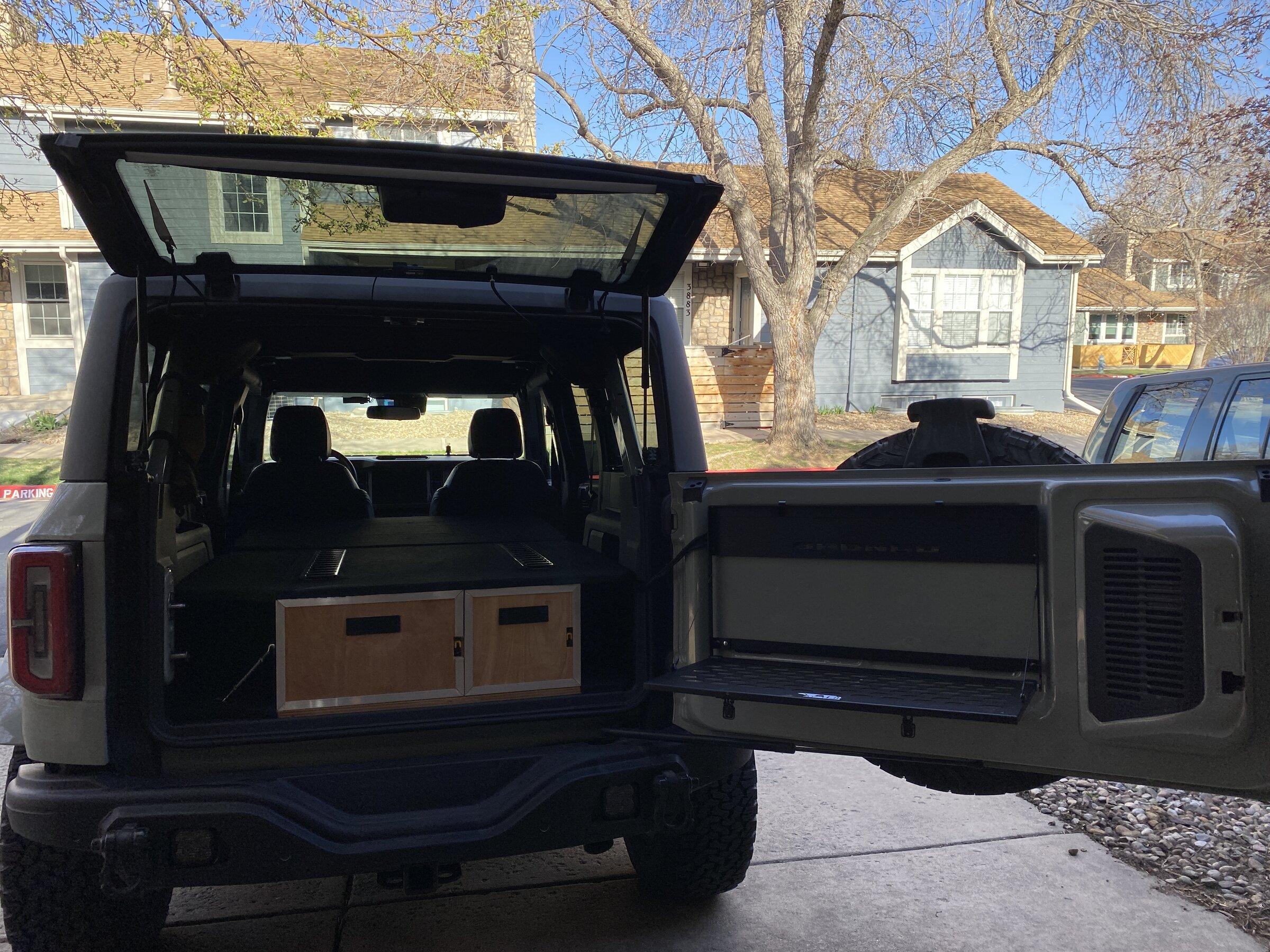

Ford Bronco 4DR Overland drawer & sleeping platform DIY build B0241D8A-BB11-4DC5-B9C5-CC9C445774CA

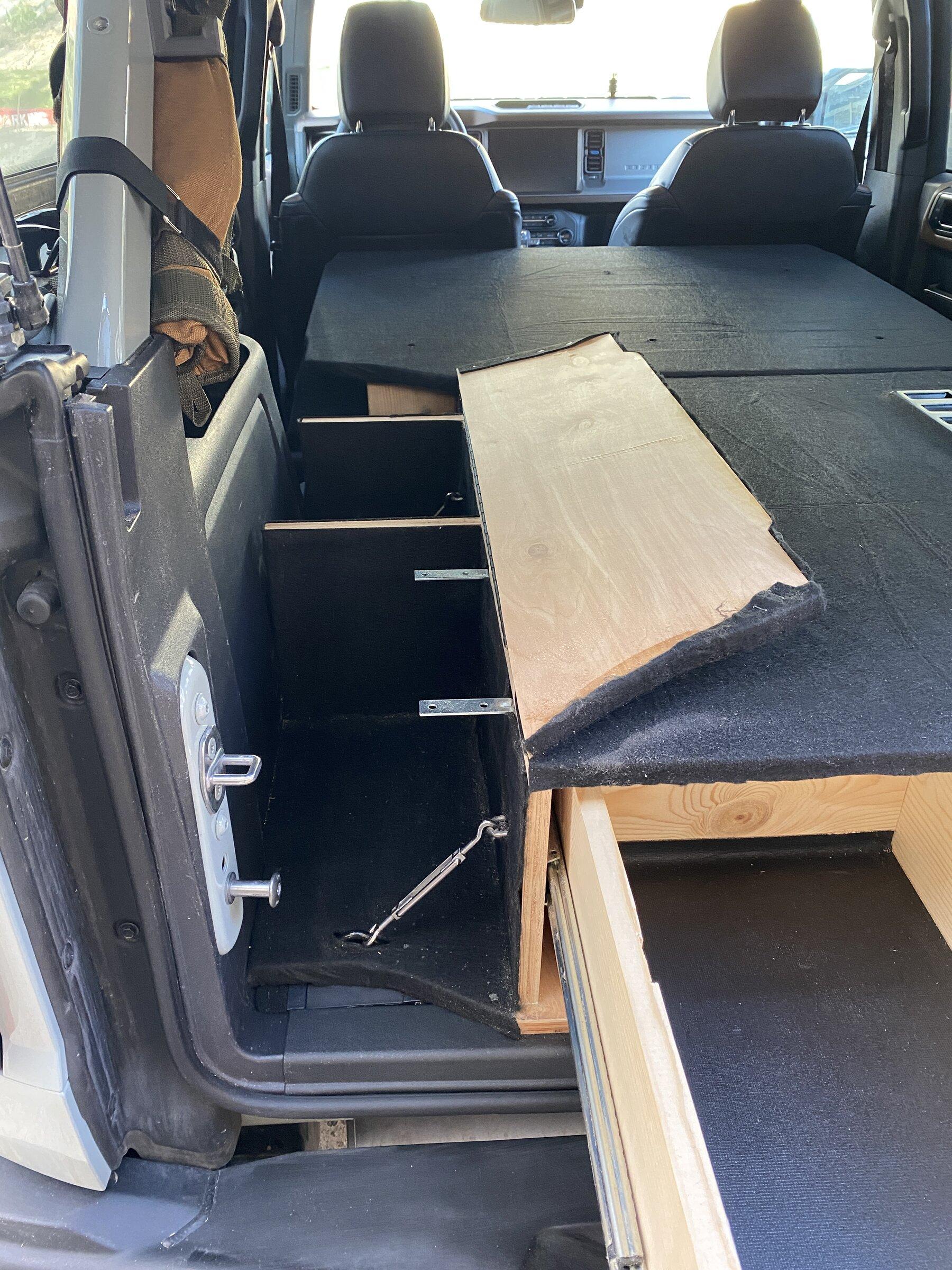

Ford Bronco 4DR Overland drawer & sleeping platform DIY build 0269CA37-57ED-4669-909B-5E3128865ADB

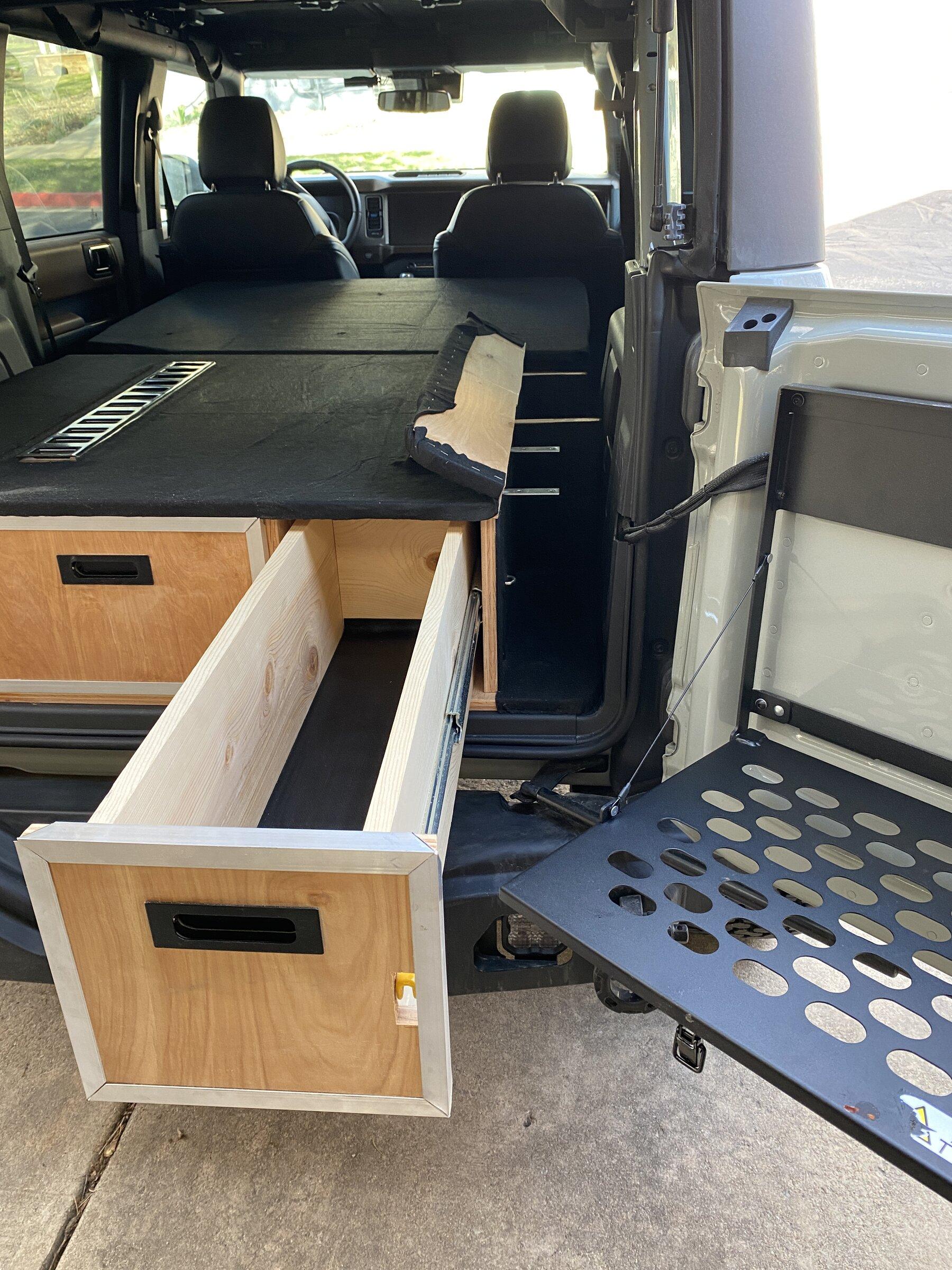

Ford Bronco 4DR Overland drawer & sleeping platform DIY build 55BA1ABF-D617-46FB-AA54-6DDAAF34D5BC

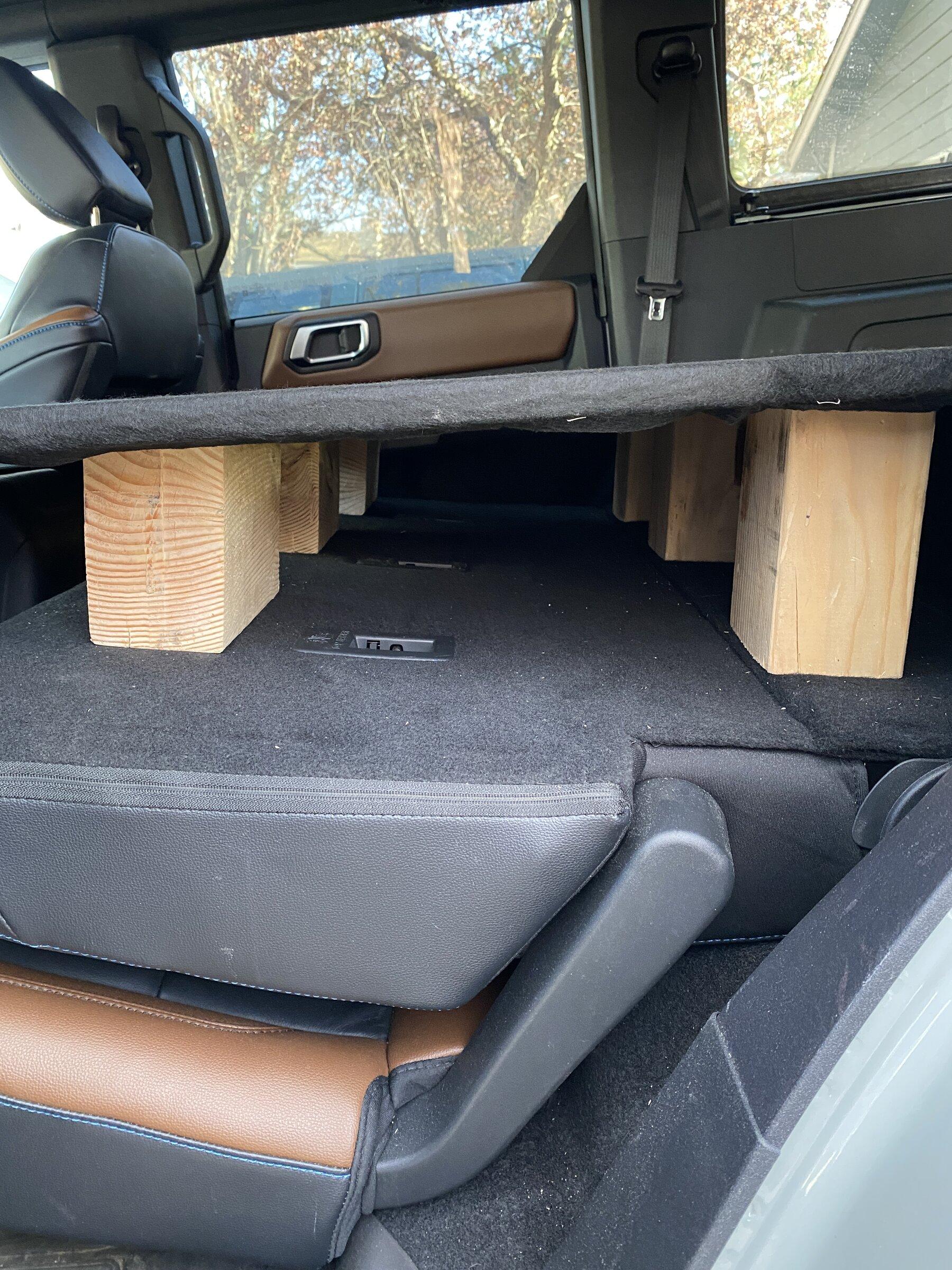

Ford Bronco 4DR Overland drawer & sleeping platform DIY build 7D50F46C-2699-47B3-B130-975F8C111AA4

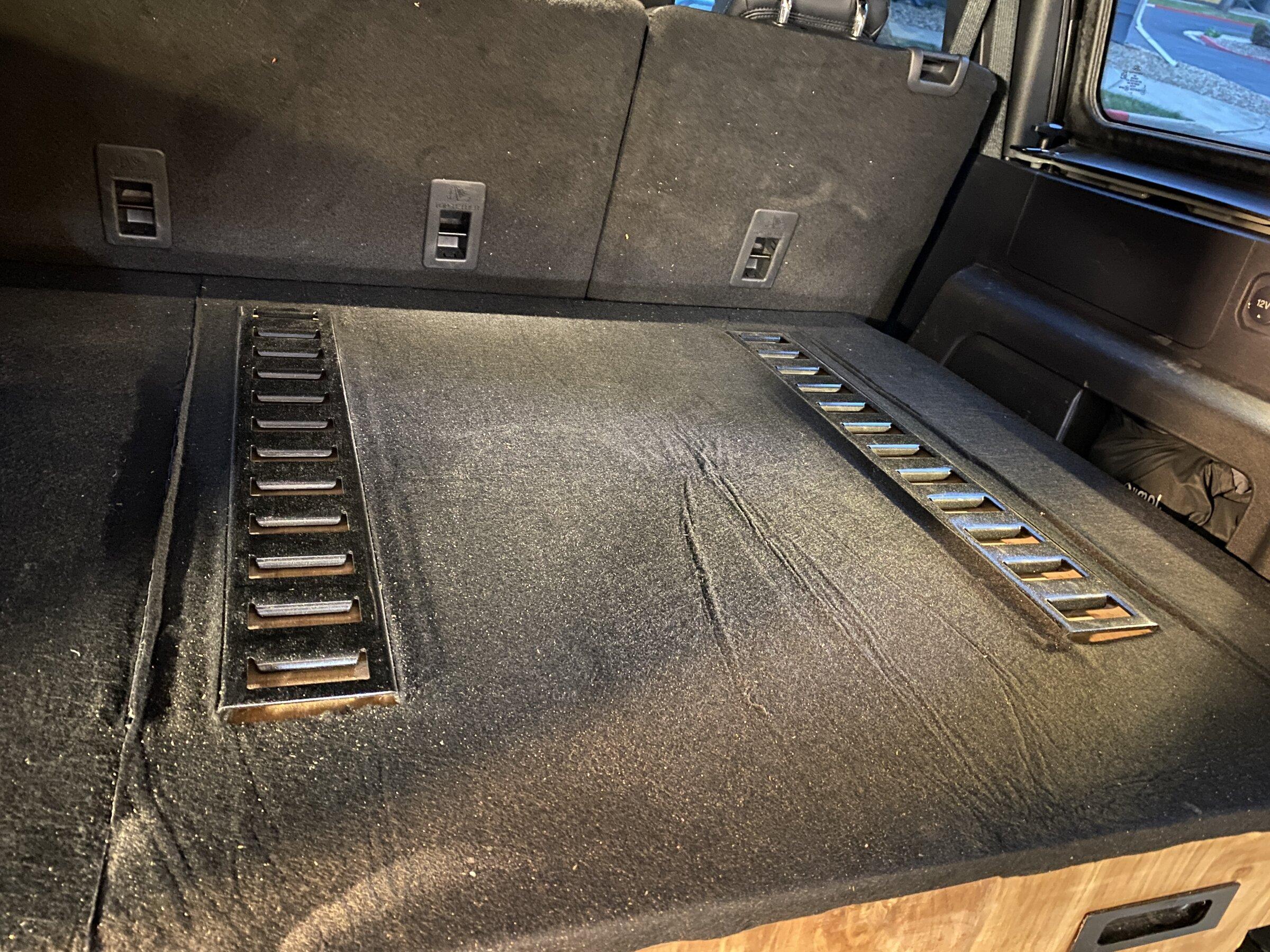

Ford Bronco 4DR Overland drawer & sleeping platform DIY build 153F0270-2714-41BE-A825-E594C9819798

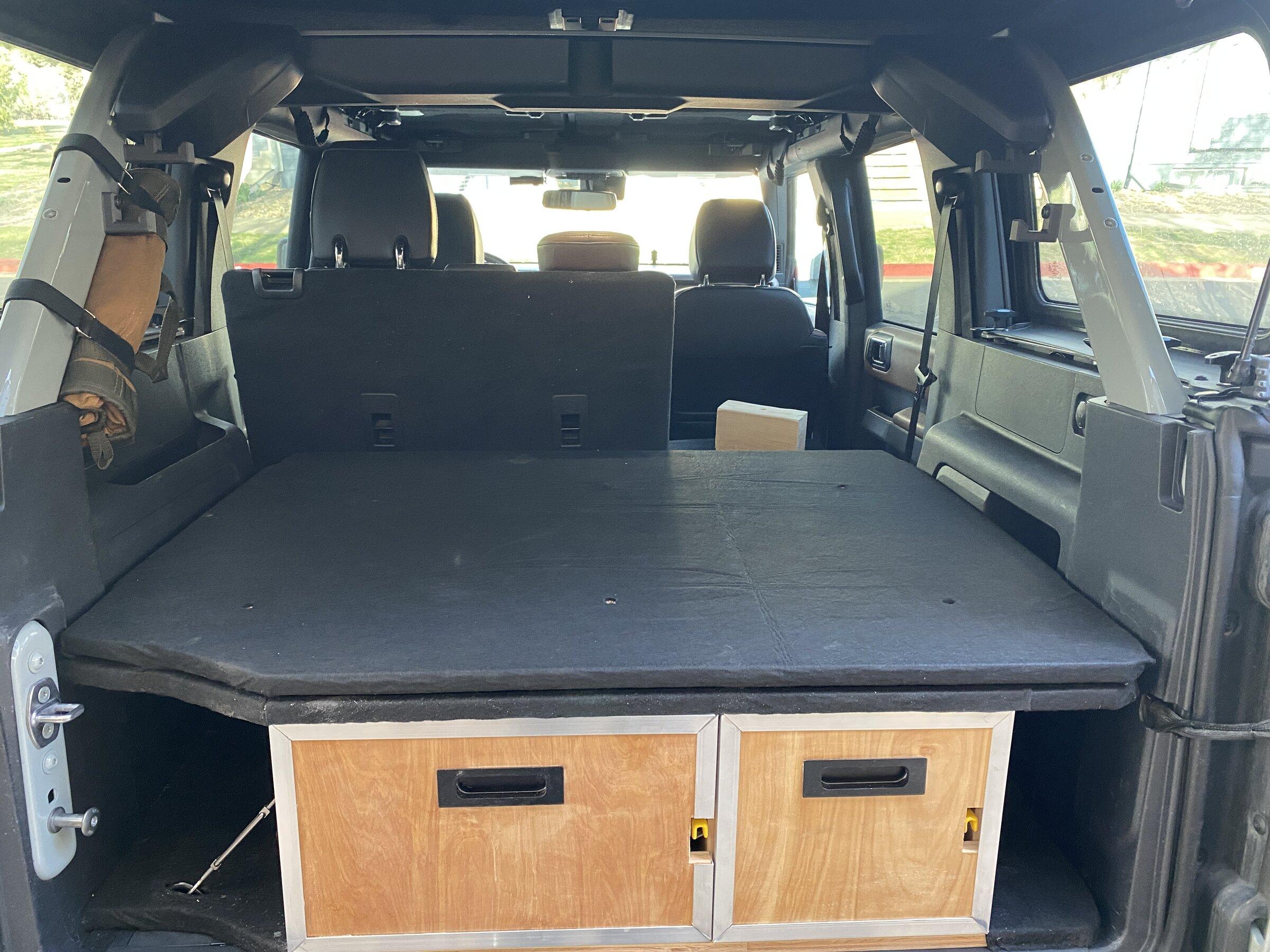

Ford Bronco 4DR Overland drawer & sleeping platform DIY build 33126125-84B1-4BE9-AC92-65F14BBE0CD0


Key Details:

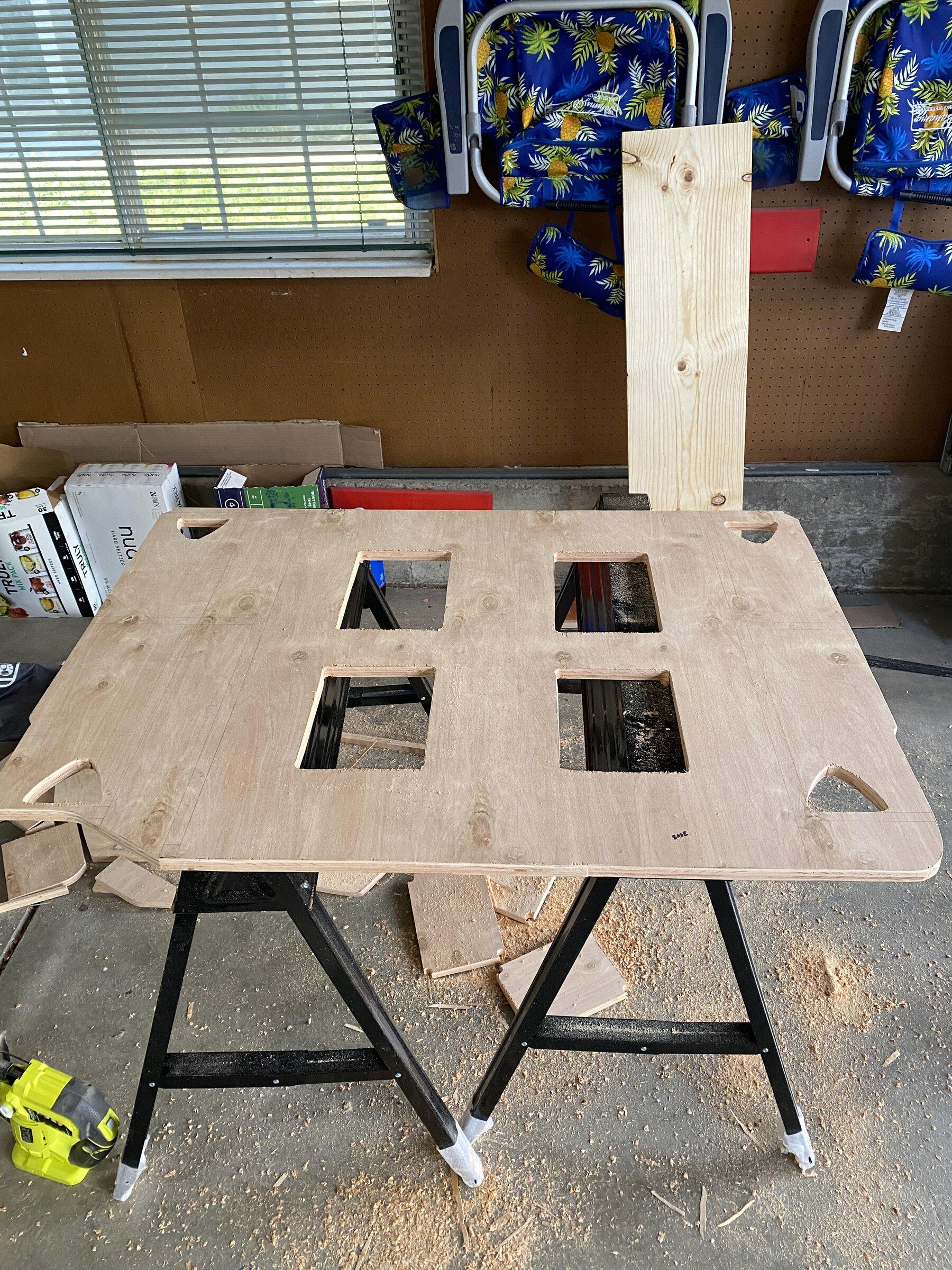

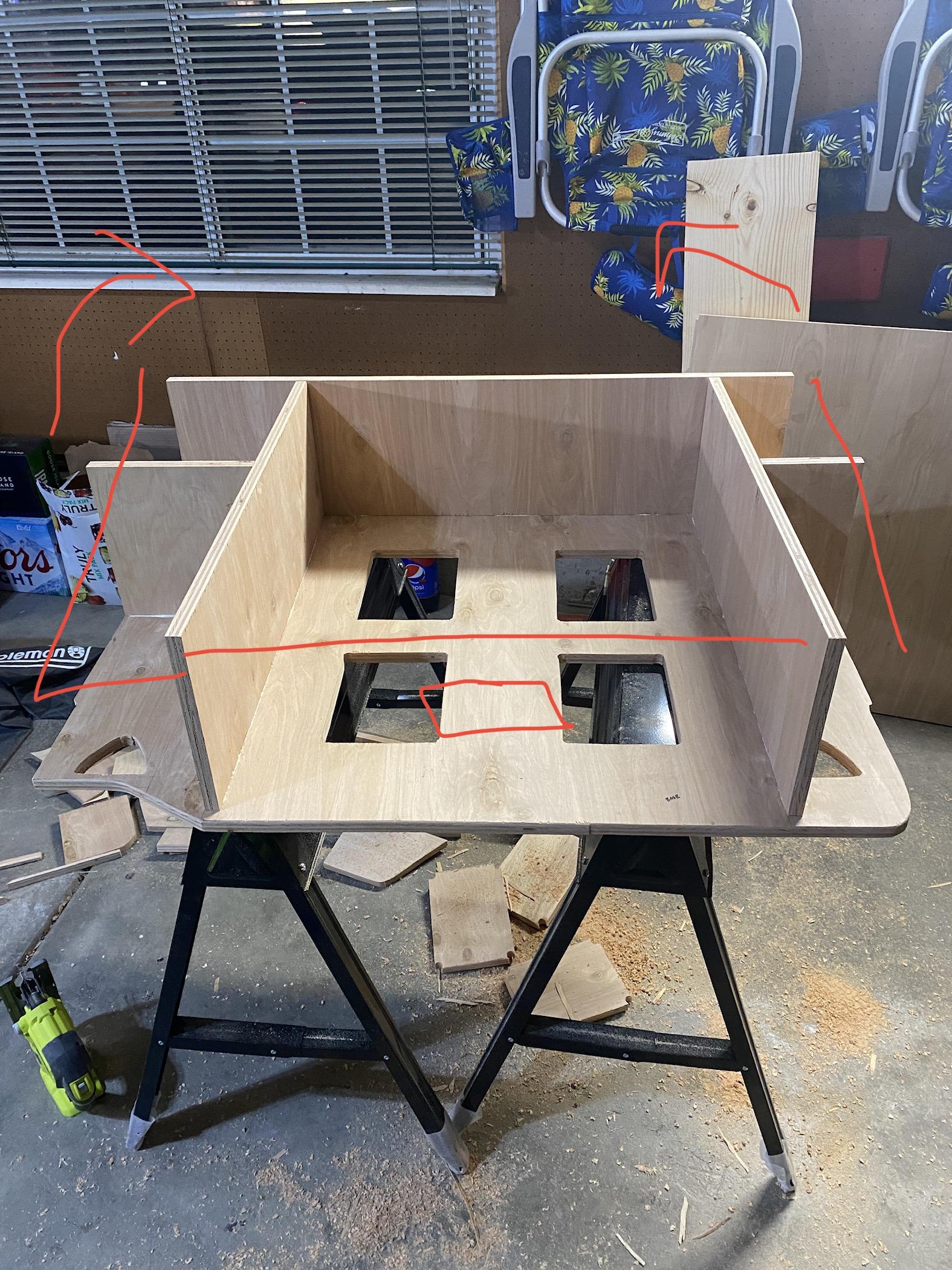

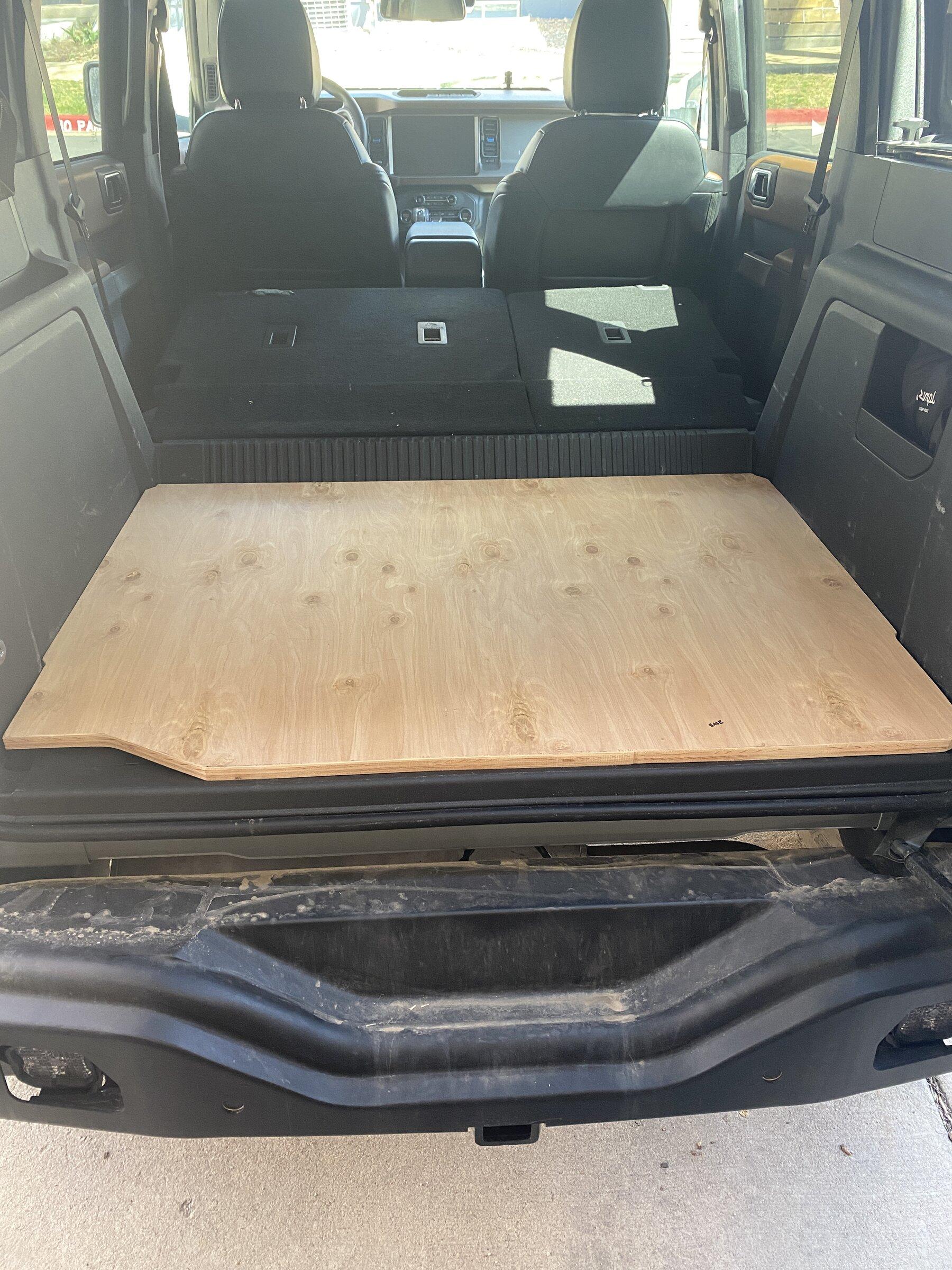

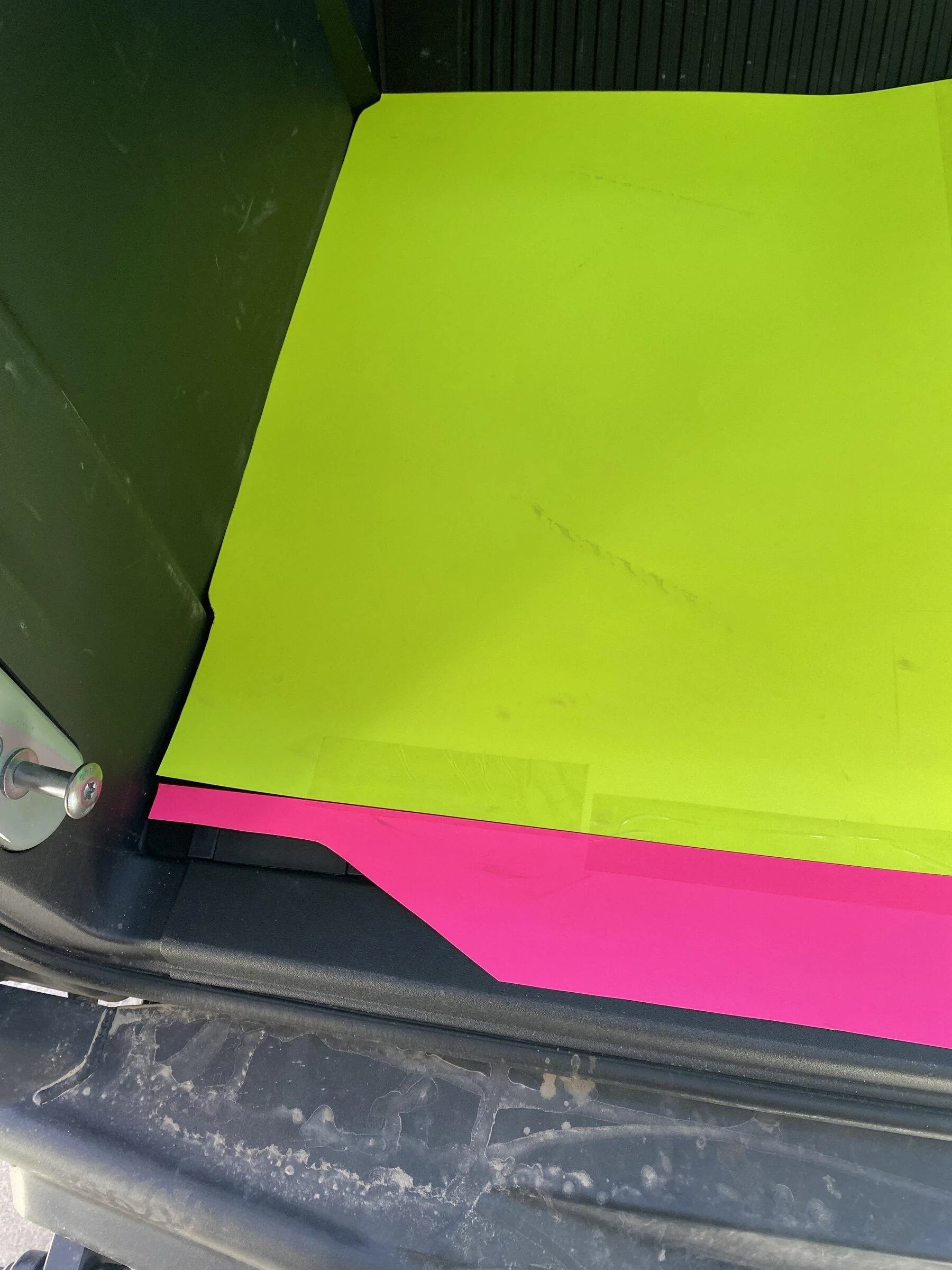

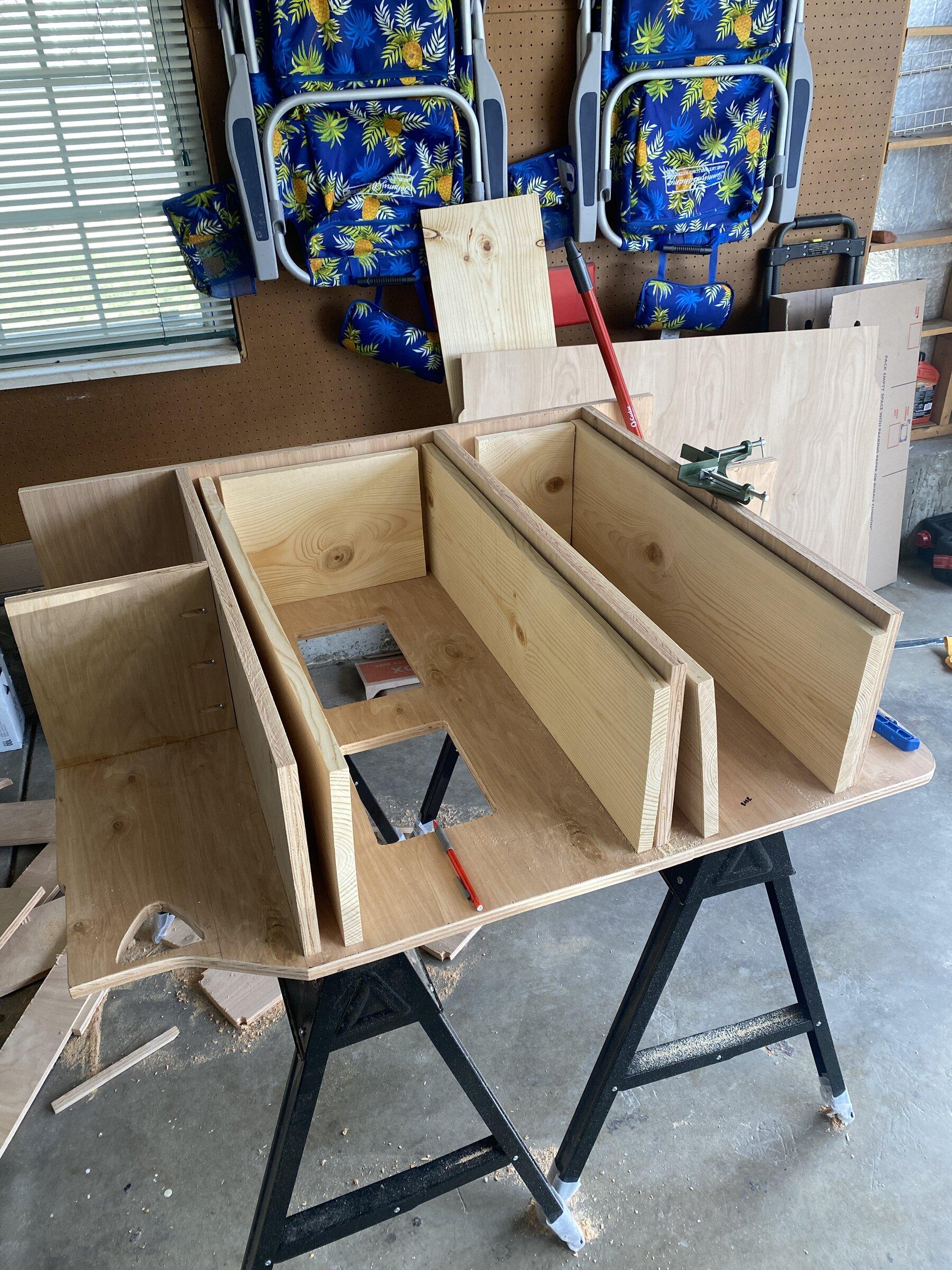

  1. Entire drawer/platform is from 3/4" finished/treated Birch plywood

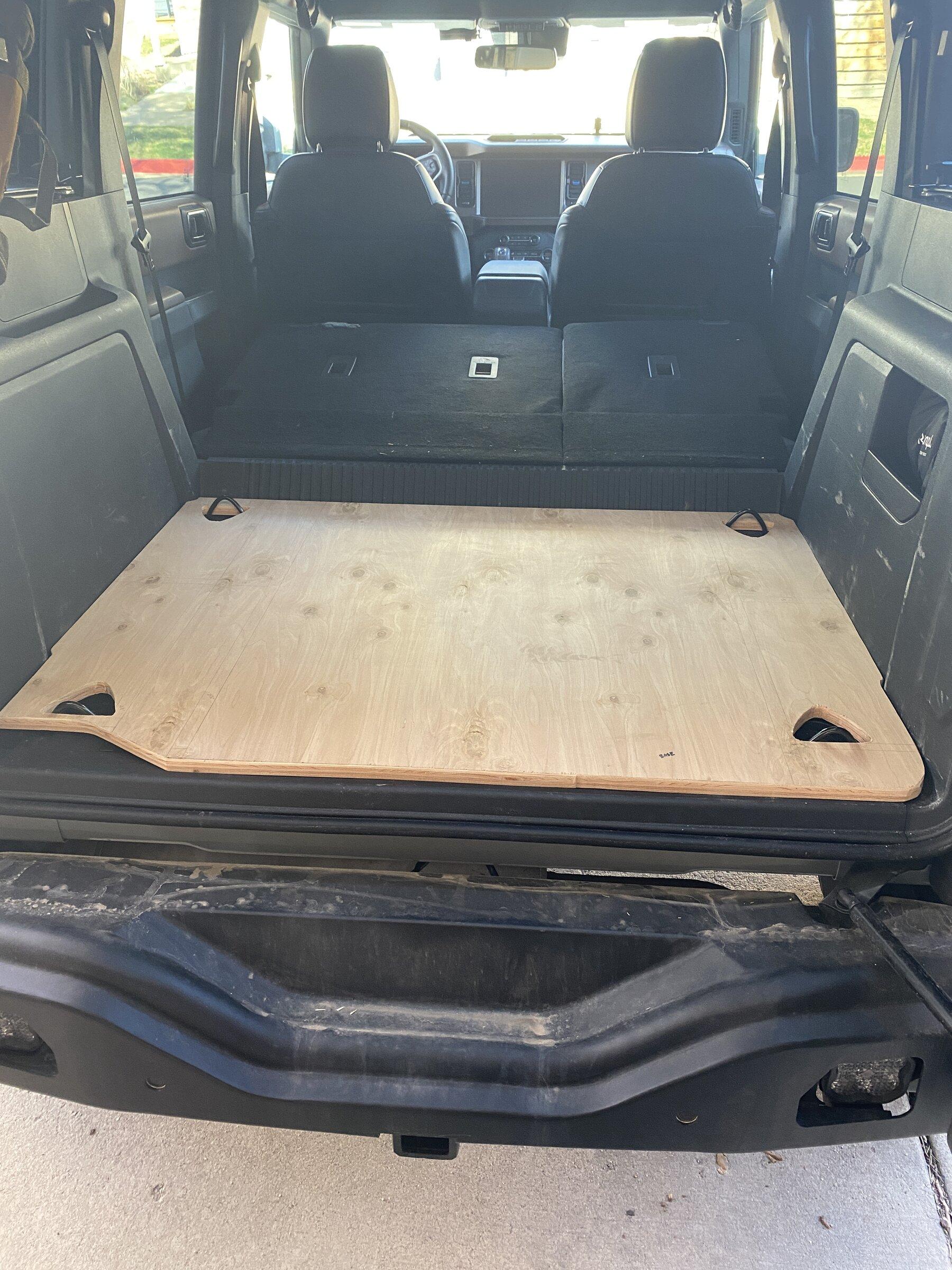

  2. Turnbuckles attach the drawer system to the factory tie down points

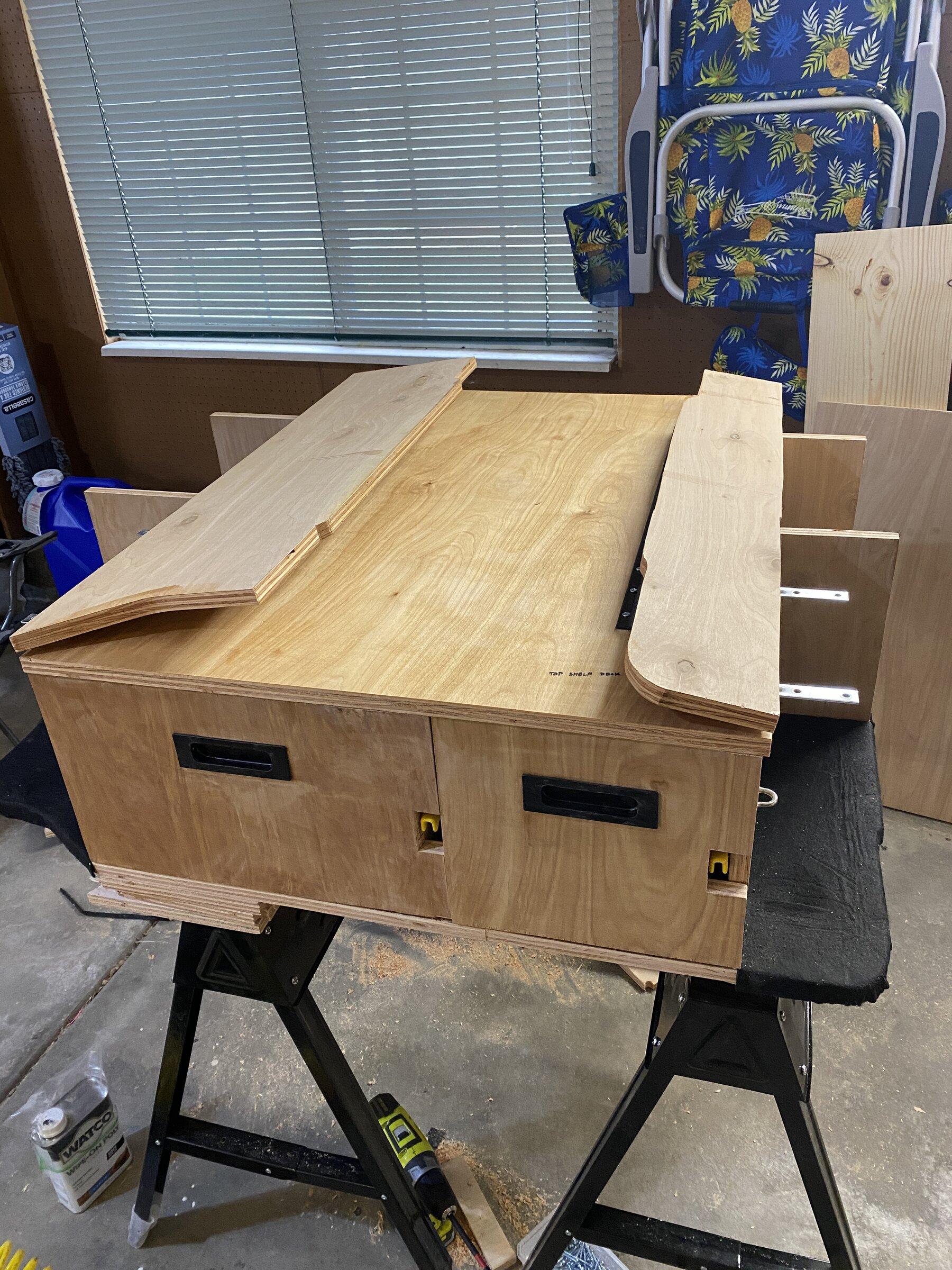

  3. Both sides are on hinges to be able to quickly grab things
  4. Drawer slides lock closed and fully open, support 250lbs
  5. Drawer fronts trimmed in 3/4" angled, 1/20" thick aluminum
  6. Sleeping platform is supported by 6 blocks, 1/2" steel beam pieces slot through the platform into the blocks to keep things stable

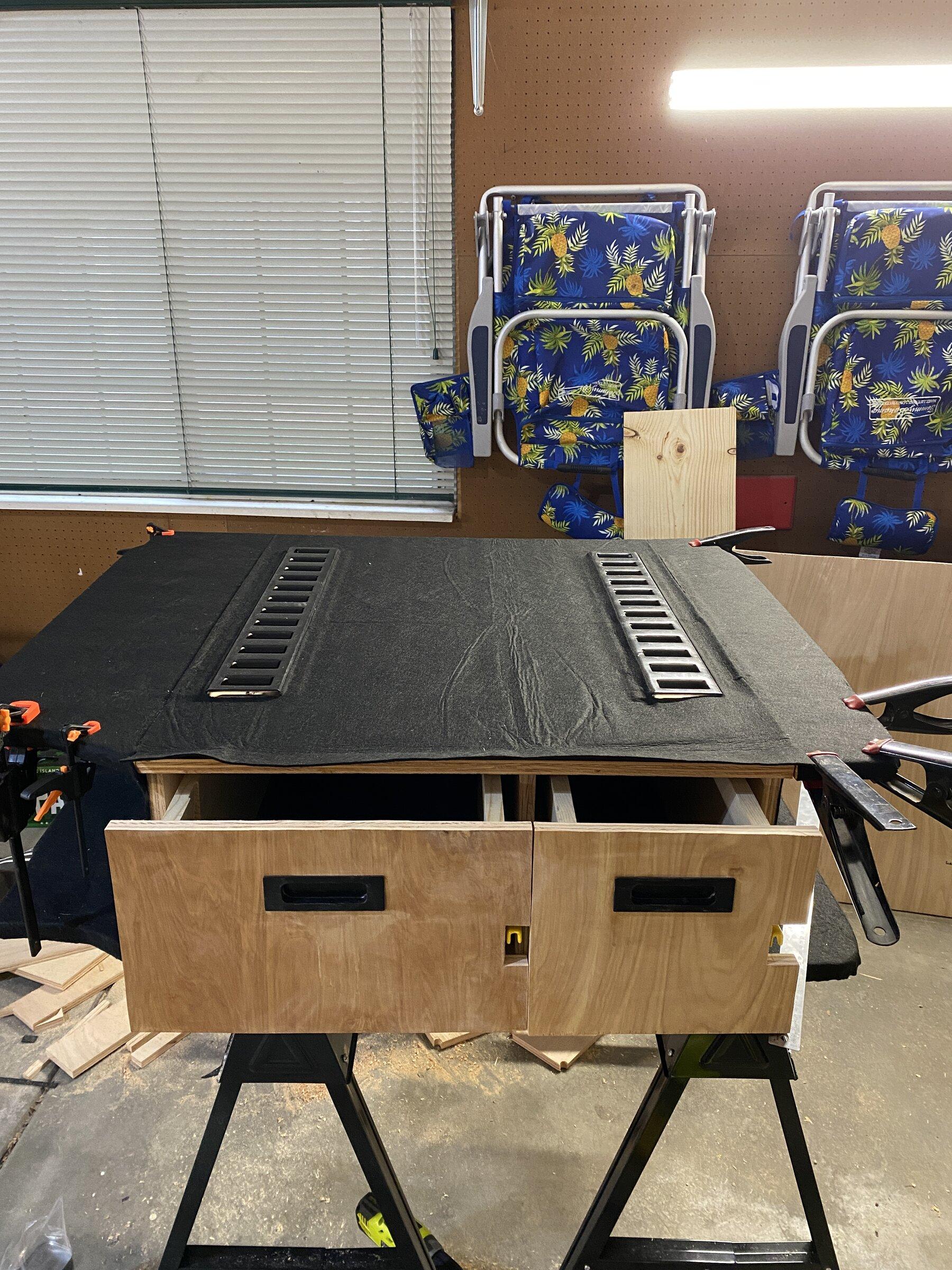

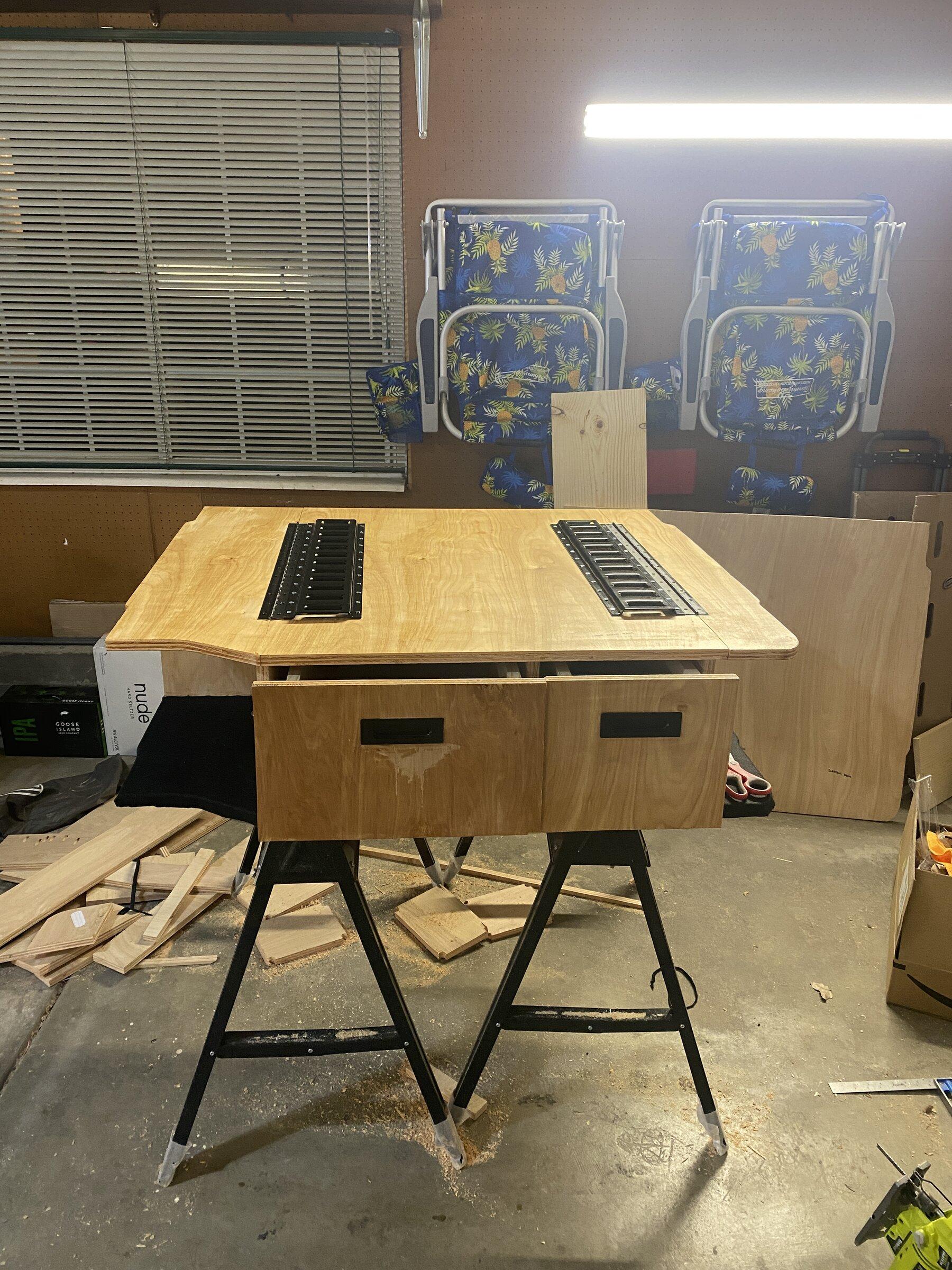

  7. E-Tracks on top of drawer system for tying down coolers and other heavy cargo
  8. Sleeping platform is just under 70", so that we can have the sleeping platform assembled and still drive in our standard seating positions

Things I would do differently:
  1. Get different carpet/felt for the top and sides. It looks very similar to the factory floor/seat backs but gets dirty too easily. I may add another layer of something different in the future, possibly rubber.
  2. Heavier duty handle, I worry that I may need to cut these ones out and replace them with something larger. These will likely be too small to open a fully loaded drawer.
  3. Add dividers within the drawers (can probably still do that in the future)
  4. Have the larger drawer be a "two" step pullout for easier cooking/prep
Sponsored


Last edited:
OP
OP
campbebc

campbebc

Outer Banks
Well-Known Member
First Name
Ben
Joined
Jan 24, 2021
Threads
8
Messages
460
Reaction score
652
Location
Boulder, CO
Vehicle(s)
2017 Ford Focus RS
Your Bronco Model
Outer Banks
[RESERVED FOR ITEMIZED LIST OF MATERIALS]
ItemPricwQuantityLink
Wood - Birch 3/4" treated ply. 4'x8'$942Home Depot
Handles$101Amazon
E Track$571Amazon
24" Locking Slides$401Amazon
48" hinges (cut in half)$111Home Depot
Felt (I don't recommend)$401Amazon
36" length 1/2" steel rod$91Home Depot
Rubber Mat$82Home Depot
Turnbuckles$151Amazon
Wood - 3/4"x10" common board, 12'$221Home Depot
Wood - 4"x6"x8'$251Home Depot
Velcro - Heavy Duty 1.5"x10'$251Home Depot

Last edited:

Underflow

Black Diamond
Active Member
Joined
Jul 26, 2021
Threads
3
Messages
35
Reaction score
38
Location
Tahoe, CA
Vehicle(s)
2021 Bronco
Your Bronco Model
Black Diamond
Clubs

Impressive work! Thanks for all the details in your posts!

OP
OP
campbebc

campbebc

Outer Banks
Well-Known Member
First Name
Ben
Joined
Jan 24, 2021
Threads
8
Messages
460
Reaction score
652
Location
Boulder, CO
Vehicle(s)
2017 Ford Focus RS
Your Bronco Model
Outer Banks
Impressive work! Thanks for all the details in your posts!
Thank you, hoping I can help someone else out if they're interested in doing something similar


Sponsored

codydb19

Big Bend
Well-Known Member
First Name
Cody
Joined
Jul 8, 2020
Threads
18
Messages
982
Reaction score
5,102
Location
Texas
Vehicle(s)
Silverado
Your Bronco Model
Big Bend
Clubs

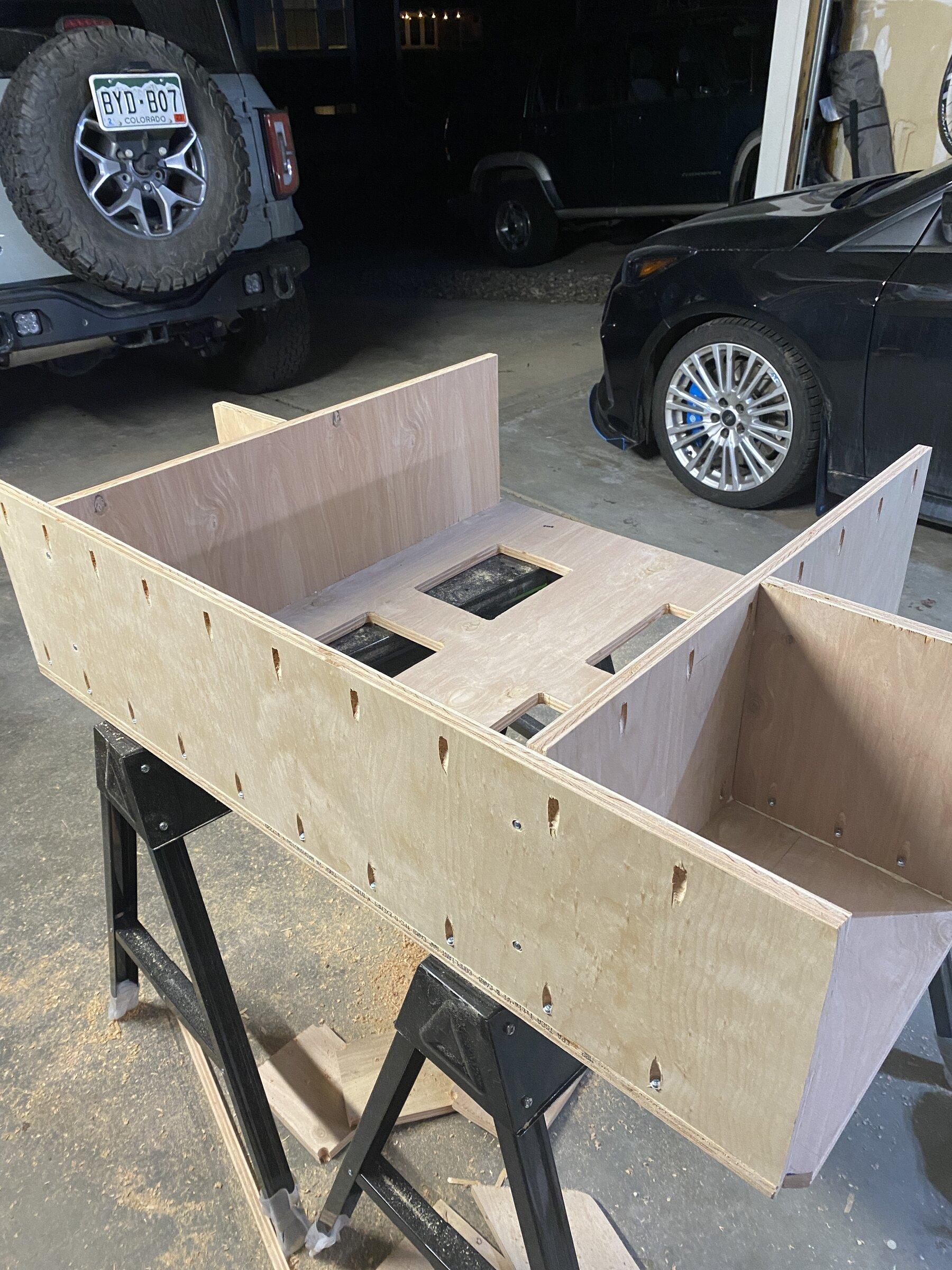

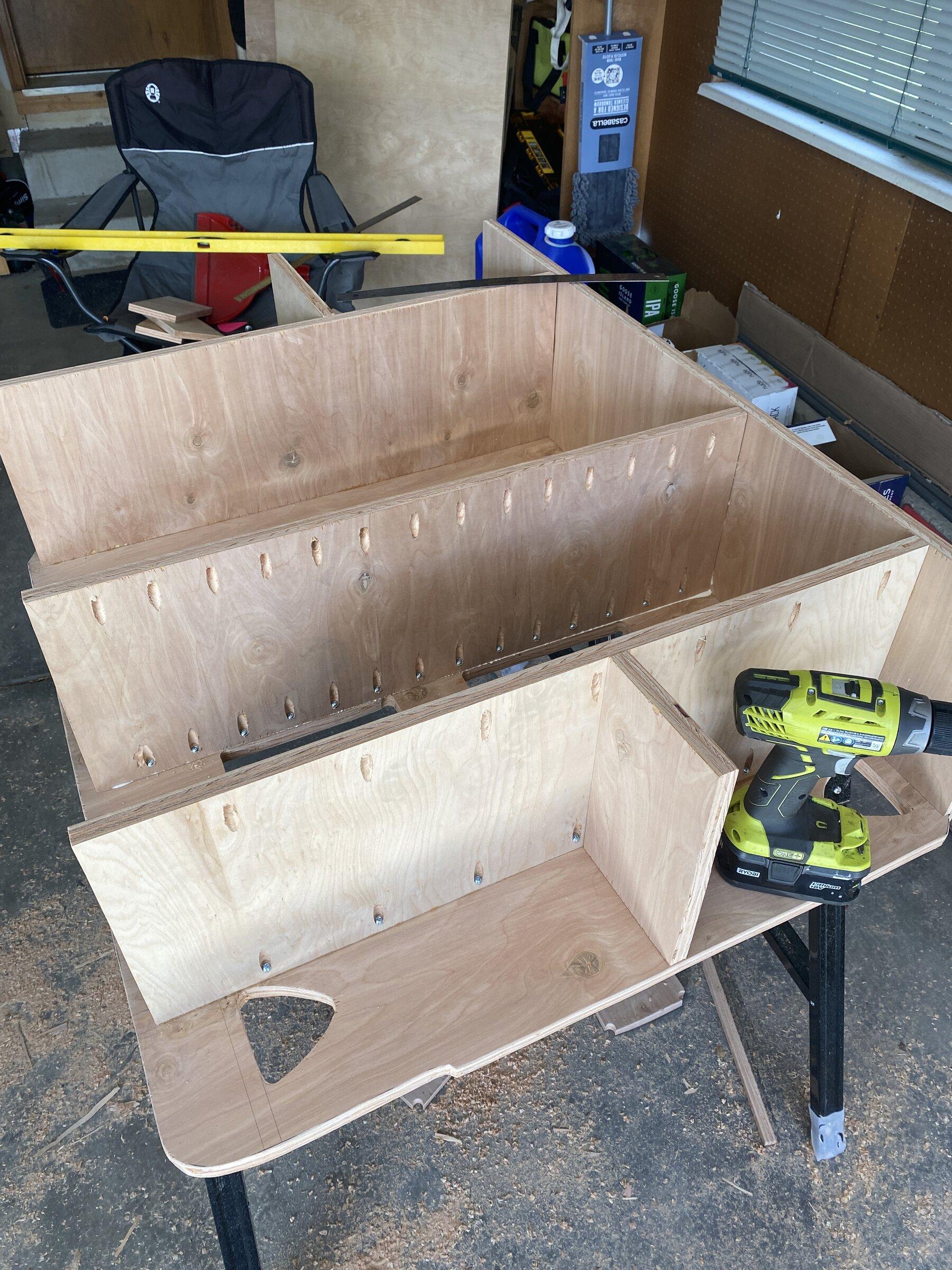

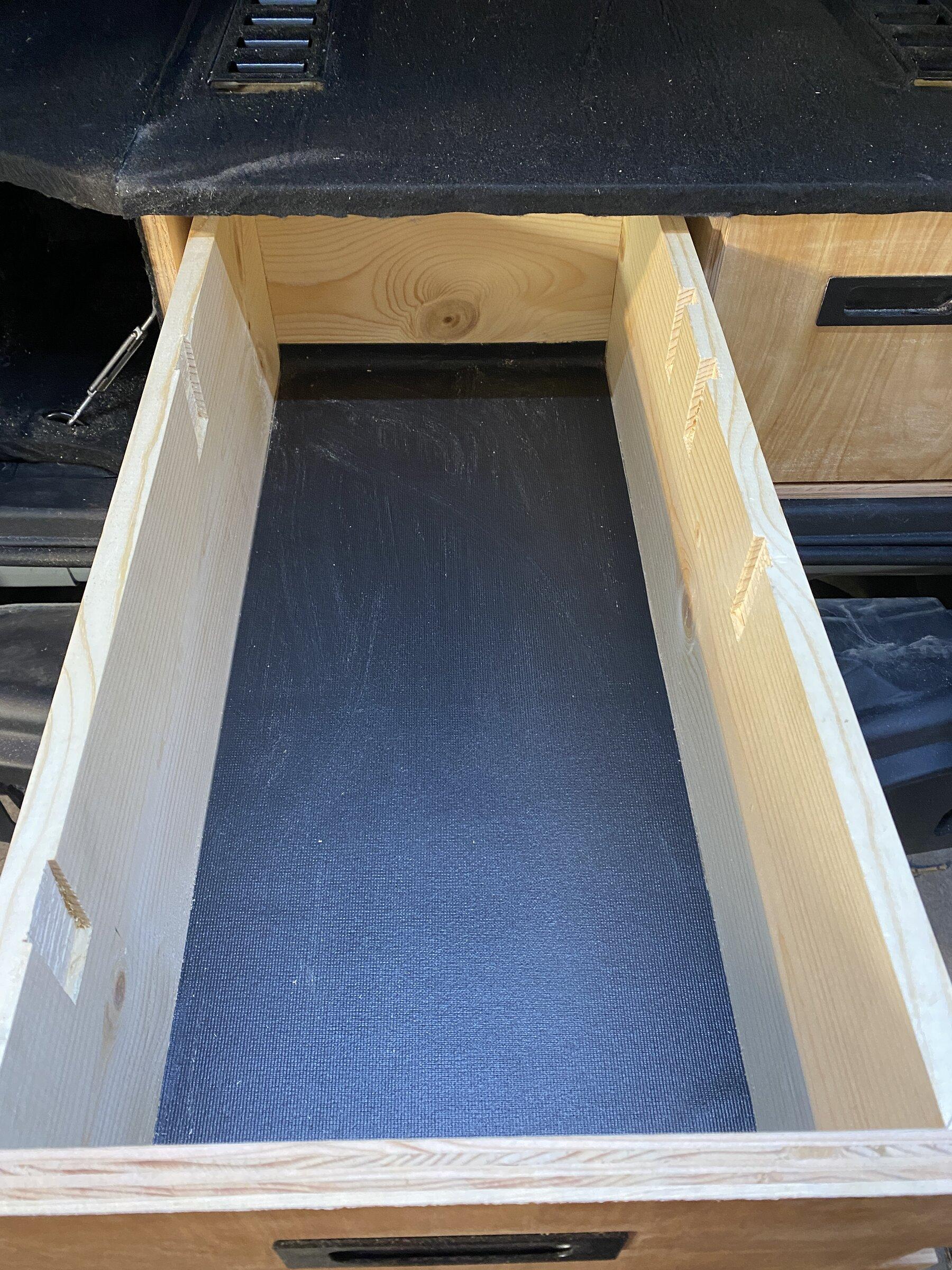

Man went all out on the pocket holes!

But jokes aside, as a weekend warrior that’s built several pieces of the furniture in my house, for this being your first project this actually looks really good and functional.

OP
OP
campbebc

campbebc

Outer Banks
Well-Known Member
First Name
Ben
Joined
Jan 24, 2021
Threads
8
Messages
460
Reaction score
652
Location
Boulder, CO
Vehicle(s)
2017 Ford Focus RS
Your Bronco Model
Outer Banks
Man went all out on the pocket holes!

But jokes aside, as a weekend warrior that’s built several pieces of the furniture in my house, for this being your first project this actually looks really good and functional.
Didn't want to run the risk of drilling down and missing the mark and botching the whole thing :D. Thanks for the kind words


Jabberwock

Big Bend
Well-Known Member
First Name
Craig
Joined
Jul 26, 2021
Threads
24
Messages
261
Reaction score
707
Location
Georgia
Vehicle(s)
2011 Toyota Tundra
Your Bronco Model
Big Bend
Clubs

Looks great! Lots of great ideas. Thanks for posting and for the mention. Happy to hear I'm inspiring others to make their own platforms and hopefully my build was helpful to you in some way.

OP
OP
campbebc

campbebc

Outer Banks
Well-Known Member
First Name
Ben
Joined
Jan 24, 2021
Threads
8
Messages
460
Reaction score
652
Location
Boulder, CO
Vehicle(s)
2017 Ford Focus RS
Your Bronco Model
Outer Banks
Looks great! Lots of great ideas. Thanks for posting and for the mention. Happy to hear I'm inspiring others to make their own platforms and hopefully my build was helpful to you in some way.
Your post was what inspired me to actually do it! I'm also thinking of buying that exact same camp mattress that you listed as our REI Camp Dreamer is a bit too wide to fit inside the Bronco. Thanks again
