It gives strength to the housing limiting flex & deflection in turn helping protect the & R & P under load.
@Bigguyry2000 thanks for the notes, getting ready to install mine this week
Sponsored
Sponsored
ARB diff cover installed
- Thread starter Bigguyry2000
- Start date
- Watchers 7
@Bigguyry2000 thanks for the notes, getting ready to install mine this week
- First Name
- Chris
- Joined
- Mar 6, 2021
- Threads
- 75
- Messages
- 4,754
- Reaction score
- 5,184
- Location
- Cold Spring, NY
- Vehicle(s)
- 2021 Bronco, 2020 Ranger
- Your Bronco Model
- Black Diamond
Wow. Loving the idea of those padded clamps. I added a few washers on the stud bolts, but running the risk that there’s not enough thread engagement.
No gasket provided. The stock gasket is a reusable gasket if not damaged. I'll try that first, any issue & I'll pull out the RTV

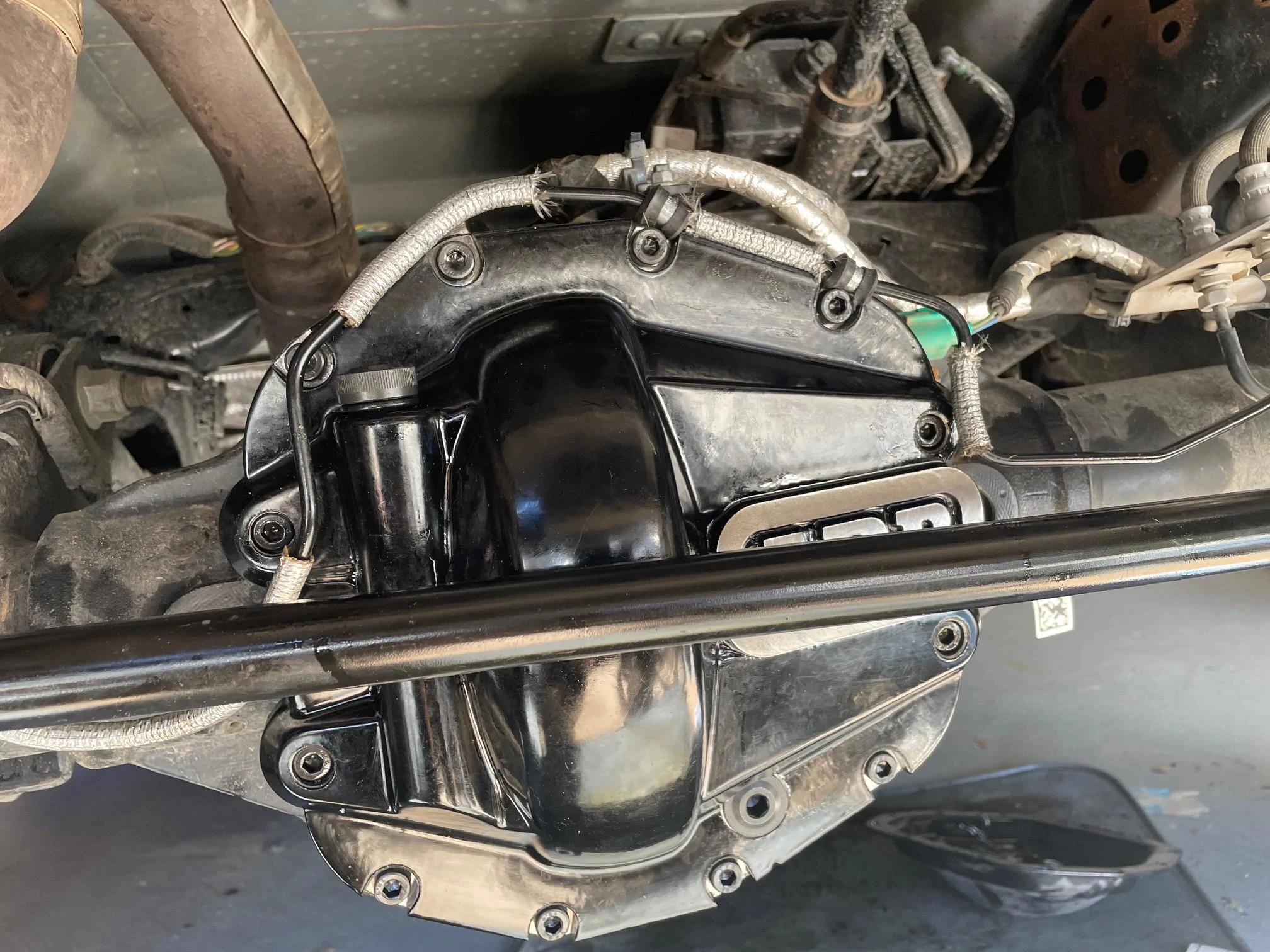

Well got mine installed. No issues with hardware. Again thanks to @Bigguyry2000 for the Adele clamp idea. Disconnected track bar at the passenger side. Had to cut the sheathing on the brake line for the 1/4" Adele clamps to fit & drill out the bolt hole on the clamps. Probably would have gone 3/8" if I did it again, but it's altogether now.
Sponsored
Felix, since you used that casserole pan, don’t you go trying to fry fish in that grease now!Well got mine installed. No issues with hardware. Again thanks to @Bigguyry2000 for the Adele clamp idea. Disconnected track bar at the passenger side. Had to cut the sheathing on the brake line for the 1/4" Adele clamps to fit & drill out the bolt hole on the clamps. Probably would have gone 3/8" if I did it again, but it's altogether now.
Don’t mess around and carry that pan in the house or it get used to cook dinner!
I know better that thatFelix, since you used that casserole pan, don’t you go trying to fry fish in that grease now!
Don’t mess around and carry that pan in the house or it get used to cook dinner!

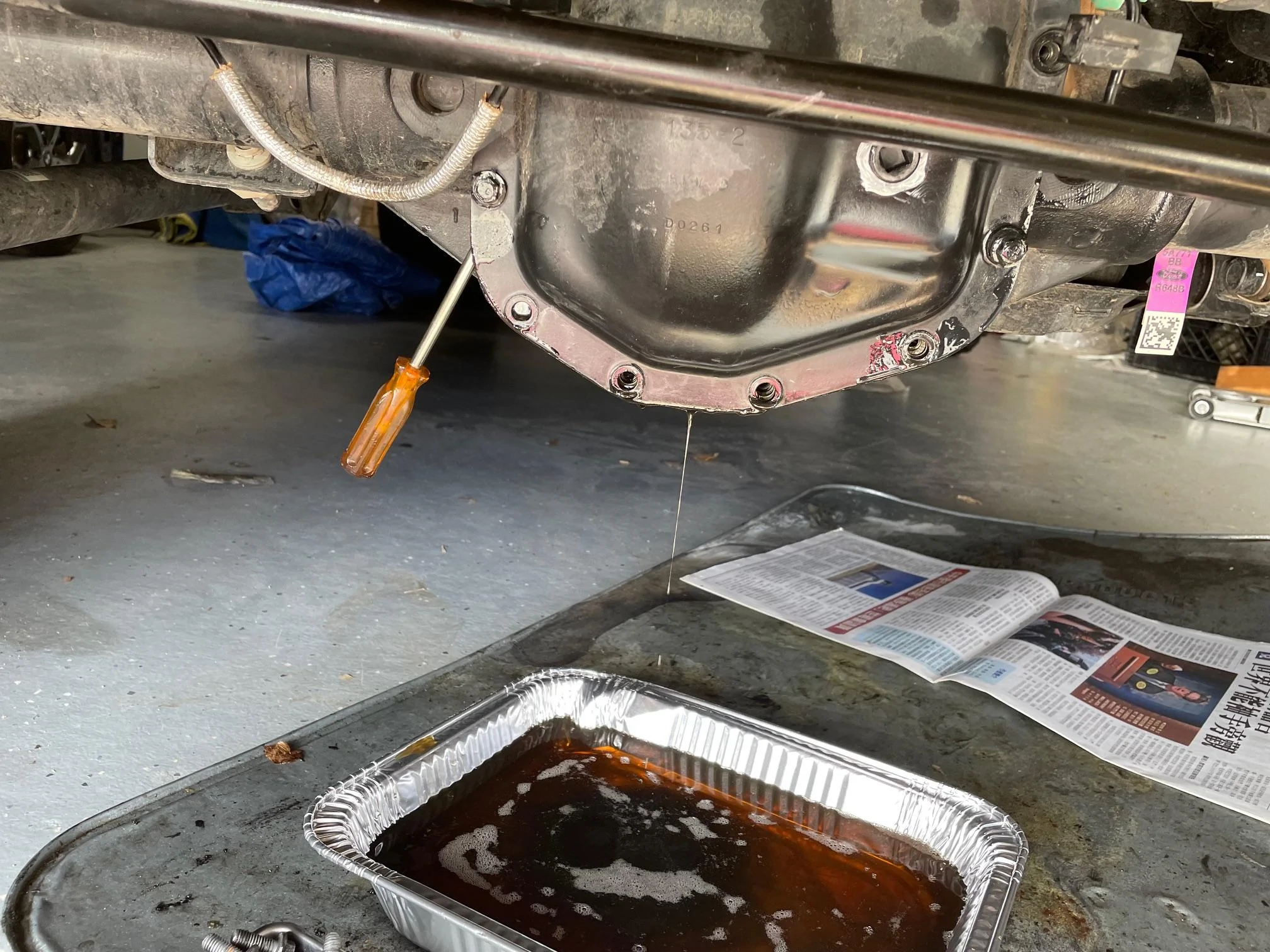

TBH, I had just changed the fluid right before as in zero miles and had planed to just reuse it, but didn't like what flushed out with it, so now I'm waiting on Walmart to deliver tomorrow
Oil is cheap in comparison to bearings and the labor to install them
- Joined
- Dec 27, 2023
- Threads
- 4
- Messages
- 76
- Reaction score
- 146
- Location
- Auxvasse, MO
- Vehicle(s)
- 23 Non-SAS Badlands
- Your Bronco Model
- Badlands
Are you saying 3/8" clamps would work better instead of 1/4"? Is that so you would not have to cut the sheating to fit the clamp over it?Well got mine installed. No issues with hardware. Again thanks to @Bigguyry2000 for the Adele clamp idea. Disconnected track bar at the passenger side. Had to cut the sheathing on the brake line for the 1/4" Adele clamps to fit & drill out the bolt hole on the clamps. Probably would have gone 3/8" if I did it again, but it's altogether now.
I have an ARB diff cover on the way and want to make sure I have everything I need on hand to make the swap.
- Joined
- Oct 7, 2023
- Threads
- 5
- Messages
- 115
- Reaction score
- 127
- Location
- New Hampshire
- Vehicle(s)
- 2013 Boss 302 (sold) , 2023 Ford Bronco WildTrak
- Your Bronco Model
- Wildtrak
I just installed the ARB and I too used two 3/8-inch insulated clamps. Cover hardware is included and mates perfectly with the OEM gasket.
OP
OP
- First Name
- Ryan
- Joined
- Jun 16, 2022
- Threads
- 11
- Messages
- 172
- Reaction score
- 244
- Location
- Southern California
- Vehicle(s)
- 2021 Black Diamond
- Your Bronco Model
- Black Diamond
- Thread starter
- #26
No added rear protection. But I’m not overly concerned with that. These housings are pretty stout honestly. 99% of it for me is ease of maintenance down the line. I don’t like pulling gaskets that don’t leak. In my experience, the only time things leak is when you start ripping out factory sealed components. Well, aside from stuff like axle seals and main seals that see a lot of rotational wear… oh and aside from my Harley, those just leak whenever. But if I can keep a gasket on that won’t leak, I’d rather futz with a drain plug that has an o ring for which there is very easy replacement
