Bronco Raptor exterior/garage fitment dimensions -- here's measurements at widest points

[chooch08]

I happen to have a small garage and thought I'd post up some exterior dimensions of my 2023 Bronc Raptor.

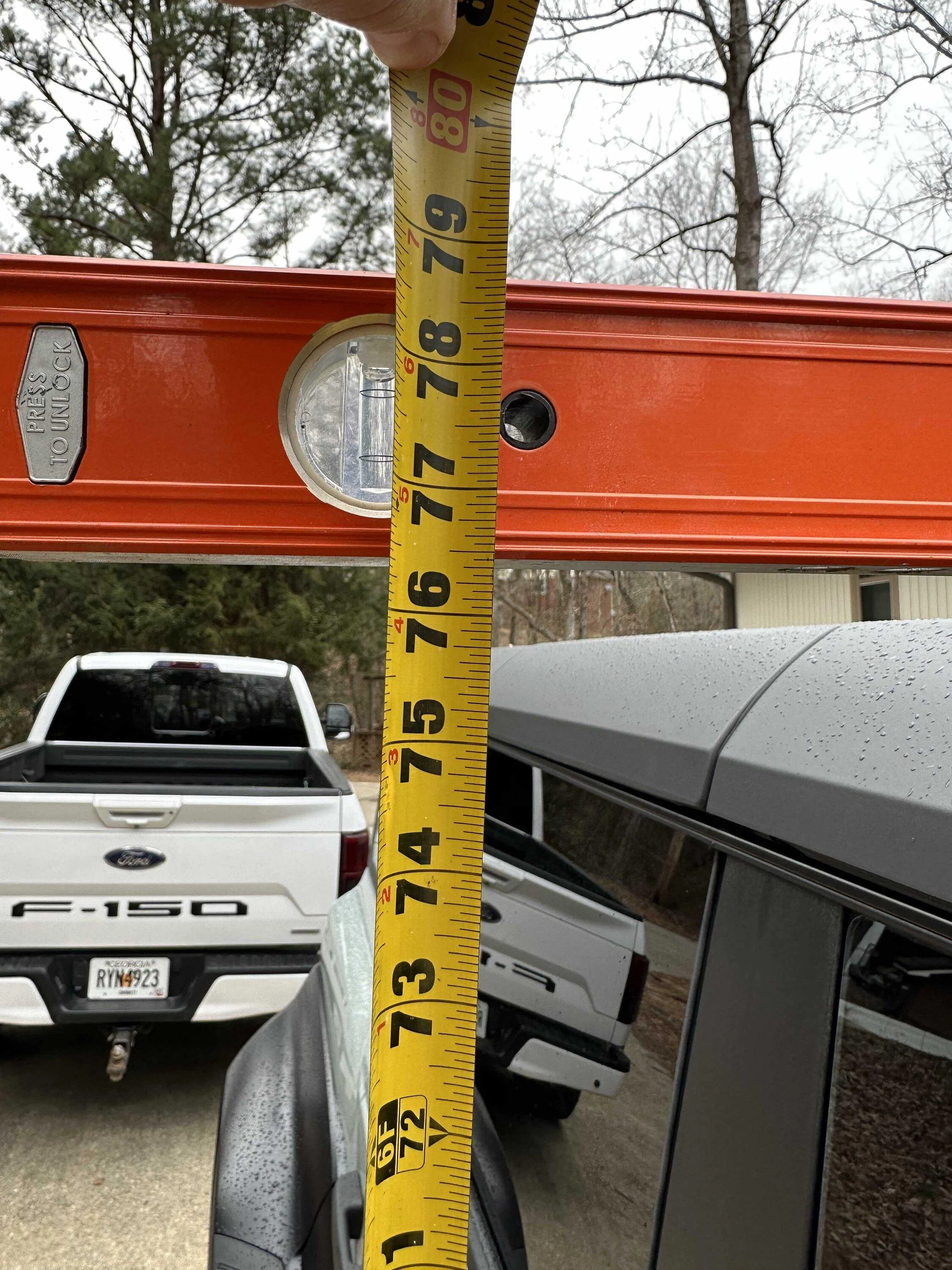

Height: 76" (6' 4 1/2")

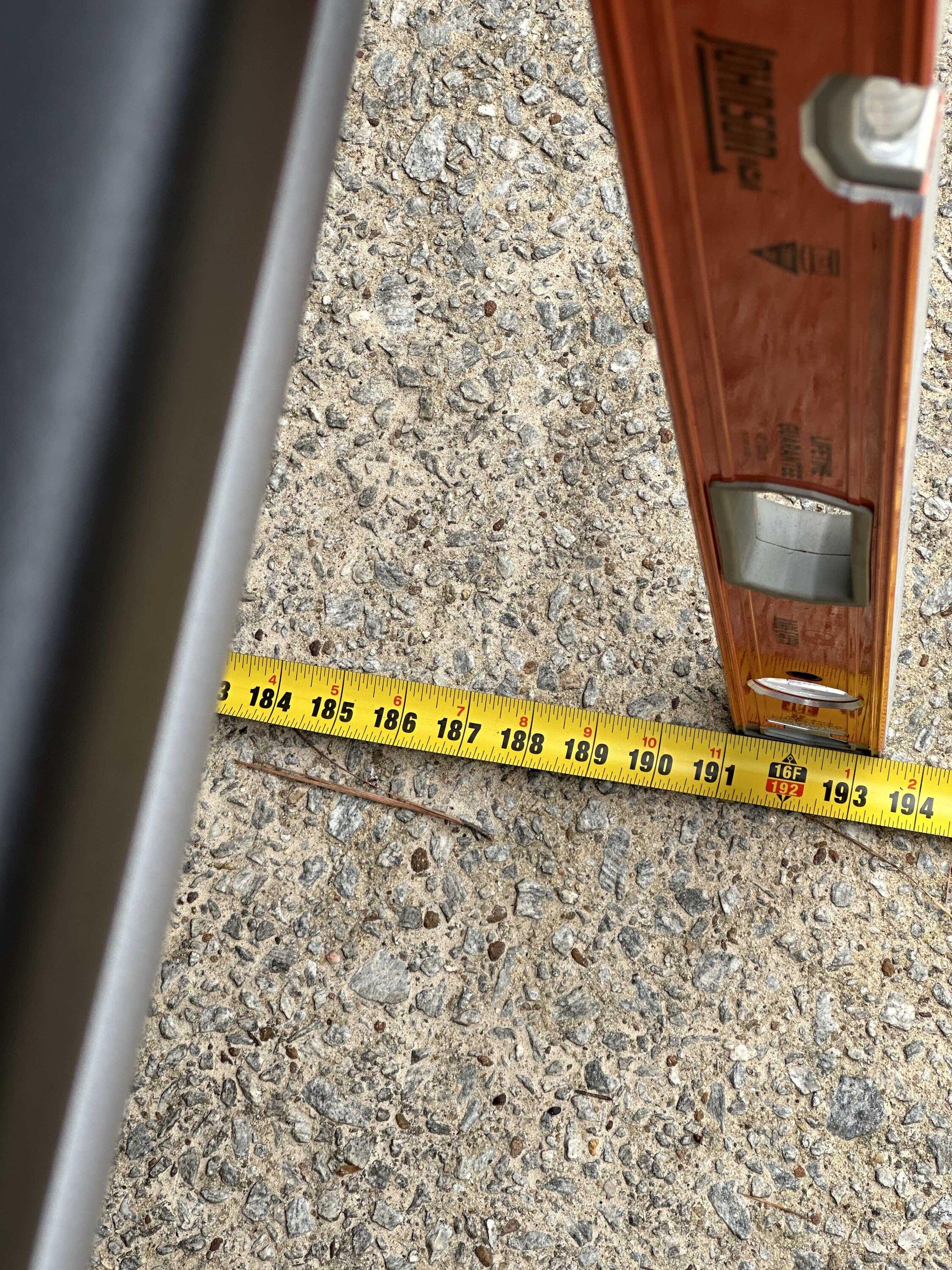

Length: 191" (15' 11")

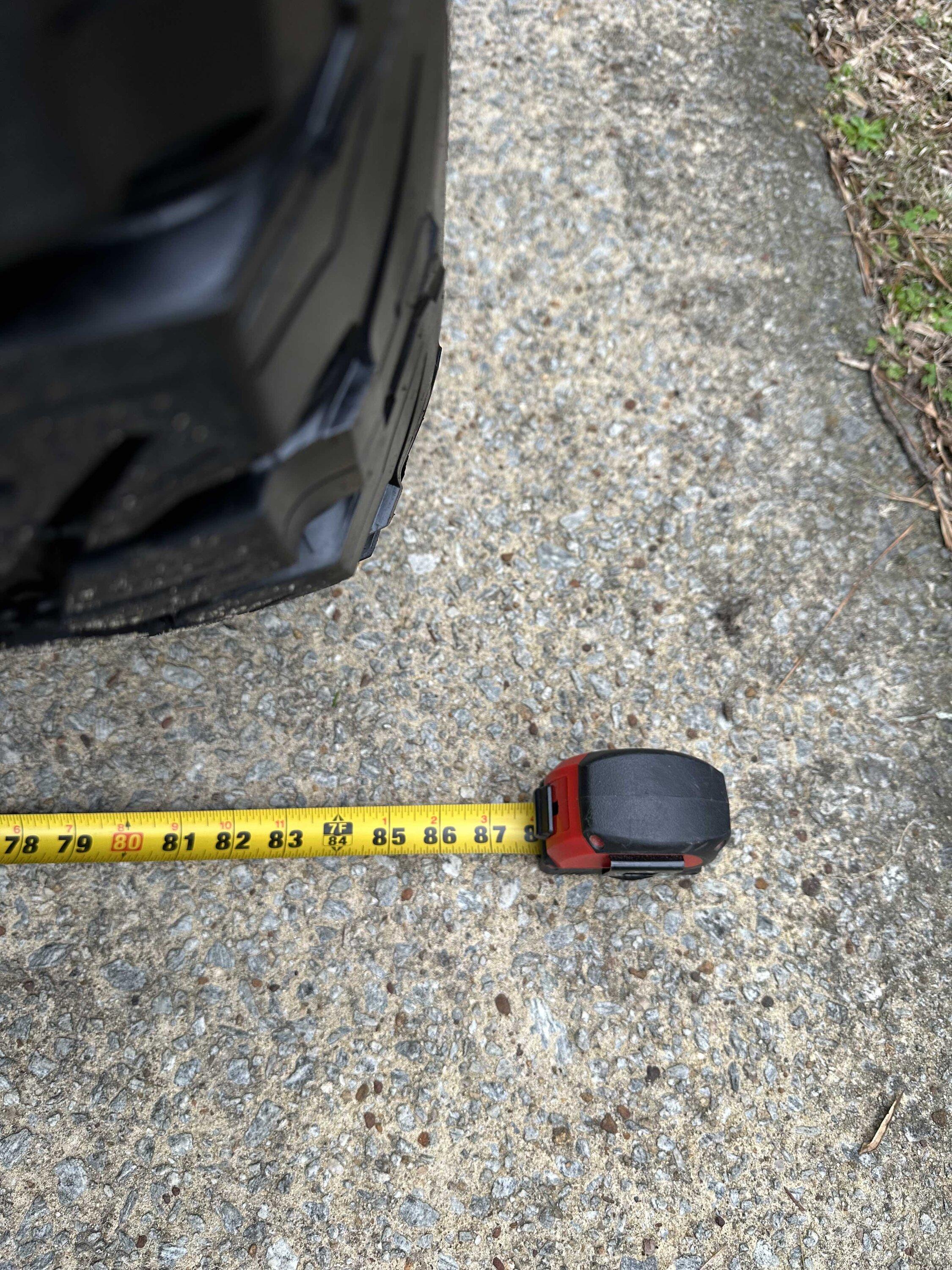

Width: 87" (7' 3")

Sponsored



[5PC24]

Thanks for this, I was wondering about the length for my garage space. Is the length you measured inclusive of the spare tire sticking out on the back?



[swamp2]

I happen to have a small garage and thought I'd post up some exterior dimensions of my 2023 Bronc Raptor.

Height: 76" (6' 4 1/2")
Length: 191" (15' 11")
Width: 87" (7' 3")

Looks like Ford disagrees and also measures differently.

1. Ford quotes height with roof rack. Seems consistent with your number without.

2. Looks like Ford includes spare when counting length.

3. Looks like you are measuring track plus wheel width (1/2 of wheel width x 2) not width which would include mirrors. It looks like that number is close visually to mirror to mirror width.



[vrtical]

I have standard 7' doors on both of my garages and the casing for the single door is 83 1/2 tall by 93 3/4 width. Thought for sure it was going to be an issue with a single door, but its not. I can run a 38" tire and 5" tall setup roof rack and still clear. Any bigger tire then it starts to be an issue, these braptors are optical illusions in the garage.



[chooch08]

Thanks for this, I was wondering about the length for my garage space. Is the length you measured inclusive of the spare tire sticking out on the back?

These are all the widest points...including the spare tire on length.



[M&M Beer]

I am putting an addition no my garage so my Bronco fits better



[lewishamilton]

i have a small single car garage, change to baja and use the front wheels view helps a lot



[Bird Dog Off Road]

Looks like Ford disagrees and also measures differently.

1. Ford quotes height with roof rack. Seems consistent with your number without.

2. Looks like Ford includes spare when counting length.

3. Looks like you are measuring track plus wheel width (1/2 of wheel width x 2) not width which would include mirrors. It looks like that number is close visually to mirror to mirror width.

This screen shot only shows regular Broncos, not the Raptor as he is measuring. So of course it's going to be off.



[swamp2]

This screen shot only shows regular Broncos, not the Raptor as he is measuring. So of course it's going to be off.

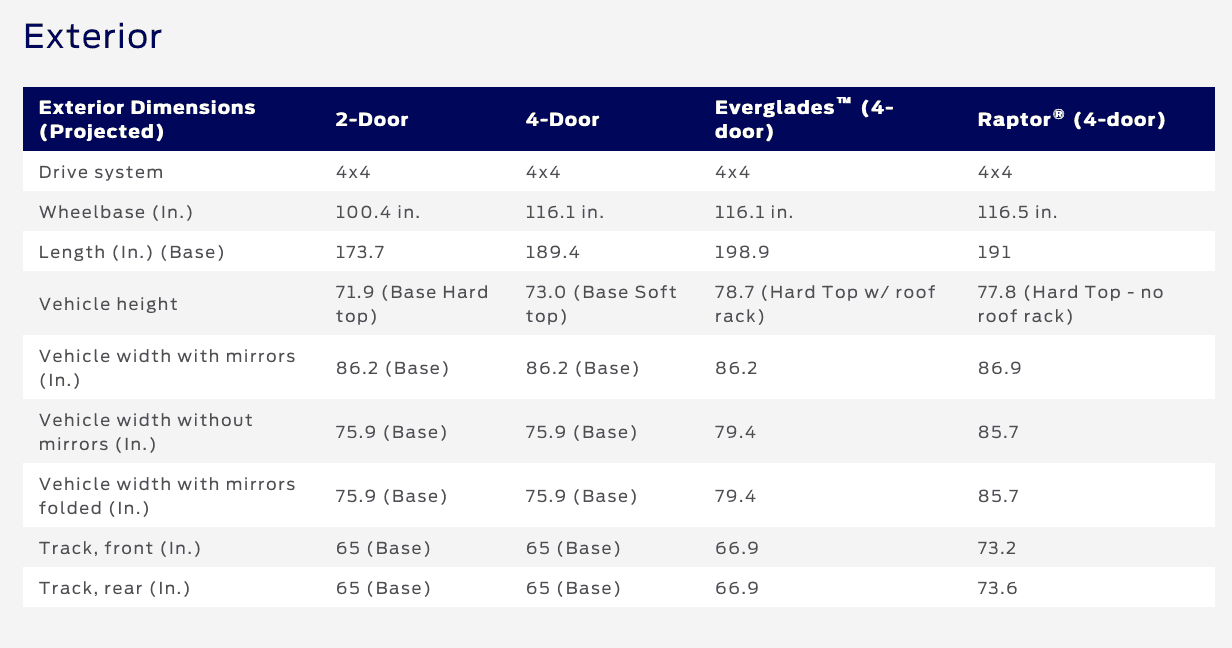

Ugh. You're correct. Thanks. Some of the dims being very close to Raptor numbers I had memorized helped me make that error. Here are the official numbers from Ford.

Some numbers are still a bit different than posted.



[jehines3]

So a Braptor is the same max length and width (including mirrors) of the other Broncos. Check. I’m assuming the length actually grows 1” on the spare but who’s counting.



[swamp2]

So a Braptor is the same max length and width (including mirrors) of the other Broncos. Check. I’m assuming the length actually grows 1” on the spare but who’s counting.

Yes, same chassis and almost the same mirrors mean max width (i.e. vehicle + mirrors) is almost identical. The big difference is the track width, tire width and width of fenders (sort of "visual width").

No idea why an Everglades is about 8" longer than the Raptor though...



['18 M2]

Yes, same chassis and almost the same mirrors mean max width (i.e. vehicle + mirrors) is almost identical. The big difference is the track width, tire width and width of fenders (sort of "visual width").

No idea why an Everglades is about 8" longer than the Raptor though...

the winch?



[Cheshire]

Ugh. You're correct. Thanks. Some of the dims being very close to Raptor numbers I had memorized helped me make that error. Here are the official numbers from Ford.

Some numbers are still a bit different than posted.

OP height of 76" is substantially less than Ford's stated 77.8".
I think Ford is correct. My BaseSquatch is 75 3/8". No way the Raptor is only 5/8" taller.
Our SAS barely fits in our indoor condo lot. The Raptor would not.



[swamp2]

A

OP height of 76" is substantially less than Ford's stated 77.8".
I think Ford is correct. My BaseSquatch is 75 3/8". No way the Raptor is only 5/8" taller.
Our SAS barely fits in our indoor condo lot. The Raptor would not.

Also odd that Ford reports some height with roof rack and others without...
