Here’s what I came up with for a rear platform and fridge slide for my 4 door. The base is 1/2 plywood, finished with Raptor Liner, rolled on with a foam roller:
Ford Bronco DIY Rear Cargo Platform with Fridge Slide For My 4-Door Bronco A46B2113-84A1-4CD1-949A-BD0EBB5D180D

I took design cues from the Goose Gear platform, which looks amazing, but I was able to save money with my own build.

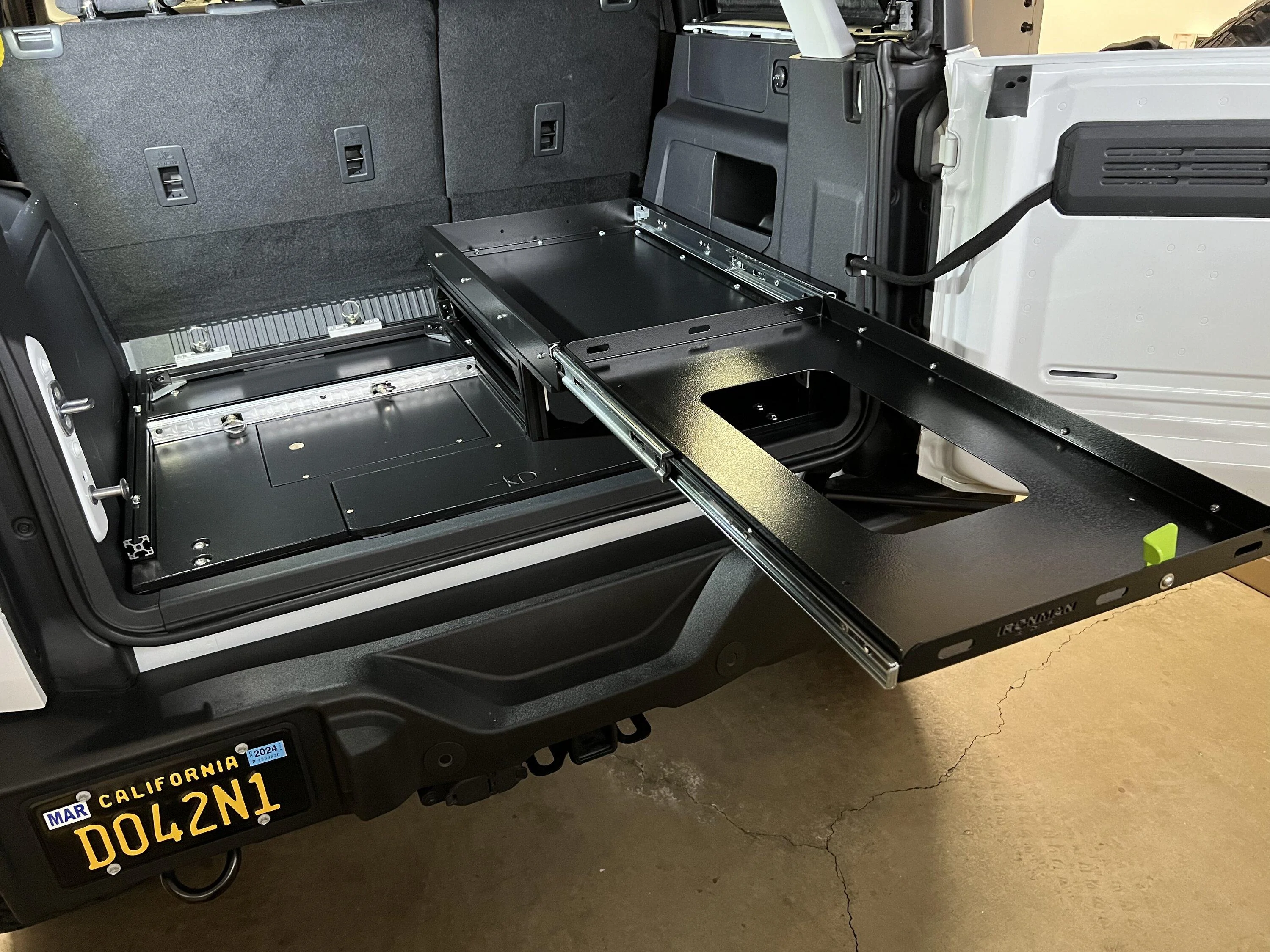

For the fridge slide framing, I’m using extruded aluminum (3030). I have about 4” of storage space below the fridge platform, enough for my tool roll, first aid kit, and air hose kit. The panels for jack and storage under the base are removable, fastened with screws.
Ford Bronco DIY Rear Cargo Platform with Fridge Slide For My 4-Door Bronco 4025770E-F3AF-4DE9-A148-DD3CA0DF6D60
The fridge slide is from Ironman 4x4…so far I’m impressed with the quality, and the price was great compared to others.

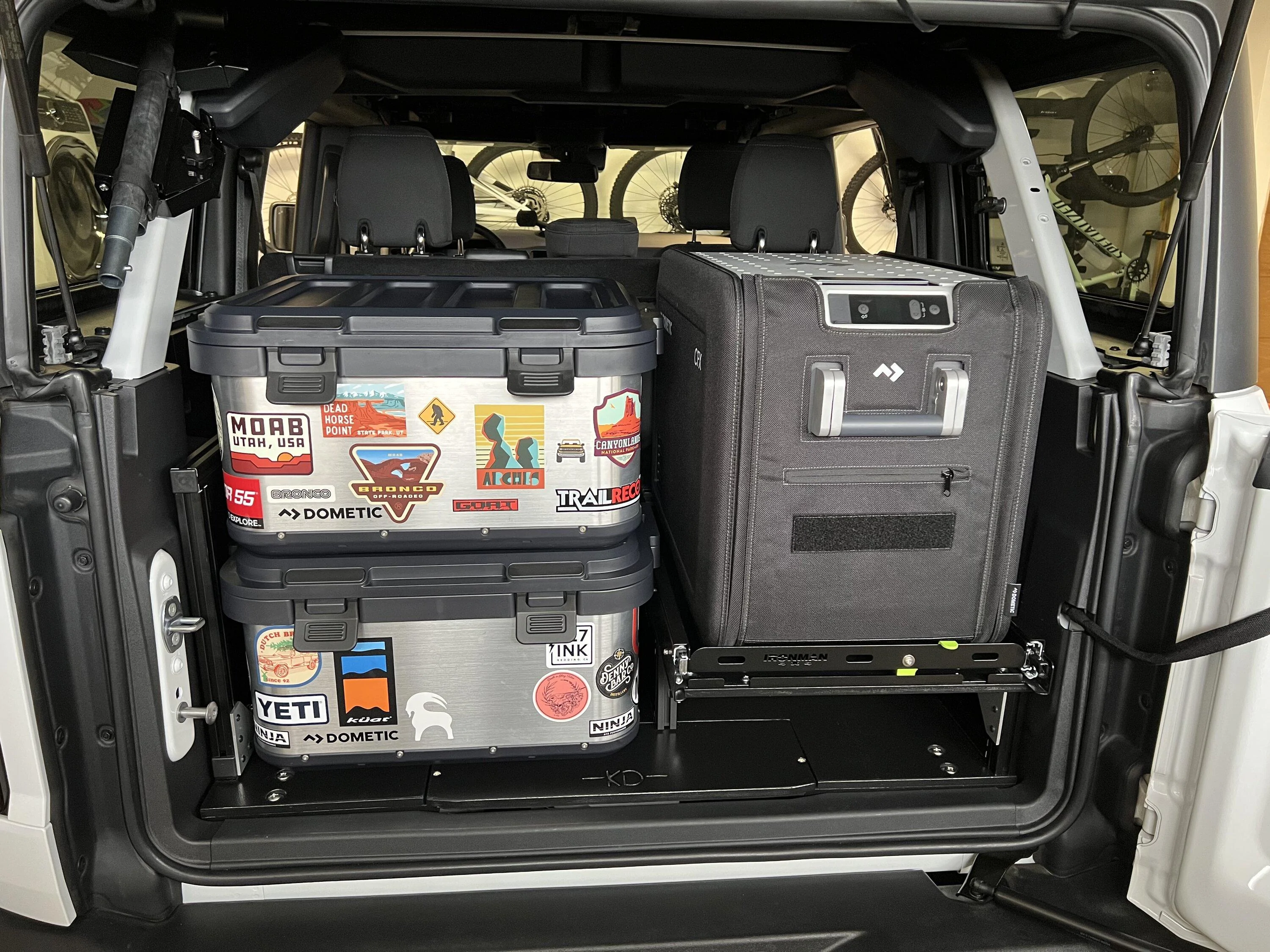

With this layout, I can fit four Maxtrax behind the seat (in a soft case) and have room for my Jackery battery and two Dometic boxes for storage. It’s a snug fit, but worked great on a recent road trip to Moab.
Ford Bronco DIY Rear Cargo Platform with Fridge Slide For My 4-Door Bronco D7F5170F-15CC-4533-964C-C8062A62D69D

Ford Bronco DIY Rear Cargo Platform with Fridge Slide For My 4-Door Bronco 656B8360-3147-4854-BD45-CD47A9218EC3
Sponsored


Last edited:

BroncoAZ

Badlands
Well-Known Member
First Name
Mitch
Joined
Mar 11, 2021
Threads
26
Messages
2,327
Reaction score
4,043
Location
Cape Cod, MA, formerly Flagstaff, AZ
Vehicle(s)
2021 2 Door Badlands manual, 2021 Tacoma TRD OR
Your Bronco Model
Badlands
Looks great! I hadn’t seen those Dometic storage boxes before, they look like a perfect fit.

OP
OP
fifty55

fifty55

Wildtrak
Active Member
First Name
Clint
Joined
Feb 2, 2022
Threads
6
Messages
30
Reaction score
100
Location
Redding, CA
Vehicle(s)
2021 Bronco Wildtrak
Your Bronco Model
Wildtrak
Looks great! I hadn’t seen those Dometic storage boxes before, they look like a perfect fit.
Thanks! Yeah, I’m really happy with those boxes - sturdy and light.


da_jokker

Wildtrak
Well-Known Member
Joined
Jul 14, 2020
Threads
125
Messages
6,166
Reaction score
7,057
Location
California
Vehicle(s)
Jeep Wrangler JKUR
Your Bronco Model
Wildtrak
Clubs

I did something similar, but ran extruded all the way across, primarily because my fold-up table needed to fit underneath so I can get that out quickly.

Did you get your stuff from TNutz? It worked out for me really well and half the price.

Ford Bronco DIY Rear Cargo Platform with Fridge Slide For My 4-Door Bronco 20230208_175900


Sponsored

cynicalrider

Wildtrak
Well-Known Member
Joined
Mar 11, 2023
Threads
2
Messages
343
Reaction score
650
Location
NJ
Vehicle(s)
First gen taco
Your Bronco Model
Wildtrak
Clubs

Sub. You just use a jig saw and router to make the floor? I can fabricate and wrench but when it comes to wood work it might as well be astro physics to me. I just don't have the patience. How is the extruded aluminum mounted to the floor?

OP
OP
fifty55

fifty55

Wildtrak
Active Member
First Name
Clint
Joined
Feb 2, 2022
Threads
6
Messages
30
Reaction score
100
Location
Redding, CA
Vehicle(s)
2021 Bronco Wildtrak
Your Bronco Model
Wildtrak
I did something similar, but ran extruded all the way across, primarily because my fold-up table needed to fit underneath so I can get that out quickly.

Did you get your stuff from TNutz? It worked out for me really well and half the price.

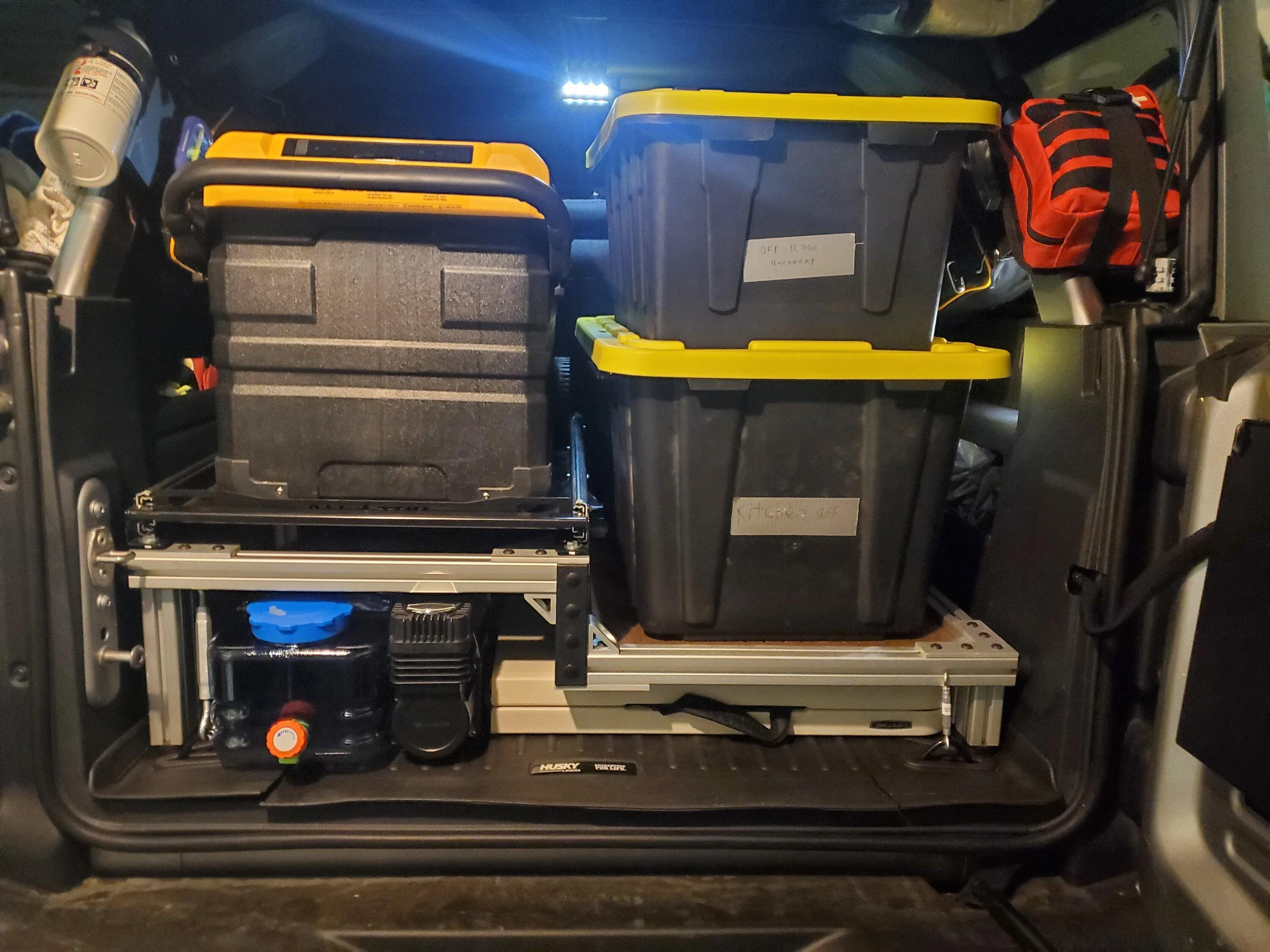

Ford Bronco DIY Rear Cargo Platform with Fridge Slide For My 4-Door Bronco 20230208_175900
Great idea running it all the way across, that definitely gives you more storage underneath. I only ran mine 1/2 way to make it easy to access to the storage area underneath the platform, but looks like with yours you would still be able to do that. The beauty of extruded aluminum is that it's easy to modify.

I wasn't aware of TNutz, I'll look at them the next time I need supplies. I bought from zyltech.com, with coupons the price seemed reasonable.


ICUGAZN

Badlands
Well-Known Member
First Name
Kevin
Joined
Apr 11, 2021
Threads
22
Messages
844
Reaction score
851
Location
Woodbridge, Virginia
Vehicle(s)
2019 Raptor
Your Bronco Model
Badlands
Clubs

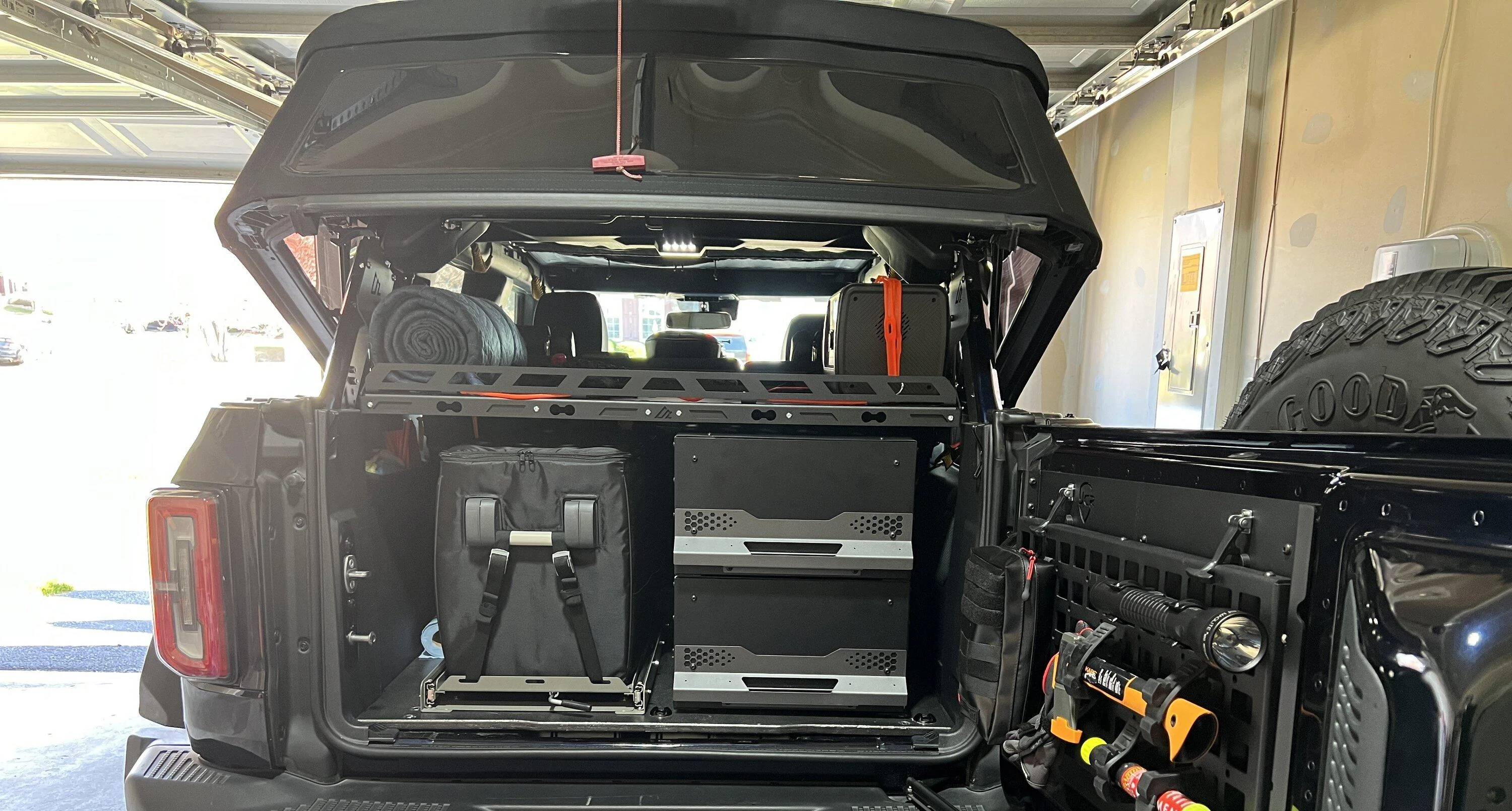

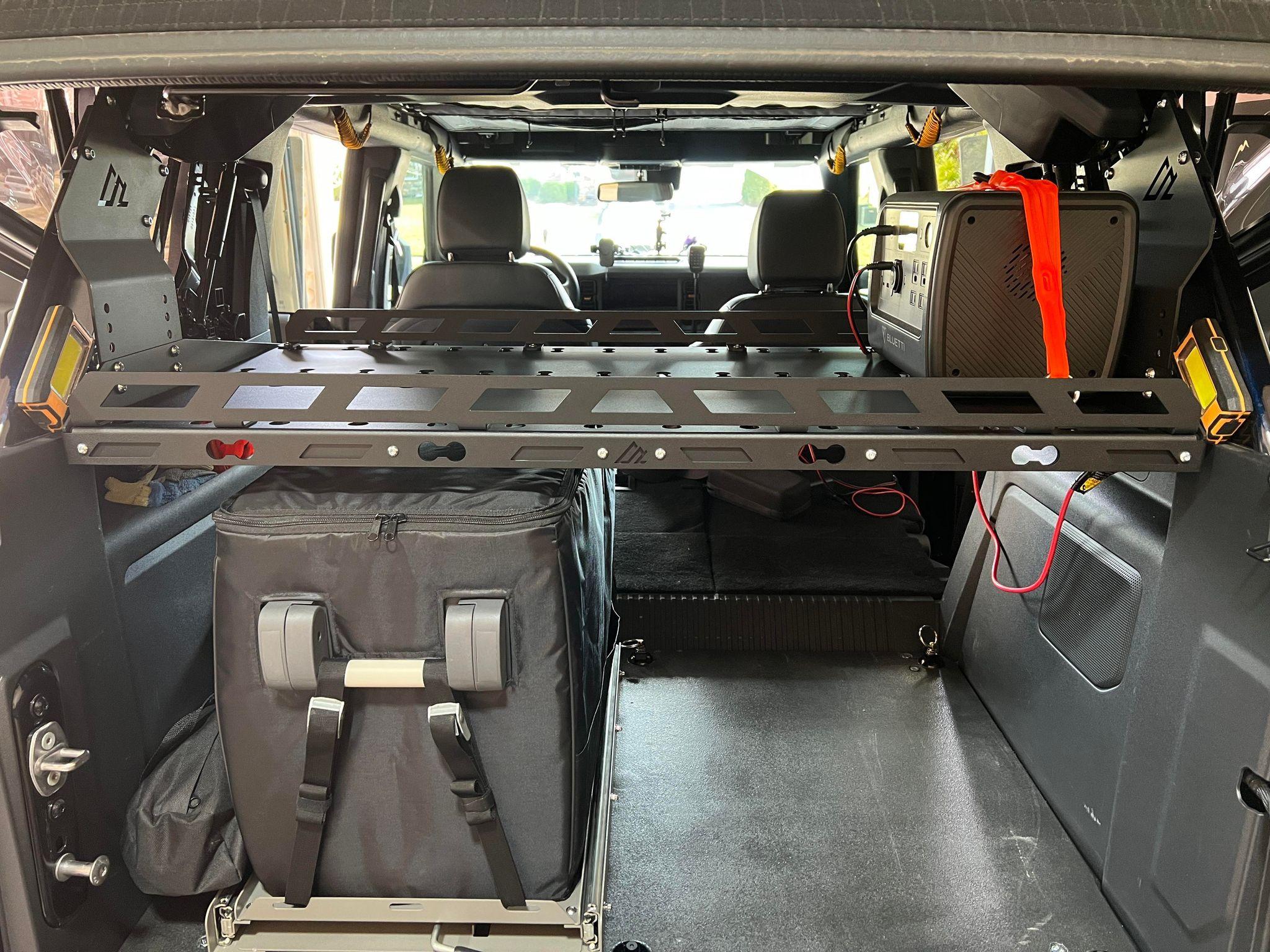

I think that is the best DIY platform I've seen. Maybe I should have used the roll on bed liner. That looks really good. I did my best. :) I also ended up going with the JCR drawer system.
Ford Bronco DIY Rear Cargo Platform with Fridge Slide For My 4-Door Bronco 329978525_557426429475533_8942893254750914722_n

Ford Bronco DIY Rear Cargo Platform with Fridge Slide For My 4-Door Bronco 20230318_194418359_iOS

Last edited:
OP
OP
fifty55

fifty55

Wildtrak
Active Member
First Name
Clint
Joined
Feb 2, 2022
Threads
6
Messages
30
Reaction score
100
Location
Redding, CA
Vehicle(s)
2021 Bronco Wildtrak
Your Bronco Model
Wildtrak
Sub. You just use a jig saw and router to make the floor? I can fabricate and wrench but when it comes to wood work it might as well be astro physics to me. I just don't have the patience. How is the extruded aluminum mounted to the floor?
I've been a lifelong woodworker and have all the tools. For this, you could build it with a jig saw, but patience may be a requirement :).

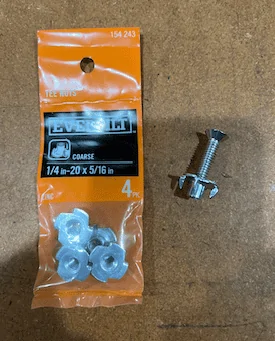

The extruded aluminum is mounted to the plywood base using Tee Nuts - drill a hole in the plywood, then hammer them into the bottom.
Ford Bronco DIY Rear Cargo Platform with Fridge Slide For My 4-Door Bronco 1681140487969

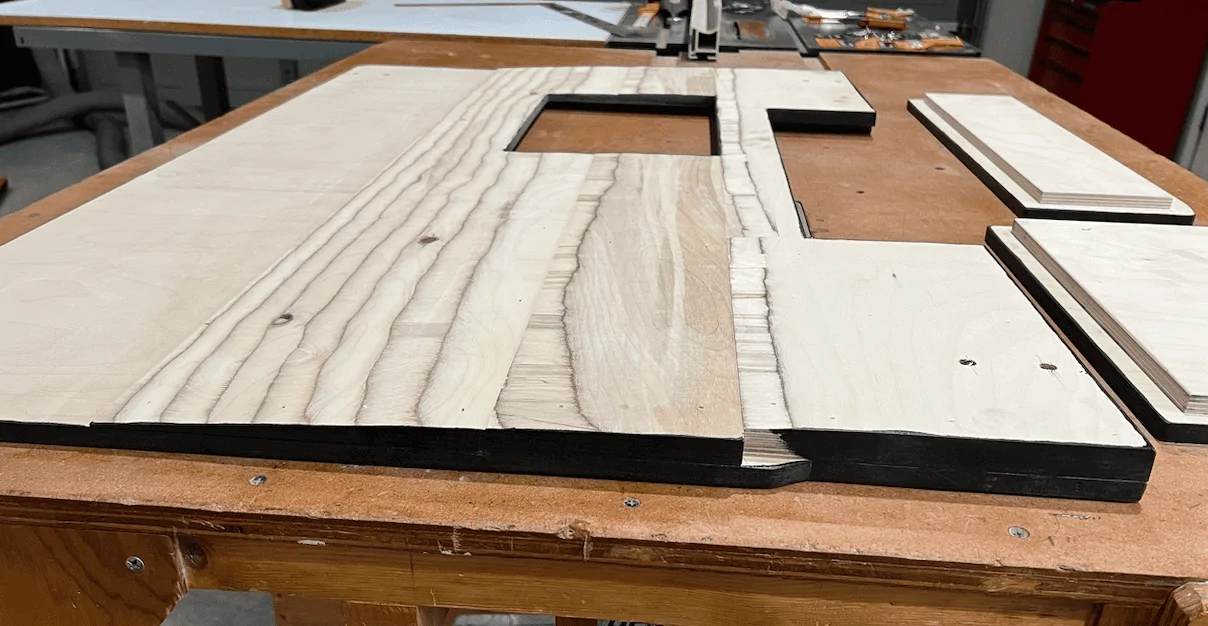

Note, for the base, I built it with a tapered thickness from back to front. This made it parallel with the fenders...if you don't do that, it would angle slightly downward from seat to the rear door. This isn't necessary and requires more tools, but made it easier for me to have everything relatively square once the base was aligned. Pic below showing the bottom side of the platform:
