Door panel removal?

[OuterJersey]

Has anyone taken off a front door panel? Is it difficult? I put my plastic yearly town parking pass in the rubber of the side door so I wouldn’t forget to hang it up. Guess what happened when I opened the door? You can’t make this shit up. Will try to get a replacement but I may have to get it out somehow. Thank you in advance.

Sponsored



[Ducati1098]

It's pretty easy to remove.

Front Door Trim Panel
Special Tool(s) / General Equipment

Pick Hook

Interior Trim Remover

Removal

NOTE: Left hand (LH) shown, right hand (RH) similar.

NOTE: 5-door vehicle shown, 3-door vehicle similar.

NOTE: Removal steps in this procedure may contain installation details.

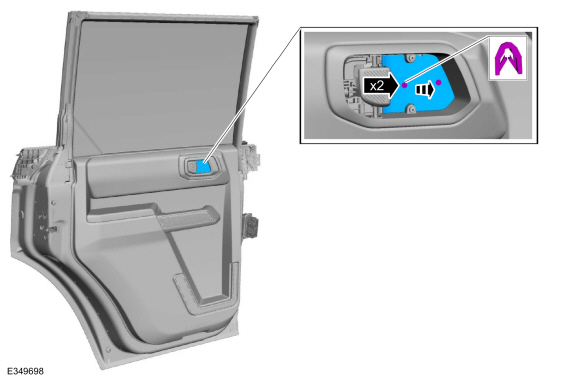

1. NOTE: Interior front door handle removed for clarity.

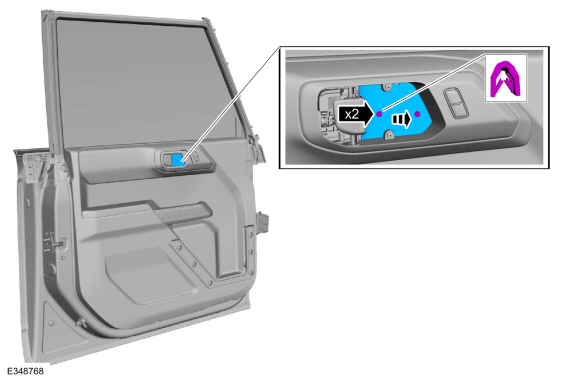

   Release the clips and remove the interior front door handle bolt cover.
   Use the General Equipment: Pick Hook

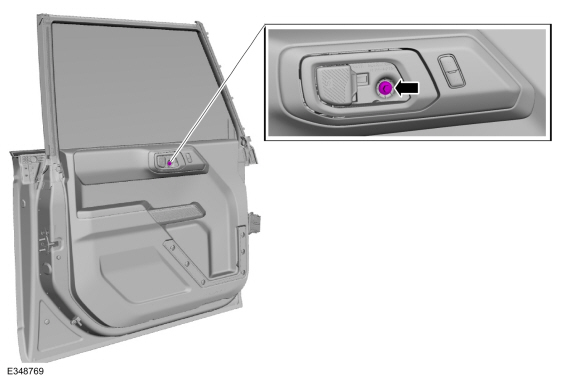

1. Remove the interior front door handle bolt.
   Torque: 36 lb.in (4.1 Nm)

1.

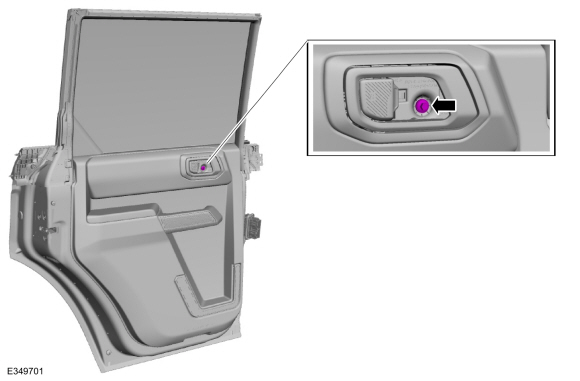

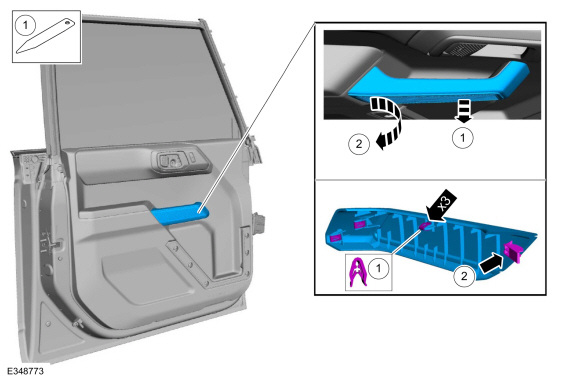

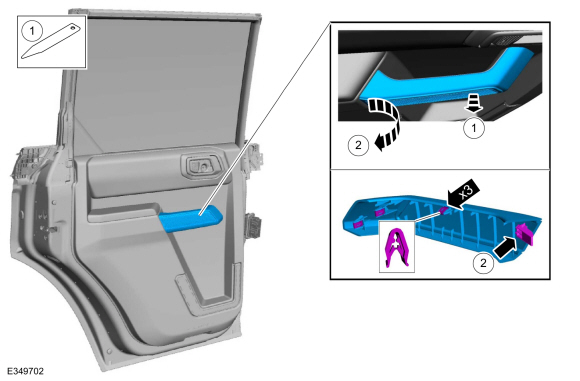

   Remove the front door trim panel bolt cover.

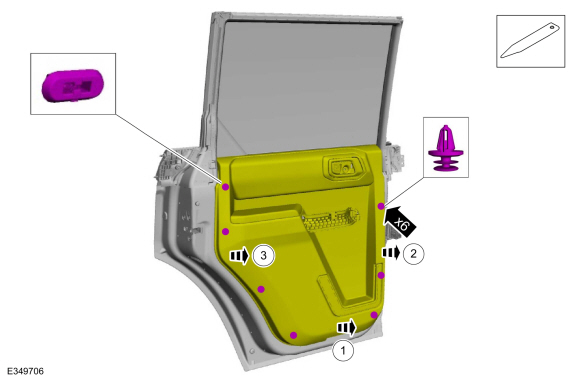

   1. Release the clips.
      Use the General Equipment: Interior Trim Remover
2. 1. Release the rear tab.

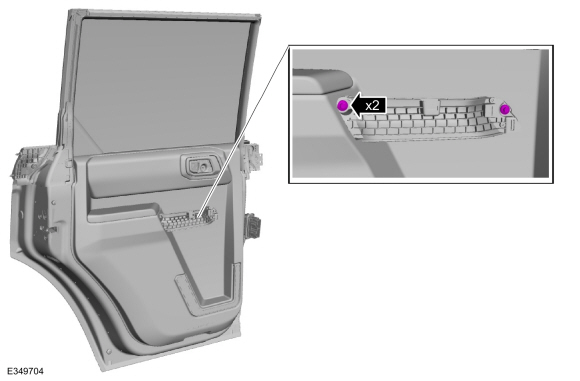

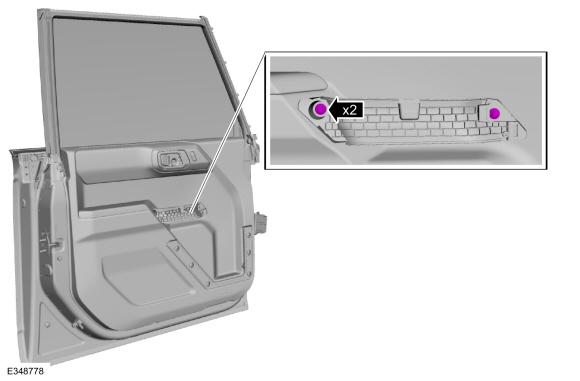

1. Remove the front door trim panel bolts.
   Torque: 36 lb.in (4.1 Nm)

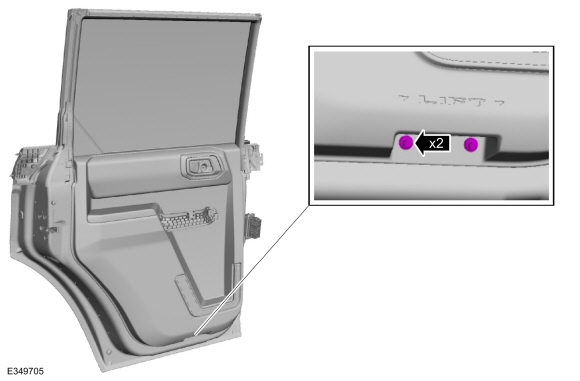

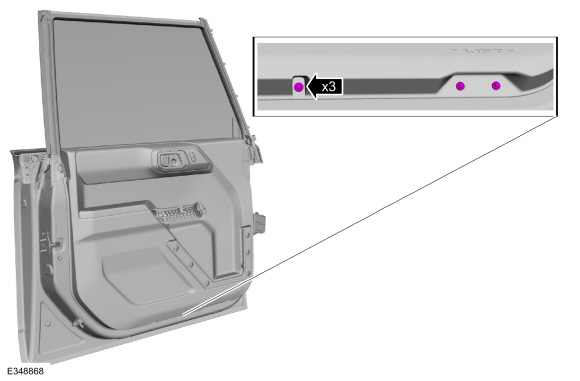

1. Remove the front door trim panel lower bolts.
   Torque: 36 lb.in (4.1 Nm)

All vehicles

1. NOTICE: For re-installation, the tabs must be re-engaged to prevent the interior front door handle from becoming non-functional.

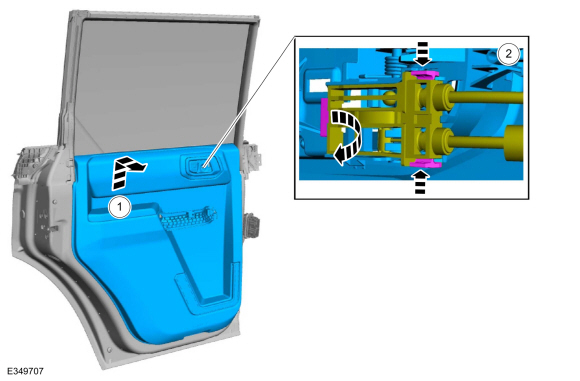

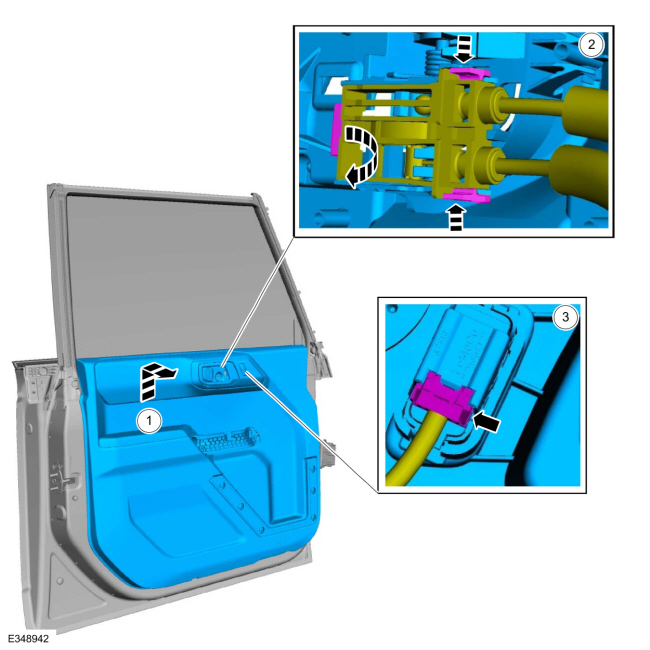

   Remove the front door trim panel.
   1. Lift upward and outward on the front door trim panel.
2. 1. NOTE: Follow the unique instructions or graphic for this step in installation.
      Release the tabs and position the interior front door cable aside.
3. 1. Disconnect the front door lock control switch electrical connector.

Installation

1. NOTE: If installing a new door trim panel, transfer parts as necessary.
   To install, reverse the removal procedure.

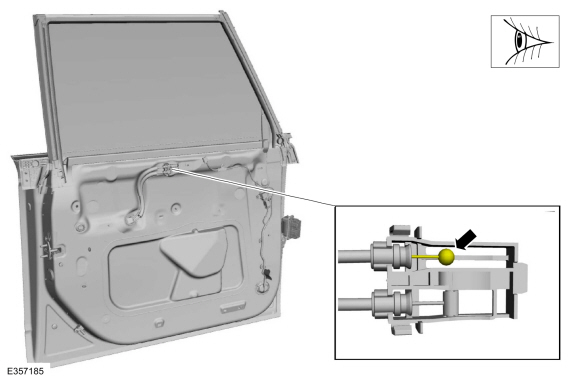

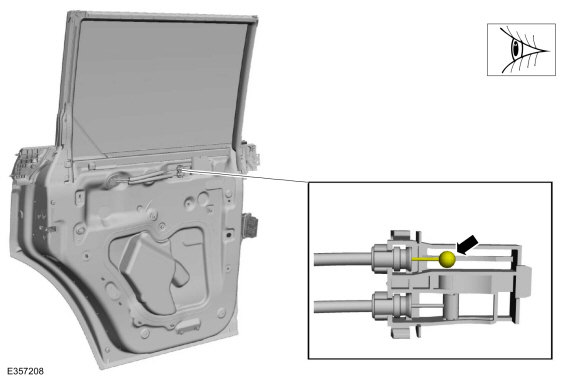

1. NOTICE: The manual door lock cable must be in the locked position prior to reassembly or the door lock feature may not function correctly after installation.
   Verify that the manual lock cable is placed inward to the locked position.



[OuterJersey]

Great! Thank you very much!



[Area51BS]

Guess Bronco had window frames in original design.



[Ducati1098]

Guess Bronco had window frames in original design.

I didn't even notice that. That is interesting because these type of pictures in the workshop manual are usually pretty accurate.



[HotLap]

Nice response Duc1098and to OP, super easy to remove. Have had all mine off to date.



[OuterJersey]

Nice response Duc1098and to OP, super easy to remove. Have had all mine off to date.

Yes! Perfect! really appreciate it!
