I have some updated parts that I am updating and posting later today. Attached is what I am working on and some parts that will go into validation later this week. Ill post assembly soon.

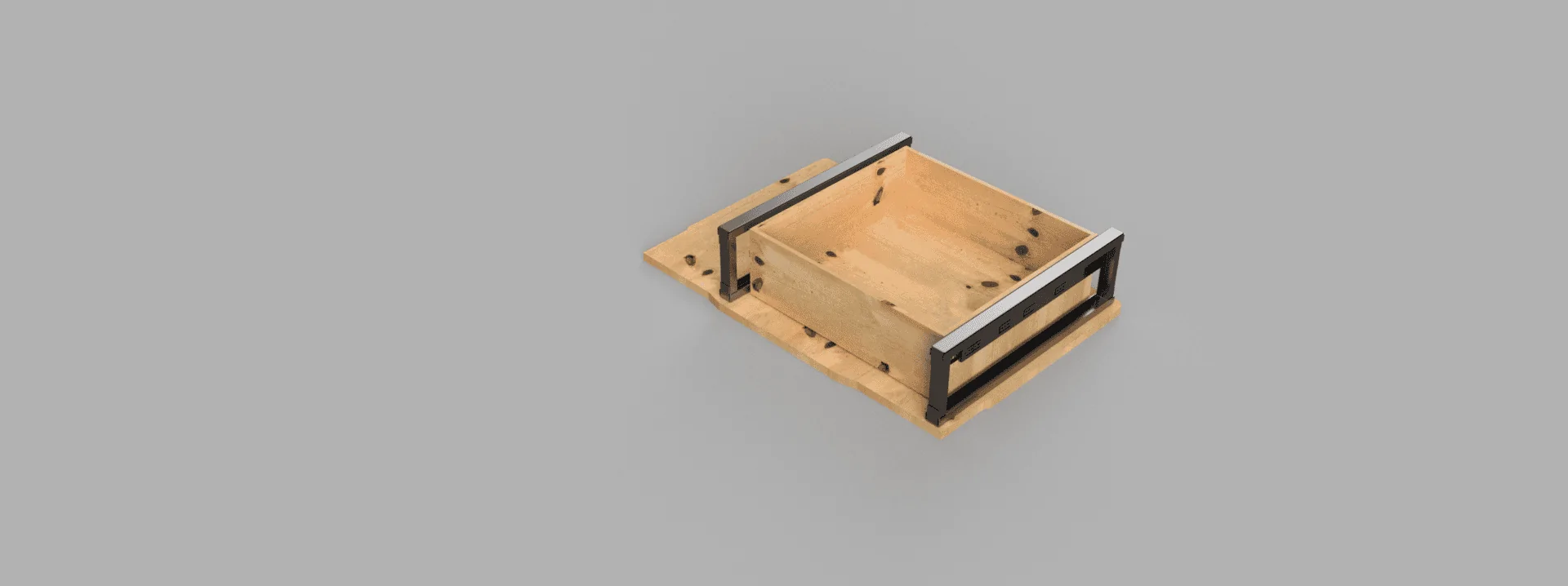

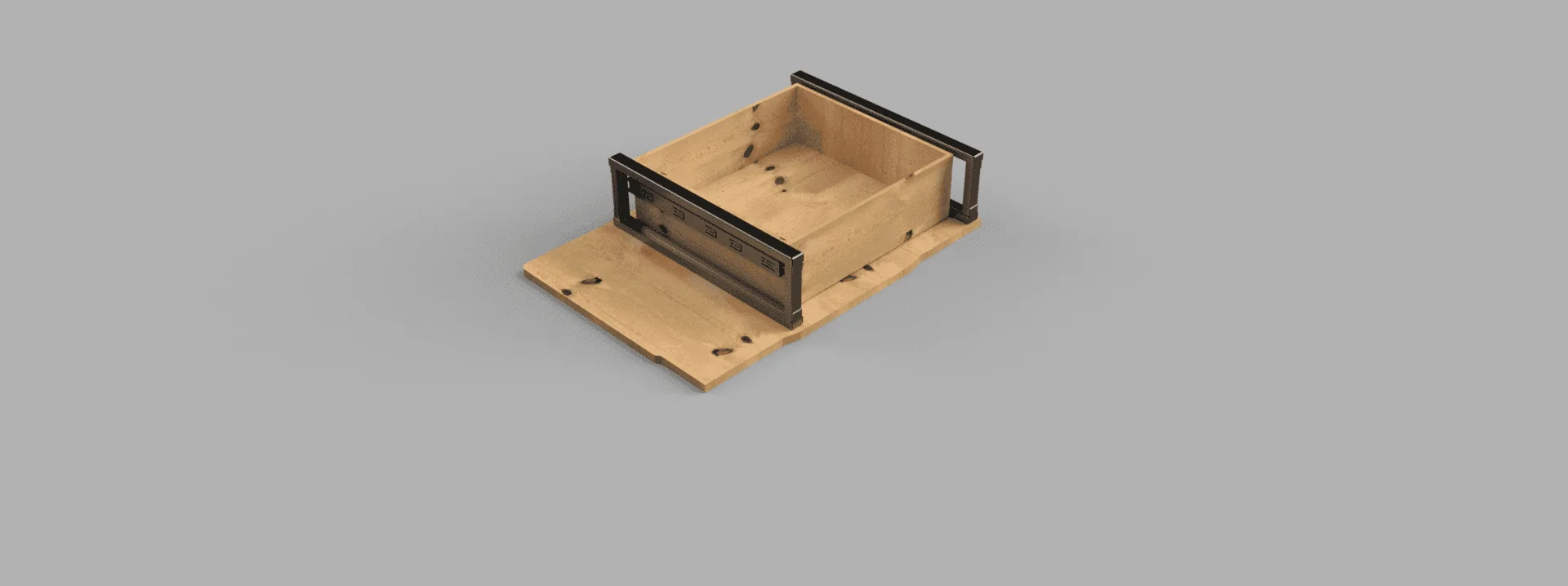

Ford Bronco Open-Source: Trunk Storage System (Open TSS) Open TSS Assembly v1

Ford Bronco Open-Source: Trunk Storage System (Open TSS) Open TSS Assembly v1 Front

Ford Bronco Open-Source: Trunk Storage System (Open TSS) Open TSS Assembly v1 LEFT FRONT TOP
Sponsored


OP
OP
Russ.Cere

Russ.Cere

Wildtrak
Well-Known Member
Lux Sponsor (Level 2)
First Name
Russ
Joined
Apr 16, 2023
Threads
25
Messages
172
Reaction score
459
Location
Washington State
Website
modcrate.myshopify.com
Vehicle(s)
Bronco
Your Bronco Model
Wildtrak
Clubs

Looking forward to the plans for the 2 door stuff.
I have been having trouble with this as I only have a 4 door. When I can afford a SEMA data transfer membership I'll be able to make more process.

OP
OP
Russ.Cere

Russ.Cere

Wildtrak
Well-Known Member
Lux Sponsor (Level 2)
First Name
Russ
Joined
Apr 16, 2023
Threads
25
Messages
172
Reaction score
459
Location
Washington State
Website
modcrate.myshopify.com
Vehicle(s)
Bronco
Your Bronco Model
Wildtrak
Clubs

Simple 90 degree bracket. You can mark this out with a sharpie and cut with hand tools if you need to. Made from .080 mild steel widely available.


Attachments

OP
OP
Russ.Cere

Russ.Cere

Wildtrak
Well-Known Member
Lux Sponsor (Level 2)
First Name
Russ
Joined
Apr 16, 2023
Threads
25
Messages
172
Reaction score
459
Location
Washington State
Website
modcrate.myshopify.com
Vehicle(s)
Bronco
Your Bronco Model
Wildtrak
Clubs

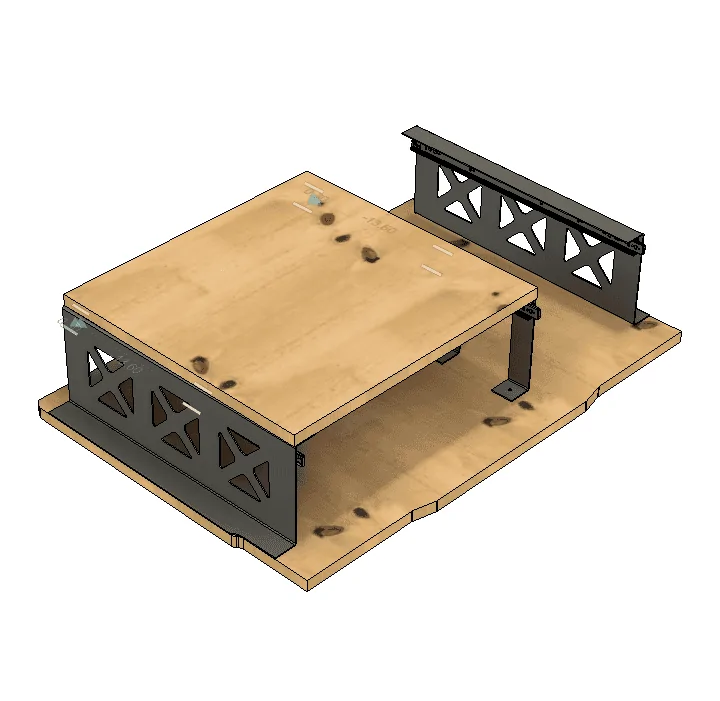

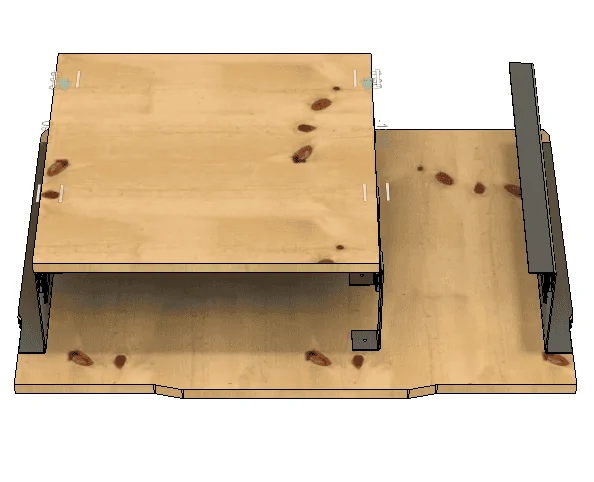

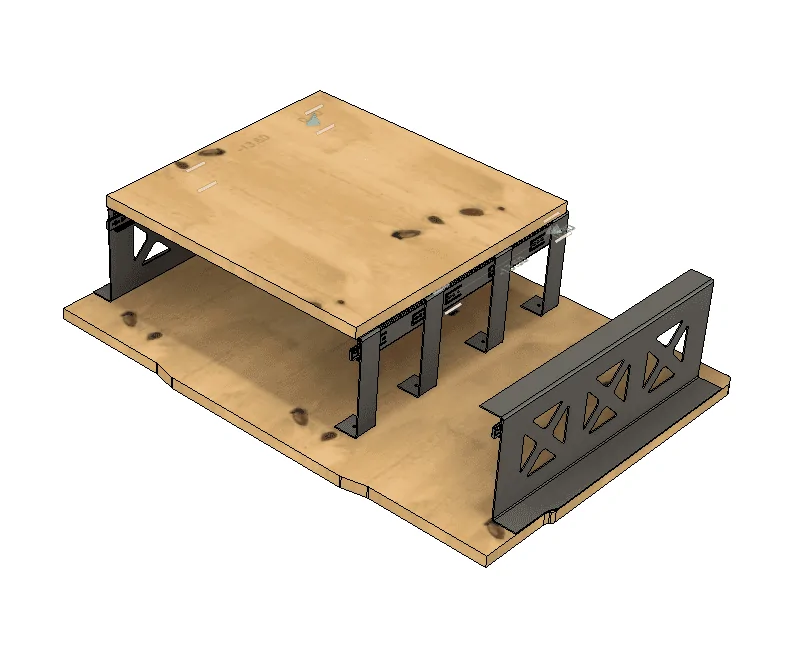

Most recent update. I am validating the parts and making an assembly video. Pictured is roughly $100 in parts. Excluding screws and fastening hardware.

Ford Bronco Open-Source: Trunk Storage System (Open TSS) Open TSS 13Ju
Ford Bronco Open-Source: Trunk Storage System (Open TSS) Open TSS 13Jun FT


Ford Bronco Open-Source: Trunk Storage System (Open TSS) Open TSS 13Jun TLF


Sponsored

cr117

Badlands
Well-Known Member
Joined
May 18, 2023
Threads
6
Messages
477
Reaction score
1,173
Location
PNW
Vehicle(s)
Bronco, EV6
Your Bronco Model
Badlands
Clubs

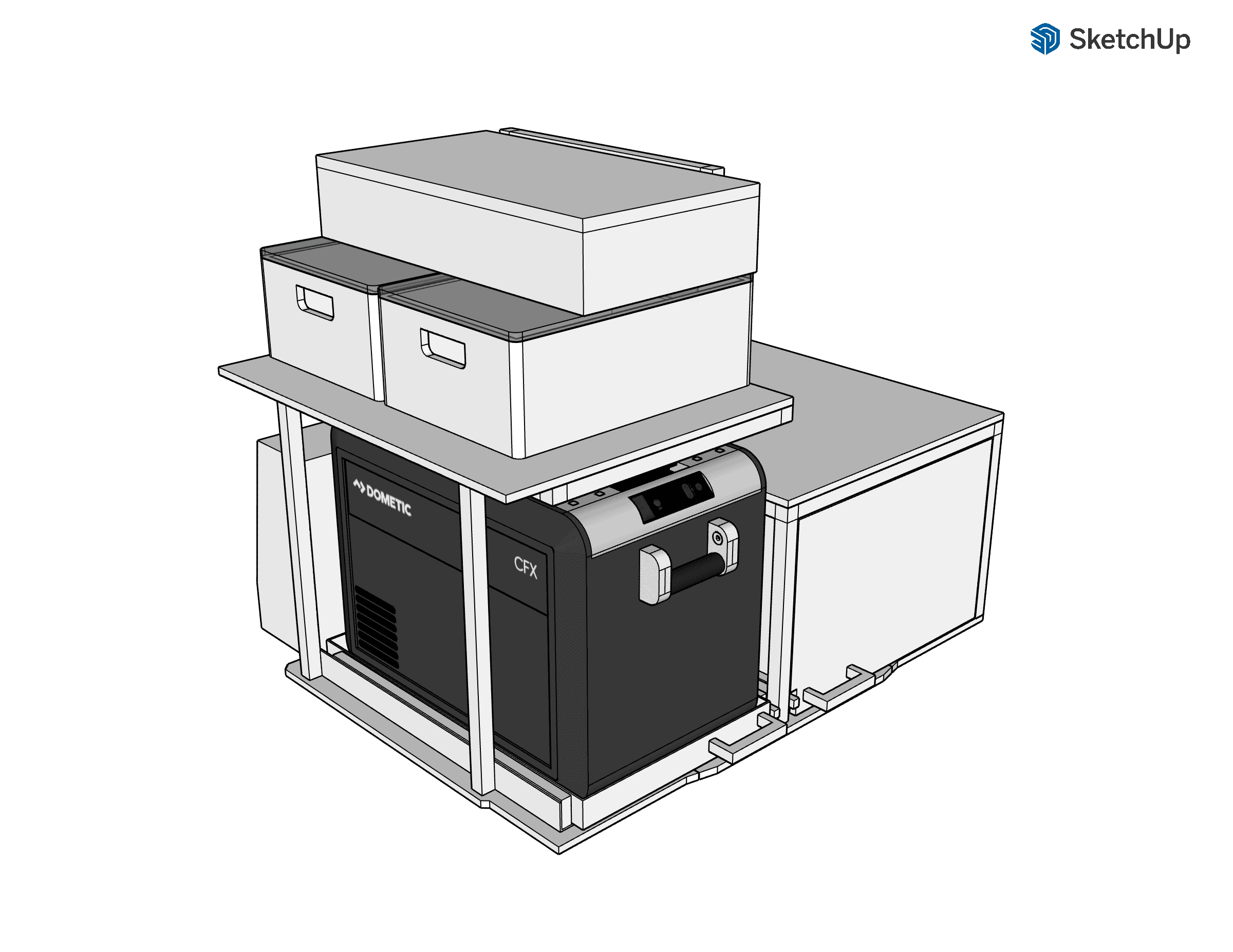

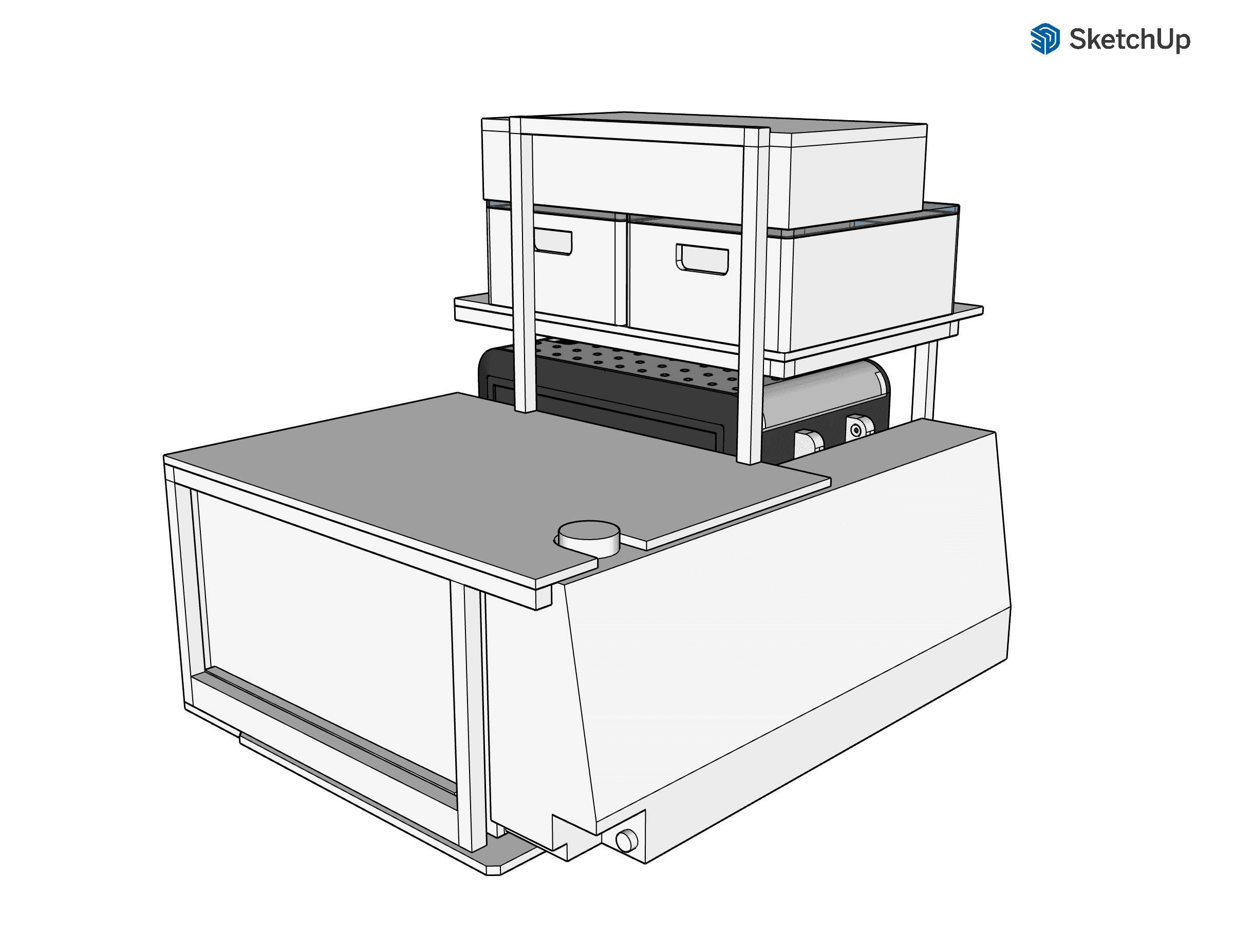

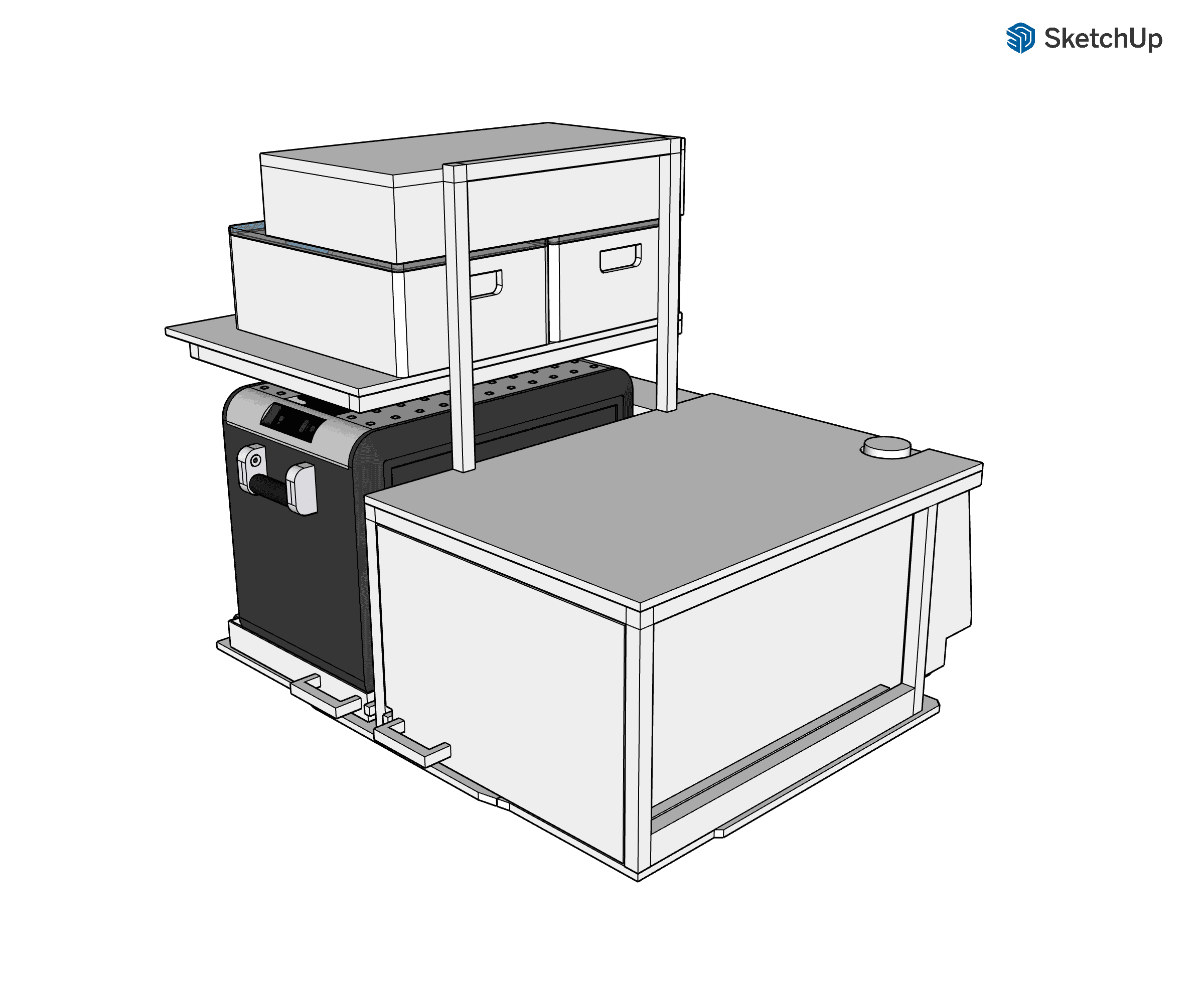

This thread has given me all kinds of ideas on how I want to organize the cargo area. Currently, this is my tentative plan using 10 series extruded aluminum for the frame. Has room for a 45L fridge, 50L water tank, and the drawer has been sized to fit 2 full Sidio crates. The area on top of the drawer could either be used for more storage or a place for my dog to ride. My goal is to keep things as modular as possible, so I'd be able to remove the top shelf, drawer/water tank, and/or the fridge slide separately, depending on what I'm doing.
