Warn VR EVO 10S Winch Installed

[vrtical]

I have been posting pics here and there but the complete install is finished and functioning.

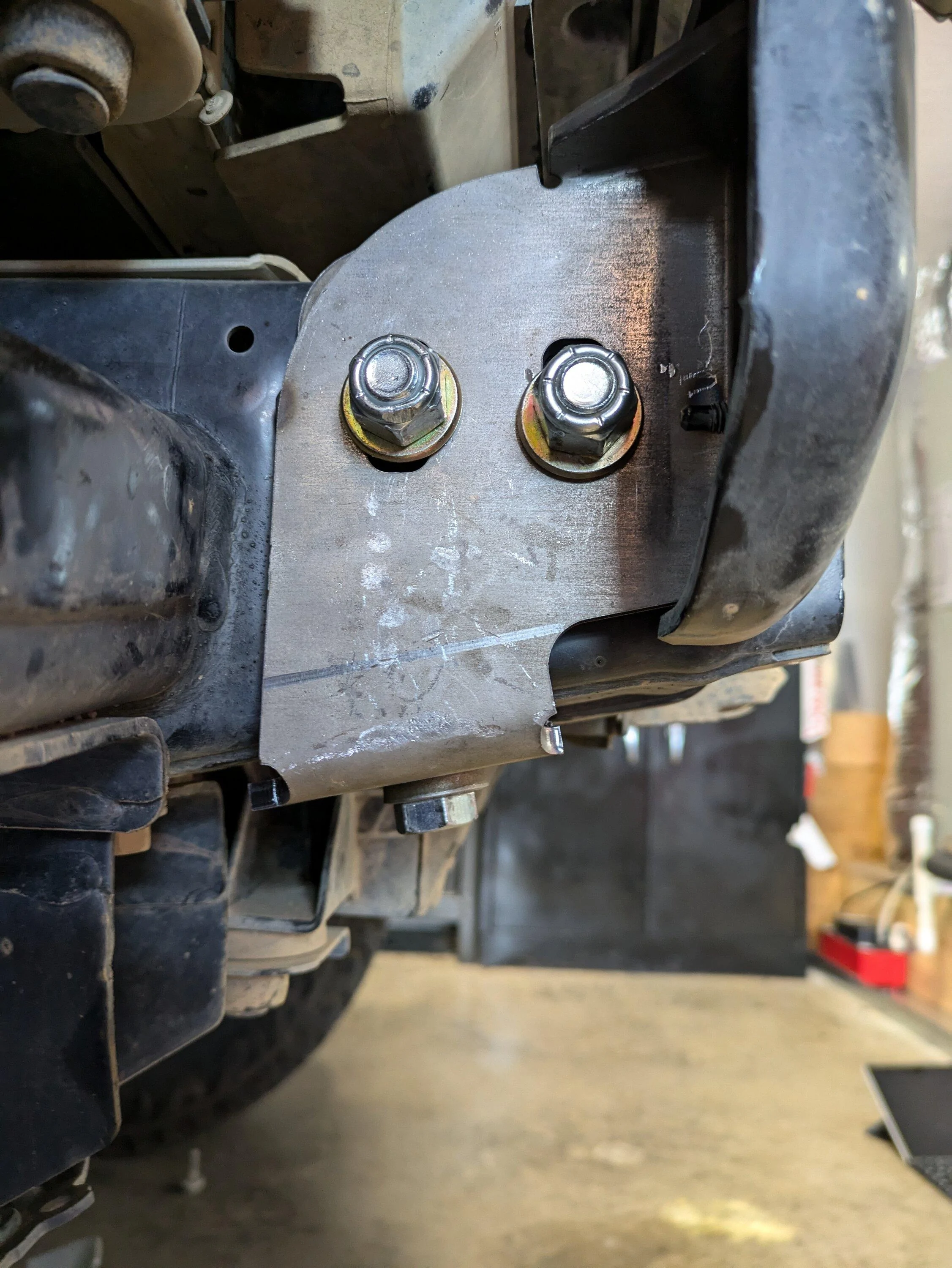

1) Installed frame Horn reinforcement brackets.

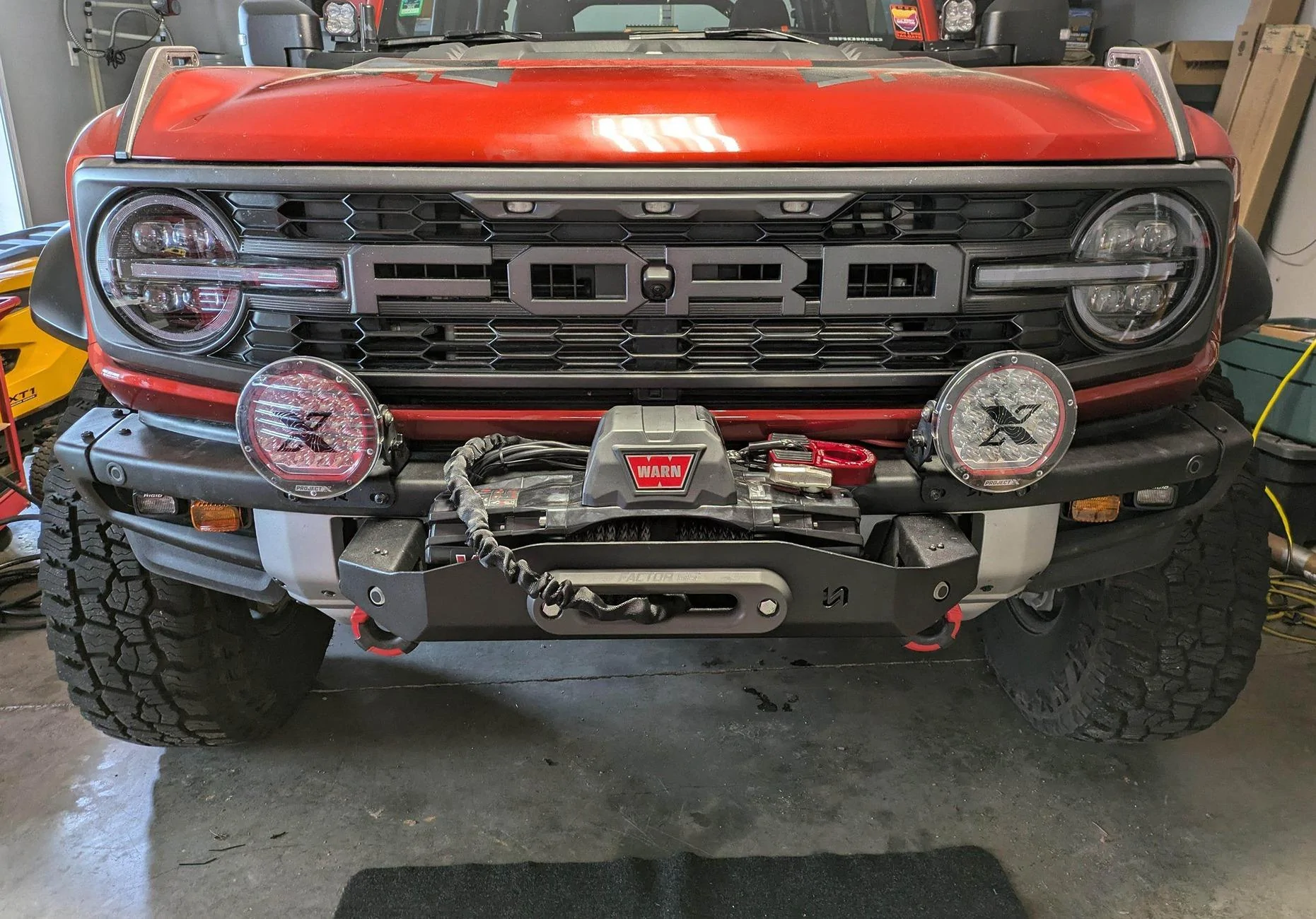

2) Installed Turn Offroad winch plate and Warn winch with Factor55 upgrades.

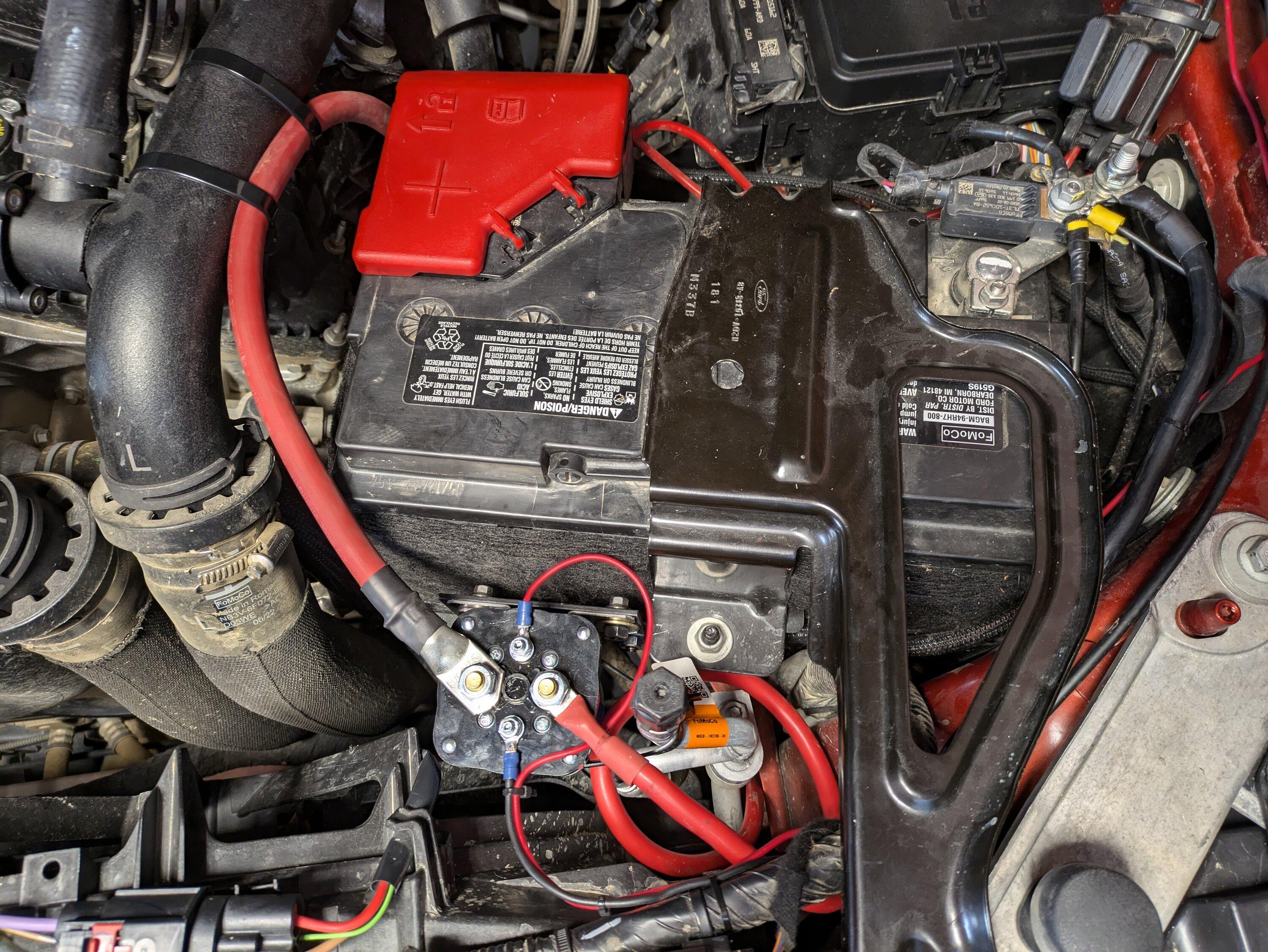

3) Installed and wired up Stinger 500amp relay which is triggered from uppfiter switch.

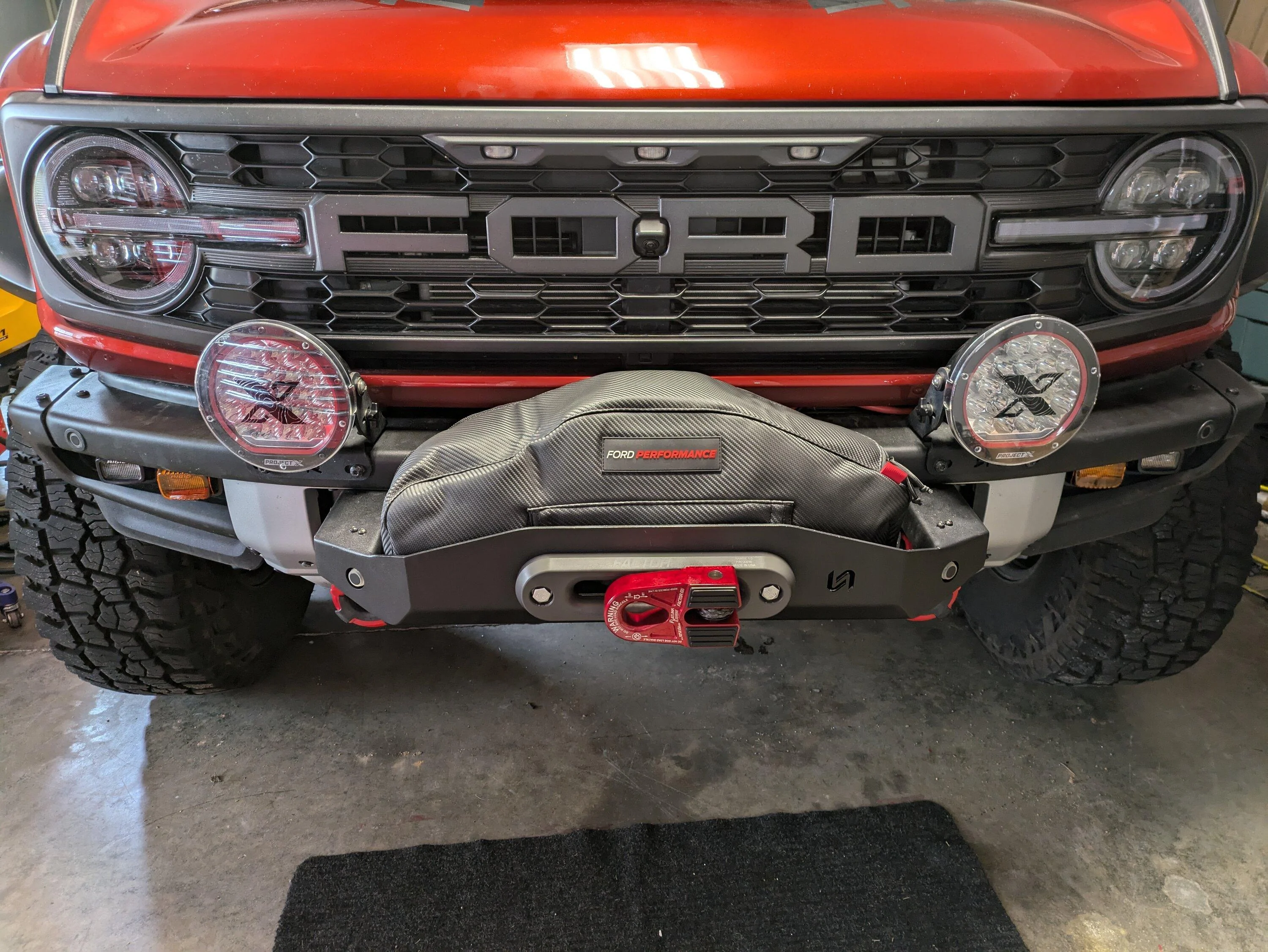

4) Added FP cover to finish out the job.

5) grab a beer or 3

Sponsored



[Chrome_Pony]

Only note I have would be to paint over those brackets. Mine were coated, did you order them raw?



[DewarT]

Looks good- just picked up a 12S to install over the long weekend.



[vrtical]

Only note I have would be to paint over those brackets. Mine were coated, did you order them raw?

They will be mud caked by next weekend lol



[Y2KFirehawk]

The FP cover is

In addition to coating/painting the raw brackets to avoid corrosion, I'd consider changing the power lead zip ties to the intake tubing. The engine will move and you won't want that cable moving or rubbing.



[vrtical]

The FP cover is

I'd consider changing the power lead zip ties to the intake tubing. The engine will move and you won't want that cable moving or rubbing.

I may fab a bracket still figuring out where to mount it on the pos side there is nothing there so the wire is free standing and I used the zip ties just keep it farther way from the turbos/engine heat. Also the wire wont rub on anything made sure of that one.



[GI_Jo_Nathan]

Nice! I bought that Turn Offroad winch plate. I didn't like how far out it stuck. Probably going to list it for sale for cheap.



[gmac71]

hi looks good...which horn brackets did you get?



[vrtical]

hi looks good...which horn brackets did you get?

They are Mikes TD ones which he doesnt make anymore, I got them last year when I was piling up parts.



[vrtical]

Nice! I bought that Turn Offroad winch plate. I didn't like how far out it stuck. Probably going to list it for sale for cheap.

Yes but the only other two solutions is run a high mount (which is bad) and a complete new bumper system. I like the OEM bumper so went this route, doesnt look as bad with my Project X lights on there.



[Dads_bronze_bronco]

Curious - (planning on doing this myself) - How much did the front end sink before and after?



[Dads_bronze_bronco]

Also, can you share a side view showing the finished approach angle?

How is your front camera view? Do you need to relocate it?



[vrtical]

Also, can you share a side view showing the finished approach angle?

How is your front camera view? Do you need to relocate it?

After install it only moved the front 1/8", but I am running preload collars and a braptor has some pretty significantly stiffer front springs with the weight and 3.0L.

Approach angle is not affected on my rig at least, but the bottom of the plate is 27 3/4 from ground.

Front camera view is actually not bad, but I do have a M2M camera relocation kit, just haven't put it on yet, going to see how it is next weekend first. My sight lines for left/right tire location are good.



[Tricky Mike]

Looking good. I have the non S and it's been good to me. The range on the wireless remote keeps getting shorter though, maybe the battery is weak.



[vrtical]

Looking good. I have the non S and it's been good to me. The range on the wireless remote keeps getting shorter though, maybe the battery is weak.

I have the wired version not even sure if they have a new kit for these or not, need to dig.
