Eibach Coilovers NOW AVAILABLE!

[5280Bronco]

With progressive rate coil springs.

I still think it's a good price and a nice upgrade especially for lower trim broncos.

Are the stock springs on the hoss Bilsteins linear rate?

Im assuming that the progressive rate would give a better ride on road than the Bilsteins possibly?

Sponsored



[Natai]

So you list the approximate lift for Sas & Non-Sas, with no mention of Badlands special suspsension (which is closer to Sas than Non). Unfortunately, neglecting the BL suspension has become common when discussing suspension upgrades, but then you should photos of a BL non-Sas.

Is there any sort of bump stop or other adjustment to limit up travel to allow for larger tires without rubbing?



[RainbowStix]

Any extended/compressed numbers or other product specs? Can’t really tell by the pictures but these seem to be a close design to the 5100s with a different spring.

So you list the approximate lift for Sas & Non-Sas, with no mention of Badlands special suspsension (which is closer to Sas than Non). Unfortunately, neglecting the BL suspension has become common when discussing suspension upgrades, but then you should photos of a BL non-Sas.

Is there any sort of bump stop or other adjustment to limit up travel to allow for larger tires without rubbing?

How hard is it to add 0.5” to the SAS lift height measurement? That’s all the “special suspension” is in terms of lift height, 0.5” shorter than SAS. It’s also actually closer to non sas by 0.1” (1.1” > 0.5 > 0)



[Letagoavs710]

Are these available for the 2025 Bronco?



[SuzH]

Eibach 2021+ Ford Bronco Pro-Truck Coilover 2.0 Front & Rear ​

Now Available for the 2021+ Ford Bronco, Eibach's new PRO-TRUCK-LIFT (Stage 2) coilovers provide up to 4" of lift and the perfect balance of off-road performance and control.

Perfect blend for off-road and daily driving!

• Pre-assembled for direct bolt-on installation
• Utilizes our ERO Championship proven Off-Road racing springs
• Designed to work with factory control arms for an increase in height without accelerated wear to ball joints and bushings
• Developed specifically to provide a balanced ride quality on and off-road
• Made by Eibach in the USA

Included:
2 – Front PRO-TRUCK Coilover 2.0 Shocks
2 – Rear PRO-TRUCK Coilover 2.0 Shocks
1 - 6mm adjustment spanner wrench & all required mounting hardware

Ride Height:
+0.9-3.4" (Front) +1.6-3.1" (Rear) - Non SAS
+0.5-3.0" (Front) +1.2-2.7" (Rear) - SAS.

Ordered at Expo PNW, and just arrived. Can’t wait to install them on DeWalt!



[kodiakisland]

So you list the approximate lift for Sas & Non-Sas, with no mention of Badlands special suspsension (which is closer to Sas than Non). Unfortunately, neglecting the BL suspension has become common when discussing suspension upgrades, but then you should photos of a BL non-Sas.

Is there any sort of bump stop or other adjustment to limit up travel to allow for larger tires without rubbing?

They probably figure most people can do the math. It’s in between the two and for all practical purposes close enough to the Squatch to not notice the difference.
The numbers are approximate as vehicles have different weights and they are adjustable. You should be able to get where you want to be with what they give you.



[IwannaGOfast]

Are the stock springs on the hoss Bilsteins linear rate?

Im assuming that the progressive rate would give a better ride on road than the Bilsteins possibly?

Yes the factory springs appear to be linear.

It's only the rear coils that are progressive. These appear to have three different rates like icon. King and fox both have dual rate setups.

I would assume that having a soft coil rate for small stuff and a stiffer rate to kick in when you hit something big would benefit both on and off-road.

I'm not exactly sure how the triple rate works, but I would guess that part of the coil is very soft and basically accounts for holding the vehicle up. I think this section of the coil is almost completely compressed at ride height.



[Natai]

They probably figure most people can do the math. It’s in between the two and for all practical purposes close enough to the Squatch to not notice the difference.
The numbers are approximate as vehicles have different weights and they are adjustable. You should be able to get where you want to be with what they give you.

True enough, but my concern is less about figuring the math and more for if the company actually realizes there are 3 factory setups instead of 2. Particularly when a lot of these vendors simply sell Sas and non-Sas kits.
I think we've established there are a LOT of uninformed customers out there. And depending on the details of a particular kit, it would be easy for someone with a BL to but the wrong kit if only given these two options.



[kodiakisland]

True enough, but my concern is less about figuring the math and more for if the company actually realizes there are 3 factory setups instead of 2. Particularly when a lot of these vendors simply sell Sas and non-Sas kits.
I think we've established there are a LOT of uninformed customers out there. And depending on the details of a particular kit, it would be easy for someone with a BL to but the wrong kit if only given these two options.

They give you the two extremes and let you figure the rest. It’s the same coilovers regardless of what you are replacing and the amount is only approximate. They are also adjustable. Those who are so uninformed won’t know the difference anyway.



[WuNgUn]

4" of lift....

• Designed to work with factory control arms for an increase in height without accelerated wear to ball joints and bushings
• Will totally lunch your tierods and CV axles



[Caleb@PandaMotorworks]

Forgot to mention, with this purchase you are eligible for a FREE Panda Motorworks T-Shirt!



[Snacktime]

Contacted customer service and this is what I got for E86-35-056-01-22 shock lengths.

Top hat to eyelet extended length is 24.2" long, collapsed is 17.77". Thanks!

- Team Eibach



[Snacktime]

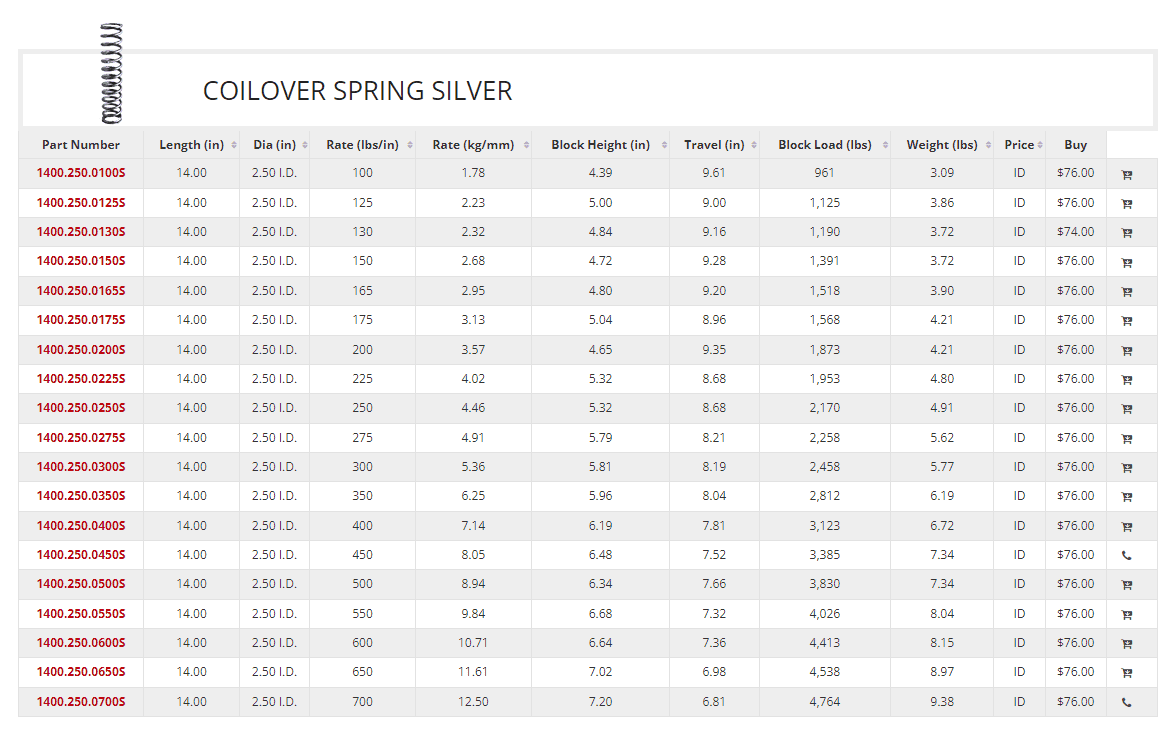

If they use the same springs as on the ranger, front travel looks limited. 14x2.5 @550lbs is a max 7.32" travel.



[RainbowStix]

In my experience, Eibach is good, but not great. If you're looking for a name brand lift for your daily to add larger tires only, these will probably work fine. If you're looking for the best suspension to mob across the desert at 80mph, then spend the money on Fox or King.

You’re gonna need more than just a few mid travel coilovers to do that in a Bronco



[Snacktime]

Well eibach declined to answer by questions further...

So front shocks are 1.4" longer than SAS which is max other companies have gone(safe spacer length). I would guess the rear is similar. I think these are going to be super similar to stock SAS travel with unlimited adjustment. One of you who ordered will have to tape measure for the rest of us.

I am tempted to order, I wonder if the wife will believe the shocks came free with the shirt.
