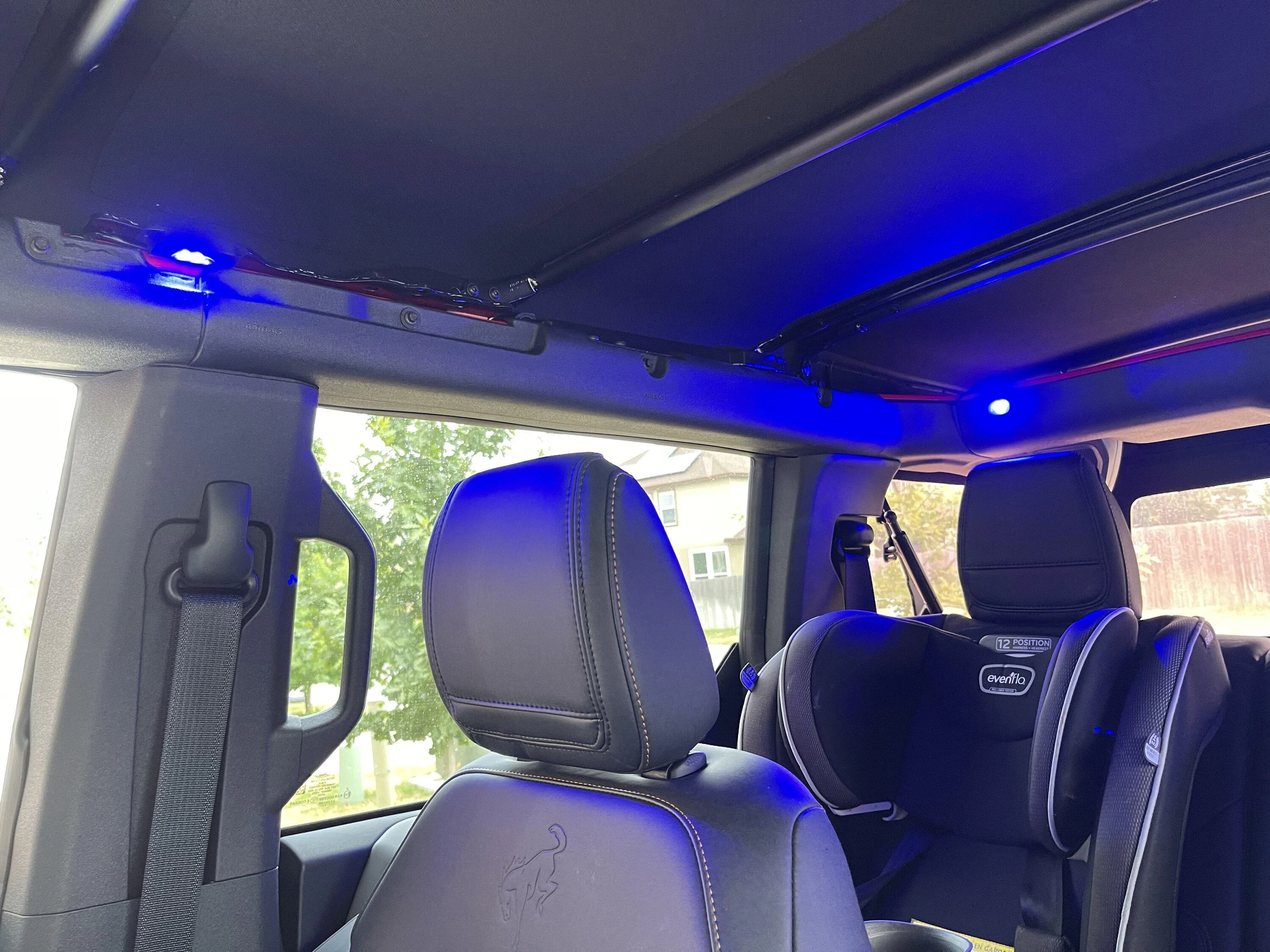

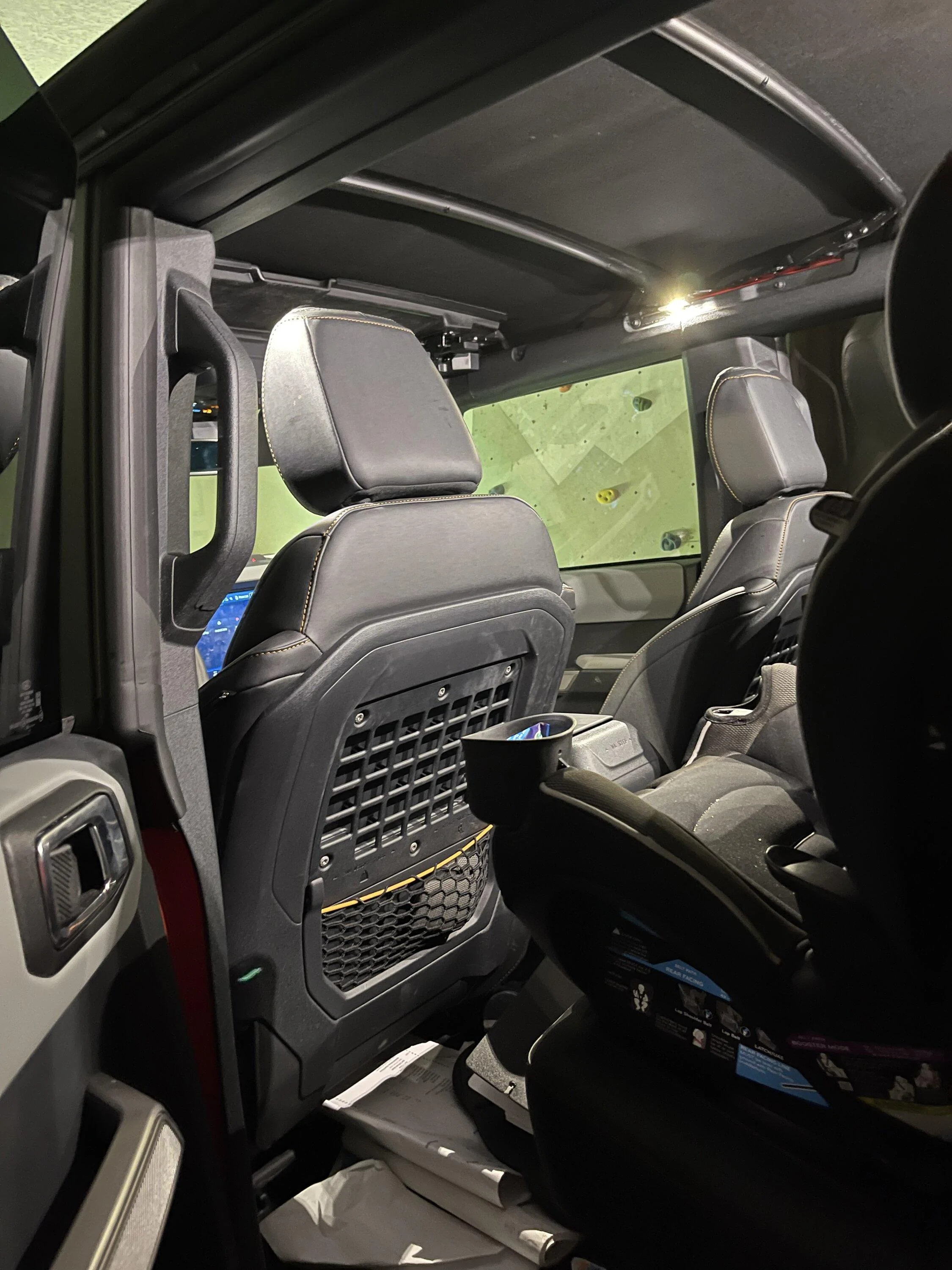

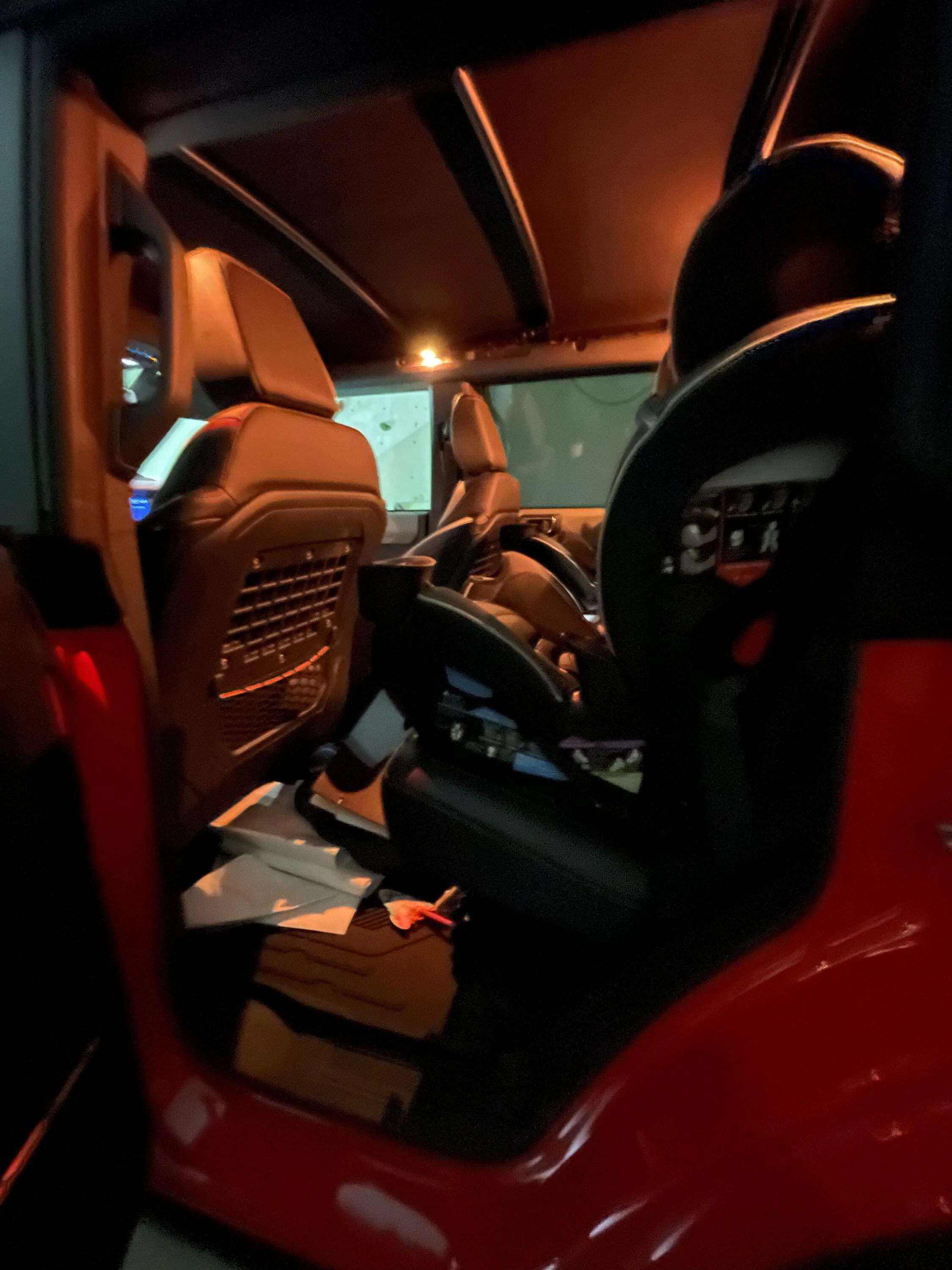

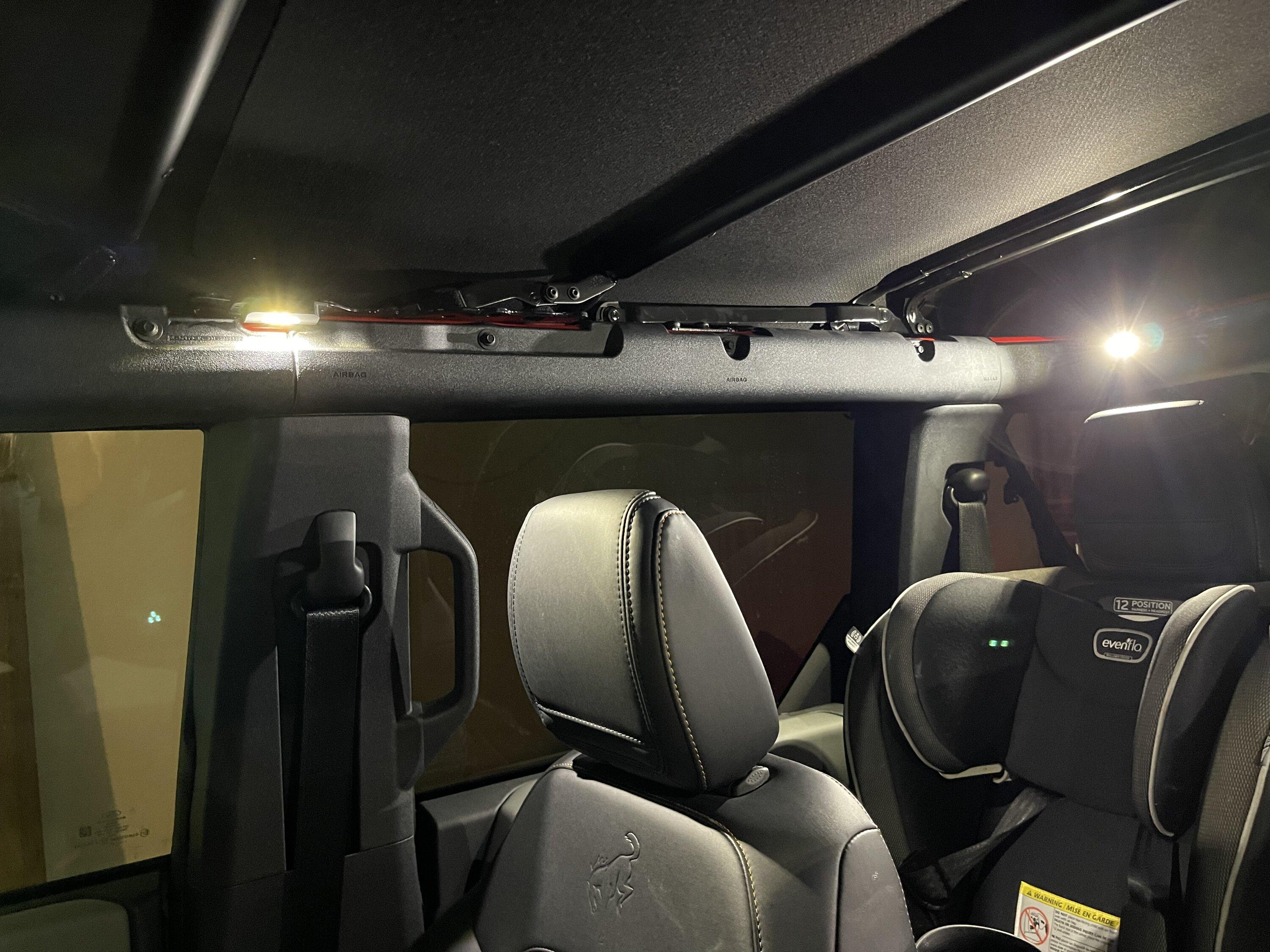

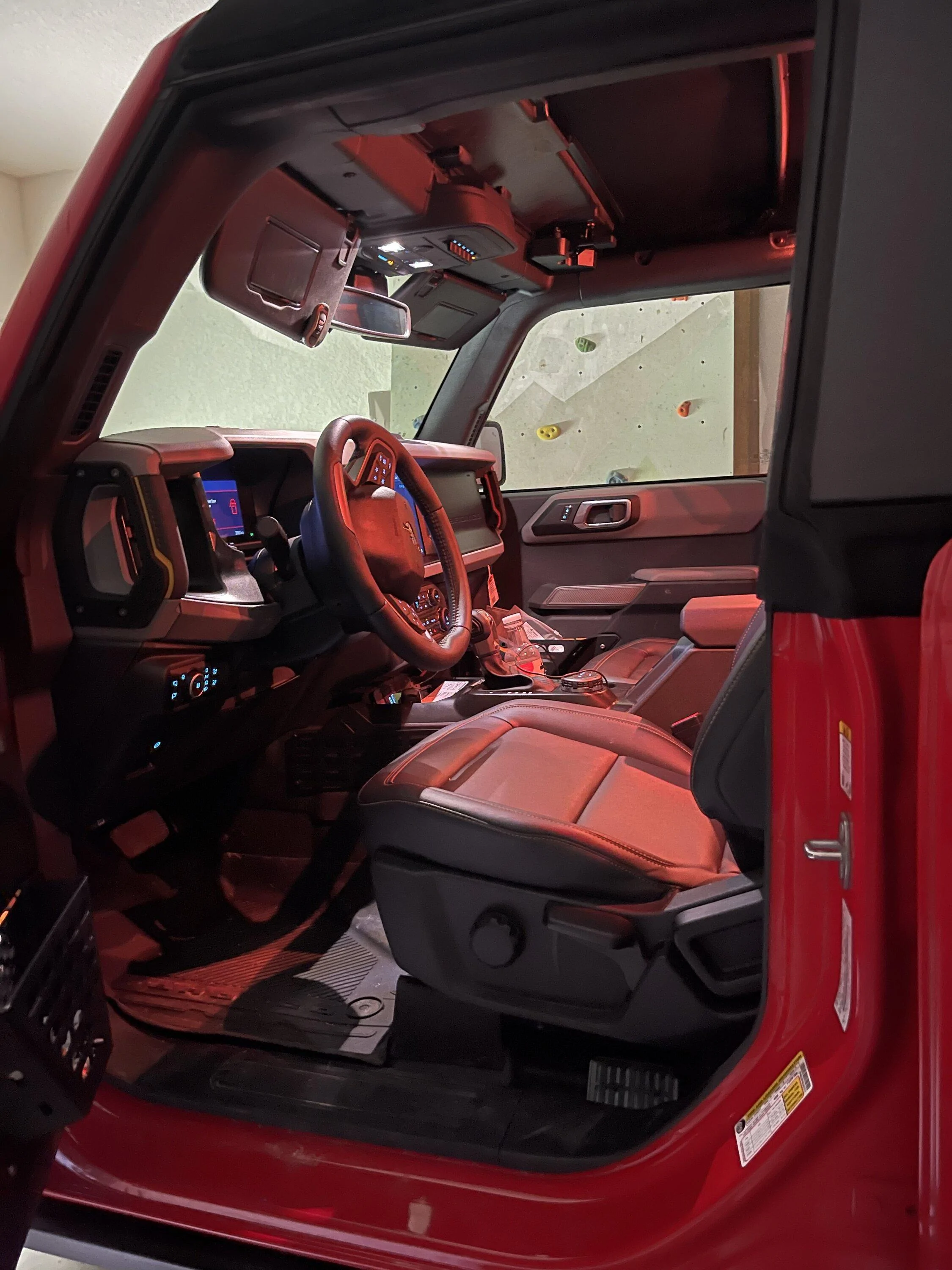

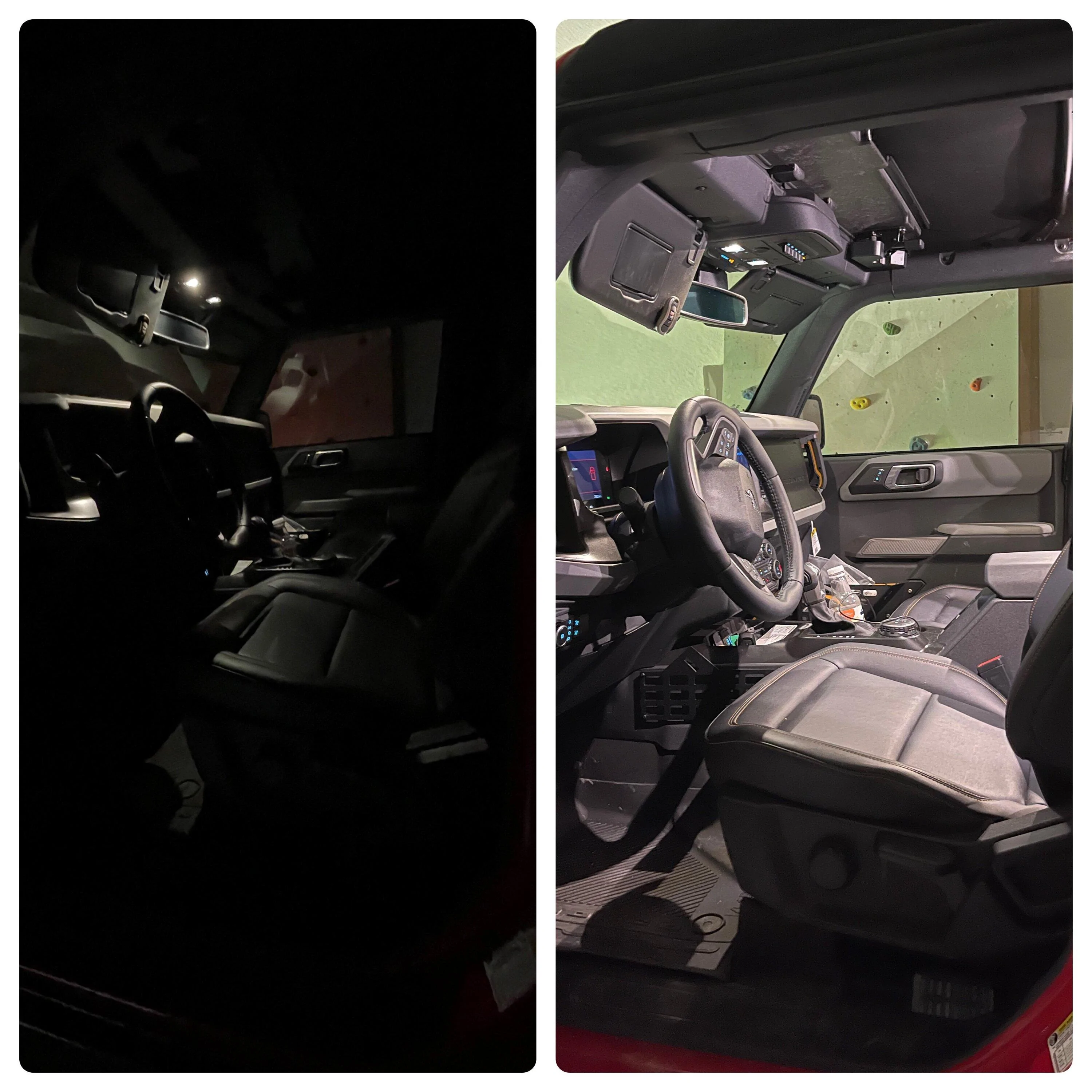

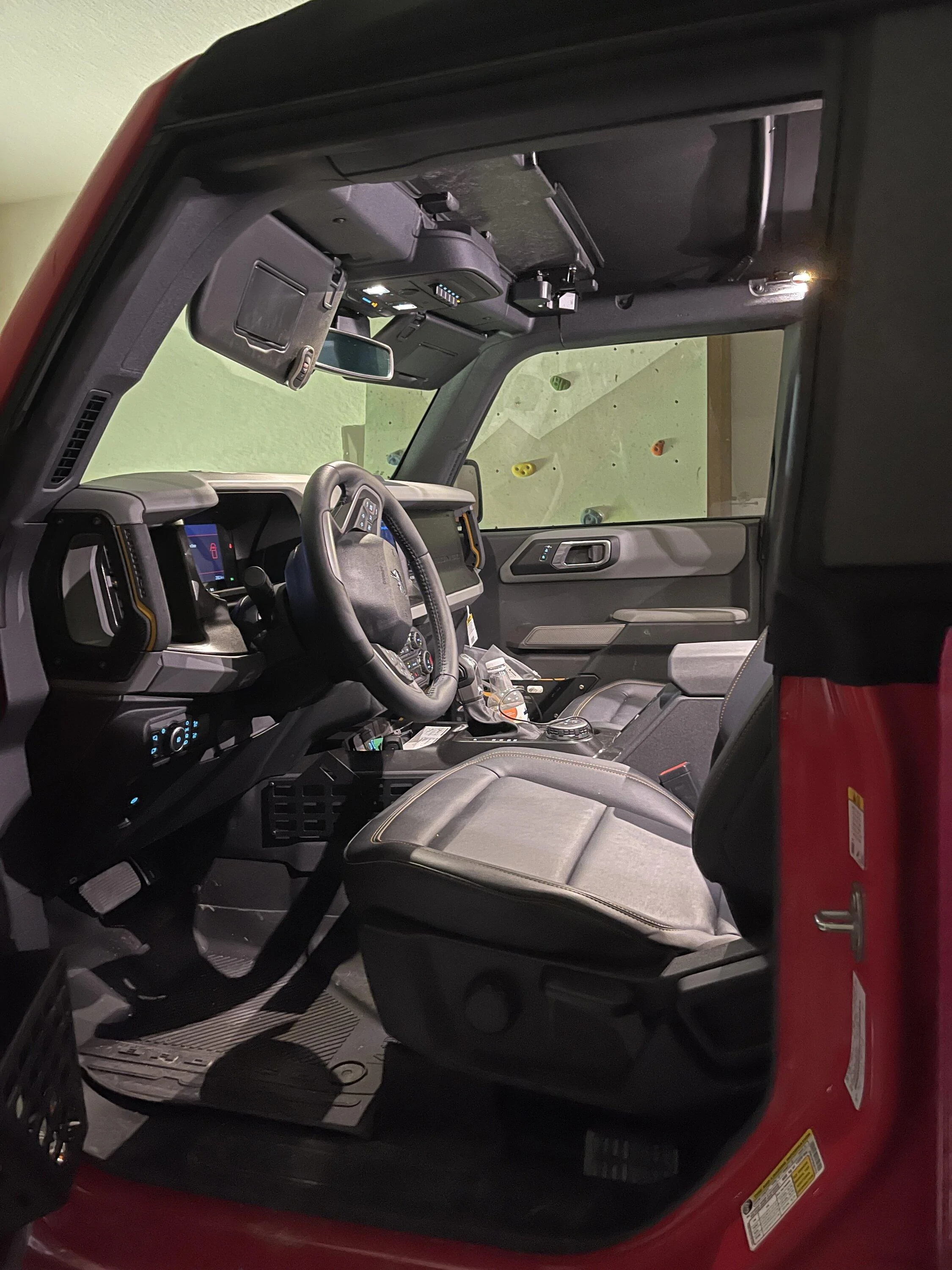

Having been unhappy with the interior lighting of the Bronco, I upgrade the interior lighting using Govee LED under lighting kit. https://www.amazon.com/gp/product/B0969PDDP5/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1 and wired it to Aux 6 Switch. The default setting is white but it can also be set to any color or sync with music( I will never use that feature, but is there for those who want a disco Bronco). I couldn't be happier with the results, its like daytime in the car when I turn them on. I can also dim the lights using the Govee app but for the most part I never have the need to open the app. The default white full on works for my purposes. Hard to beat for $50 in parts and a little sweat equity.

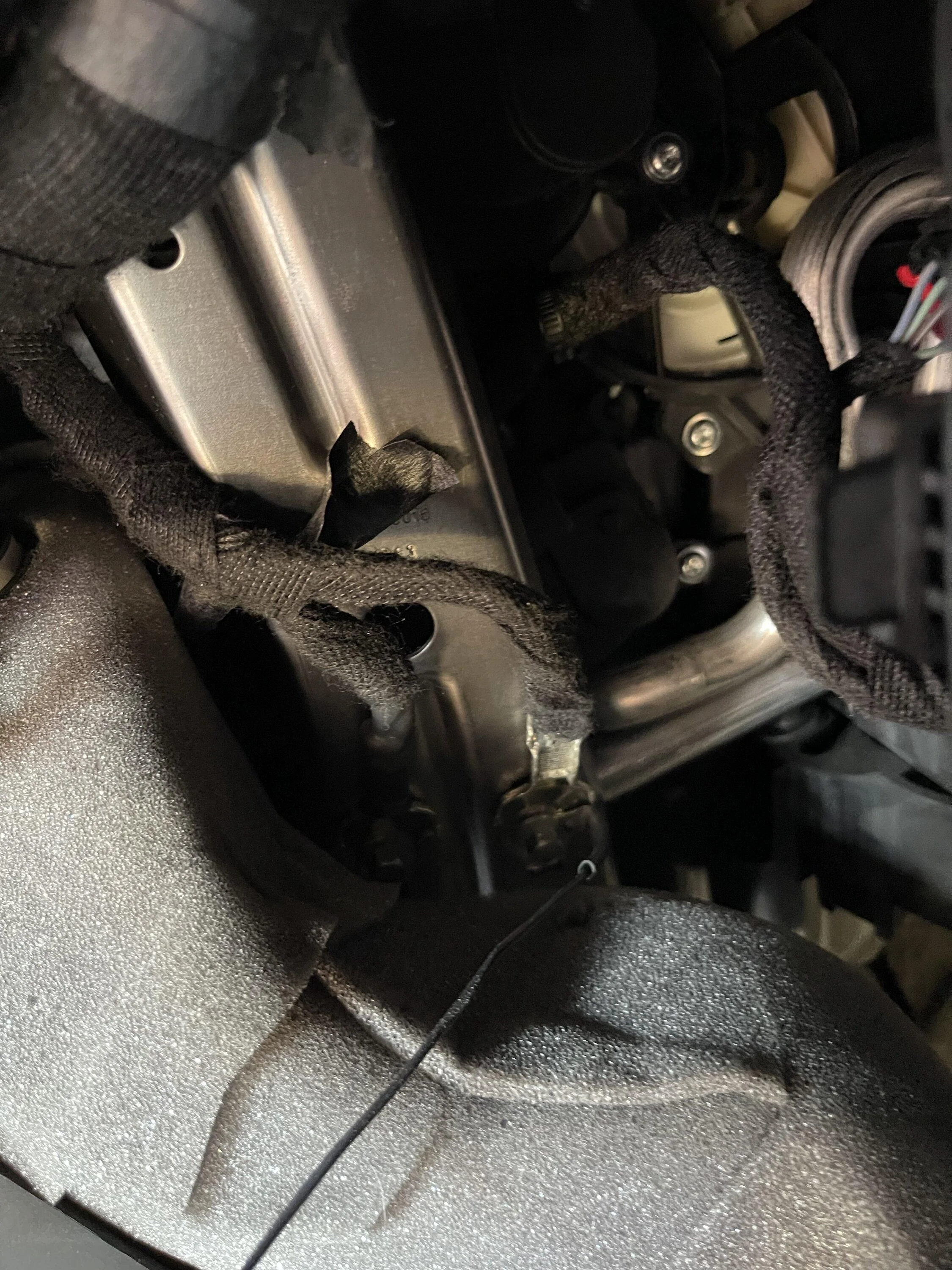

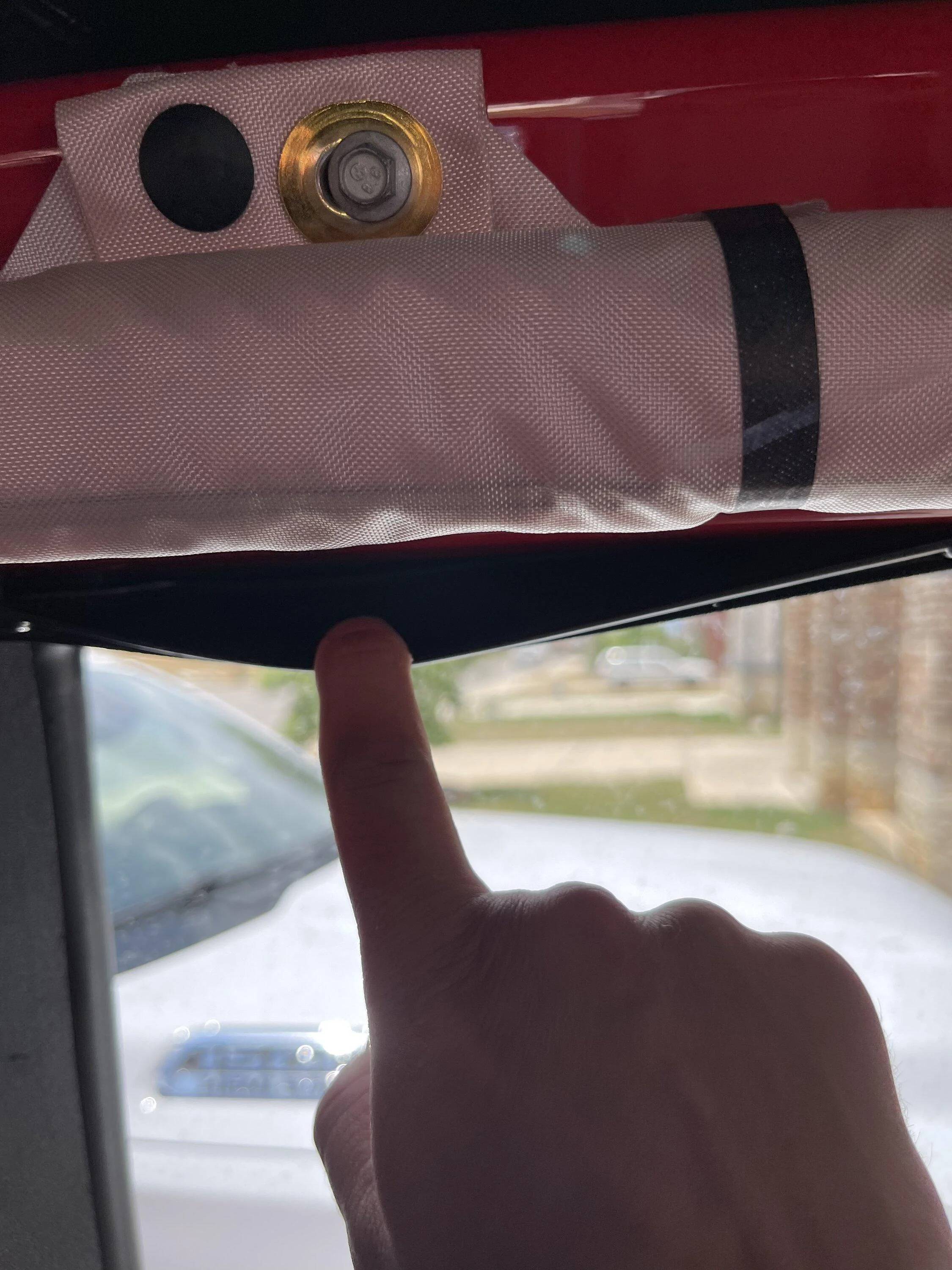

The whole process took be about an hour an half to wire. I used the Aux 6 switch and wired it to the rear white/orange aux wire in the passenger side rear. I had to remove both covers of the air roof air bags to fish the wire along the roll cage (yes, made sure to secure the wire to not interfere with the opening of the air bags) to the rear cover of the roll cage. The covers are the only trim pieces secured with bolts. The rest of the top trim and side trims are all held in place with body clips. I pulled down the rear roll bar trim piece to store the LED driver/Control and fished a wire down the passenger side pillar to tie into the Orange/white aux wire. I stuck the lights on above the airbags on the soft top front brackets using 60lb double sided tape and the rear lights on the rear roll bar just behind the passenger seats. The install is clean and you hardly notice the lights until they are on.
Screenshot 2022-02-21 205236.jpg
I couldn’t stand the lack of light in the stock soft top, so I followed this tutorial today. Definitely took longer than him, but overall super happy with how it turned out. Lights are wired into aux 6 for now. I ran all of the wiring behind the dash or behind the roll bar air bags. In passenger glove compartment it is wired to brown/white and shares a ground to the right side of the head unit with a spade connector

Ford Bronco Soft top interior lighting upgrade 7BF4E8F8-7B75-42D9-BF95-149443DAFC49


Ford Bronco Soft top interior lighting upgrade 48D46DD5-8EB4-4E05-BEED-228F5B69BDDE


Ford Bronco Soft top interior lighting upgrade 7EADF61D-7001-4116-B893-9A3636673C20


Ford Bronco Soft top interior lighting upgrade 89CAE8E5-D793-4311-B587-016488E915EE


Ford Bronco Soft top interior lighting upgrade DCD733B4-3974-40B1-A992-288FAC2845EC


Sponsored


Last edited:

bytheway

Badlands
Well-Known Member
First Name
Brice
Joined
Jul 6, 2020
Threads
72
Messages
1,538
Reaction score
4,430
Location
Louisville, KY
Vehicle(s)
2021 Bronco
Your Bronco Model
Badlands
Clubs


MrGreen55

Badlands
Well-Known Member
First Name
Kyle
Joined
Jul 6, 2021
Threads
17
Messages
791
Reaction score
1,514
Location
Oregon
Vehicle(s)
toyota scion xb
Your Bronco Model
Badlands
Clubs

I was think about doing this same thing but different location with Baja Designs lights found one that should work perfect. only should need 1 light for the 2 door.

OP
OP
Lsm7581

Lsm7581

Badlands
Well-Known Member
Joined
Feb 25, 2021
Threads
4
Messages
64
Reaction score
212
Location
Texas
Vehicle(s)
Ram 1500
Your Bronco Model
Badlands

Sponsored
OP
OP
Lsm7581

Lsm7581

Badlands
Well-Known Member
Joined
Feb 25, 2021
Threads
4
Messages
64
Reaction score
212
Location
Texas
Vehicle(s)
Ram 1500
Your Bronco Model
Badlands

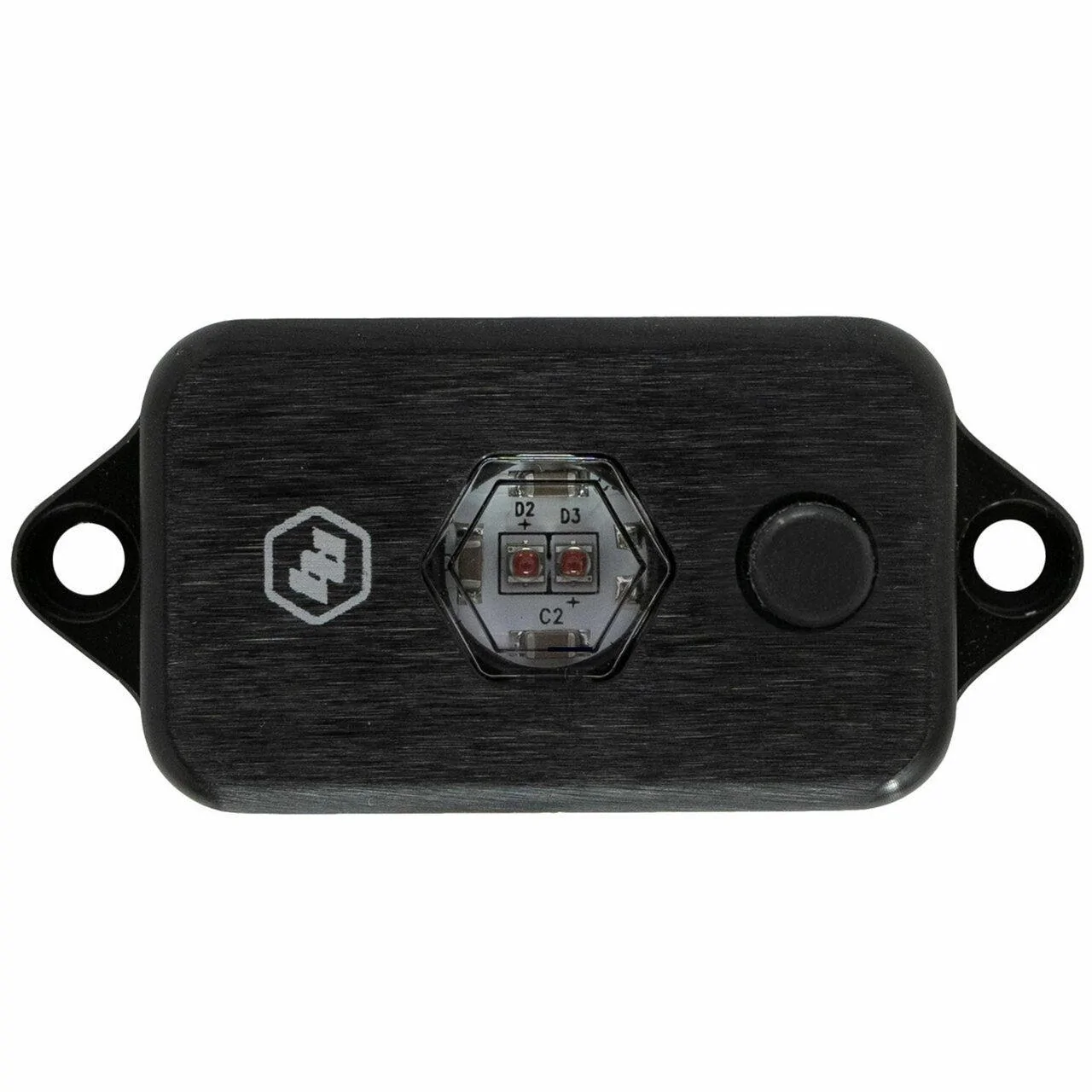

I was think about doing this same thing but different location with Baja Designs lights found one that should work perfect. only should need 1 light for the 2 door.
Ford Bronco Soft top interior lighting upgrade 01_P04_ANG_A__77388.1654558684.1280.1280-1280x1280
Those look nice! Do they wire to switch or is that a button on the light?


MrGreen55

Badlands
Well-Known Member
First Name
Kyle
Joined
Jul 6, 2021
Threads
17
Messages
791
Reaction score
1,514
Location
Oregon
Vehicle(s)
toyota scion xb
Your Bronco Model
Badlands
Clubs

Those look nice! Do they wire to switch or is that a button on the light?
Both was thinking about putting right between the factory lights were that hole is and tapping into that power if it's possible.


buzpro

Outer Banks
Well-Known Member
First Name
Binky
Joined
Aug 2, 2020
Threads
42
Messages
1,712
Reaction score
2,318
Location
Arizona
Vehicle(s)
Tacoma
Your Bronco Model
Outer Banks
Clubs

I couldn’t stand the lack of light in the stock soft top, so I followed this tutorial today. Definitely took longer than him, but overall super happy with how it turned out. Lights are wired into aux 6 for now. I ran all of the wiring behind the dash or behind the roll bar air bags. In passenger glove compartment it is wired to brown/white and shares a ground to the right side of the head unit with a spade connector

Ford Bronco Soft top interior lighting upgrade 01_P04_ANG_A__77388.1654558684.1280.1280-1280x1280


Ford Bronco Soft top interior lighting upgrade 01_P04_ANG_A__77388.1654558684.1280.1280-1280x1280


Ford Bronco Soft top interior lighting upgrade 01_P04_ANG_A__77388.1654558684.1280.1280-1280x1280


Ford Bronco Soft top interior lighting upgrade 01_P04_ANG_A__77388.1654558684.1280.1280-1280x1280


Ford Bronco Soft top interior lighting upgrade 01_P04_ANG_A__77388.1654558684.1280.1280-1280x1280


Ford Bronco Soft top interior lighting upgrade 01_P04_ANG_A__77388.1654558684.1280.1280-1280x1280
NICE ... especially like the red hue ... can it go blue as well?

Hey can you show the way you did the wiring? also, are the lights on both driver and passenger side or just the passenger as its shown in the pics?


IAG Performance

Wildtrak
Well-Known Member
Squatch Sponsor (Level 3)
First Name
JJ
Joined
Aug 24, 2021
Threads
54
Messages
780
Reaction score
2,858
Location
Westminster, MD
Website
www.iagperformance.com
Vehicle(s)
2021 Ford Bronco
Your Bronco Model
Wildtrak
OP
OP
Lsm7581

Lsm7581

Badlands
Well-Known Member
Joined
Feb 25, 2021
Threads
4
Messages
64
Reaction score
212
Location
Texas
Vehicle(s)
Ram 1500
Your Bronco Model
Badlands
NICE ... especially like the red hue ... can it go blue as well?

Hey can you show the way you did the wiring? also, are the lights on both driver and passenger side or just the passenger as its shown in the pics?

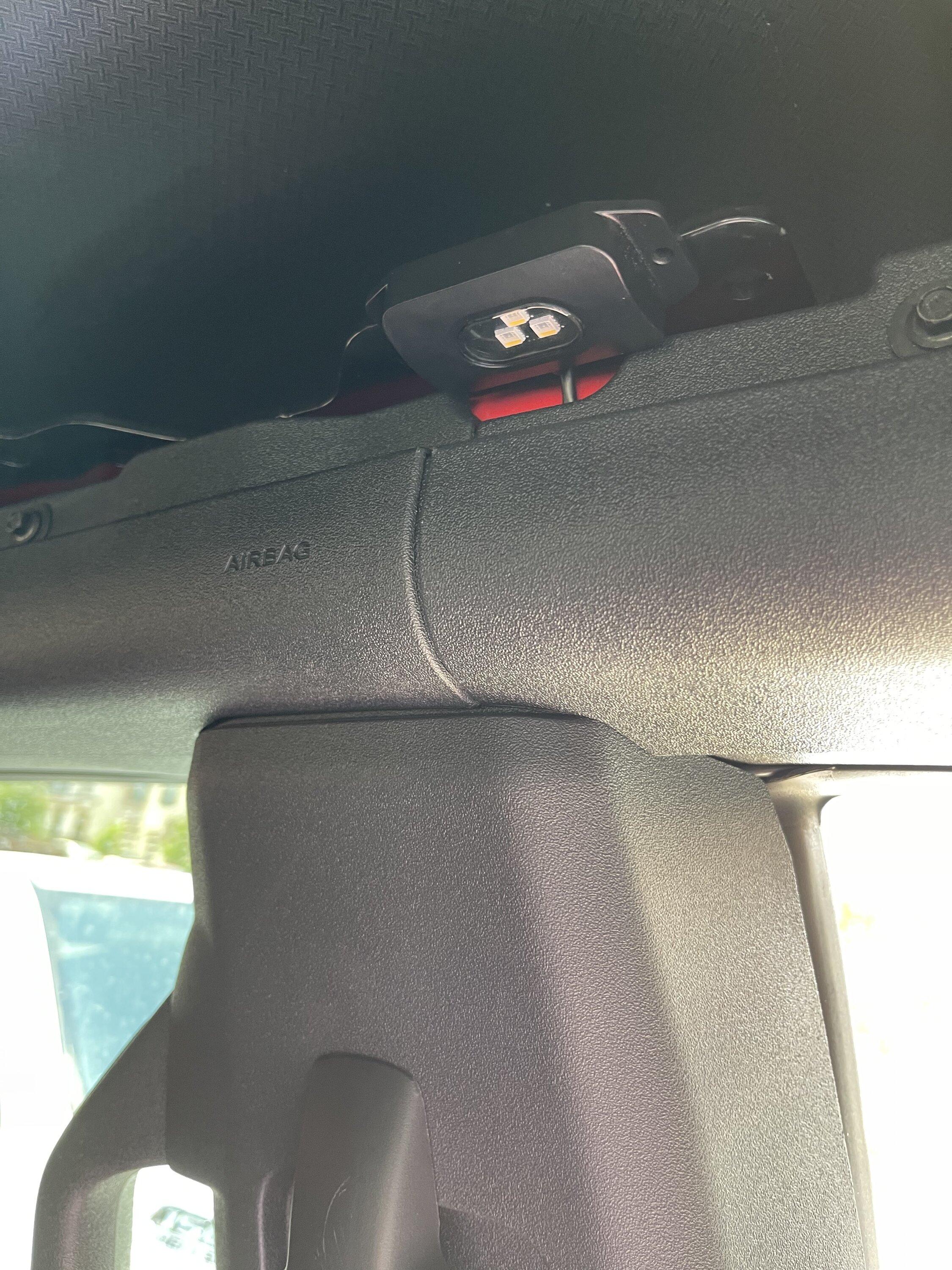

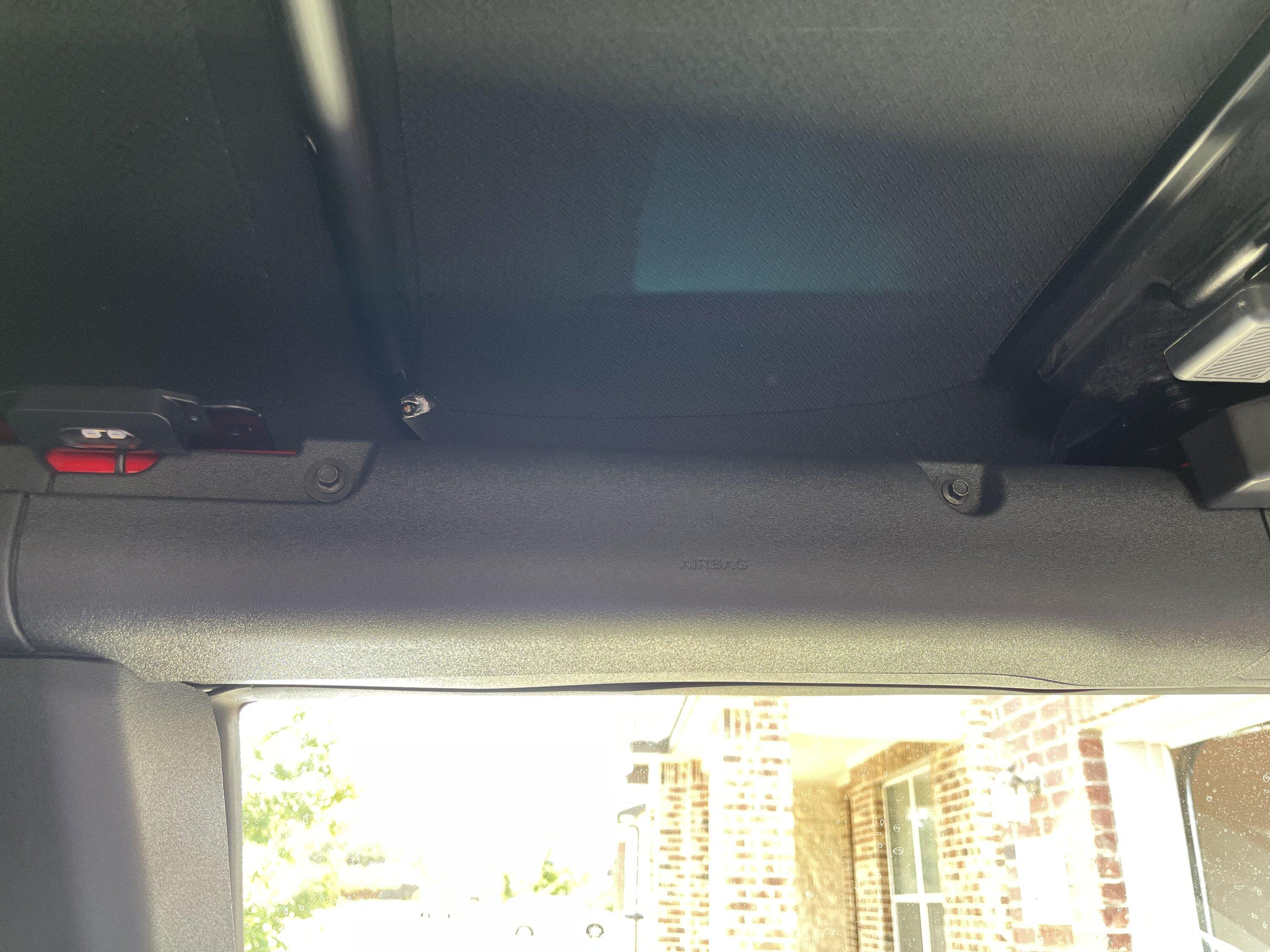

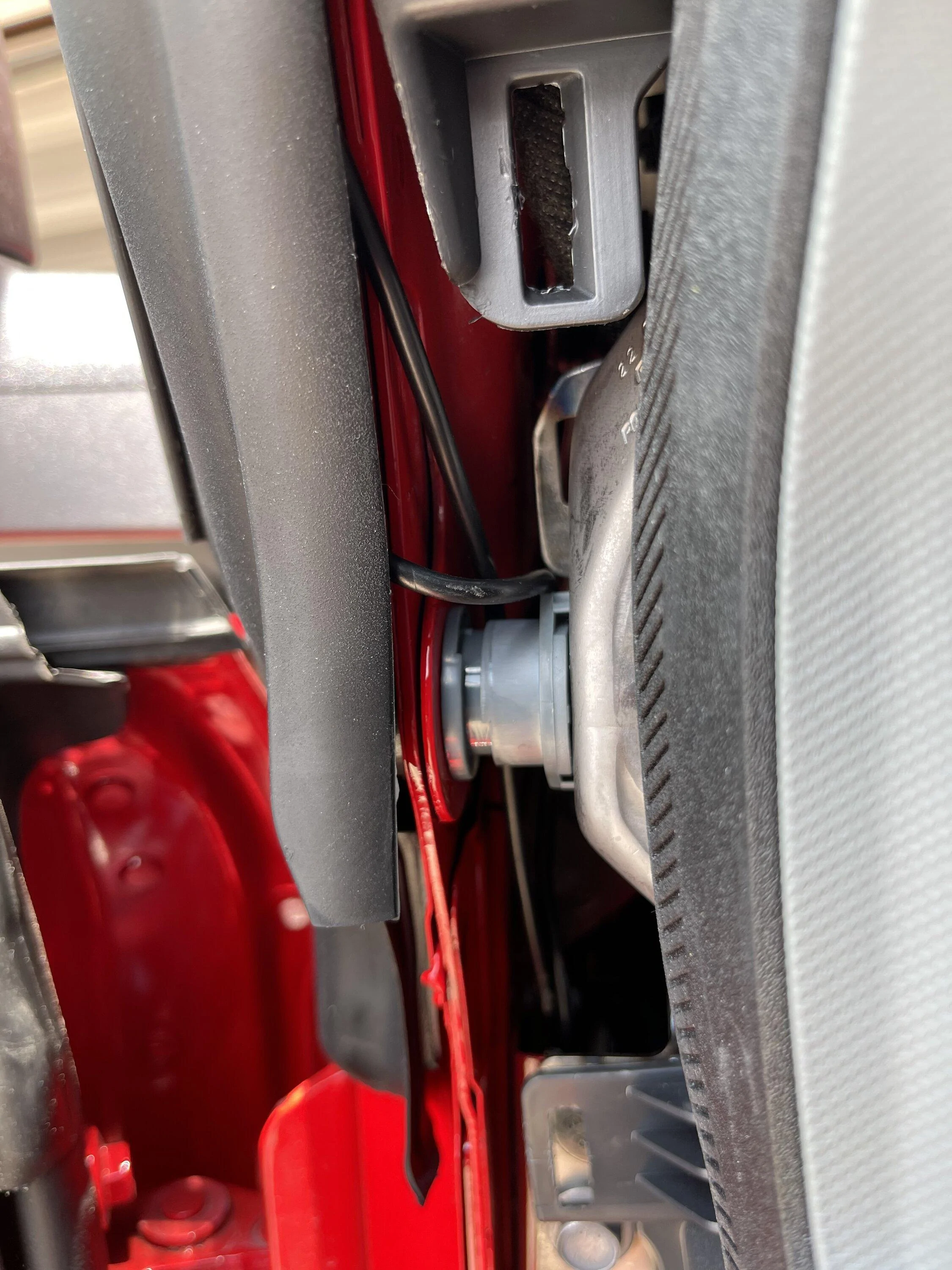

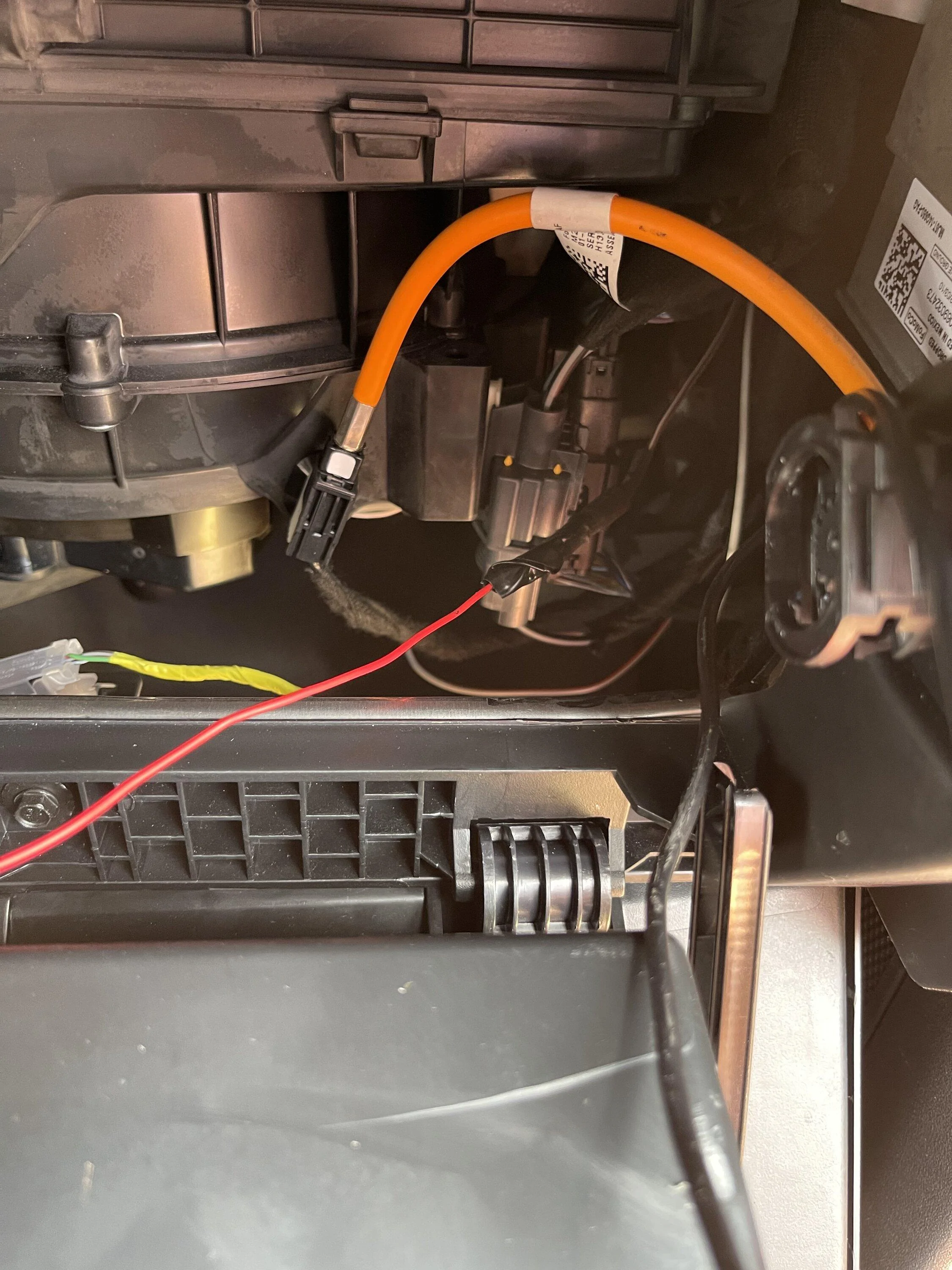

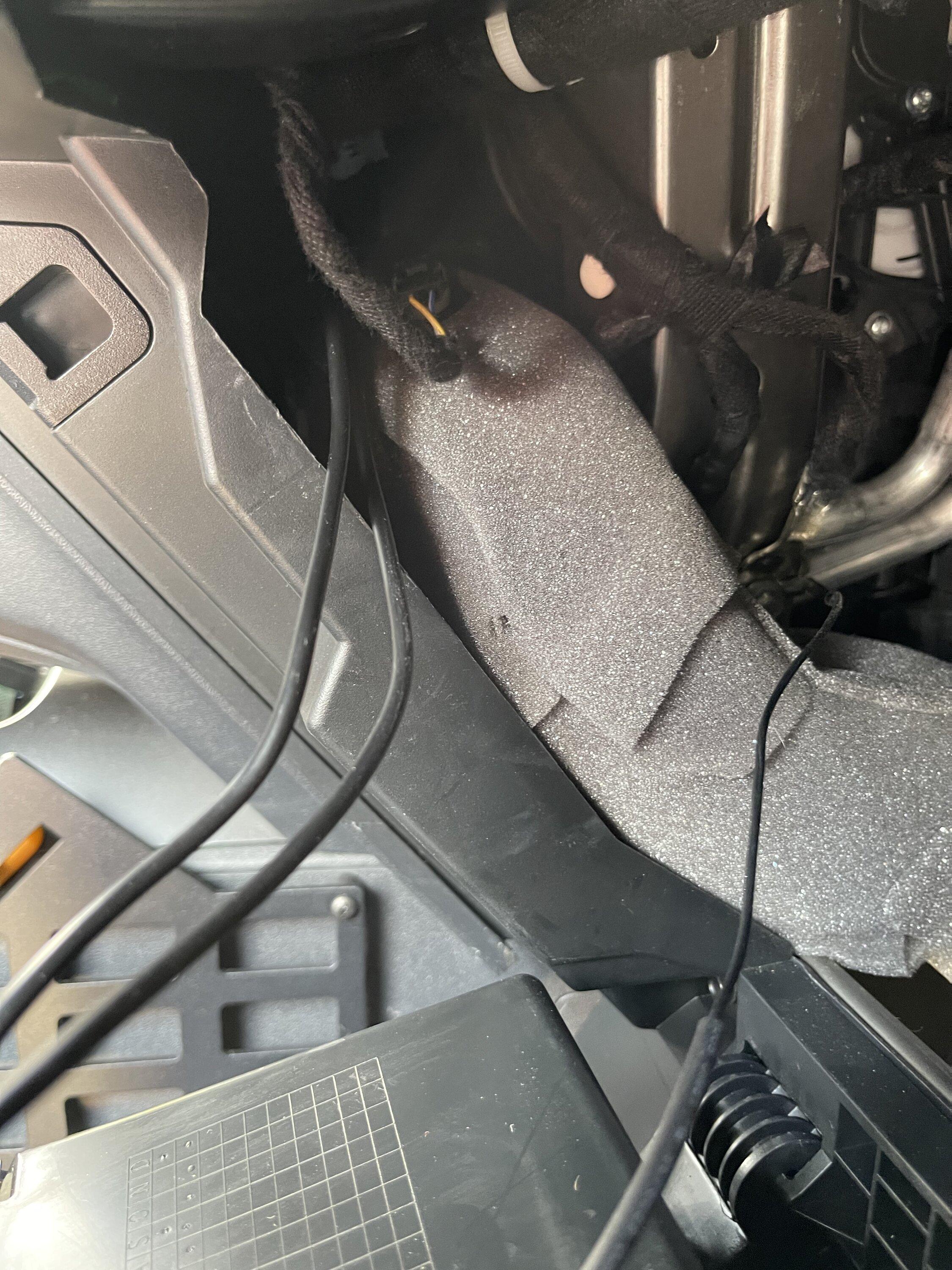

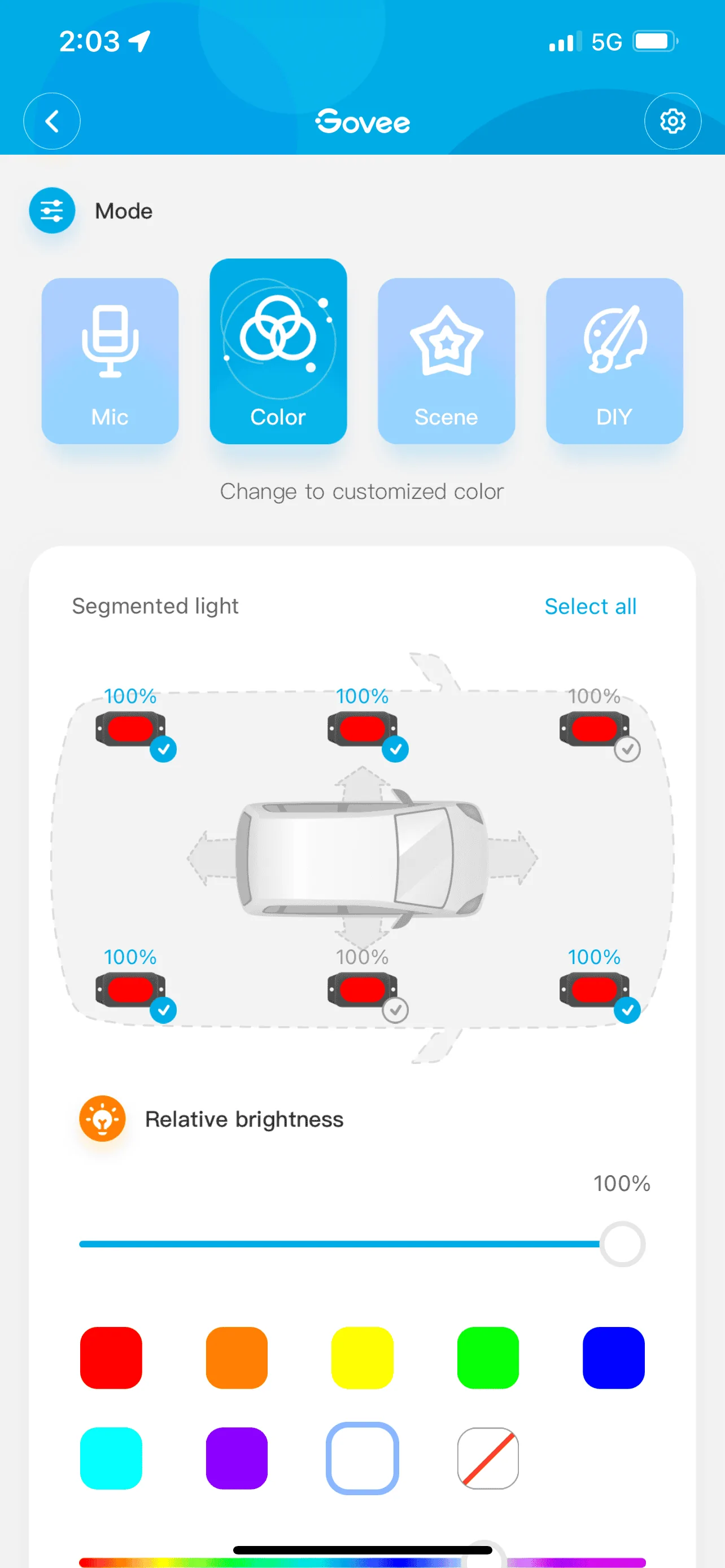

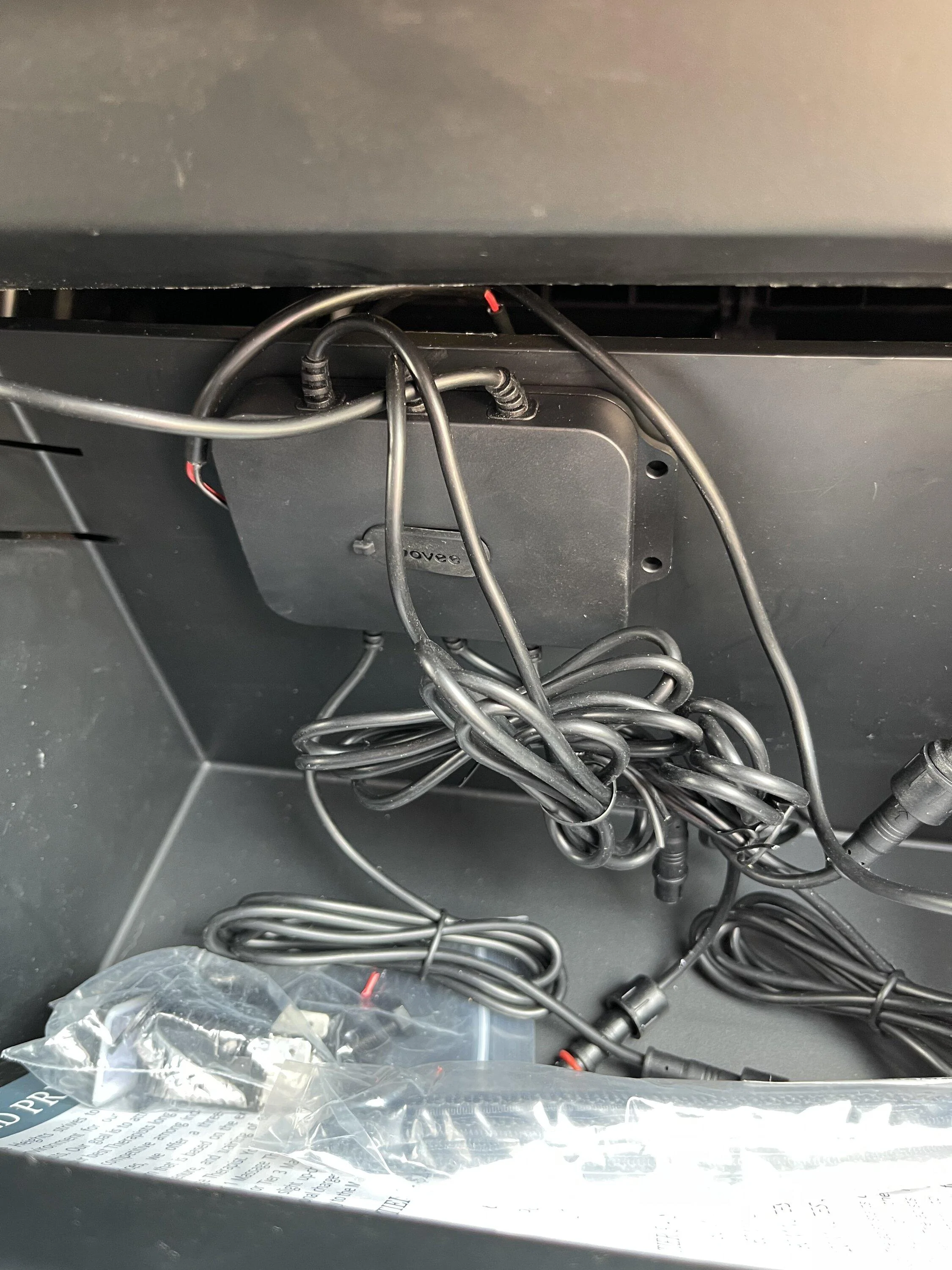

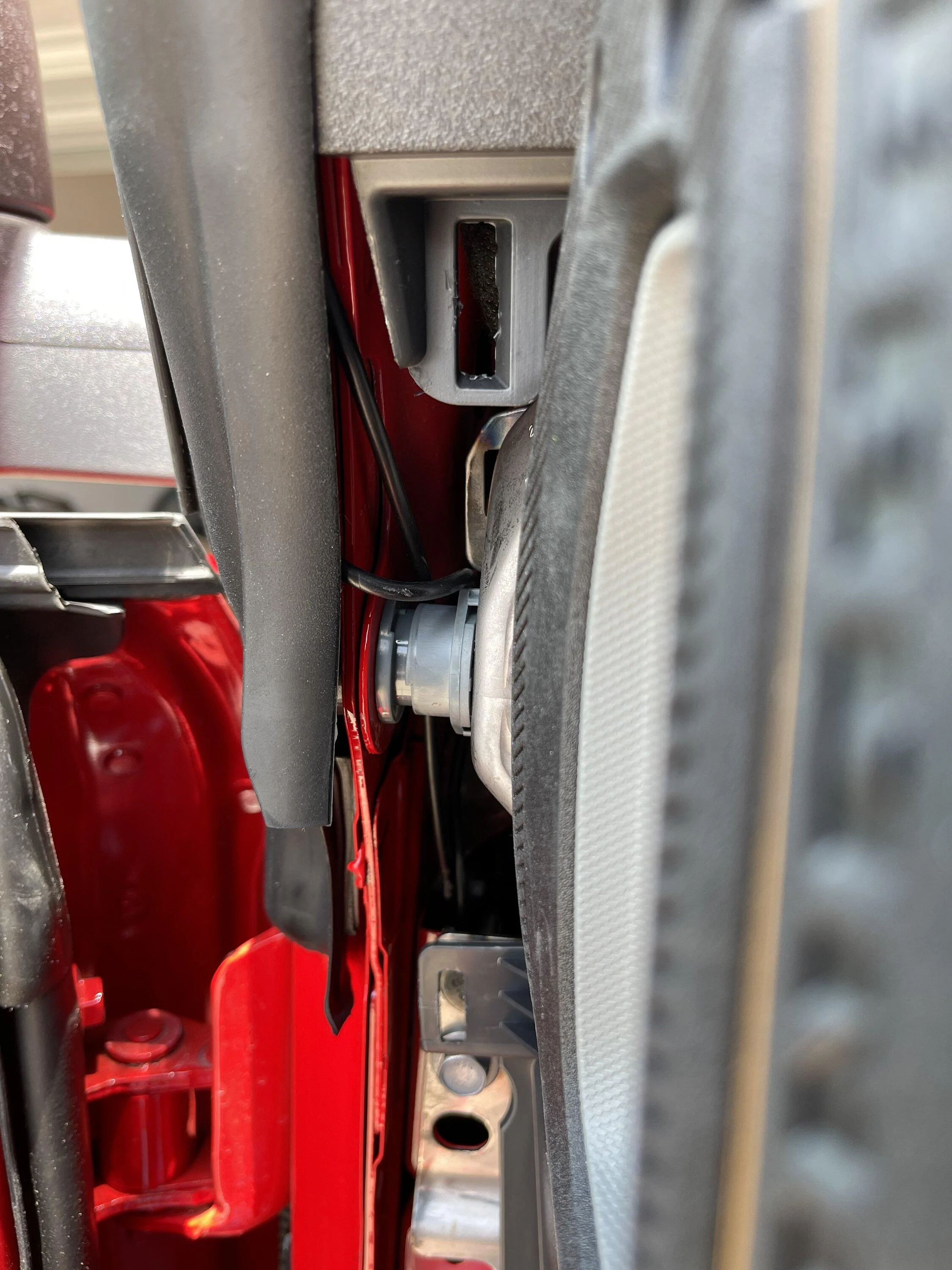

Yes there is a phone app so you can make it any hue and have it change colors. I did both driver and passenger, so 4 lights total. The one I bought came with 6 so I may add 2 more to the cargo area. I didn’t take many pictures during the install, but here’s a few that I just took. I put the light controller in the glove compartment, I still need to clean that up some but ran out of time before my husband got home with my kids. I connected the red wire from the controller to the brown/white wire in the glove box. I connected the ground wire to an existing ground behind the head unit. From the controller I ran the passenger side wires by removing the body panel next to the grab handle, 3 clips, just pops off. From there I ran the wires under the black weatherstripping, undid the airbag panels with 5/16 socket. Slid the light behind the airbag and into the b pillar. Attached the front one with mounting tape on the bracket that’s there. To get to the back corner I removed the rear airbag panel and pulled down the cover underneath it just enough to slide the wire in. Rear panel just pops off. Followed the same thing for the drivers side, other than the wire wasn’t long enough for the rear driver side. So I spliced the wire and made a connection under the B pillar. To get from glove box to drivers side I fished the wire right behind the screen, there’s just enough room there.
