Hey guys, I finally decided to join the big tire club. **Some clearance issues**
(See video at bottom of post)

First things first, I got the non-sasquatch for a specific reason (aside from the manual) it has more wheel travel. So naturally I was concerned I might see more clearance issues than your typical sasquatch equipped bronco.

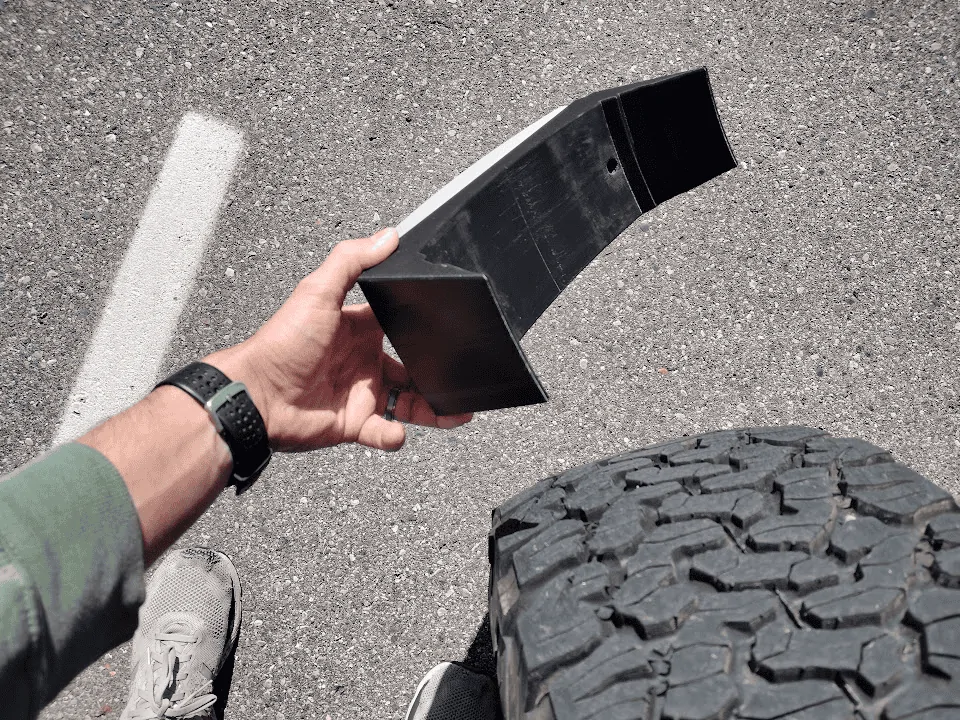

Before pulling the trigger on tires, and possibly wheels I wanted to see what clearance issues I might run into. So I created a 3D printed tire clearance gauge, specifically for my 33" KO2. The gauge includes a 37"x12.5" tire offset profile, that can slide to the side to simulate variable wheel offset. (I will post a video on that later).

Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666320292862
Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666320311055
Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666320350914

Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666320713484
Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666320773243

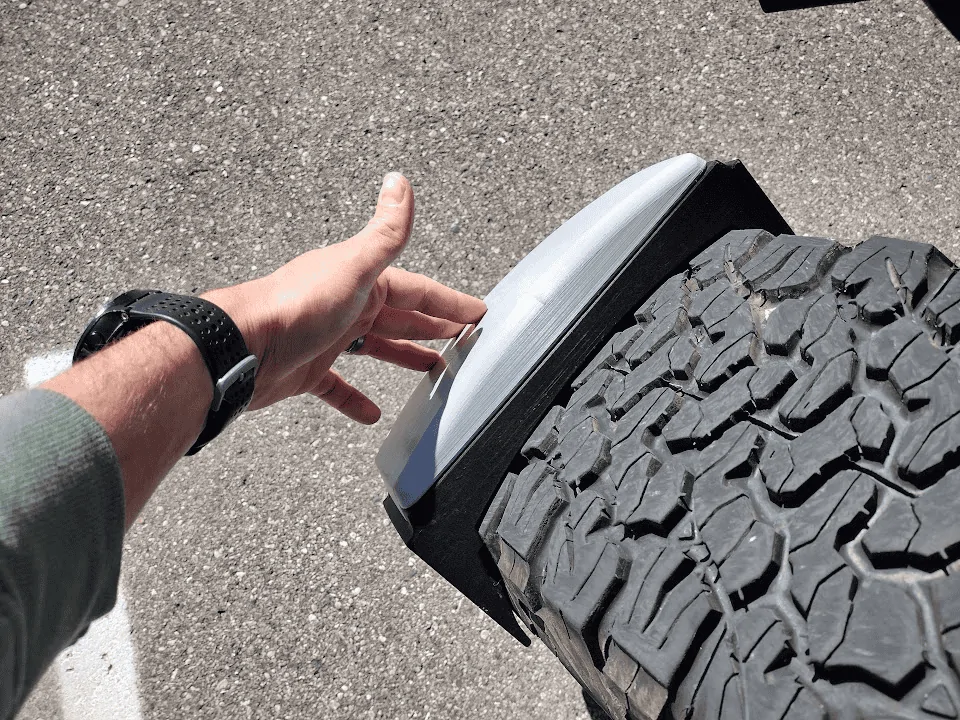

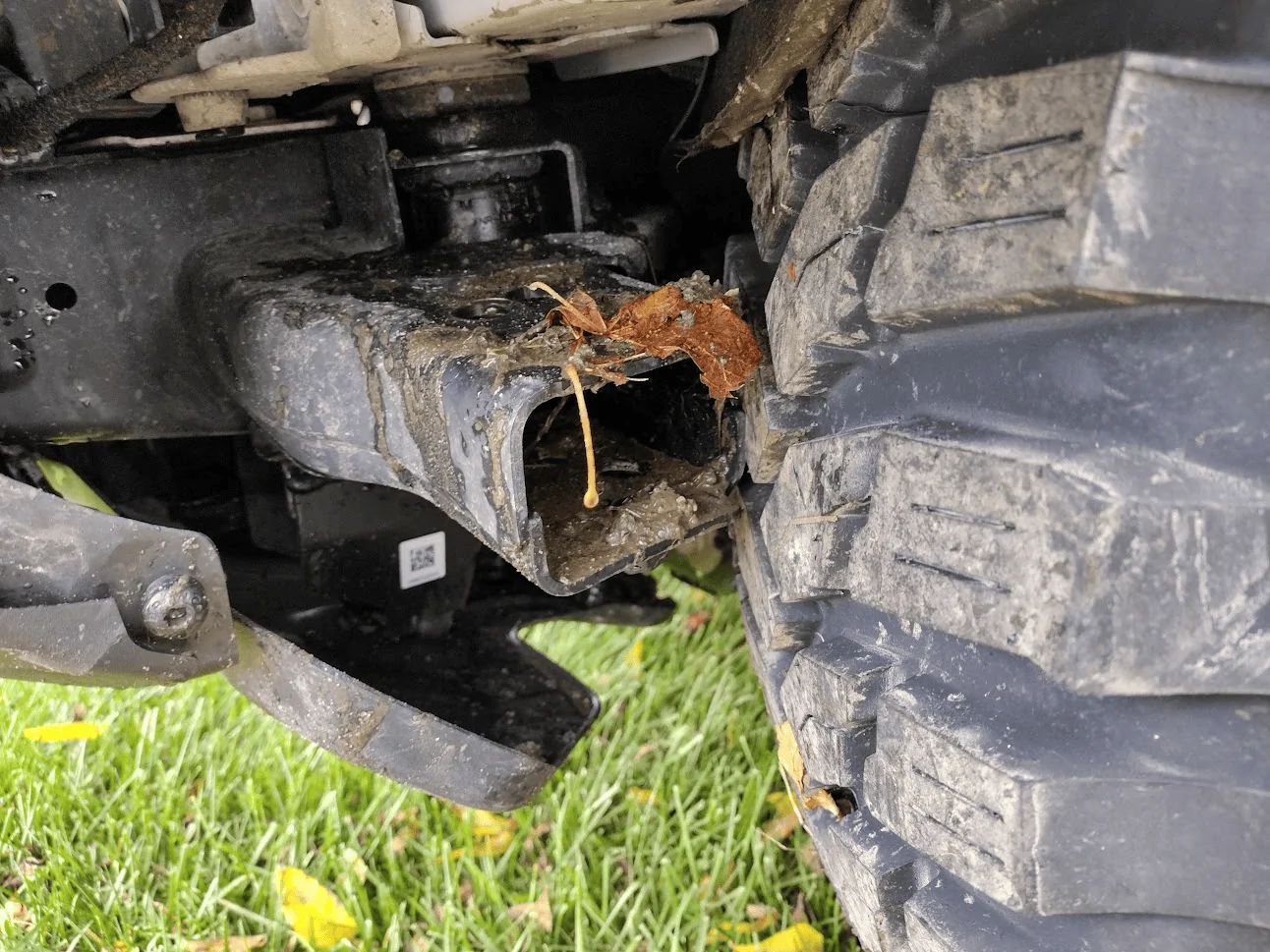

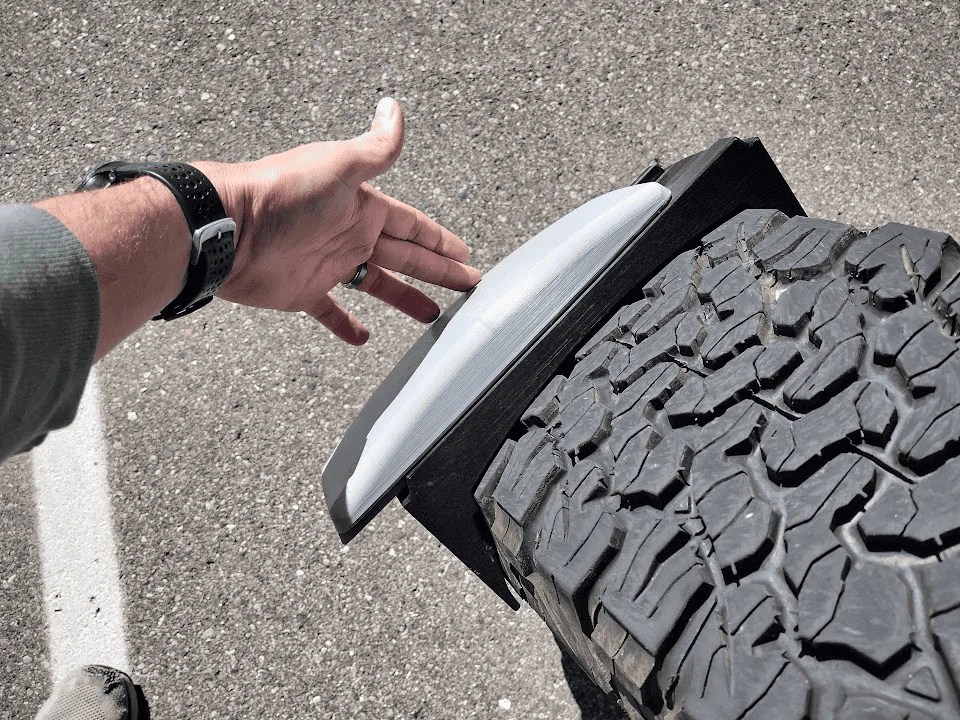

This gauge found the usual suspects, crash bars and frame (with 55mm offset). It also found the UCA, which surprised me a bit. Ultimately it became clear that if I wanted to run 37's I needed less than 55mm offset. I absolutely refuse to go negative, (every time someone goes lower than 0mm offset, a chassis engineer dies). 0mm is where I draw the line and unfortunately that's apparently where beadlock manufacturers draw the line too. So I was stuck between RTR's sexy wheels with 30mm offset, or 0mm beadlocks. I was in denial for weeks, but ultimately, I realized my heart was set on beadlocks.

I spent a lot of time researching tires. I know everyone has their favorites, but my short list was: KM3, Mickey Baja Boss, Nitto Trail Grappler, Cooper STT Pro, and MAXXIS RAZR. I always like to be the odd one out, and since everyone runs all those but the MAXXIS, and since the MAXXIS also had no faulty reviews (and were excellent in my MTB experience) I decided on the RAZRs. Just as I decided on the RAZR's I discovered that its more aggressive big brother the Trepador had a tamer well-mannered radial variant. Aptly named the Trepador Radial. SOLD.

As for beadlocks, I made a spreadsheet, compared styles on other rigs and prices yada yada, nobody cares. I went with Black Rhino Avenger Beadlocks (Gray). Honorable mention to the Black Rhino Primm and shoutout to AEV making what I found to be the most affordable Beadlock (just not my style)

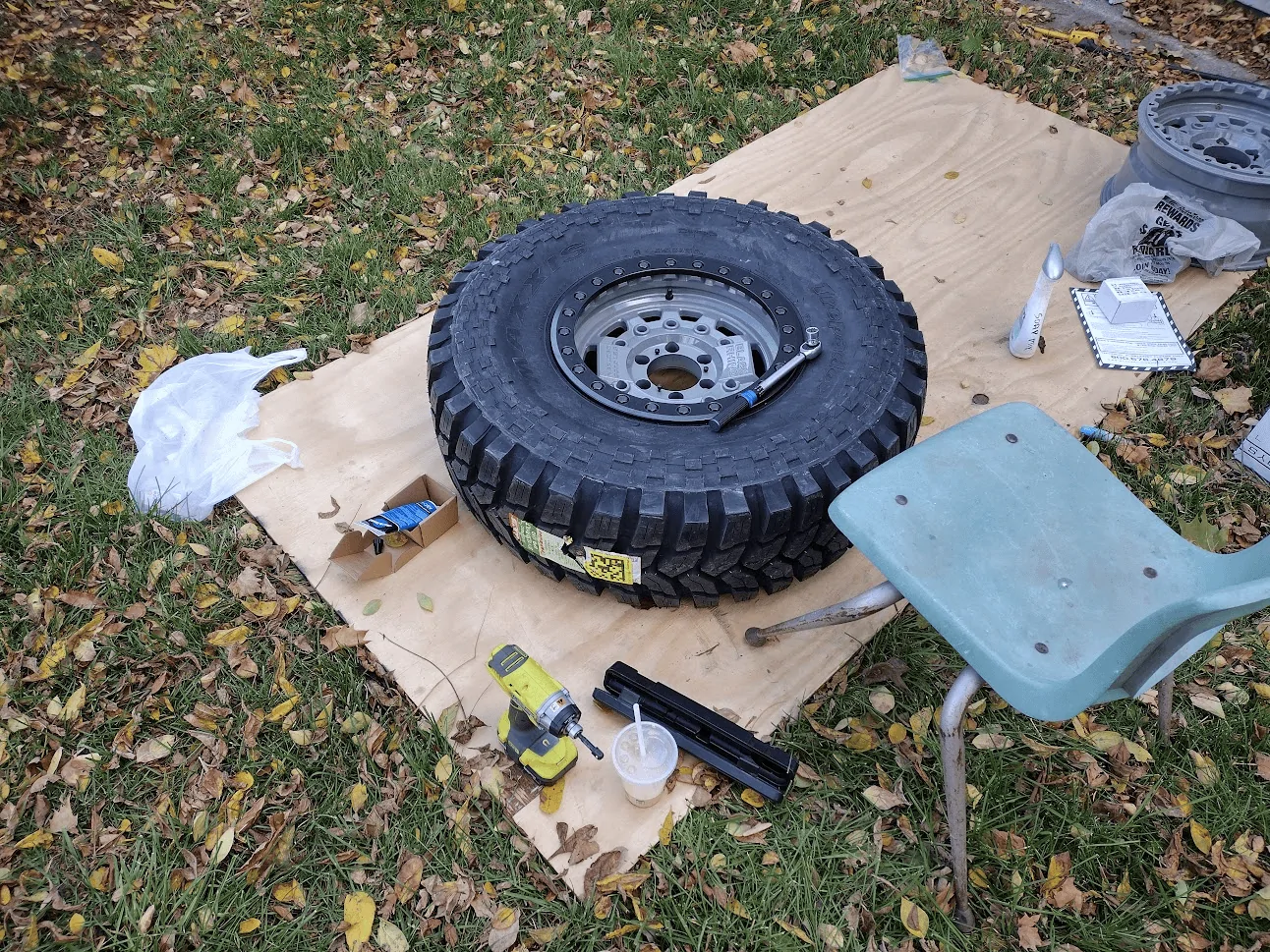

Set them up myself (doable but slow going). Having great success with balance beads!

Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666322281174

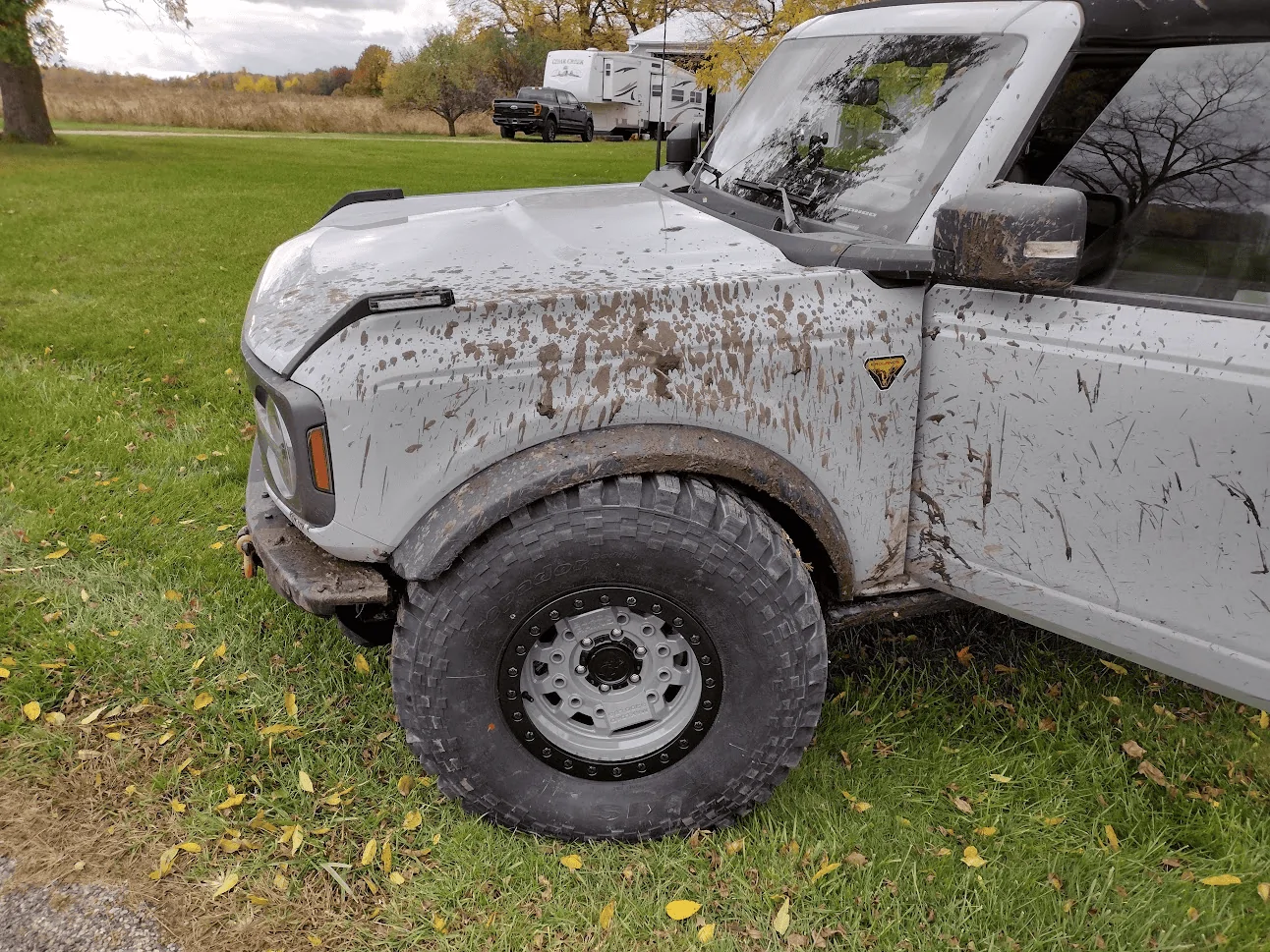

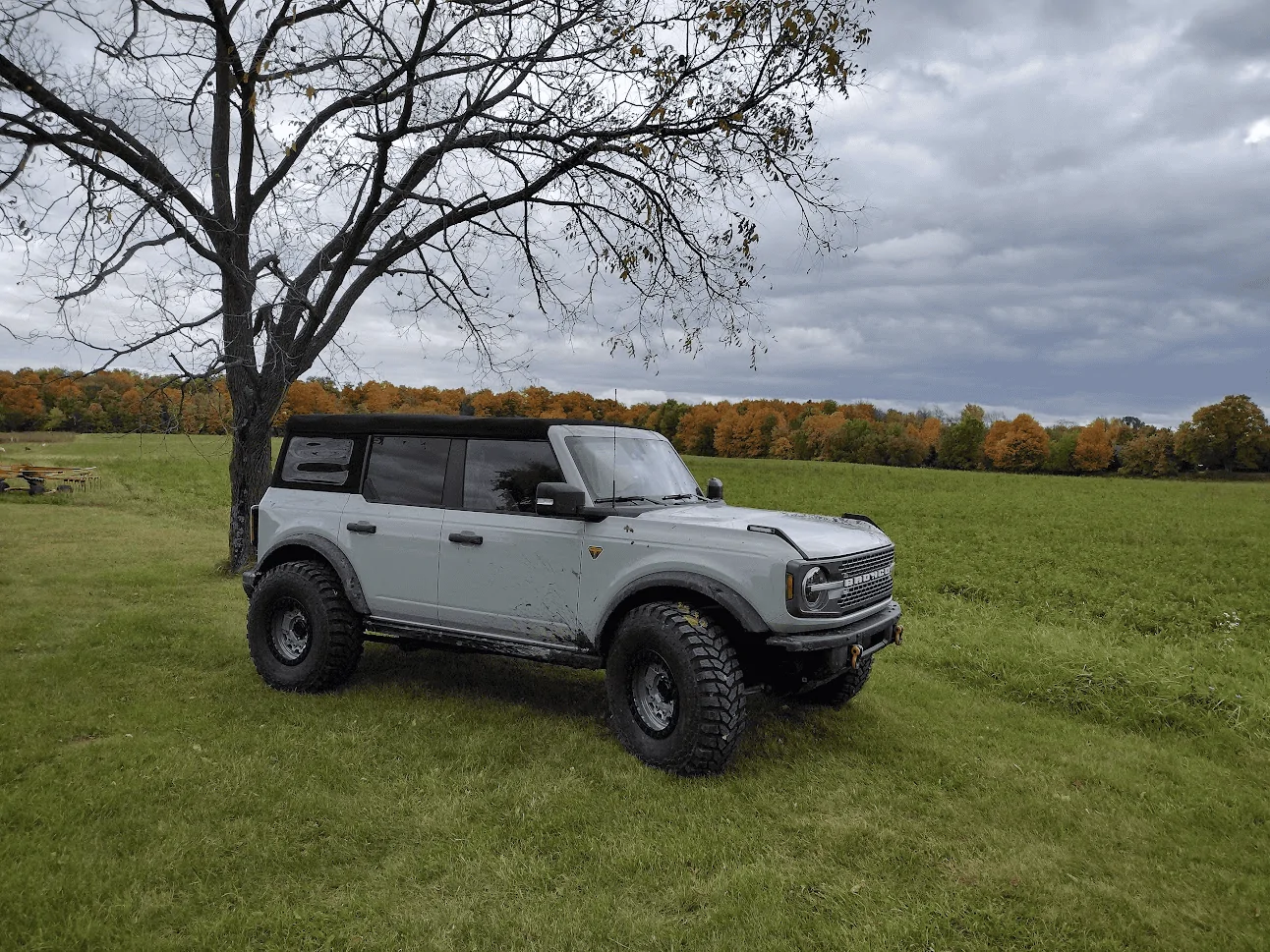

To the point, here are the before and after pics:

Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666321249031

Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666321270958

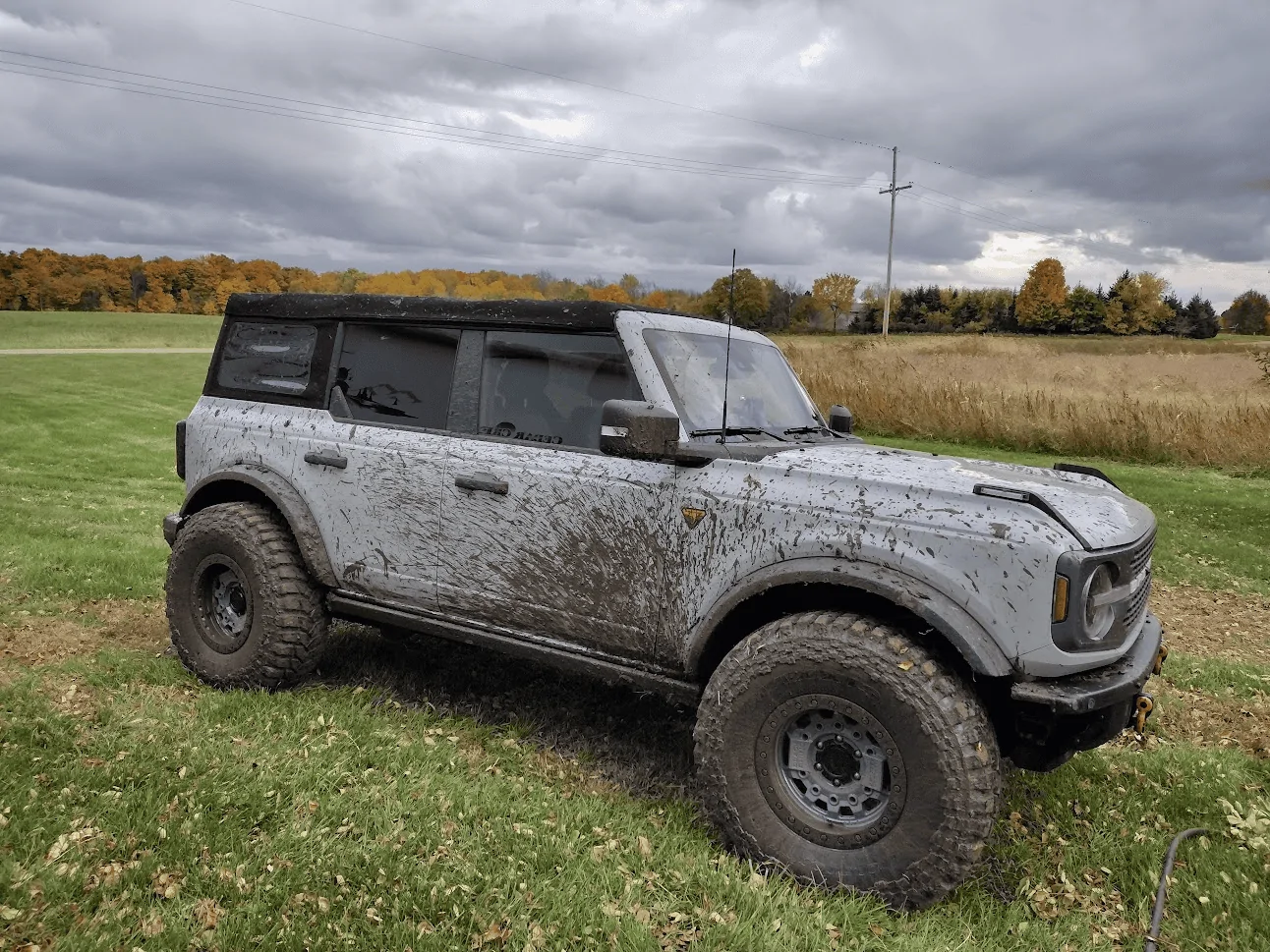

And the post test Money Shot:

Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666321310335


I was a bit disappointed to learn that my gauge was not perfect. Either my radius was just a bit off, or the tire profile, or likely a bit of both. The Trepadors on 0mm offset did rub the rock rail, not undrivable, but bad enough that it needed addressing soon. Also, at full lock the tires just graze the wheel liner near the bottom, nothing I am going to worry about at this time.

What about at full jounce? I tested that both with a gauge and the tires and found that if I am going to be seriously wheeling, I better remove the fender flares. I don't care about those though, the BIG question is did I hit body/fender? Somewhat. See update on page 2

note: picture below not at quite at full jounce

Would I hit body if I jumped it while turning? Probably. So I won't do that, and neither should you.

Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666321725270
Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666321978379



So how do the new tires perform? Great! Well, isn't the bronco already great? Yes! Thats why I performed a back-to-back comparison on the farm.

Trigger warning, I forgot to disable the proximity sensor, it's not too bad from the driver's seat but holy cow my phone speaker picked it up. I am not a professional video editor, so just be ready to adjust the volume at certain points. I will shut it off for future videos!





Let me know if you'd like to see me find or build some more obstacles on the farm!

I will add to the post tomorrow detailing how I trimmed the rock rails (very easy and no more rubbing!)
Sponsored


Last edited:

Jdyount

Badlands
Well-Known Member
First Name
Jason
Joined
Jul 13, 2020
Threads
29
Messages
925
Reaction score
2,639
Location
Kansas
Vehicle(s)
2021 Badlands
Your Bronco Model
Badlands
Clubs

Have a few predictions here:

1. It's only a matter of time before those inner fenders live their last. First major wheeling trip and they'll be spit out by the tire, 110%.

2. You're gonna be into the fenders. I've been in fully stuffed, 2 tire situations with my SAS BL and the stock 35's look like they're gonna eat the flares. 37's + non-SAS + no lift = body damage, I'll bet you $100 right now.

OP
OP
TeocaliMG

TeocaliMG

Badlands
Well-Known Member
Joined
Jun 3, 2019
Threads
19
Messages
890
Reaction score
2,888
Location
Plymouth Michigan
Website
www.brokeninnovation.com
Vehicle(s)
2021 Bronco Badlands non-sas 4 door manual
Your Bronco Model
Badlands
Clubs

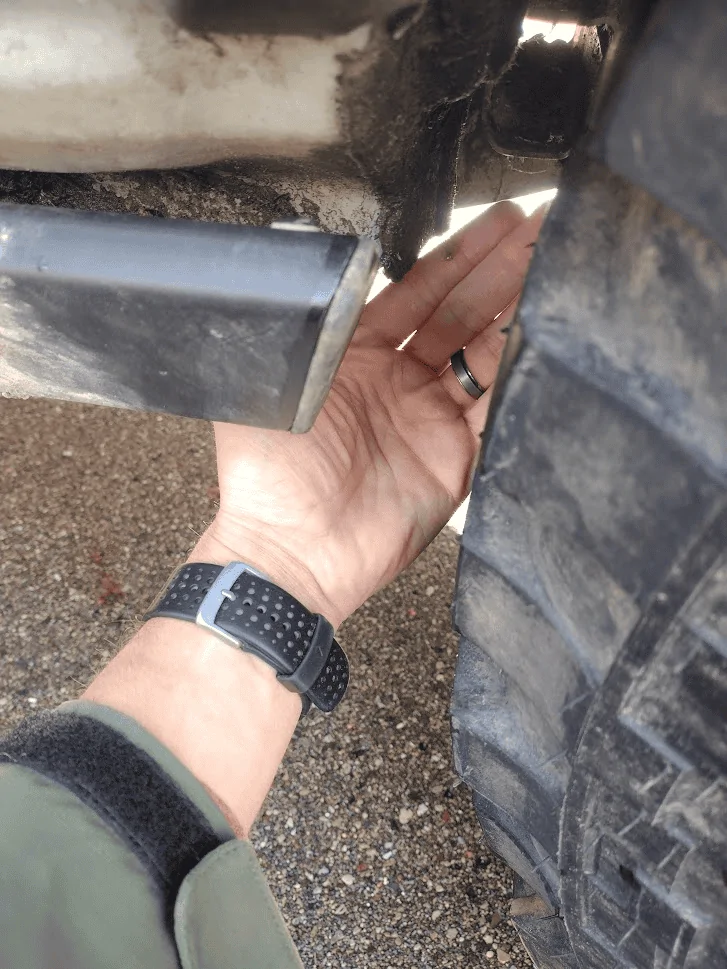

Rock Rail Trim:
Like I mentioned above, this is the only clearance issue that needs addressing immediately. The fender flares can be removed for offroading, and the wheel liner just barely gets grazed at full lock.

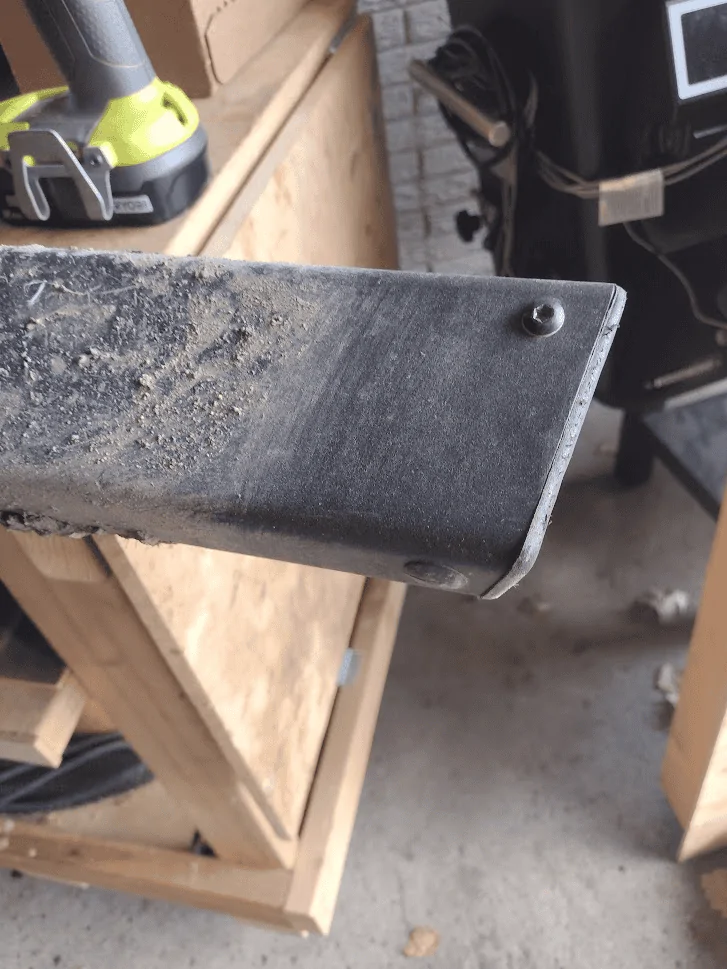

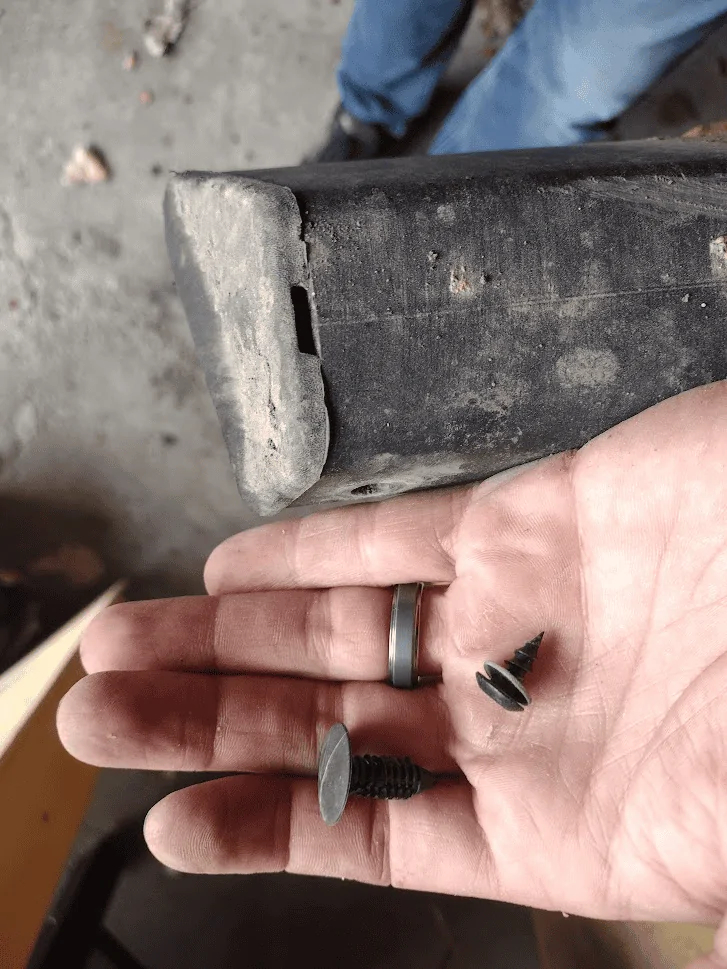

Removal is surprisingly easy! I started by backing off the small nuts along the pinch weld, then backed out the larger bolts holding the brackets down.

Once off, I cleaned up the area around the end forward end caps to see what we were dealing with. You can clearly see where the plastic end cap had been polished up by the tire already.

Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666355796290
Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666355815415

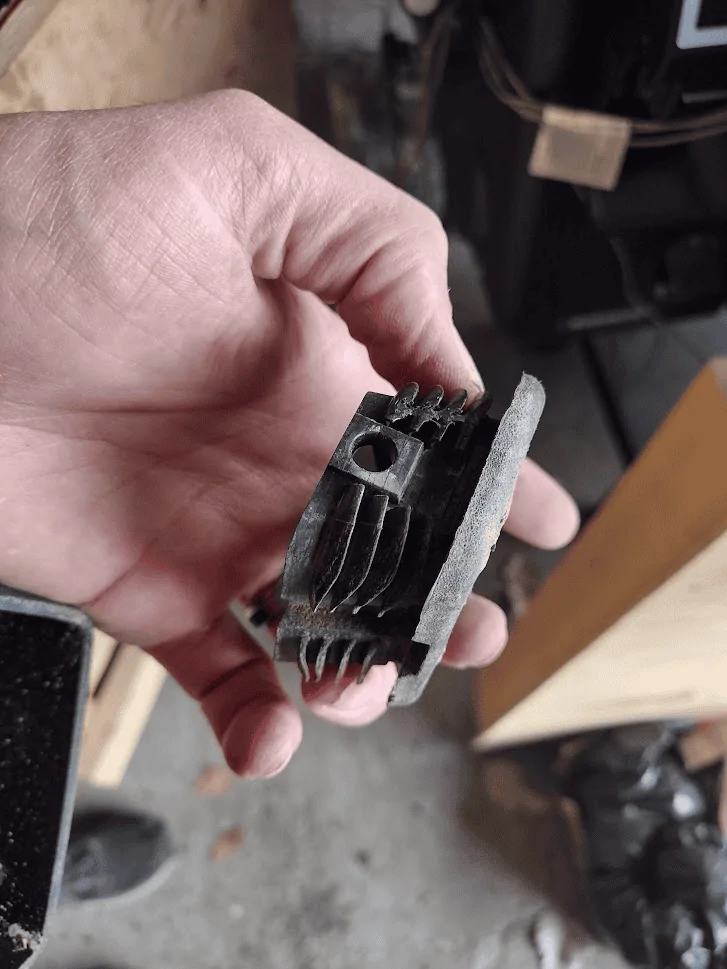

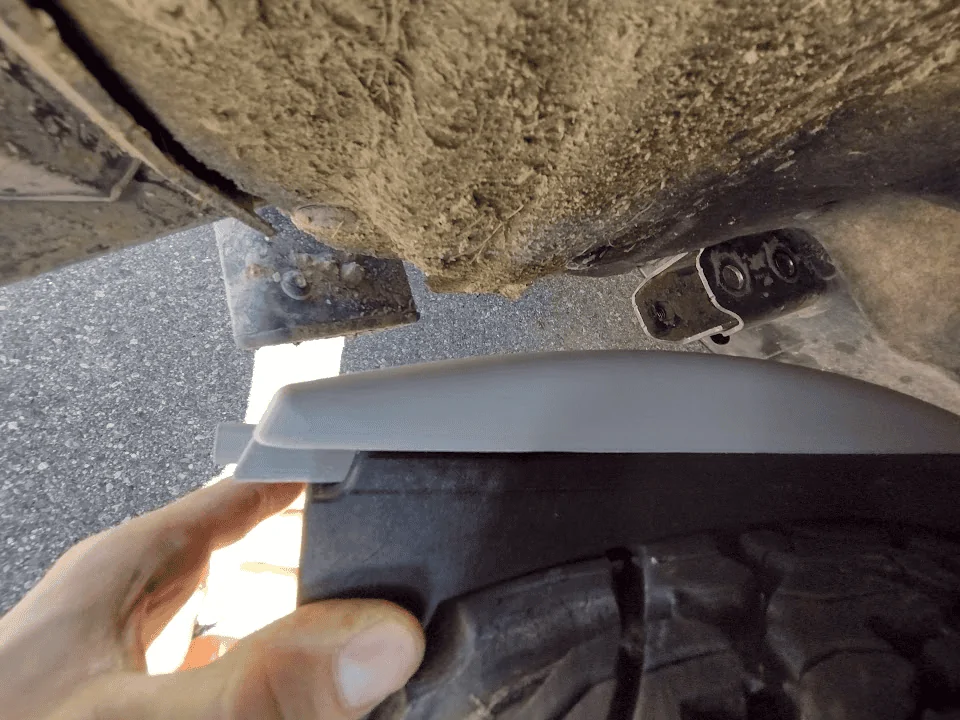

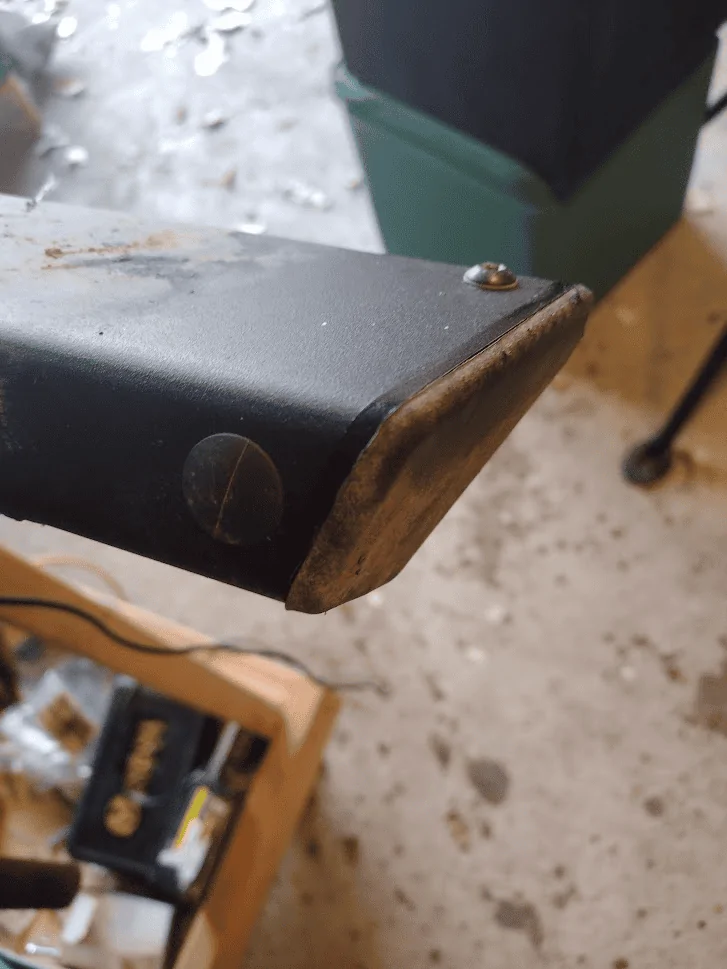

Holding the endcap in is one torx fastener, one Christmas tree style plug, and the friction/interference fit of the cap itself. I was careful with the removal of the tree plug so I could reuse it, but probably best to replace if you have spares lying around. I used a small screwdriver to spruce up the plastic fins of the tree plug and end cap before reinstalling.

Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666355958038
Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666355975614

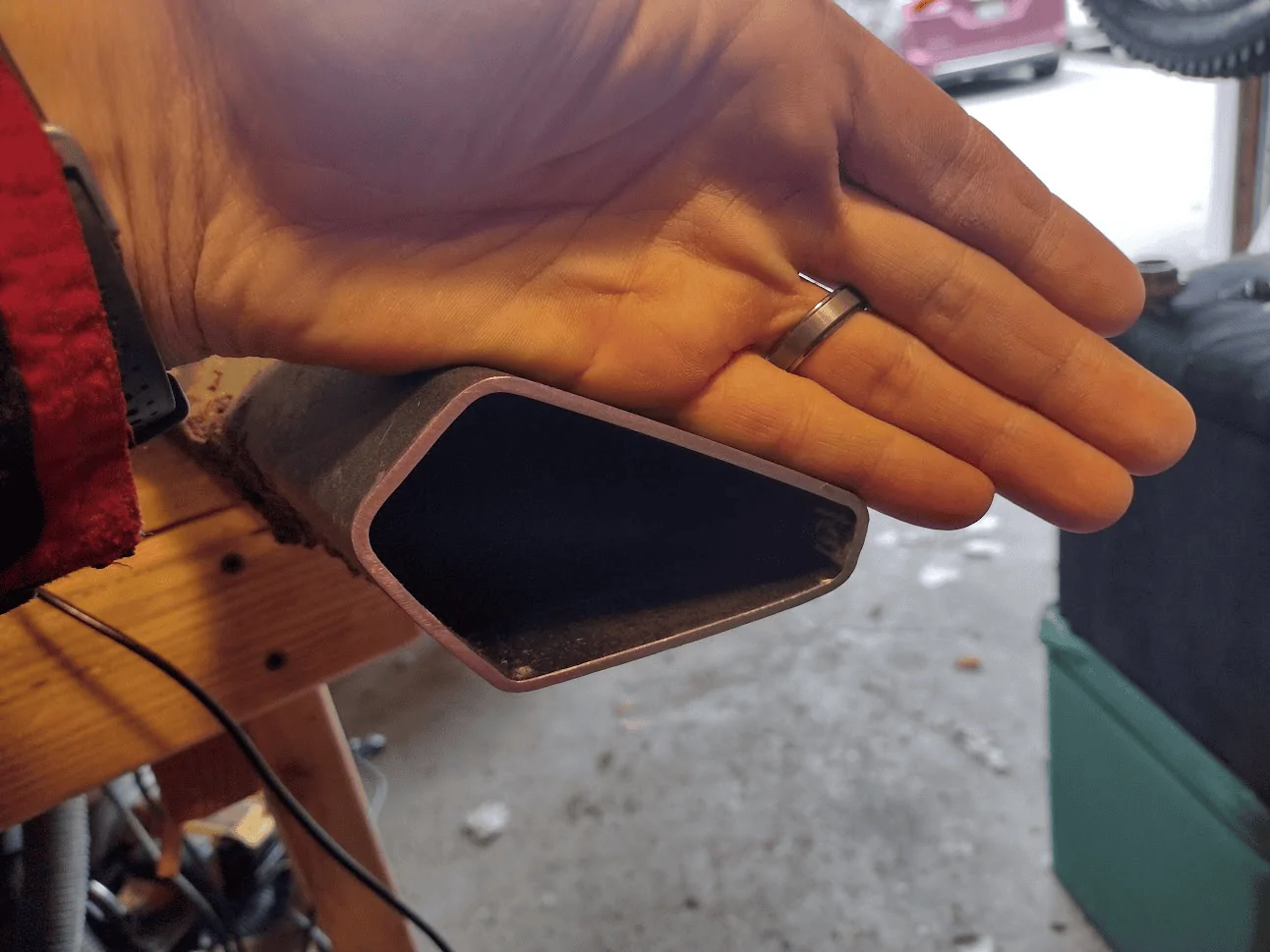

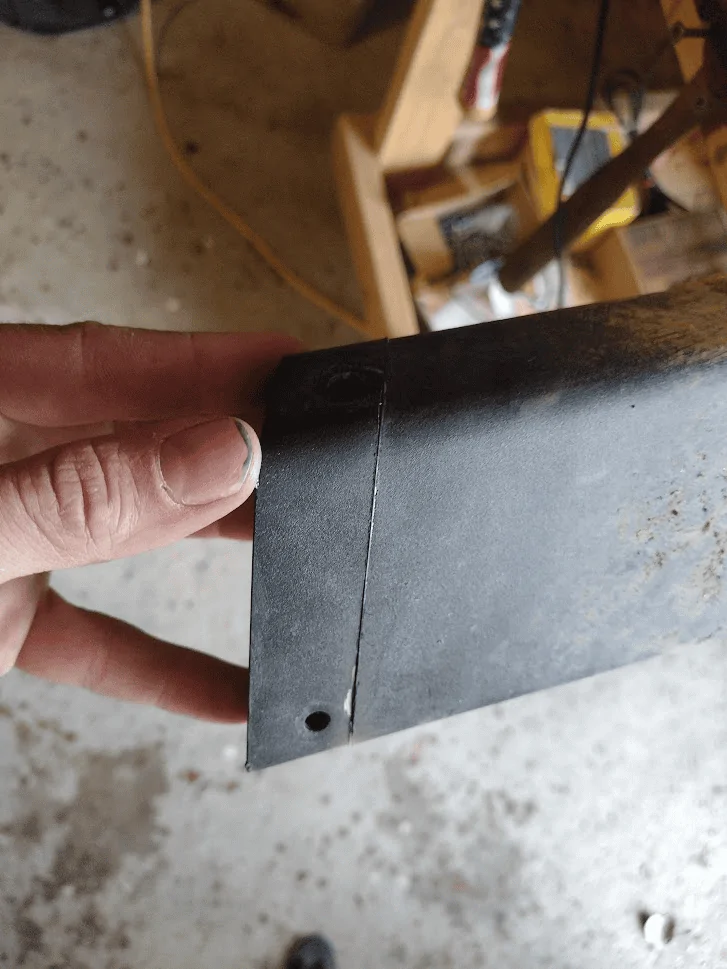

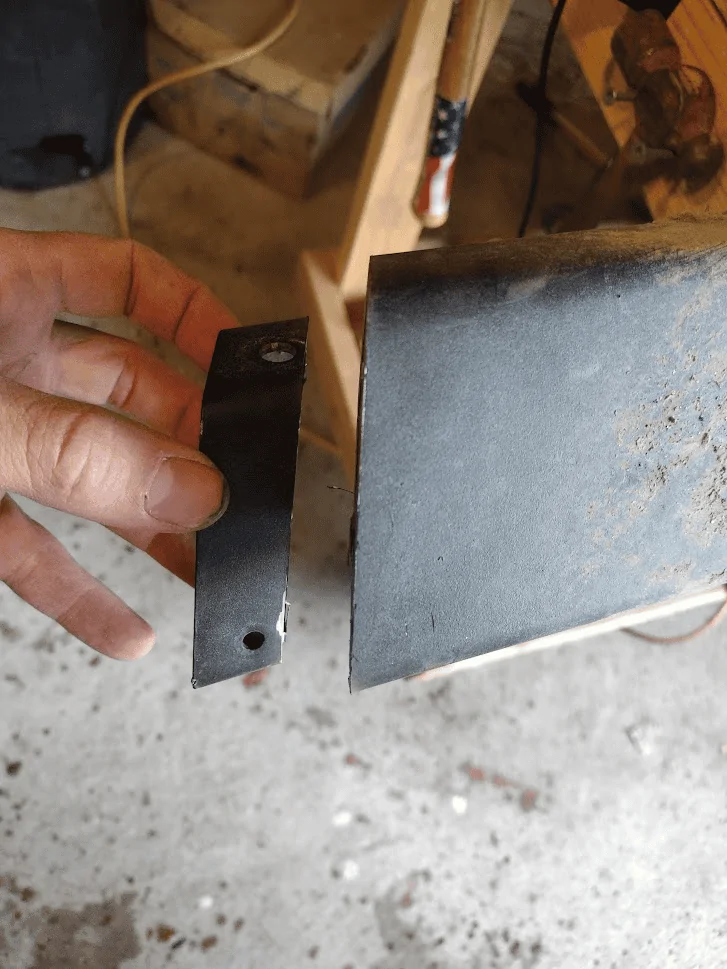

I didn't need much clearance, judging by the scuffing, I might have been fine with a quarter inch, but I only wanted to do this once, and know that the control arm bushings are compliant, I didn't want to crash my tire into the rock rail if I ever took a bigger hit than expected, especially with wheels in motion. I settled on 1 inch, actually 25mm. With my calipers locked, I scribed a line in the paint all the way around and traced it best I could with a thin cut-off wheel on my grinder. I also scribed the location of the new holes to be drilled. The cut actually came out excellent, didn't have any major corrections to do.

Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666356217721

Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666356239600
Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666356254738

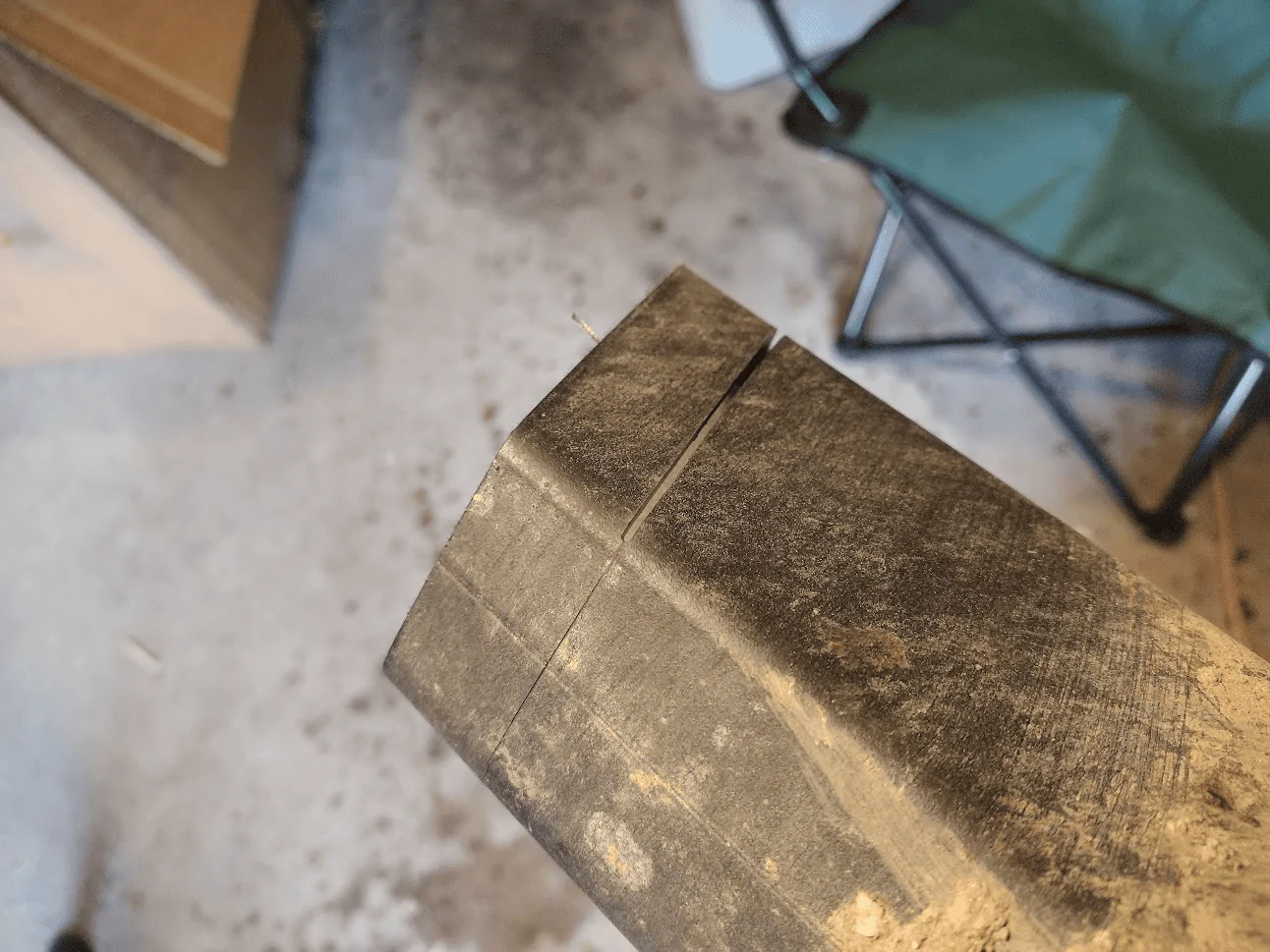

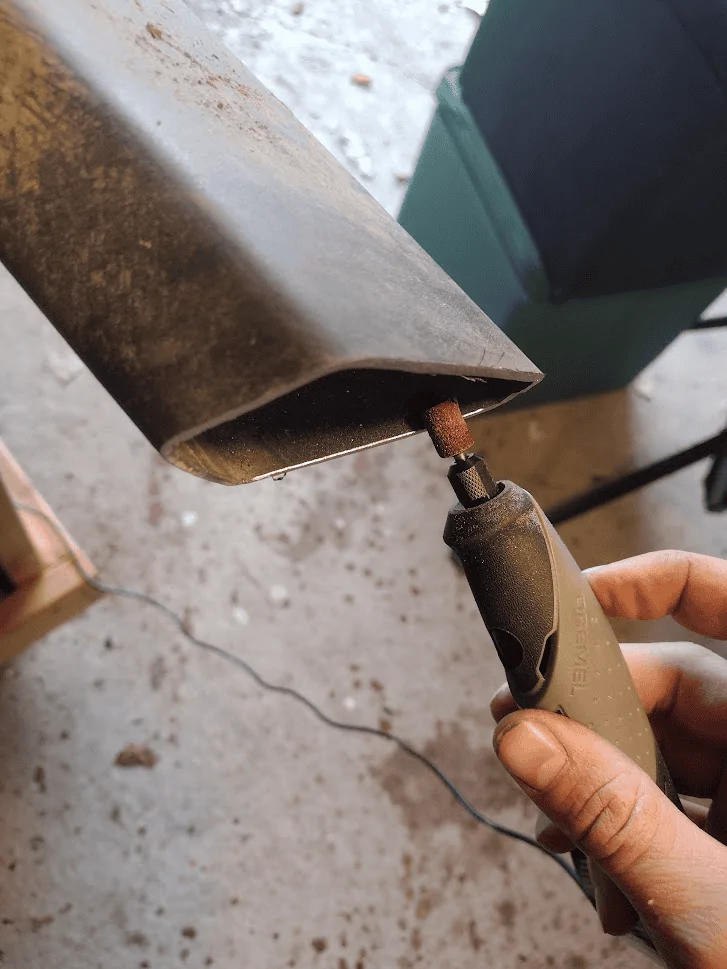

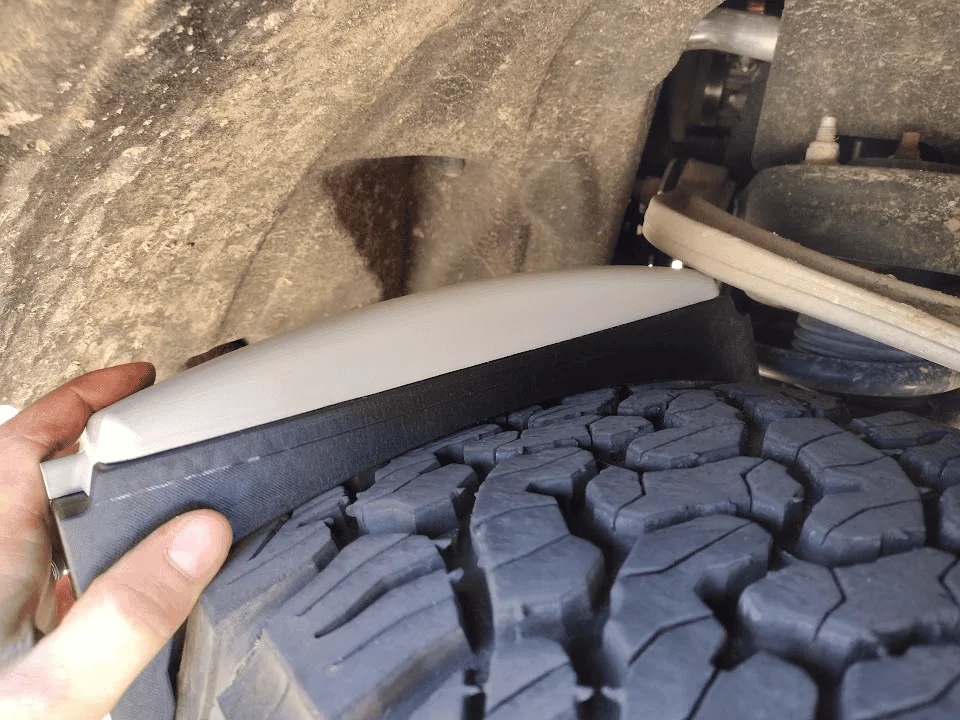

Before putting everything back together I wanted to clean up the surface of the cut, and spray on some enamel just to help dissuade any rust getting an easy start here. Also drilled the new holes and coated those as well.

Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666356371845
Ford Bronco 37" Tires on a Non-Sasquatch Badlands - My Experience, Results, Pics 1666356387129

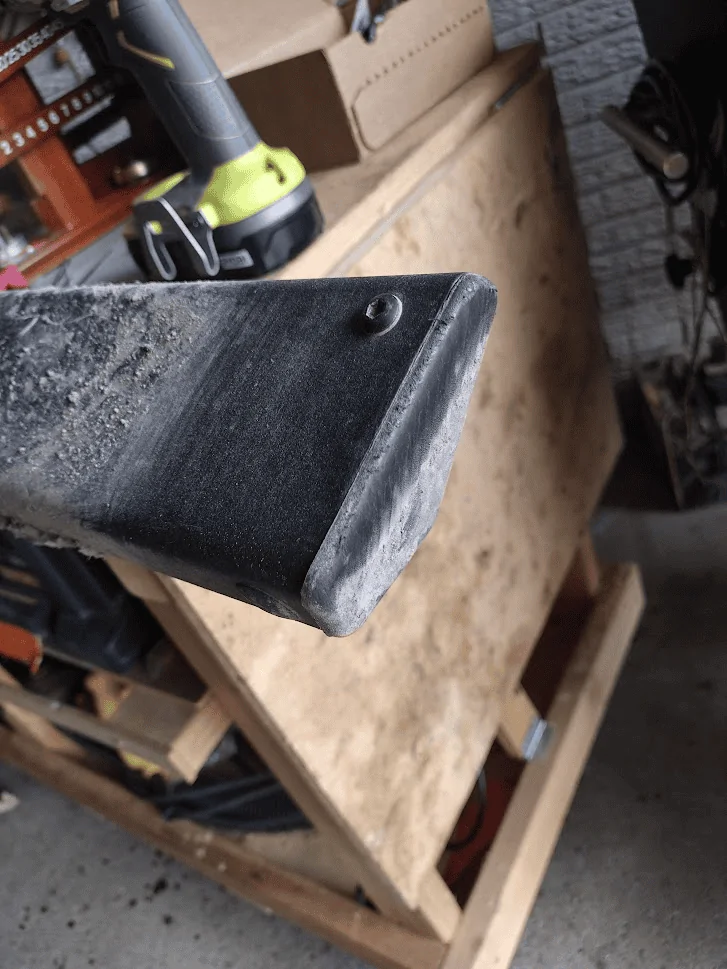

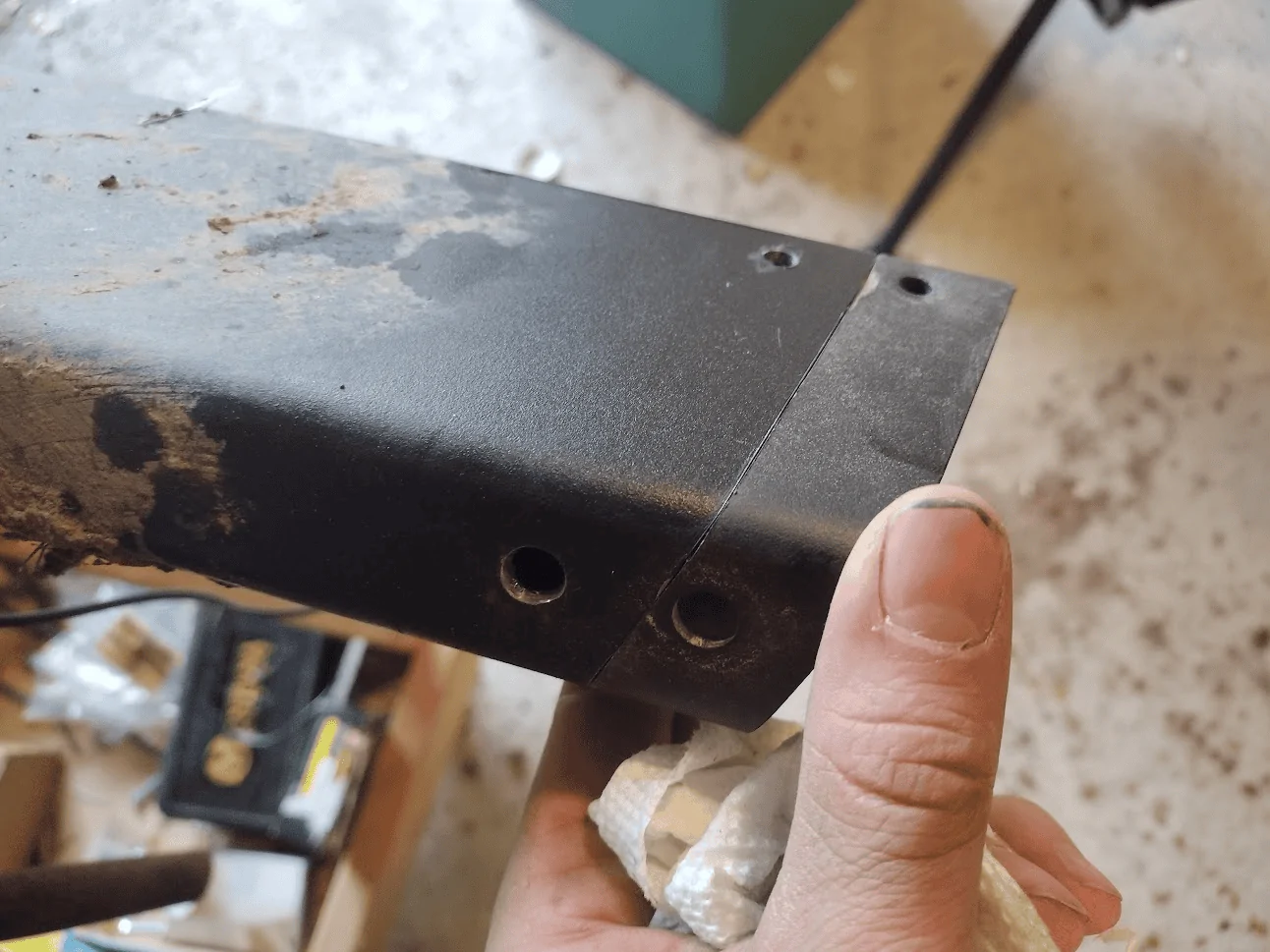

New holes, and new assembly.
