I figured there were some spacers involved between the plate steel and plastic. I am a hobby machinist so look forward to the fun. thanks again for the idea.
Sponsored
Sponsored
Adding a grab handle to 2dr B pillar
- Thread starter Tricky Dick
- Start date
- Watchers 10
- Status
- First Name
- Dick
- Joined
- Apr 12, 2021
- Threads
- 88
- Messages
- 7,503
- Reaction score
- 25,546
- Location
- PNW
- Website
- www.TD-Distributing.com
- Vehicle(s)
- 21 Bronco, 88 Bronco II, 03 Ford F250
- Your Bronco Model
- Badlands
- Thread starter
- #17
Yes I welded 5/8" solid spacers to the bracket and tapped them for the original bolts. I assembled everything before tapping them so I could use the holes in the handle to find the right spot, if that makes sense. It would have taken some very careful measurements to get the holes right otherwise.
- First Name
- Nate
- Joined
- Feb 4, 2021
- Threads
- 12
- Messages
- 1,040
- Reaction score
- 2,414
- Location
- Chicago, IL
- Vehicle(s)
- Porsche 911 GTS, BMW M3, VW Golf
- Your Bronco Model
- Badlands
Great solution. Anyone have a CAD or any dimensional drawing for the steel plate? My 5 yo needs this and researching b pillar handles helped me find this.
Is this mounting plate even necessary? It looks like the handle can be directly attached to holes drilled in the pillar. I do realize it adds support to the mounting holes, is that it's primary purpose?Should have this wrapped up tomorrow.
- First Name
- Dick
- Joined
- Apr 12, 2021
- Threads
- 88
- Messages
- 7,503
- Reaction score
- 25,546
- Location
- PNW
- Website
- www.TD-Distributing.com
- Vehicle(s)
- 21 Bronco, 88 Bronco II, 03 Ford F250
- Your Bronco Model
- Badlands
- Thread starter
- #20
Unfortunately I don't have anything, just whipped it up on the fly.

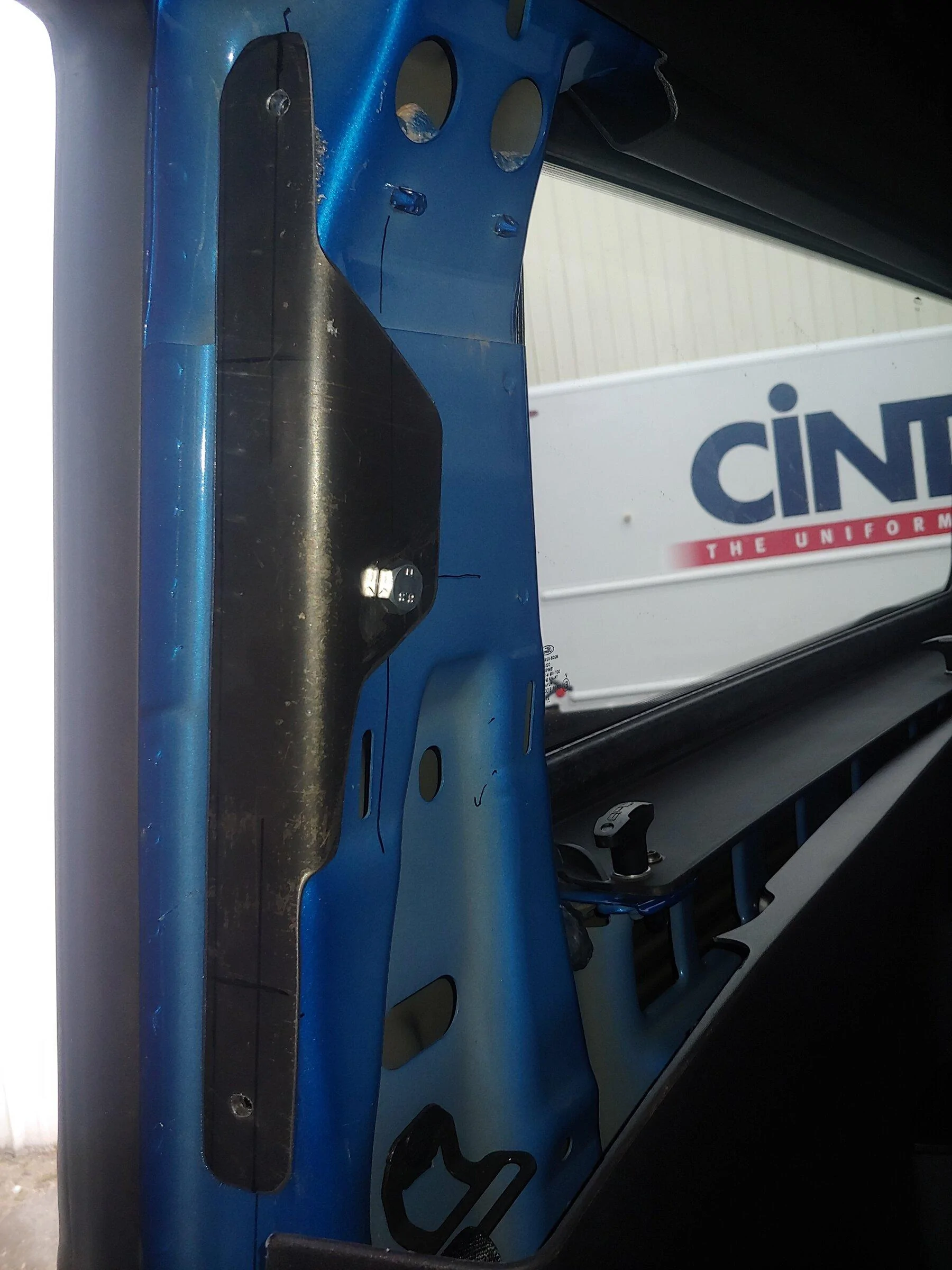

I suppose you could probably get away without it. There's a big gap between the pillar and trim so I have threaded standoffs welded to that plate.
Gotcha. Mounting directly to the pillar without a bracket would put a lot of stress on the pillar holes considering the extra 5/8" space to the trim.... that's a lot of leverage.
@nwGTS I make templates out of cereal box cardboard, then transfer to metal. Aluminum foil can also be used for an initial template since it forms easily and can conform to irregular surfaces.
@nwGTS I make templates out of cereal box cardboard, then transfer to metal. Aluminum foil can also be used for an initial template since it forms easily and can conform to irregular surfaces.
