I couldn't find the right aftermarket solution for my rear cargo area (plus I'm cheap and like using tools in my driveway), so I took the common "flat load" or "goose gear-ish" ideas and modified to better suit my needs. Some key design considerations:

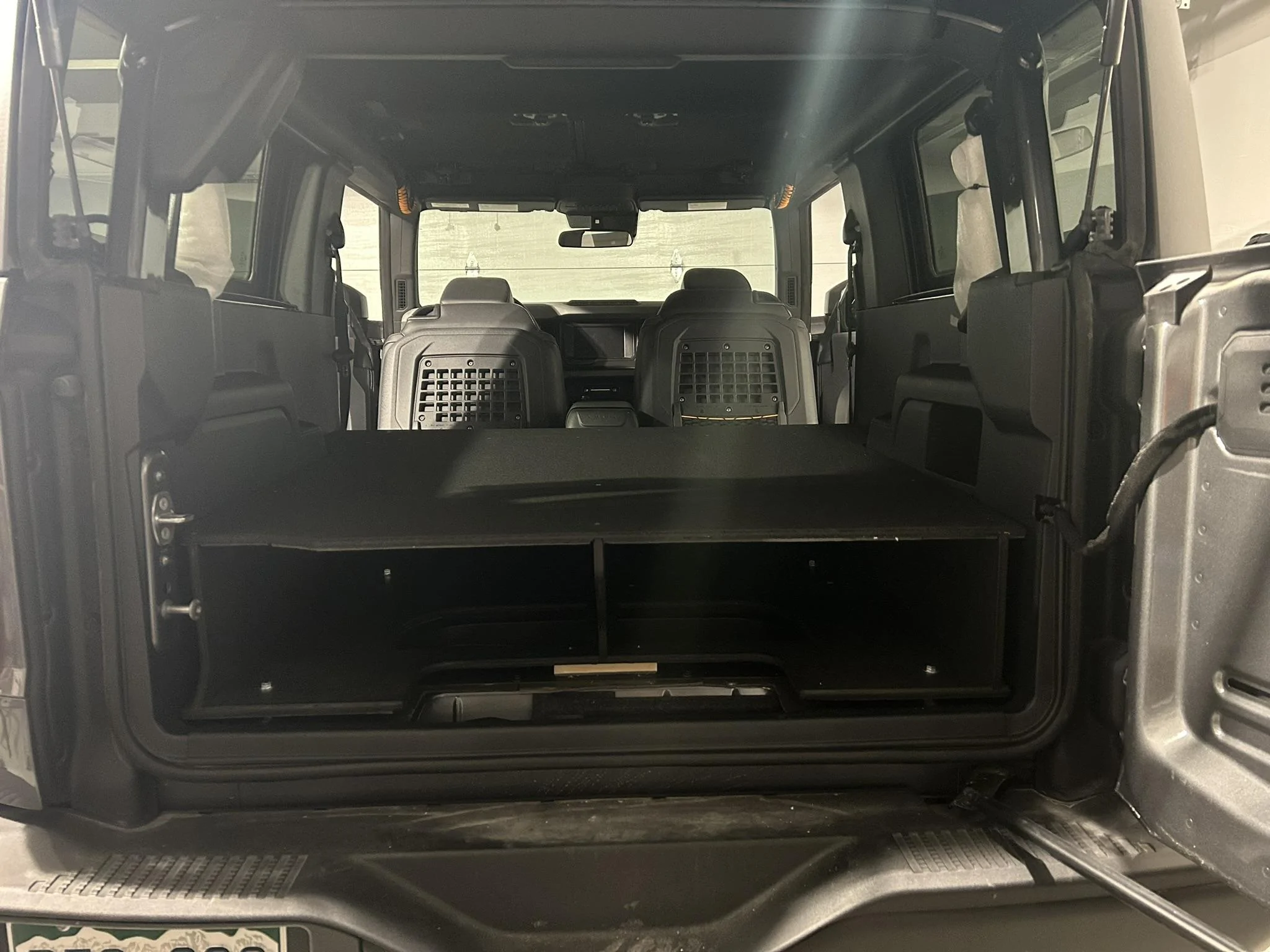

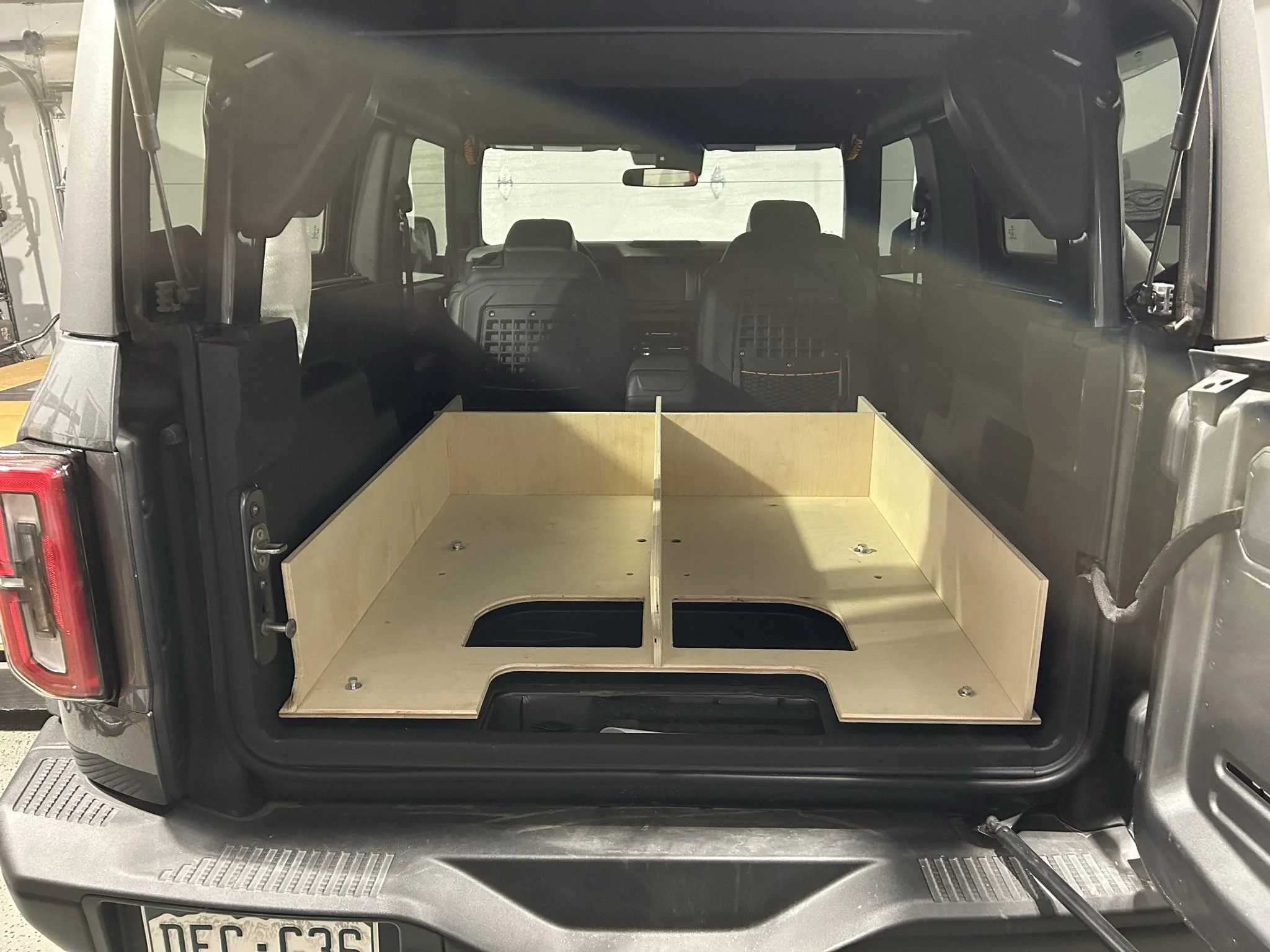

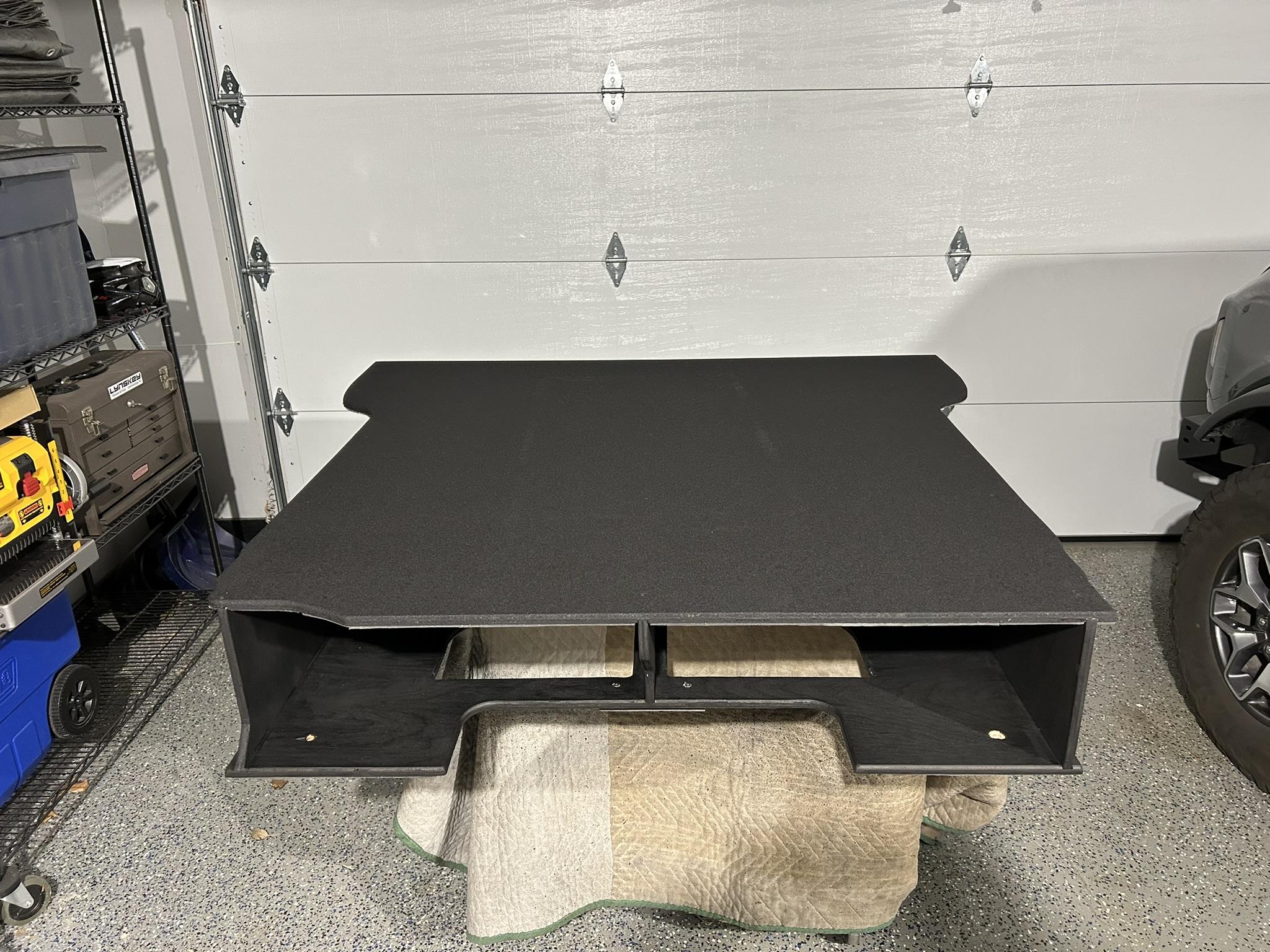

I've included a few pictures here of the almost final product and build process. Not yet pictured are the "drop in" sleeping panels that will bridge the gap between the permanent top sheet/platform and folded front seats. Please feel free to ask questions, but here's a few topics I'll try to anticipate ahead of time:
Materials ($120 - $350 depending on your preferences)
Tools
- Cost efficient: While I don't consider myself cheap, I refuse to pay a 10x markup on something I can build myself.
- Flat load surface with more space for cargo:
- Honestly, it's embarrassing that I got more cargo utility out of my Prius than the Bronco before removing the rear seats and adding this platform.
- Yep, 8-10' sticks of 2x4's or PVC pipe fit in the Prius better than the Bronco still... but that's what multiple vehicles and trailers are for I guess...
- My last Bronco was a '90 that had so much more cargo space (especially since I kept the rear bench out most of the time).
- Additional "stowed/permanent" storage capacity for recovery gear, camping gear, groceries, etc...
- I tried keeping a tote or two in the cargo area for a while, but loose totes just fly all over the place and mark up the tissue paper quality interior panels.
- I wanted to keep totes instead of drawers since those work well for camping (pull a tote and bring it to the picnic table).
- Secure storage area for when the roof is off (most of the summer unless there's an out of town camping trip).
- Retain quick/easy access to the sub-floor storage compartments from Ford w/o hinged compartments/latches/fumble ducking around
- Ability to sleep 2 people (while I typically tent camp, a quick overnight stopover in colder weather is easier in an enclosed vehicle than busting out the tent).
- I'm Mitchell Watts and I'm 6'3"... ok not really, but I am 6'2" / 215 lbs and this works for me +1 much shorter/smaller camping companion.

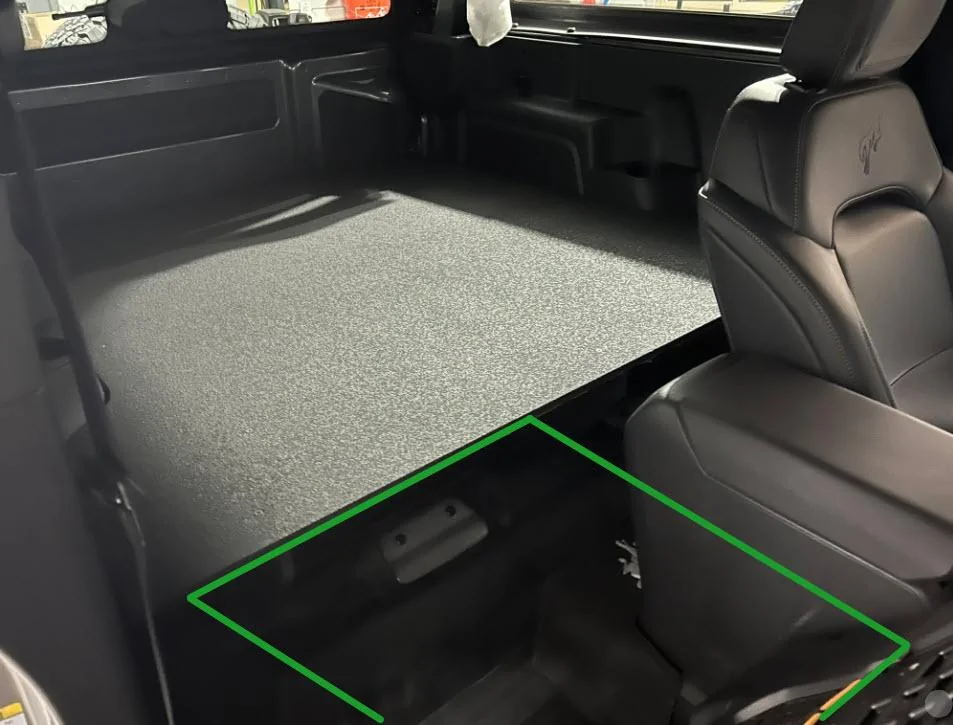

I've included a few pictures here of the almost final product and build process. Not yet pictured are the "drop in" sleeping panels that will bridge the gap between the permanent top sheet/platform and folded front seats. Please feel free to ask questions, but here's a few topics I'll try to anticipate ahead of time:
Materials ($120 - $350 depending on your preferences)
- QTY 2 - 4x8x1/2" birch sanded plywood sheets ($120)
- Wood glue (on hand / $10)
- #6x1" wood screws (on hand / $5)
- note, you can stop here if you want to keep it simple
- wood stain (on hand / $15)

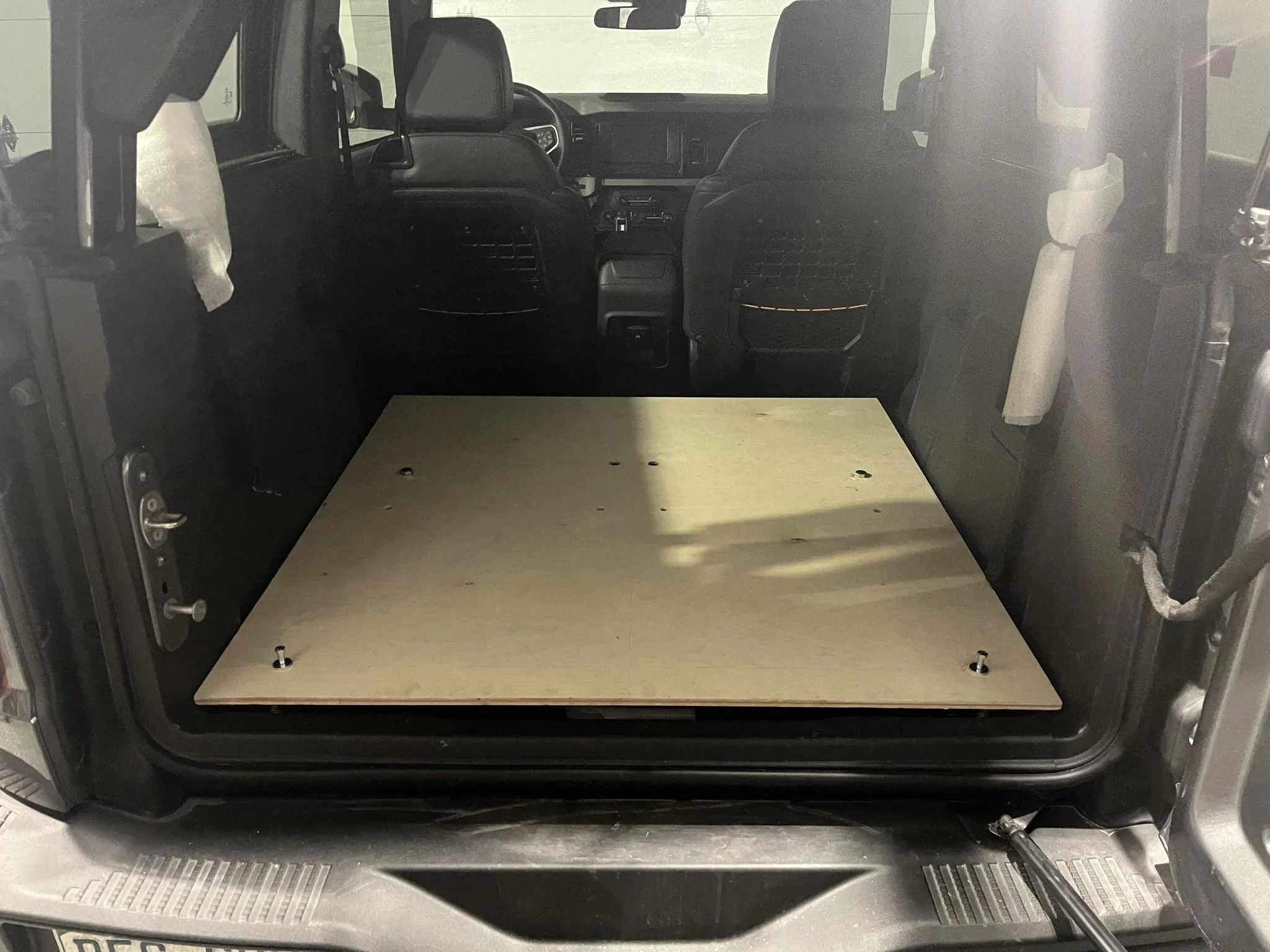

- used for the bottom sheet and vertical walls of the enclosure
- bed liner ($53)
- I used one full can of Bully Liner for the top sheet/platform only (sourced locally at Walmart): https://www.walmart.com/ip/Bullylin...XiUI&athancid=884238998&athposb=0&athena=true
- bare wood / stain / carpet / horse stall mat / your bed liner of choice are all acceptable alternatives
- I would have loved to use HDPE or another similar material for the full enclosure, but the lack of available local options and overall price after shipping didn't compete with the simplicity of wood with a couple coats of Bully Liner
- sound deadening mat ($50)
- I used about half of a 36' roll of Siless Liner 157 (4mm), sourced from Amazon: https://www.amazon.com/dp/B07B75PD8B?ref=ppx_yo2ov_dt_b_product_details&th=1
- I wanted to reduce road noise, which was noticeably higher after removing the seats and rear cargo mat.
- I also wanted to use this as a "cram and jamb" method for keeping my storage totes from shifting while driving.

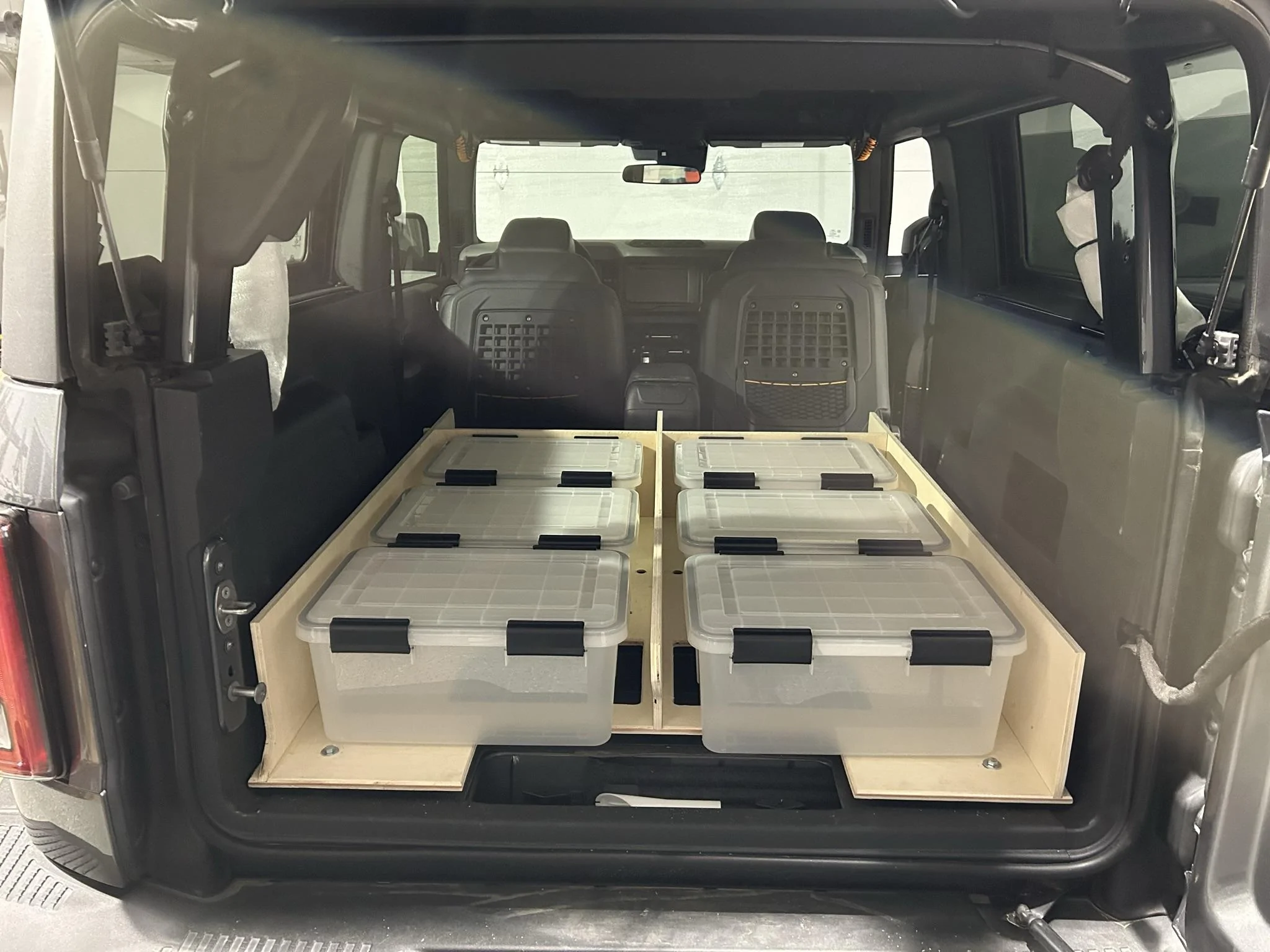

- QTY 6 totes ($90)
- Sourced locally from Home Depot: https://www.homedepot.com/p/IRIS-19-Qt-WeatherPro-Storage-Box-in-Clear-6-Pack-585420/303159409

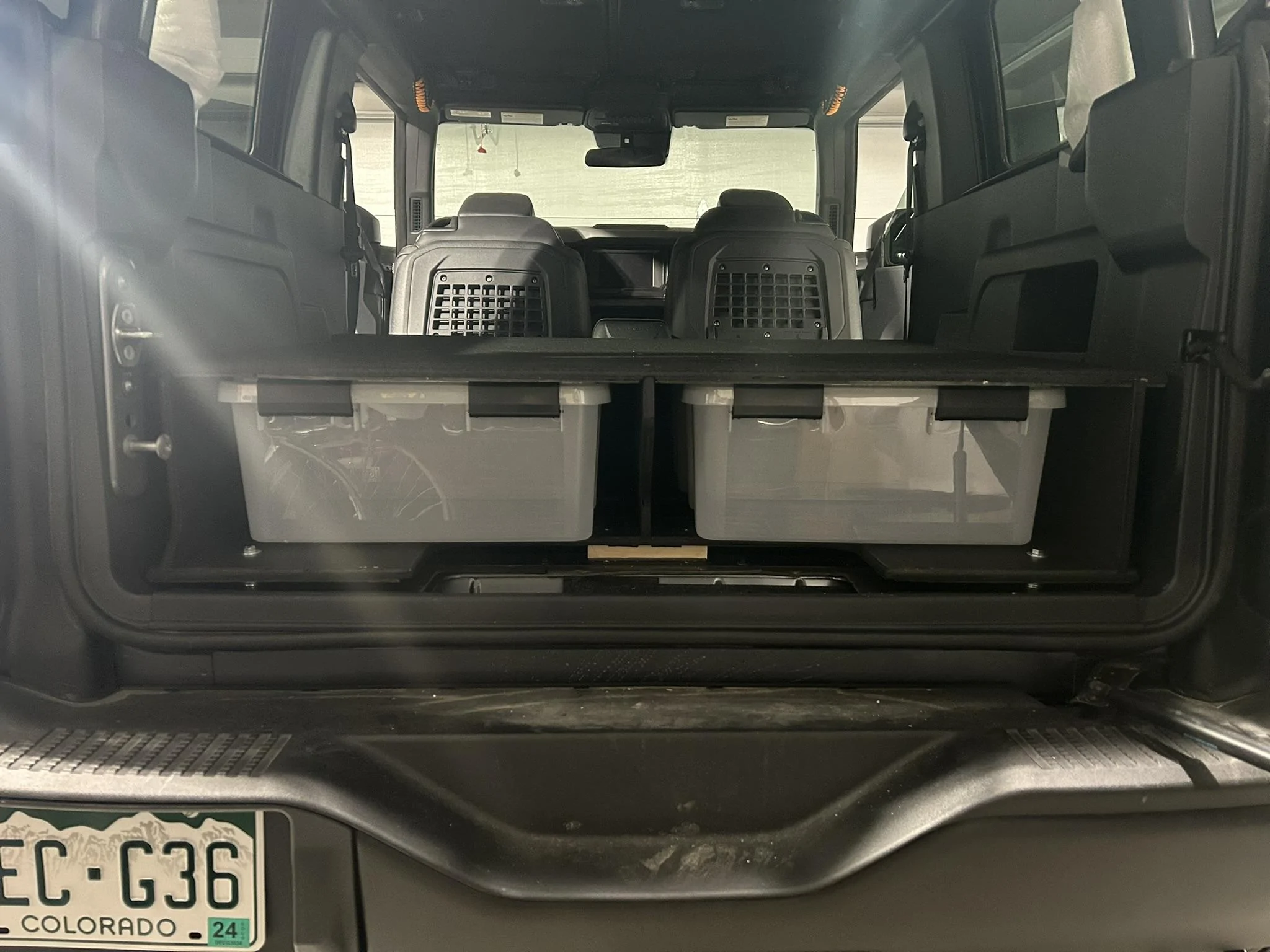

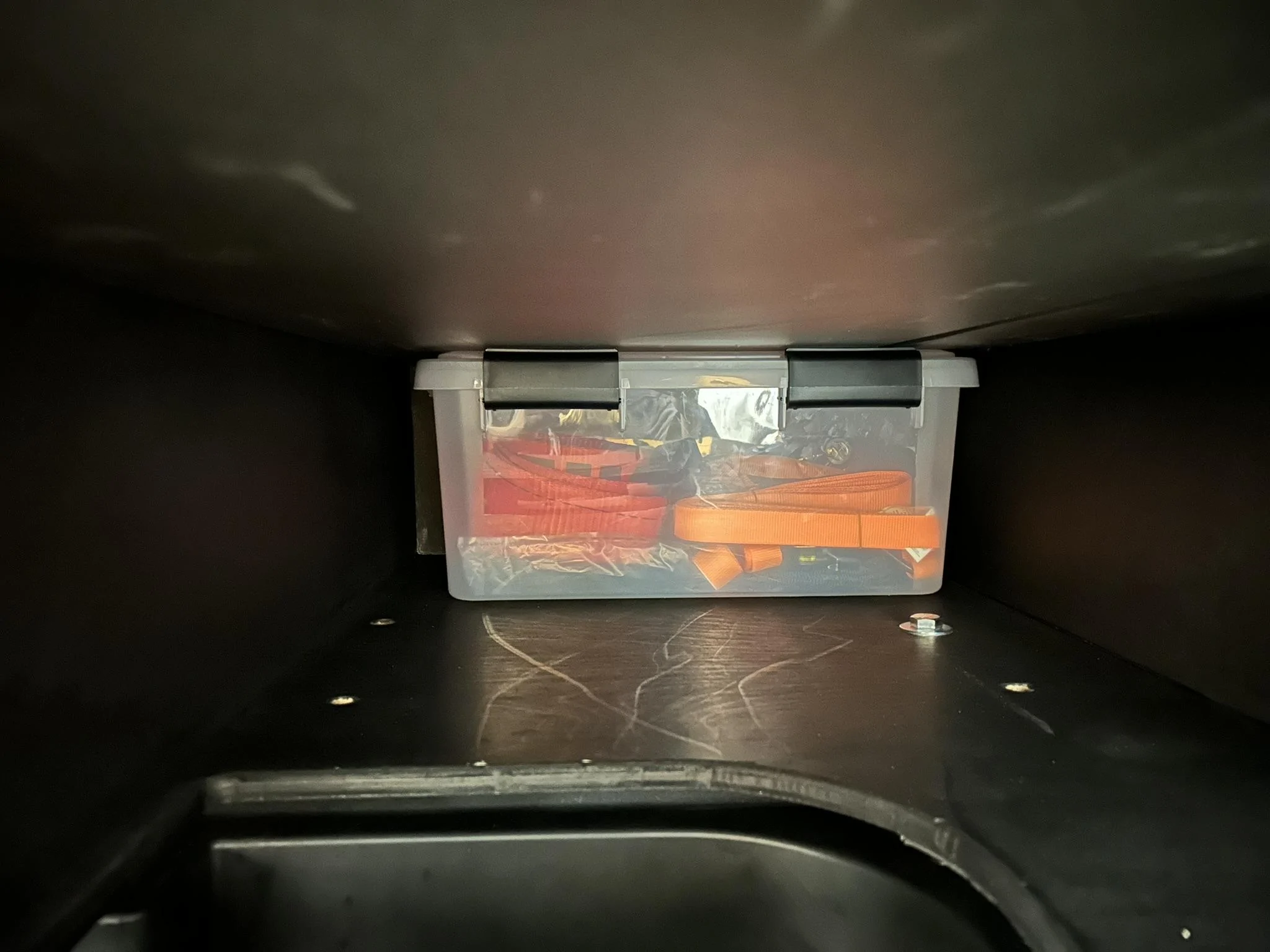

- The overall height of the enclosure is the height of the tote less half the thickess of the sound deadening mat. This ensures the totes don't slide around like hot dogs down a hallway.
Tools
- tape measure

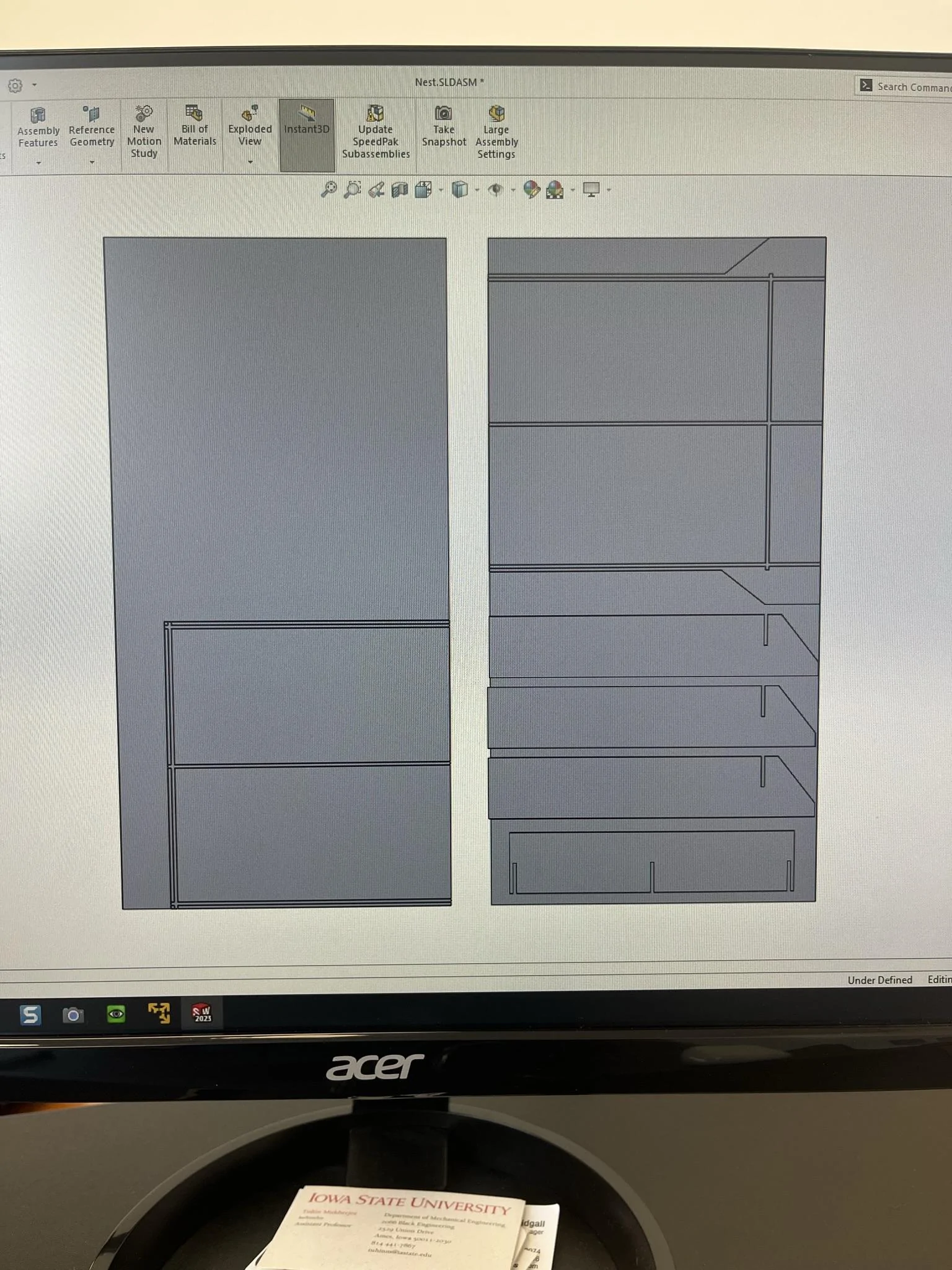

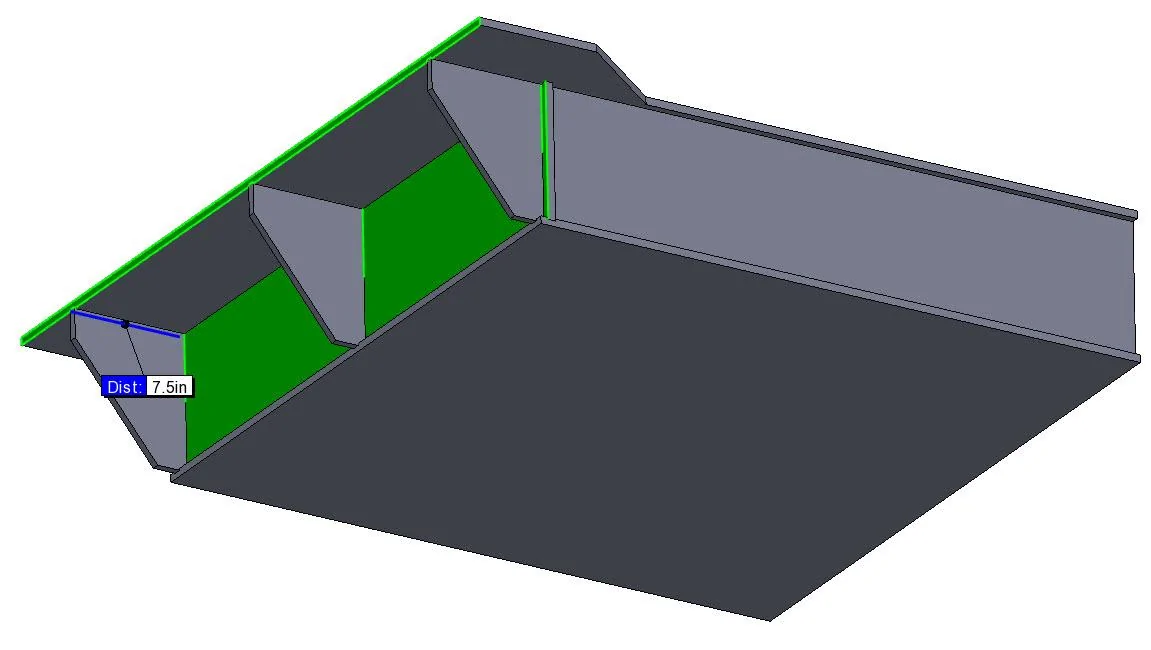

- solidworks for design
- circular saw
- table saw
- jig saw
- multitool (for sanding and cutting)
- orbital sander
- router
- drill or impact w/ drill bits and phillips bits

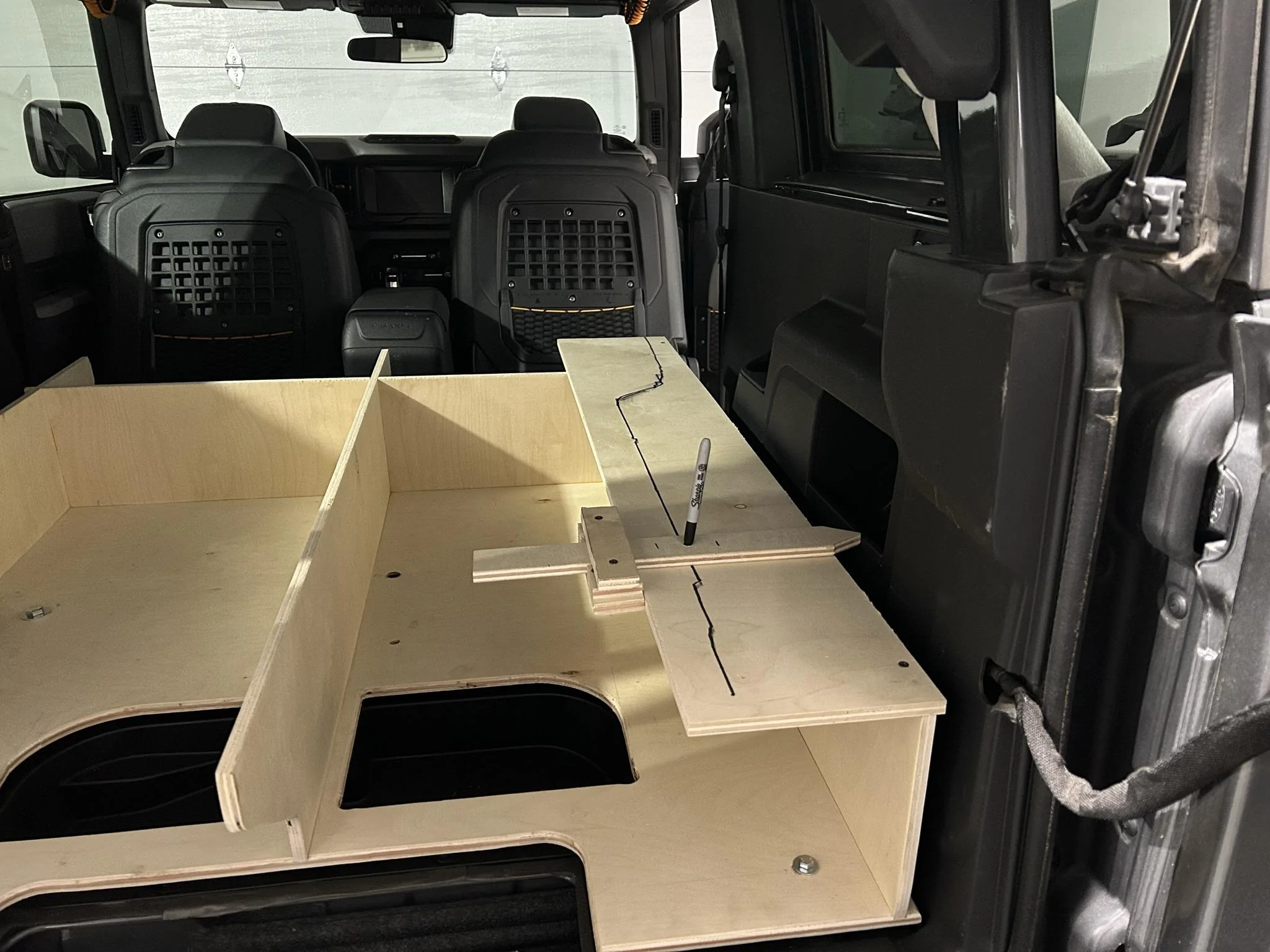

- custom "tracer" made from wood scraps, but a compass would also work great
- other misc. hand tools, clamps, jigs, guides, etc... that suit your fabrication preferences
