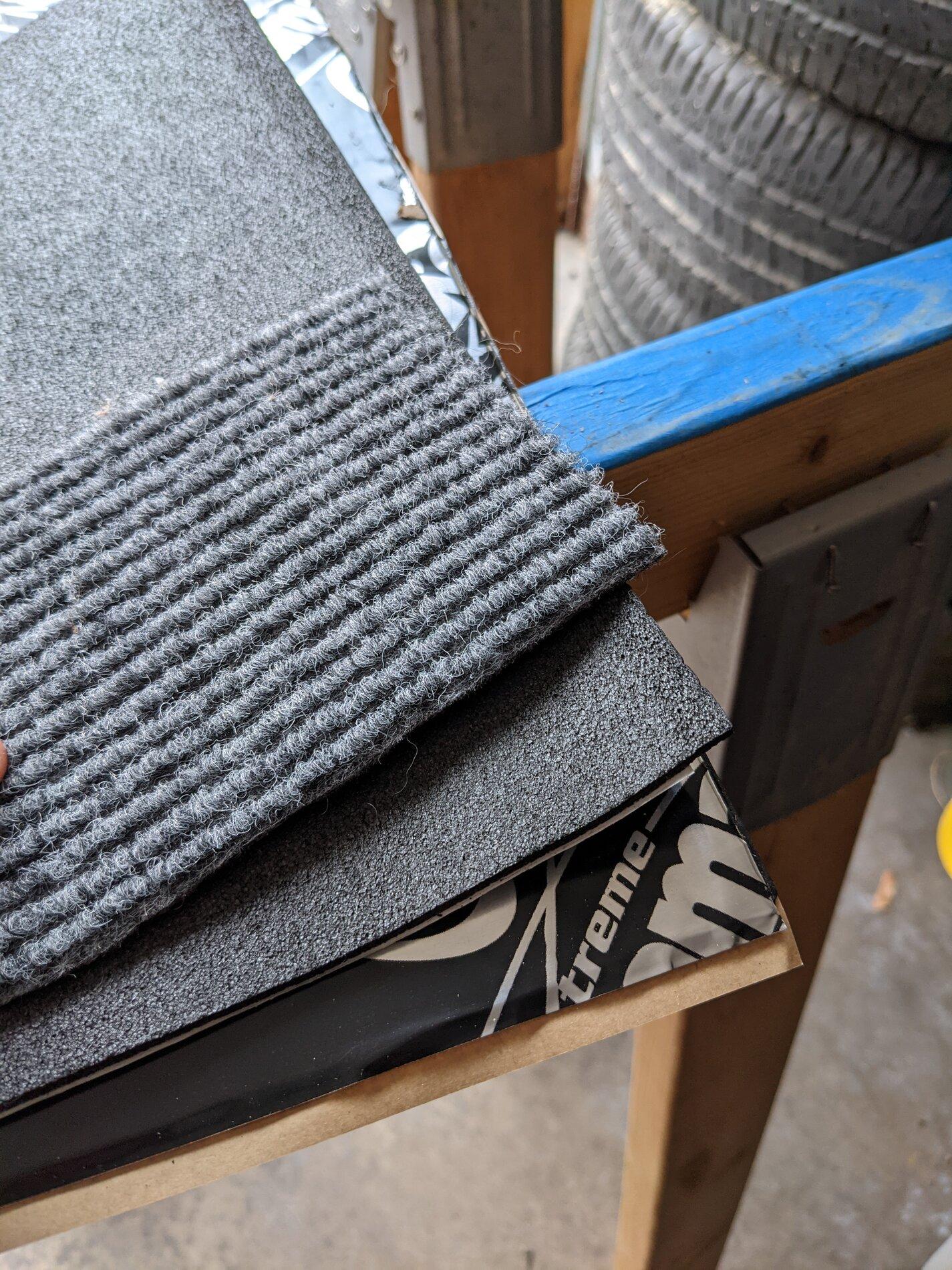

I like what you did, Im just interested in the trade-offs and Im not familiar with automotive acoustic products. Would you show a side edge view of the materials you used and how you think they worked?

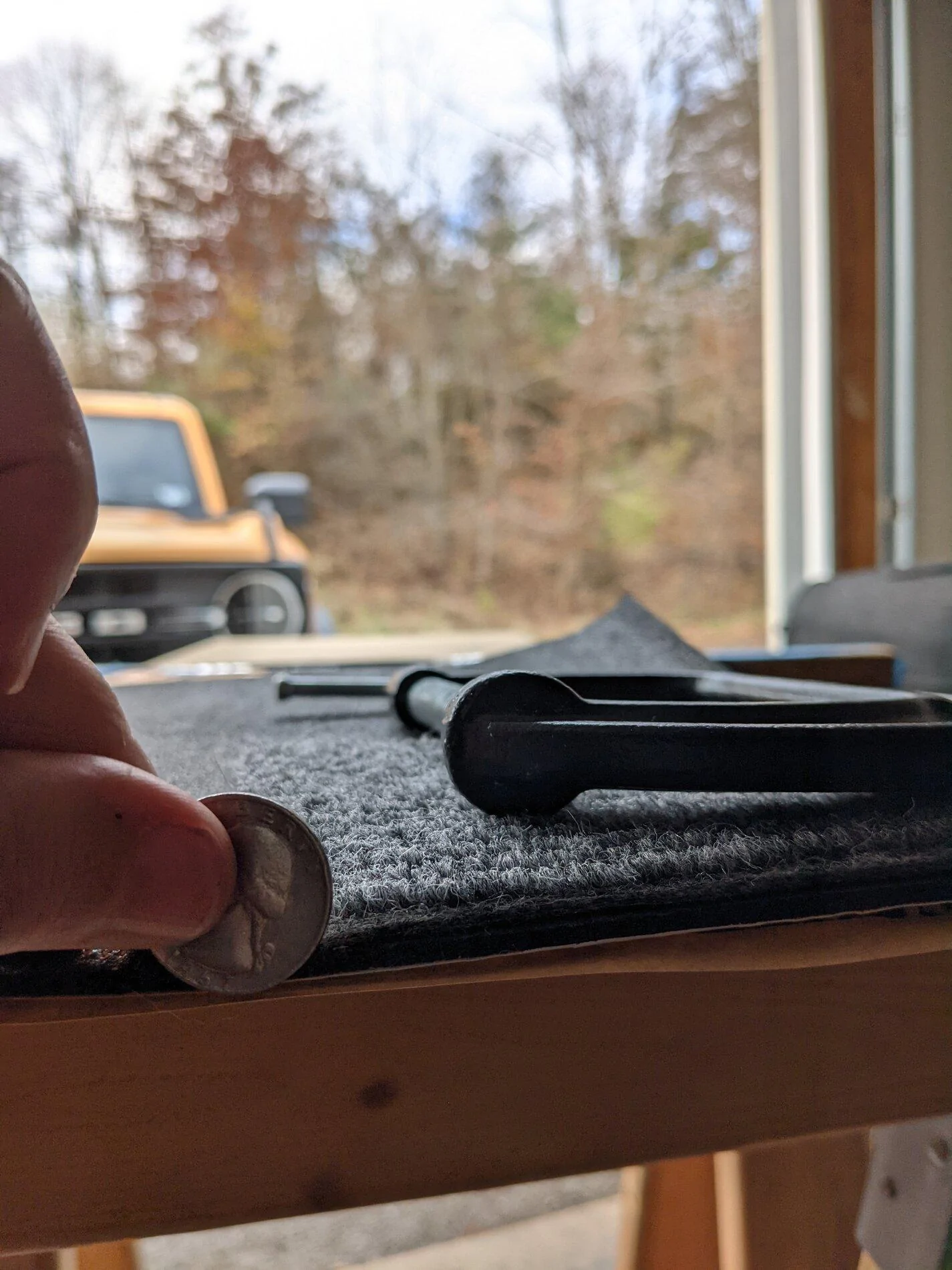

This is unscientific, but I laid them together and used a quarter as reference. You're losing about ~3/8's inch of headroom




MayhemMike

Badlands
Well-Known Member
Joined
Mar 22, 2021
Threads
13
Messages
1,590
Reaction score
4,406
Location
Virginia
Vehicle(s)
Mercury
Bronco
Badlands
Free for us 1st year orders - but for those buying after, that's what's listed on the Ford Accessories site
The headliner is free on the MY 22 build and price page as well. You have to select the option if you want it, but it is no added cost.


jtim47Bronco

Badlands
Well-Known Member
First Name
Tim
Joined
Oct 1, 2021
Threads
3
Messages
68
Reaction score
84
Location
Federal Way Washington
Vehicle(s)
my 28th new Ford replacing my 2015 F-150 Platinum
Bronco
Badlands
Clubs

After finding out the Ford NVH headliner is essentially $480 carpet, I decided to make my own headliner. For $260 I got:

* Dynamat mats (67 Mil thick - butyl rubber with aluminum backing, self-adhesive)
* 1/8 thick Dynaliner closed/open cell foam (self-adhesive)
* Some charcoal grey indoor/outdoor carpet

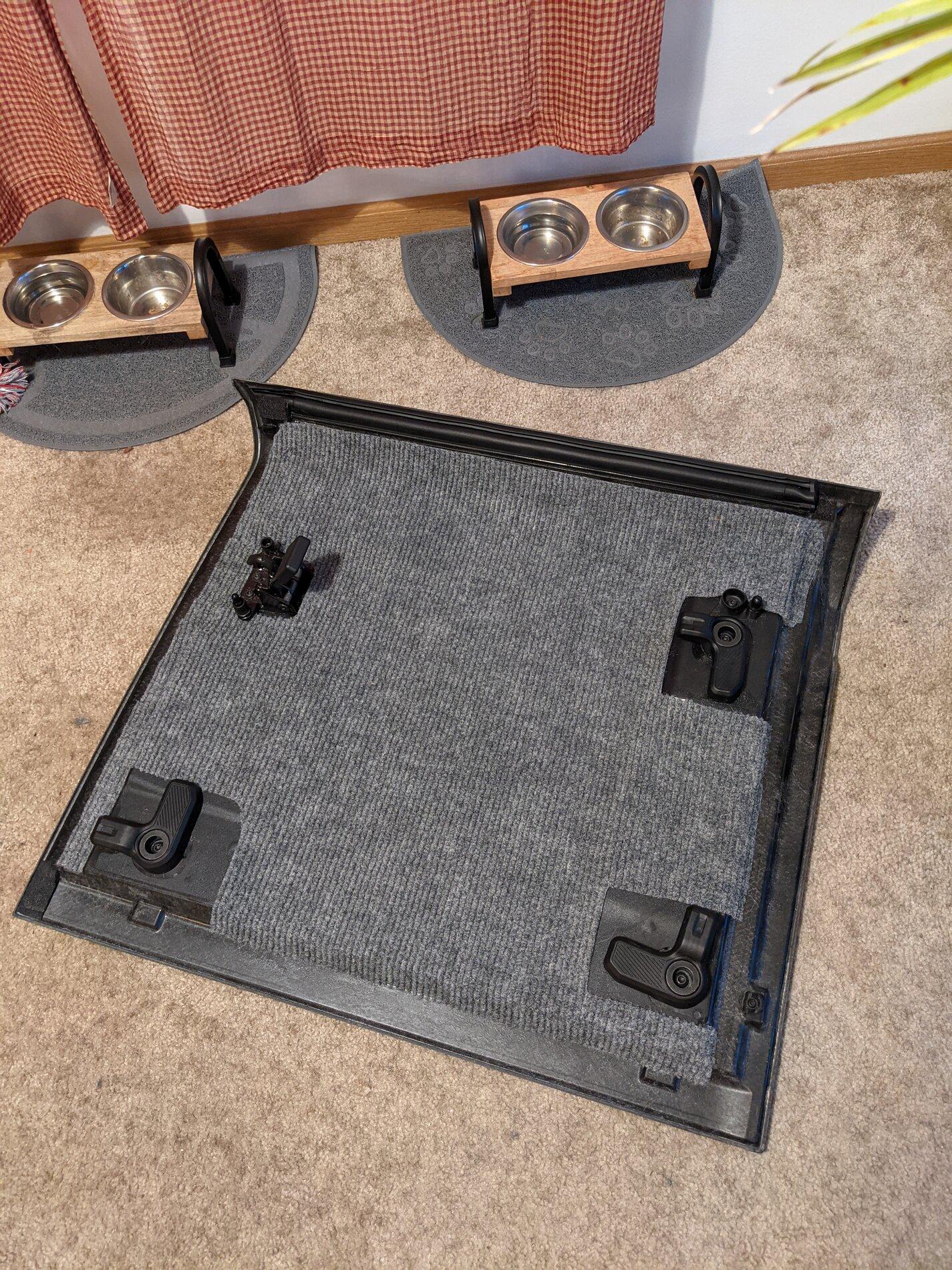

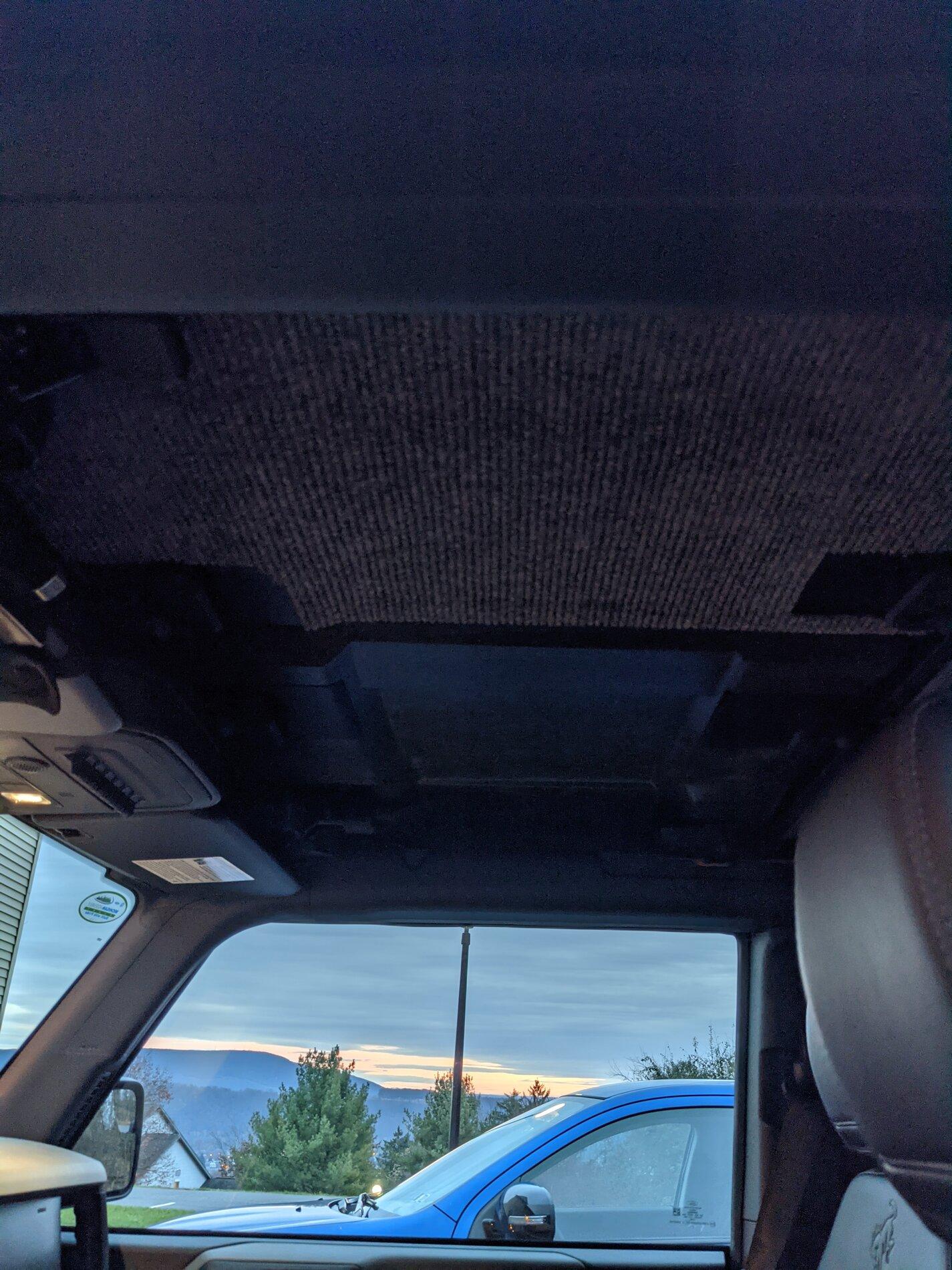

Here's the finished driver's side, in comparison to the bare MIC on the passenger side:
