Kicker speaker, wiring harness ?

[Combustion_King]

So I got the bronco speaker kit from sound good stereo

https://soundsgoodstereo.com/products/custom-6-5-inch-speaker-adapters-fits-2021-ford-bronco-6th-gen-front-kick-panel-location?utm_campaign=Spently Shipment Delivered Email&utm_medium=notification_email&utm_source=spently

so my question is- the wiring harness I got had 4 wires- 2 positive, 2 negative.

In the photo it shows 2 wires

Which ones do I use? since my speakers only have one +\- connection? I’m assuming the other wire set is for another set of speakers off the kickers? Can I cut them?

these are the kickers I’m installing
HERTZ Cento Series C165L 6.5" Woofers with Extended Low-Frequency Response - Pair https://a.co/d/7aSdcvJ

Sponsored



[RagnarKon]

The kick panel speakers and the dash speakers share the same audio channel, which is why there are four cables. Two feed the 6.5" speakers, the other two feed the 4" speakers in the dash.

More info in my post/video here.



[Combustion_King]

I have the b&o system, does this apply still?

will there be a +\- set of wires I’ll have to splice in from my dash speakers?



[RagnarKon]

I have the b&o system, does this apply still?

will there be a +\- set of wires I’ll have to splice in from my dash speakers?

Ohhhhh... the B&O system. The B&O speakers have their own separate channels.

I am 90% sure you only need pins 1 and 4 on that connector.

If you are worried about that 10% uncertainty... just test it before you snip the cables. Or simply connect pins 1/2 together, and pins 3/4 together and you'll be good to go.



[Combustion_King]

Couple videos I’ve seen with wiring harness seems to have the center cables looped back down. Not sure if that for a reason or what. I just wanna make the harness once.



[Combustion_King]

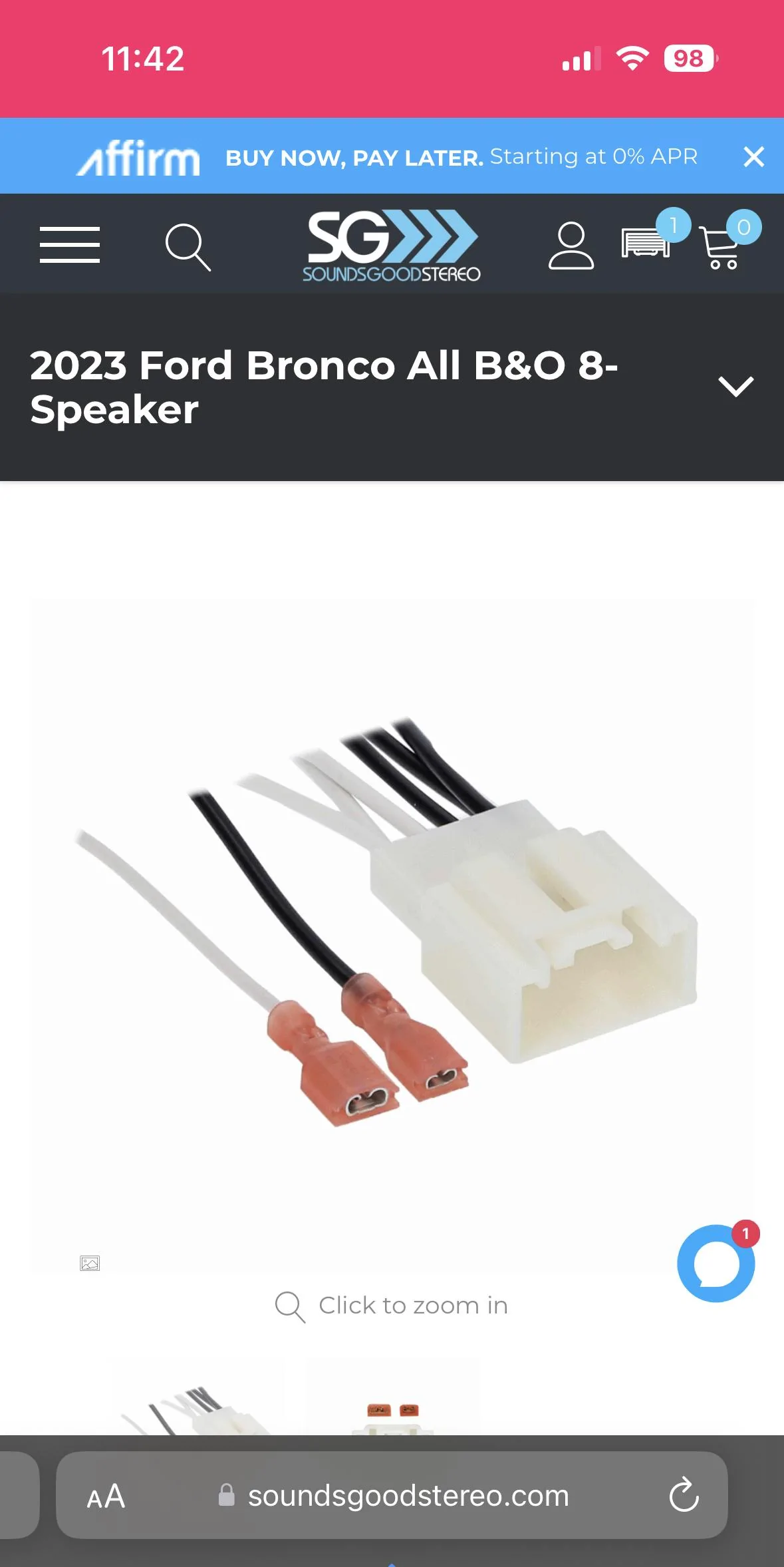

I just found this on their site, I got the kit.. however looks like the 1 and 4 pins have the wires looped back to it self? Is this doing anything? Not really a jumper/. So confused for what should be simple



[Combustion_King]

We can close this thread.

i said F-it. And took the panel off to see what I had to work with. Factory connections were just 2 wire at pin 1 and 4.

cut the other wires in my harness solders the harness to the speakers and bam. Upgrade done.
