4” Speaker Harness Pics

[Portapot]

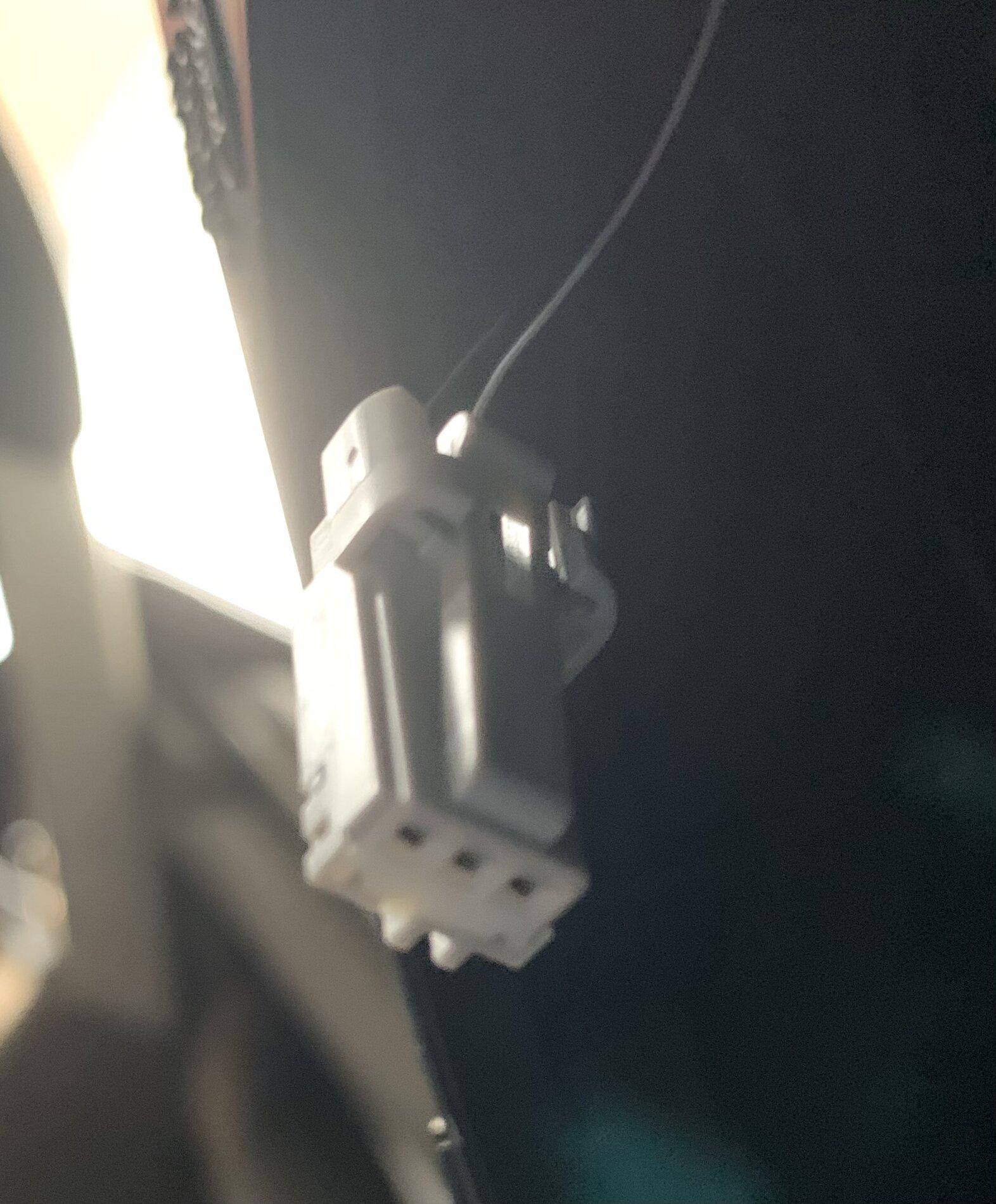

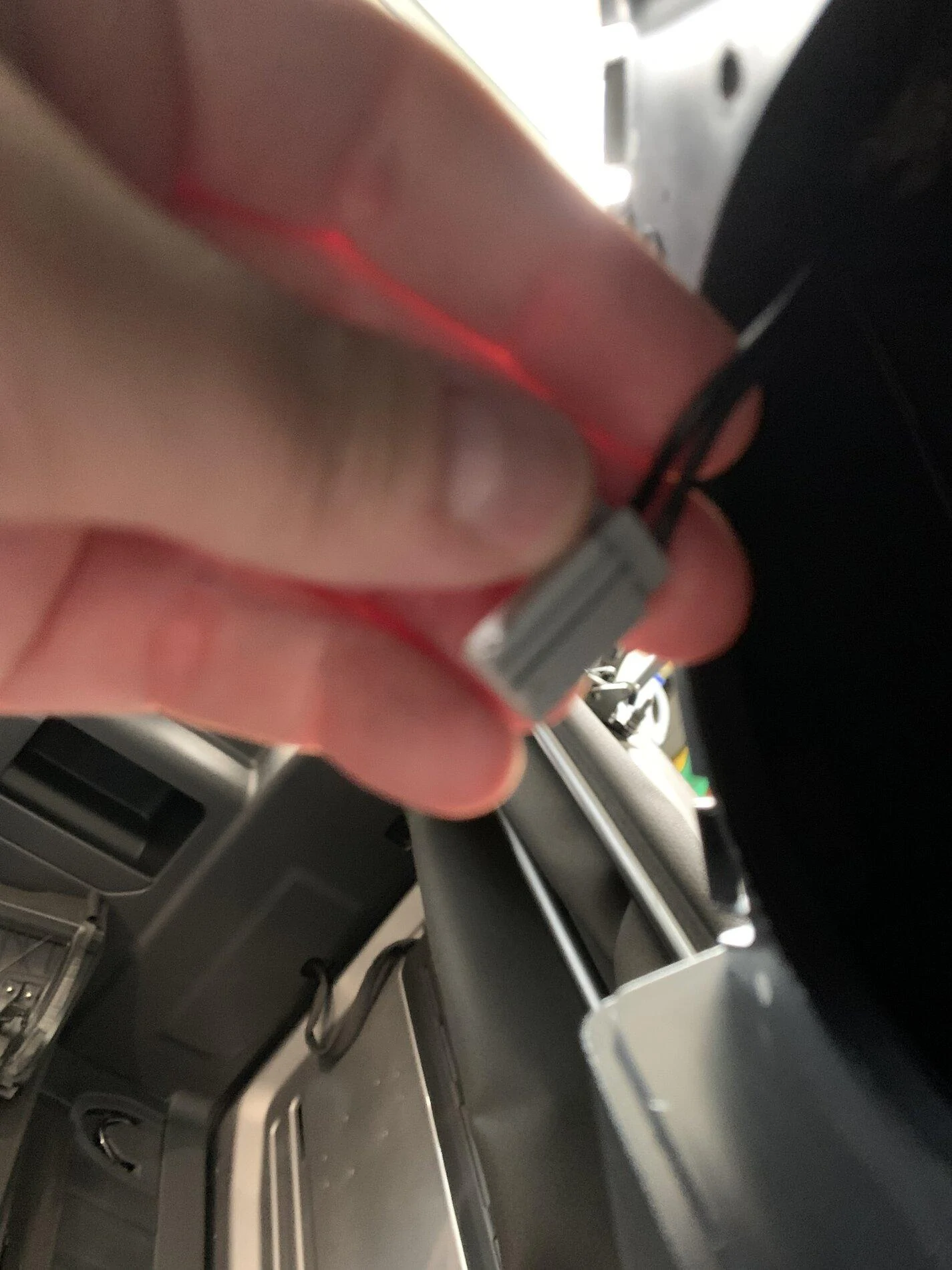

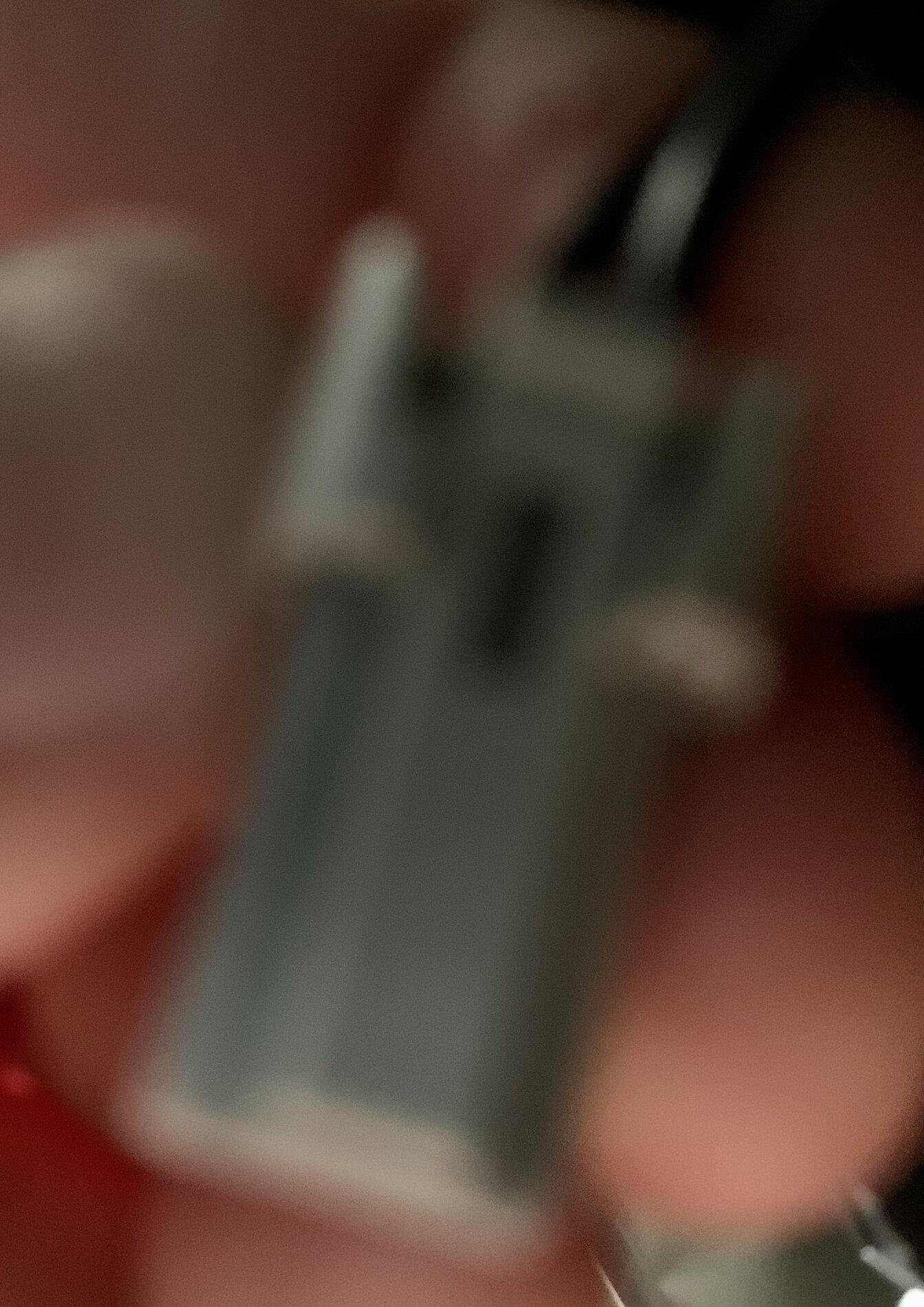

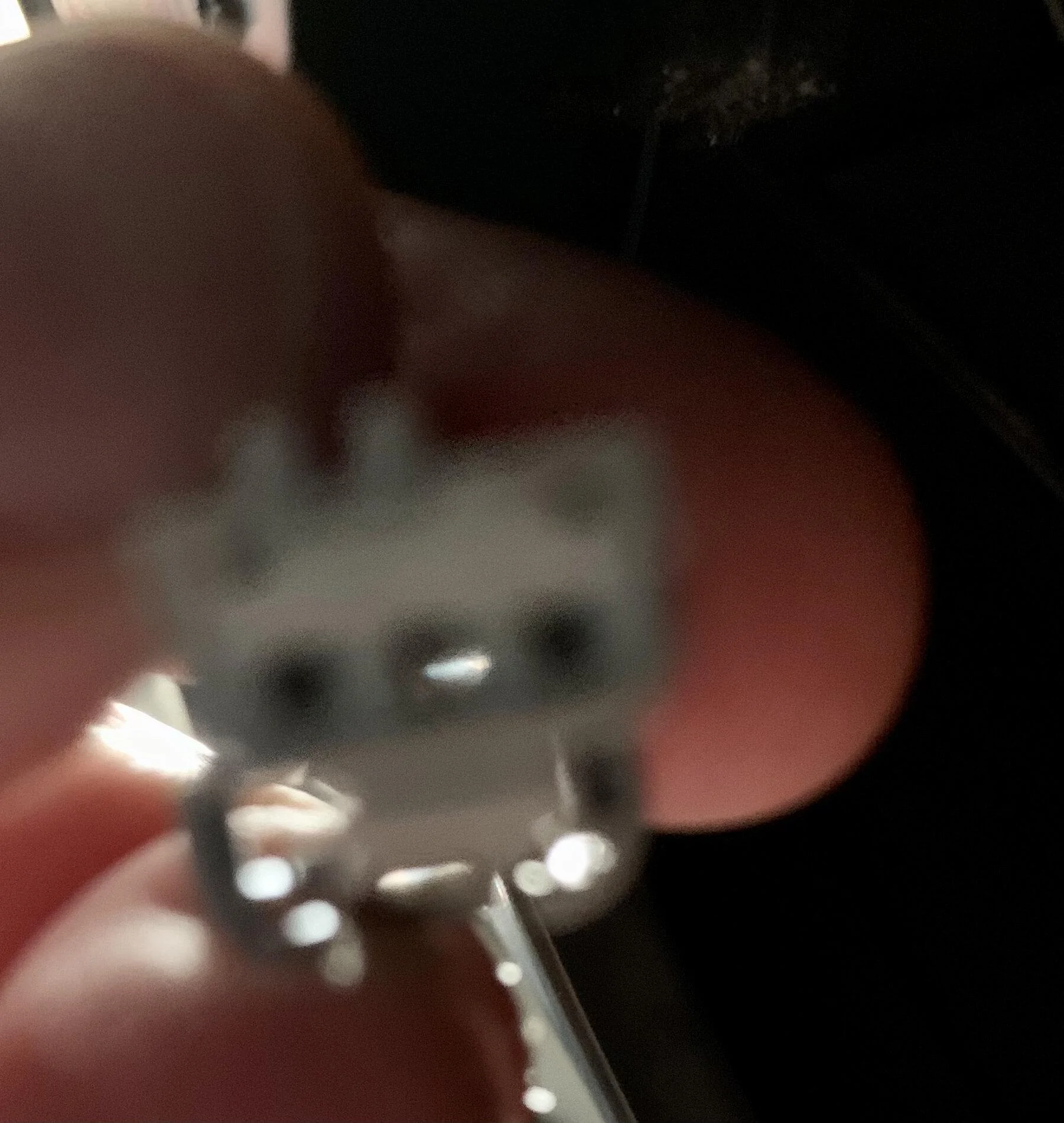

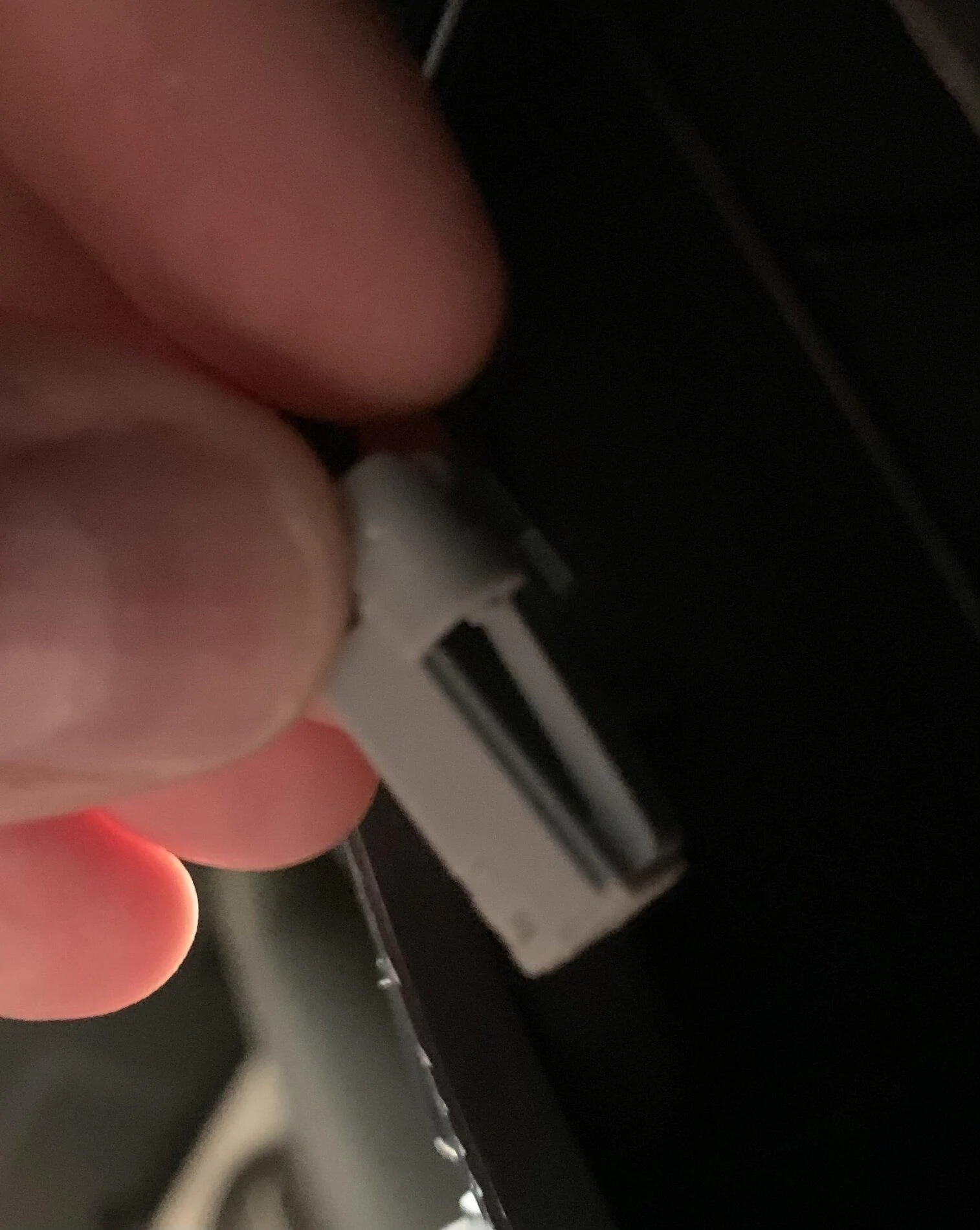

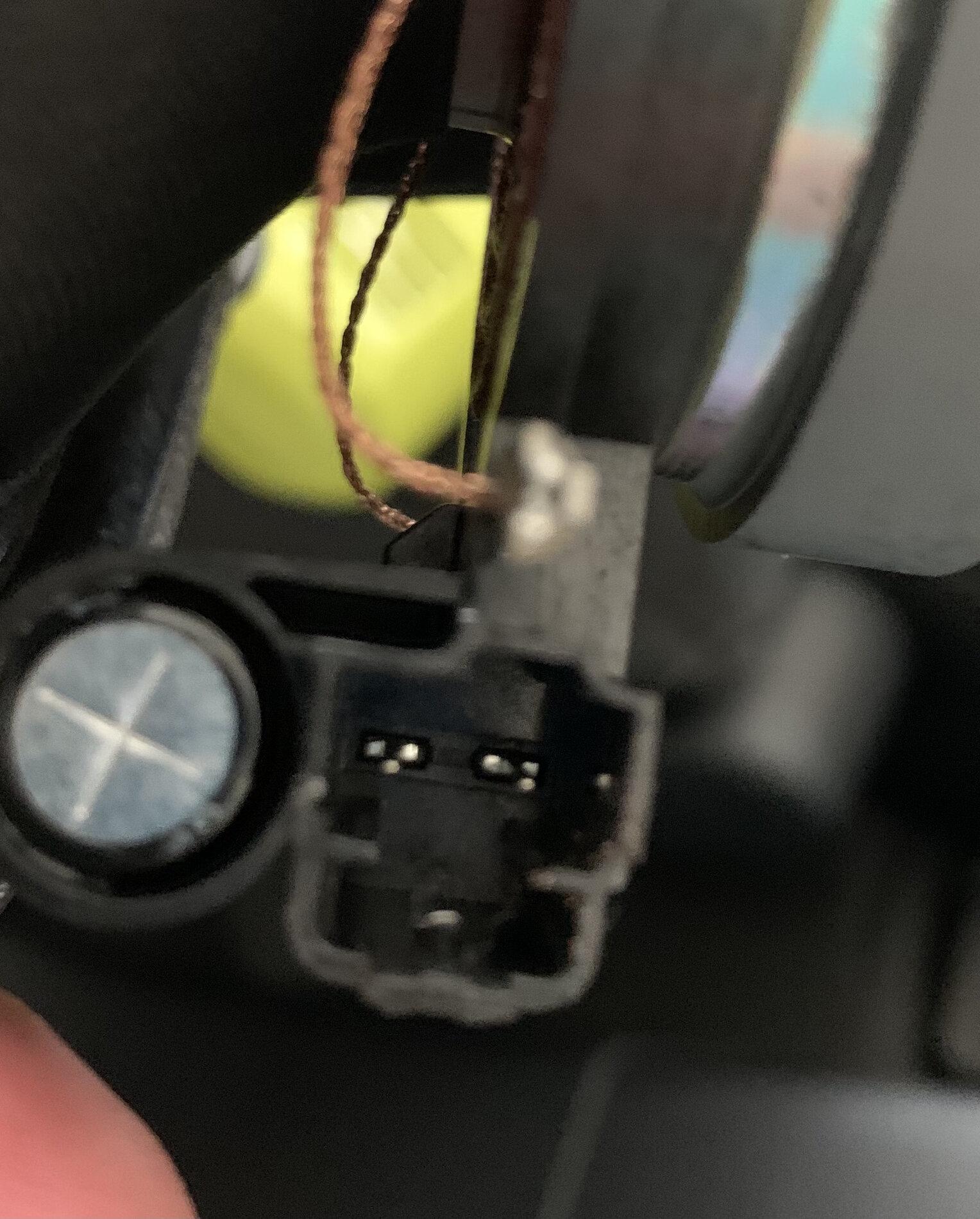

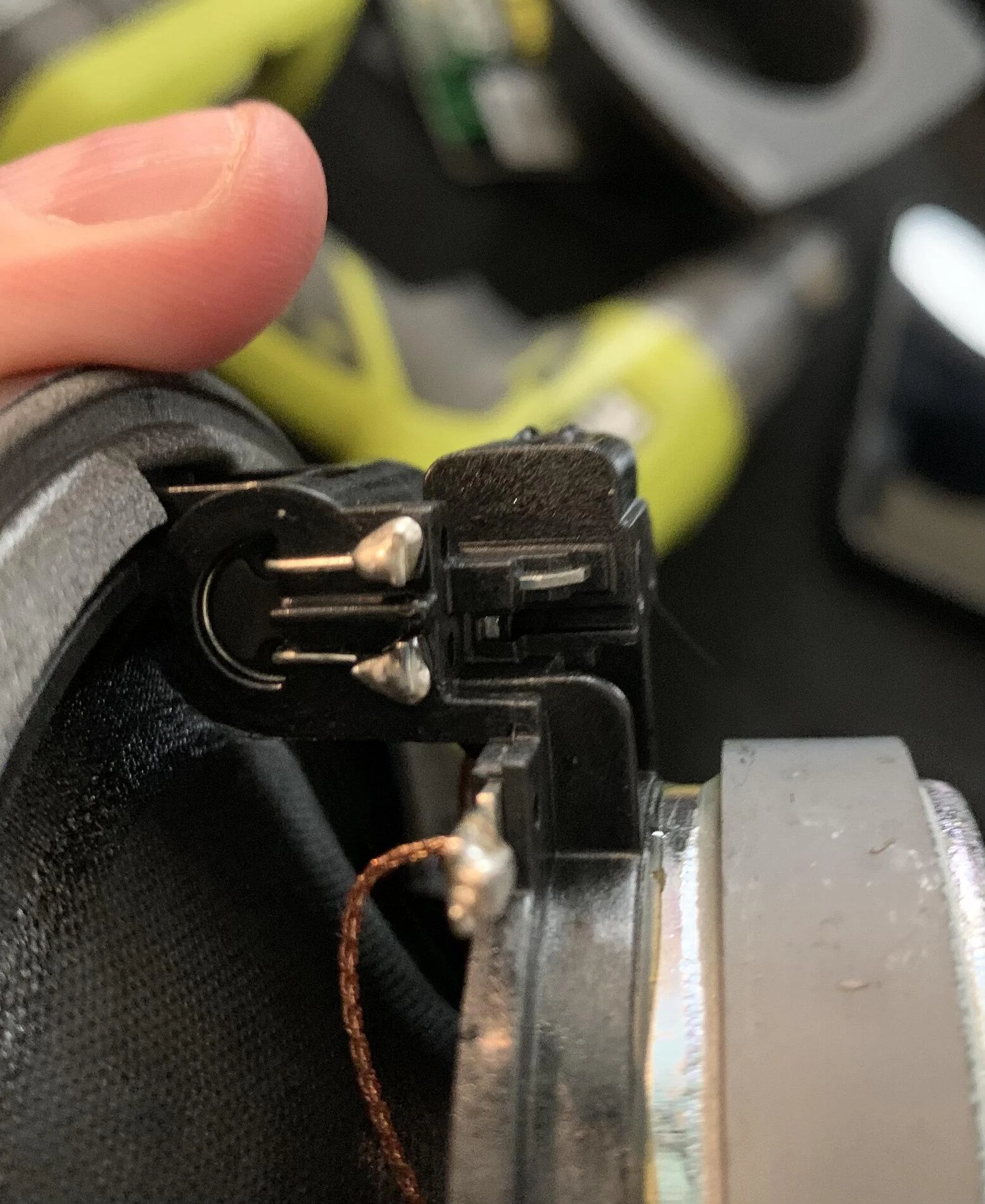

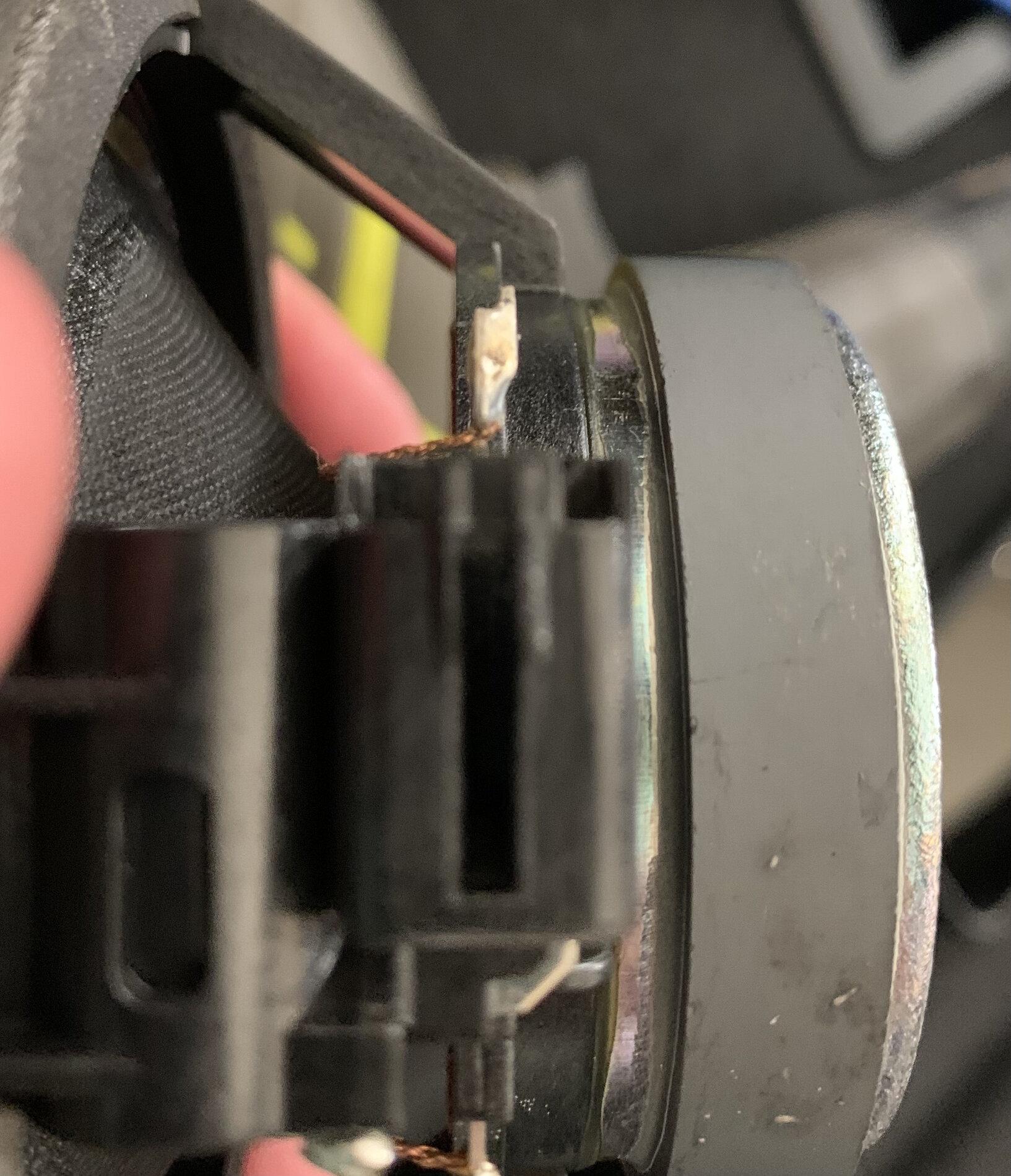

So from other threads folks were looking for more pics of the 4” speaker harness. Hoping these might help us narrow in on what we need.

Sponsored



[Portapot]

Some are a little blurry, tried my best



[Mattwings]

So from other threads folks were looking for more pics of the 4” speaker harness. Hoping these might help us narrow in on what we need.

I think I’m at least one of the threads, someone found the plugs. $60 for two or something like that. Not a big deal to cut and use solderless connectors. I will follow and see if someone locates them cheaper!



[swooshdave]

Some are a little blurry, tried my best

They are pretty bad.



[NewBroncoOwner]

on the gray end, is there a BOSH or any other electronics manufacturer printed?



[NewBroncoOwner]

I think I’m at least one of the threads, someone found the plugs. $60 for two or something like that. Not a big deal to cut and use solderless connectors. I will follow and see if someone locates them cheaper!

Can you share the post?



[zfischer]

They are pretty bad.

I feel like something's wrong with my eyes.



[flip]

I dont think there is a mate to this plug. Been looking for hours and it appears it only terminates to a male component like speaker or other part. Probably TE/AMP or Yazaki.



[peta8368]

I believe it's this
https://www.molex.com/molex/products/part-detail/crimp_housings/0310671041

https://www.mouser.com/ProductDetai...xdZOTGmaJU9k6C3bCaTton18hTyYKq9nqgZ0B4E/AqA==

Peter



[604Bronco]

I dont think there is a mate to this plug.

Maybe it can try using Tinder to find one? There’s always that “special someone” for everyone



[Gobraphil]

Any writing on the plug as previously posted?



[flip]

I believe it's this
https://www.molex.com/molex/products/part-detail/crimp_housings/0310671041

https://www.mouser.com/ProductDetail/Molex/31067-1041?qs=/ha2pyFaduhxdZOTGmaJU9k6C3bCaTton18hTyYKq9nqgZ0B4E/AqA==

Peter

Good find. It should have a number on the factory plug.



[flip]

I believe it's this
https://www.molex.com/molex/products/part-detail/crimp_housings/0310671041

https://www.mouser.com/ProductDetail/Molex/31067-1041?qs=/ha2pyFaduhxdZOTGmaJU9k6C3bCaTton18hTyYKq9nqgZ0B4E/AqA==

Peter
[/QUOTE

Good find. It should have a number on the factory plug.

https://nexelec.com/MOLEX-310671040/



[peta8368]

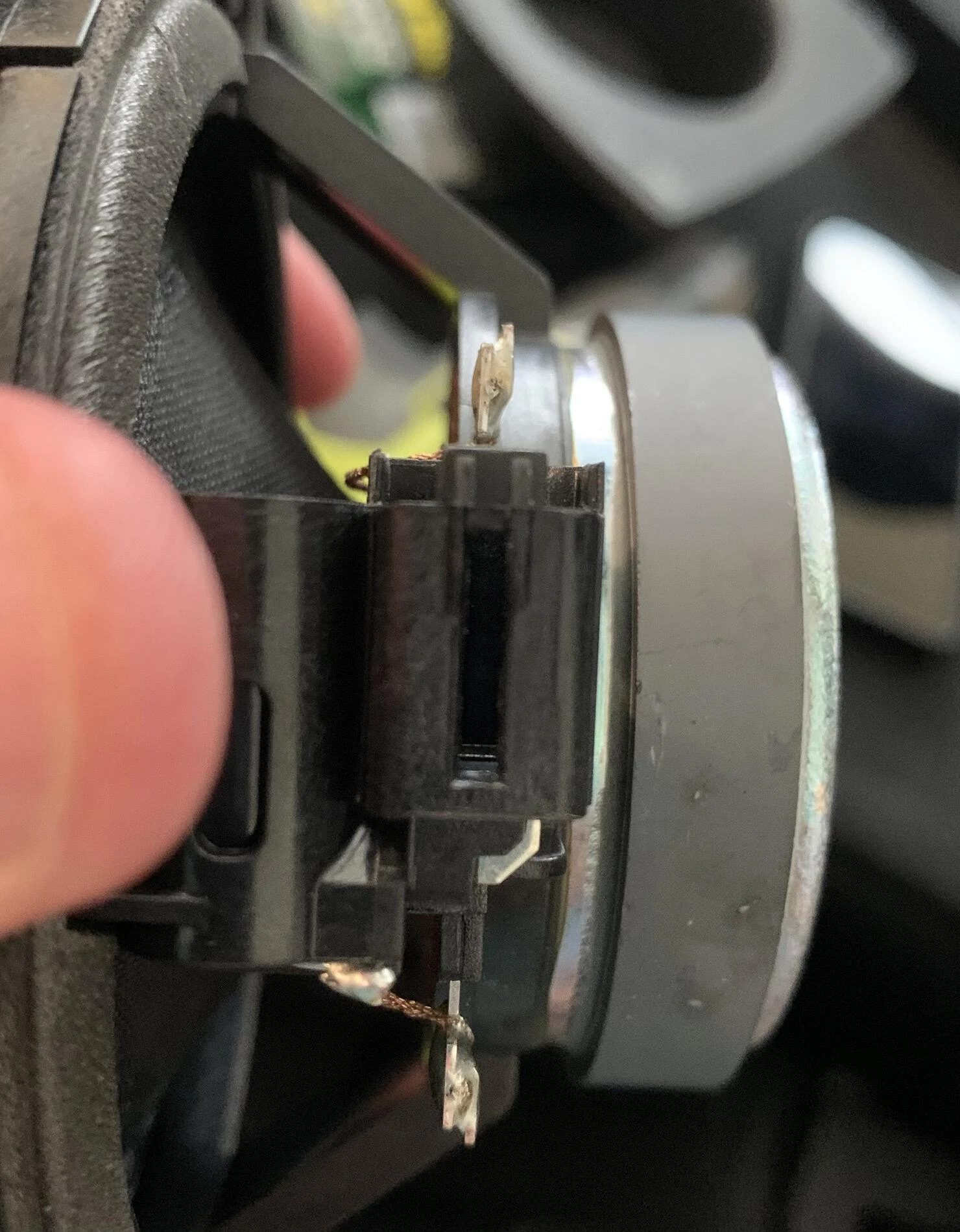

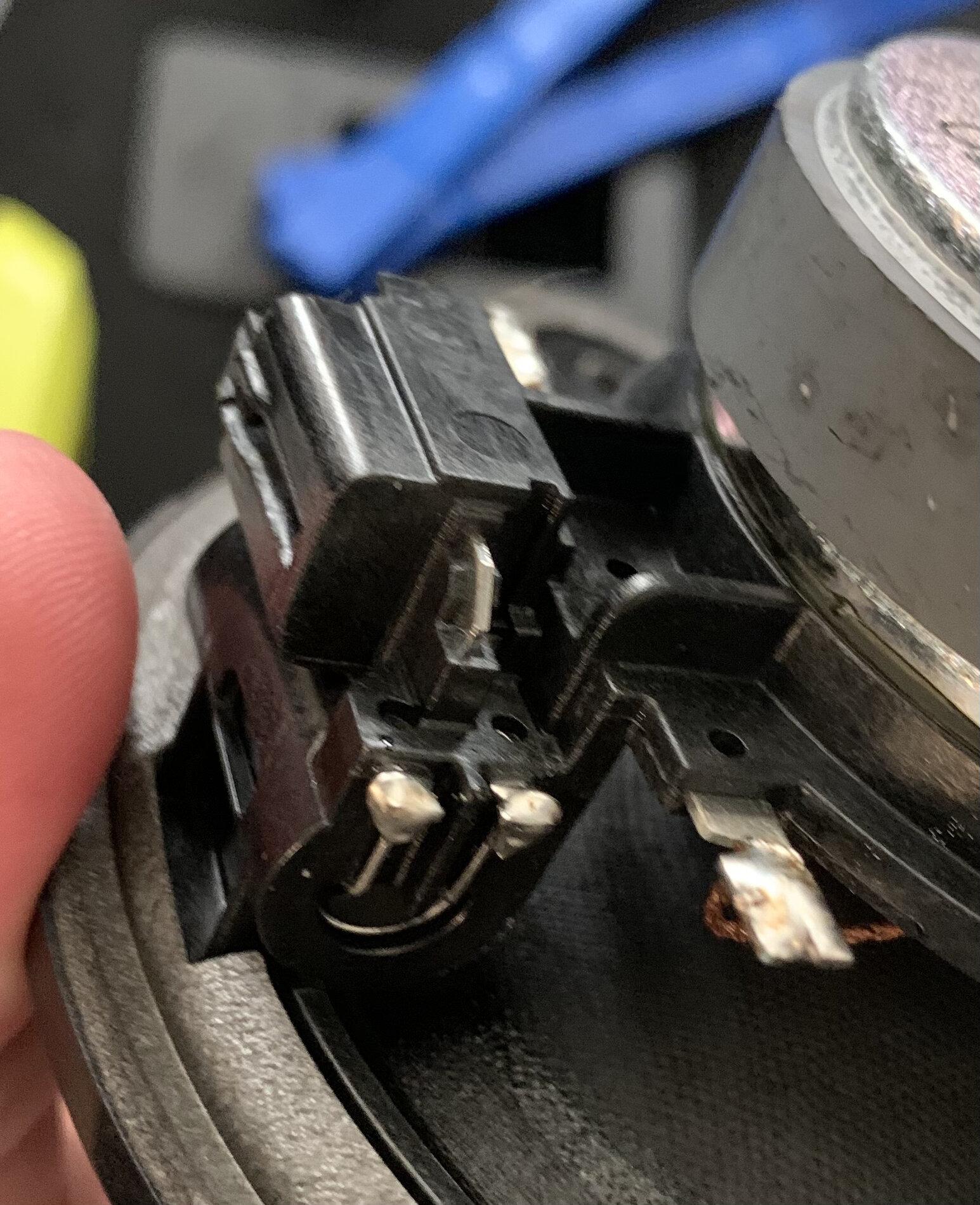

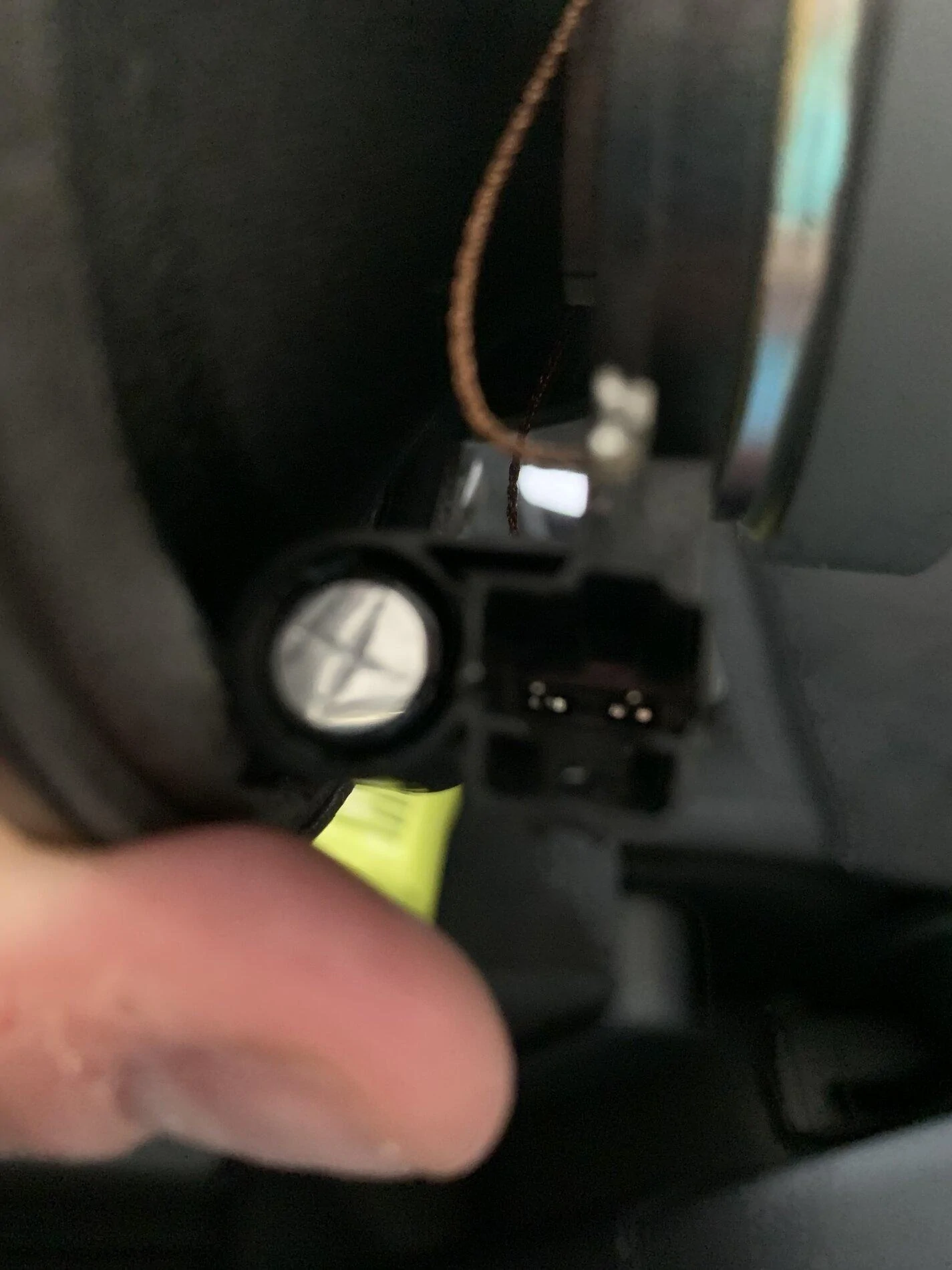

the male housing on the speaker side appears to be custom. If you look at the shape of the base of the pins inside, it is not standard. However, the female plug (on the car side) seems to be standard 3 pin. So a standard 3 pin male should work.

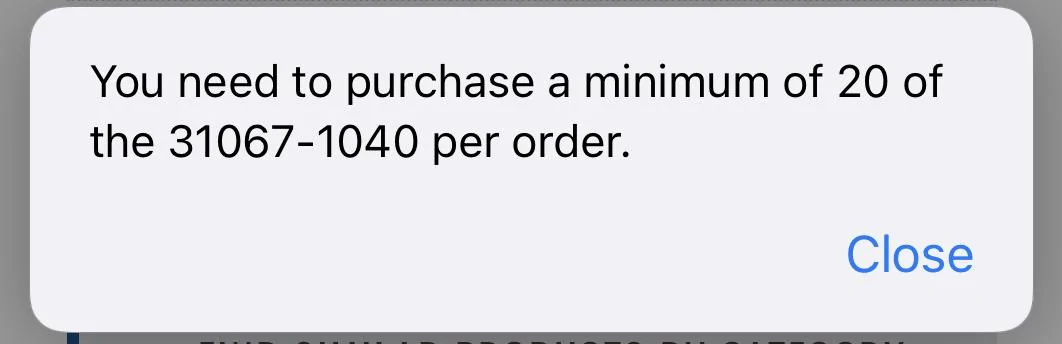

I am quite tempted to take a gamble and just buy 50 male housings a strip of 100 pins. However, I don't have my Bronco yet, so I have nothing to test with.

Here are PDF of the housings, including some measurements, so someone with a vehicle can comfirm rough sizing.

https://www.molex.com/pdm_docs/sd/310671041_sd.pdf
https://www.molex.com/pdm_docs/sd/310671011_sd.pdf

Peter



[redone17]

Dang….and I just cut and spliced with butt connectors. Who’s in? Haha
