- Thread starter
- #1
Want to do a small lift, 1.5 inches+/-. Eibach doesn’t offer their kit for the 2.3. Any recommendations? I don’t think I want a spacer lift even though I don’t do extreme off road.
Sponsored
Sponsored
I did Bilstein 5100' on a non Badlands/Non Sas, they will fit those too. You can choose your lift setting from approx 1-2.5 inches. IDK if they would be superior to Sas shocks though.
- First Name
- Bryan
- Joined
- Oct 18, 2022
- Threads
- 8
- Messages
- 470
- Reaction score
- 1,031
- Location
- Brevard, NC
- Vehicle(s)
- 2022 Wildtrak
- Your Bronco Model
- Wildtrak
5100’s although adjustable (not when installed though) would be a downgrade from SAS Bilsteins. 6100’s would likely be at least as good of a ride and also lift.. another option If you want a small lift and decent ride then find somebody selling stock SAS takeoffs
I’m confused. Thread title says BL springs, profile says BB. What do you have currently?
Sponsored
- First Name
- Chris
- Joined
- Apr 26, 2021
- Threads
- 2
- Messages
- 977
- Reaction score
- 1,854
- Location
- Fort Lauderdale Florida
- Vehicle(s)
- 1950 Ford F-1 and 2020 F150 FX4
- Your Bronco Model
- Black Diamond
I would just put some spacers. and take it for an alignment
OP
OP
- Thread starter
- #7
Found this post also mentioning the 6100’s. Will check these out.
https://www.bronco6g.com/forum/threads/badlands-4-door-non-sas-suspension-lift-kit-options.51759/
https://www.bronco6g.com/forum/threads/badlands-4-door-non-sas-suspension-lift-kit-options.51759/
OP
OP
- Thread starter
- #8
That was my original plan. Only 1.5 lift spacer that looks built well too is from Broncbuster. That’s 400
- First Name
- Chris
- Joined
- Apr 26, 2021
- Threads
- 2
- Messages
- 977
- Reaction score
- 1,854
- Location
- Fort Lauderdale Florida
- Vehicle(s)
- 1950 Ford F-1 and 2020 F150 FX4
- Your Bronco Model
- Black Diamond
I put the 2inch zone spacer on mine a year ago. i have no complaints. Totally happy with the ride and look
- First Name
- Curtis
- Joined
- Sep 16, 2021
- Threads
- 8
- Messages
- 563
- Reaction score
- 1,084
- Location
- Chandler, AZ
- Vehicle(s)
- 2022 Bronco Badlands
- Your Bronco Model
- Badlands
I installed the Broncbuster 1.5" spacer lift on my stock Badlands. I scored it on an early black Friday sale. Yeah it's spendy, but it is 1.5" all around. No leveling in front. It's exactly what I wanted.
Install sucked in front. I did not have fun with that, but I did it, set alignment. Havent had any problems. Rides just fine.
Install sucked in front. I did not have fun with that, but I did it, set alignment. Havent had any problems. Rides just fine.
Sponsored
- First Name
- Curtis
- Joined
- Sep 16, 2021
- Threads
- 8
- Messages
- 563
- Reaction score
- 1,084
- Location
- Chandler, AZ
- Vehicle(s)
- 2022 Bronco Badlands
- Your Bronco Model
- Badlands
Close enough. 315.70.r17. Firestone' s exact measurements are 34.4". Not sure on width. They appear a tad skinny compared to other 315's. Maybe its my eyes, or the tread pattern playing tricks.
OP
OP
- Thread starter
- #13
This seems like the brand spacer and route I will go along with a set of quality 1inch wheel spacers.
- First Name
- Curtis
- Joined
- Sep 16, 2021
- Threads
- 8
- Messages
- 563
- Reaction score
- 1,084
- Location
- Chandler, AZ
- Vehicle(s)
- 2022 Bronco Badlands
- Your Bronco Model
- Badlands
I know spacers get flak, but it seems crazy to throw away a good suspension just to drop big money on other good suspension. At full droop yeah the angles are extreme, so I guess we'll find out if sh*t grenades in Moab. Ha! Word is we have 3 inches to play with, then we need to look into diff drop, etc.

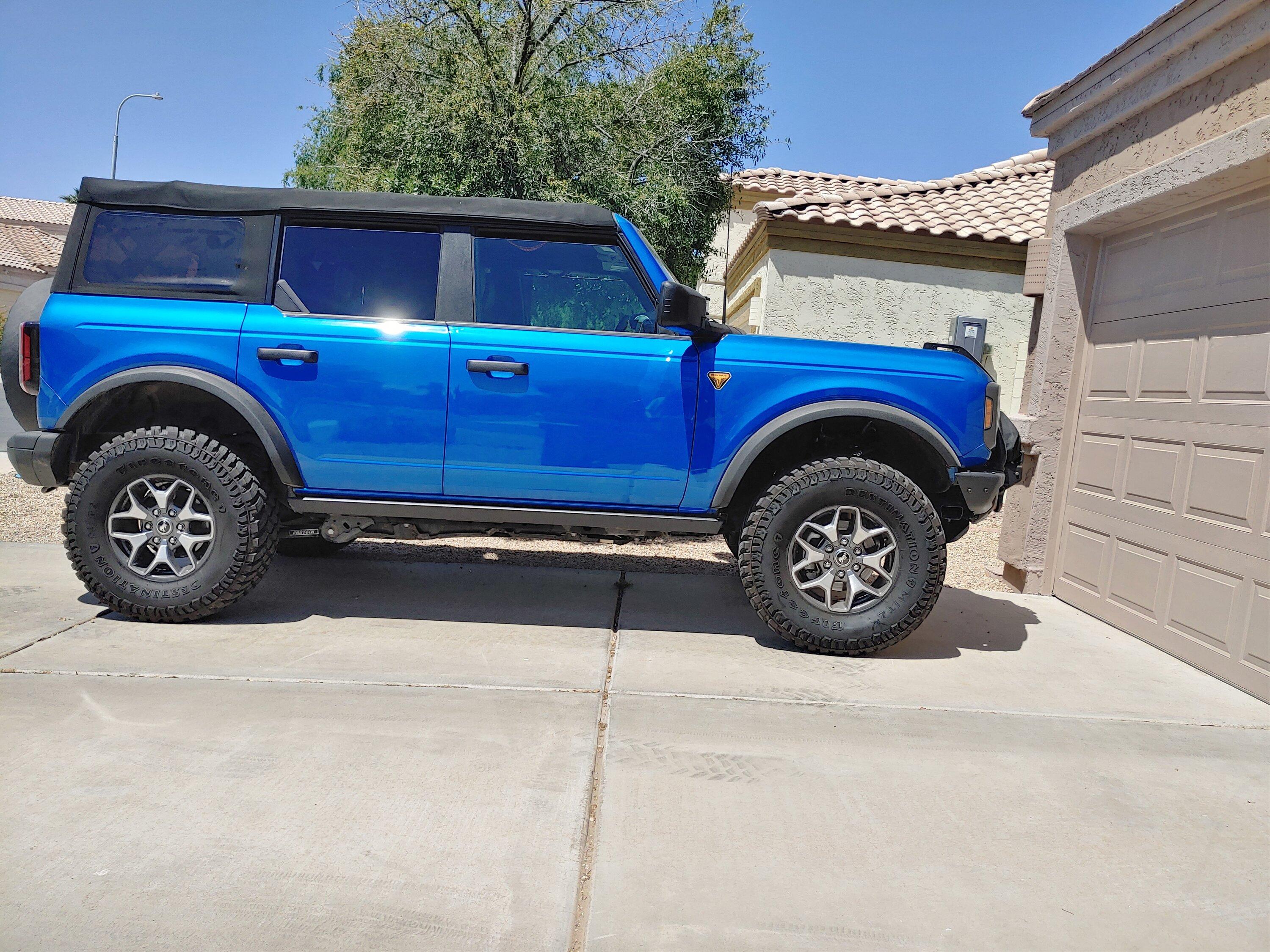

Here's a quick shot at ride height. I might have other photos on my build journal.

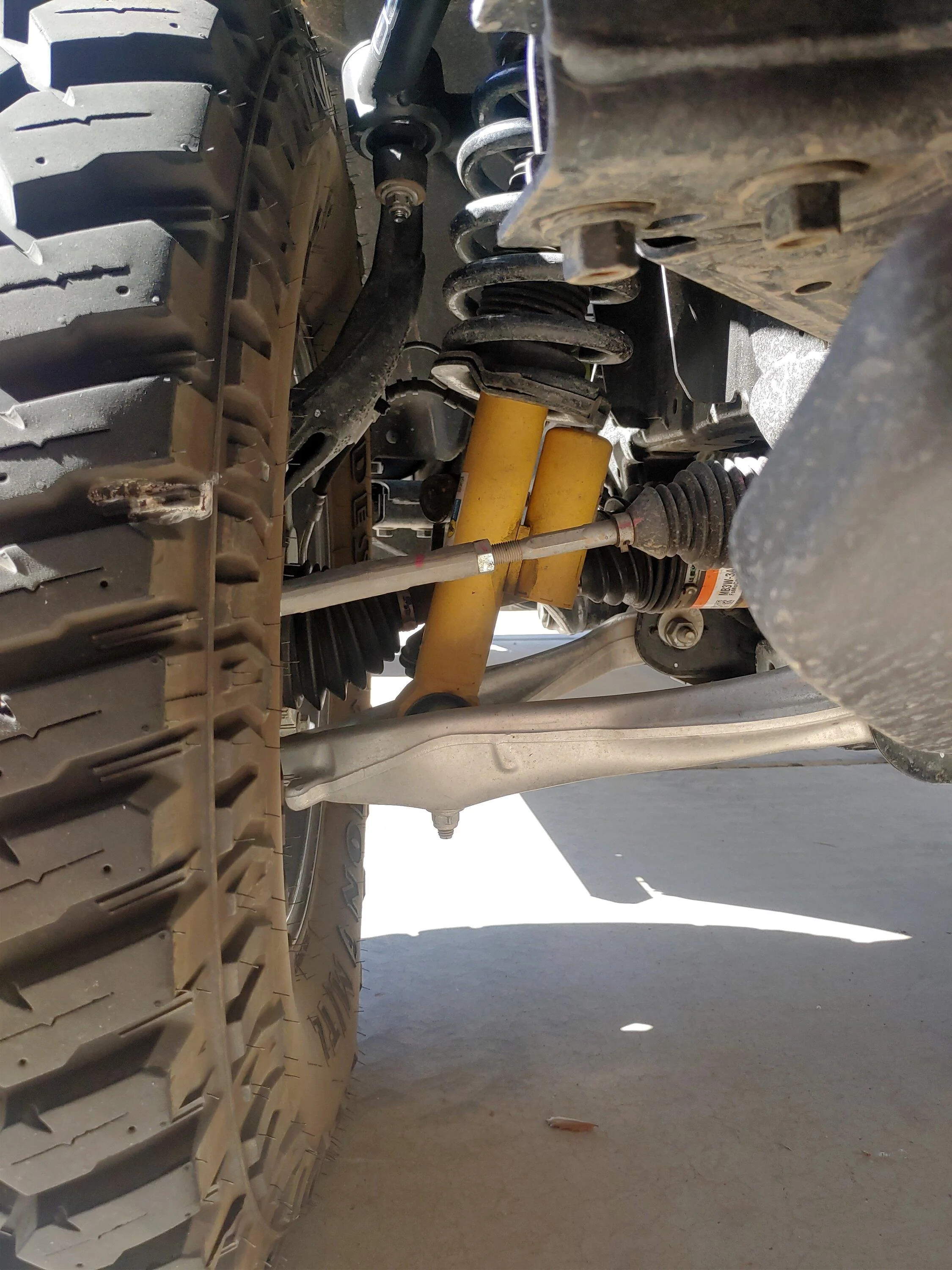

You can see I still have a bit of clearance from the UCA.
