@Jms1 @BAUS67 Sounds like shock length question was answered. Thanks @popo_patty


Ride Shocks - Front
Compressed length: 18.71"
Extended lengths: 24.30"
Travel: 5.59"

King Shocks - Front
Compressed length: 18.50"
Extended length: 24.60"
Travel: 6.10"
(with our recommended CV saver, we reduce extended length by .30")

Fox Shocks - Front
Compressed length: 18.79"
Extended lengths: 24.26"
Travel: 5.47"
Sponsored


OP
OP
AccuTune Offroad

AccuTune Offroad

Base
Well-Known Member
Base Sponsor (Level 1)
First Name
Mike
Joined
Feb 16, 2023
Threads
4
Messages
151
Reaction score
263
Location
San Diego
Vehicle(s)
2021 Sasquatch 4 Door, Jeep JLUR, Tacoma
Your Bronco Model
Base
I am impressed that someone finally posted actual spring rates. The heavy spring rates are almost identical to what I ended up running on my FJ.
Our rear springs are custom triple-rate springs. Both of those springs can be used on King Shocks as an upgrade if you have added weight.


BAUS67

Base
Well-Known Member
First Name
redneck
Joined
Jan 3, 2020
Threads
22
Messages
4,530
Reaction score
13,127
Location
Central PA
Vehicle(s)
88 5.0 LX, 08 F-150 Stepside, 22 Expl Timberline
Your Bronco Model
Base
Clubs

@Jms1 @BAUS67 Sounds like shock length question was answered. Thanks @popo_patty


Ride Shocks - Front
Compressed length: 18.71"
Extended lengths: 24.30"
Travel: 5.59"

King Shocks - Front
Compressed length: 18.50"
Extended length: 24.60"
Travel: 6.10"
(with our recommended CV saver, we reduce extended length by .30")

Fox Shocks - Front
Compressed length: 18.79"
Extended lengths: 24.26"
Travel: 5.47"

Yes it was and thank you for responding. Numbers look good, which I did not doubt just wanted to see the facts. I am looking forward to the @popo_patty video.

OP
OP
AccuTune Offroad

AccuTune Offroad

Base
Well-Known Member
Base Sponsor (Level 1)
First Name
Mike
Joined
Feb 16, 2023
Threads
4
Messages
151
Reaction score
263
Location
San Diego
Vehicle(s)
2021 Sasquatch 4 Door, Jeep JLUR, Tacoma
Your Bronco Model
Base
Yes it was and thank you for responding. Numbers look good, which I did not doubt just wanted to see the facts. I am looking forward to the @popo_patty video.
No worries, happy so share!

We do have a very lengthy and detailed we are working on that compares Fox/King/Ride. I think this will really help explain how much different our shocks are.


BAUS67

Base
Well-Known Member
First Name
redneck
Joined
Jan 3, 2020
Threads
22
Messages
4,530
Reaction score
13,127
Location
Central PA
Vehicle(s)
88 5.0 LX, 08 F-150 Stepside, 22 Expl Timberline
Your Bronco Model
Base
Clubs

No worries, happy so share!

We do have a very lengthy and detailed we are working on that compares Fox/King/Ride. I think this will really help explain how much different our shocks are.

Fan-freaking-tastic !!!!!!!! That would be awesome.


Sponsored

turbo_jimbo

Wildtrak
Member
First Name
Jimbo
Joined
Feb 4, 2024
Threads
1
Messages
20
Reaction score
16
Location
Las Vegas
Vehicle(s)
2dr wildtrak, zl1 1le, navigator, other stuff
Your Bronco Model
Wildtrak
Are the projected lift heights over Sasquatch?


SierraBronco

Wildtrak
Well-Known Member
Joined
Mar 27, 2024
Threads
7
Messages
498
Reaction score
1,074
Location
USA
Vehicle(s)
2022 Bronco
Your Bronco Model
Wildtrak

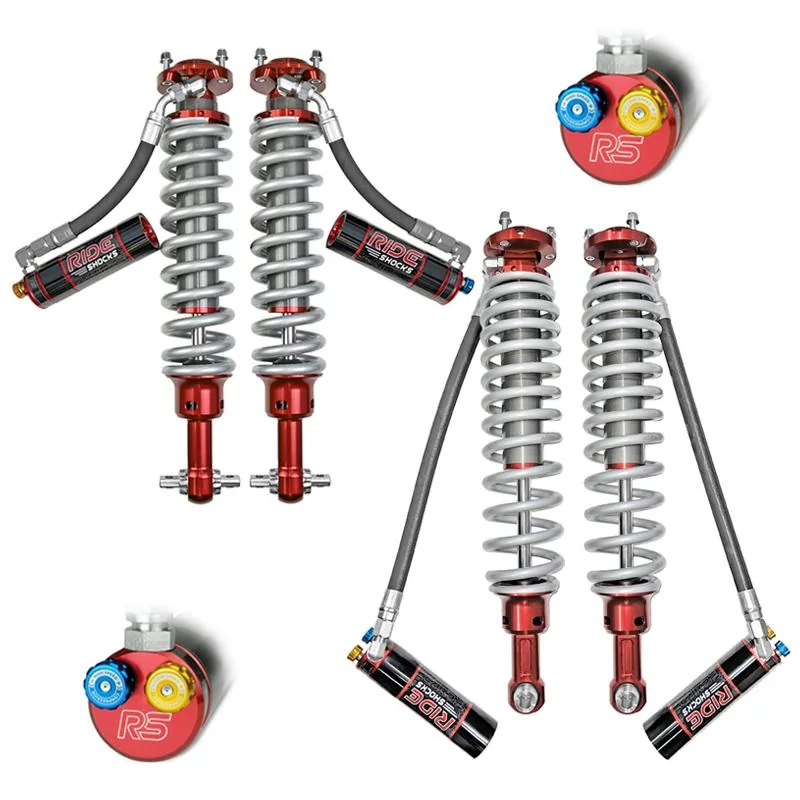

If you're in the market for high quality aftermarket shocks that provide the best ride quality possible, RIDE Shocks is it! We've been working on this shock project for 4+ years now, and we're thrilled to finally offer our very own shock brand, Ride Shocks.

-Ride Shocks are 100% designed and assembled here in San Diego, California.
-Ride Shocks are pre-tuned based on your Bronco's front & rear weight range.
-We have (2) front & rear coilover options that are outfitted with different spring rates & valving.
-Each shock option will come with weight range specific valving with the main piston and the adjusters.
-2021+ Bronco specific Shock Fitment Guide
-Every shock is a 2.5" aluminum body design that is equipped with our patent pending Dual Piston Adjusters. The adjusters offer 12 clicks of high and low speed compression adjustments.
-Our shocks flow a ton of oil with massive -10 shock fittings & hoses and are specifically designed to work with our linear piston.
-These shocks have it all and we've been testing and tuning like crazy to make them ride amazing both on and off-road.
-Ride Shocks carry a 3 year / 50k mile warranty and 30 day money back vow
-Ride Shocks will be available on www.rideshocks.com or sold in packages on www.accutuneoffroad.com

Take a look and let us know what you think! Please post up any questions you may have or send a private message. Thanks!

Also looking forward to seeing @popo_patty video from Overland Expo soon!








I tried calling you guys to get some details and place an order for our build, but got left in the nothingness of forever hold 😢

It was shortly after the youtube video came out so the lines were probably flooded. 🤷🏼‍♂️


Silver-Bolt

Wildtrak
Well-Known Member
First Name
Bill
Joined
Jul 15, 2020
Threads
32
Messages
3,066
Reaction score
5,030
Location
Portland, OR & Eureka, MT
Vehicle(s)
2024 f-250 Tremor 6.7L HO, 2023 Wildtrak
Your Bronco Model
Wildtrak
Clubs

Our rear springs are custom triple-rate springs. Both of those springs can be used on King Shocks as an upgrade if you have added weight.
Could they be used on the Fox HOSS 3.0 Wildtrack shocks?

OP
OP
AccuTune Offroad

AccuTune Offroad

Base
Well-Known Member
Base Sponsor (Level 1)
First Name
Mike
Joined
Feb 16, 2023
Threads
4
Messages
151
Reaction score
263
Location
San Diego
Vehicle(s)
2021 Sasquatch 4 Door, Jeep JLUR, Tacoma
Your Bronco Model
Base
I tried calling you guys to get some details and place an order for our build, but got left in the nothingness of forever hold 😢

It was shortly after the youtube video came out so the lines were probably flooded. 🤷🏼‍♂️
Sorry about that, happy to help get you in contact with our sales team if you havn't gotten through yet. Half our sales staff was out at Overland Expo West. Send over a PM and I can help out with anything you need.


Sponsored
OP
OP
AccuTune Offroad

AccuTune Offroad

Base
Well-Known Member
Base Sponsor (Level 1)
First Name
Mike
Joined
Feb 16, 2023
Threads
4
Messages
151
Reaction score
263
Location
San Diego
Vehicle(s)
2021 Sasquatch 4 Door, Jeep JLUR, Tacoma
Your Bronco Model
Base
Could they be used on the Fox HOSS 3.0 Wildtrack shocks?
Negative. Those will need an pigtail style coil spring vs a flat ground spring.

OP
OP
AccuTune Offroad

AccuTune Offroad

Base
Well-Known Member
Base Sponsor (Level 1)
First Name
Mike
Joined
Feb 16, 2023
Threads
4
Messages
151
Reaction score
263
Location
San Diego
Vehicle(s)
2021 Sasquatch 4 Door, Jeep JLUR, Tacoma
Your Bronco Model
Base

SierraBronco

Wildtrak
Well-Known Member
Joined
Mar 27, 2024
Threads
7
Messages
498
Reaction score
1,074
Location
USA
Vehicle(s)
2022 Bronco
Your Bronco Model
Wildtrak
Sorry about that, happy to help get you in contact with our sales team if you havn't gotten through yet. Half our sales staff was out at Overland Expo West. Send over a PM and I can help out with anything you need.
**sad bronco noises cease**


Pressurized

Outer Banks
Well-Known Member
First Name
Rod
Joined
Aug 2, 2021
Threads
8
Messages
853
Reaction score
1,291
Location
Gilbert, AZ
Vehicle(s)
Gen 6 Bronco - Jeep JKU - Wrangler LJ (sold)
Your Bronco Model
Outer Banks
With the 0-4.5" rating you have on them, is the shock too far out of it's designed operating range when ride height is set at 0"? Not much up travel and lots of droop...

Personally, I would like to do fronts at about 1.5" lift and rears at about 3/4" of lift.


Sdjohnson

Wildtrak
Member
First Name
Stephen
Joined
Feb 6, 2024
Threads
4
Messages
21
Reaction score
21
Location
Texas
Vehicle(s)
Ford F150
Your Bronco Model
Wildtrak
Negative. Those will need an pigtail style coil spring vs a flat ground spring.
@AccuTune Offroad, do you know of any springs that will work with the Hoss 3.0 Wildtrack shocks to help with extra weight?

I'm aware of some taller springs by Eibach, but they're actually slightly softer. Also, I heard the Dobinsons might fit. Curious if y'all are aware of anything else/new?

Thanks
