What is this?

[stormshadow3800]

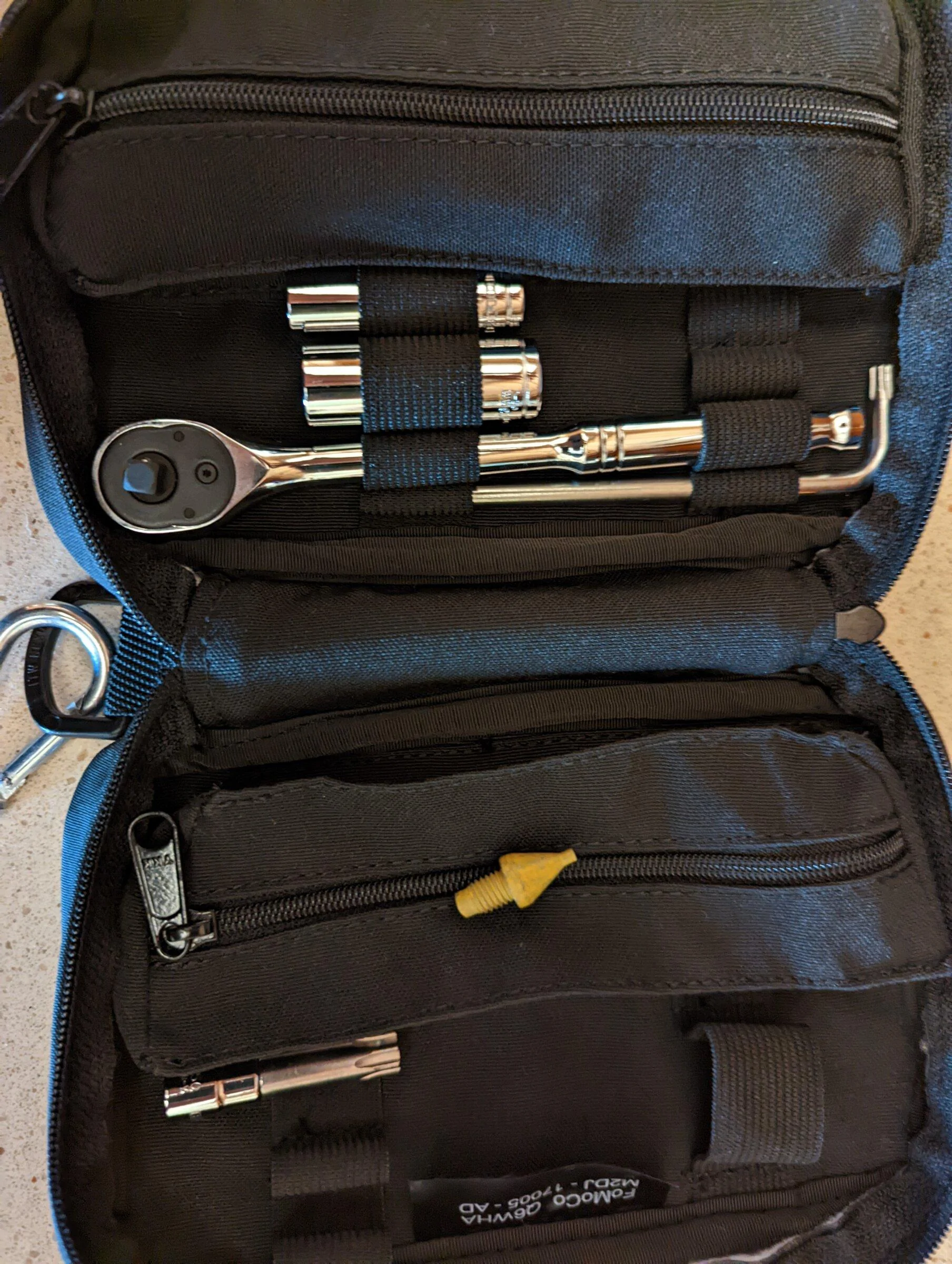

Found in my tool bag zipper pouch. Assume another tooling piece left behind? Appears to be snapped off at the thread end.

Sponsored



[amccue90]

for the doors

check your manual or one of the videos posted by bronco nation.

Don't throw it out!



like 4 minutes 20 seconds



[Dads_bronze_bronco]

Isn’t that a pin you screw into the hinge to get it aligned or something?



[VelocityBronco]

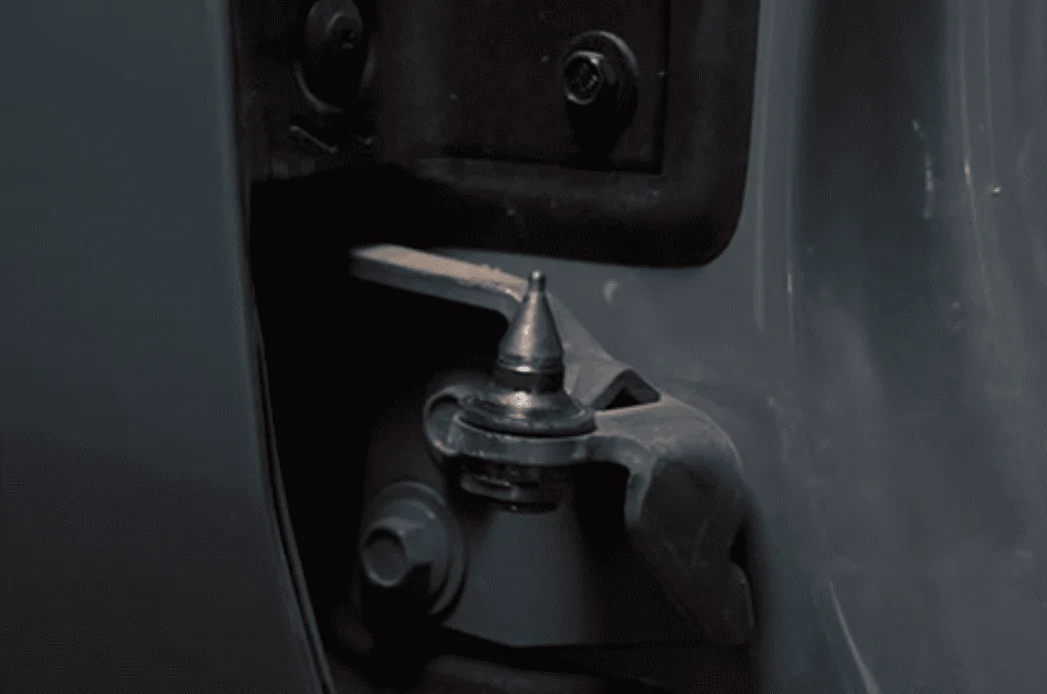

That's the guide for putting the doors back on the hinges.



[stormshadow3800]

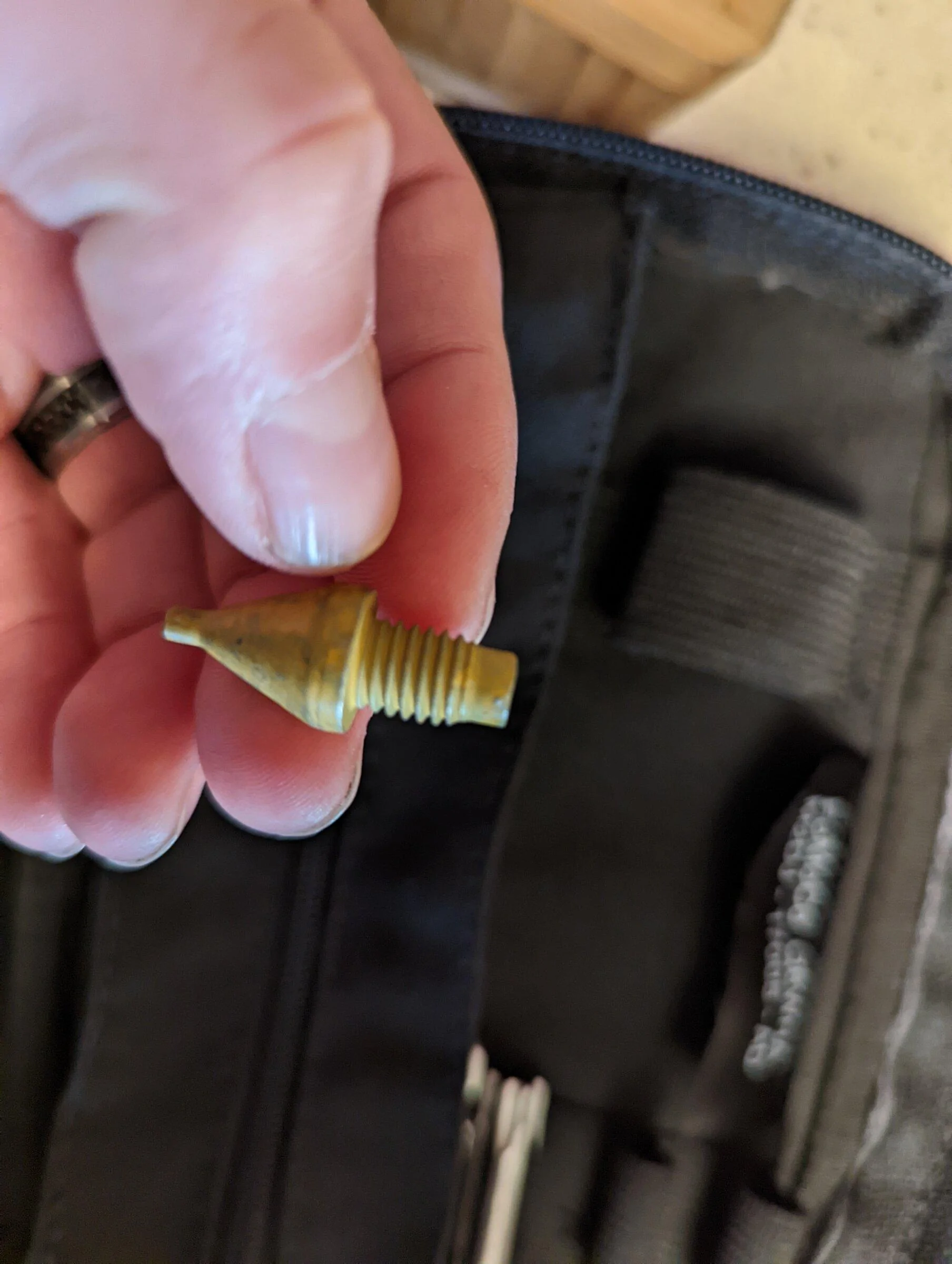

Wow ok, I feel dumb now...... Haven't taken the doors off yet. It looks like shit for something put into a new kit. The end is uneven and looks like it snapped off.



[BroncocnorB]

Ford calls it a butt plug or something



[stormshadow3800]

Sure as hell doesn't look finished like this! Does anyone else have one that looks as bad as mine?



[UtahBrandon]

That’s the nubbin



[Lexo52]

Sure as hell doesn't look finished like this! Does anyone else have one that looks as bad as mine?

Mine looks just like yours



[BroncoDude]

How brave are you?



[mybikeisred]

Wow ok, I feel dumb now...... Haven't taken the doors off yet. It looks like shit for something put into a new kit. The end is uneven and looks like it snapped off.

I had no clue either. And yes, mine looks just like yours.



[BlazinGTO]

It's going to look worse once you start using it to put the doors back on. It's probably Delrin plastic, which is a hard, durable industrial plastic but with a low finished surface quality.

If the alignment pin were made of, say stainless steel, it would eventually start flairing the hinge bolt hole. The alignment pin is made of plastic to prevent damage to the door hinge.

Form follows function. Not everything Ford does is fucked up.

The alignment pin is steel.



[M&M Beer]

VERRY IMPORTANT PART DON’T THROW OUT! YOU NEED THAT ALINEMENT PART TO INSTALL YOUR DOORS.
