Winch Control Pack Relocation Kit - Evo 12k

[akturbo]

Rough country winch plate, while not a fan of a lot of rough country products, this winch plate was well thought out and allows full sensor and ACC usage without relocating.

Same here, if the plate works out in the long run that’s a great win. Everything arrives by Friday! Last project for this year!

Sponsored



[ChrisInSC]

Same here, if the plate works out in the long run that’s a great win. Everything arrives by Friday! Last project for this year!

I always say this is it for a while then new shit comes out…. But honestly the modding is the most fun.



[akturbo]

I agree!! Been modding for weeks. Once the winch is done I’ll update my build thread, a lot of blood, sweat and tears, almost literally.

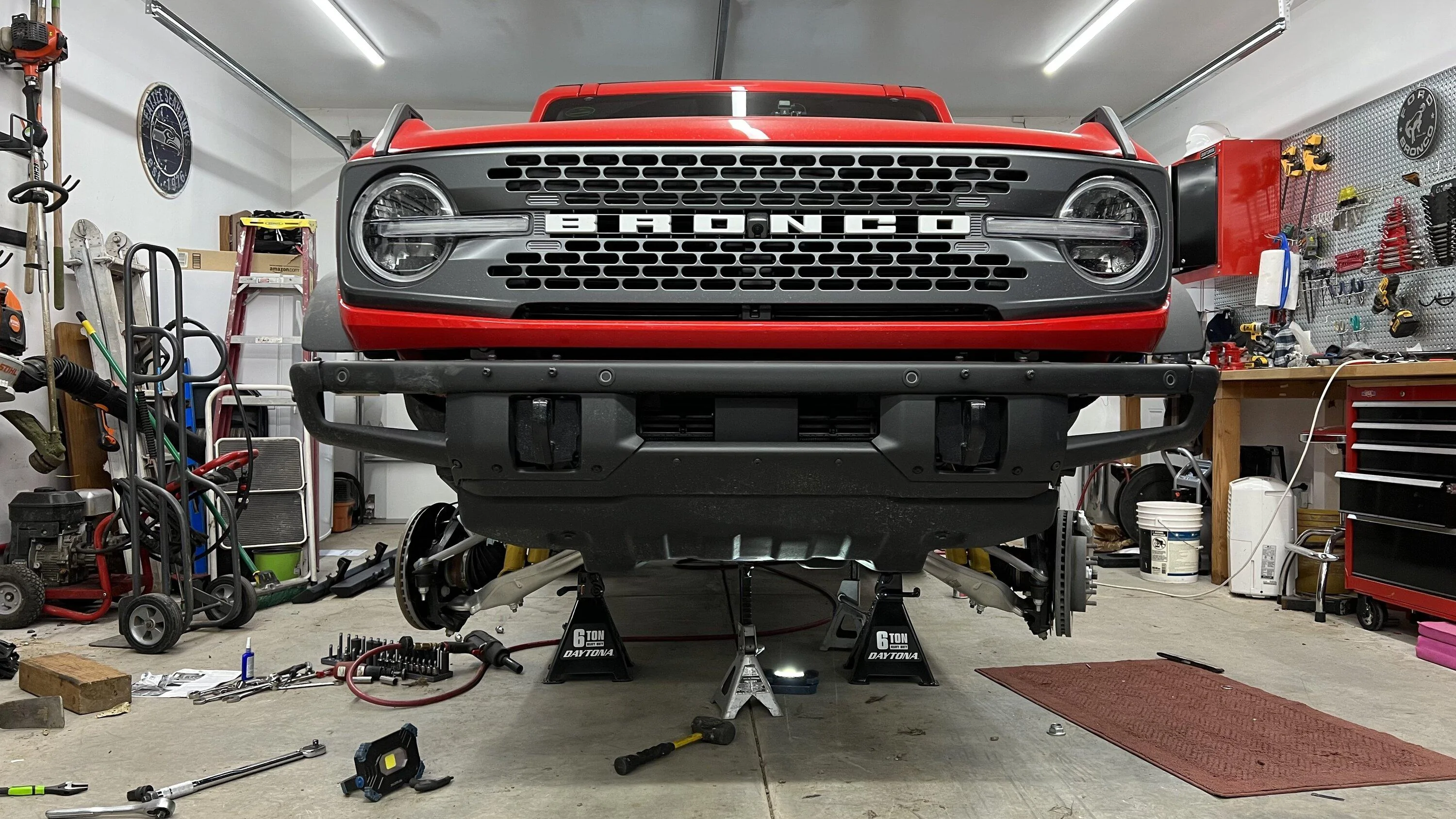

Wrapping up the front 1.5” at the moment, moving to the rear next. First corner was epic lame, next corner took 1/8th the time. Would I do it again, yes!



[jacobrdoty]

Rough country winch plate, while not a fan of a lot of rough country products, this winch plate was well thought out and allows full sensor and ACC usage without relocating.

In for front camera view as well!



[ChrisInSC]

In for front camera view as well!

I’m on a business trip this week but I can take a picture Friday.

Spoiler alert:
I ordered JCR relocation (it’s still very much blocked)



[4avor8ntfair]

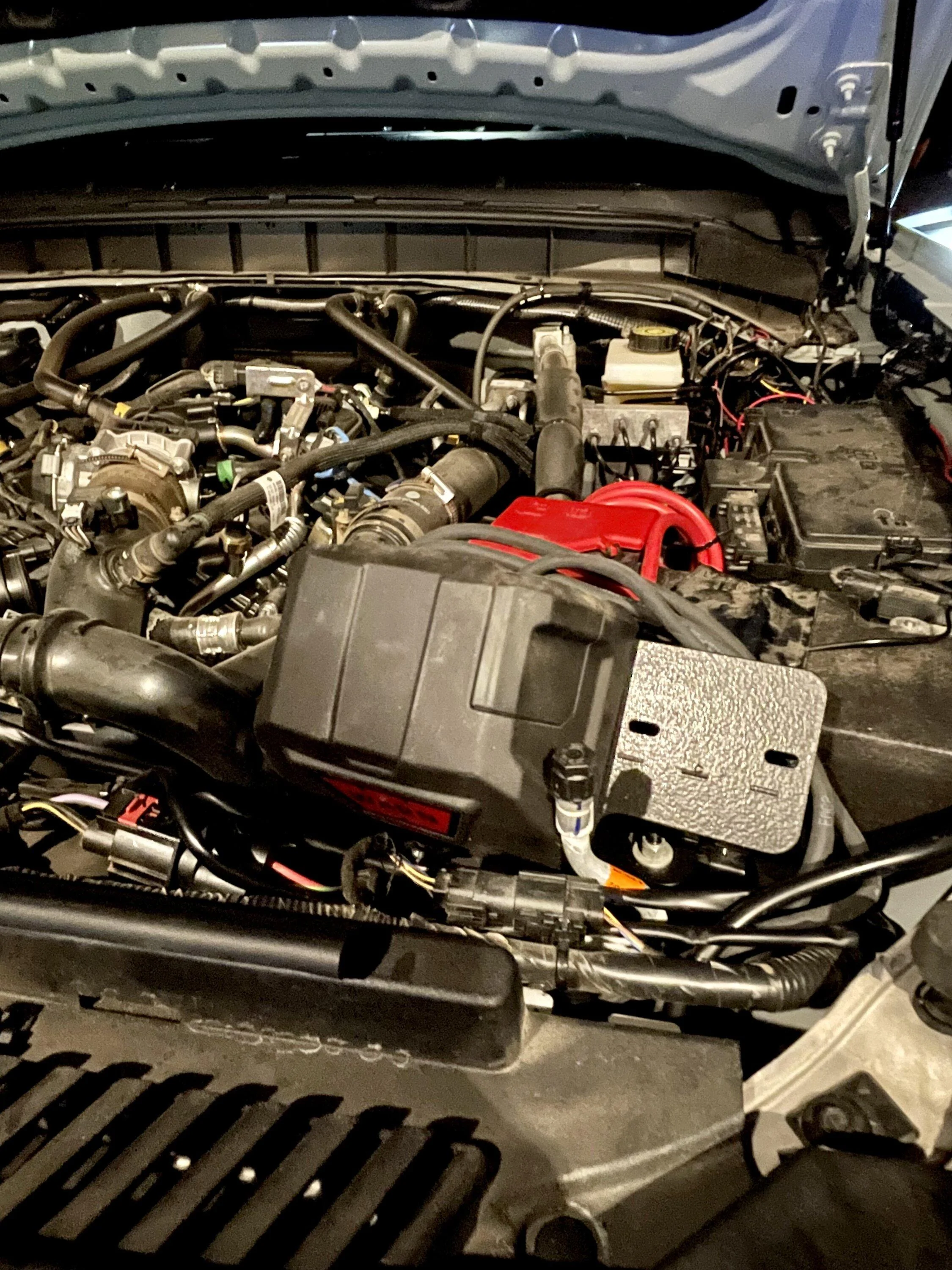

I haven’t added my circuit breaker/idolater switch as of yet. Also need to clean up wires.

Photo for reference:

Awesome! Where did you put the shutoff switch?



[ChrisInSC]

Awesome! Where did you put the shutoff switch?

Haven’t installed it yet, next weekend project. But there is a spot on the bracket for it.



[Blaylock1988]

I'm thinking of relocating mine under the hood too, I wonder if that mount will work for my Smittybilt winch pack. If I do that I'd wire up the control pack switch up to an upfitter switch, then never need to open the hood at all to operate the winch (wireless remote).



[akturbo]

Planning to get 1/0 wire from the local Platt store, $3.70 per ft, will go 1 gauge if the run is less than 5.6'. JCR cam bracket is on order, 5-20 business day lead time. Winch is ready to pick up at 4WP, RC Mount/light shows up Friday.

Ordered this relay that I'll hook to my last upfitter.
https://www.amazon.com/gp/product/B08GPJG9K2/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1 500A, 700A peak.

Thanks all for your feedback!



[rwm01]

Bracket for under hood:
https://www.bayareametalfab.com/2021-BRONCO-WARN-EVO-winch-solenoid-relocation-bracket_p_171.htm

Any issues with hood clearance with the BAMF Bracket?

Looking to do the same with a Smittybilt X20. It's control box looks a little smaller than the Warn.



[ChrisInSC]

Any issues with hood clearance with the BAMF Bracket?

Looking to do the same with a Smittybilt X20. It's control box looks a little smaller than the Warn.

None at all.



[rwm01]

Thanks Chris.
