Stumbled on to this bumper on Instagram via @thebamfbronco and @bayareametalfab



































Advertisement


Last edited by a moderator:

peta8368

Base
Well-Known Member
Joined
Jul 17, 2020
Messages
263
Reaction score
510
Location
Norwalk, CA
Vehicle(s)
2016 Polaris Slingshot
Bronco
Base
Clubs

cross post from Facebook. Not affiliated in any way, just sharing the news

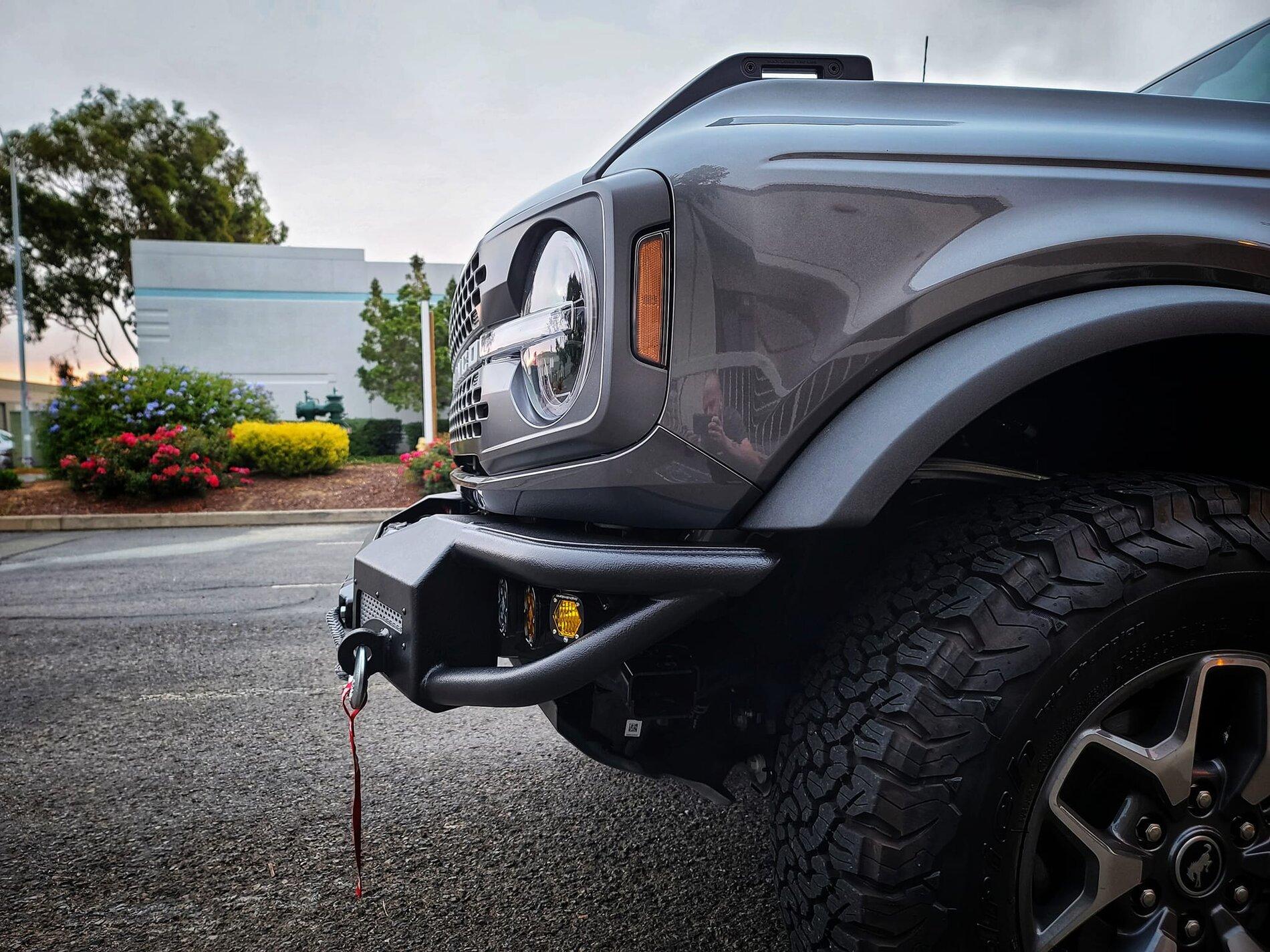

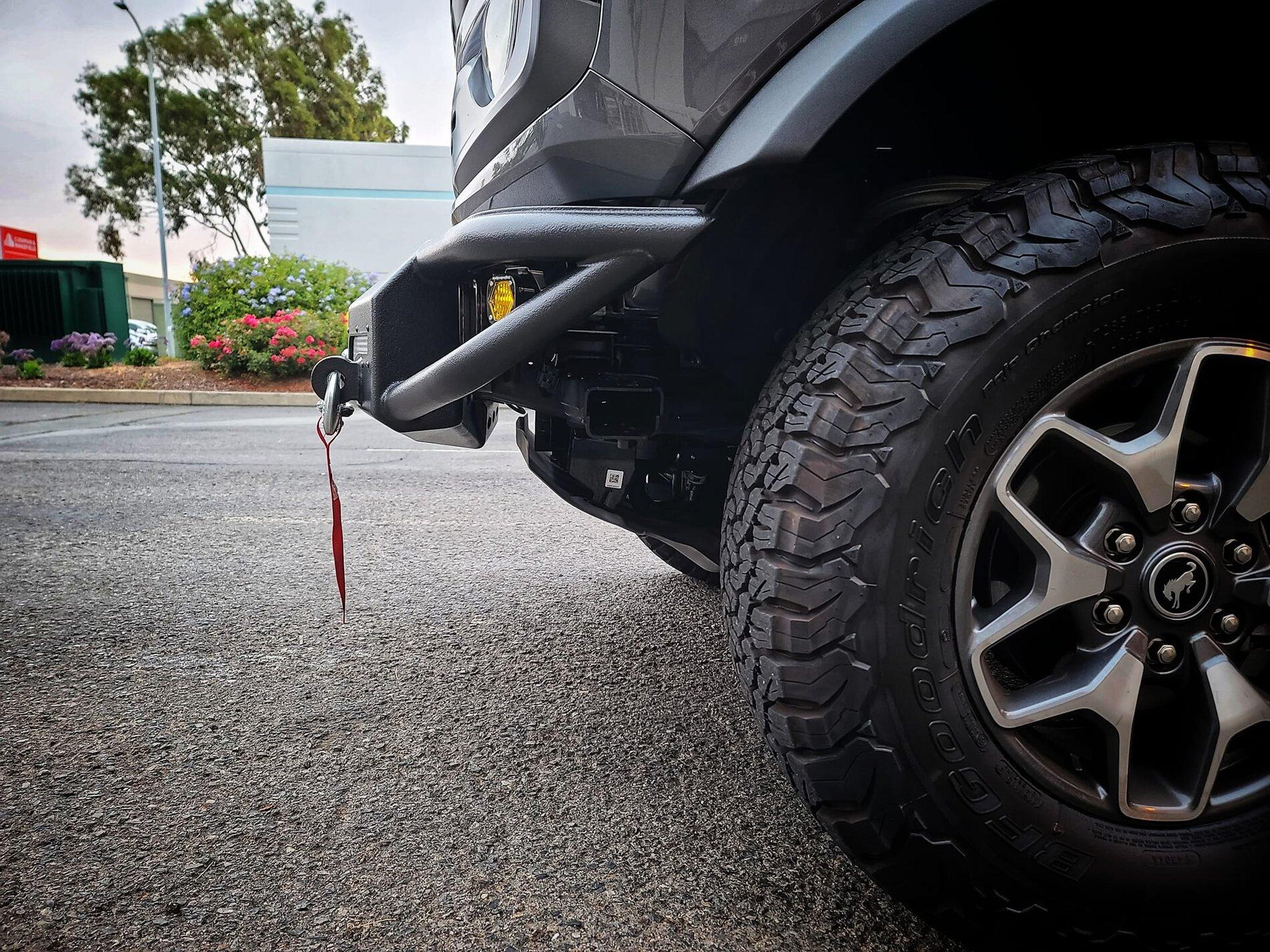

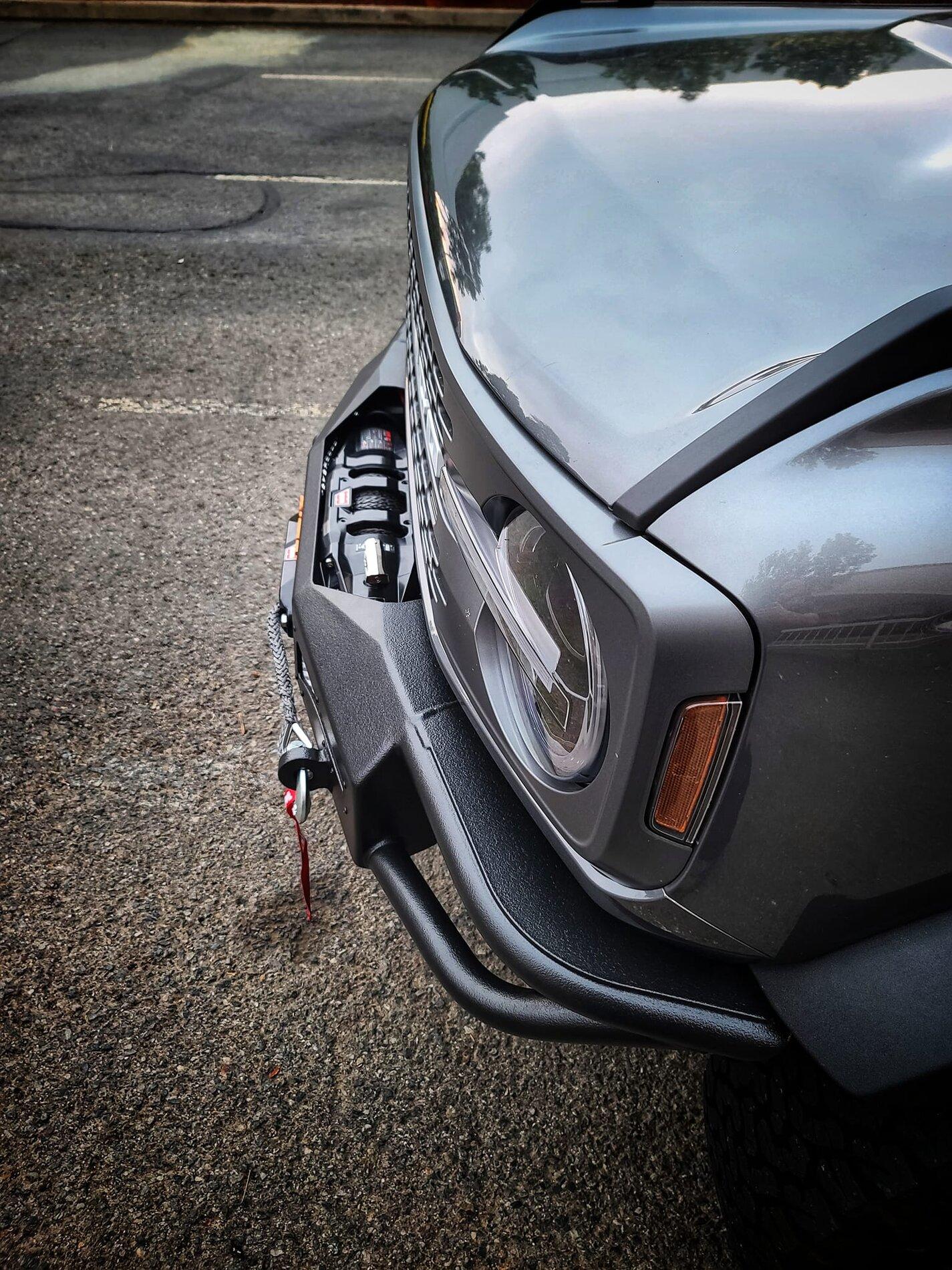

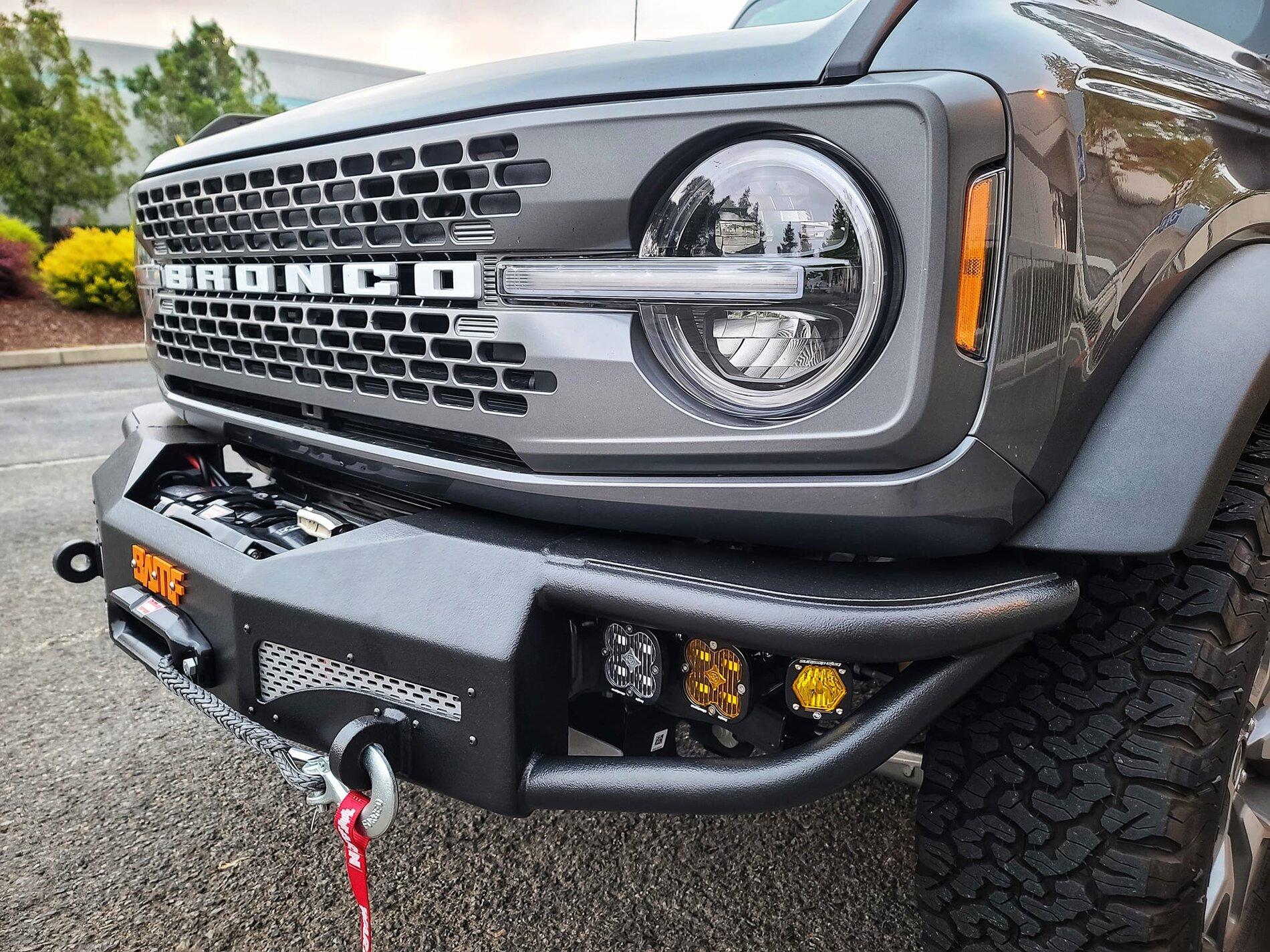

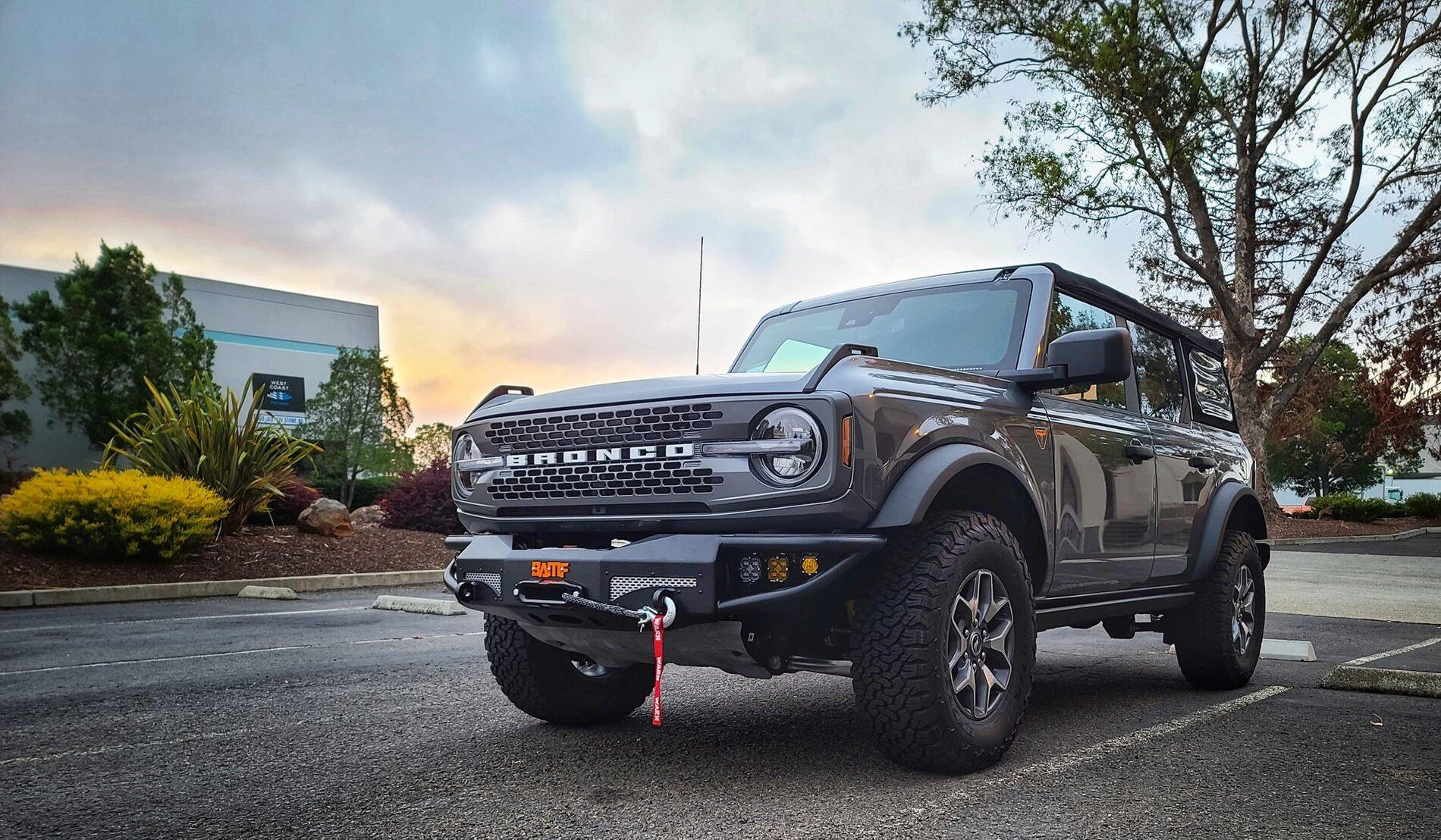

Got the Bay Area Metal Fabrication recessed winch mount bumper all buttoned up late last night. We raised the winch, moved the solenoid from the top to bring it up. Hugged the front of the grille as tight as possible with the winch mounted in front of the frame. It's a total of 6.75" off the front of the frame rails.

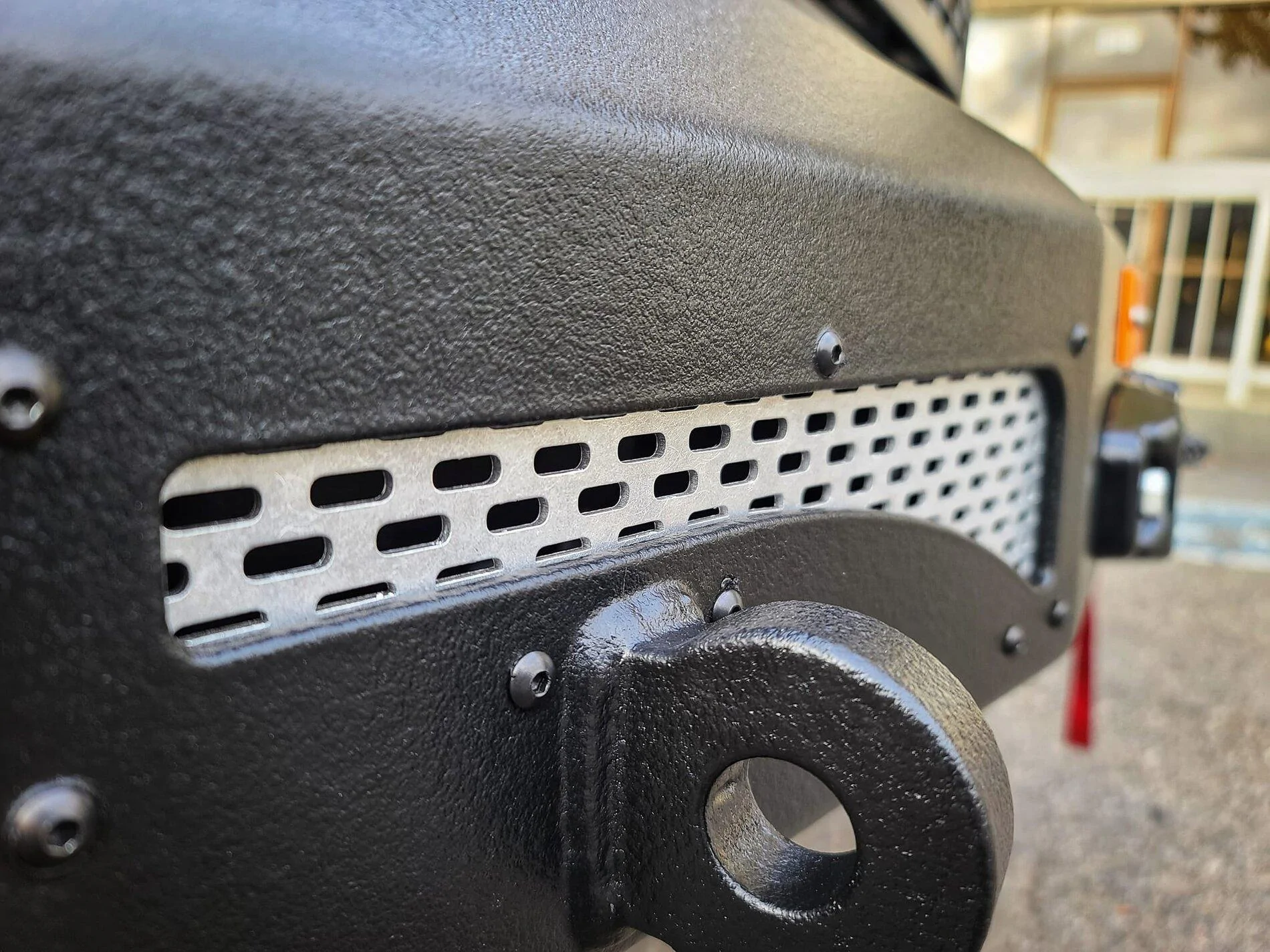

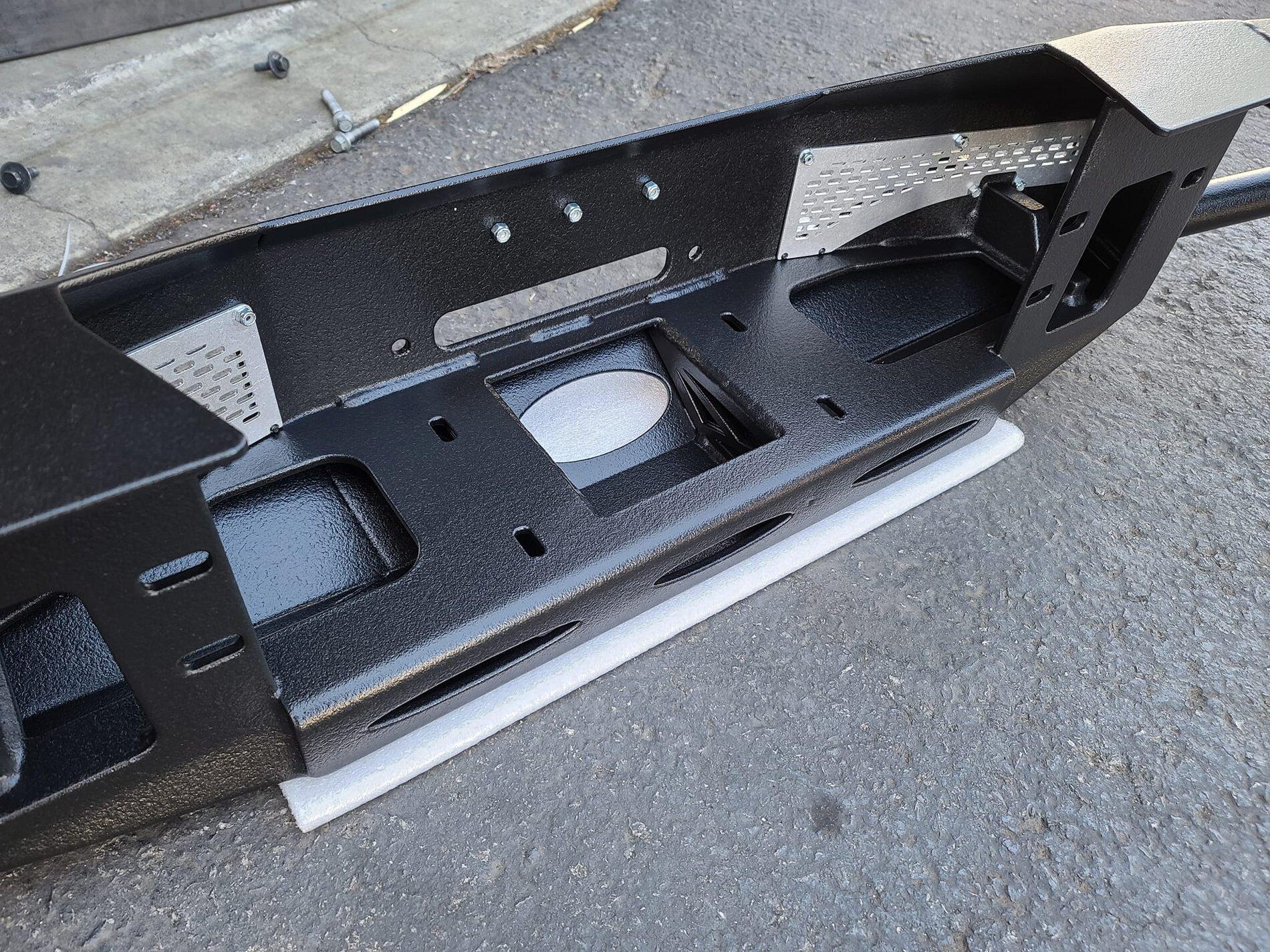

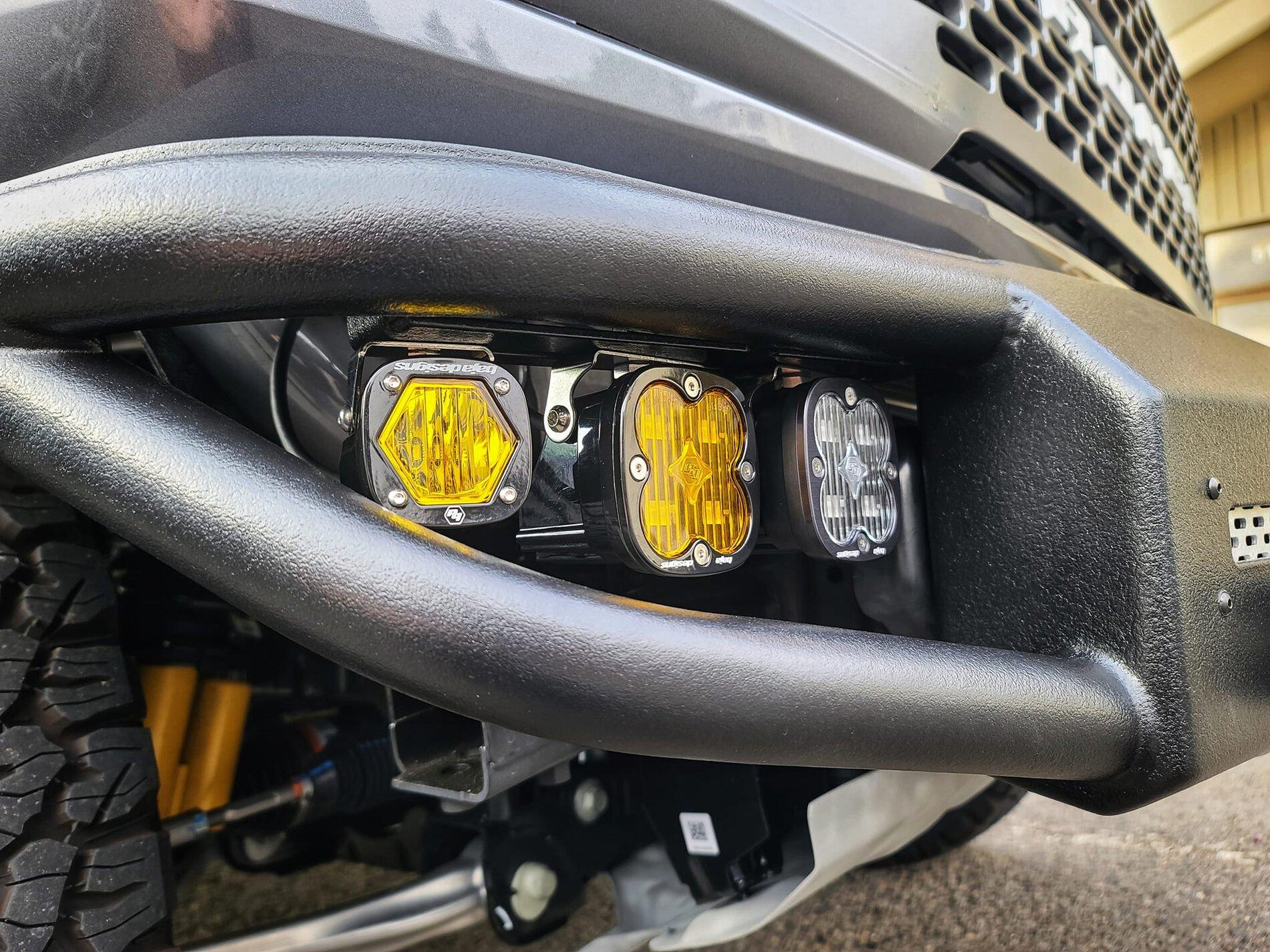

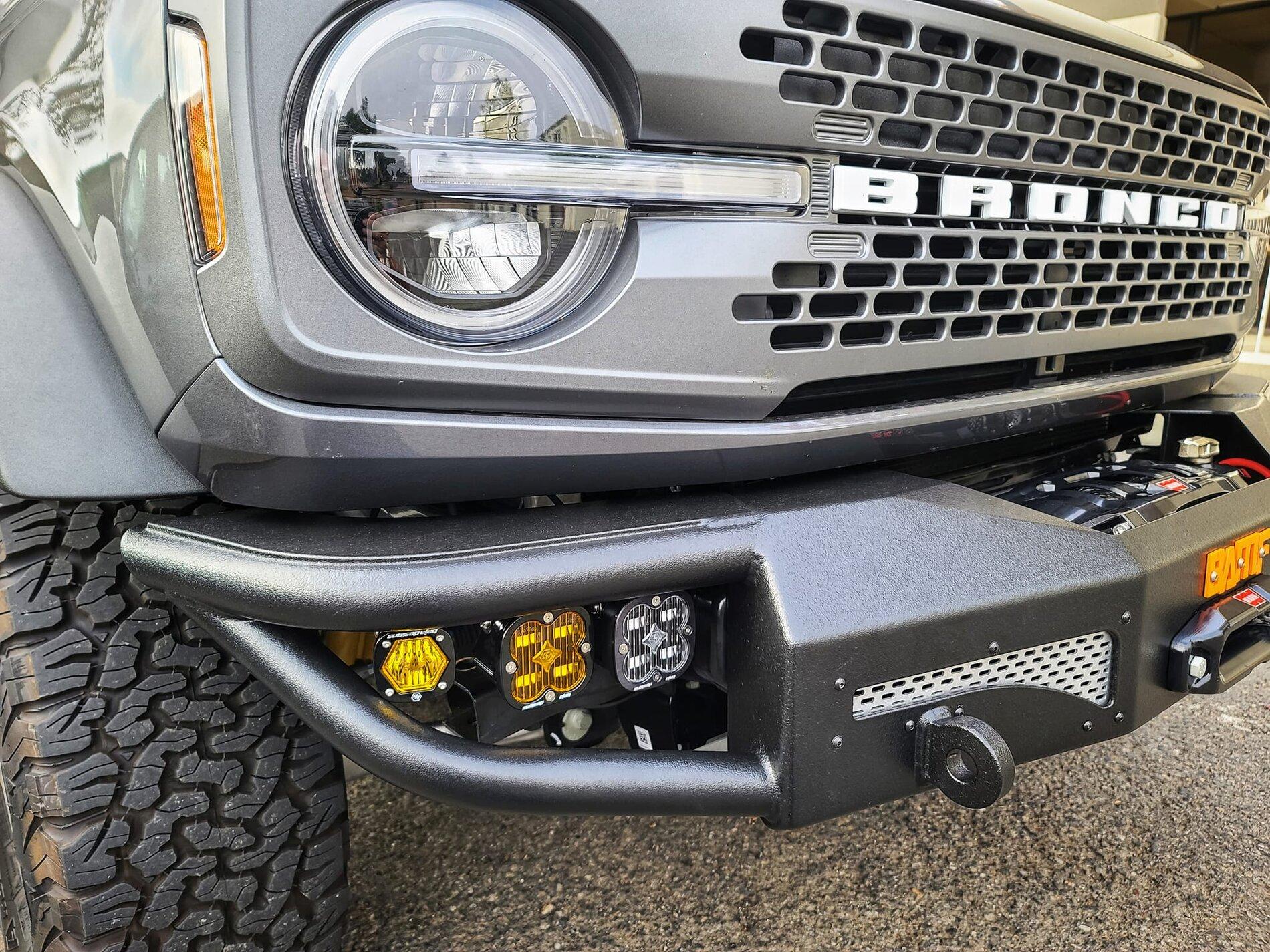

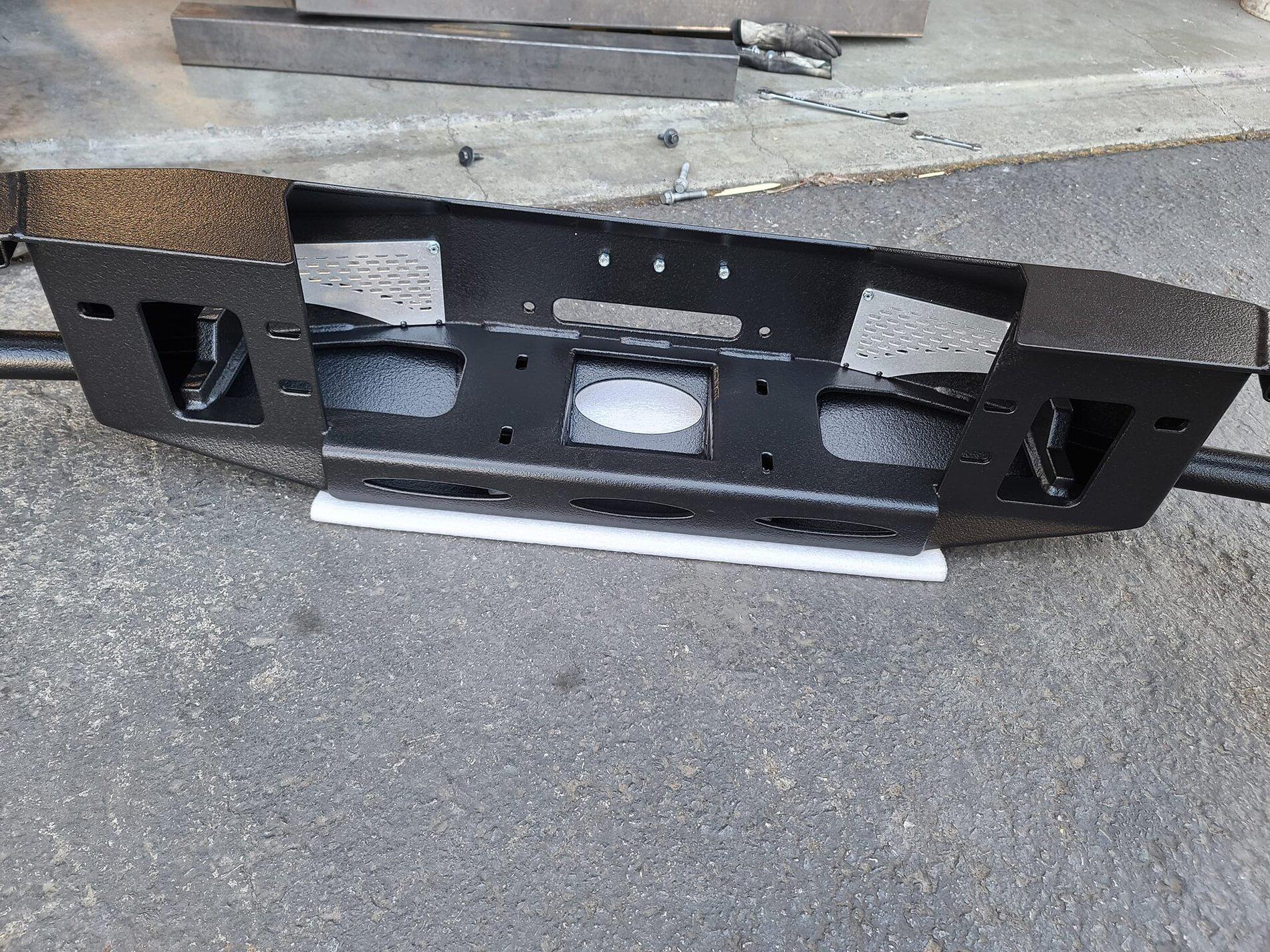

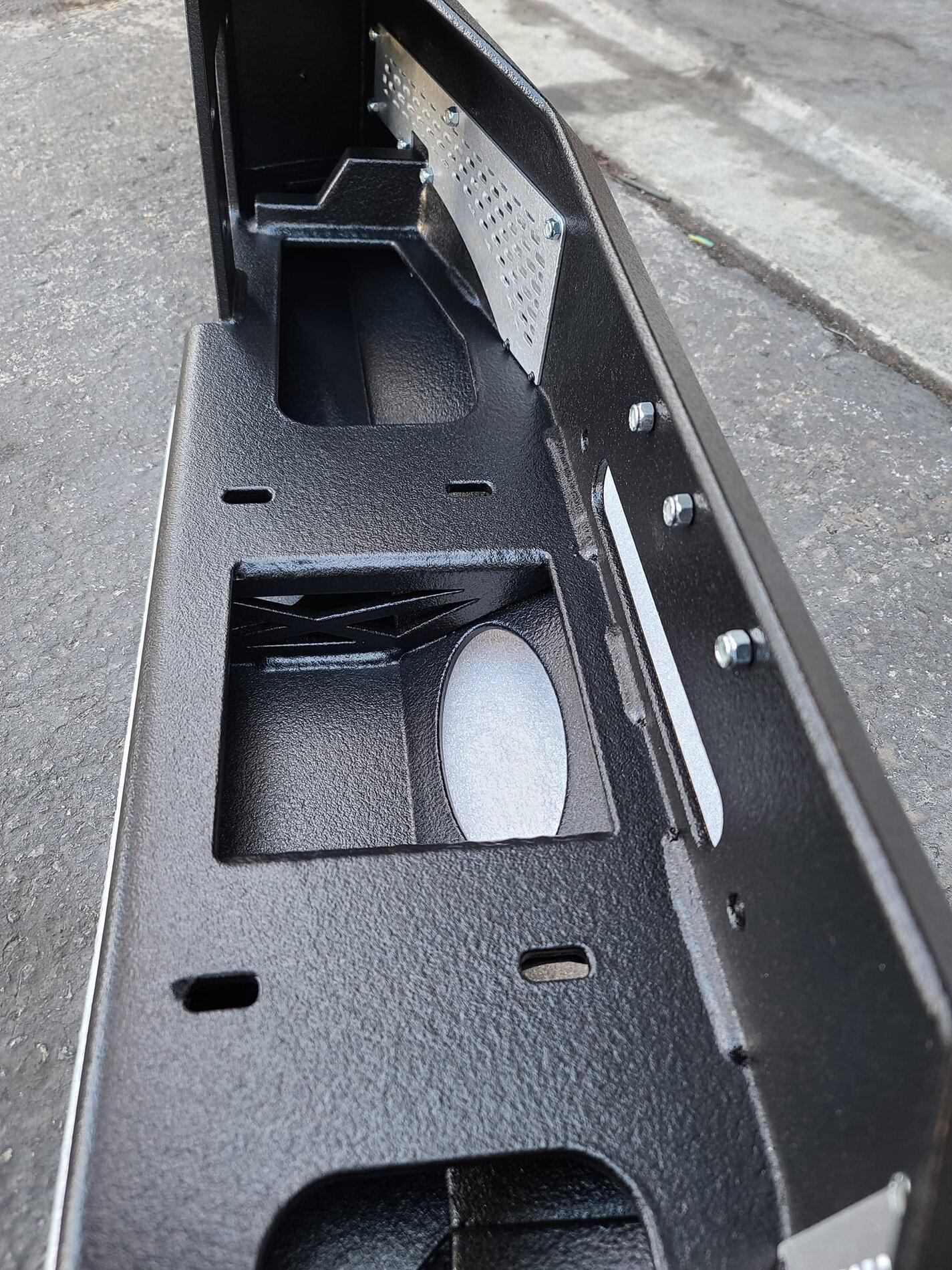

The venting to allow air flow to the intercooler are 5052 aluminum and removable/customizeable. This bumper is built to beat. The winch plate and mounting is constructed out of .250" plate. All the outer shell is .188" thick. The tubes are 1.75" x.120 wall DOM The recovery points are in plain with the frame and laser cut from .750" Swiss SSAB plate tumbled for 16 hours to soften the edges and welded through the bumper for safe recoveries. This bumper is not made for the mall its about 80lbs to 90lbs without the winch height TBD.
Relocating the ACC sensor to above the winch will be required. Parking sensors locations will also be available for those that have it.


BlueBronco

Badlands
Well-Known Member
Joined
Jul 14, 2020
Messages
2,067
Reaction score
7,863
Location
DFW
Vehicle(s)
'16 F150 KR - '13 JKU Moab - '21 Bronco BL
Bronco
Badlands
It seems to be the most sucked-in winch capable bumper we have seen. And I like the tubing on the ends, offers a unique look. I do question how well those vents are going to work with a winch right behind them and that is up against (or at least really close) to the intercooler.


broadicustomworks

Badlands
Well-Known Member
First Name
Dave
Joined
Aug 25, 2020
Messages
1,388
Reaction score
5,223
Location
Hanging Rock, North Carolina
Vehicle(s)
19 Z71 Silverado, 06 VTX1300, 94 Cobra, 01 TJ
Bronco
Badlands
Vehicle Showcase
5
Clubs

Very well built, good looking bumper.
Would like more details.


Mdh186

Active Member
Joined
Jul 30, 2020
Messages
27
Reaction score
33
Location
PA
Vehicle(s)
Truck
Bronco
Undecided
Looks really nice and clean.

Interested to hear pricing and more detail about location of ACC and parking sensor relocation process as a member of team LUX.

Assume it’d be possible to order without yellow logo on front.

Thanks!


peta8368

Base
Well-Known Member
Joined
Jul 17, 2020
Messages
263
Reaction score
510
Location
Norwalk, CA
Vehicle(s)
2016 Polaris Slingshot
Bronco
Base
Clubs

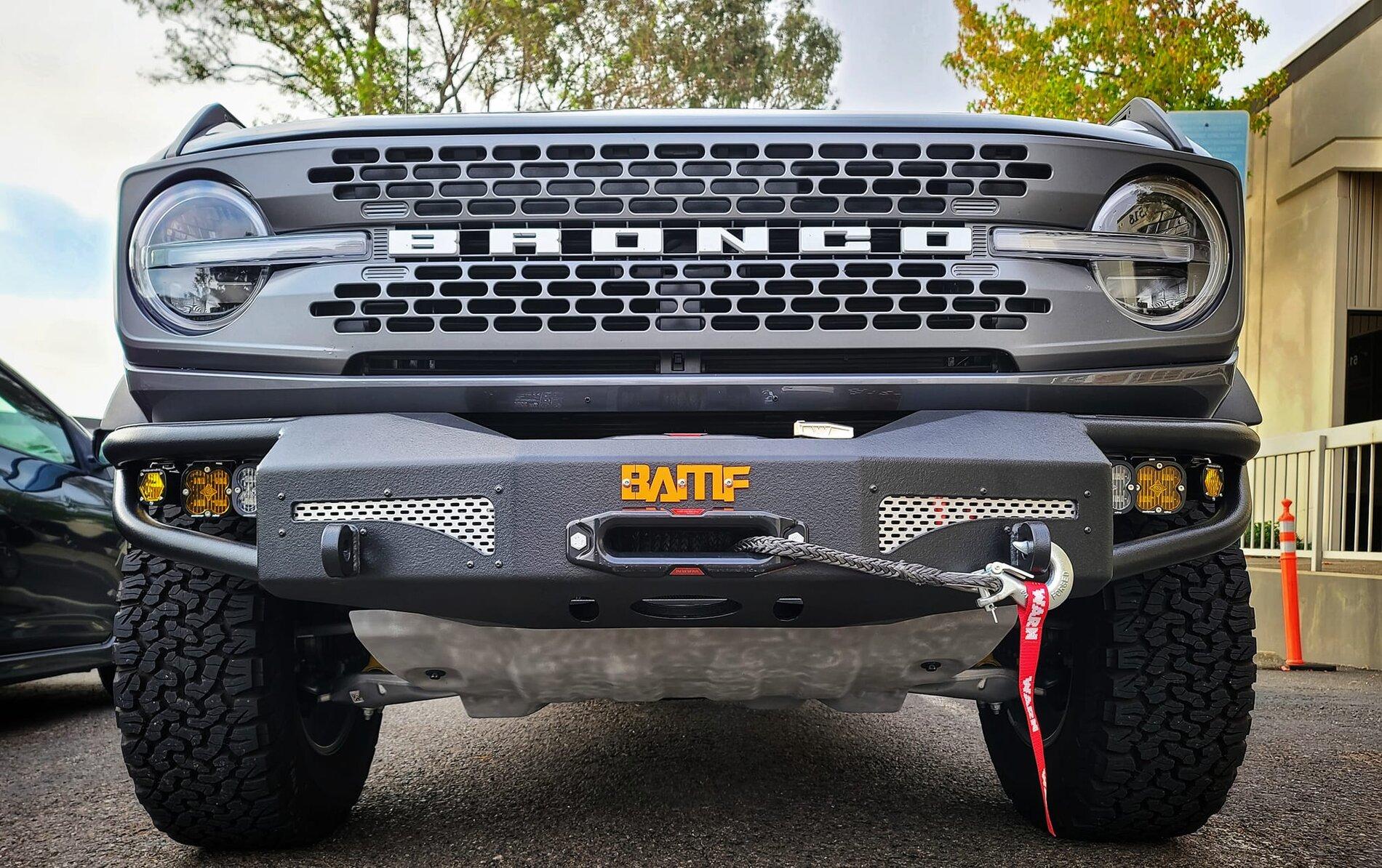

Assume it’d be possible to order without yellow logo on front.

Thanks!
I saw that too. It appears to be held in place with an hex key bolt in front and vinyl lock nut in the back. Easily removeable (does leave 3 holes though). Unsure if this is final production version or more revisions are being made.


broadicustomworks

Badlands
Well-Known Member
First Name
Dave
Joined
Aug 25, 2020
Messages
1,388
Reaction score
5,223
Location
Hanging Rock, North Carolina
Vehicle(s)
19 Z71 Silverado, 06 VTX1300, 94 Cobra, 01 TJ
Bronco
Badlands
Vehicle Showcase
5
Clubs

I checked out their site. Pricing isn't bad. At all.
I will definitely keep my ears peeled as they produce bumpers and sliders for these.


Daktari

Badlands
Well-Known Member
First Name
Oliver
Joined
Jul 27, 2020
Messages
1,074
Reaction score
2,187
Location
at the base of Mount Diablo, CA
Vehicle(s)
Tacoma TRD Off Road, Jetta
Bronco
Badlands
Clubs

promising concept, but I'd like to see what they mean with relocating the ACC sensor to above the winch. To where? In front of the grill? That would look crappy.
But great to see people working on solutions! I bookmarked their site to check back. Prices seem pretty decent, not outlandish like some I've seen so far.

Also nice that they are local to me.


Mdh186

Active Member
Joined
Jul 30, 2020
Messages
27
Reaction score
33
Location
PA
Vehicle(s)
Truck
Bronco
Undecided
I saw that too. It appears to be held in place with an hex key bolt in front and vinyl lock nut in the back. Easily removeable (does leave 3 holes though). Unsure if this is final production version or more revisions are being made.
Ayup - rather not have to deal with holes and rust point - also rather subtle logos or even better yet - none at all!


Mdh186

Active Member
Joined
Jul 30, 2020
Messages
27
Reaction score
33
Location
PA
Vehicle(s)
Truck
Bronco
Undecided
I checked out their site. Pricing isn't bad. At all.
I will definitely keep my ears peeled as they produce bumpers and sliders for these.
Agreed - their sliders look good on other products. Would be nice to see them do a true frame mount. Looks like some good protection for cars in parking lot banging into your door.


mpeugeot

Outer Banks
Well-Known Member
First Name
Mark
Joined
May 14, 2021
Messages
1,524
Reaction score
2,027
Location
Texas
Vehicle(s)
97 Ferrari F355, 11 Ford F-150, 06 Suzuki SV1000s
Bronco
Outer Banks
That would look soooo sweet at the Mall!!! ;) Actually, I really do like the execution, nicely done.
