Can someone share panel measurements?

[djp]

I need to place a wrap order and looking for measurements please

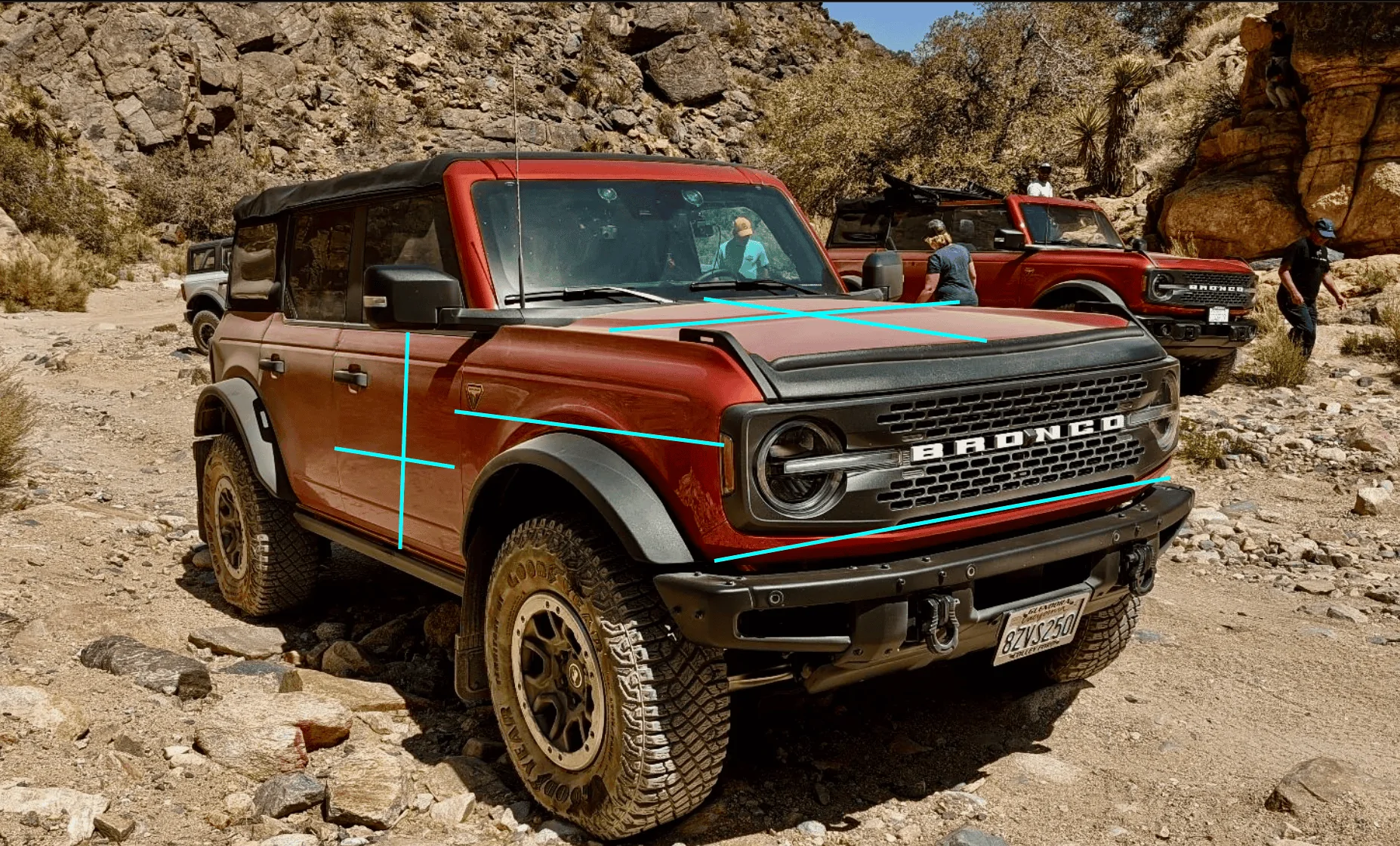

4 door

- Hood L x W
- Passenger quarter panel L x W
- Passenger door L x W
- Painted area below grill L x W

Basically trying to calculate the square footage or vinyl I need to pre order. Yes, I've done this before

Not looking for laser measurements but more approximate. Example: the front quarter panel is a funky shape but just need the measurement from front edge to back, and then the tallest height (near the doors)


thx all

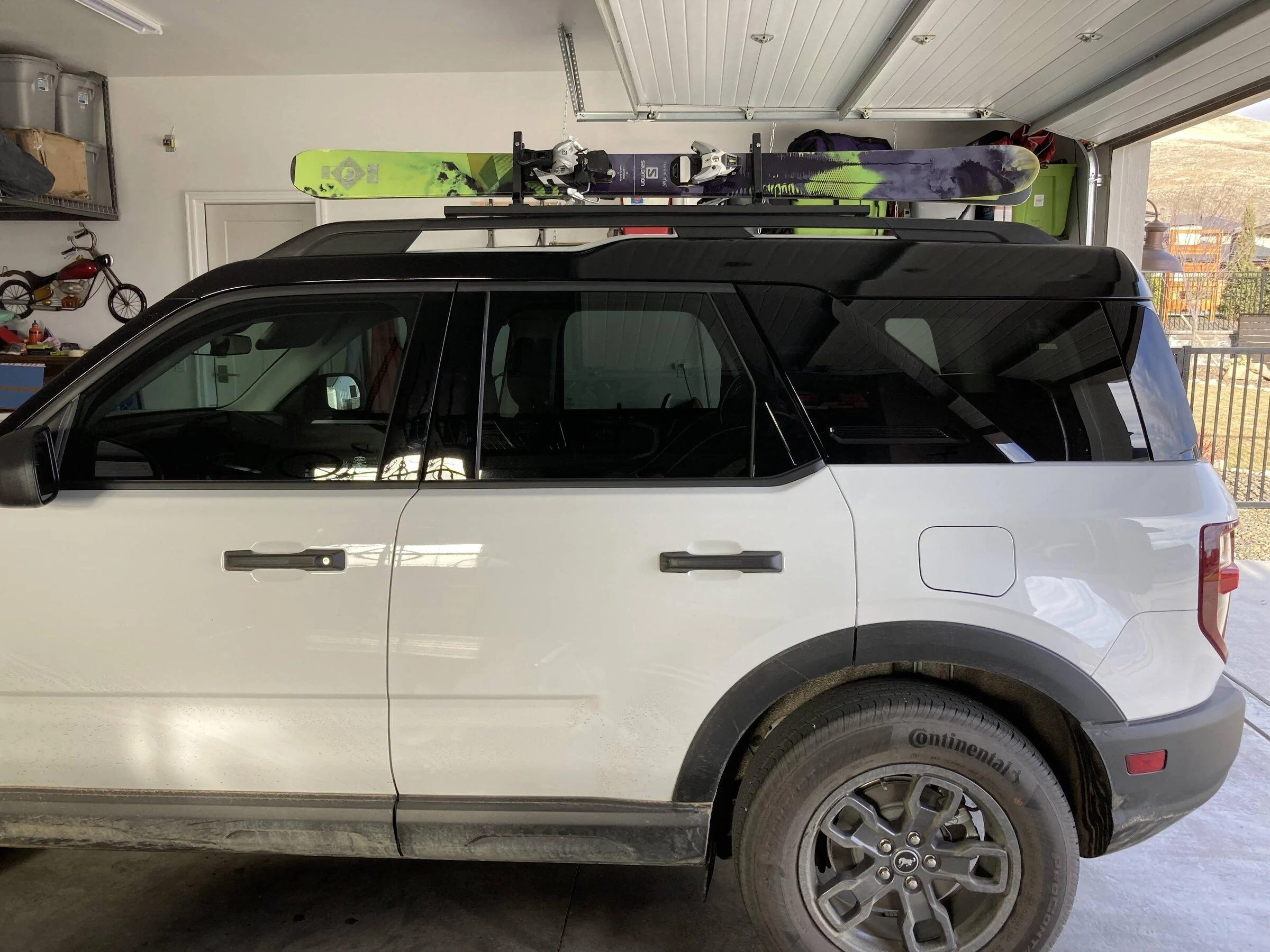

here is what i did to the wife's bronco, blacked out the top then welded a pitchfork driver-side ski rack.

plan is different for my 4-door badlands, will be fun

Sponsored



[djp]

No replies, i expected at least someone to be sitting in their garage drinking beer with their Bronco



[djp]

These (6) measurements in inches please...



[djp]

help



[campbebc]

@djp I got you, give me a few



[section525]

Hood 61w x 52h
fender 50w x 34h
door 42w x 32h
lower grille 69w x 3h

These are in Sierra Nevada Pale Ale inches. We can see if they match @campbebc 's Coors Light inches



[Pseudoko]

These (6) measurements in inches please...

Lol hey I know that Bronco.... it's sitting in my garage



[campbebc]

@djp
Hood width (fender to fender): 63"
Hood depth (cowl to grill): 52"
Lower front bumper: 80"x6"
Front quarter width: 53"
Front quarter height: 36"
Front door width: 43"
Front door height: 31"



[campbebc]

Hood 61w x 52h
fender 50w x 34h
door 42w x 32h
lower grille 69w x 3h

These are in Sierra Nevada Pale Ale inches. We can see if they match @campbebc 's Coors Light inches

I'd say that he should take the larger of all of our measurements and should come out alright. The lower grill is definitely taller than 3" on the very ends in front of the quarter panels. The rest of ours are pretty darn consistent.



[djp]

@djp
Hood width (fender to fender): 63"
Hood depth (cowl to grill): 52"
Lower front bumper: 80"x6"
Front quarter width: 53"
Front quarter height: 36"
Front door width: 43"
Front door height: 31"

Badass, thanks Ben!!
