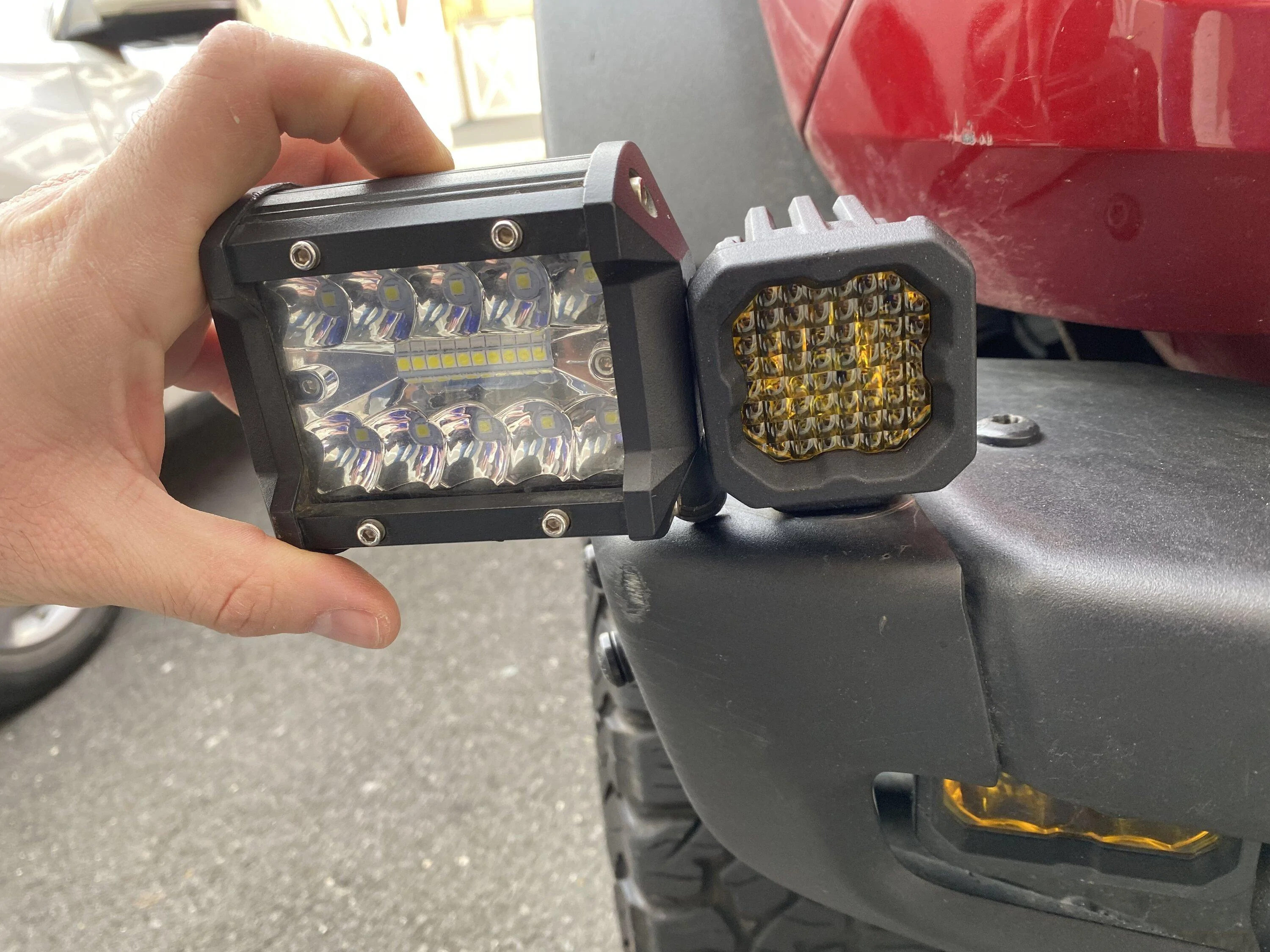

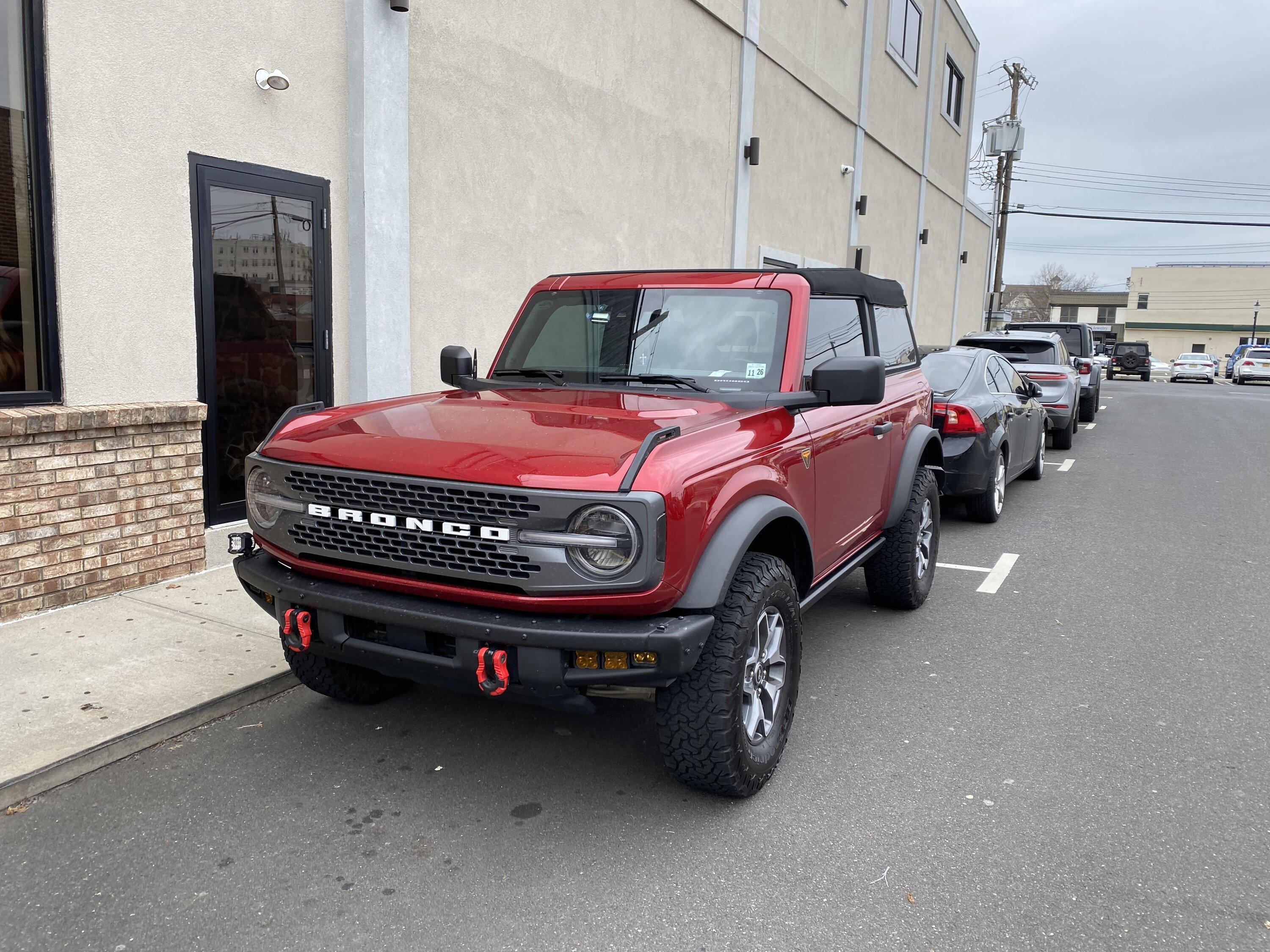

I have a full line of Diode Dynamics lights on my bronco:

* SS3 Ditch lights
* Series 6 fog lights
* 30' light bar

Easy install and they all work great!!

What did you do for the backlight on your a pillar lights? I can't find anyone that connected it to DRLs, and I don't want to put it on a second switch. Looking for direction on how to accomplish.

Sponsored



[nbdybeatsthewiz]

What did you do for the backlight on your a pillar lights? I can't find anyone that connected it to DRLs, and I don't want to put it on a second switch. Looking for direction on how to accomplish.

I don't have the backlit pillar lights, just the basic SS3 pods



[juniorobx]

What did you do for the backlight on your a pillar lights? I can't find anyone that connected it to DRLs, and I don't want to put it on a second switch. Looking for direction on how to accomplish.

you ever figure this out ? same issue here



[4x4TruckLEDs.com]

you ever figure this out ? same issue here

Fuse tap. Simple. Plugs in-line with an existing fuse circuit, gives you a little power leg for the DRL. Problem with that is, you can't turn it off. It's always on or off.



[juniorobx]

Fuse tap. Simple. Plugs in-line with an existing fuse circuit, gives you a little power leg for the DRL. Problem with that is, you can't turn it off. It's always on or off.

I think I may try running it to parking lights. I have my fogs already t tap into them now. just gotta see how i’m getting the wire from pillar to headlight harness



[Dadsquatch]

What did you do for the backlight on your a pillar lights? I can't find anyone that connected it to DRLs, and I don't want to put it on a second switch. Looking for direction on how to accomplish.

I think I may try running it to parking lights. I have my fogs already t tap into them now. just gotta see how i’m getting the wire from pillar to headlight harness

Use this product from SPV to tap into your headlights for parking/running lamp signal:

SPV Parts Harness System Bronco Parking/Headlight Connector Adapter (P (specialtyperformanceparts.com)

I'm currently using this for my Rigid Radiance fog lights to trigger my amber backlight instead of using another aux switch or a fuse tap. So my backlights come on with my headlights or parking lights. In the next week I'll be adding A-Pillar / Ditch Lights with an amber backlight and am going to tie those into this same wiring harness.



[juniorobx]

got impatient. wired it to an aux , maybe will change it when it’s not winter lol



[HorizonHunter]

Use this product from SPV to tap into your headlights for parking/running lamp signal:

SPV Parts Harness System Bronco Parking/Headlight Connector Adapter (P (specialtyperformanceparts.com)

I'm currently using this for my Rigid Radiance fog lights to trigger my amber backlight instead of using another aux switch or a fuse tap. So my backlights come on with my headlights or parking lights. In the next week I'll be adding A-Pillar / Ditch Lights with an amber backlight and am going to tie those into this same wiring harness.

I'm electrically ignorant, but this seems like it would make sense over taps as other backlights get added. Any chance you can document your install? Trouble visualizing what connects where.



[Lèòn]

Got 4 ss3’s and 2 ss2’s for fogs, love them

if I had the money, do the bumper pods as well, also figure out how to wire them. Definitely no such thing as too much lights



[Dadsquatch]

I'm electrically ignorant, but this seems like it would make sense over taps as other backlights get added. Any chance you can document your install? Trouble visualizing what connects where.

Here is the install video from SPV on how to do it. It's plug & play into the passenger side headlight, but requires loosening your airbox and removing some trim for wire concealement.

2021+ Ford Bronco - Installing the SPVparts Marker Adapter for Rigid Industries Radiance Backlights - YouTube



[HorizonHunter]

Here is the install video from SPV on how to do it. It's plug & play into the passenger side headlight, but requires loosening your airbox and removing some trim for wire concealement.



2021+ Ford Bronco - Installing the SPVparts Marker Adapter for Rigid Industries Radiance Backlights - YouTube

Thanks. Gonna have to do some routing with backlight wires over by the fuse box.



[FowlBronco77]

Just ordered some DD fog lights. Really looking forward to getting them installed. 4x4truckLED folks are great too.



[4x4TruckLEDs.com]

Just ordered some DD fog lights. Really looking forward to getting them installed. 4x4truckLED folks are great too.

Thank you, we appreciate the business. You'll love your kit. Everything you need is included.



[Lèòn]

Use this product from SPV to tap into your headlights for parking/running lamp signal:

SPV Parts Harness System Bronco Parking/Headlight Connector Adapter (P (specialtyperformanceparts.com)

I'm currently using this for my Rigid Radiance fog lights to trigger my amber backlight instead of using another aux switch or a fuse tap. So my backlights come on with my headlights or parking lights. In the next week I'll be adding A-Pillar / Ditch Lights with an amber backlight and am going to tie those into this same wiring harness.

so thats what I need? I want my pods to work when its just runnin, disappointed I gotta use aux switches and this is just exposed like this

Still, major upgrade compared to the old stuff



[Dadsquatch]

so thats what I need? I want my pods to work when its just runnin, disappointed I gotta use aux switches and this is just exposed like this

Still, major upgrade compared to the old stuff

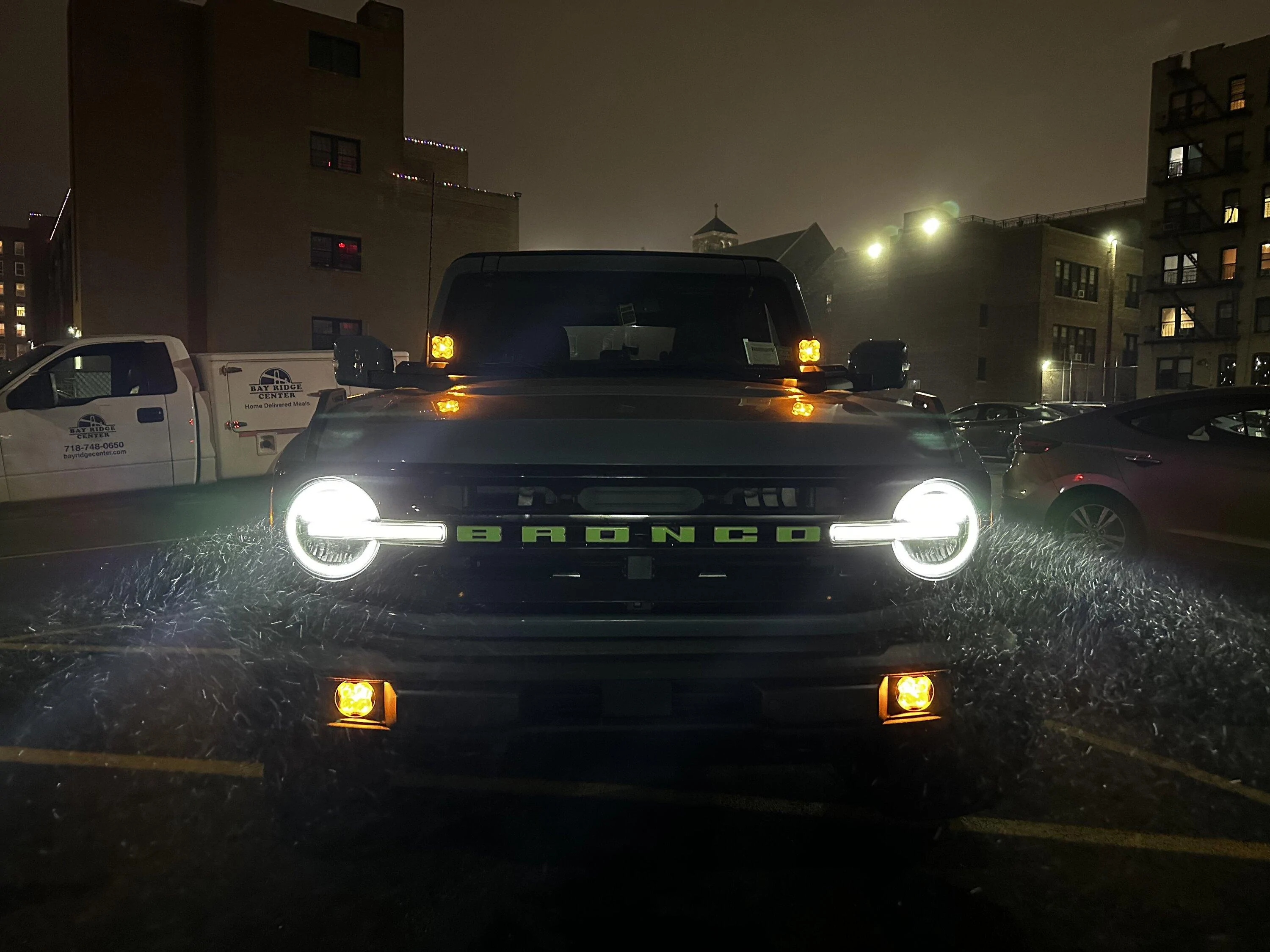

Yes, use that. The amber backlighting will only work when your headlights or running/parking lights are on. It won’t work if the Bronco is just running or DRL is active. Has to be headlights or running/parking lights.

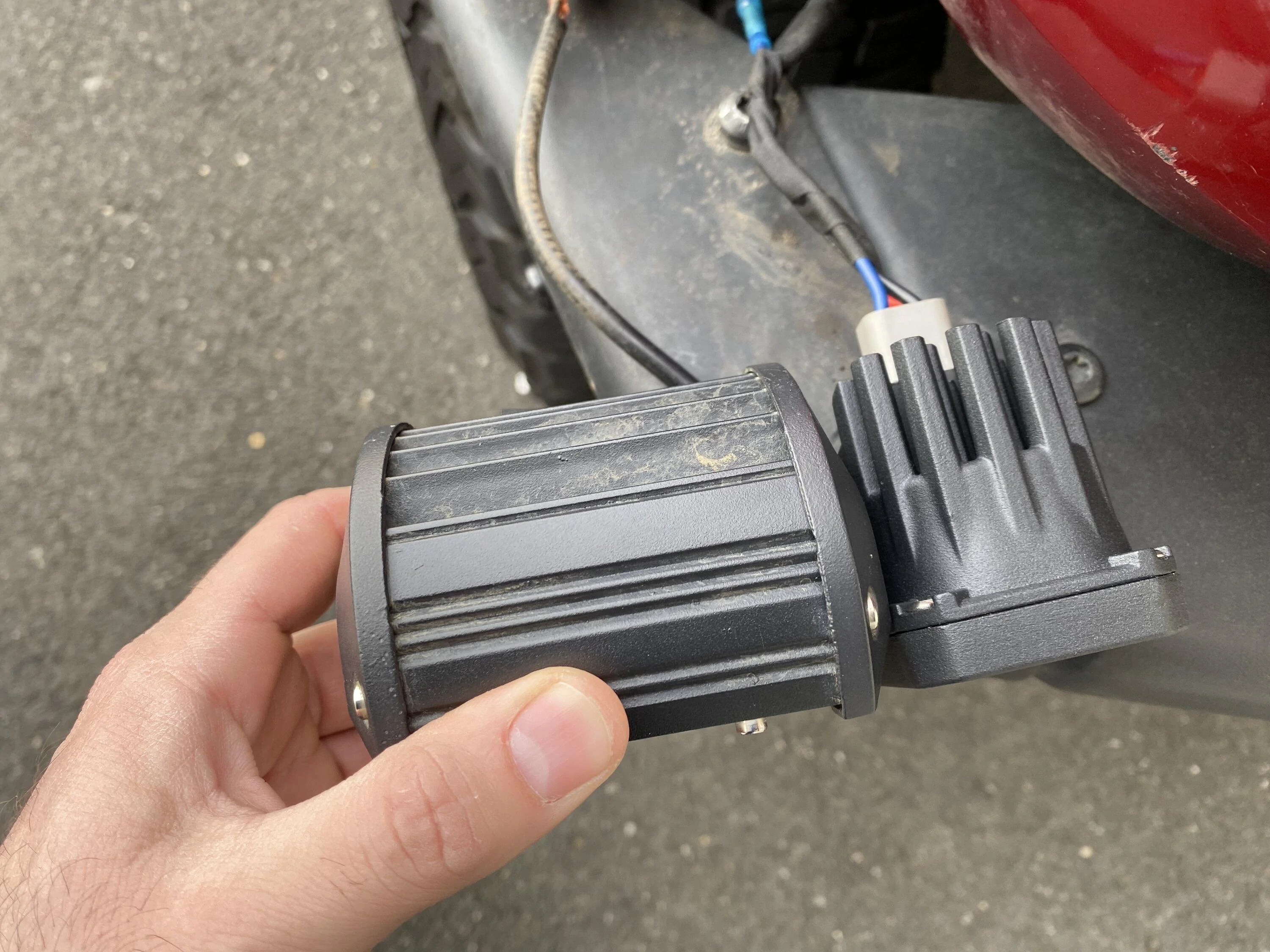

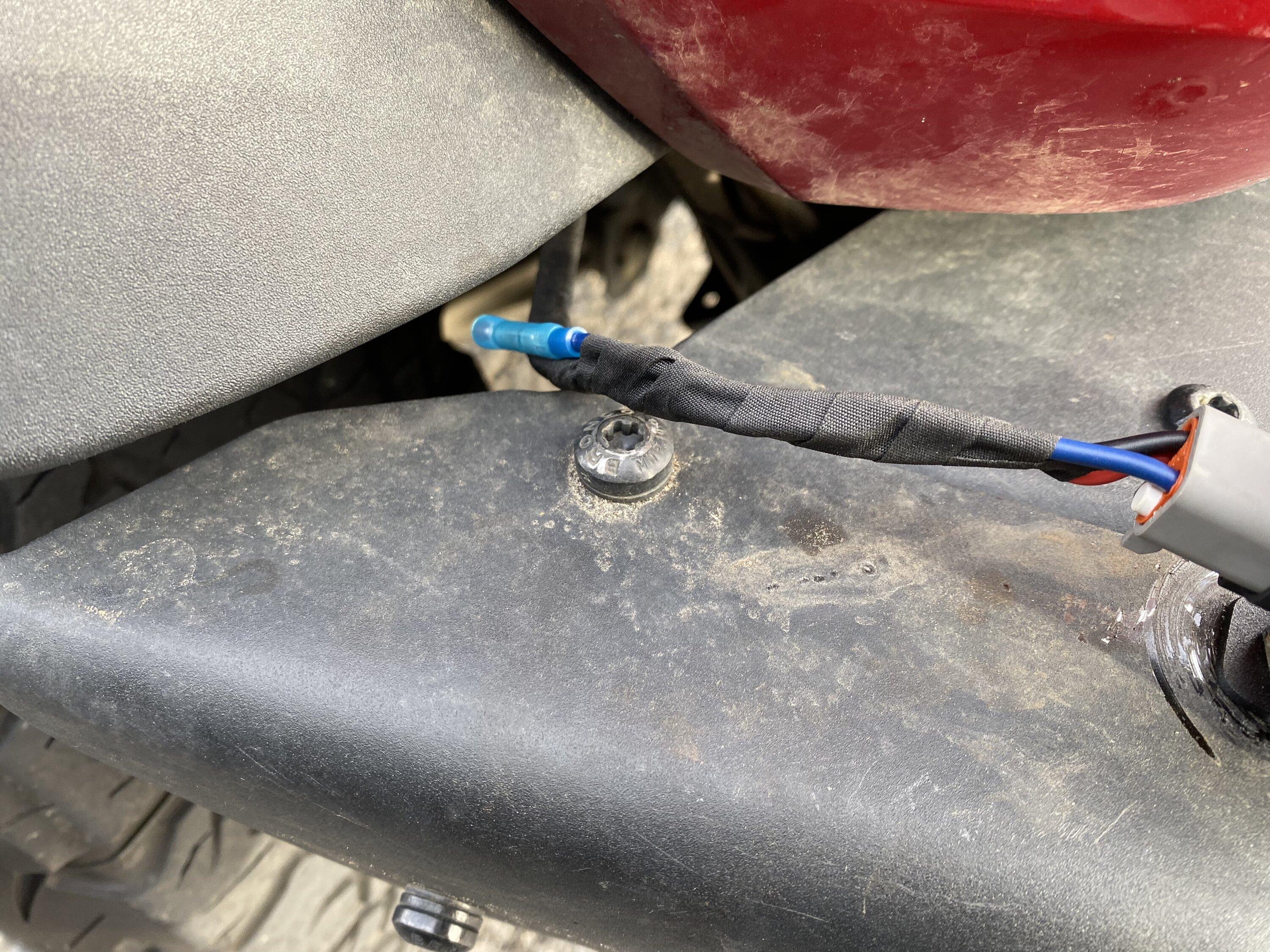

Not sure what that mess of exposed wires is in your pics.
