Upgraded Rear Differential.

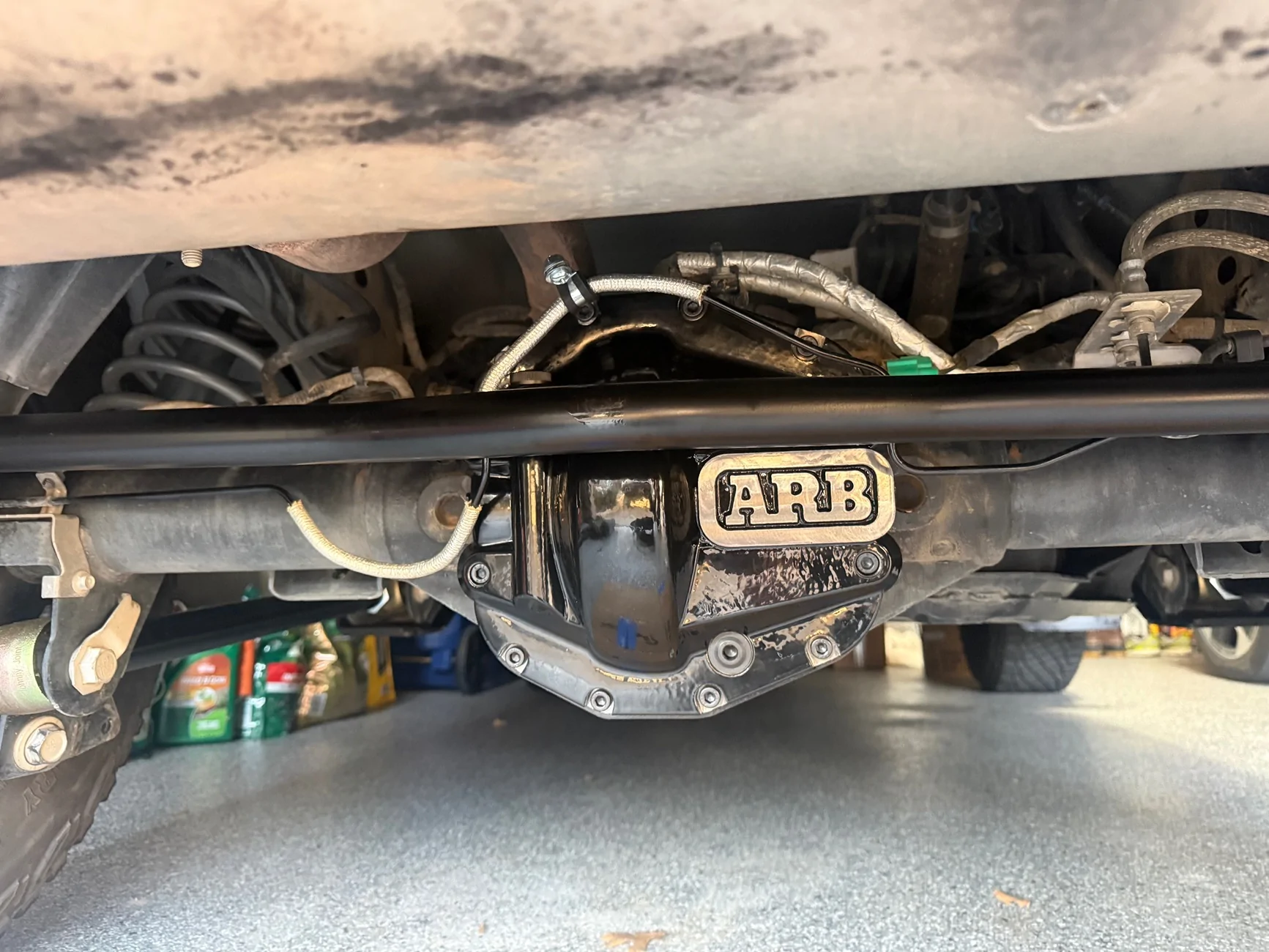

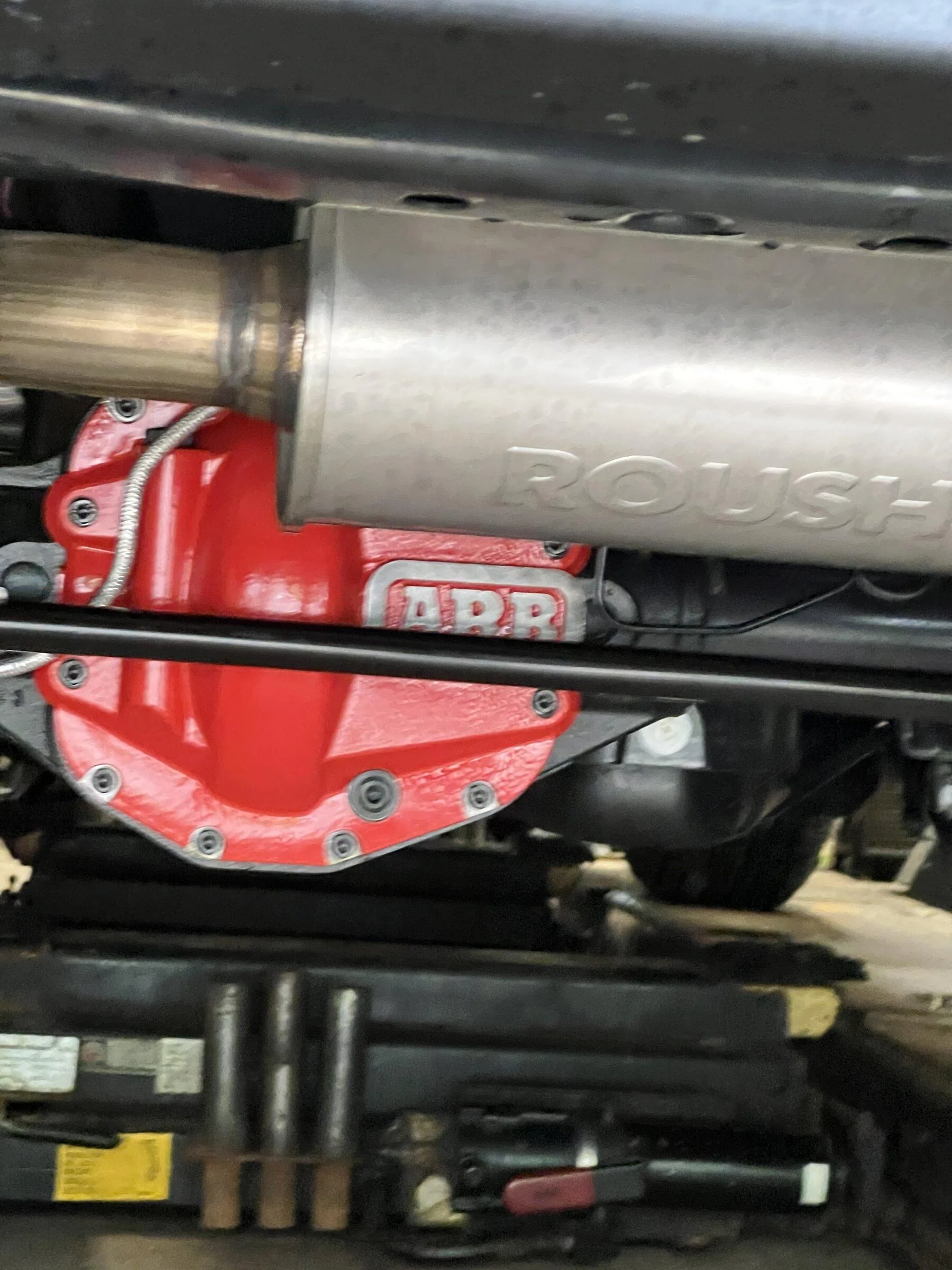

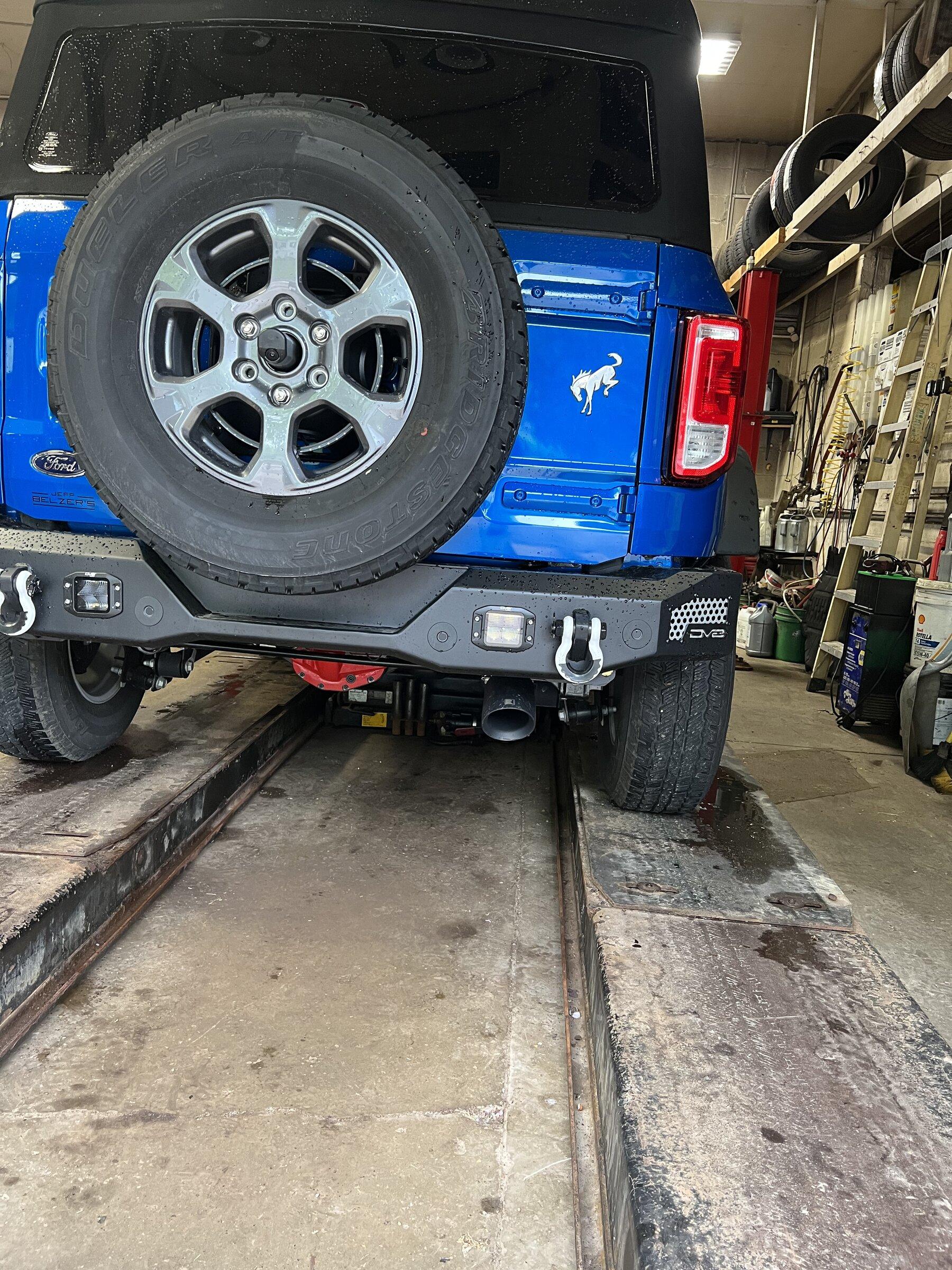

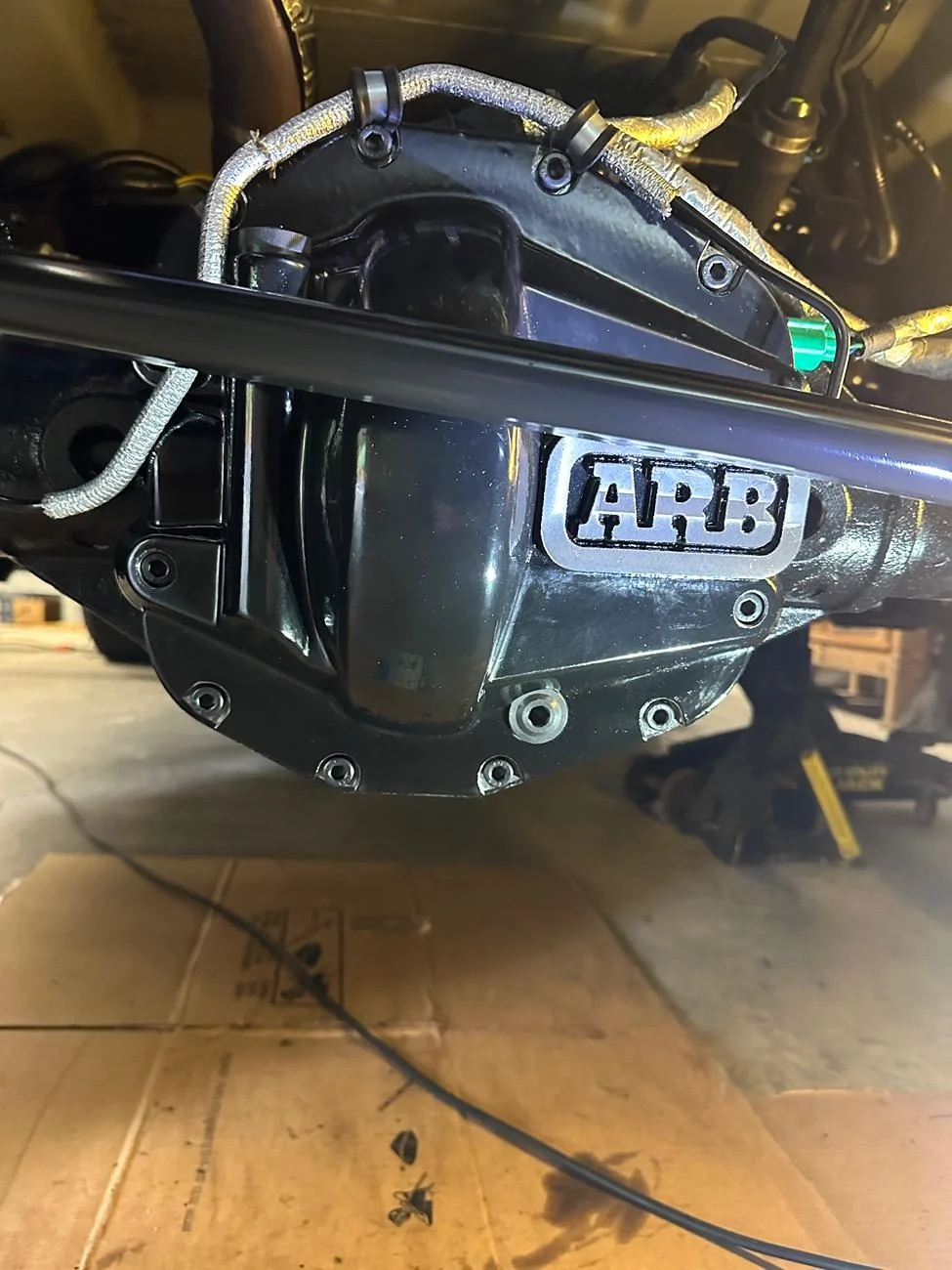

Installed the ARB rear differential cover on my 2.3L Big Bend. It was 100% cosmetic for me due to doing a Red White and Blue color combo.



Sponsored



hotrodtim

Wildtrak
Well-Known Member
First Name
TIM
Joined
Dec 17, 2020
Threads
1
Messages
193
Reaction score
290
Location
Florida
Vehicle(s)
2019 EXPEDITION,2009 F150,2003 LINCOLN AVIATOR
Your Bronco Model
Wildtrak

tsielski

Black Diamond
Member
First Name
Tim
Joined
Aug 26, 2022
Threads
1
Messages
12
Reaction score
13
Location
Sunshine state
Vehicle(s)
2022 Ford Bronco, 2020 Range Rover Velar SV R
Your Bronco Model
Black Diamond
I second that question, as the ARB cover looks like it might slightly reduce the gear oil capacity over the stock cover, but looks are deceiving. Ford Performance offers a nice nodular iron cover for the M220 on the Ranger, which 'might' work on the Bronco (will fit the M220 on the Bronco, only potential issue is sway bar clearance). The ARB unit is nice in that it has a drain plug. The Ford performance unit for the Ranger does NOT have a drain plug. A little nit is the M220 on the Ranger has a drain plug on the front passenger side of the housing. The M220 on the Bronco has a flat pad there, but no drain plug. No idea why not.

OP
OP
Mn22bronco

Mn22bronco

Big Bend
Member
First Name
Richard
Joined
Apr 16, 2022
Threads
5
Messages
15
Reaction score
19
Location
Minnesota
Website
instagram.com
Vehicle(s)
Bronco 2022 Big Bend, 2018 Expedition-,
Your Bronco Model
Big Bend
Clubs

My Mechanic used the recommended Oil amount directly from Ford. The only difference is you have a dip stick you need to use needs to be marked that amount on the cover itself.


Sponsored

F OR D

Black Diamond
Well-Known Member
Joined
Mar 14, 2021
Threads
15
Messages
1,486
Reaction score
3,258
Location
USA
Vehicle(s)
BD Green Machine
Your Bronco Model
Black Diamond
Clubs

looks great, i have a strange attraction to aftermarket rear diff covers. noted for when it is time to service ;)


Fmuguira

Badlands
Well-Known Member
First Name
Frank
Joined
Feb 15, 2022
Threads
6
Messages
412
Reaction score
434
Location
Idaho
Vehicle(s)
Jeep TJ
Your Bronco Model
Badlands
My ARB covers on a Dana 44 and Dana 30 also have a strong magnet built into drain plug. It pulls out some metallic sludge every time you can fluid !!


Fmuguira

Badlands
Well-Known Member
First Name
Frank
Joined
Feb 15, 2022
Threads
6
Messages
412
Reaction score
434
Location
Idaho
Vehicle(s)
Jeep TJ
Your Bronco Model
Badlands
Change fluid


redone17

Black Diamond
Well-Known Member
First Name
Chris
Joined
Mar 6, 2021
Threads
61
Messages
3,870
Reaction score
4,374
Location
Cold Spring, NY
Vehicle(s)
2021 Bronco, 2020 Ranger
Your Bronco Model
Black Diamond
What did you use for the bolts with studs that the brake line clips into? Since the holes are recessed you can’t reuse the same bolts.


redone17

Black Diamond
Well-Known Member
First Name
Chris
Joined
Mar 6, 2021
Threads
61
Messages
3,870
Reaction score
4,374
Location
Cold Spring, NY
Vehicle(s)
2021 Bronco, 2020 Ranger
Your Bronco Model
Black Diamond
Also, did you use the 25.4 ft-lb spec from the ARB install instructions or the 177 in-lb from the service manual?


Sponsored

Grumpy

Big Bend
Well-Known Member
First Name
Who's
Joined
Dec 23, 2022
Threads
34
Messages
1,269
Reaction score
3,222
Location
On a Lake
Vehicle(s)
22 2dr
Your Bronco Model
Big Bend
What did you use for the bolts with studs that the brake line clips into? Since the holes are recessed you can’t reuse the same bolts.

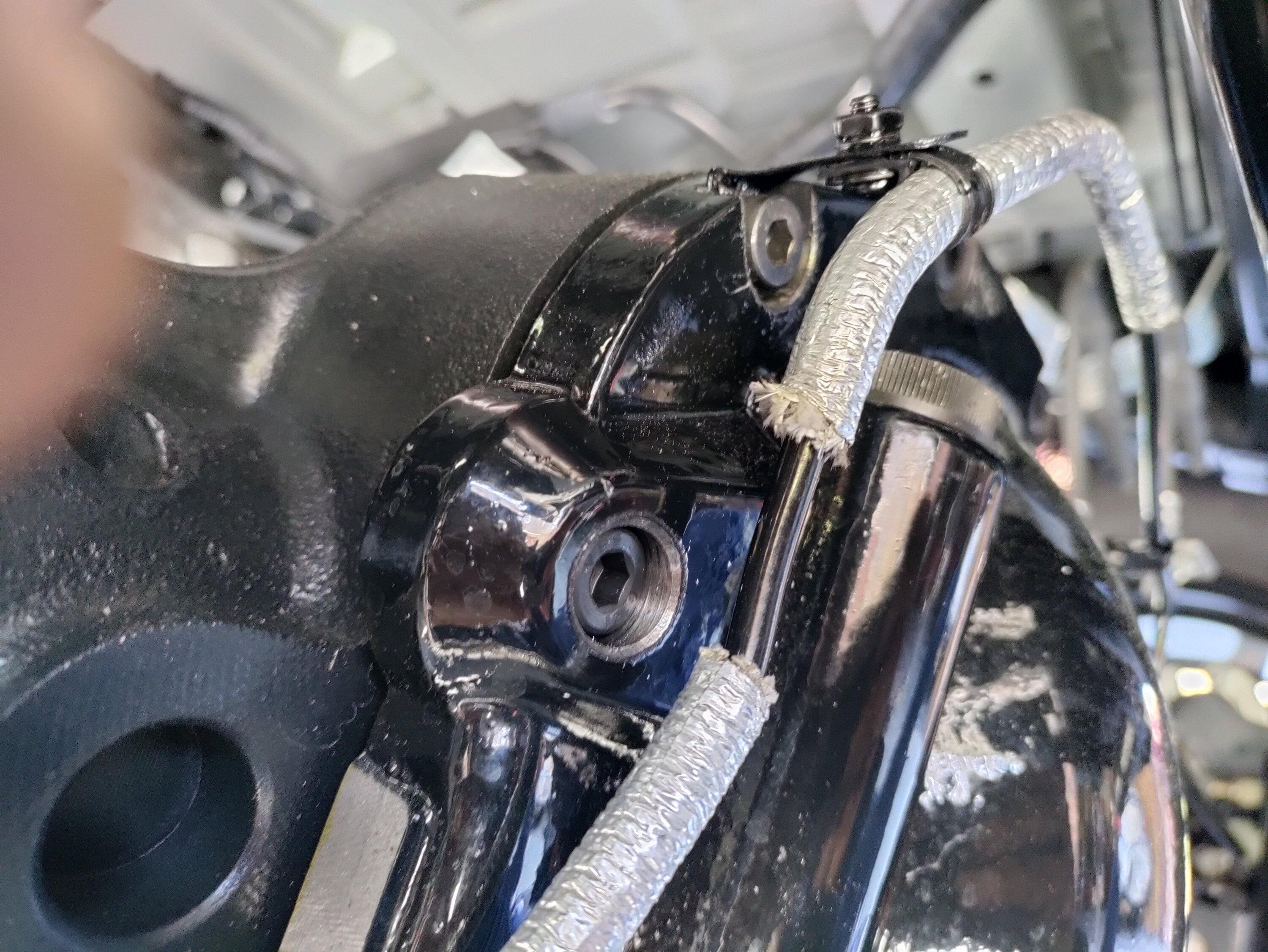

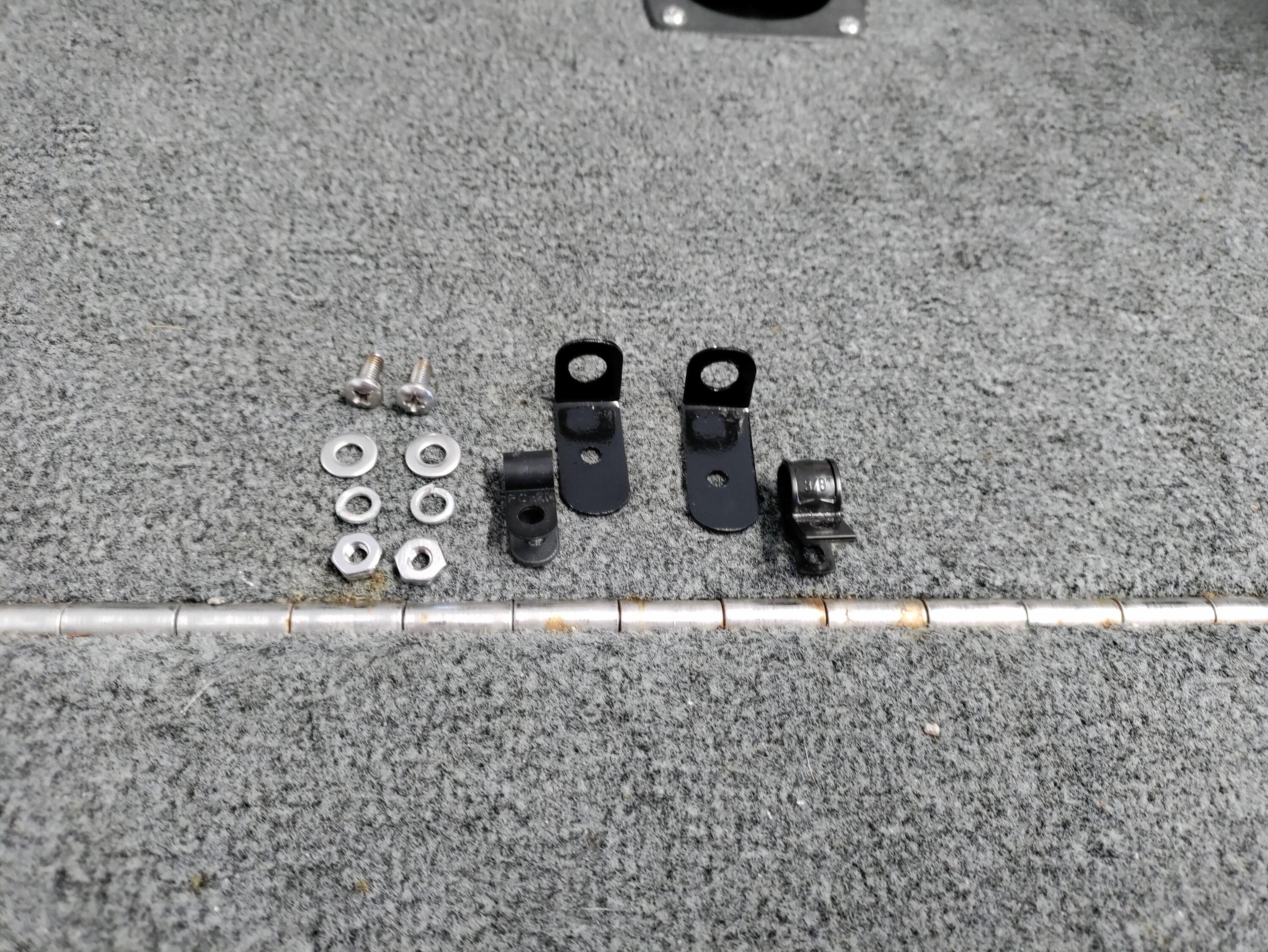

I installed an ARB cover and made my own brackets to secure the brake line.

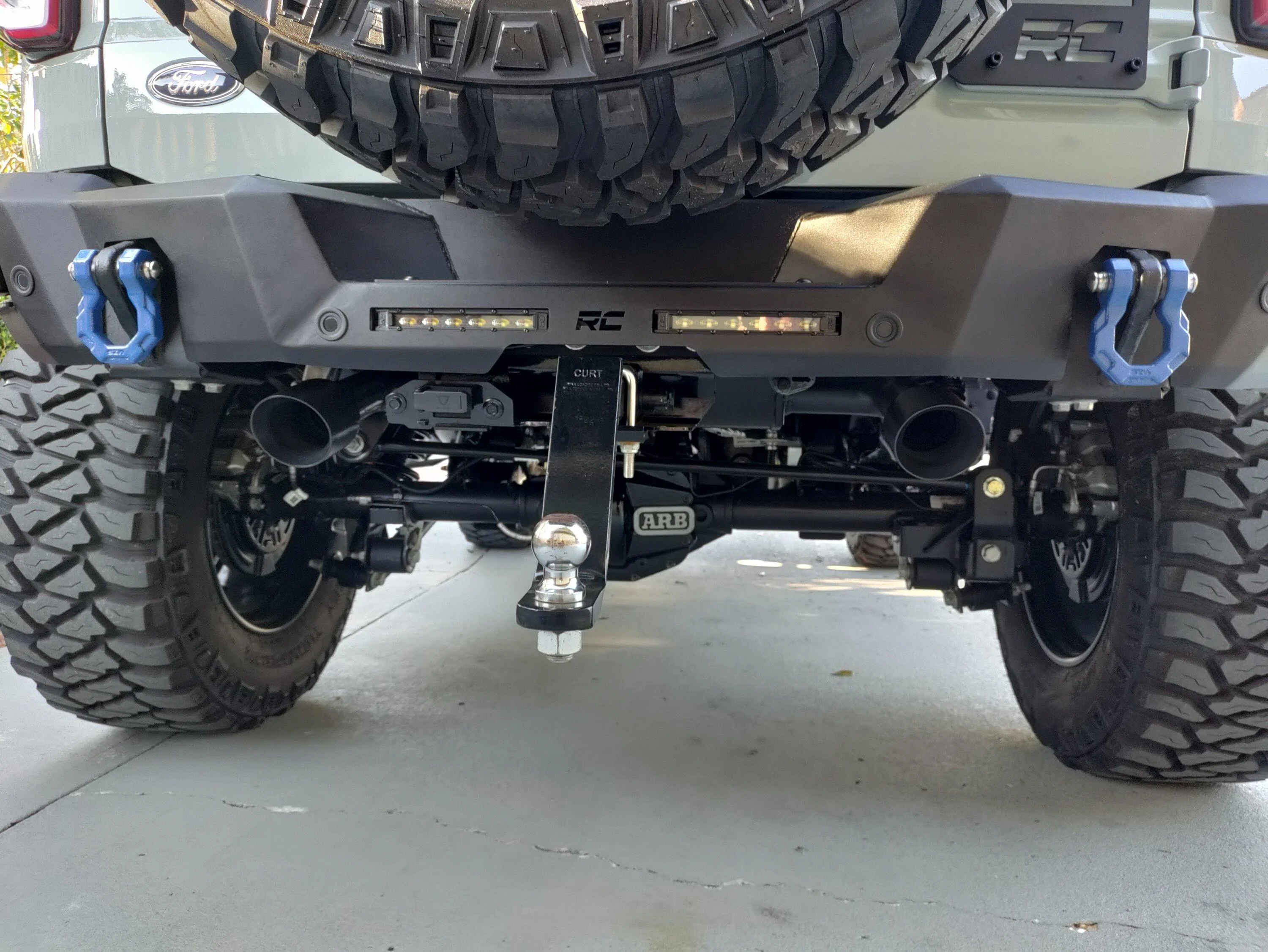

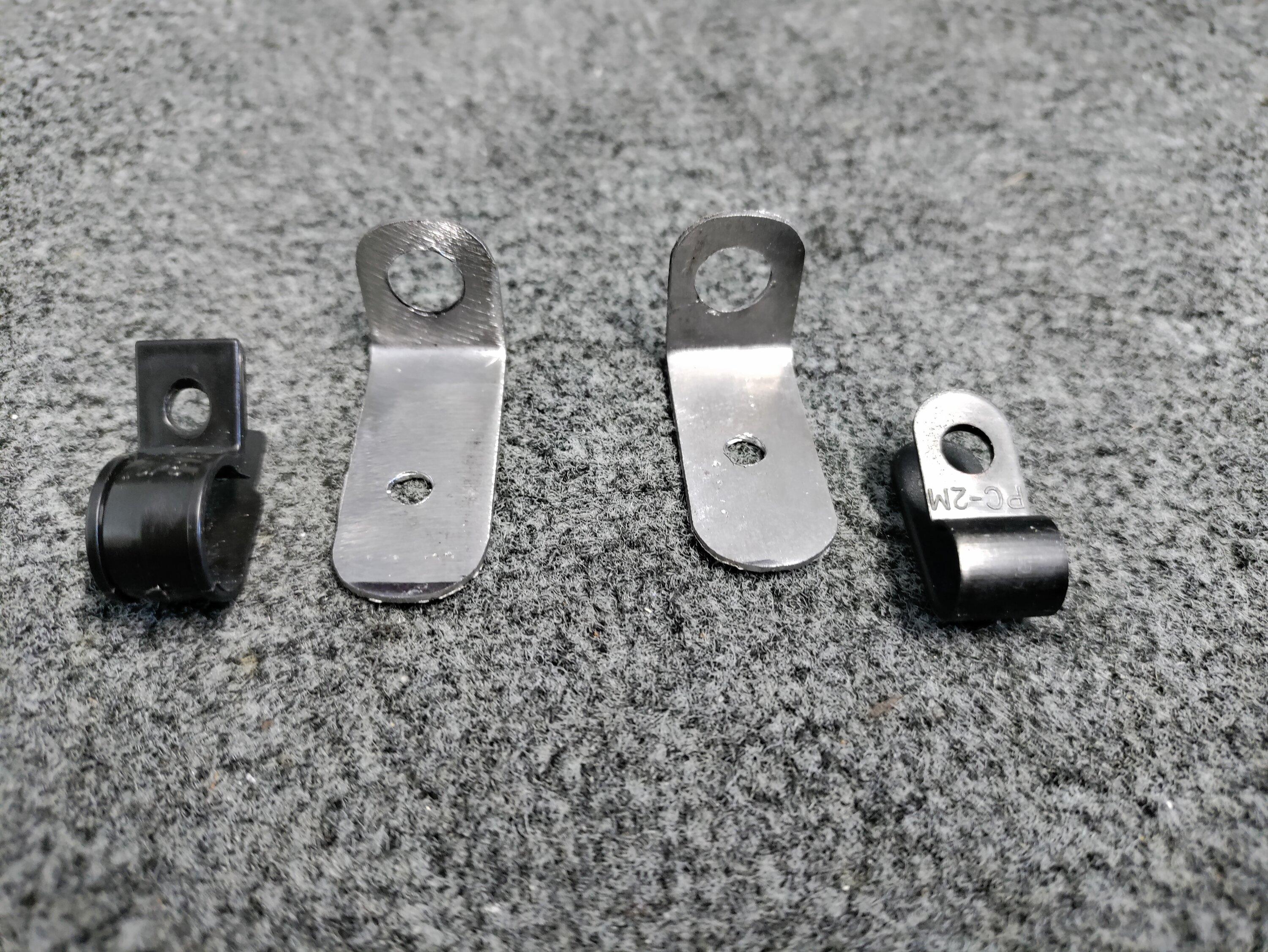

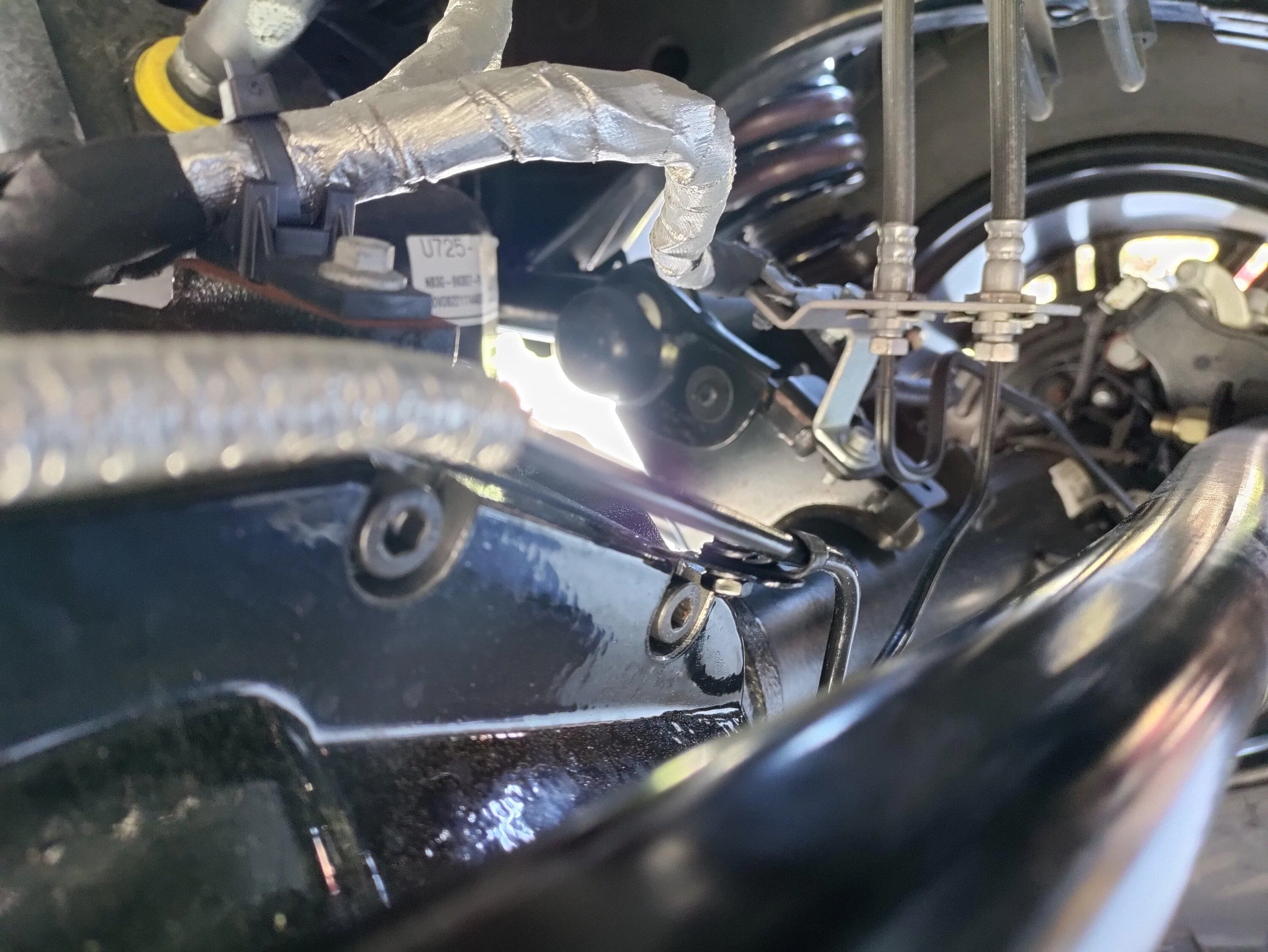

Ford Bronco Installed ARB Rear Differential Cover IMG_20230227_170105


Ford Bronco Installed ARB Rear Differential Cover IMG_20230204_123207


Ford Bronco Installed ARB Rear Differential Cover IMG_20230204_124903


Ford Bronco Installed ARB Rear Differential Cover IMG_20230204_131925




redone17

Black Diamond
Well-Known Member
First Name
Chris
Joined
Mar 6, 2021
Threads
61
Messages
3,870
Reaction score
4,374
Location
Cold Spring, NY
Vehicle(s)
2021 Bronco, 2020 Ranger
Your Bronco Model
Black Diamond
@Grumpy - solid idea.

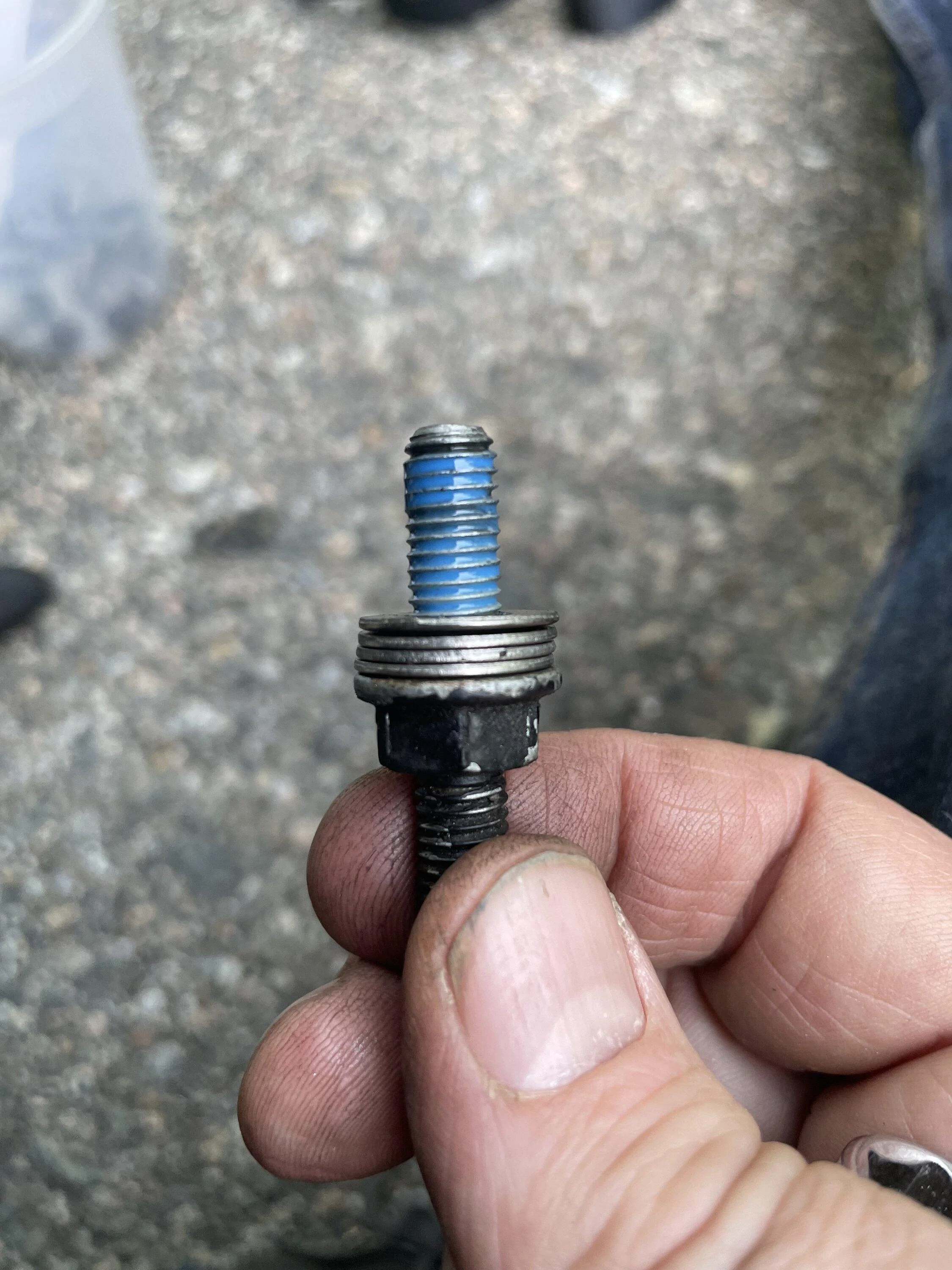

I worked around it. I used 4 washers on the stock stud bolts so that I had enough of the 13mm nut to bite. I moved the clips up to the same bolts as you. Not the best, but didn’t expect this bump in the road.

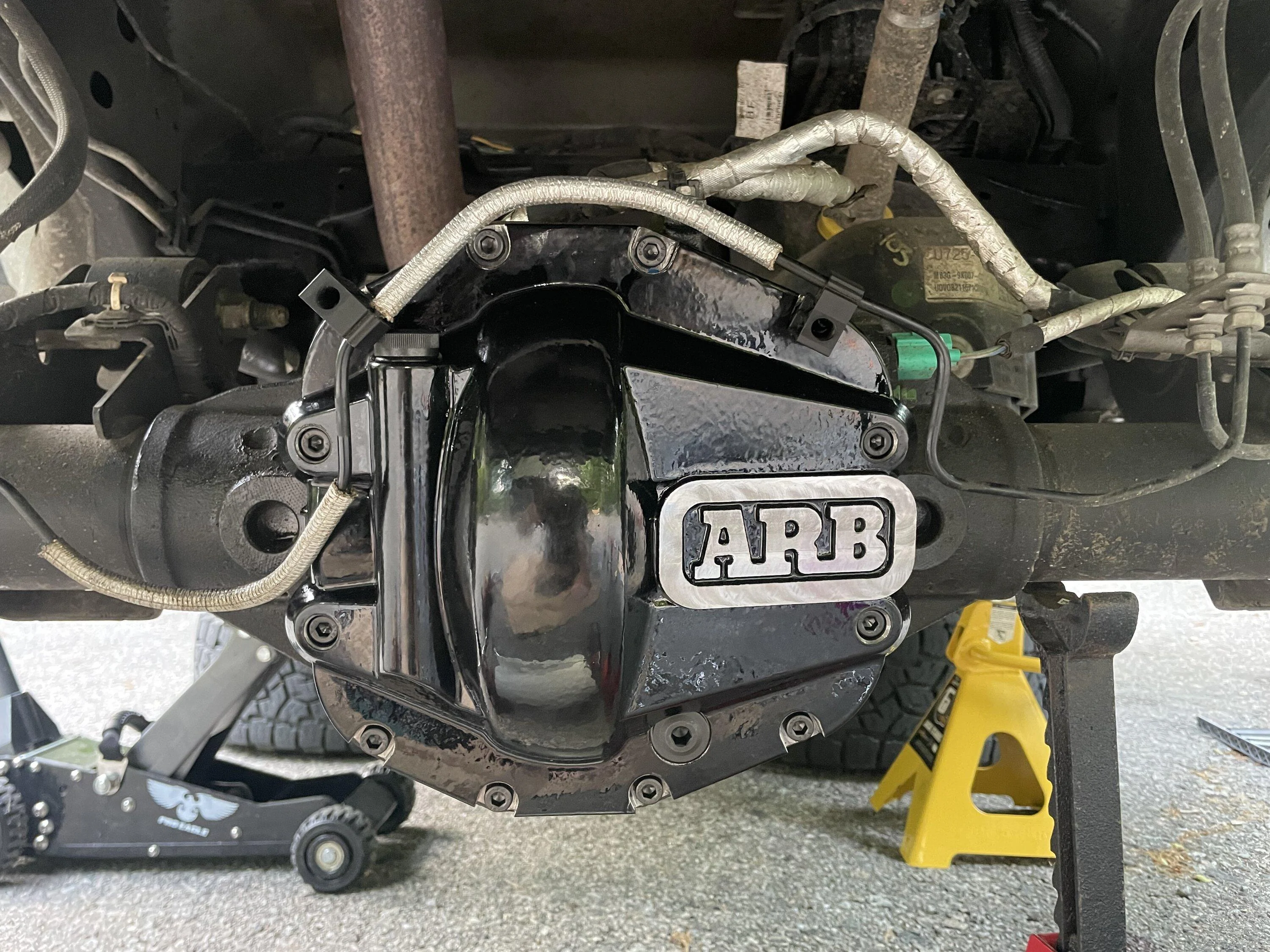

Ford Bronco Installed ARB Rear Differential Cover IMG_4047

Ford Bronco Installed ARB Rear Differential Cover IMG_4048


redone17

Black Diamond
Well-Known Member
First Name
Chris
Joined
Mar 6, 2021
Threads
61
Messages
3,870
Reaction score
4,374
Location
Cold Spring, NY
Vehicle(s)
2021 Bronco, 2020 Ranger
Your Bronco Model
Black Diamond
Also, I went with the ARB suggested 25 ft lbs since it was hardware specific. Stayed with the two 17 ft lbs on the stud bolts.
