Rock Krawler Suspension coming Triangulated 4 link

Pressurized

Outer Banks
Well-Known Member
First Name
Rod
Joined
Aug 2, 2021
Threads
8
Messages
853
Reaction score
1,289
Location
Gilbert, AZ
Vehicle(s)
Gen 6 Bronco - Jeep JKU - Wrangler LJ (sold)
Your Bronco Model
Outer Banks
Heck, we did it in our garage with a floor jack and four jack stands. Just needed to hand the welding over to someone else as I can’t weld cast. (Not part of the install, but something I wanted done since the truss was being welded on too)
Agree... I would want it welded also. I wouldn't do the welding, but I know the "good" welder. ;)
Sponsored



SierraBronco

Wildtrak
Well-Known Member
Joined
Mar 27, 2024
Threads
6
Messages
441
Reaction score
881
Location
USA
Vehicle(s)
2022 Bronco
Your Bronco Model
Wildtrak
Agree... I would want it welded also. I wouldn't do the welding, but I know the "good" welder. ;)

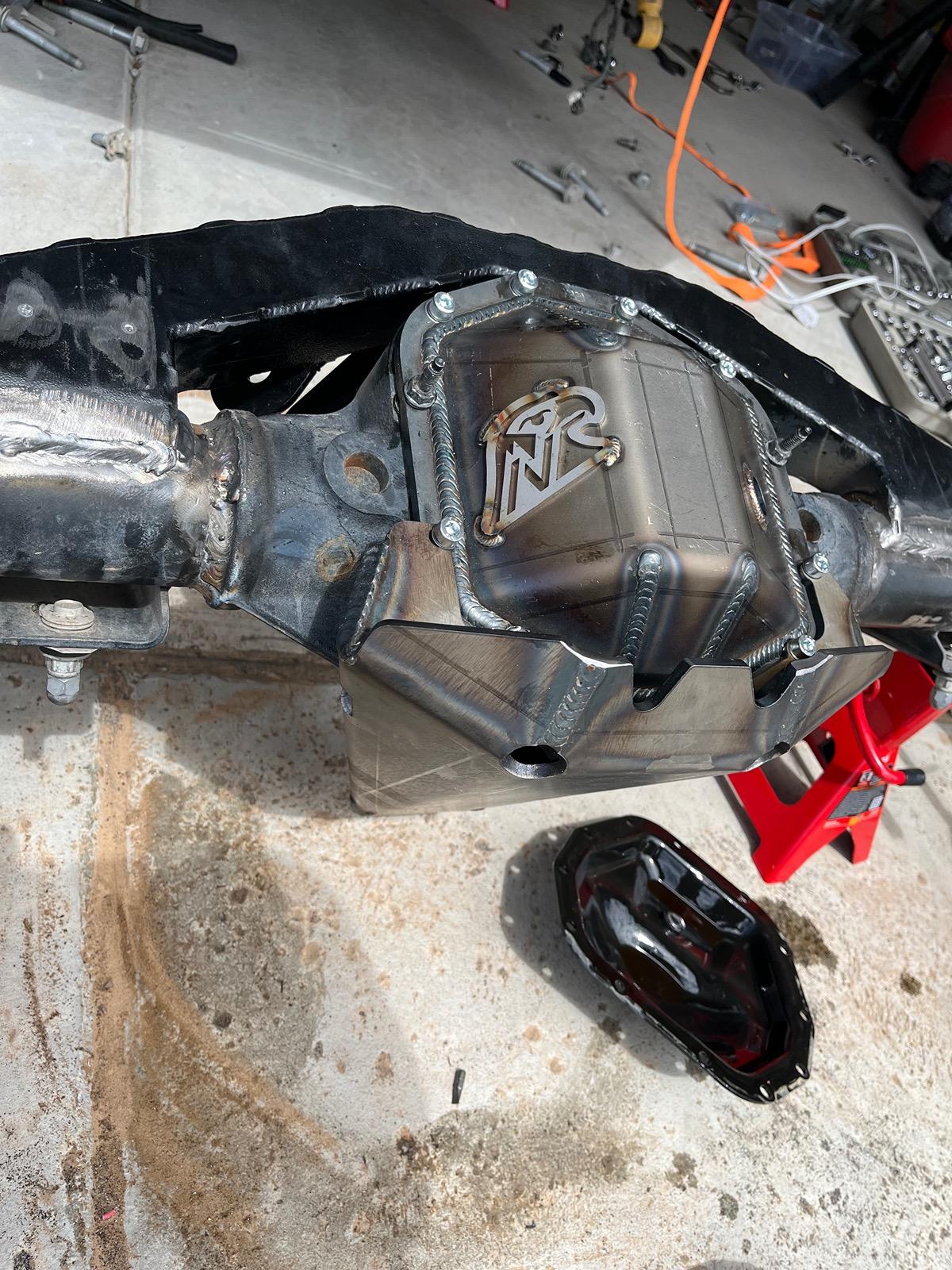

I took mine to a machine shop that’s been around forever. They put the axle in a lathe and straightened it if necessary as I have smacked it off rocks a bit. They lined the truss up perfectly, but the welds? They’ll hold but damn. They look awful. I think the guy could tell I wasn’t impressed and mentioned something about how difficult cast is, but the mig welds on the truss look pretty rough too. There’s penetration but…where’s the pride?



PEGB

Badlands
Well-Known Member
First Name
Pete
Joined
Sep 1, 2023
Threads
10
Messages
214
Reaction score
279
Location
RI
Vehicle(s)
Eruption Green Badlands Sasquatch Hardtop 4 door
Your Bronco Model
Badlands
My god that’s awful. Welding cast isn’t dramatically different than welding steel (although cast is a widely used term full of nuances), it just typically pre-weld and post-weld procedures to avoid cracking related to stress. With modern filler metal options available for nearly every process, sound procedural methods that are readily available on the internet, and more consistency in the metallurgy utilized in modern casting operations, this isn’t difficult. What you have there is poor workmanship practices.


SierraBronco

Wildtrak
Well-Known Member
Joined
Mar 27, 2024
Threads
6
Messages
441
Reaction score
881
Location
USA
Vehicle(s)
2022 Bronco
Your Bronco Model
Wildtrak
My god that’s awful. Welding cast isn’t dramatically different than welding steel (although cast is a widely used term full of nuances), it just typically pre-weld and post-weld procedures to avoid cracking related to stress. With modern filler metal options available for nearly every process, sound procedural methods that are readily available on the internet, and more consistency in the metallurgy utilized in modern casting operations, this isn’t difficult. What you have there is poor workmanship practices.
Thanks for confirming. I’m no welder but I could’ve done a better job, at least on the truss. I am very much considering getting these welds redone elsewhere.


Dusty

Base
Well-Known Member
Joined
Feb 29, 2016
Threads
30
Messages
967
Reaction score
4,898
Location
Mentone, CA
Vehicle(s)
70, 71 & '21 Broncos
Your Bronco Model
Base
Clubs

Yeah those welds look like mine (shitty). Especially next to the factory welds from RK and NVM. But even so, if it was me, I'd just run it as-is. My guess is they're structurally OK even though cosmetically shit. Put a thick coat of primer and rattle-can, then go have fun. Save that shop time for the next upgrade.


Sponsored

Aonarch

Outer Banks
Well-Known Member
Joined
Aug 4, 2021
Threads
12
Messages
1,171
Reaction score
1,913
Location
North GA / MT
Vehicle(s)
‘23 Bronco OBX 2DR Lux 2.7, ‘24 V60 Polestar
Your Bronco Model
Outer Banks
Clubs

Welding axles does take expertise.

You need to pre-heat it, work in small spread out sections, and then slowly bring it back down to temp by covering the axle with welding blankets overnight.

I just briefly scrubbed through this video, but it looks like good advice:




Dave Chappell (No relation) knows his stuff and even calls out the specific welding rod he is using.

Last edited:

PEGB

Badlands
Well-Known Member
First Name
Pete
Joined
Sep 1, 2023
Threads
10
Messages
214
Reaction score
279
Location
RI
Vehicle(s)
Eruption Green Badlands Sasquatch Hardtop 4 door
Your Bronco Model
Badlands
The first thing that needed to be done was identifying the base material as best possible. That would guide every decision moving forward (process, filler metal, joint design, pre/in-process/post welding needs, etc). Shooting from the hip here, if you brought that to me in its current state, I might advise you to start over. It might be cheaper/better outcome in the end. Cutting that off, getting all the parts back to a state they can be fit up properly then re-welded, and ultimately hoping that the excess heat he dumped into that axle hasn’t damaged the material or induced a deflection…it’s a bigger gamble than I would want to make. Not to mention the metallurgical challenges with whatever filler metal he chose. Do guys do it all day long and get lucky? Sure. Is it right? I guess it’s your money to say. Good luck and sorry this happened to you.

Edit: or as suggested, run it as is and maybe fix it later.


SierraBronco

Wildtrak
Well-Known Member
Joined
Mar 27, 2024
Threads
6
Messages
441
Reaction score
881
Location
USA
Vehicle(s)
2022 Bronco
Your Bronco Model
Wildtrak
Yeah those welds look like mine (shitty). Especially next to the factory welds from RK and NVM. But even so, if it was me, I'd just run it as-is. My guess is they're structurally OK even though cosmetically shit. Put a thick coat of primer and rattle-can, then go have fun. Save that shop time for the next upgrade.

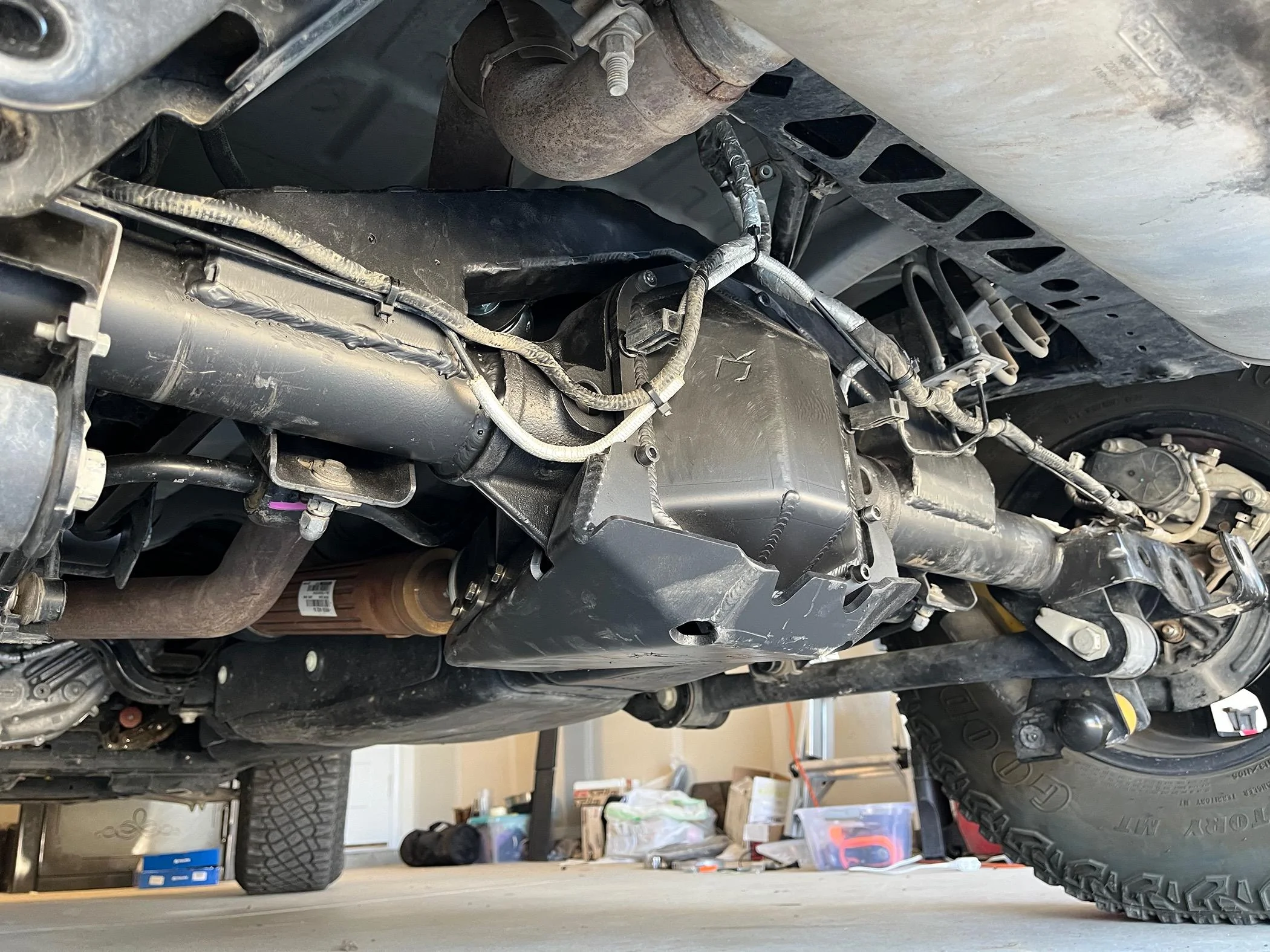

The NV welds definitely bring out the shoddiness of their work. Steel-it covered everything up. And while you’re right, I can’t stand how awful it looks. I’m not exactly doing a cheap build.



SierraBronco

Wildtrak
Well-Known Member
Joined
Mar 27, 2024
Threads
6
Messages
441
Reaction score
881
Location
USA
Vehicle(s)
2022 Bronco
Your Bronco Model
Wildtrak
The first thing that needed to be done was identifying the base material as best possible. That would guide every decision moving forward (process, filler metal, joint design, pre/in-process/post welding needs, etc). Shooting from the hip here, if you brought that to me in its current state, I might advise you to start over. It might be cheaper/better outcome in the end. Cutting that off, getting all the parts back to a state they can be fit up properly then re-welded, and ultimately hoping that the excess heat he dumped into that axle hasn’t damaged the material or induced a deflection…it’s a bigger gamble than I would want to make. Not to mention the metallurgical challenges with whatever filler metal he chose. Do guys do it all day long and get lucky? Sure. Is it right? I guess it’s your money to say. Good luck and sorry this happened to you.

Edit: or as suggested, run it as is and maybe fix it later.
Your tots and pears mean a lot 😂😉


PEGB

Badlands
Well-Known Member
First Name
Pete
Joined
Sep 1, 2023
Threads
10
Messages
214
Reaction score
279
Location
RI
Vehicle(s)
Eruption Green Badlands Sasquatch Hardtop 4 door
Your Bronco Model
Badlands
I’ve been involved in manufacturing, fabrication and construction for a couple of decades or so. Specifically regarding welding and allied processes. The only definitive thing I can tell you is that our whole world is held together with “Tots and Pears”. I’m not religious, but it’s a miracle it all doesn’t just fall down around us, and dark comedy when it does.


Sponsored

SierraBronco

Wildtrak
Well-Known Member
Joined
Mar 27, 2024
Threads
6
Messages
441
Reaction score
881
Location
USA
Vehicle(s)
2022 Bronco
Your Bronco Model
Wildtrak
Welding axles does take expertise.

You need to pre-heat it, work in small spread out sections, and then slowly bring it back down to temp by covering the axle with welding blankets overnight.

I just briefly scrubbed through this video, but it looks like good advice:




Dave Chappell (No relation) knows his stuff and even calls out the specific welding rod he is using.
Yeah, when I first asked him about it right away knew what rod to use and walked me through the process. Instilled confidence in his abilities and knowledge Looking at the housing it’s clear that he didn’t try to do it all at once and it appears that it was rotated to avoid warping. I’m not concerned with how it will hold up (with my minimal experience of such things) they just look terrible.


SierraBronco

Wildtrak
Well-Known Member
Joined
Mar 27, 2024
Threads
6
Messages
441
Reaction score
881
Location
USA
Vehicle(s)
2022 Bronco
Your Bronco Model
Wildtrak
I’ve been involved in manufacturing, fabrication and construction for a couple of decades or so. Specifically regarding welding and allied processes. The only definitive thing I can tell you is that our whole world is held together with “Tots and Pears”. I’m not religious, but it’s a miracle it all doesn’t just fall down around us, and dark comedy when it does.
Lmao. Right? Best to just not look at how well things like bridges are put together. Have some tots or pears and hope you stay lucky 😂


Mdsuits

Badlands
Well-Known Member
First Name
Mike
Joined
Mar 16, 2021
Threads
6
Messages
271
Reaction score
613
Location
Colorado
Vehicle(s)
05 f350, 68 bronco 89 samurai
Your Bronco Model
Badlands
Ok I wanted to make people aware of something I haven’t seen brought up yet about RK’s 4 link……because of its ability to flex and the super short arms you do start to get some rear steer from the rear axle….which would not be a huge deal but the pinion yoke and driveshaft can contact the gas tank….RK is aware of the issue and suggested the smaller Adam’s driveshaft/yoke set up, rock jock sway bar and trimming the oem gas tank skid….i had planned on these upgrades anyway but this will definitely speed up the timeline….for what it’s worth it does drive amazing down the road. Definitely a huge improvement there.











SierraBronco

Wildtrak
Well-Known Member
Joined
Mar 27, 2024
Threads
6
Messages
441
Reaction score
881
Location
USA
Vehicle(s)
2022 Bronco
Your Bronco Model
Wildtrak
Ok I wanted to make people aware of something I haven’t seen brought up yet about RK’s 4 link……because of its ability to flex and the super short arms you do start to get some rear steer from the rear axle….which would not be a huge deal but the pinion yoke and driveshaft can contact the gas tank….RK is aware of the issue and suggested the smaller Adam’s driveshaft/yoke set up, rock jock sway bar and trimming the oem gas tank skid….i had planned on these upgrades anyway but this will definitely speed up the timeline….for what it’s worth it does drive amazing down the road. Definitely a huge improvement there.









Did they say anything about whether this is a concern on the moredoor? We’re going on a night run tonight so I’ll try to get under there to see if we get in that same scenario but I can’t recall seeing anything on the tank when installing the NVM skids.


Mdsuits

Badlands
Well-Known Member
First Name
Mike
Joined
Mar 16, 2021
Threads
6
Messages
271
Reaction score
613
Location
Colorado
Vehicle(s)
05 f350, 68 bronco 89 samurai
Your Bronco Model
Badlands
Did they say anything about whether this is a concern on the moredoor? We’re going on a night run tonight so I’ll try to get under there to see if we get in that same scenario but I can’t recall seeing anything on the tank when installing the NVM skids.
We did not discuss door count but since the suspension is identical I would imagine it’s possibility…but a 4 door likely has a sway bar that limits travel. Basically the more down travel you have the higher the chance of it happening. As the passenger side compresses and the drivers side falls out it will steer the pinion into the tank…
