Diode Dynamics SS3 backlights Install

[Tarheel_Wes]

SoI took some screenshots from a thread showing what the headlight assembly wiring looked like in a manual book. I can send you a pic of what I took.

As far as bumpers go…I’m debating going aftermarket since the HD mod bumper isn’t a simple bolt on for us plastic bumper folks. I do plan to get more Diode Dynamic lights then.

Thanks so much!

Yea, I thought that replacement for the factory fog was pretty cool and I'm gonna order it to see if it will work with my capable bumper...I'm sure the light bulb itself is the same, but our housings are slightly different.

Sponsored



[kkurni]

Do you need to put fuse before connecting 2 backlight (blue) cables into aux cable?



[WldOne]

Do you need to put fuse before connecting 2 backlight (blue) cables into aux cable?

Check your PM.

Simple answer I connected the two wires together prior to connecting into Aux wire. …but I went into detail in PM.



[patch1103]

Thanks for the great write-up and the pics! Love your license plate by the way... Wahoowa!



[WldOne]

Thanks for the great write-up and the pics! Love your license plate by the way... Wahoowa!

Thank you. Go Hoos!



[Coronabronco]

Check your PM.

Simple answer I connected the two wires together prior to connecting into Aux wire. …but I went into detail in PM.

Hey can you send me this info too please???



[Coronabronco]

Thanks for the great write-up and the pics! Love your license plate by the way... Wahoowa!

Do you have the instructions???



[WldOne]

Do you have the instructions???

Use the one of the t-taps they provided to connect one backlight wire to the other. Then, take that wire and use a butt connector to connect into whichever aux switch you want.
magbe it could’ve been done cleaner or better, but I’m a newbie with wiring so it’s the best I could come up with.
Everything still works and runs right months later.



[Brad Fx]

Simple answer I connected the two wires together prior to connecting into Aux wire. …but I went into detail in PM.

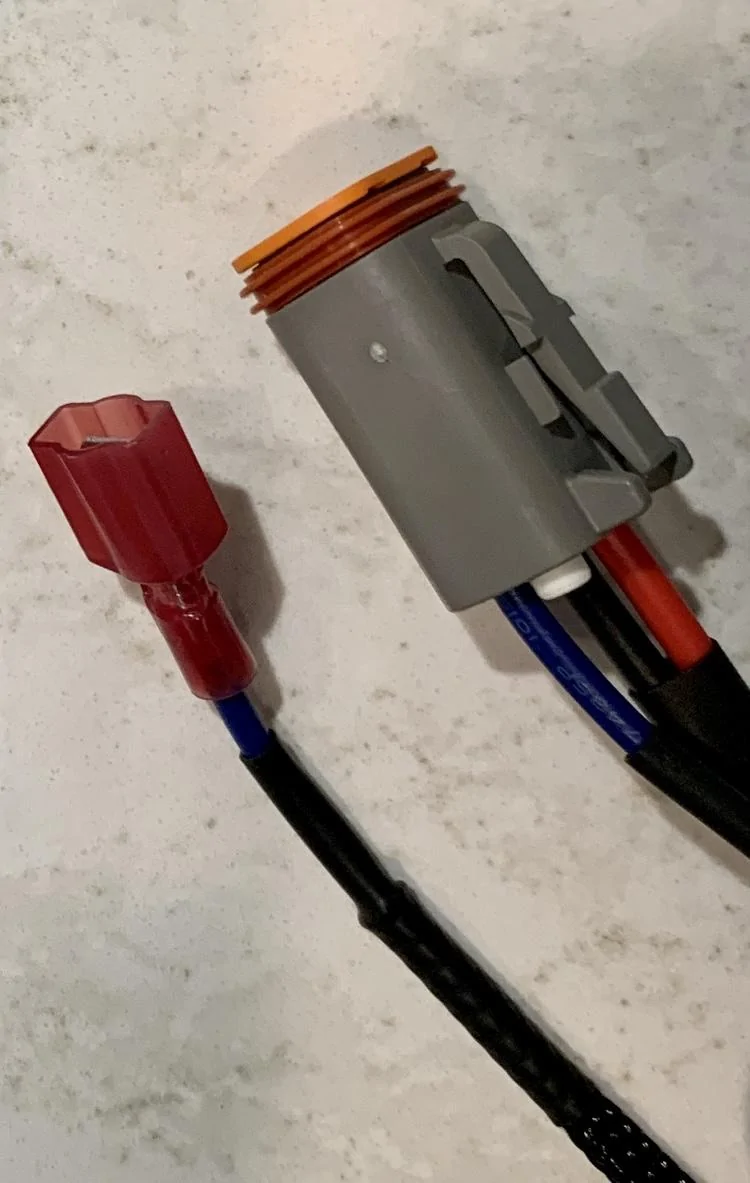

Like @WldOne mentioned, the Diode Dynamics harness has two red t-tap connectors for the backlight wires. If using the SS3s as ditch lights, the passenger side backlight wire is too short to reach the Bronco upfitter wires. I used the provided t-tap to connect the passenger SS3 backlight wire to the driver side backlight wire. I then connected the driver backlight wire to the aux switch wire I wanted to use, #6.
It works, but @Diode Dynamics is that fine?

I also installed 2 SSC1s on the modular bumper. Same experience with the passenger wire, too short so t-tapped it into driver side backlight wire like I did with the SS3s.



[Ground_zero298]

Just wondering if the are brighter than the backlighting on the Rigid Radiance pods

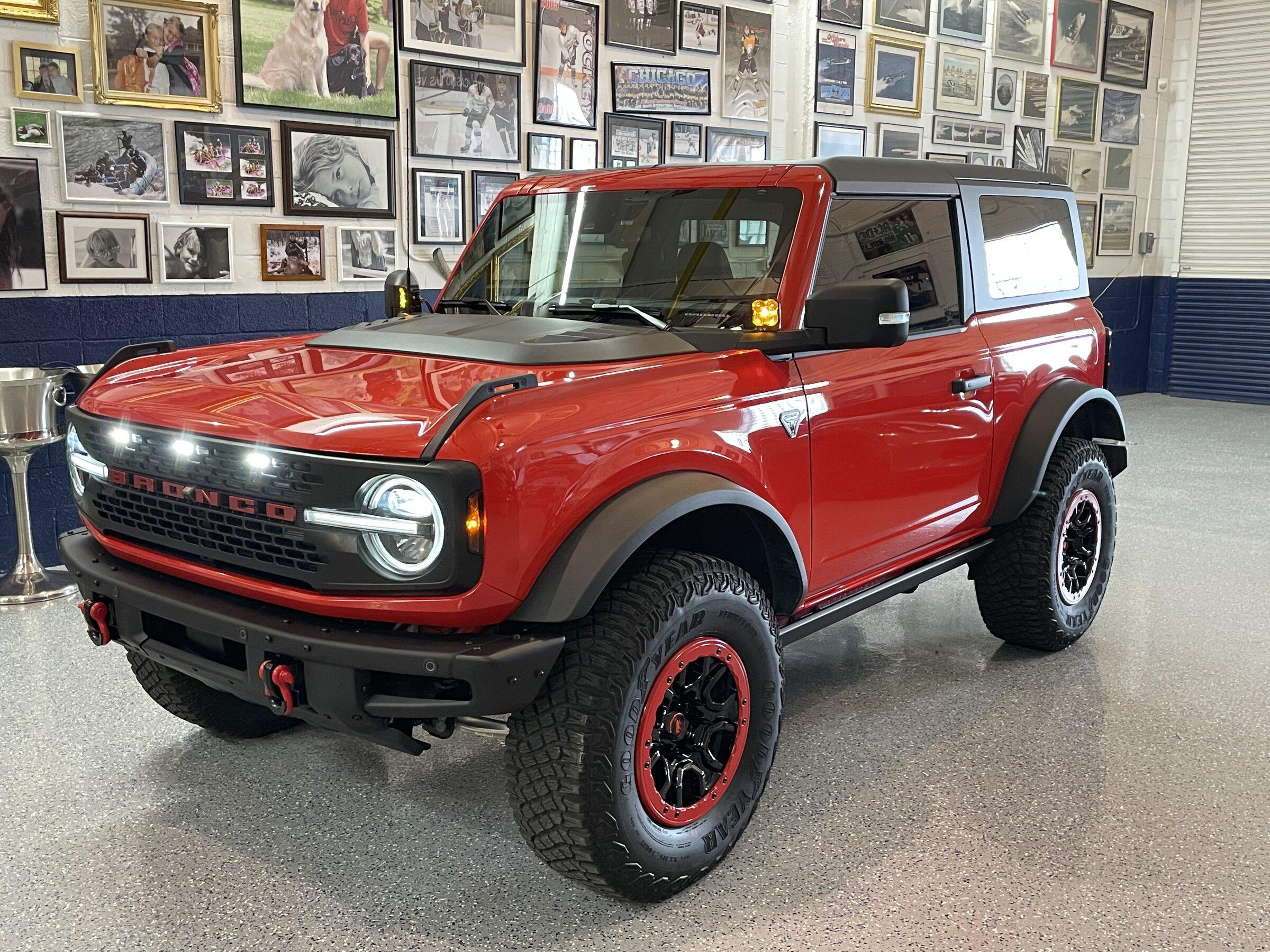

About this bright.



[WldOne]

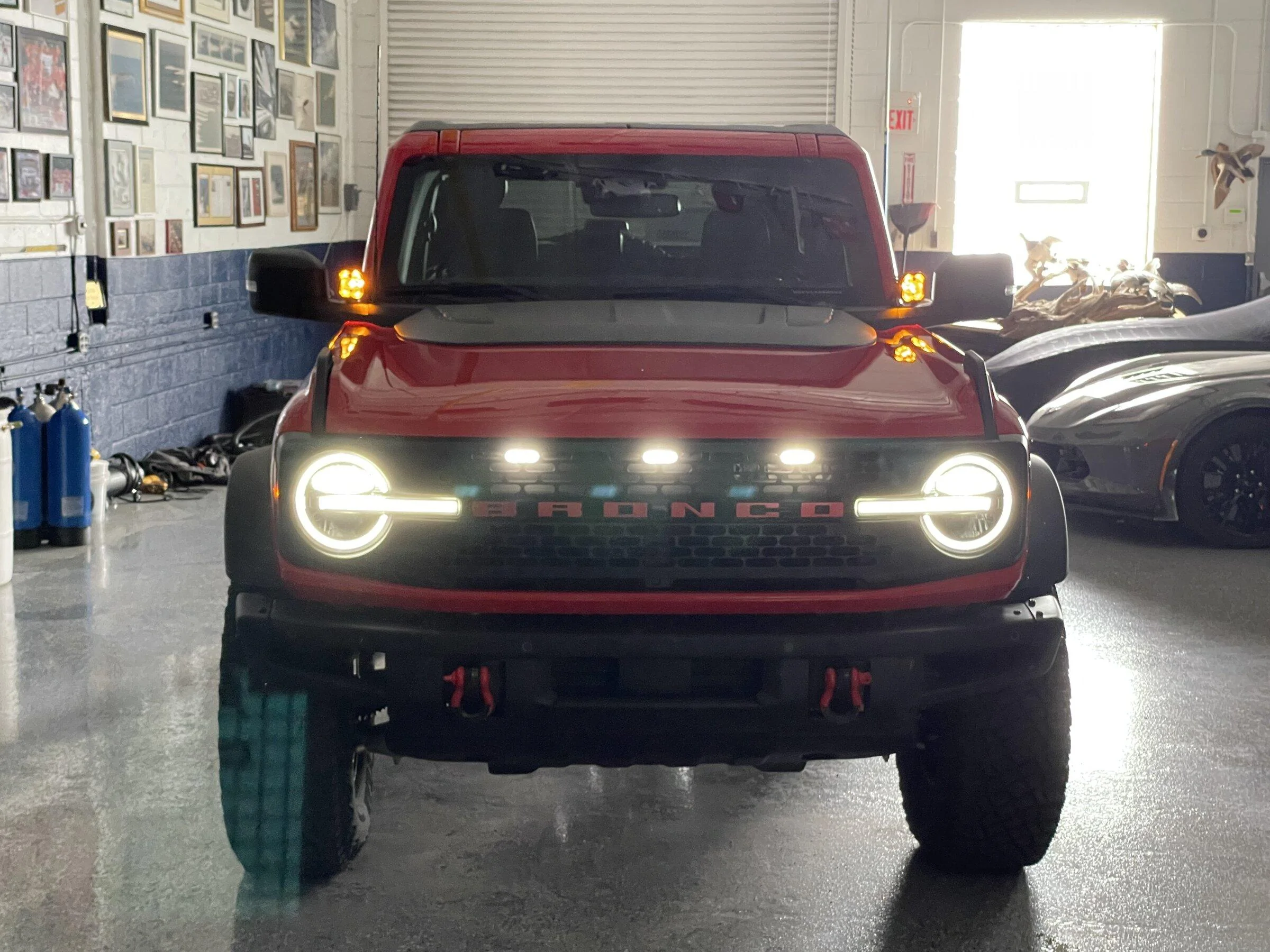

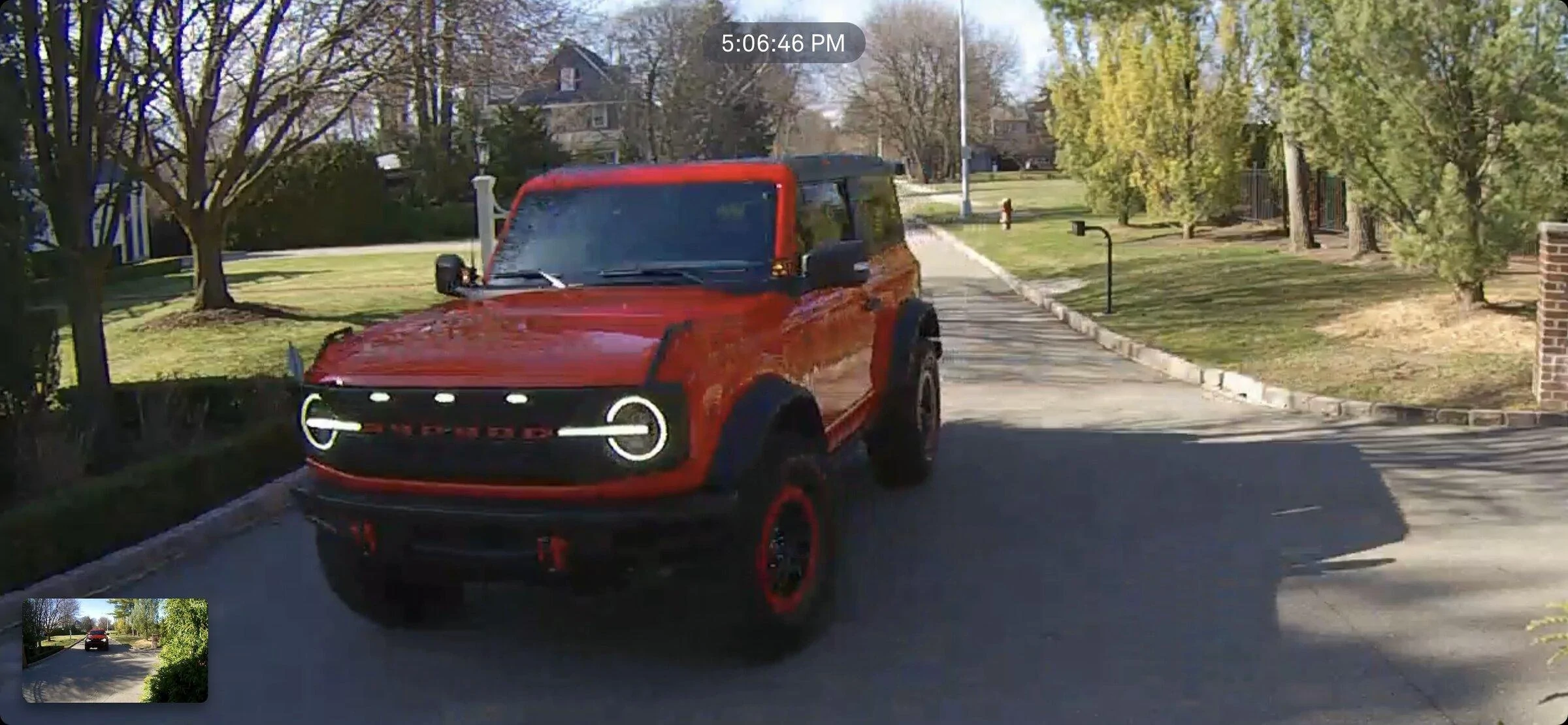

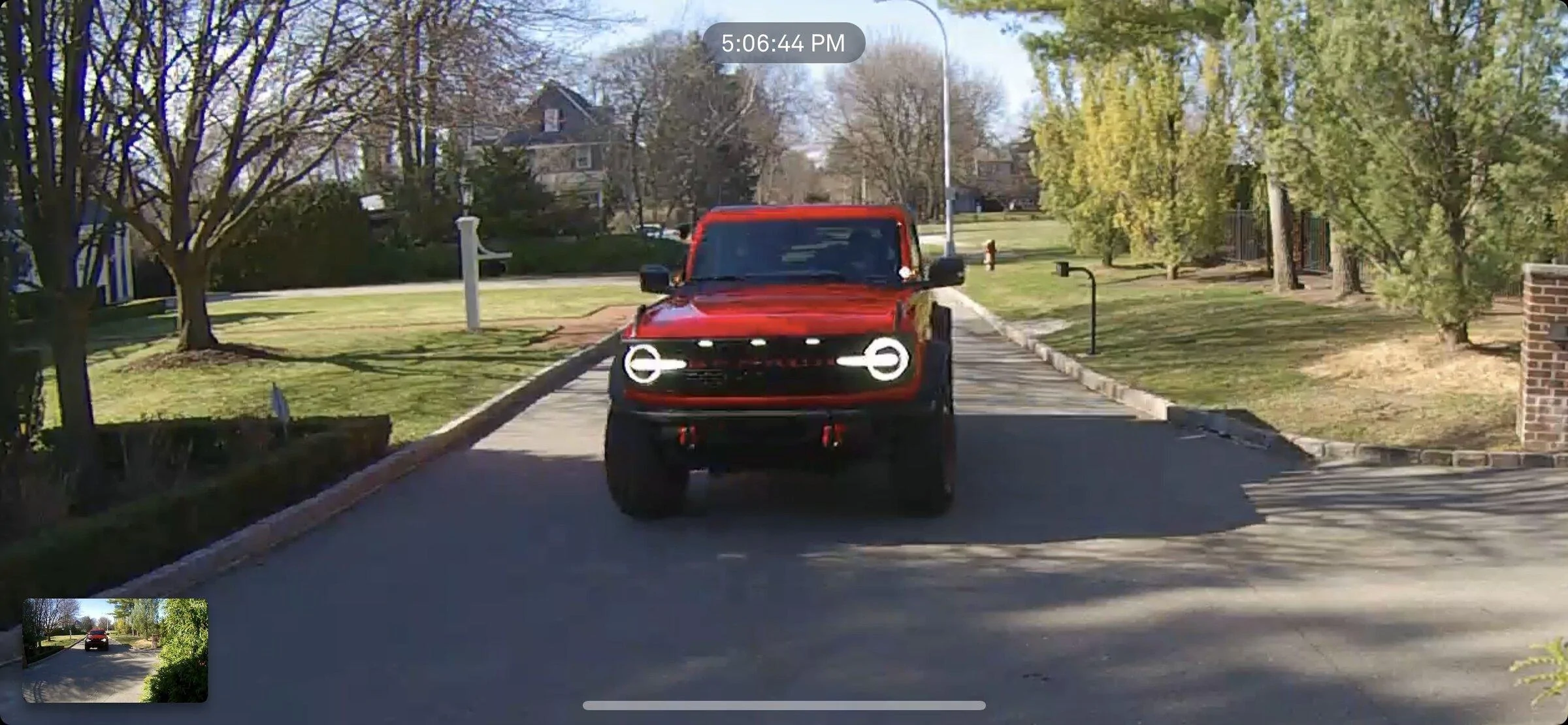

Here’s a short video of them in action.



[WldOne]

Like @WldOne mentioned, the Diode Dynamics harness has two red t-tap connectors for the backlight wires. If using the SS3s as ditch lights, the passenger side backlight wire is too short to reach the Bronco upfitter wires. I used the provided t-tap to connect the passenger SS3 backlight wire to the driver side backlight wire. I then connected the driver backlight wire to the aux switch wire I wanted to use, #6.
It works, but @Diode Dynamics is that fine?

I also installed 2 SSC1s on the modular bumper. Same experience with the passenger wire, too short so t-tapped it into driver side backlight wire like I did with the SS3s.

Yep this is exactly what I did. Now, I have found out 4x4truckled has a different harness with a cleaner backlight but connector instead of t-tap wires.
I’m going to buy this this summer and re-wire the lights up for a cleaner look.



[Diode Dynamics]

Like @WldOne mentioned, the Diode Dynamics harness has two red t-tap connectors for the backlight wires. If using the SS3s as ditch lights, the passenger side backlight wire is too short to reach the Bronco upfitter wires. I used the provided t-tap to connect the passenger SS3 backlight wire to the driver side backlight wire. I then connected the driver backlight wire to the aux switch wire I wanted to use, #6.
It works, but @Diode Dynamics is that fine?

I also installed 2 SSC1s on the modular bumper. Same experience with the passenger wire, too short so t-tapped it into driver side backlight wire like I did with the SS3s.

Yes, this is ok to do for obtaining power for the passenger side backlight.

According to our customer service team, it's been the common route for users for quite some time.

However, I am going to note the length concern for the passenger side backlight wire to our engineering team this upcoming Friday during our team meeting.

Thank you all for your feedback!



[4x4TruckLEDs.com]

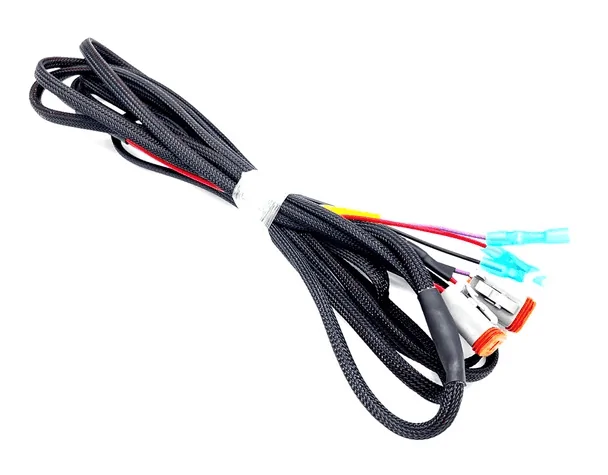

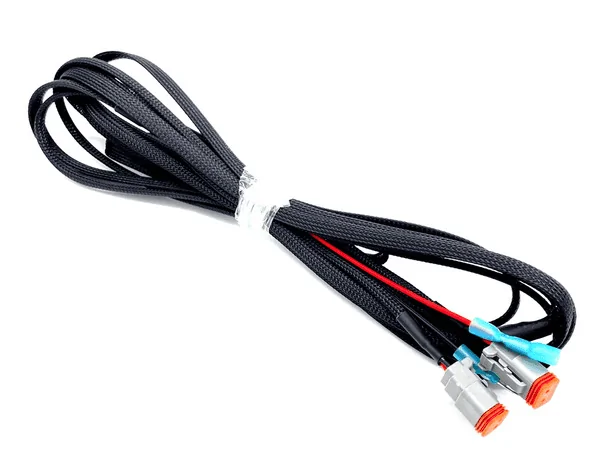

We have a harness available btw for the pillar kits. Designed for the upfitters. Panda also sells the harnesses
