Factory Fog Light Switch

[WuNgUn]

Hmm I did not try to turn them on with the high beams. I’ll give it a try soon.

This seems to occur only when the headlights are in auto. If I manually switch on the headlights, I can go highbeam with the rear fogs

Sponsored



[LanCar]

Can someone please confirm the single fog light switch w/o puddle lights?

Someone posted M2DZ-11654-BA, but then someone came back and said that was the dual front/rear switch which does seem to be the case for BA & BB.

Or could I just get the single with puddle lights and then just use the bezel from the original to remove puddle switches?

The correct part number is M2DZ-11654-AB.



[Cfield90]

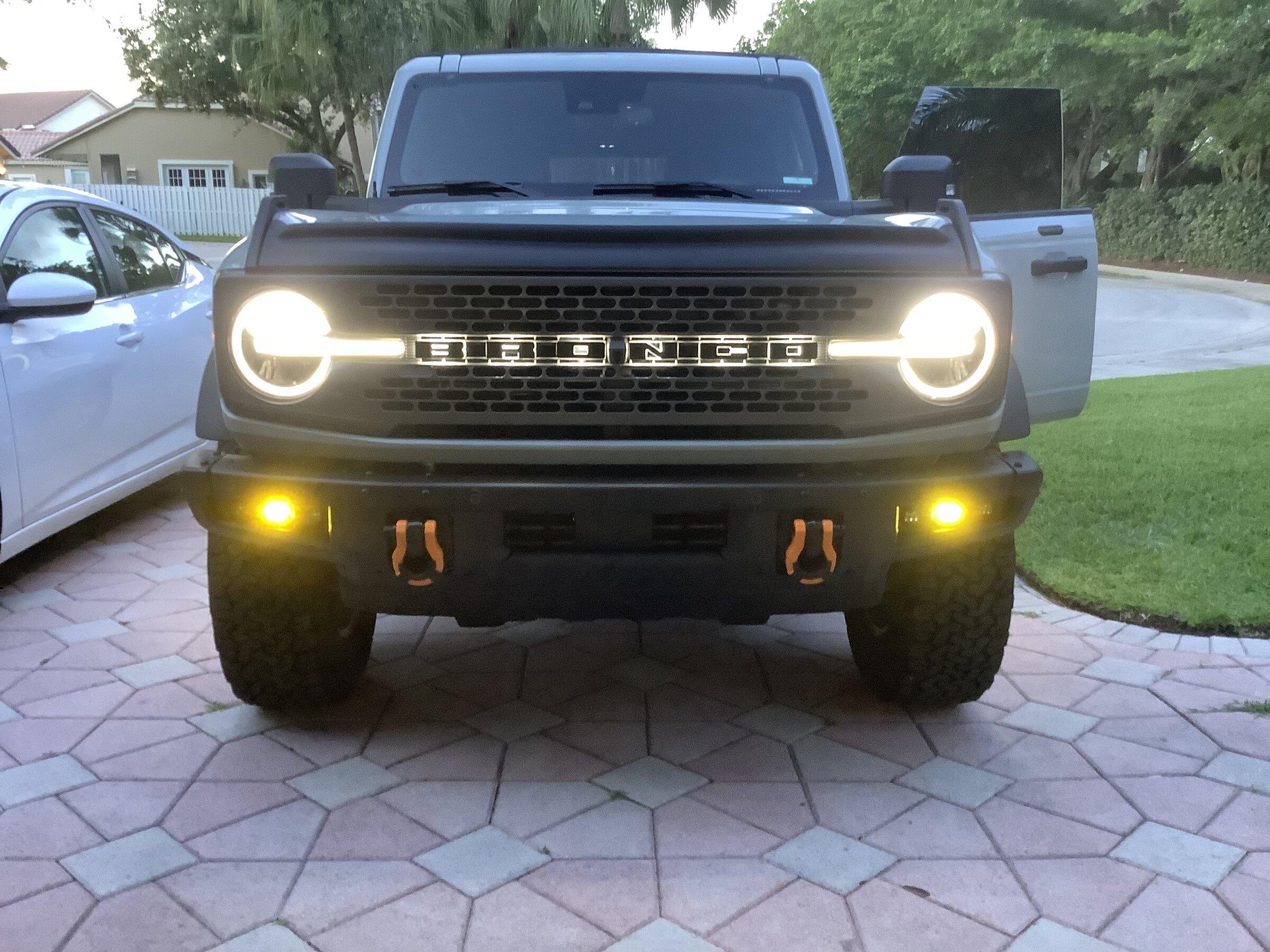

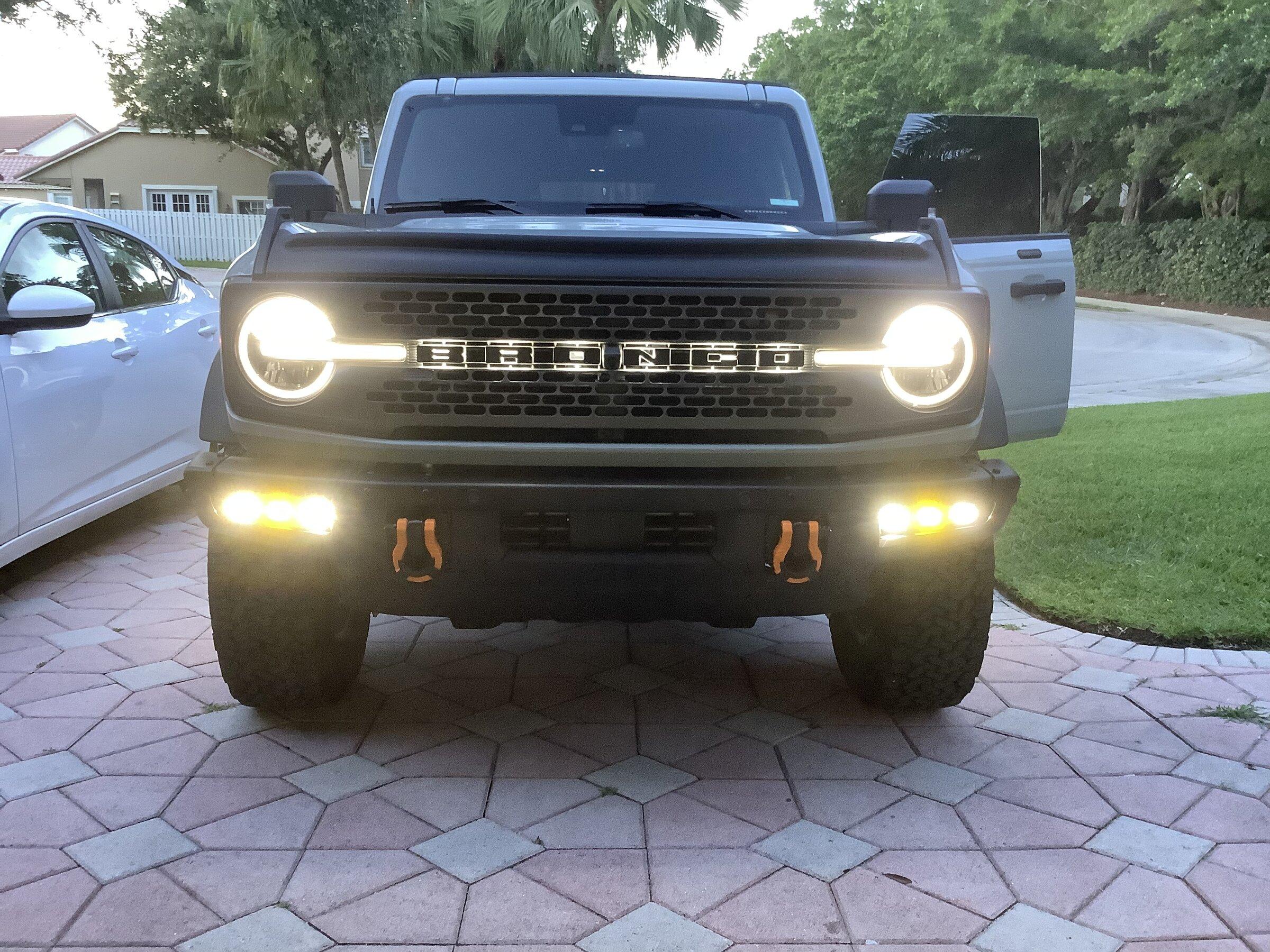

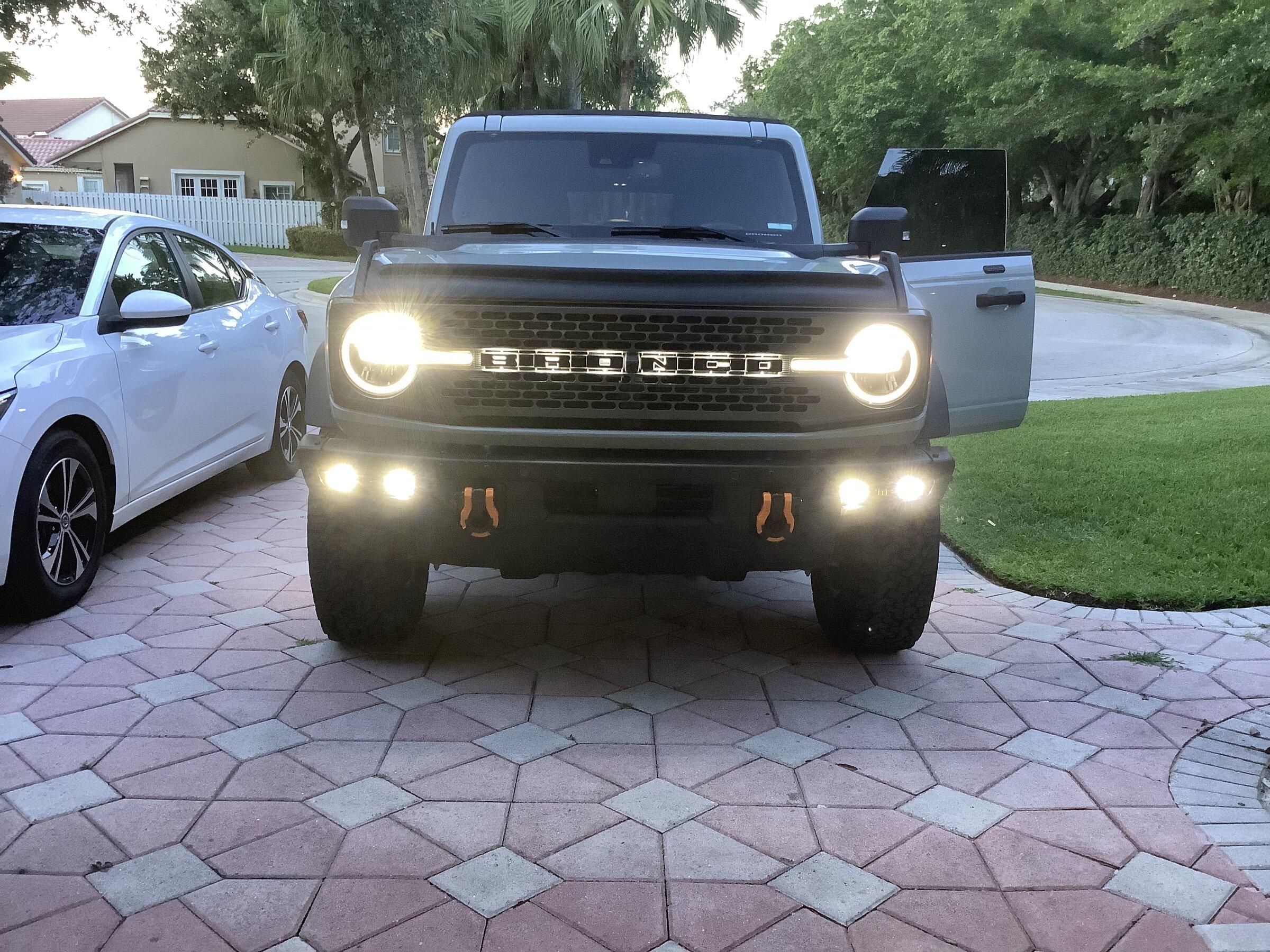

Managed to get set of @ORACLE Lighting triple fogs with whites on factory fog switch and yellows on aux 5. Somehow I neglected to see the forscan change needed to get the dash icon. Will have fix that later.



[Deltamav]

Managed to get set of @ORACLE Lighting triple fogs with whites on factory fog switch and yellows on aux 5. Somehow I neglected to see the forscan change needed to get the dash icon. Will have fix that later.

I want to do the same thing with the fog lights. Did you connect your oracle lights to the factory fog connectors near the shackles? If so, how?



[Cfield90]

I want to do the same thing with the fog lights. Did you connect your oracle lights to the factory fog connectors near the shackles? If so, how?

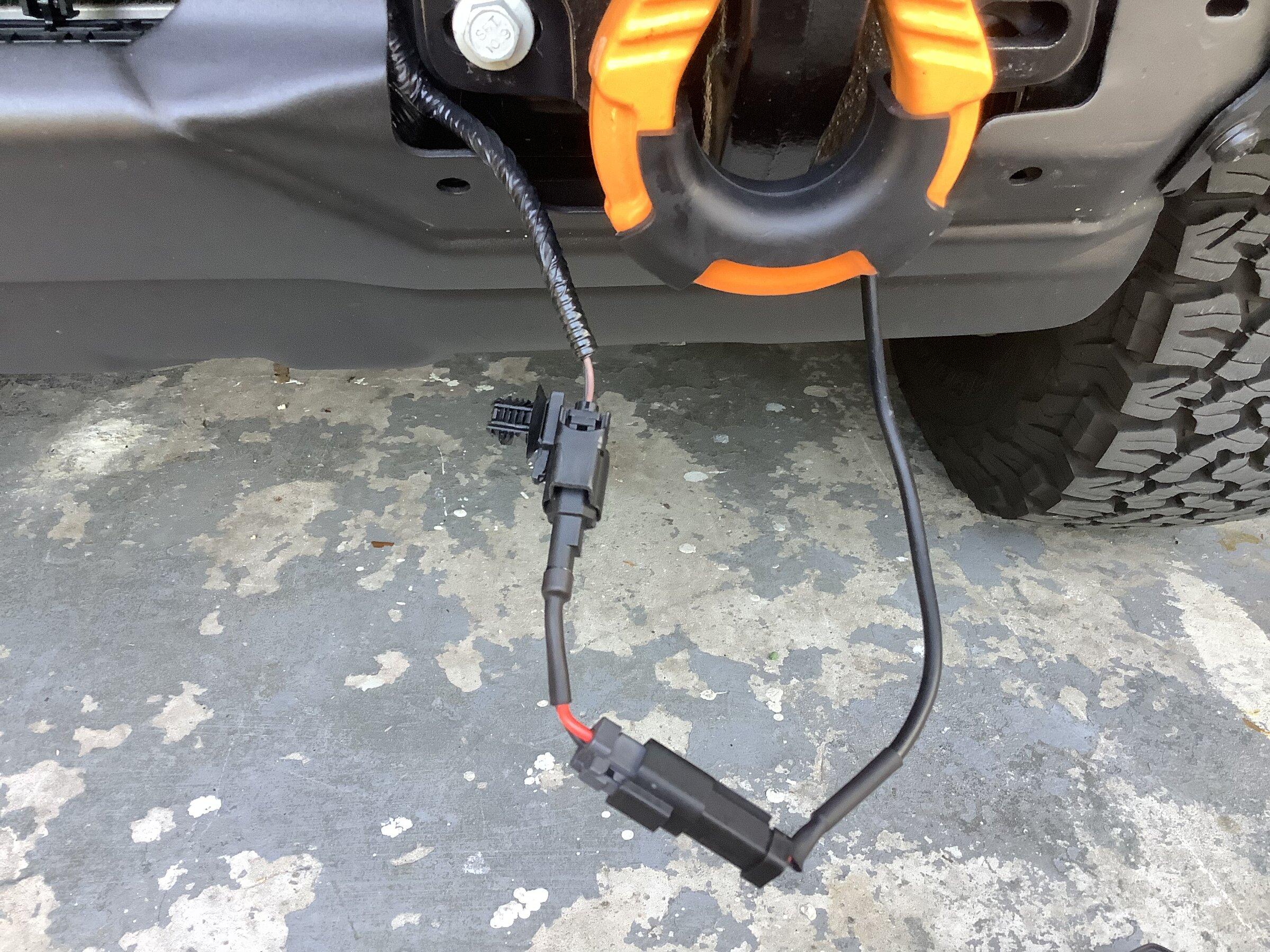

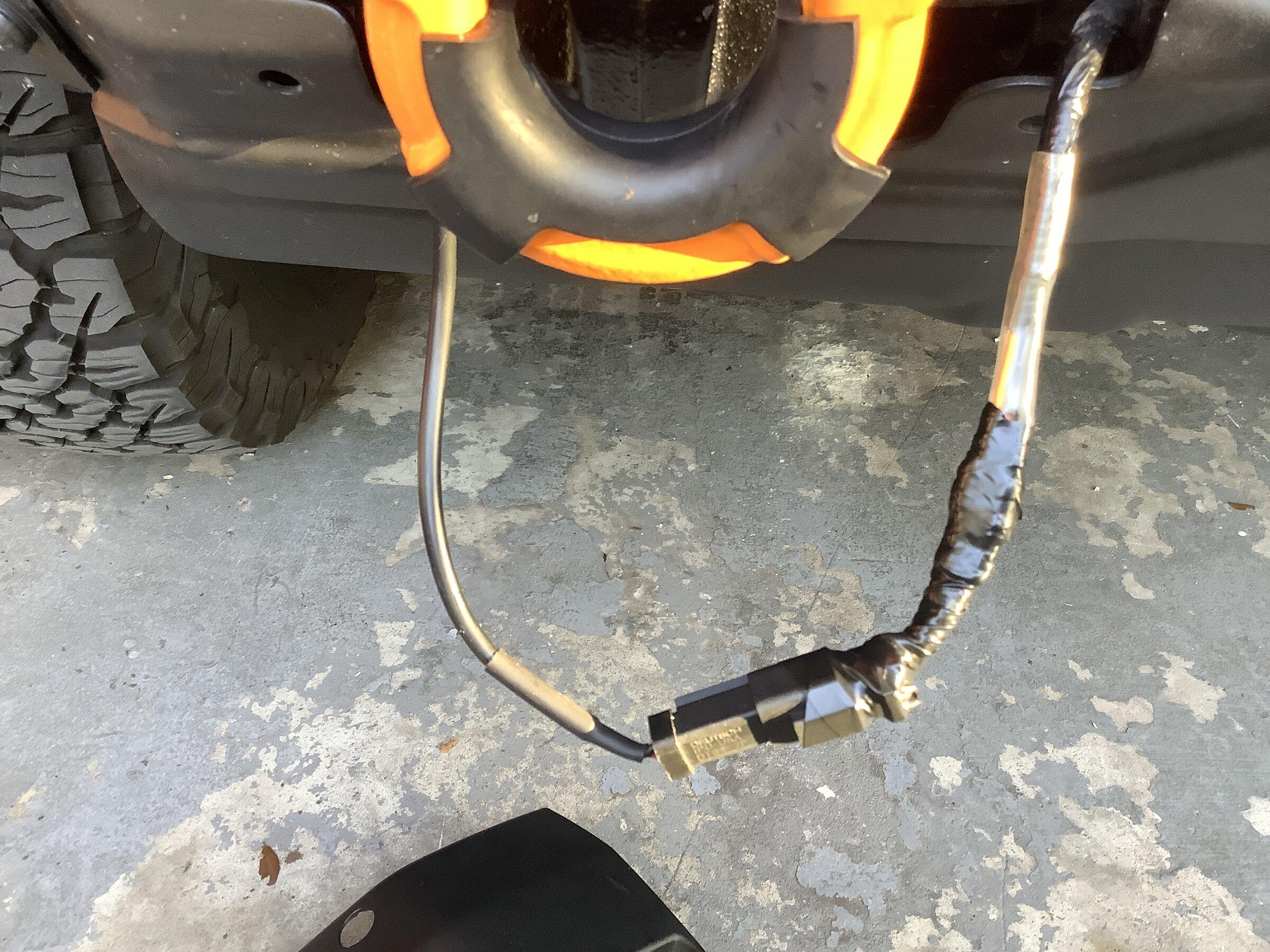

Yes. I essentially digested both this thread and the other spin-off thread (Updated:Fog lights added and connected to factory connector). I bought the pins to crimp and add to the factory plug, which worked nicely on one, but not the other, so I ended up cutting the factory connector off and wired directly to the Oracle male harness. For the side that did work, below is a pic. Hope this helps!

Here is the side that didn’t go as expected. I used male/female crimps, so I can disconnect without cutting more wire, if needed.



[Deltamav]

Yes. I essentially digested both this thread and the other spin-off thread (Updated:Fog lights added and connected to factory connector). I bought the pins to crimp and add to the factory plug, which worked nicely on one, but not the other, so I ended up cutting the factory connector off and wired directly to the Oracle male harness. For the side that did work, below is a pic. Hope this helps!

Here is the side that didn’t go as expected. I used male/female crimps, so I can disconnect without cutting more wire, if needed.

This is very helpful, thank you.

As an aside - was the powder coating on your light brackets damaged during shipping? Mine was lightly damaged (no pun intended) because the brackets were rubbing against one another, and that one piece of foam between them wasn't doing a damn thing. I emailed them to see about getting a replacement, so we'll see what happens.



[Gtrekker]

Sadly it’ll be end of October before I see mine if everything goes to plan but I figured it would be similar to the switch in my past Fords, usually it has a button for the fog and if not that area is left blank. So basically get my switch and figure out where the foglight power is. Knowing my luck the foglight wiring is there and just tied up or cut short.

Hey, if I'm following this chain correctly... Use the headlight/fog light switch you are using now for the amber lights and use the uplifter switch for the BD lights.



[Cfield90]

This is very helpful, thank you.

As an aside - was the powder coating on your light brackets damaged during shipping? Mine was lightly damaged (no pun intended) because the brackets were rubbing against one another, and that one piece of foam between them wasn't doing a damn thing. I emailed them to see about getting a replacement, so we'll see what happens.

Yes, there was some light bare metal on a couple of the edges. What was weird is there is what appears to be scuffing (not to the metal) right above the top of the lights—close to where the 3 mounting holes are.



[Ducati1098]

Did you go ahead and enable fog lights before installing. Afraid my 2 months of forscan will expire prior to getting lights and would like to go ahead and enable them just incase...

Just a FYI, if you set the date on your computer back, it will continue to work even after it’s technically expired. This way it never actually expires.



[Deltamav]

Yes, there was some light bare metal on a couple of the edges. What was weird is there is what appears to be scuffing (not to the metal) right above the top of the lights—close to where the 3 mounting holes are.

Same. I guess you get what you pay for...



[cyberfalco]

I appreciate all the information in this thread. I ordered the OBD2 reader so I can use Forscan to enable the fog light switch. I ordered a fog light compatible headlight switch and the JCR HD Steel bumper fog light brackets. I already had a set of Rigid pods I won years ago still new in the package to install.

https://www.jcroffroad.com/product/BR6SB-FG.html
https://www.ruxerparts.com/oem-part...ps-m2dz11654ca?c=bD0xMyZuPUNhdGVnb3J5IFBhZ2U=
https://www.amazon.com/gp/product/B081VQVD3F/ref=ppx_od_dt_b_asin_title_s00?ie=UTF8&psc=1



[4x4TruckLEDs.com]

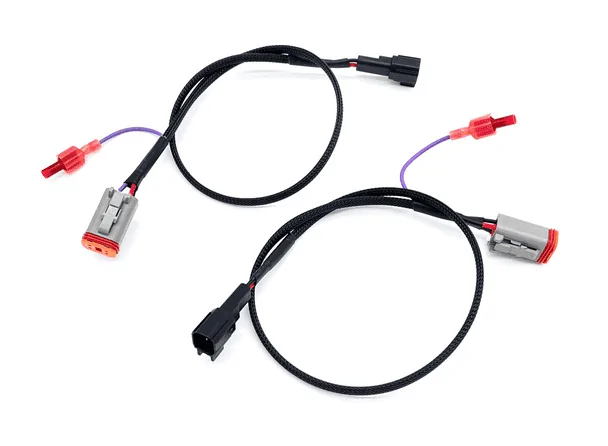

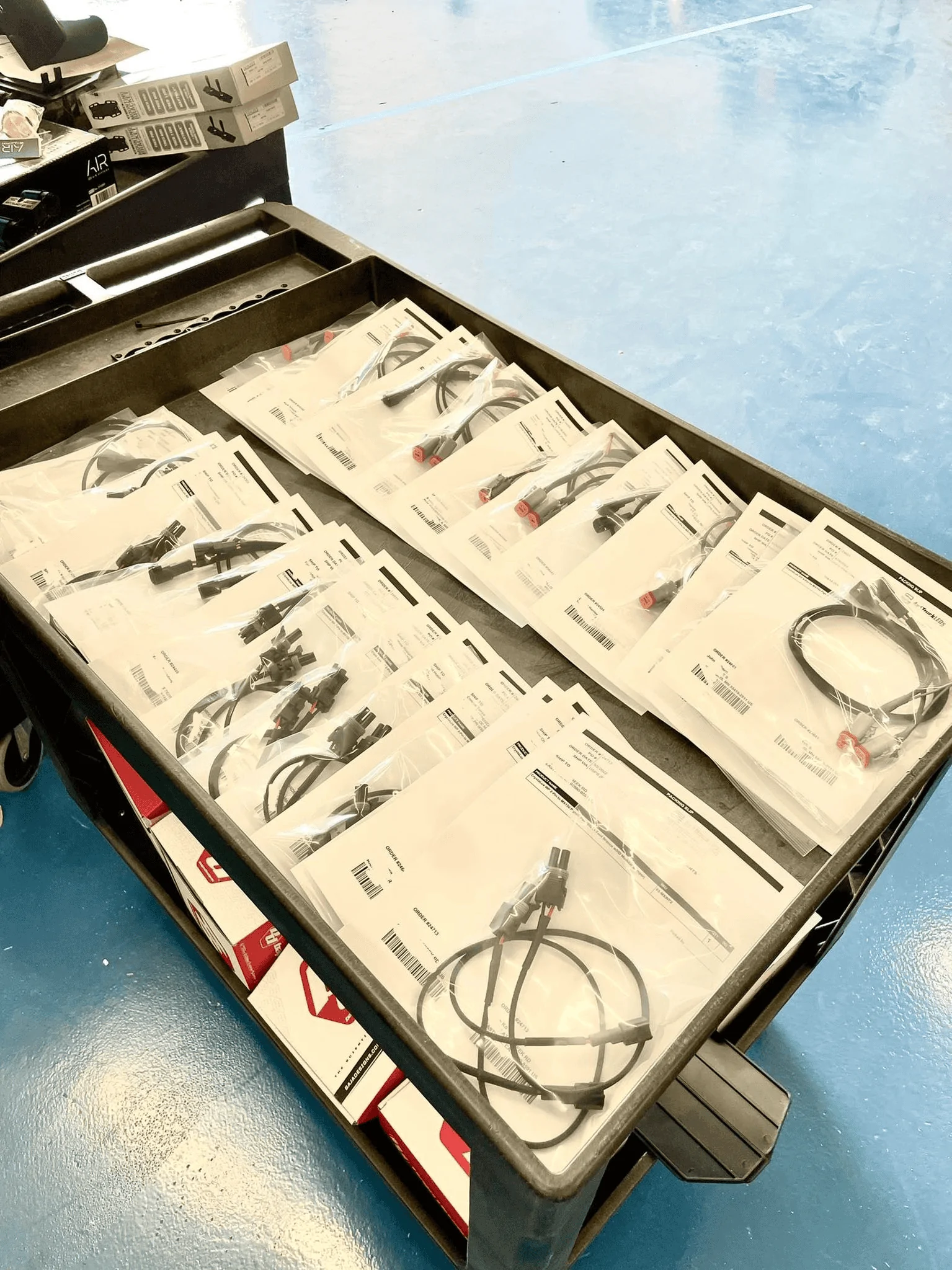

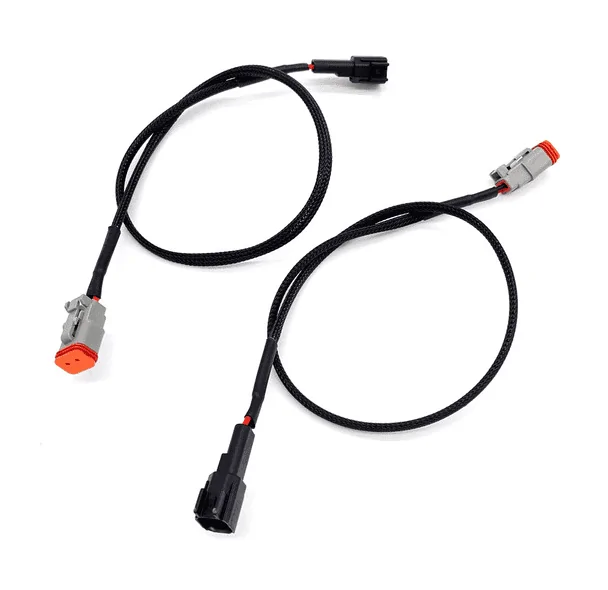

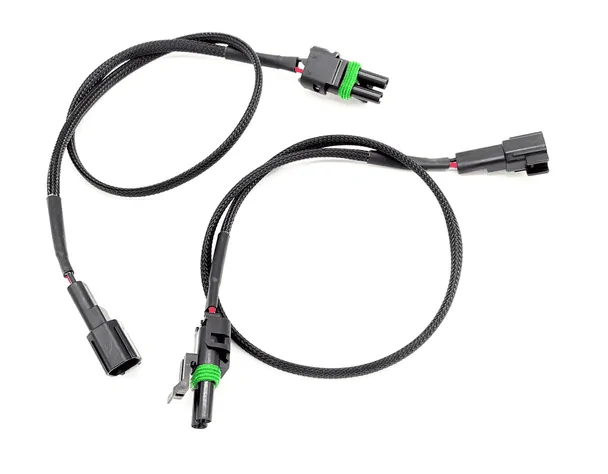

The Pigtails are here! We're shipping them out

CrystaLux DT 4-Pin to MX150 Pigtail, Pair (2021+ Ford Bronco w/HD Modular Bumper)
https://www.4x4truckleds.com/crysta...il-pair-2021-ford-bronco-w-hd-modular-bumper/

CrystaLux DT 2-Pin to MX150 Pigtail, Pair (2021+ Ford Bronco w/HD Modular Bumper)
https://www.4x4truckleds.com/crysta...il-pair-2021-ford-bronco-w-hd-modular-bumper/

CrystaLux WP 2-Pin to MX150 Pigtail, Pair (2021+ Ford Bronco w/HD Modular Bumper)
https://www.4x4truckleds.com/crysta...il-pair-2021-ford-bronco-w-hd-modular-bumper/



[cyberfalco]

The Pigtails are here! We're shipping them out

CrystaLux DT 4-Pin to MX150 Pigtail, Pair (2021+ Ford Bronco w/HD Modular Bumper)
https://www.4x4truckleds.com/crysta...il-pair-2021-ford-bronco-w-hd-modular-bumper/

CrystaLux DT 2-Pin to MX150 Pigtail, Pair (2021+ Ford Bronco w/HD Modular Bumper)
https://www.4x4truckleds.com/crysta...il-pair-2021-ford-bronco-w-hd-modular-bumper/

CrystaLux WP 2-Pin to MX150 Pigtail, Pair (2021+ Ford Bronco w/HD Modular Bumper)
https://www.4x4truckleds.com/crysta...il-pair-2021-ford-bronco-w-hd-modular-bumper/

Awesome! I just ordered a pair now that I confirmed my Bronco has the factory harness.



[4x4TruckLEDs.com]

Awesome! I just ordered a pair now that I confirmed my Bronco has the factory harness.

Sounds good. A nice elegant solution to control 1 pair of fogs



[F-Spot]

The Pigtails are here! We're shipping them out

CrystaLux DT 4-Pin to MX150 Pigtail, Pair (2021+ Ford Bronco w/HD Modular Bumper)
https://www.4x4truckleds.com/crysta...il-pair-2021-ford-bronco-w-hd-modular-bumper/

CrystaLux DT 2-Pin to MX150 Pigtail, Pair (2021+ Ford Bronco w/HD Modular Bumper)
https://www.4x4truckleds.com/crysta...il-pair-2021-ford-bronco-w-hd-modular-bumper/

CrystaLux WP 2-Pin to MX150 Pigtail, Pair (2021+ Ford Bronco w/HD Modular Bumper)
https://www.4x4truckleds.com/crysta...il-pair-2021-ford-bronco-w-hd-modular-bumper/

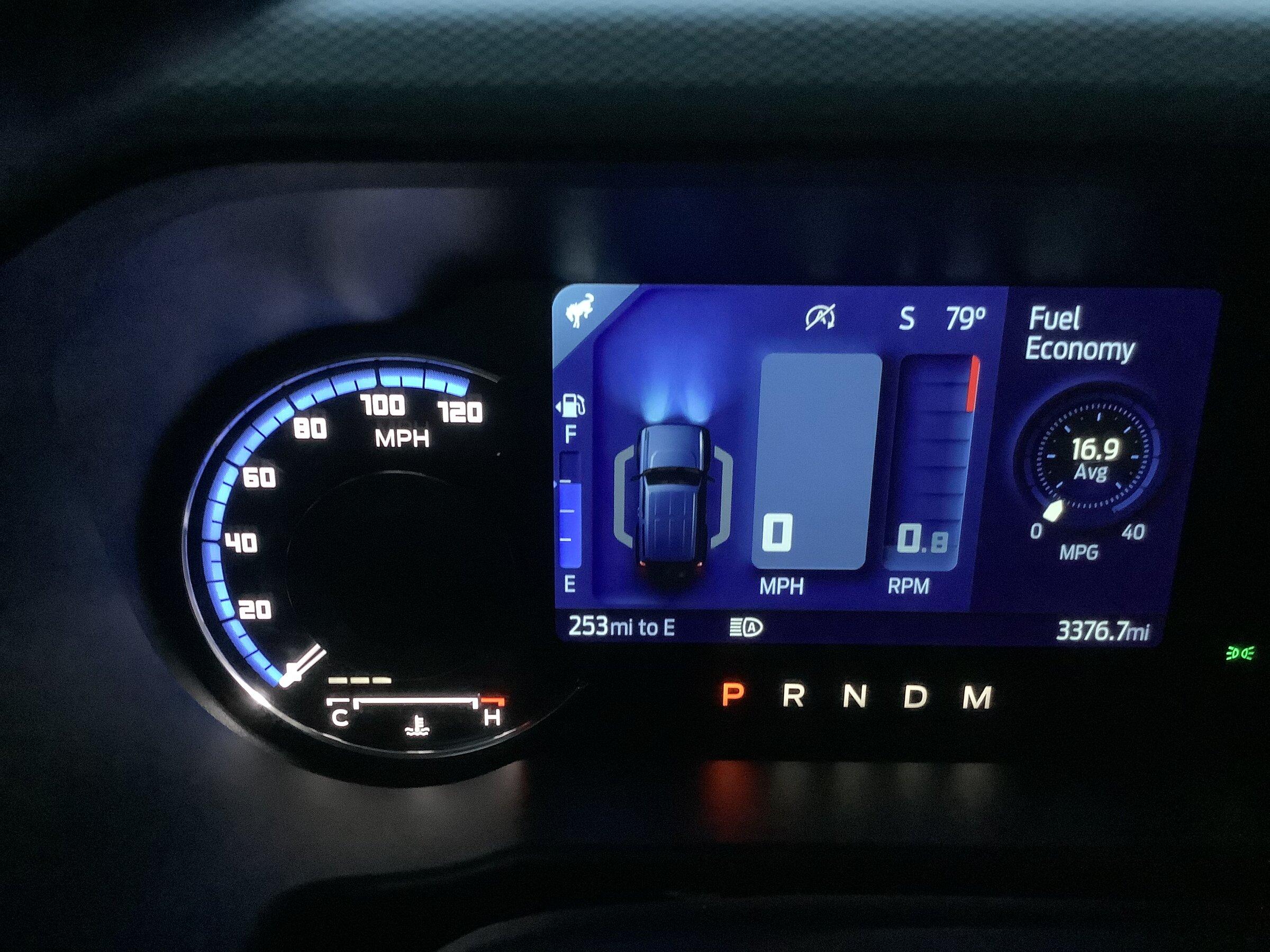

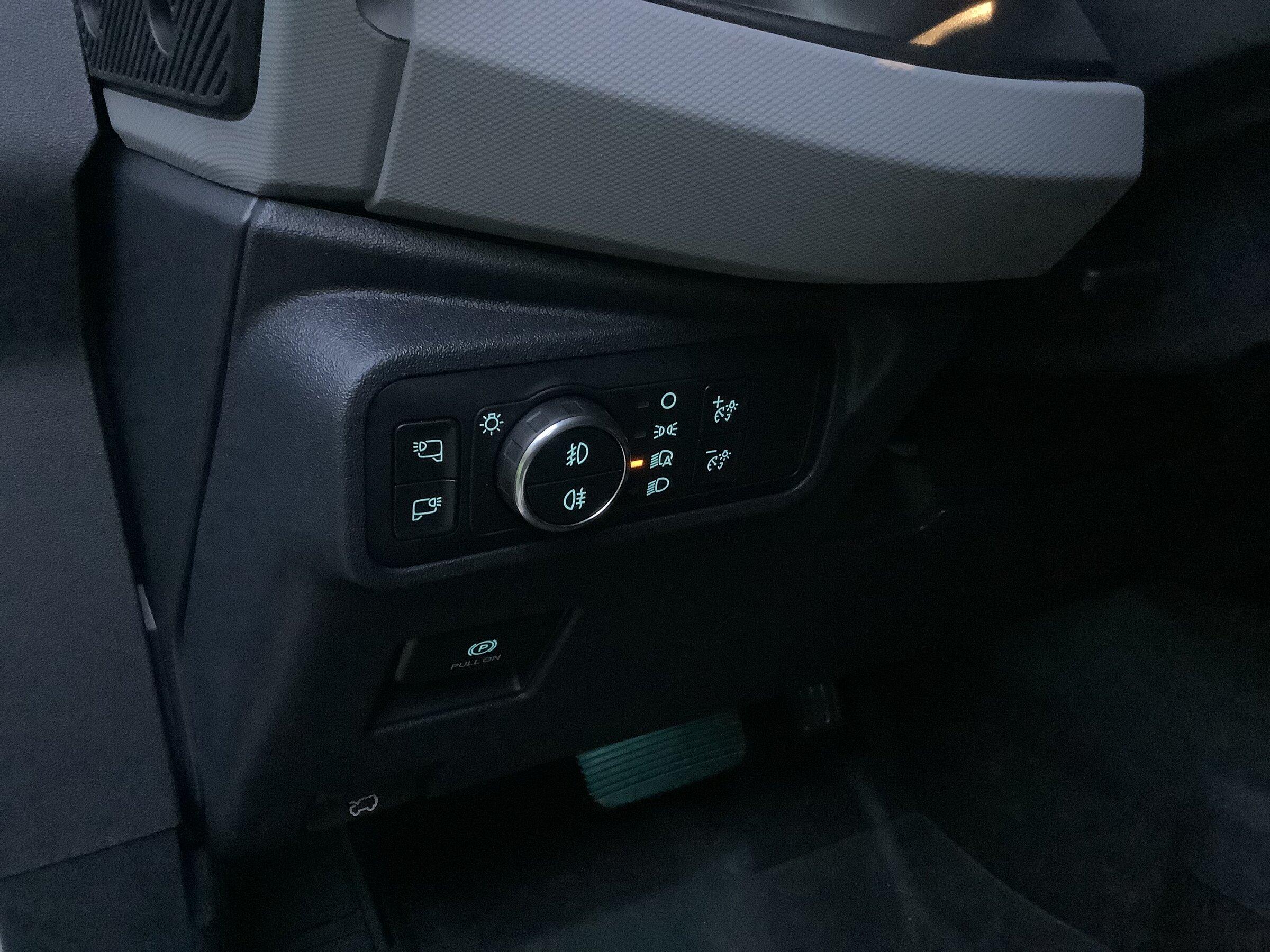

Received my pigtails yesterday and connected them this morning. Took just a few minutes to connect and swap out the factory fog button assembly. Forscan went smooth except for when I went into IPC. Somehow, I ended up resetting the IPC rather than going into the IPC configuration. It didn't seem to affect anything, and all it seemed to do was ask me to choose what views to add to the dash display. Everything works good so far after making the appropriate forscan changes. I get power and the dash indicator.
