Factory Fog Light Switch

[Ducati1098]

Hi all
I'm the new guy, I have a black diamond, with mod bumper, I did just get the fog light headlight switch ,but just for the front , is this plug in the front and did you need to change forscan?
Thanks and sorry if this has been covered a 1000 times before, just trying to catch up with everyone.

No worries. I’m actually interested if they started wiring up newer models. What year is yours? It would run along the bottom of the bumper behind the tow hooks. Mine does not have it. I need to tap into the harness above the fender (on my to-do list over the next few weeks). Yes, you will need Forscan to make it operate correctly.

I’m curious to this as well. I have a ‘23 Everglades arriving in the next week or so. It’s a mid package with 12” screen so not sure what’s all there and what’s not. I’d really like to add the front and side cameras for 360 if possible.

The fog light connectors are part of the front park aid harness.
So if the vehicle is equipped with front park aid, then it will have the fog light connectors.

Sponsored



[ModifyMike]

here’s a link to the switch

https://www.tascaparts.com/oem-part...-headlamps-m2dz11654cc?c=cT1NMkRaLTExNjU0LUNC

I’ve had it on my bronco for over a year now but I do appreciate it!



[redone17]

The fog light connectors are part of the front park aid harness.
So if the vehicle is equipped with front park aid, then it will have the fog light connectors.

Right. But, now that capable bumper is standard and includes fogs - do they omit that harness including C192 if equipped with the optional modular bumper?



[Ducati1098]

Right. But, now that capable bumper is standard and includes fogs - do they omit that harness including C192 if equipped with the optional modular bumper?

Thats what I was trying to explain.
For a modular bumper, It all depends on park aid.
If it has front park aid sensors, it has fog light connectors.
If it doesn’t have front park aid, it doesn’t get the harness at all, so it would not have fog light connectors.



[redone17]

Thats what I was trying to explain.
For a modular bumper, It all depends on park aid.
If it has front park aid sensors, it has fog light connectors.
If it doesn’t have front park aid, it doesn’t get the harness at all, so it would not have fog light connectors.

Black Diamond does not have park aid. But, has fog lights in the capable bumper. Modular bumper as an option since 2022 - no fog lights.



[Ducati1098]

Black Diamond does not have park aid. But, has fog lights in the capable bumper. Modular bumper as an option since 2022 - no fog lights.

Exactly. No park aid, no fog light connectors with the modular bumper.
The capable bumper makes no difference. Once you switch to the optional modular bumper, which harness the vehicle comes with changes because now you no longer have fogs or park aid.



[redone17]

Exactly. No park aid, no fog light connectors with the modular bumper.
The capable bumper makes no difference. Once you switch to the optional modular bumper, which harness the vehicle comes with changes because now you no longer have fogs or park aid.

That’s what I was looking to confirm. So, they omit it. It’s strange which wiring they keep in place and which they omit depending on options. Really annoying considering they left those holes in the modular bumper to install aftermarket fogs. Like, c’mon. Throw us a bone.

Right now I’m currently trying to get a pre-prep kit model that came with a soft top to utilize the rear defrost on an acquired hard top. It seems like the wiring is in place from console to cargo - but, for some stupid reason the HVAC controls aren’t heating the grid with the mirror defrost button. So, some pins are missing or something.



[Ducati1098]

That’s what I was looking to confirm. So, they omit it. It’s strange which wiring they keep in place and which they omit depending on options. Really annoying considering they left those holes in the modular bumper to install aftermarket fogs. Like, c’mon. Throw us a bone.

The reason it’s omitted is the way the harness is installed.
During assembly the harness is pre-installed onto the bumper before installation, then just connected to the rest of the front body harness when the bumper is being mounted. So if you option the modular bumper and you don’t have the options necessary for the harness, there is no reason for them to add it before install



[redone17]

The reason it’s omitted is the way the harness is installed.
During assembly the harness is pre-installed onto the bumper before installation, then just connected to the rest of the front body harness when the bumper is being mounted. So if you option the modular bumper and you don’t have the options necessary for the harness, there is no reason for them to add it before install

Thanks for the insight. That makes sense.



[fdchief]

Thank god i found this thread... just ordered the parts as i have a badsquatch high package and believe the harness should be there in the bumper. Even if it isnt I am still going to figure out a way to use the factory fog switch once i get the new switch from tasca.



[BroncoBoy22]

Since the capable bumper is standard for ‘22 BL & BD, I plan on getting that and buying the mod bumper after. That way the fog switch/BCM stuff is already done. I just have to hook the stock harness up to aftermarket fogs

I wound up optioning the mod bumper from factory.

added my own fogs and hooked them up to an aux switch



[cshull]

Sorry if this has been addressed, is the wiring in the Mod bumper of the BL with the high package or just the lux package?



[l88m22vette]

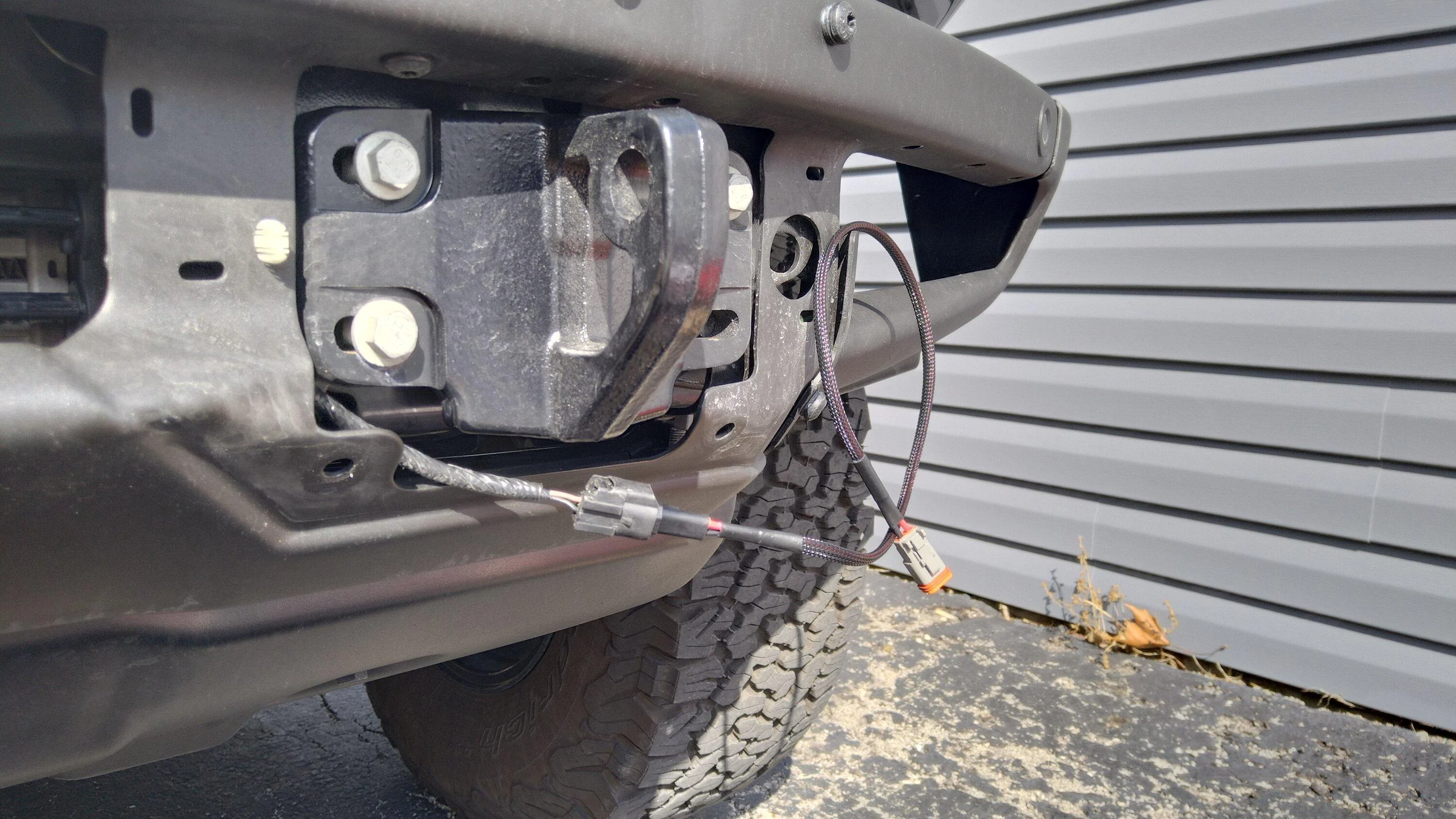

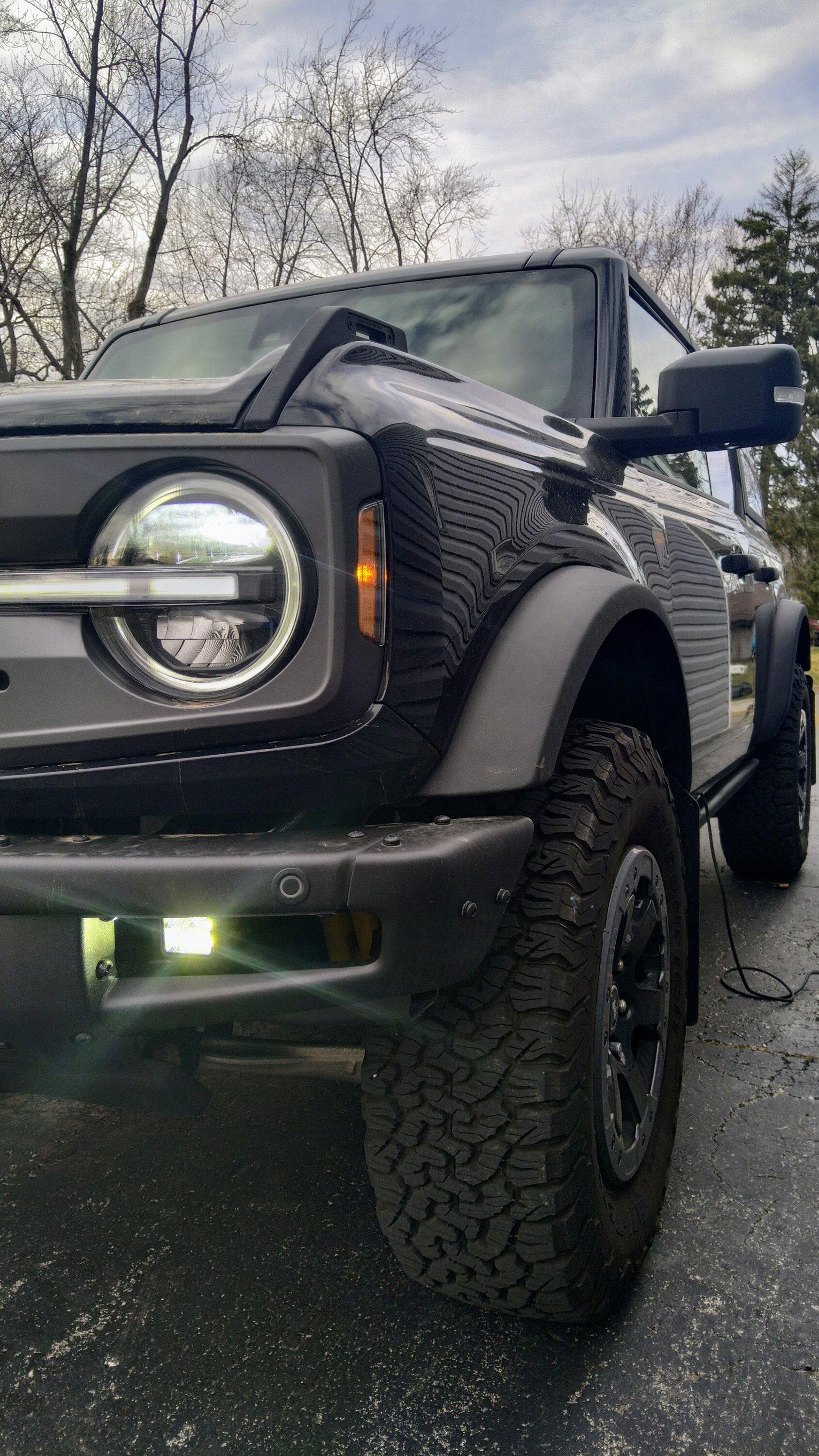

Hella 2.7 Cubes with Deutsch adapters (thanks @4x4TruckLEDs.com !), and the -DC version of the headlight switch. Everything plugged right in and page 28 was the way! I need some 3/4" spacers, that'll allow me to move them up and tuck them into the opening a bit better, but I'll do that when I install my Hella 500s



[Bill K]

Oh crap! That adds to the pile. I assumed all MY2022 that come standard with capable bumper would have the wiring by default. I guess not…so STD/MID Package + Modular Bumper is the problem child.

Did you ever find a solution to this? I have fog lights on order and a Big Bend mid package with modular bumper and no connectors located by the tow hooks. Was hoping to install a factory switch to use for the fog lights. I'm wondering if there is somewhere else in the factory harness to tap in to do this. Can anyone help?
