The factory wiring diagrams don't differentiate between with tow or without (at least not right now). Looking in the parts system there are dozens of options for the rear harness with or without tow, 2 or 4 door, audio system, sway bar disconnect, etc. Most F150s, even without factory tow will have the plug taped to the harness. I'm not confident non-tow broncos will have the plug which means we will have to tap into the tail light wiring somewhere.

If you tap into the brake/turn circuits in the back the tow module/converter will do the rest. I would like to find out if there is a circuit running back to provide battery power for break away charging and interior light if needed.
I think the key to solving by part numbers will be comparing the 2 door non LED (Base Harness) to the most stripped down 2 door LED Harness with no tow package. That will eliminate the options If you have service diagrams available, I could tell you from them.
Advertisement



Brianstrange

Badlands
Well-Known Member
First Name
Brian
Joined
Jan 25, 2021
Messages
196
Reaction score
345
Location
Ma
Vehicle(s)
66 EB , 67 Stang, 77 GMC Motorhome, A6 3.0T, W211
Bronco
Badlands
Yeah and talk about the one inside. There was a debate as to if the LEDs have an actual brake switch due to variable voltage. So when I saw that fuse I thought maybe it led to something that could be used to tap in for brake lights instead of trying to tap into the LEDs in the back. But who knows
If this was a roulette wheel, my money is a 12 volt brake circuit. The brake switch is the same on this and a 2010 Ford explorer which uses a conventional bulb on the back end.

OP
OP
flip

flip

Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Messages
1,015
Reaction score
4,206
Location
IN
Vehicle(s)
Fords
Bronco
Undecided
Clubs

I think the key to solving by part numbers will be comparing the 2 door non LED (Base Harness) to the most stripped down 2 door LED Harness with no tow package. That will eliminate the options If you have service diagrams available, I could tell you from them.

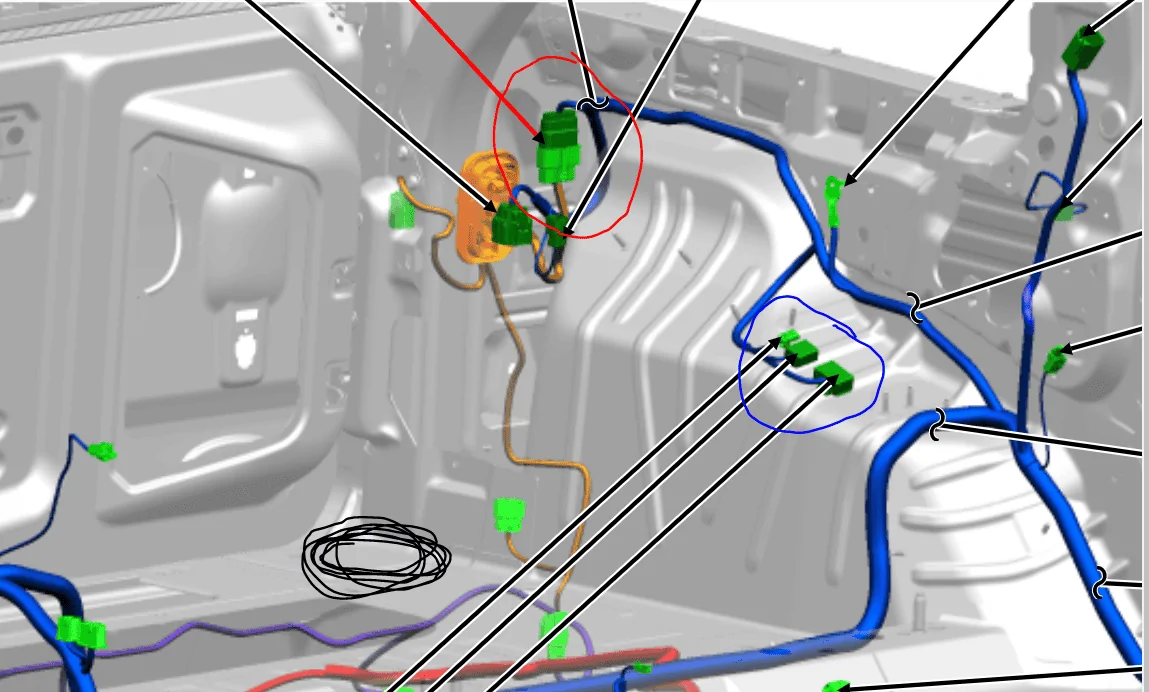

That's part of the problem, it doesn't call out the differences. I'm down to connector level comparison. Unfortunately, the parts system shows multiple rear options, with and without tow. By that, I'm assuming the main running from the front does not include wiring that would have fed the factory tow module. Will be easy to figure out when I can actually put my paws on one.

OP
OP
flip

flip

Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Messages
1,015
Reaction score
4,206
Location
IN
Vehicle(s)
Fords
Bronco
Undecided
Clubs

If this was a roulette wheel, my money is a 12 volt brake circuit. The brake switch is the same on this and a 2010 Ford explorer which uses a conventional bulb on the back end.
Turn, stop and park lights all come straight out of the BCM, body control module under the left side of the dash, through a few connectors and splice to the rear lights.


Brianstrange

Badlands
Well-Known Member
First Name
Brian
Joined
Jan 25, 2021
Messages
196
Reaction score
345
Location
Ma
Vehicle(s)
66 EB , 67 Stang, 77 GMC Motorhome, A6 3.0T, W211
Bronco
Badlands
Turn, stop and park lights all come straight out of the BCM, body control module under the left side of the dash, through a few connectors and splice to the rear lights.
Ford has done it this way for many years, it's nothing new. Both the Low and high(LED) lighting packages should be wired that way. The low lighting package is a bulb\socket design. Those use 12v lights.


randym

Outer Banks
New Member
First Name
Randy
Joined
Jul 20, 2020
Messages
2
Reaction score
4
Location
TX
Vehicle(s)
Ford F-150
Bronco
Outer Banks
Does the tow package come with a transmission cooler?

OP
OP
flip

flip

Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Messages
1,015
Reaction score
4,206
Location
IN
Vehicle(s)
Fords
Bronco
Undecided
Clubs

Does the tow package come with a transmission cooler?
From what I've seen so far, cooler is same on tow and non-tow. Parts list may not reflect differences yet but all I can see is one for 2.3 on the trans and the 2.7 under the radiator area.


RPF

First Edition
Well-Known Member
Joined
Oct 22, 2020
Messages
200
Reaction score
316
Location
FL, HI
Vehicle(s)
11 Raptor 19 F-450 15 Q70S/5.6
Bronco
First Edition
The 4/7 pin plug is made by Pollak and can be found cheaper than the Ford one, if you don't care about having the Ford logo on it. Here is one example from Amazon.

I have a couple of extra 4/7 pin plugs from my SuperDuty as the Camera/TPMS kit includes a new plug to replace the regular 4/7 pin one. But I have used the one in the link above before and it is an exact match with the exception of the logo.

OP
OP
flip

flip

Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Messages
1,015
Reaction score
4,206
Location
IN
Vehicle(s)
Fords
Bronco
Undecided
Clubs

The 4/7 pin plug is made by Pollak and can be found cheaper than the Ford one, if you don't care about having the Ford logo on it. Here is one example from Amazon.

I have a couple of extra 4/7 pin plugs from my SuperDuty as the Camera/TPMS kit includes a new plug to replace the regular 4/7 pin one. But I have used the one in the link above before and it is an exact match with the exception of the logo.

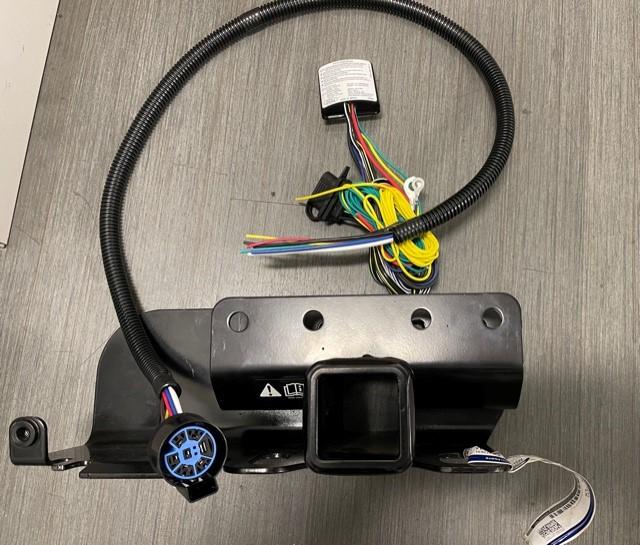

This is my plan less the 4/7 not shown. Ford trailer light converter, Amazon Pollak whip, tap into rear lights and go down through a body grommet on the left rear corner.
trailer lights.jpg


peta8368

Base
Well-Known Member
Joined
Jul 17, 2020
Messages
261
Reaction score
507
Location
Norwalk, CA
Vehicle(s)
2016 Polaris Slingshot
Bronco
Base
Clubs

This is my plan less the 4/7 not shown. Ford trailer light converter, Amazon Pollak whip, tap into rear lights and go down through a body grommet on the left rear corner.
trailer lights.jpg
Thank you for all the research and information you have provided!!

A thought: T harness in-line, connected into the taillight harness? (leave the 12v and brake controller signal just terminated if needed) so this becomes a plug-n-play solution?

Peter


Broncola

Base
Well-Known Member
Joined
Jun 6, 2020
Messages
559
Reaction score
1,179
Location
Hawaii
Vehicle(s)
Element, ‘75 Bronco widow
Bronco
Base
Clubs

And comes with a bracket! Bonus. Just gotta wait a little for a aftermarket hitch and we’ll really get the price down!

The 4/7 pin plug is made by Pollak and can be found cheaper than the Ford one, if you don't care about having the Ford logo on it. Here is one example from Amazon.

I have a couple of extra 4/7 pin plugs from my SuperDuty as the Camera/TPMS kit includes a new plug to replace the regular 4/7 pin one. But I have used the one in the link above before and it is an exact match with the exception of the logo.

OP
OP
flip

flip

Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Messages
1,015
Reaction score
4,206
Location
IN
Vehicle(s)
Fords
Bronco
Undecided
Clubs

Thank you for all the research and information you have provided!!

A thought: T harness in-line, connected into the taillight harness? (leave the 12v and brake controller signal just terminated if needed) so this becomes a plug-n-play solution?

Peter
If I can come up with a simple solution to tap into the molex connectors, yes. If not, will just have to use a t-tap on the wires to the rear lights. I hate cutting/piercing factory wires but this would be the easiest solution for folks that aren't real proficient with wire splicing and soldering.


peta8368

Base
Well-Known Member
Joined
Jul 17, 2020
Messages
261
Reaction score
507
Location
Norwalk, CA
Vehicle(s)
2016 Polaris Slingshot
Bronco
Base
Clubs

If I can come up with a simple solution to tap into the molex connectors, yes. If not, will just have to use a t-tap on the wires to the rear lights. I hate cutting/piercing factory wires but this would be the easiest solution for folks that aren't real proficient with wire splicing and soldering.
I am not very keen on splicing or tapping my factory harness either. I'm sure someone will throw some instructions together eventually. I would be happy to, except my reservation is mid November, so I probably won't be getting my vehicle anytime soon.

Again, Thank you for everything!

Peter
