UPDATE: 6-14-2021: We now have full insight to the differences in lift height between all trim levels in this new thread:

The Definitive Guide to Bronco Ride & Lift Heights with Wheel & Tire Sizes

------------------------------------------------------------------------------
The purpose of this thread is to try and collect enough information to finally determine the height differences between all the trims. Numerous threads and posts have discussed this but have not arrived at the true differences that not even Ford will tell us. The only way we can make a final determination is to look at real hardware. This effort may not be finalized until we see the final sales units as the pre-production demo models may still have some early development parts on them.

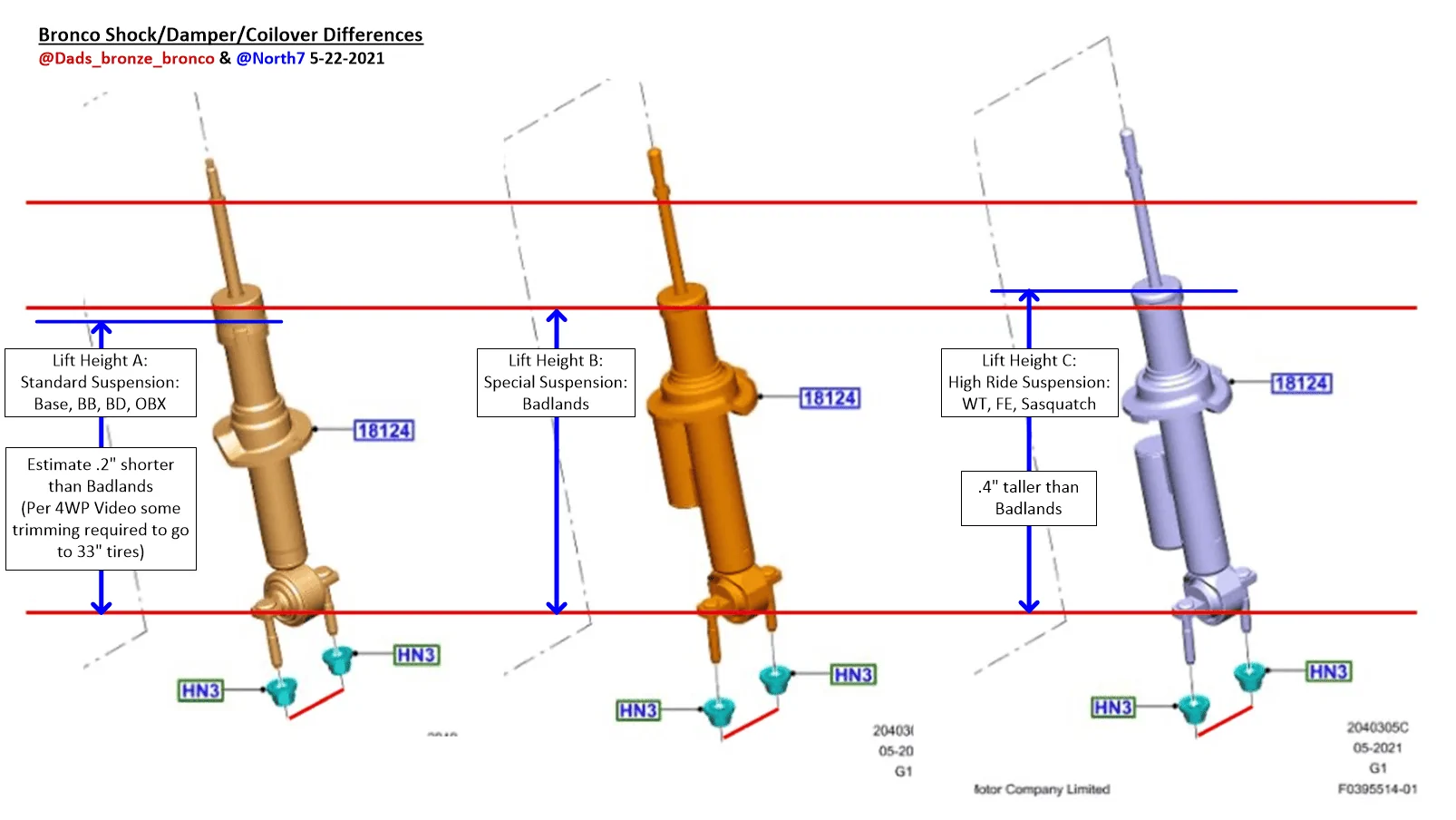

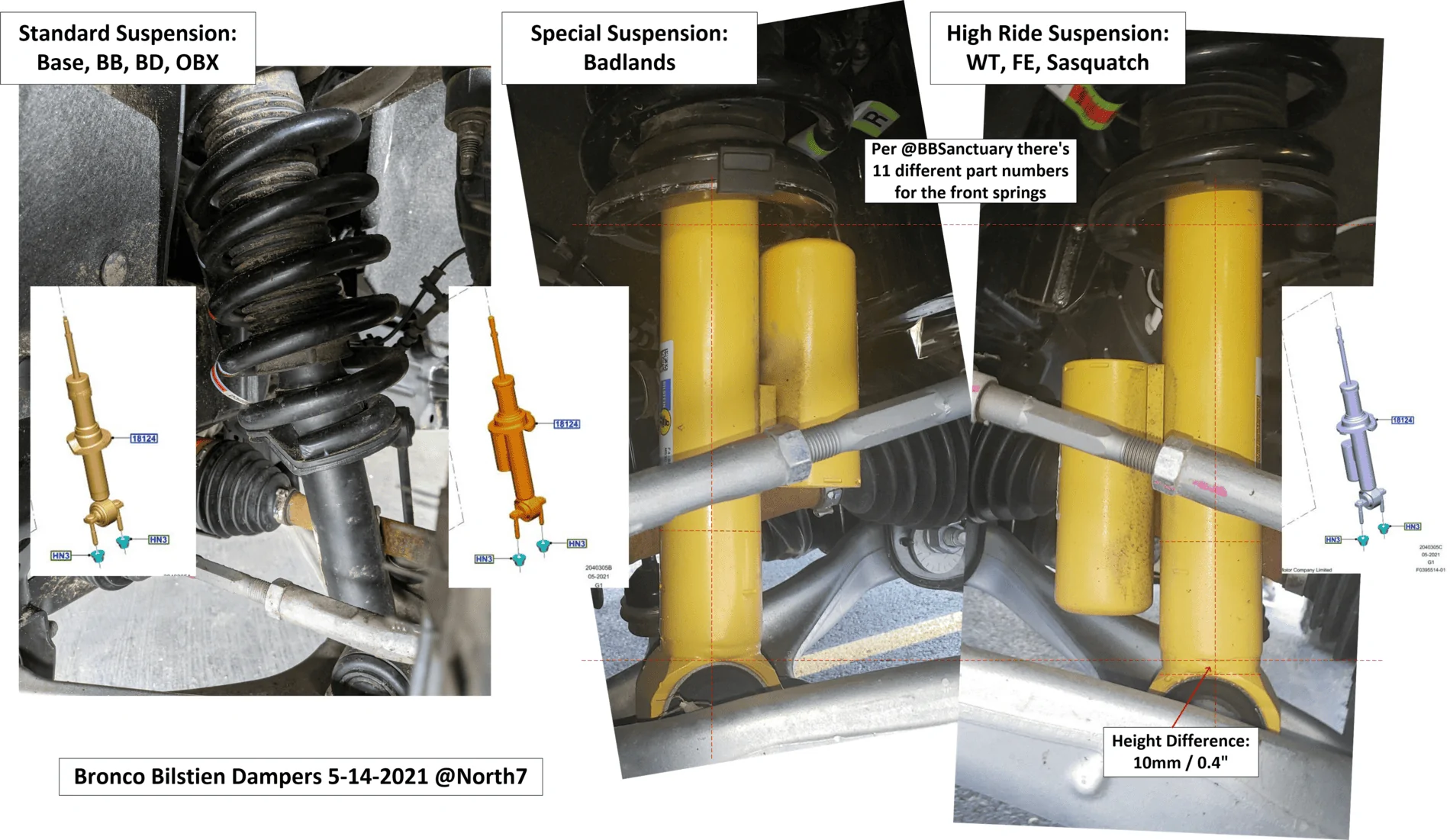

So far these two graphics summarize the findings to date:

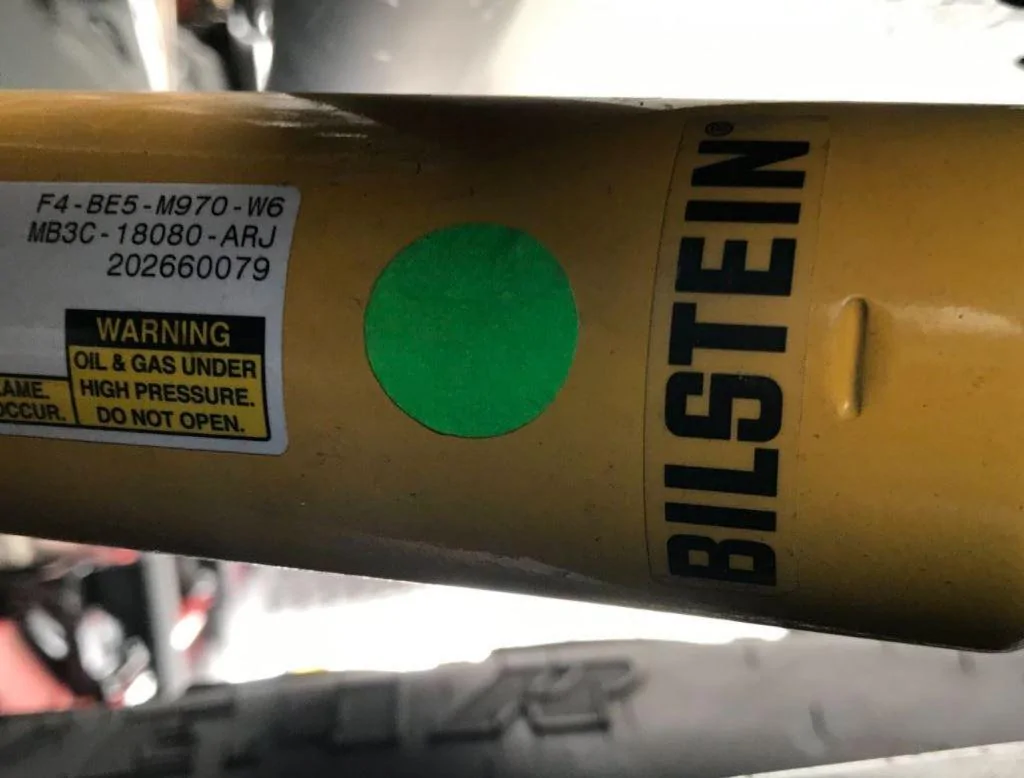

The first set of part numbers are from @618TRVLWILD
Bilstein P/N: F4-BE5-M970-W6
Ford P/N: MB3C-18080-ARJ
TBD P/N: 202660079

The second set of part numbers are from @Pittguy, not the differences from above:
Bilstein P/N: F4-BE5-M968-W7
Ford P/N: MB3C-18045-ARH
TBD P/N: 203500325

@mtap photos:

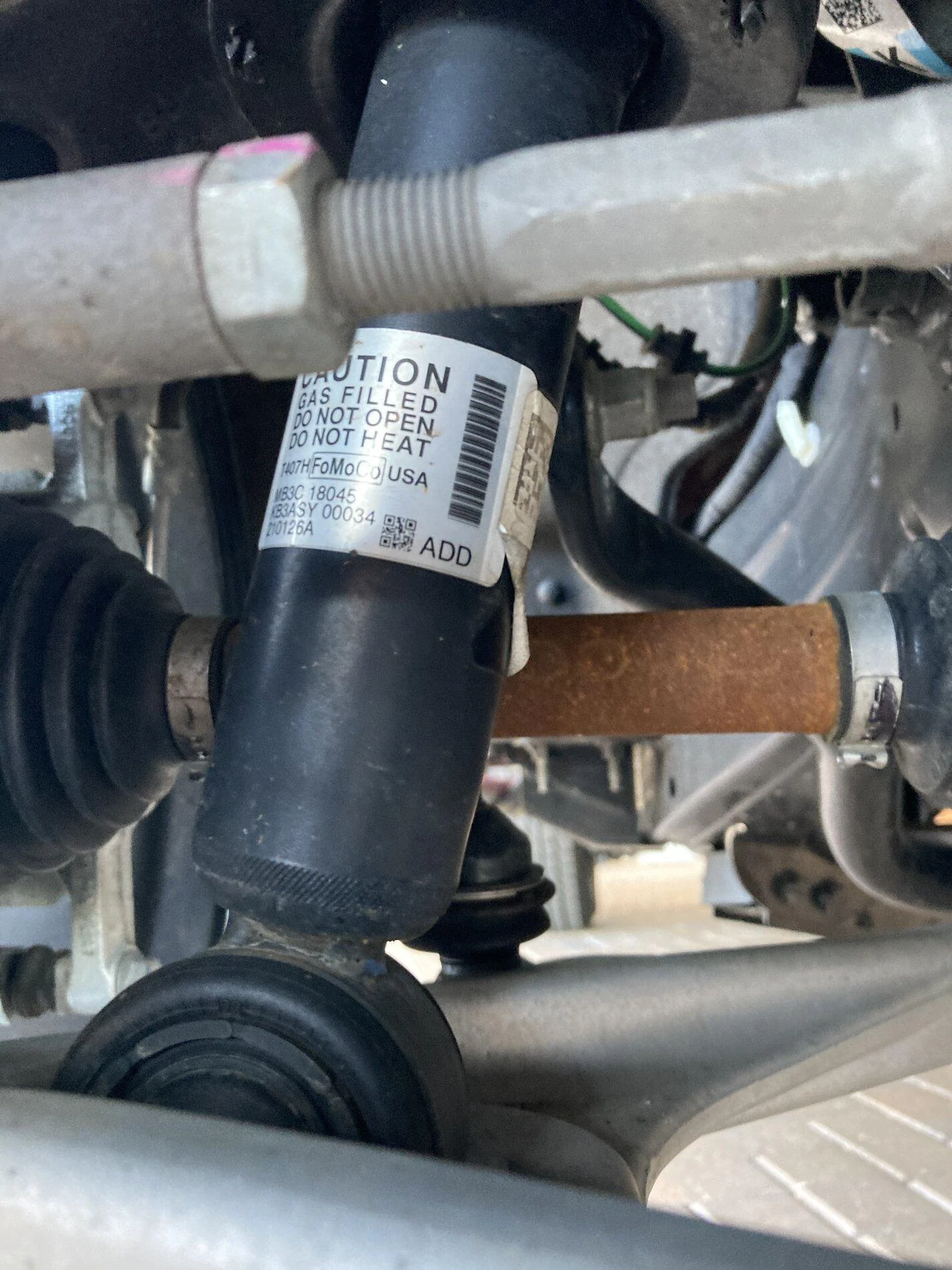

Ford P/N: MB3C-18045
TBD P/N: KB3ASY 00034
TBD P/N: 210126A

The Bilstein "F4-BE5" part number denotes the Bilstein 5100, non-reservoir, family of shocks. However since this is a Badlands, which include units with an external reservoir we have to assume Bilstein is playing with the part numbers for Ford or these are Pre-Production units that do not have the final part numbers assigned. The second part number is Ford's per @Scumby. The third part number did not reveal any information in a Google search.

So we can see the standard B-OB shocks share the same Ford base number as the BL, WT, FE and Sasquatch, however, those have have the added -ARJ or -ARH to denote the reservoir body shocks. Also of note are the two reservoir body shocks differ in the middle part number from -18080 to -18045

The "HOSS System with Bilsteinā„¢ Position Sensitive Dampers" appear to be a derivative of the Bilstein "B8 8112" family which are called the ZoneControlĀ® CR family. These dampers-shocks are that are available on the BL, WT, FE or Sasquatch package.
BILSTEIN B8 8112 (ZoneControlĀ® CR) Damping perfected

The standard "HOSS (High-Performance Off-Road Stability Suspension) System" are on the B, BB, BD and OB. Currently these have been seen as black colored shocks so what Bilstein series these are is still unknown.

REQUEST: For anyone that is able to see the Bronco's in person, please see if you can get photos of the dampers-shocks with the part number sticker and then post them with the model they came from.

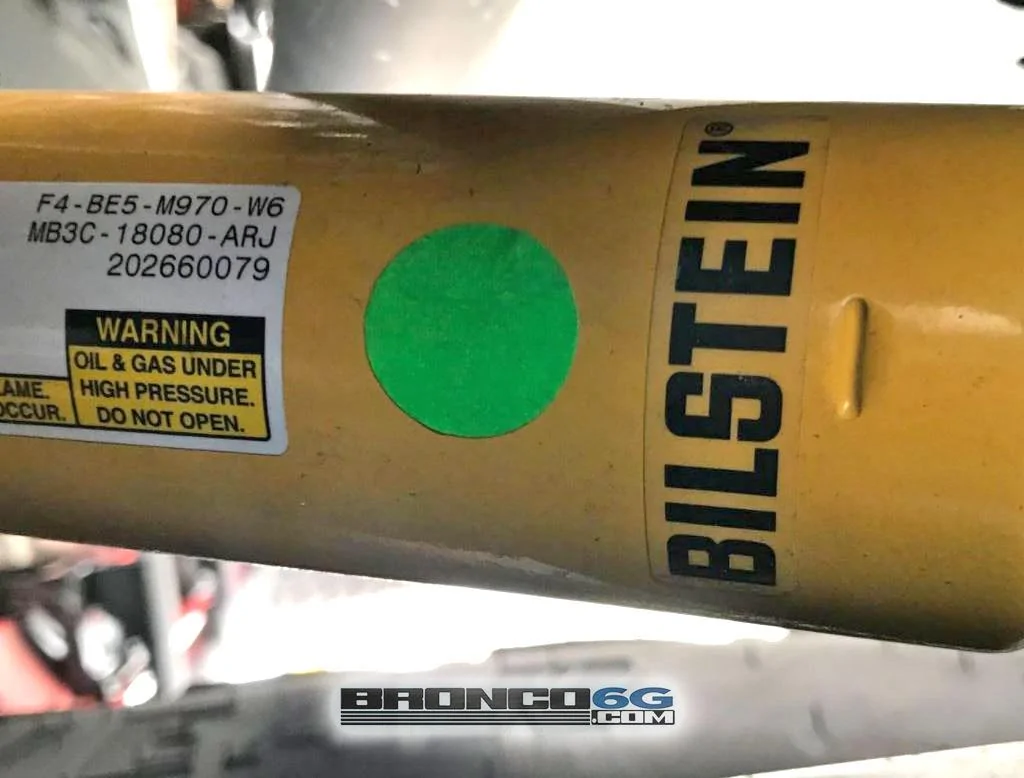

"H
OSS System with Bilsteinā„¢ Position Sensitive Dampers", photo thanks to @618TRVLWILD and @Pittguy
Bilstein HOSS standard Dampers-Shocks.JPG

618TRVLWILD Bilstien 2.JPG



Standard "HOSS (High-Performance Off-Road Stability Suspension) System" are on the B, BB, BD and OB, photo thanks to @mtap

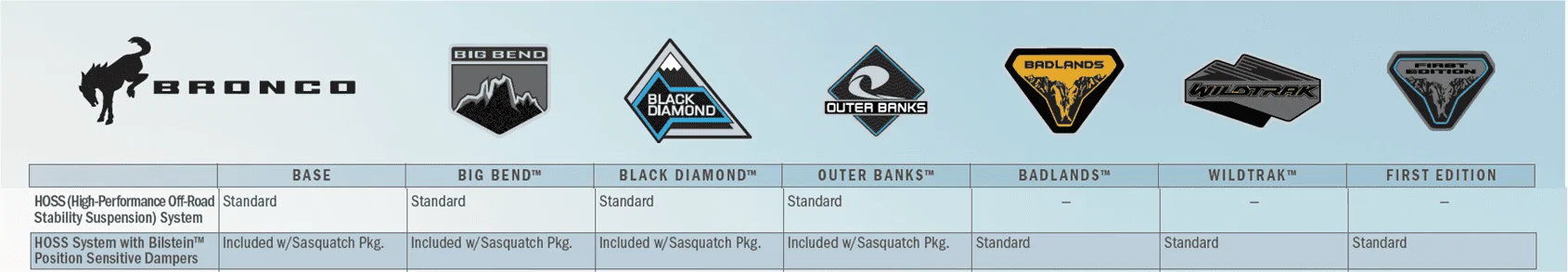

HOSS System with Bilsteinā„¢ Dampers - Shocks by Trim level


Thank you to @618TRVLWILD Ashley for getting photos at a demo yesterday and to @Pittguy for photos from an event he attended.
šŸ“ø: STL Ball Park Village Event: (2) Badlands 4-Door Broncos in Race Red & Rapid Red

For further analysis please see the great thread by @Werkedperformance here:
BILSTEIN ESCV Bronco suspension / shocks explained - "End Stop Control Valve" Dampers (Bronco HOSS Suspension w/ Position Sensitive Dampers)


Advertisement

Last edited:

Dads_bronze_bronco

Raptor
Well-Known Member
Joined
Feb 18, 2020
Threads
5
Messages
3,956
Reaction score
7,148
Location
NC
Vehicle(s)
08 JKUR / x_x 00 TJ x_x
Your Bronco Model
Raptor
Clubs

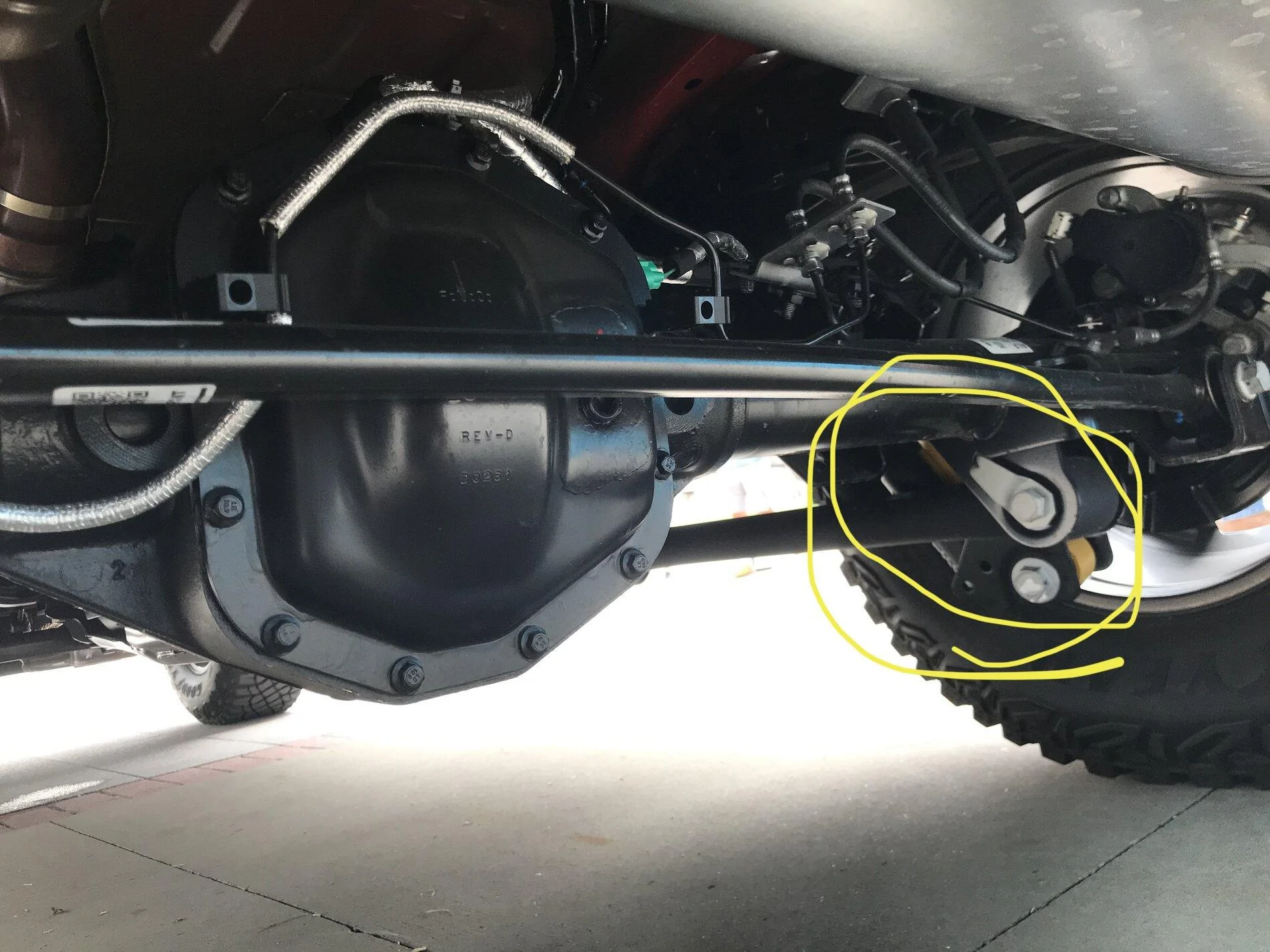

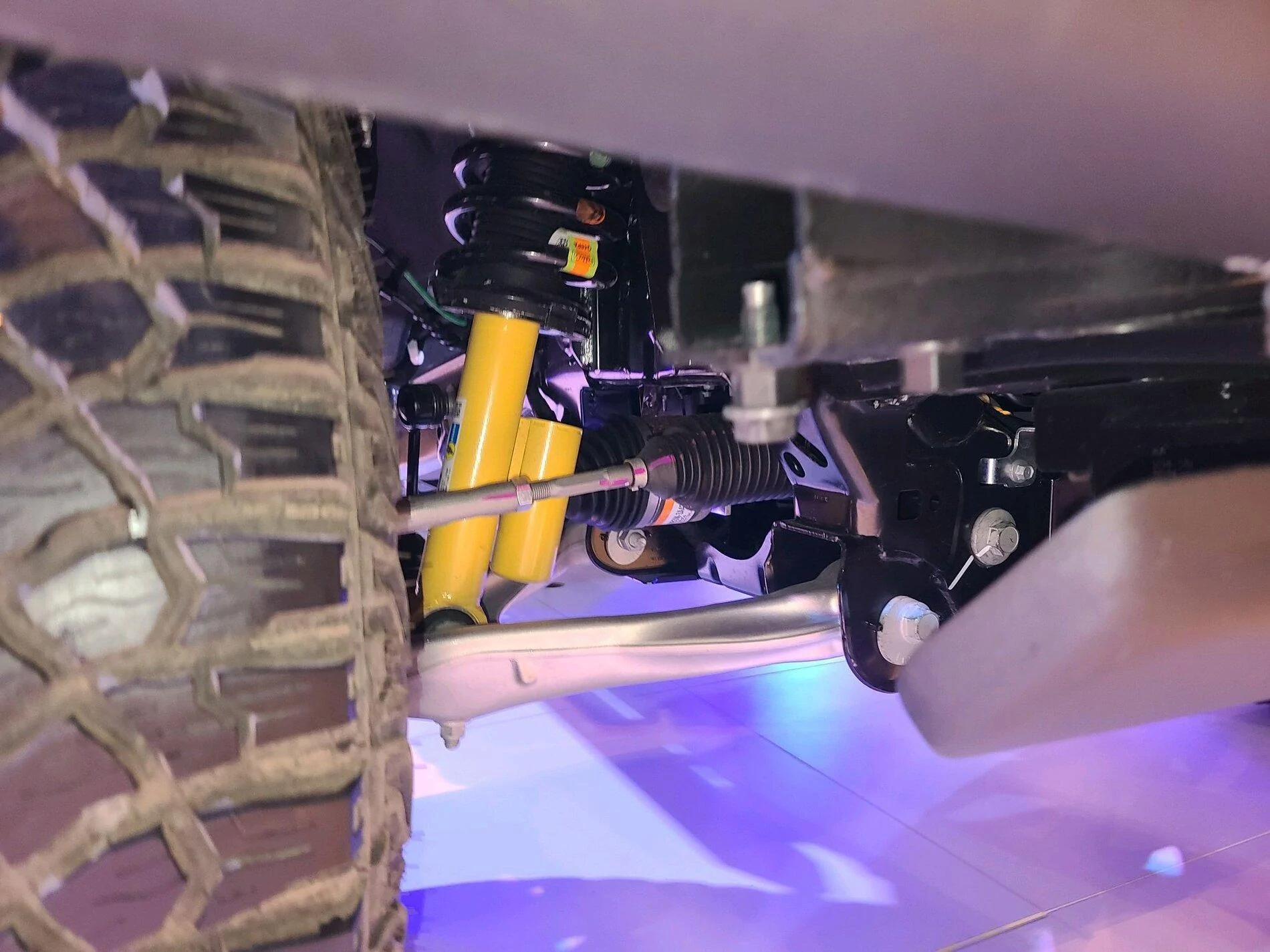

Thank you to @618TRVLWILD Ashley for get a photo of one of the two Bilstein shocks at a demo yesterday, as shown in this thread:
šŸ“ø: STL Ball Park Village Event: (2) Badlands 4-Door Broncos in Race Red & Rapid Red

REQUEST: For anyone that is able to see the Bronco's in person, please see if you can get photos of the dampers-shocks with the part number sticker and then post them with the model they came from.
When the Bronco gets to Crossroads, I am planning on getting shock and spring numbers, measuring the bolt spacing on the towing receiver, and if we get the same manual badlands and Sasquatch making the rounds in Virginia some form of frame to suspension or wheel center to fender measurement between the two.

The internet wants to know, and Ford is not answering!

(Edit: ) P.S. if you look here though, the shocks look to have the little reservoirs:


OP
OP
North7

North7

Well-Known Member
Joined
Feb 21, 2020
Threads
105
Messages
7,024
Reaction score
24,794
Location
North Texas
Vehicle(s)
Non-Ford
Your Bronco Model
Undecided
Clubs

So your saying the one you saw, with reservoir, was "w968-w7"`

The "HOSS System with Bilstein Position Sensitive Dampers / ZoneControlĀ® CR family are Bilstein prefix "B8 8112" so at this point it's not clear what "w968-w7" would be, maybe those were some early engineering builds trying different valving and spring rates.

OP
OP
North7

North7

Well-Known Member
Joined
Feb 21, 2020
Threads
105
Messages
7,024
Reaction score
24,794
Location
North Texas
Vehicle(s)
Non-Ford
Your Bronco Model
Undecided
Clubs

When the Bronco gets to Crossroads, I am planning on getting shock and spring numbers, measuring the bolt spacing on the towing receiver, and if we get the same manual badlands and Sasquatch making the rounds in Virginia some form of frame to suspension or wheel center to fender measurement between the two.

The internet wants to know, and Ford is not answering!

(Edit: ) P.S. if you look here though, the shocks look to have the little reservoirs:

Good catch, so that says only the front ones are frankenstein parts.


Advertisement

dingle87

Black Diamond
Well-Known Member
First Name
Reese
Joined
Jul 24, 2020
Threads
1
Messages
1,162
Reaction score
2,872
Location
West Suburbs of Chicago
Vehicle(s)
2019 Ford Explorer XLT
Your Bronco Model
Black Diamond
Clubs

Iā€™ll see what I can locate on April 23rd at one of the Chicago area dealer events. After watching videos of KOH and Moab, itā€™s coming down to this ands couple other factors for me to decide between BaseSas and Black Diamond.


mtap

Black Diamond
Well-Known Member
First Name
Mervin
Joined
Jul 23, 2020
Threads
53
Messages
1,434
Reaction score
3,470
Location
Cape Coral, FL
Vehicle(s)
Toyota Tundra, Hummer H3, Harley Sportster
Your Bronco Model
Black Diamond
Clubs

[QUOTE="North7, post: 545416, member:
REQUEST: For anyone that is able to see the Bronco's in person, please see if you can get photos of the dampers-shocks with the part number sticker and then post them with the model they came from.
[/QUOTE]

I get eyes on tomorrow...can you point me to where to look for the sticker? Not quite sure where to look.

OP
OP
North7

North7

Well-Known Member
Joined
Feb 21, 2020
Threads
105
Messages
7,024
Reaction score
24,794
Location
North Texas
Vehicle(s)
Non-Ford
Your Bronco Model
Undecided
Clubs

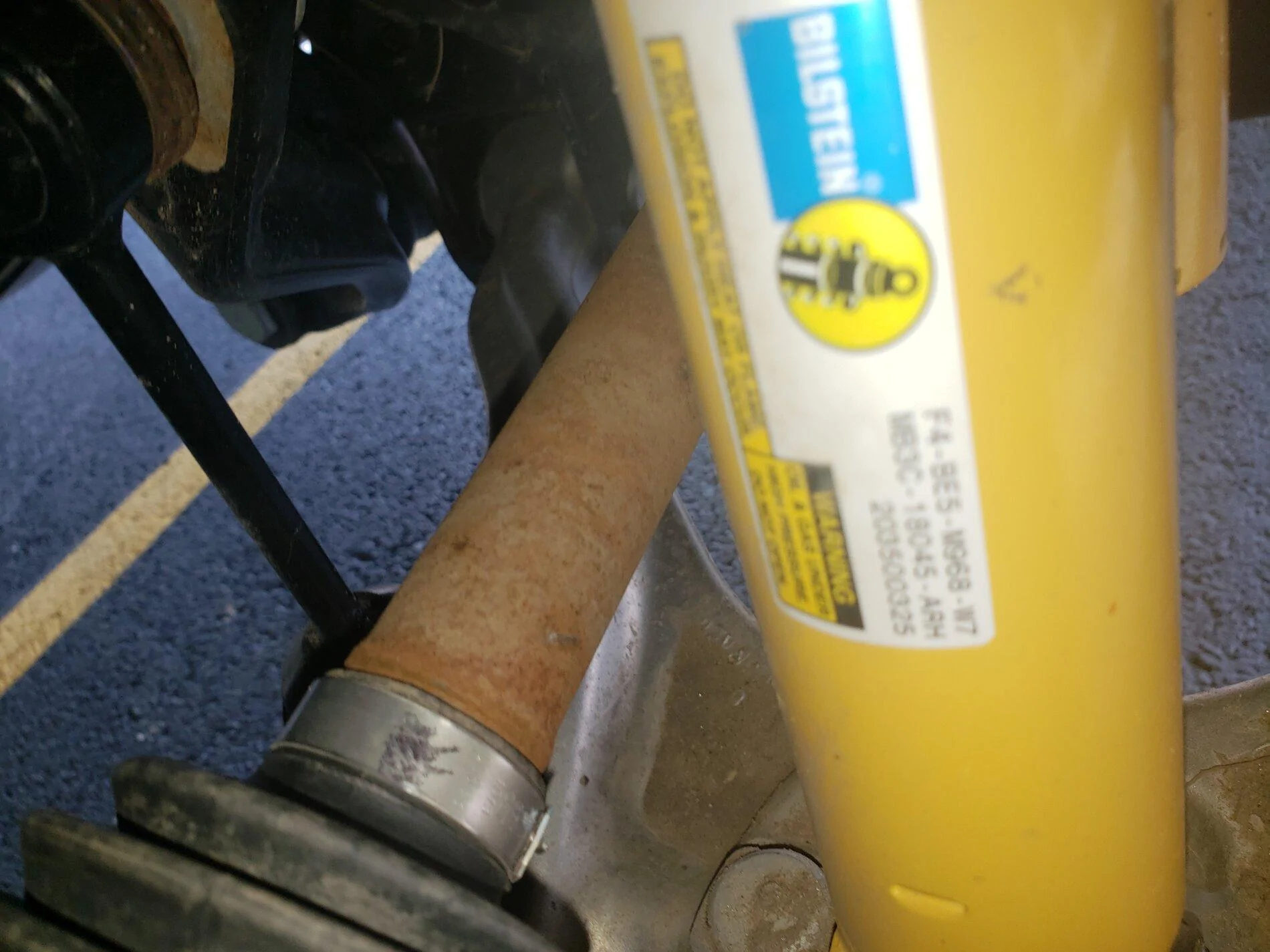

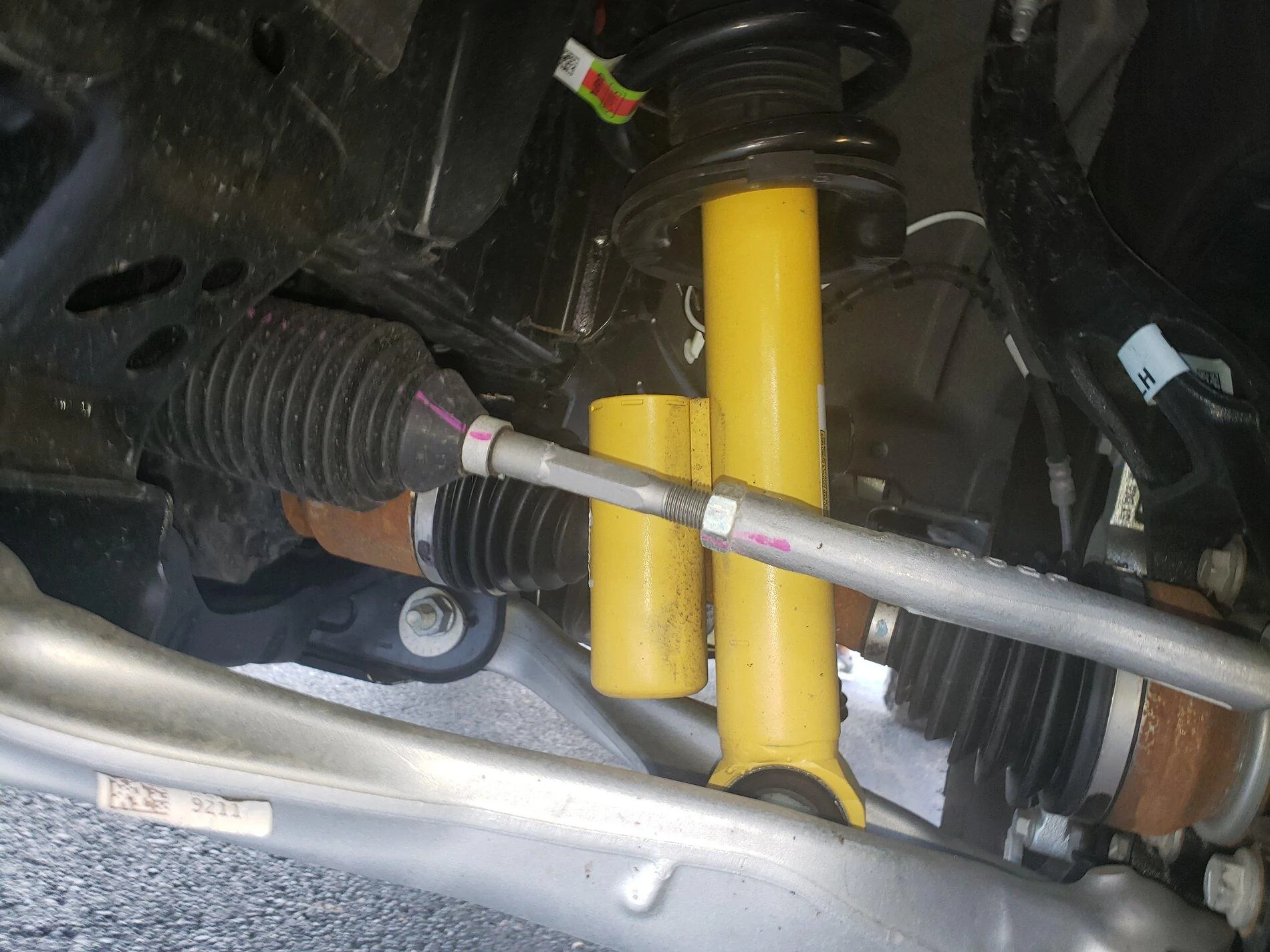

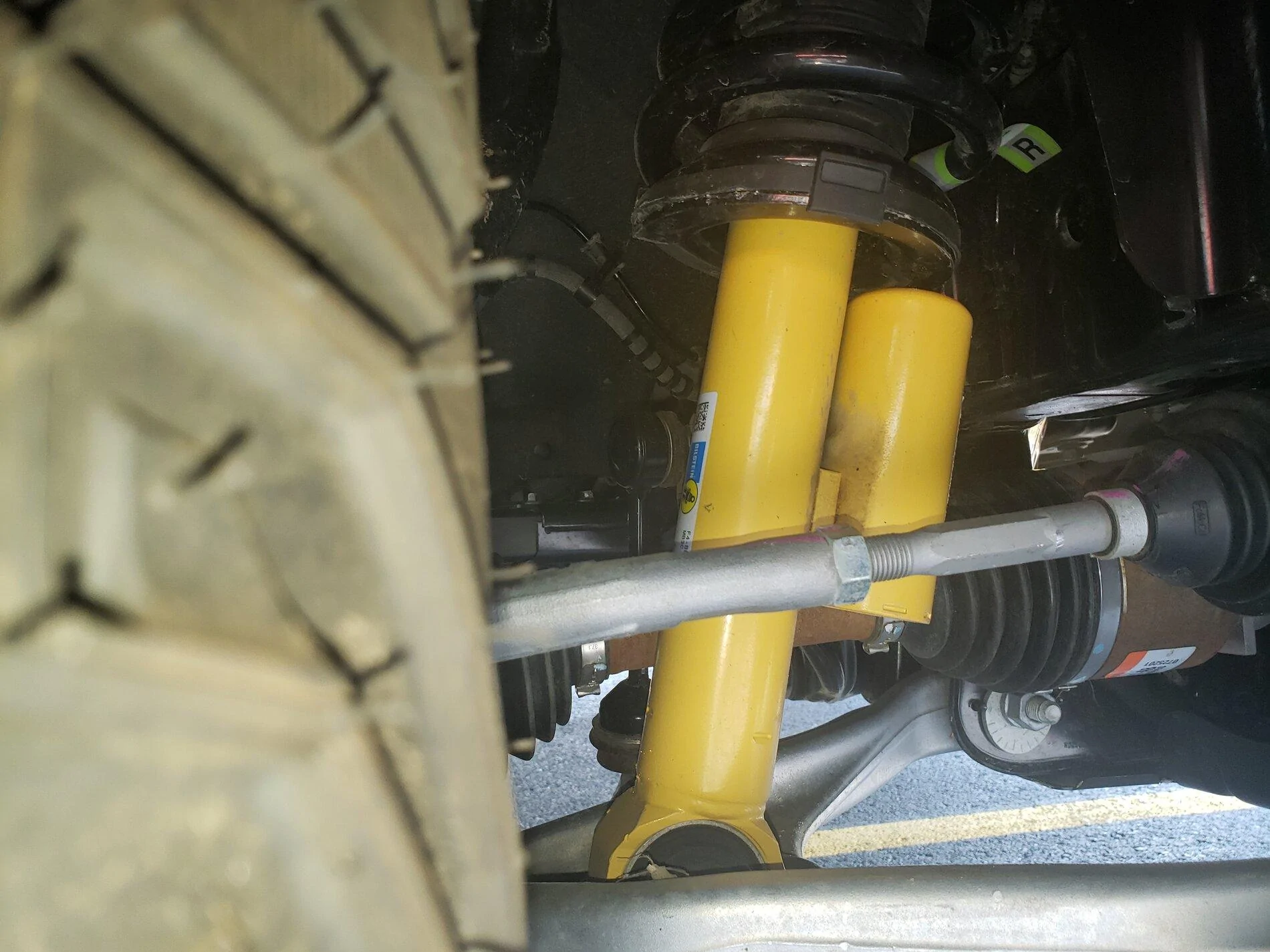

Thank you to @Pittguy who sent me some more photos to posts, it looks like in fact the Bilstein "F4-BE5" number, even though that base prefix denotes a Bilstein 5100 series, is being used for the Bronco dampers-shocks with reservoir.
