The lower pic was the BL non sasquatch. Note the distance from frt spring to reservoir. The FE was abt 2 inches above reservior
Interesting catch, so I wonder if the spring seat part is different or if that is adjustable?





Advertisement


OP
North7

North7

Badlands
Well-Known Member
Joined
Feb 21, 2020
Messages
4,365
Reaction score
14,102
Location
North Texas
Vehicle(s)
Bronco Badlands
Clubs

@North7 would you be able to do the old B/BB/BD/OBX vs non-Squatch ride height measurement for us? The more basic trim people still "need" that info.
That has been debated a 1,000 times with dozens of bits of information, the answer is:

No one has figured it out yet.

Maybe with everyones observations in this thread we will finally get the answers.

Last edited:

Pittguy

Well-Known Member
First Name
mike
Joined
Oct 21, 2020
Messages
946
Reaction score
1,209
Location
Pittsburgh pa
Vehicle(s)
03 cobra. F250
To the eye, the A-Arms looked the same as well as ball joints etc.


ilbastarge

Well-Known Member
Joined
Mar 22, 2021
Messages
294
Reaction score
2,580
Location
Northeast
Vehicle(s)
Colorado
Clubs

That has been debated a 1,000 times with dozens of bits of information, the answer is:

No one has figured it out yet.
Right! Hence the request if you happen to run into them. đź‘Ť


5280Bronco

Black Diamond
Well-Known Member
Joined
Jul 9, 2020
Messages
887
Reaction score
2,447
Location
Denver
Vehicle(s)
02 Mustang GT, 14 Ford Fusion, 05 Volvo V70R
Clubs

As far as i have seen, the "base" trims have black generic shocks. Probably not bilsteins. While BL and squach have the bilsteins. It will be interesting to get more info. That spring perch location is definitely different and it would make sense.


ZackDanger

Badlands
Well-Known Member
First Name
Zack
Joined
Jul 8, 2020
Messages
4,846
Reaction score
20,243
Location
Massachusetts
Vehicle(s)
2014 Wrangler JKU
Clubs

The lower pic was the BL non sasquatch. Note the distance from frt spring to reservoir. The FE was abt 2 inches above reservior

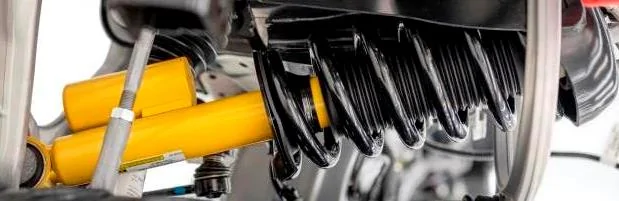

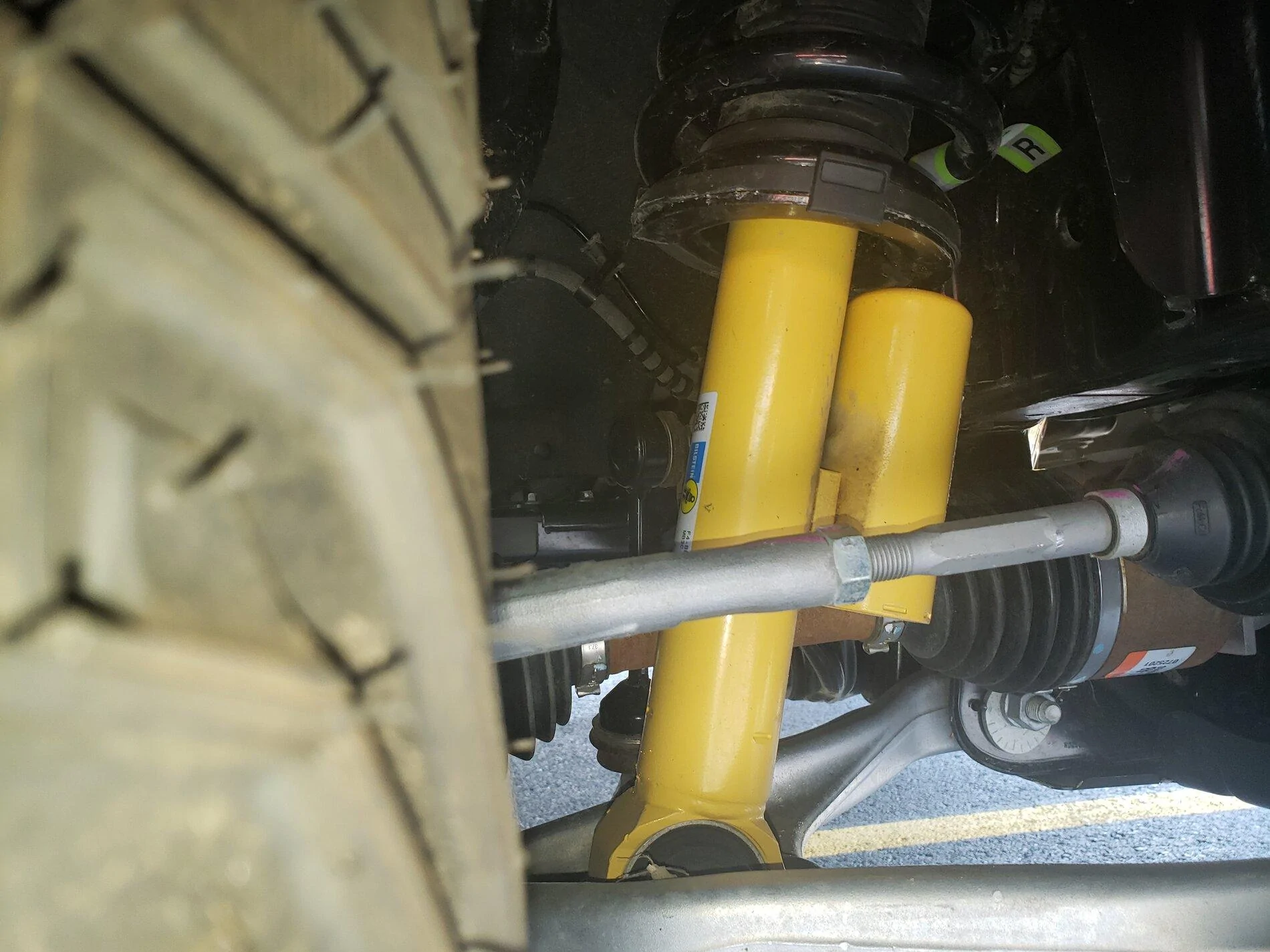

Are you talking about these two?


Because to me it just looks like the reservoir is oriented in opposite directions:

Bilstein HOSS Position Sensitive upgrade Dampers-Shocks.jpg
Pittguy 3.jpg


jay-rod427

Badlands
Well-Known Member
First Name
Jerod
Joined
Feb 26, 2021
Messages
152
Reaction score
454
Location
KS
Vehicle(s)
Carbonized gray 2 dr BadLands Sans-Squatch ordered
Zack beat me to it. was typing up the same thing. The reservoir is just flipped upside down on it's mount is the "2 inch" difference between the two.


VelocityBrew

Badlands
Well-Known Member
First Name
Chet
Joined
Jan 25, 2021
Messages
209
Reaction score
376
Location
Twin Cites Minnesota
Vehicle(s)
2020 Honda Passport, 2016 KTM 1190 Adventure
I am curious to know which one will be on the BL I ordered.

This is a photo that AutoBlog posted almost a year ago



Marauder

Badlands
Well-Known Member
First Name
Josh
Joined
Jul 13, 2020
Messages
388
Reaction score
887
Location
St Louis
Vehicle(s)
2021 Bronco
Clubs

Thank you to @618TRVLWILD Ashley for get a photo of one of the two Bilstein shocks at a demo yesterday, as shown in this thread:
📸: STL Ball Park Village Event: (2) Badlands 4-Door Broncos in Race Red & Rapid Red

Taking the Bilstein part numbers from the photos here is what I found so far:
F4-BE5-M970-W6
MB3C-18080-ARJ
202660079

The Bilstein "F4-BE5" part number denotes the Bilstein 5100, non-reservoir, family of shocks. It is not the upgraded "HOSS System with Bilstein™ Position Sensitive Dampers" that are standard on the BL, WT, FE or Sasquatch package. It may be safe to assume these are the the "HOSS (High-Performance Off-Road Stability Suspension) System" standard on the B, BB, BD and OB.

What we can see from this Demo Badlands is that some of the demos are built from frankenstein parts as all Badlands are supposed to have the upgraded Bilstein Position Sensitive Dampers with the external reservoir.

REQUEST: For anyone that is able to see the Bronco's in person, please see if you can get photos of the dampers-shocks with the part number sticker and then post them with the model they came from.

The "HOSS System with Bilstein™ Position Sensitive Dampers" appear to be a derivative of the Bilstein "B8 8112" family which are called the ZoneControl® CR family.
BILSTEIN B8 8112 (ZoneControl® CR) Damping perfected

Standard "HOSS (High-Performance Off-Road Stability Suspension) System" standard on the B, BB, BD and OB.
View attachment 108137

Upgraded "HOSS System with Bilstein™ Position Sensitive Dampers" that are standard on the BL, WT, FE or Sasquatch package.
View attachment 108139

HOSS System with Bilstein™ Dampers - Shocks by Trim level


For further analysis please see the great thread by @Werkedperformance here:
BILSTEIN ESCV Bronco suspension / shocks explained - "End Stop Control Valve" Dampers (Bronco HOSS Suspension w/ Position Sensitive Dampers)
Outstanding analysis. Thank you!


Thed

Badlands
Well-Known Member
First Name
Ben
Joined
Jul 26, 2020
Messages
571
Reaction score
1,129
Location
Raleigh, NC
Vehicle(s)
'16 Miata, '67 F-100, '17 Ducati Supersport
Clubs

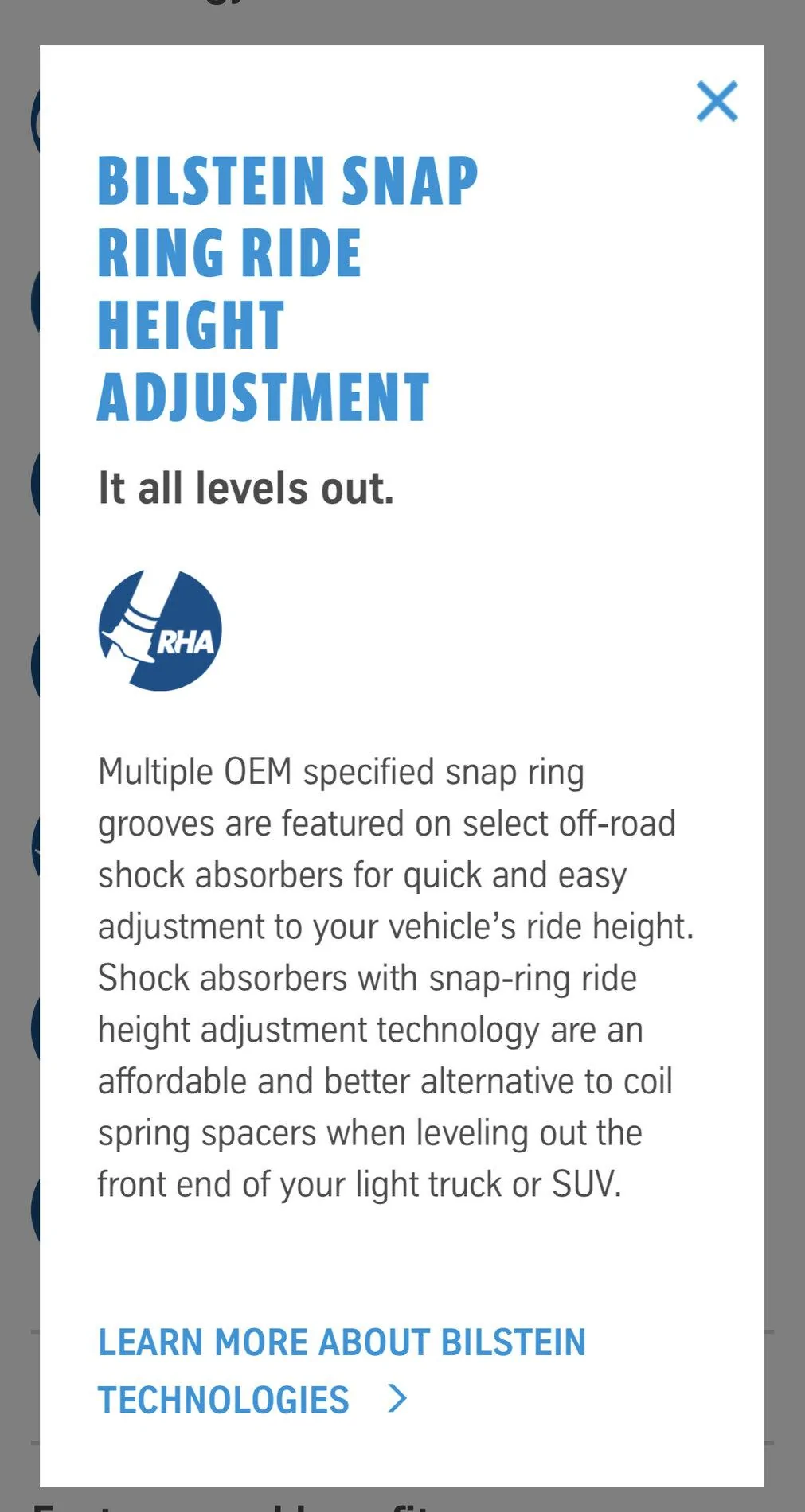

Wonder if the answer to the difference is snap rings (would be a low cost way for Ford to change between Squatch and Badlands):
If it really is that simple then I know exactly what my first mod is going to be, a free lift on the front end.
