Factory Fog Light Switch

TNcoupe

Badlands
Well-Known Member
Joined
Dec 4, 2018
Threads
23
Messages
1,456
Reaction score
4,634
Location
Decatur,TN
Vehicle(s)
2019 Veloster N, 1970 Bronco
Your Bronco Model
Badlands
Clubs

So has anyone successfully wired up a set of Baja Design lights to work with the factory fog light switch? My Badlands is being built this week with the capable bumper and I already have a BAMF bumper with Baja Designs S4 Pro and S2 Sports on it. I would like to wire up the S2s to the factory fog light switch if possible.


Advertisement


drew707

Badlands
Well-Known Member
Joined
Apr 9, 2020
Threads
1
Messages
875
Reaction score
1,352
Location
Michigan
Vehicle(s)
Ford Explorer
Your Bronco Model
Badlands
So has anyone successfully wired up a set of Baja Design lights to work with the factory fog light switch? My Badlands is being built this week with the capable bumper and I already have a BAMF bumper with Baja Designs S4 Pro and S2 Sports on it. I would like to wire up the S2s to the factory fog light switch if possible.
Yes I wired up my BD fog lights to the factory wiring


TNcoupe

Badlands
Well-Known Member
Joined
Dec 4, 2018
Threads
23
Messages
1,456
Reaction score
4,634
Location
Decatur,TN
Vehicle(s)
2019 Veloster N, 1970 Bronco
Your Bronco Model
Badlands
Clubs

Yes I wired up my BD fog lights to the factory wiring
Sweet. Do you happen to know the amp rating on that circuit? The S4s draw a decent amount and the S2s are negligible. Just trying to decide which one I want to wire to the fog light switch and which ones I need to wire to the aux switch.


drew707

Badlands
Well-Known Member
Joined
Apr 9, 2020
Threads
1
Messages
875
Reaction score
1,352
Location
Michigan
Vehicle(s)
Ford Explorer
Your Bronco Model
Badlands
Sweet. Do you happen to know the amp rating on that circuit? The S4s draw a decent amount and the S2s are negligible. Just trying to decide which one I want to wire to the fog light switch and which ones I need to wire to the aux switch.
I honestly forget. They are 16 gauge wires so at least 10 amps. I run the S4's off them as a daily. There is no physical fuse. Part of the modernization of these vehicles is that a lot of these circuits are controlled by FET and just measure power draw to determine if a circuit is overloaded. Basically it's a software breaker switch, pretty neat actually. This would be the limit and I don't know what it's set at.

For reference though the 25A Upfitter is an 18 gauge wire


TNcoupe

Badlands
Well-Known Member
Joined
Dec 4, 2018
Threads
23
Messages
1,456
Reaction score
4,634
Location
Decatur,TN
Vehicle(s)
2019 Veloster N, 1970 Bronco
Your Bronco Model
Badlands
Clubs

I honestly forget. They are 16 gauge wires so at least 10 amps. I run the S4's off them as a daily. There is no physical fuse. Part of the modernization of these vehicles is that a lot of these circuits are controlled by FET and just measure power draw to determine if a circuit is overloaded. Basically it's a software breaker switch, pretty neat actually. This would be the limit and I don't know what it's set at.

For reference though the 25A Upfitter is an 18 gauge wire
Thats good to know. I bought the driving/combo S4s so that would be the good one to wire up to the factory switch


Advertisement

BigHoof

Badlands
Well-Known Member
Joined
Feb 7, 2021
Threads
1
Messages
411
Reaction score
823
Location
Western PA
Vehicle(s)
Ram 2500
Your Bronco Model
Badlands

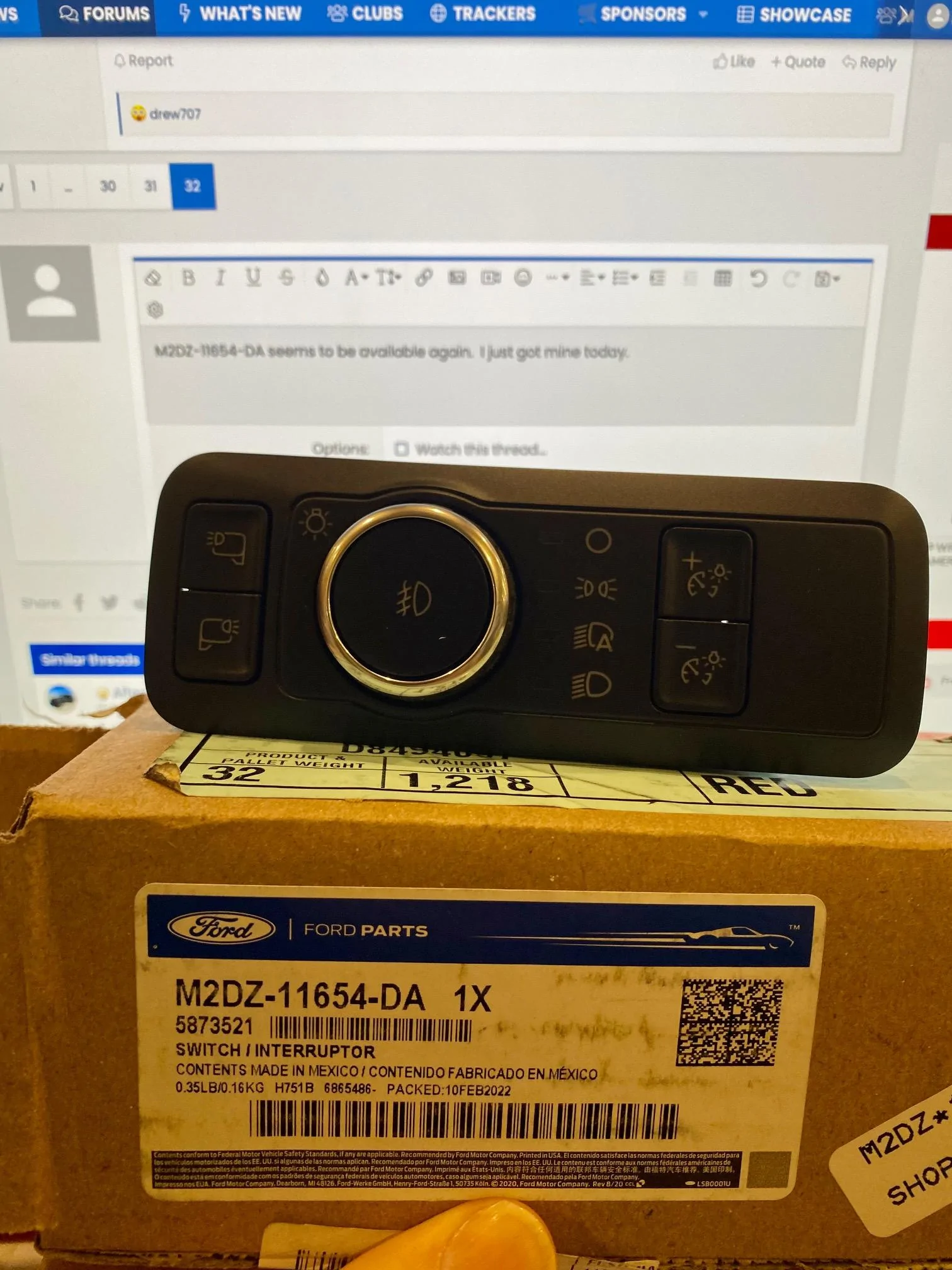

Just a heads up. I ordered the part number M2DZ11654DA, single fog light with puddle lamps and I received a part number M2DZ11654DB, but it looks exactly the same as the part number that I ordered
