Hmmm, link works on my end. It's from Ford parts distributer. Some people were shipped the wrong part that had a trunk and gas button instead of mirror lights.
Oh okay I see. I wasn't aware of that, but could explain the wrong part description.

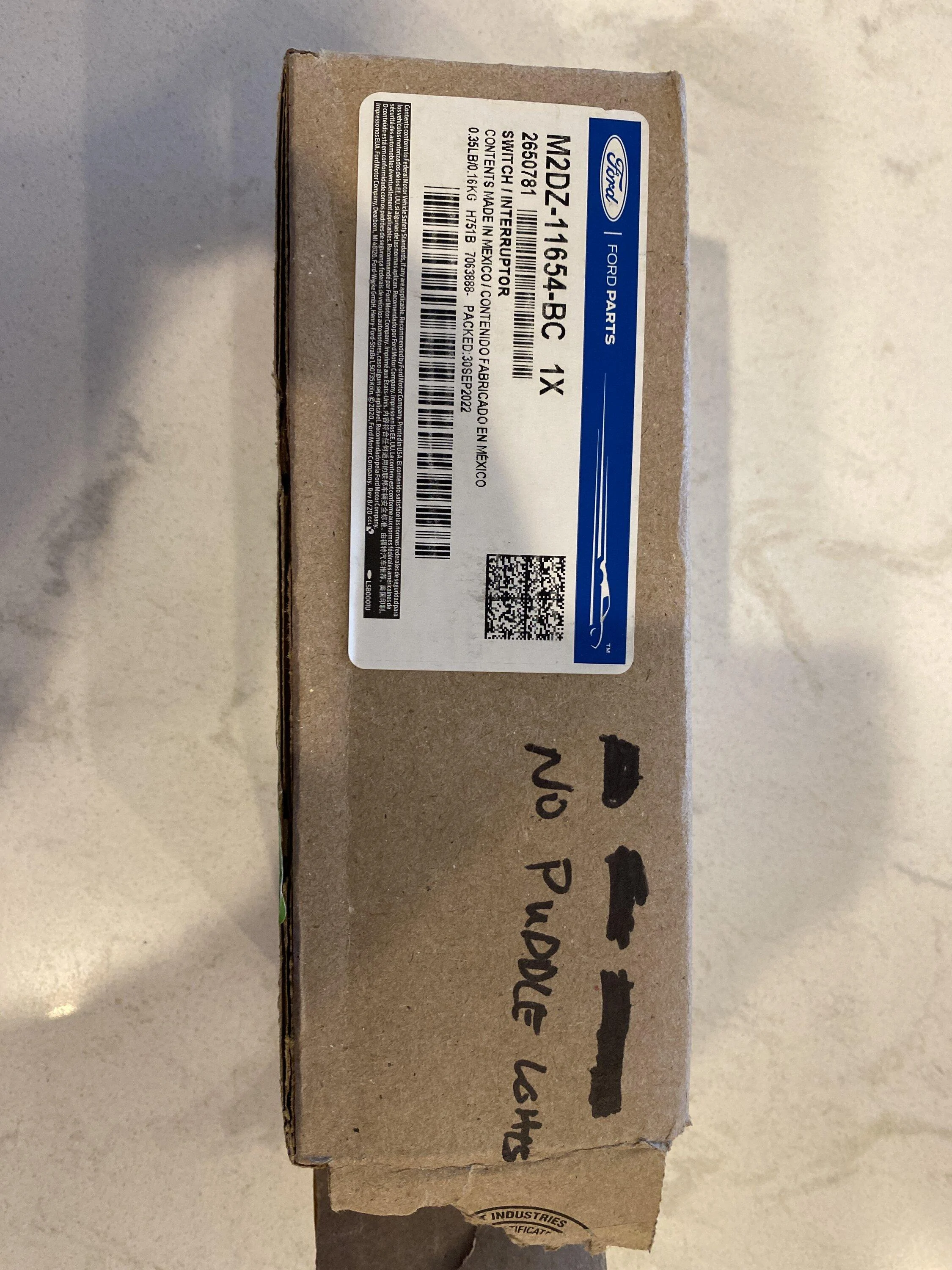

Can you do a tutorial - I want to do the exact same thingReceived my M2D-Z11654-BA:
I plan to hook up the Baja SAE Squadrons to front and eventually find a rear bumper that I like with additional reverse lights for the rear fogs.
I purchased the switch, installed it, and made the Forscan updates. Everything works great. I will use the fog light switch to auto turn off my Baja Design driving lights when the high beams are off.
Looks good!Just an update... So instead of buying cheap 14watt fogs, I canceled that order in purchased cheap 50w fogs ($25)
Each one drew less than 1 amp (think it was like 0.57 amps. So for less than $35 (with adapters) I was able to fill in the holes on my aftermarket bumper.
Will any of these work with the Morimoto 4Banger?
Yes Morimoto uses a 2-pin DT connector
I know this might be long shot since its so long ago but do you know if this pigtail will work with fogs with bare wires on the ends?Unfortunately, a few really helpful posts in this thread were lost with d2dhanover's account being deleted. Some info provided that was really helpful and is no longer in this thread was some info on the plug for the existing factory fog wire harness tucked under the bumper shackle. It has an existing cap/plug end that is being used to keep the end water poof, and it can be re-used to connect the fog light to the factory harness. Looks like this:
Ballinger Motor Sports carries the parts (male pins and seals) needed to convert the existing cap into a usable water proof connection.
https://www.bmotorsports.com/shop/a...search_in_description=1&keywords=+CONN-100986
The males pins are: CONN-100986
https://www.bmotorsports.com/shop/product_info.php/products_id/4568
The seals are: CONN-56057
https://www.bmotorsports.com/shop/product_info.php/products_id/486
Dude you are a wizard!! My brain hurts just trying to understand how that wiring works..Finally. Done. Got the front fog light switch going to a pair of amber lights in the front. I added the diode dynamic reverse pod bracket with ssc1 pros. The wiring ties into factory tail/brake reverse lights so when my headlight are on, the red backlight is on low. When I hit brakes, the red gets brighter. When I put it in reverse, the white comes on in full power (zone lighting also turns them on). The kicker is that there’s a separate trigger input to turn on the white lights without being in reverse. I tapped into the white/blue wire in the door sill and ran that to the trigger wire. So I can turn on the white lights without being in reverse by hitting the rear fog light button. And the front/rear fog light icons on the dash work as expected.
thanks. I found it, but how did you manage to release the plug from the bumper. It's too tight and I fear I might break something.It is confirmed if you have the front sensors you have the foglight wiring. I just verified the it exists on my Badlands the passenger side and the wire insulation color matches. Does any of the after market lights have a compatible connector? if not it should not be too hard to make a jumper.
