Many have experienced the charging system fault messages after fording through muddy water. It is a result of the excessive dirt/mud accumulating in the generator/alternator. Ford issued a TSB to address the issue.

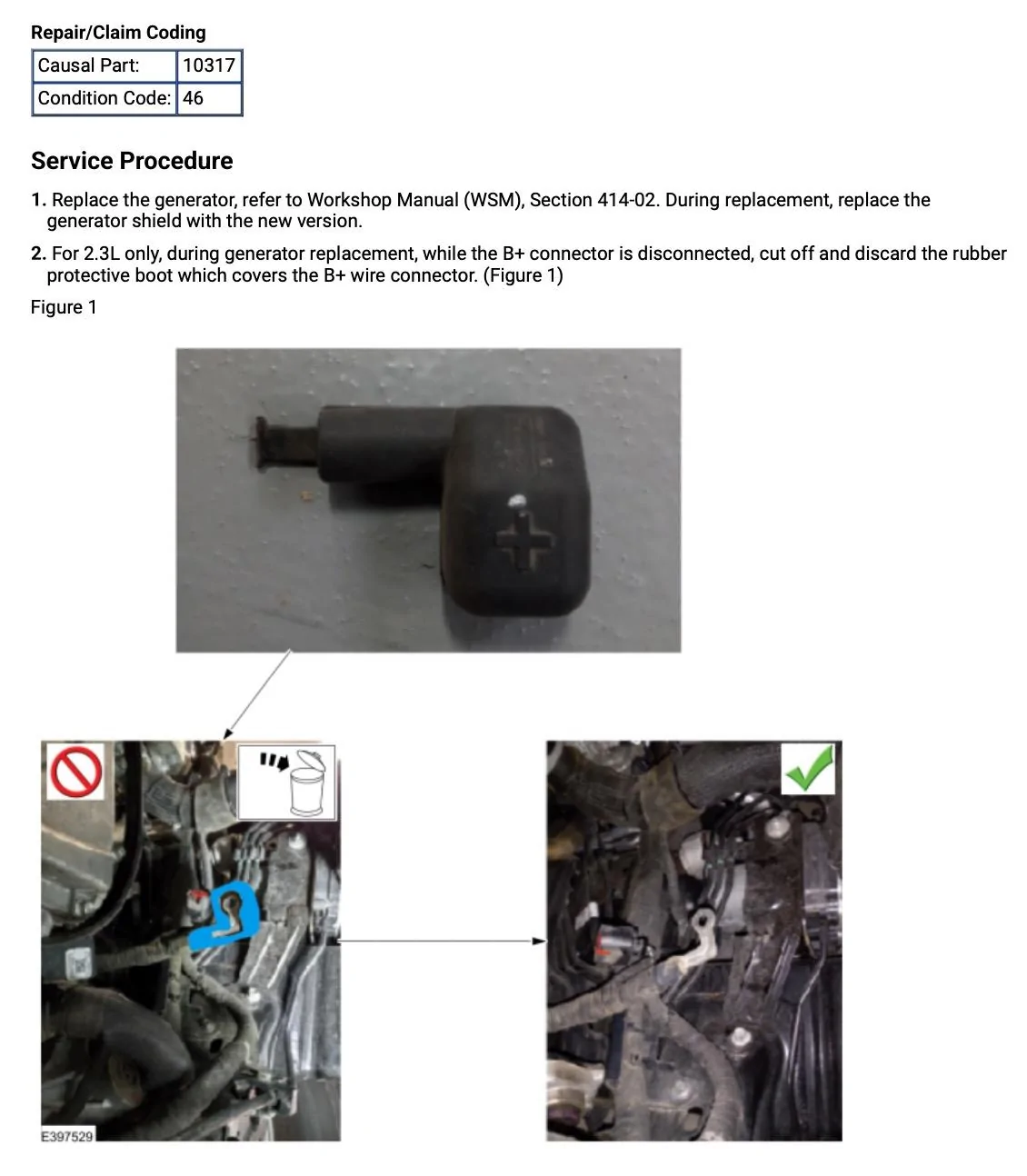

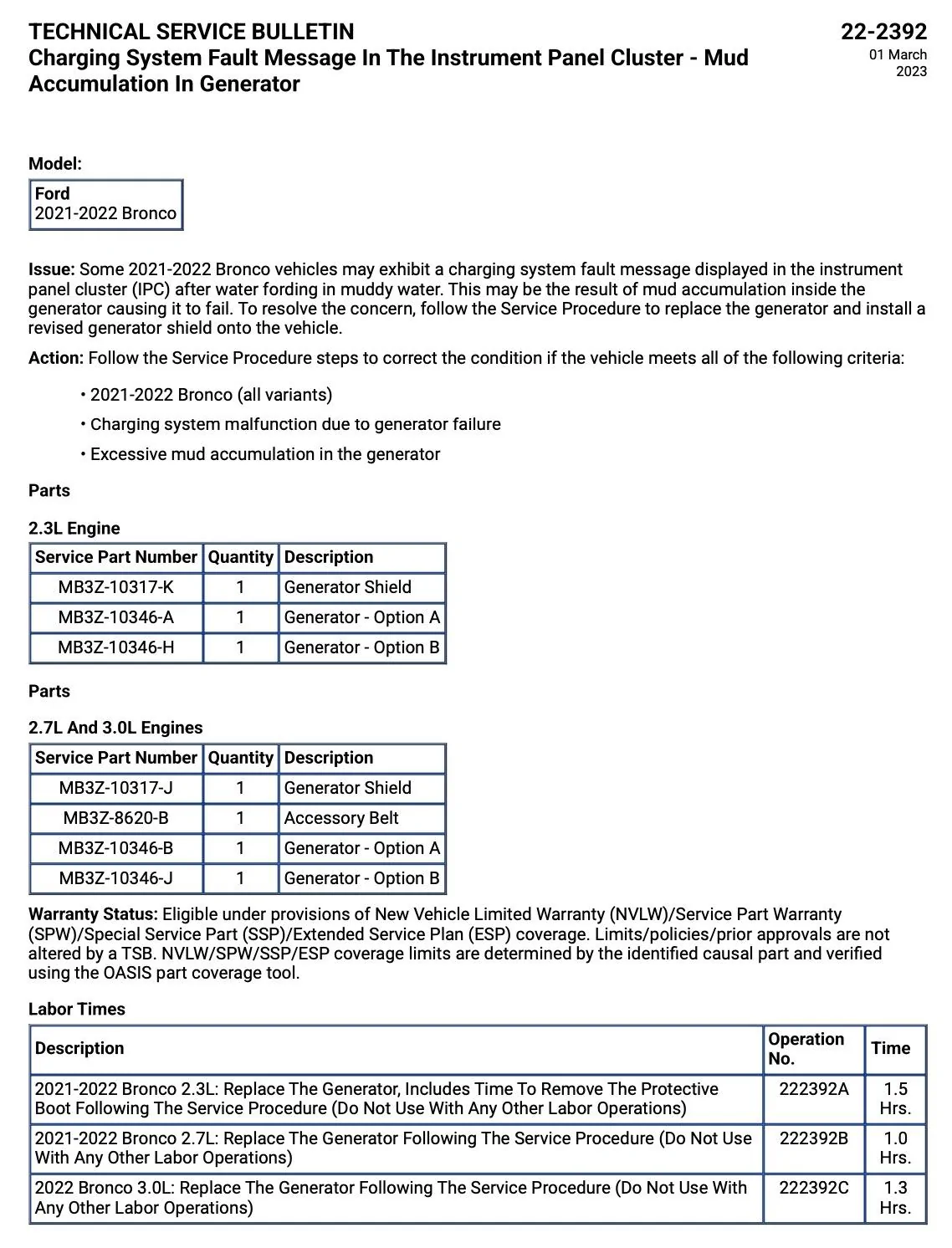

Ford Bronco Muddy water fording alternator issue fix: TSB 22-2392 -- Mud Accumulation in Generator TSB 22-2392 -- Mud Accumulation in Generator Alternator 1

Ford Bronco Muddy water fording alternator issue fix: TSB 22-2392 -- Mud Accumulation in Generator TSB 22-2392 -- Mud Accumulation in Generator Alternator 2
Sponsored



Jazer

Outer Banks
Well-Known Member
First Name
Jessica
Joined
Jun 20, 2021
Threads
9
Messages
2,345
Reaction score
6,524
Location
NC
Vehicle(s)
2.7 OBX
Your Bronco Model
Outer Banks
Clubs

Do you think this is a situation where they will install the shield preemptively or only after failure?

OP
OP
Beach_Bum

Beach_Bum

Black Diamond
Well-Known Member
First Name
Ken
Joined
Aug 12, 2020
Threads
29
Messages
6,431
Reaction score
20,408
Location
St. Augustine, FL
Vehicle(s)
2022 Black Diamond Bronco, 2023 Outerbanks Bronco
Your Bronco Model
Black Diamond
Clubs

Do you think this is a situation where they will install the shield preemptively or only after failure?
I would think a dealer could order the shield before a failure will occur. The TSB seems to indicate that the shield and generator will be replaced in the event of failure. I don't think there is any issue or redesign with the generator. @flip might be able to weigh in on the issue.


Sponsored
OP
OP
Beach_Bum

Beach_Bum

Black Diamond
Well-Known Member
First Name
Ken
Joined
Aug 12, 2020
Threads
29
Messages
6,431
Reaction score
20,408
Location
St. Augustine, FL
Vehicle(s)
2022 Black Diamond Bronco, 2023 Outerbanks Bronco
Your Bronco Model
Black Diamond
Clubs

OMG I already bought a new alternator and replaced it myself thinking there was no way this would be a warranty or tsb!
Quite a few have had to pay for a new alternator. I presume the new shield will be constrained and on back-order as the current stock is quickly exhausted.

OP
OP
Beach_Bum

Beach_Bum

Black Diamond
Well-Known Member
First Name
Ken
Joined
Aug 12, 2020
Threads
29
Messages
6,431
Reaction score
20,408
Location
St. Augustine, FL
Vehicle(s)
2022 Black Diamond Bronco, 2023 Outerbanks Bronco
Your Bronco Model
Black Diamond
Clubs

Only 21-22? Did they do something different on 23’s?
I presume so. They likely saw the improvement that could be made and MY'23 Broncos have the new shield.

EDIT: @Snowdogyyz The Ford tech that shared the photo of his computer screen indicated that he has an early MY'23 that has since failed so apparently the new shield hasn't been in place for all MY'23 Broncos.

Last edited:

Snowdogyyz

Badlands
Well-Known Member
First Name
Steve
Joined
Aug 7, 2021
Threads
32
Messages
1,521
Reaction score
3,353
Location
NC
Vehicle(s)
22 Ford Bronco Badlands
Your Bronco Model
Badlands
Clubs

I presume so. They likely saw the improvement that could be made and MY'23 Broncos have the new shield.
Well darn- I need to pop the hood today and take a look!


Jazer

Outer Banks
Well-Known Member
First Name
Jessica
Joined
Jun 20, 2021
Threads
9
Messages
2,345
Reaction score
6,524
Location
NC
Vehicle(s)
2.7 OBX
Your Bronco Model
Outer Banks
Clubs

Well darn- I need to pop the hood today and take a look!
More like crawl underneath? lol. Can you take a pic of yours, mine was replaced at the dealer already, kinda curious if there could happen to be a revised one on there already. Doubtful but crossing my fingers.


TheKim

Badlands
Well-Known Member
First Name
Kim
Joined
Feb 4, 2021
Threads
6
Messages
1,097
Reaction score
3,033
Location
Utah
Vehicle(s)
Bronco
Your Bronco Model
Badlands
Clubs

All the mall crawlers quickly calling to get appointments so they can hit the puddles in the parking lot -

Ford Bronco Muddy water fording alternator issue fix: TSB 22-2392 -- Mud Accumulation in Generator giphy


Sponsored

mike8675309

Base
Well-Known Member
First Name
Mike
Joined
Nov 24, 2021
Threads
33
Messages
1,120
Reaction score
1,659
Location
Minnesota
Vehicle(s)
2022 Ford Bronco ManSquatch, 2023 Chevy Silverado
Your Bronco Model
Base
Hmm, I wonder if they have found the boot is trapping water and leading to corrosion?

It'll be interesting if we can see what they changed, maybe make some 3d parts ourselves and just do the work on our existing units.


Many have experienced the charging system fault messages after fording through muddy water. It is a result of the excessive dirt/mud accumulating in the generator/alternator. Ford issued a TSB to address the issue.



Ford Bronco Muddy water fording alternator issue fix: TSB 22-2392 -- Mud Accumulation in Generator giphy


Ksjrb03

First Edition
Well-Known Member
Joined
Jul 15, 2020
Threads
14
Messages
4,212
Reaction score
11,171
Location
Tx
Vehicle(s)
F250
Your Bronco Model
First Edition
Clubs

OMG I already bought a new alternator and replaced it myself thinking there was no way this would be a warranty or tsb!
Of course it had to be. These things were failing way too frequently to be ignored. Sucks it took them so long.
