Interior Build out process:
Below will show pictures and walk you through a summarized process of what we did to the interior of the Bronco.



First was the battery tray with 4X Dakota Lithium 18Ah batteries all daisy chained to our BD/DC charger from REDARC. This is then directly mounted to the battery in the engine bay. Very long process of wiring and making sure everything works.

You can also view the Bronco attic from Blue Ridge overland gear!



Next was 60% seat delete that houses the ARB compressor





We then added some Powerwerx ports to the OEM plastic for the rear cargo area!

What did you guys do with the blue wire from the BCDC charger? Tie it back to ignition source?
Sponsored



cr117

Badlands
Well-Known Member
Joined
May 18, 2023
Threads
8
Messages
594
Reaction score
1,466
Location
PNW
Vehicle(s)
Bronco, EV6
Your Bronco Model
Badlands
Clubs

What did you guys do with the blue wire from the BCDC charger? Tie it back to ignition source?
You’re good to just tape it up and leave it disconnected.


350vudu

Raptor
Well-Known Member
First Name
350vudu
Joined
Jan 16, 2022
Threads
13
Messages
677
Reaction score
902
Location
Cleveland, OH
Vehicle(s)
2017 Shelby GT350, 2019 Ducati V4S Corse
Your Bronco Model
Raptor
Clubs

Interior Build out process:
Below will show pictures and walk you through a summarized process of what we did to the interior of the Bronco.



First was the battery tray with 4X Dakota Lithium 18Ah batteries all daisy chained to our BD/DC charger from REDARC. This is then directly mounted to the battery in the engine bay. Very long process of wiring and making sure everything works.

You can also view the Bronco attic from Blue Ridge overland gear!



Next was 60% seat delete that houses the ARB compressor





We then added some Powerwerx ports to the OEM plastic for the rear cargo area!

@TrailRax

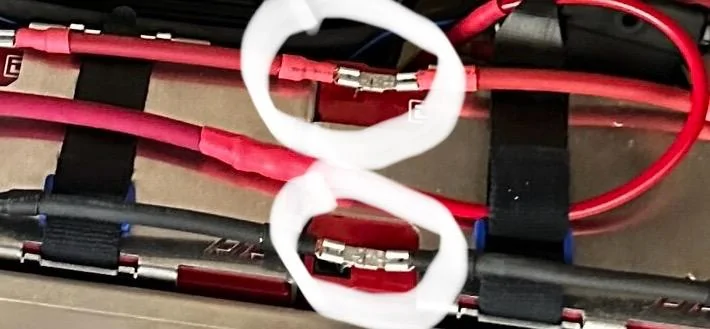

Do you have a link to the terminals used on the lithium battery. I’m trying to wire my batteries in parallel now but can’t find the same terminals used here.

Ford Bronco TrailRax Badlands Bronco Build IMG_0726

OP
OP
TrailRax

TrailRax

Badlands
Well-Known Member
Lux Sponsor (Level 2)
First Name
TrailRax
Joined
Nov 3, 2021
Threads
25
Messages
759
Reaction score
1,565
Location
Woods Cross, Utah
Website
www.trailrax.com
Vehicle(s)
2023 Bronco Badlands
Your Bronco Model
Badlands
@TrailRax

Do you have a link to the terminals used on the lithium battery. I’m trying to wire my batteries in parallel now but can’t find the same terminals used here.

Ford Bronco TrailRax Badlands Bronco Build IMG_0726
Cannot recall the link, we either got it off amazon or a local electronics store due to how uncommon they are.


dvdmnhn

First Edition
Well-Known Member
First Name
David
Joined
Nov 28, 2021
Threads
2
Messages
53
Reaction score
68
Location
CA
Vehicle(s)
2021 Bronco First Edition
Your Bronco Model
First Edition
Clubs

Very nice . . . A diagram! What prevents the Redarc charger from running down the car battery? Right now, the 12v OEM power feed at the back shuts off in an hour (although mine stopped putting out power, and the fuses are good.
Did you ever figure out why the 12v stopped putting out power?


Sponsored

lakesinai

Outer Banks
Well-Known Member
First Name
John
Joined
Mar 22, 2021
Threads
36
Messages
1,988
Reaction score
2,614
Location
Charleston SC
Vehicle(s)
2021 Bronco 4dr OBX MIC 2.7 Rear Locker A51 Roast
Your Bronco Model
Outer Banks
Clubs

Did you ever figure out why the 12v stopped putting out power?
No, I haven't wanted to leave it at the dealer for them to investigate for a couple days. I may run a new circuit, and use an Anderson Plug instead. I've been using the 110v charger plugged into the Bronco 110v outlet, thats failsafe, but slow: On the PLB40, it does 10% charge per hour of engine time. I just dont think the round car plug can handle the 12v load, but when using Anderson connectors, all is well. I will say, ive been using this Dometic Frig to Dometic PLB40, and I see no battery degradation after 10 months. My next install will be a solar panel on the TrailRax half-rack to keep the PLB40 charged. The PLB40 has its own internal regulator. Until then, if I don't drive much for a couple of days, I have to plug the PLB40 into a garage outlet every few days.

First Name
Jason
Joined
Jan 24, 2024
Threads
1
Messages
5
Reaction score
1
Location
Virginia Beach
Vehicle(s)
2023 Badlands
Your Bronco Model
Badlands
@TrailRax Do you remember what gauge wire you used to run the parallel batteries? and it looks like you then ran them to a bus bar before running to the Redarc system?

I am fairly new to these types of setups, but was planning the same system (ie. 4 18Ah batteries run in parallel, then running those to my Redarc Manager 30, then hooking up my Dometic refrigerator and a Redarc inverter). I understand the setup, but it is the small questions around wiring and hookups that I have been struggling with. Any insights you have are certainly appreciated!


350vudu

Raptor
Well-Known Member
First Name
350vudu
Joined
Jan 16, 2022
Threads
13
Messages
677
Reaction score
902
Location
Cleveland, OH
Vehicle(s)
2017 Shelby GT350, 2019 Ducati V4S Corse
Your Bronco Model
Raptor
Clubs

@TrailRax

Are you guys running your Arb dual compressor off the second battery system?

OP
OP
TrailRax

TrailRax

Badlands
Well-Known Member
Lux Sponsor (Level 2)
First Name
TrailRax
Joined
Nov 3, 2021
Threads
25
Messages
759
Reaction score
1,565
Location
Woods Cross, Utah
Website
www.trailrax.com
Vehicle(s)
2023 Bronco Badlands
Your Bronco Model
Badlands
@TrailRax

Are you guys running your Arb dual compressor off the second battery system?
We are but only running it when the engine is on. The ARB dual is in our 60% seat delete.


KermitBronco

Badlands
Well-Known Member
First Name
Ian
Joined
Nov 23, 2020
Threads
3
Messages
63
Reaction score
142
Location
So. Cal.
Vehicle(s)
2023 Bronco Badlands
Your Bronco Model
Badlands
Clubs

@TrailRax Do you remember what gauge wire you used to run the parallel batteries? and it looks like you then ran them to a bus bar before running to the Redarc system?

I am fairly new to these types of setups, but was planning the same system (ie. 4 18Ah batteries run in parallel, then running those to my Redarc Manager 30, then hooking up my Dometic refrigerator and a Redarc inverter). I understand the setup, but it is the small questions around wiring and hookups that I have been struggling with. Any insights you have are certainly appreciated!
I'm at UBB this week if you want to see a complete setup. FWIW, we are starting to design an upgrade from current 4x 18Ah (now replaced by 20Ah same size) to 7 x 25Ah to be able to fully power induction cooktop, rice maker, etc.

You can't have more than 4 small batteries because of their small terminals and the 4 max. out at ~860 continuous watts. I currently can only run 1800 watt induction cooktop at level 5 of 10, for instance.

It all comes down to what you want to accomplish.

Hope this helps!

Last edited:

Sponsored

350vudu

Raptor
Well-Known Member
First Name
350vudu
Joined
Jan 16, 2022
Threads
13
Messages
677
Reaction score
902
Location
Cleveland, OH
Vehicle(s)
2017 Shelby GT350, 2019 Ducati V4S Corse
Your Bronco Model
Raptor
Clubs

I'm at UBB this week if you want to see a complete setup. FWIW, we are starting to design an upgrade from current 4x 18Ah (now replaced by 20Ah same size) to 7 x 25Ah to be able to fully power induction cooktop, rice maker, etc.

You can't have more than 4 small batteries because of their small terminals and the 4 max. out at ~860 continuous watts. I currently can only run 1800 watt induction cooktop at level 5 of 10, for instance.

It all comes down to what you want to accomplish.

Hope this helps!
Ford Bronco TrailRax Badlands Bronco Build FB_IMG_1709006385798
An FYI, Dakota Lithium says the 20AH are the same size as the old 18AH but they are not. The new 20AH are about 1/4” longer. The American adventure lab battery hold down brackets don’t fit over them and 4 of the batteries no longer fit in the AAL cargo multi mount tray. AAL no longer sells the cargo multi mount tray for this very reason. I found out the hard way and had to send the 20AH batteries back and source the 18AH batteries which was very hard to do. Almost no one has stock anymore.

OP
OP
TrailRax

TrailRax

Badlands
Well-Known Member
Lux Sponsor (Level 2)
First Name
TrailRax
Joined
Nov 3, 2021
Threads
25
Messages
759
Reaction score
1,565
Location
Woods Cross, Utah
Website
www.trailrax.com
Vehicle(s)
2023 Bronco Badlands
Your Bronco Model
Badlands
An FYI, Dakota Lithium says the 20AH are the same size as the old 18AH but they are not. The new 20AH are about 1/4” longer. The American adventure lab battery hold down brackets don’t fit over them and 4 of the batteries no longer fit in the AAL cargo multi mount tray. AAL no longer sells the cargo multi mount tray for this very reason. I found out the hard way and had to send the 20AH batteries back and source the 18AH batteries which was very hard to do. Almost no one has stock anymore.
Sorry to hear that! Our team has been discussing the possibility of upgrading to a bigger aux battery, should we ever plan to get rid of the old set up, we will hit you up.


350vudu

Raptor
Well-Known Member
First Name
350vudu
Joined
Jan 16, 2022
Threads
13
Messages
677
Reaction score
902
Location
Cleveland, OH
Vehicle(s)
2017 Shelby GT350, 2019 Ducati V4S Corse
Your Bronco Model
Raptor
Clubs

Sorry to hear that! Our team has been discussing the possibility of upgrading to a bigger aux battery, should we ever plan to get rid of the old set up, we will hit you up.
No need, I found (4) 18 AH batteries already and am good to go.

Also, I sent you guys an email with tracking number about sending my rack windscreen back. Never heard a reply back. It’s scheduled to get there tomorrow.

OP
OP
TrailRax

TrailRax

Badlands
Well-Known Member
Lux Sponsor (Level 2)
First Name
TrailRax
Joined
Nov 3, 2021
Threads
25
Messages
759
Reaction score
1,565
Location
Woods Cross, Utah
Website
www.trailrax.com
Vehicle(s)
2023 Bronco Badlands
Your Bronco Model
Badlands
No need, I found (4) 18 AH batteries already and am good to go.

Also, I sent you guys an email with tracking number about sending my rack windscreen back. Never heard a reply back. It’s scheduled to get there tomorrow.
I will make sure the team gets back to you tomorrow once they are in the office.

OP
OP
TrailRax

TrailRax

Badlands
Well-Known Member
Lux Sponsor (Level 2)
First Name
TrailRax
Joined
Nov 3, 2021
Threads
25
Messages
759
Reaction score
1,565
Location
Woods Cross, Utah
Website
www.trailrax.com
Vehicle(s)
2023 Bronco Badlands
Your Bronco Model
Badlands
Hey All,

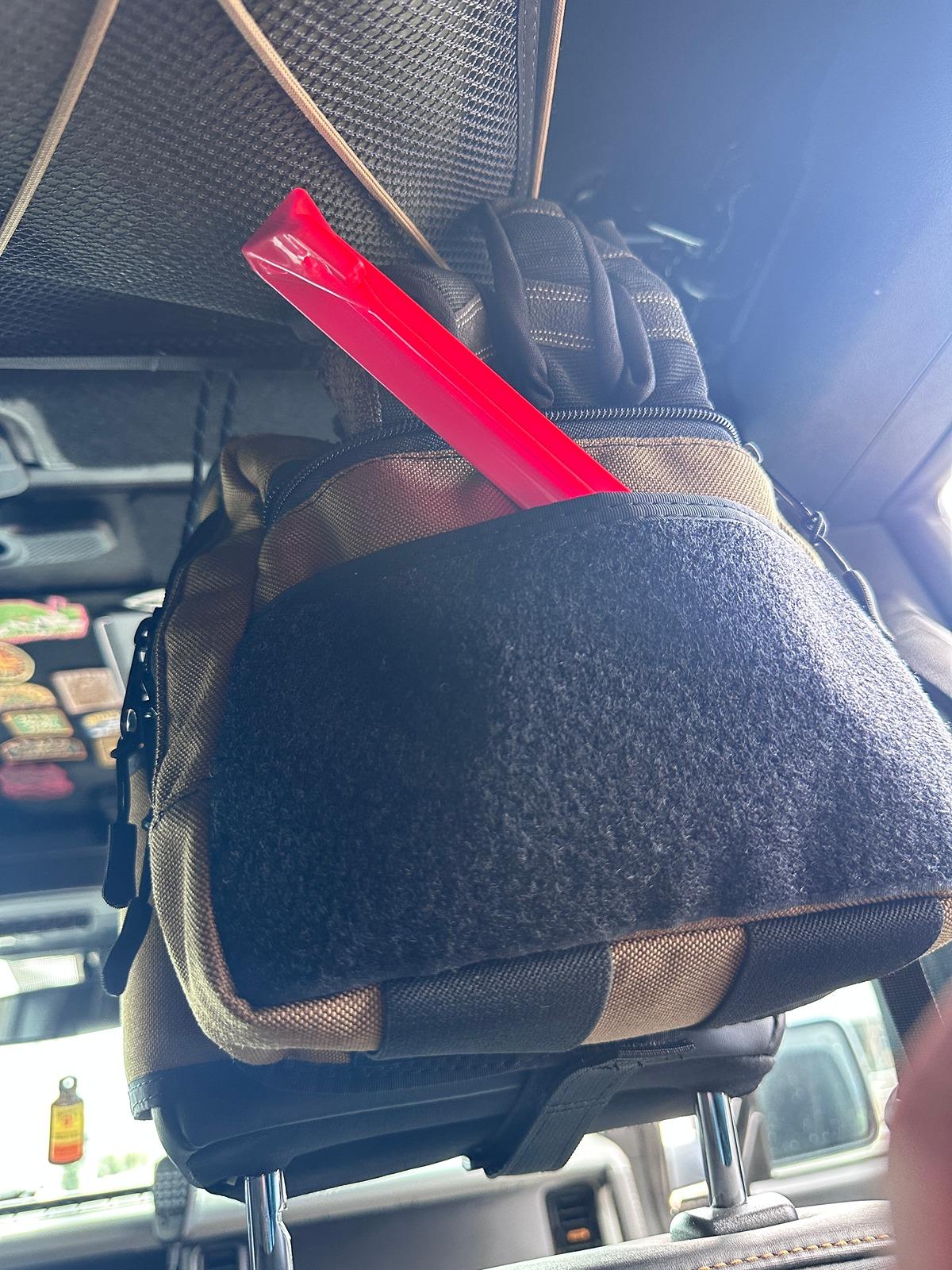

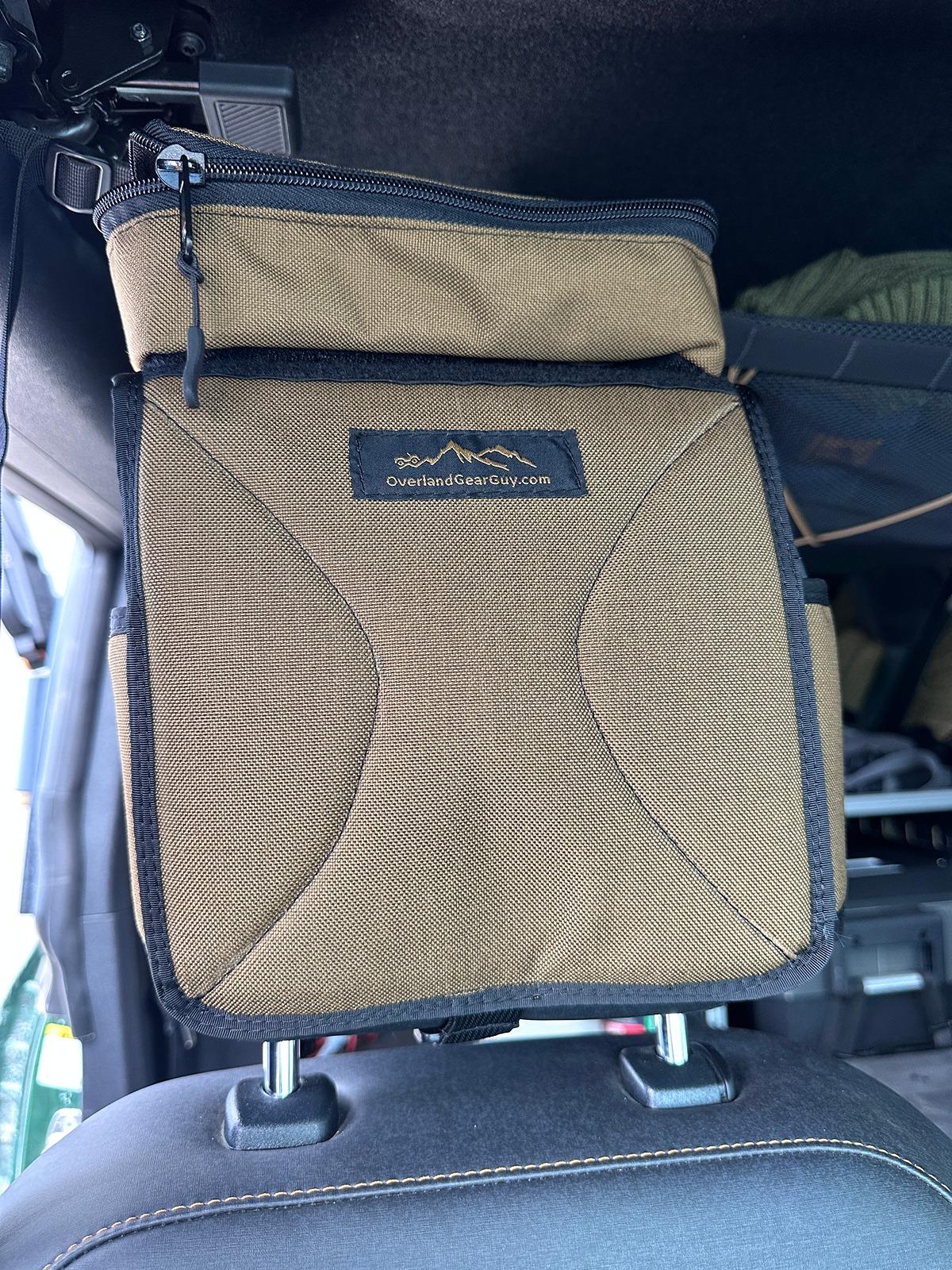

We recently added a new but very useful accessory to our Bronco badlands interior. This is from our friends at Overland Gear guy, we assisted in the design with some input that has worked for us, this thing is awesome.
