Very nice . . . A diagram!
A note on LiFePO4 as the second battery. A very positive note.

I am waiting to order my Bronco, so this experience is in my 2009 Chevy Tahoe. Other than that, it should be comparable to what happens in a Bronco.

I have the "towing option" for my Tahoe, there's space for a second type 24 battery behind the left headlight assembly. I have used deep-cycle marine batteries for over a decade in that position. I have a lot of radio and computer gear in my truck, and I leave things on for extended periods (days).

I have a 120 W solar panel hard-mounted on the roof, it wasn't easy to find one that fit in the location I picked, but it works fine.

A month ago, I finally bit the bullet on ditching the lead-acid battery for a LiFePO4 100Ah 12 volt. 100 amp built in battery management system (BMS). The battery is somewhat skinnier and taller than the old battery, so I had to modify the hold-down assembly. Some thread-rod and a generic battery hold-down bracket from Amazon, slightly modified, did the trick.

Resting voltage, charging voltage, and BMS low-voltage protection disconnect are all different between lead-acid and LiFePO4. Temp ranges are comparable, at least at the high end. Can't speak to cold wx, and I live in PHX. For me, this is an experiment, and I don't want to kill a brand-new LiFePO4 battery due to voltage issues.

I use a Hellroaring (hellroaring.com) smart battery isolator. It connects and at the same time isolates the starter battery from the second battery. It's quite trick and just seems to work. Automatic protection, no need to manually throw a switch under the hood to isolate. Highly recommend.

The solar panel connects only to the second battery.

Got it all installed and tested, then went on a 3600-mile road trip. Returned yesterday afternoon.

OMG, what a positive difference. The loads, adding up to maybe 4 amps continuous, with peaks to 25 amps, never even got close to depleting the LiFePO4 battery. Never even approached the 30-40% capacity remaining level (13.0 volts). With the lead-acid, I'd see voltage sags into the 11.8 volt range, which is pretty much end of capacity, and not good for the battery.

I did not have a temperature sensor mounted on the battery (yet), but am sure the underhood temps easily were in the 140 F (60 C) range. Perhaps higher. When the outside air temp is already over 100 F, under the hood is positively painful. No perceptible voltage/state of charge anomalies noted in the 12 day trip.

The jury is still out (I'm an engineer), but so far I cannot recommend enough using LiFePO4 industrial grade batteries in automotive applications. Just not for the starter battery (yet).

Cheers - Jon


lakesinai

Outer Banks
Well-Known Member
First Name
John
Joined
Mar 22, 2021
Threads
36
Messages
1,987
Reaction score
2,614
Location
Charleston SC
Vehicle(s)
2021 Bronco 4dr OBX MIC 2.7 Rear Locker A51 Roast
Your Bronco Model
Outer Banks
Clubs

A note on LiFePO4 as the second battery. A very positive note.

I am waiting to order my Bronco, so this experience is in my 2009 Chevy Tahoe. Other than that, it should be comparable to what happens in a Bronco.

I have the "towing option" for my Tahoe, there's space for a second type 24 battery behind the left headlight assembly. I have used deep-cycle marine batteries for over a decade in that position. I have a lot of radio and computer gear in my truck, and I leave things on for extended periods (days).

I have a 120 W solar panel hard-mounted on the roof, it wasn't easy to find one that fit in the location I picked, but it works fine.

A month ago, I finally bit the bullet on ditching the lead-acid battery for a LiFePO4 100Ah 12 volt. 100 amp built in battery management system (BMS). The battery is somewhat skinnier and taller than the old battery, so I had to modify the hold-down assembly. Some thread-rod and a generic battery hold-down bracket from Amazon, slightly modified, did the trick.

Resting voltage, charging voltage, and BMS low-voltage protection disconnect are all different between lead-acid and LiFePO4. Temp ranges are comparable, at least at the high end. Can't speak to cold wx, and I live in PHX. For me, this is an experiment, and I don't want to kill a brand-new LiFePO4 battery due to voltage issues.

I use a Hellroaring (hellroaring.com) smart battery isolator. It connects and at the same time isolates the starter battery from the second battery. It's quite trick and just seems to work. Automatic protection, no need to manually throw a switch under the hood to isolate. Highly recommend.

The solar panel connects only to the second battery.

Got it all installed and tested, then went on a 3600-mile road trip. Returned yesterday afternoon.

OMG, what a positive difference. The loads, adding up to maybe 4 amps continuous, with peaks to 25 amps, never even got close to depleting the LiFePO4 battery. Never even approached the 30-40% capacity remaining level (13.0 volts). With the lead-acid, I'd see voltage sags into the 11.8 volt range, which is pretty much end of capacity, and not good for the battery.

I did not have a temperature sensor mounted on the battery (yet), but am sure the underhood temps easily were in the 140 F (60 C) range. Perhaps higher. When the outside air temp is already over 100 F, under the hood is positively painful. No perceptible voltage/state of charge anomalies noted in the 12 day trip.

The jury is still out (I'm an engineer), but so far I cannot recommend enough using LiFePO4 industrial grade batteries in automotive applications. Just not for the starter battery (yet).

Cheers - Jon
A few pictures and actual solar panel/electric management system? I plan to permanently mount the panel on my rear half rack.


JONNEE

Active Member
First Name
Jon
Joined
Mar 7, 2023
Threads
1
Messages
40
Reaction score
35
Location
Phoenix AZ
Vehicle(s)
2009 Tahoe, 2000 Yukon XL, 1993 Suburban, all 4WD
Your Bronco Model
Undecided
Clubs

A few pictures and actual solar panel/electric management system? I plan to permanently mount the panel on my rear half rack.
Ford Bronco TrailRax Badlands Bronco Build IMG_9955
Ford Bronco TrailRax Badlands Bronco Build IMG_9954
Ford Bronco TrailRax Badlands Bronco Build IMG_9956
Ford Bronco TrailRax Badlands Bronco Build IMG_9957
Ford Bronco TrailRax Badlands Bronco Build IMG_9717

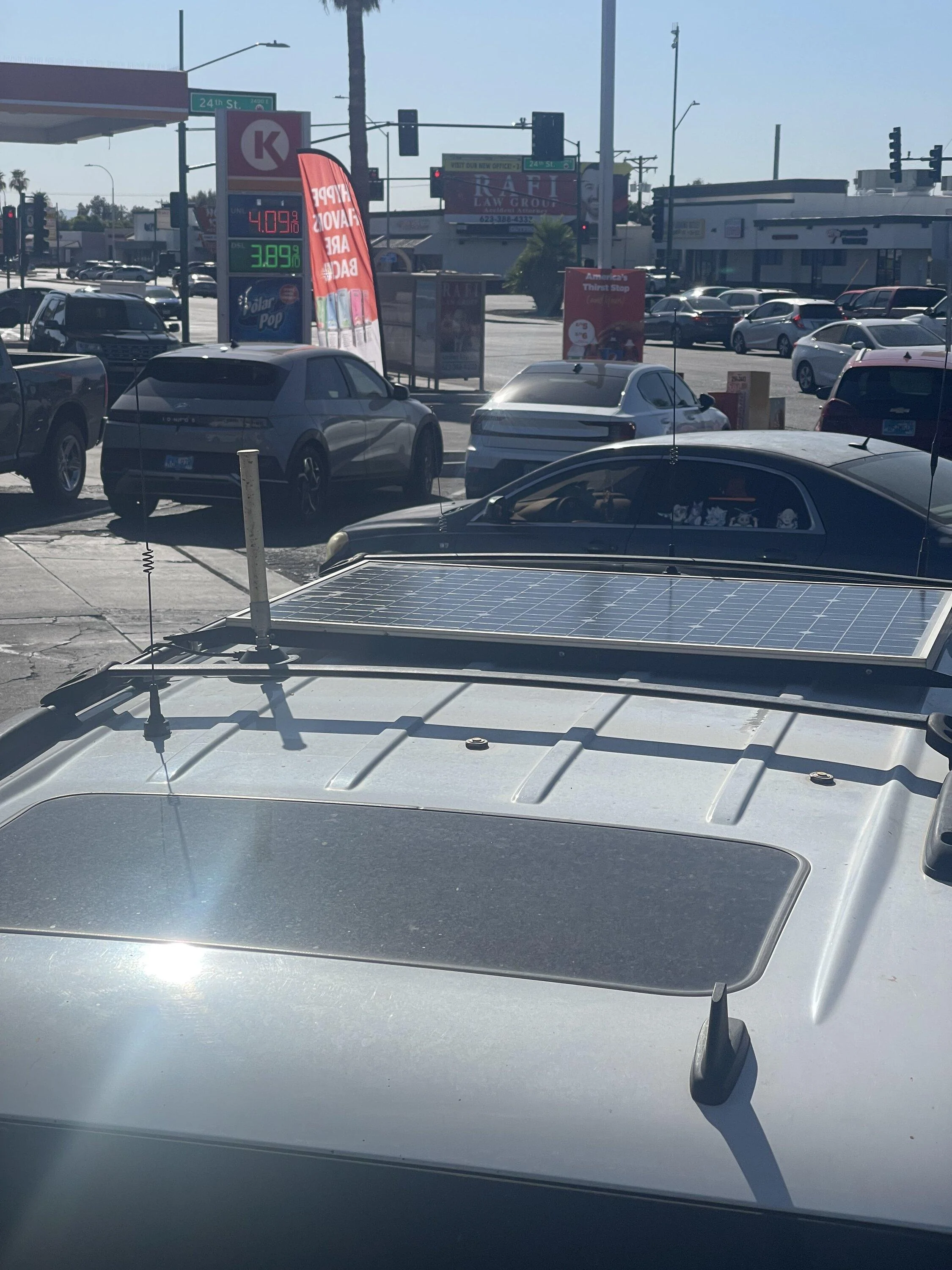

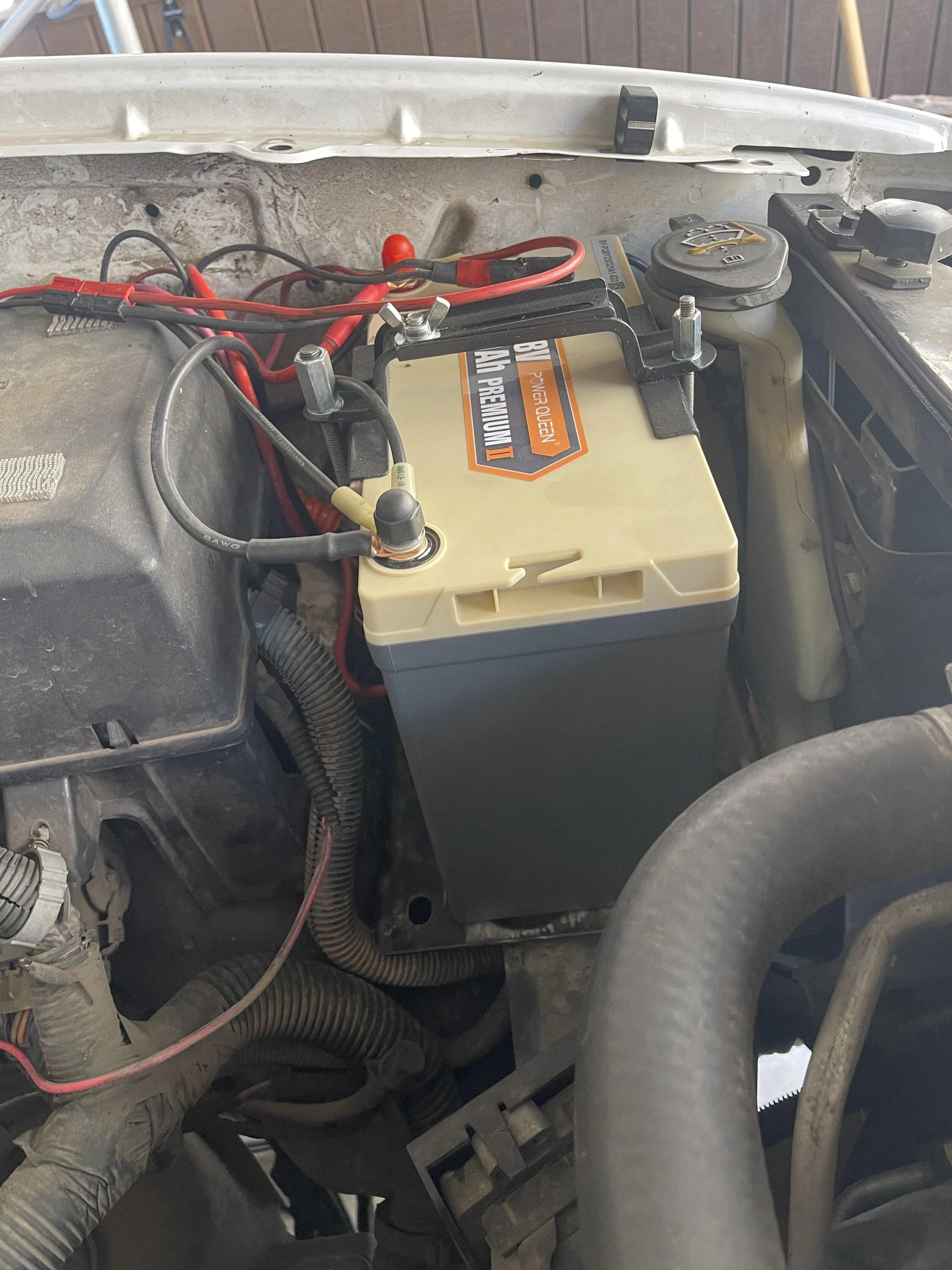

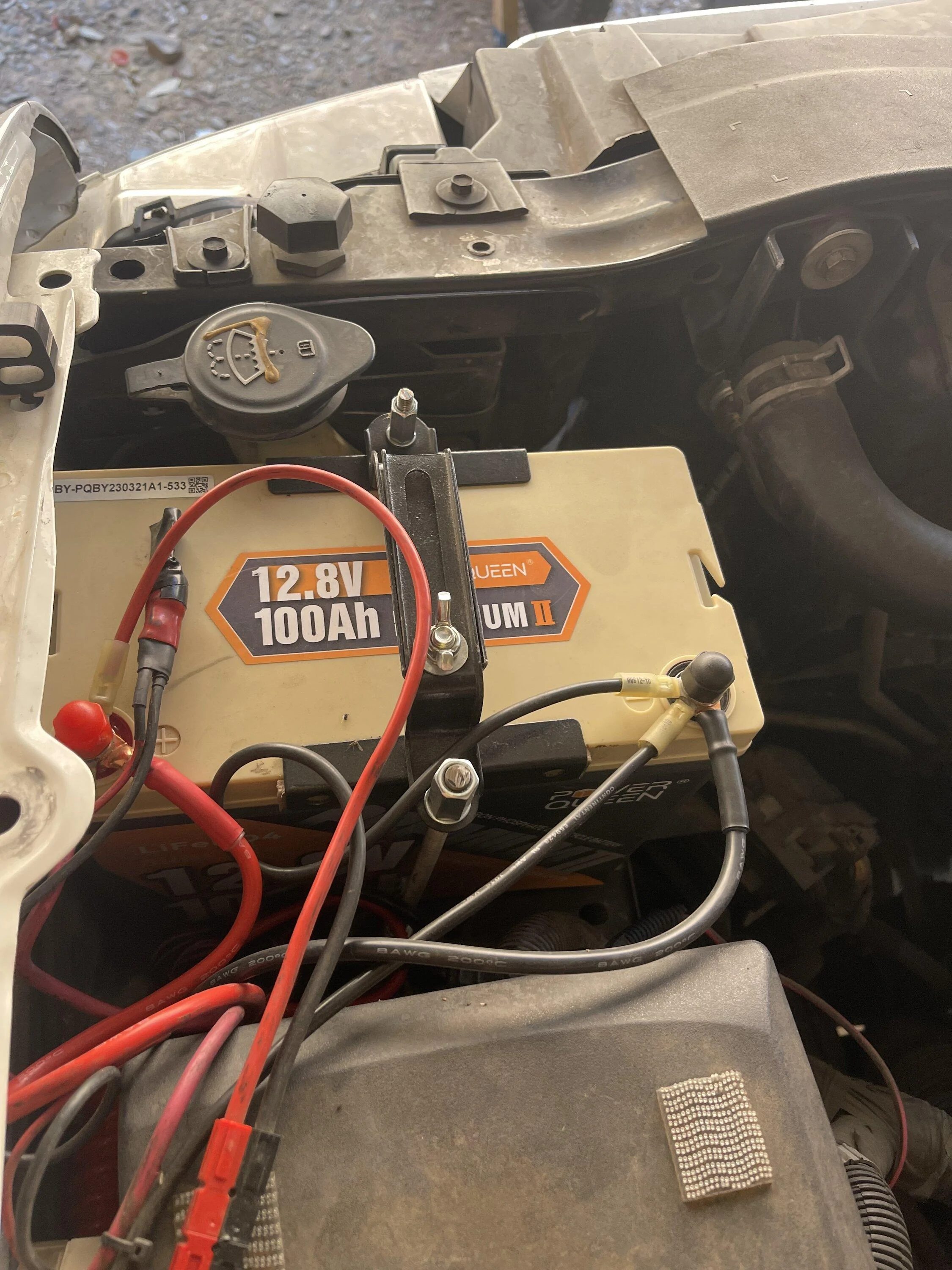

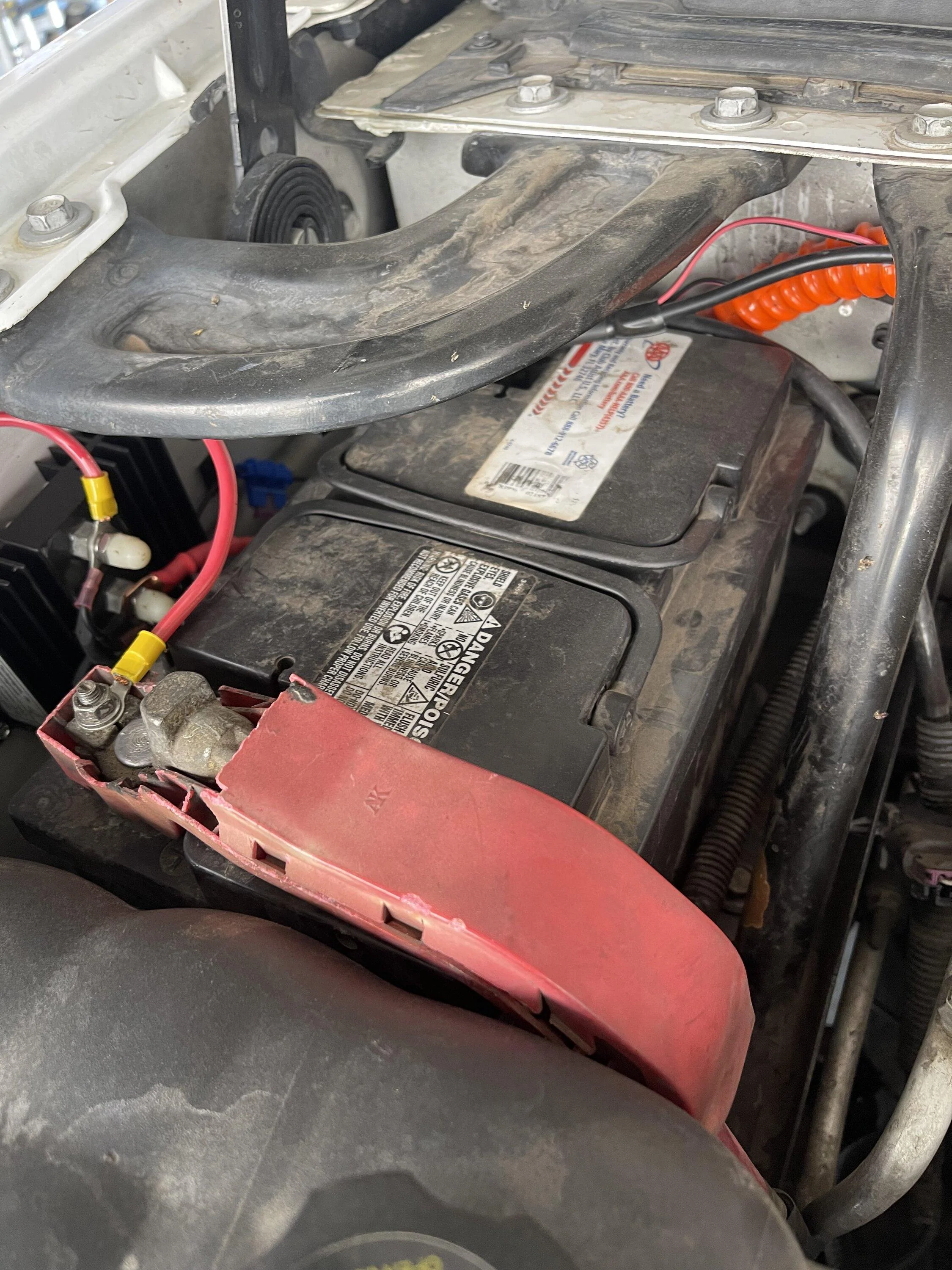

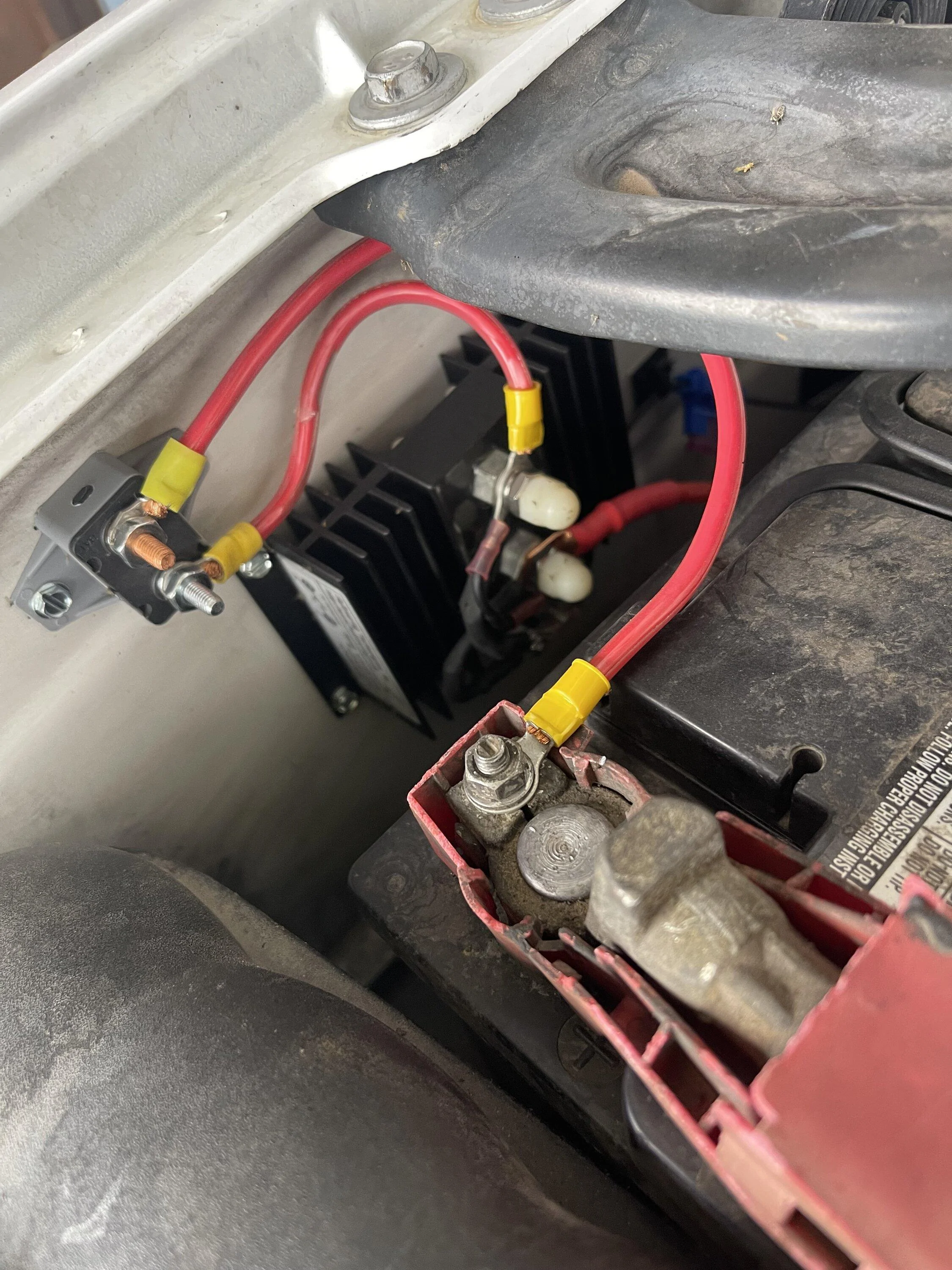

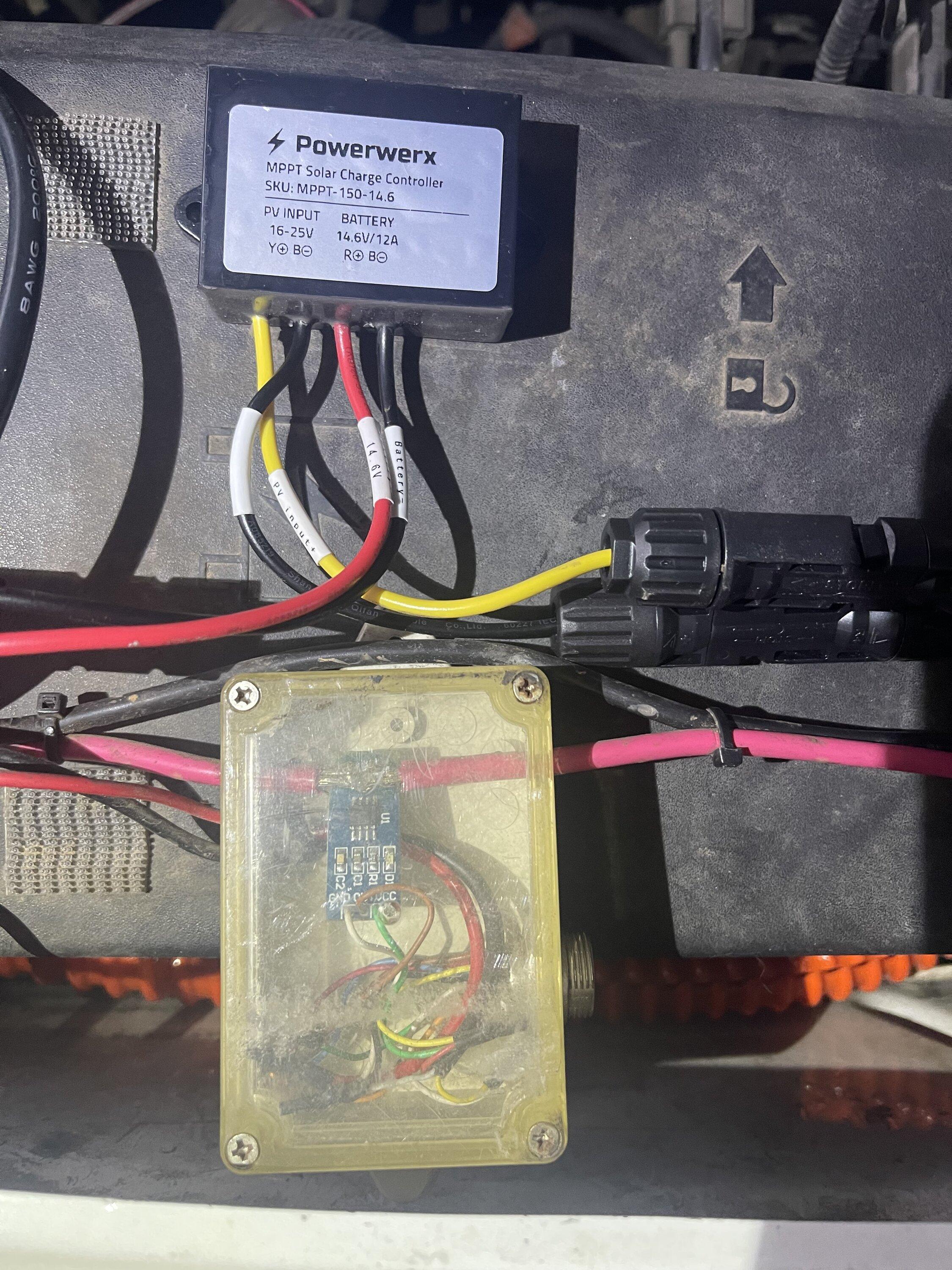

i use 8 ga wire for my interconnects. 40 A fuses, except for the 50 A breaker that came with the Hellroaring.

The charge controller is a simple MPPT. Nothing fancy. An MPPT is kinda overkill, not that much efficiency difference, but I’m just that way:) The other box in the picture is an attempt at telemetering load current, battery voltage and temperature. Not done yet.

It's over 110 F here today. I did get out the IR Thermo and checked the surface temp of the battery once I pulled into the carport. Temp on multiple surfaces all in the 145-150 F range. Outside the LiFePO4 range, but not by much. (Ever read up on temp range for a lead-acid battery?)

hopefully some of the above is useful. Cheers - Jon
