ROLL BAR DELETE

Bruno

Base
Well-Known Member
First Name
Bruno
Joined
Apr 24, 2021
Threads
39
Messages
402
Reaction score
346
Location
Montclair
Vehicle(s)
F150
Your Bronco Model
Base
I am interested in more clearance in the back area, for standing with a pop top camper with access from the inside.

1) Anybody know if the Bronco would fold up in on itself if you deleted the roll bar?

2) For example what if only : the roll bar rear cross bar was deleted?

3) What if the rear cross bar was deleted - and replaced with the mid-cross bar as found in the Raptor?


Any insights would be appreciated!



Screenshot 2023-01-24 135550.jpg


Screenshot 2023-01-24 135638.jpg


bronco brace.jpg


Bronco parts.jpg
Sponsored


Last edited:

AMTRV

Badlands
Well-Known Member
Joined
May 1, 2022
Threads
11
Messages
497
Reaction score
764
Location
Texas
Vehicle(s)
22 Badlands 4dr, 22 6.7L Tremor, 1940 Ford Cpe
Your Bronco Model
Badlands
No way would I risk the structural stability by removing the rollbar.


Layman

Badlands
Well-Known Member
First Name
Michael
Joined
Jul 17, 2022
Threads
2
Messages
197
Reaction score
438
Location
Voorheesville
Vehicle(s)
2022 Bronco Badlands 7MT
Your Bronco Model
Badlands
Clubs

No way would I risk the structural stability by removing the rollbar.
I am with AMTRV. This is a bad idea. My guess is you will not get any feedback on this, because no one has tried it, because "this is a bad idea."


Rspayde

Black Diamond
Well-Known Member
Joined
Jan 17, 2022
Threads
11
Messages
689
Reaction score
1,248
Location
North Ga
Vehicle(s)
2019 XLT Ranger
Your Bronco Model
Black Diamond
Clubs

I would be interested in a pop-top camper top that was full integrated into the Bronco top. Some day we will get it just not anytime soon. Until then I would not advise messing with the hard top design to much. Hardly works as is.


Sponsored

BlueBronco

Badlands
Well-Known Member
Joined
Jul 14, 2020
Threads
16
Messages
4,503
Reaction score
16,232
Location
DFW
Vehicle(s)
'16 F150 KR - '21 Bronco BL x2
Your Bronco Model
Badlands
Only one way to find out...



I in no way recommend doing what you suggested but the only plausible way would be option 3, but instead of using the BRaptor bar, maybe relocating the existing bar 18" forward or so. I am very pro DIY but, again, I don't recommend doing this. Just, no, don't do this.


Silver-Bolt

Wildtrak
Well-Known Member
First Name
Bill
Joined
Jul 15, 2020
Threads
14
Messages
2,173
Reaction score
3,458
Location
Portland, OR & Eureka, MT
Vehicle(s)
2018 Ford Raptor, 2020 Audi SQ5, 2023 Wildtrak
Your Bronco Model
Wildtrak
Clubs

It's body on frame construction. It won't fold up. That said you will likely have issues with the body itself. Doors and rear door would likely stay aligned. You would need to add in some bracing to keep things where they belong.


Dusty

Base
Well-Known Member
Joined
Feb 29, 2016
Threads
18
Messages
522
Reaction score
2,510
Location
Mentone, CA
Vehicle(s)
70, 71 & '21 Broncos
Your Bronco Model
Base
Clubs

I am interested in more clearance in the back area, for standing with a pop top camper with access from the inside.

1) Anybody know if the Bronco would fold up in on itself if you deleted the roll bar?

2) For example what if only : the roll bar rear cross bar was deleted?

3) What if the rear cross bar was deleted - and replaced with the mid-cross bar as found in the Raptor?
Most of the dissenting opinions you'll get are from people who have never built anything. But of course this can be done by a COMPETENT fabricator with the right tools and skills. In fact I think it would be an interesting project. Do like you suggested in option 3. Cut out the rear cross bar, weld in a custom-fabricated cross bar further forward to allow access for your camper. That said, I wouldn't consider this as a driveway mod or DIY project for a first-time fabricator.

There is a legacy for Bronco-mounted campers reaching back to the Early Bronco. I think it would be cool to see that brought forward.

Just my opinion, which is worth what you paid for it.


Sponsored

indio22

Base
Well-Known Member
Joined
Aug 25, 2019
Threads
5
Messages
2,759
Reaction score
5,705
Location
Chicagoland, USA
Vehicle(s)
1972 Land Rover, 1985 CJ-7, 1998 TJ, 2014 BRZ
Your Bronco Model
Base
Vehicle Showcase
1
I am interested in more clearance in the back area, for standing with a pop top camper with access from the inside.

1) Anybody know if the Bronco would fold up in on itself if you deleted the roll bar?

2) For example what if only : the roll bar rear cross bar was deleted?

3) What if the rear cross bar was deleted - and replaced with the mid-cross bar as found in the Raptor?

Any insights would be appreciated!



Screenshot 2023-01-24 135550.jpg


Screenshot 2023-01-24 135638.jpg
As mentioned, because Bronco construction is body on ladder frame, you don't have to worry much about body shell integrity (compared to if you were dealing with a unibody construction).

I bet you could modify the Bronco roll bar structure without much issue, providing you take into account that the window surround seals and some other stuff, needs to be kept in same location to function properly. Because that stuff is located by the roll bar structure.

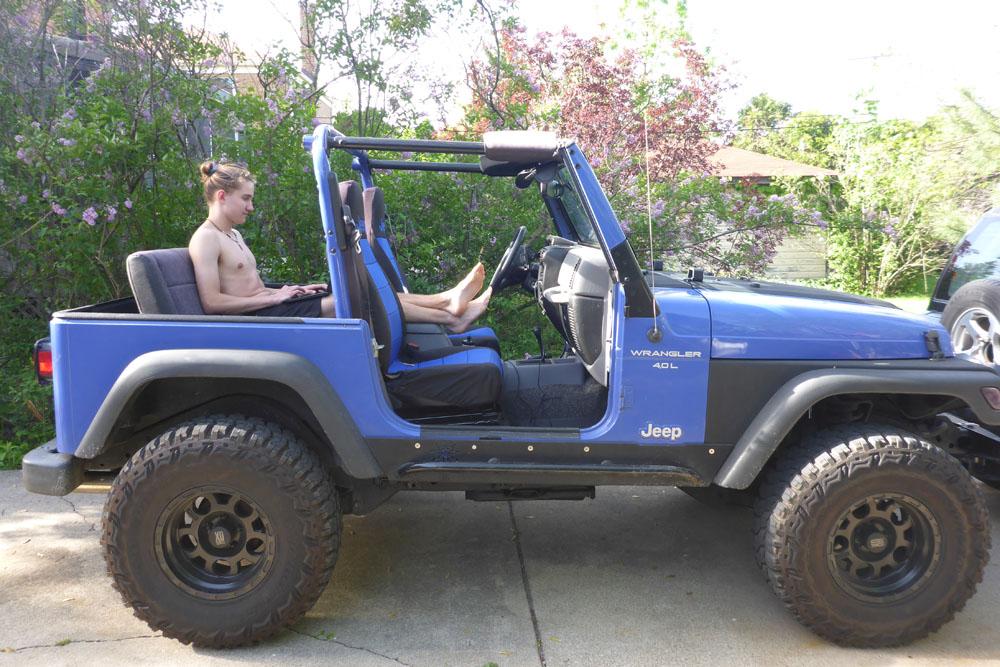

I happen to have a Jeep TJ with back portion of roll bar removed (see photo below). No issues at all. But the roll bar was not doing much else functionally (other than providing a mounting point for rear seatbelts).

Personally, I'd be hesitant to hack too much into a brand new expensive vehicle. That's the beauty of older 4x4s, they can be a canvas where you can do all sort of creative mods. If you do end up modding the Bronco roll bar, please share it would be interesting.


OP
OP
Bruno

Bruno

Base
Well-Known Member
First Name
Bruno
Joined
Apr 24, 2021
Threads
39
Messages
402
Reaction score
346
Location
Montclair
Vehicle(s)
F150
Your Bronco Model
Base
As mentioned, because Bronco construction is body on ladder frame, you don't have to worry much about body shell integrity (compared to if you were dealing with a unibody construction).

I bet you could modify the Bronco roll bar structure without much issue, providing you take into account that the window surround seals and some other stuff, needs to be kept in same location to function properly. Because that stuff is located by the roll bar structure.

I happen to have a Jeep TJ with back portion of roll bar removed (see photo below). No issues at all. But the roll bar was not doing much else functionally (other than providing a mounting point for rear seatbelts).

Personally, I'd be hesitant to hack too much into a brand new expensive vehicle. That's the beauty of older 4x4s, they can be a canvas where you can do all sort of creative mods. If you do end up modding the Bronco roll bar, please share it would be interesting.

Thanks - yea basically just wanted to move the cross bar forward, to be able to stand up back there with a pop top camper.

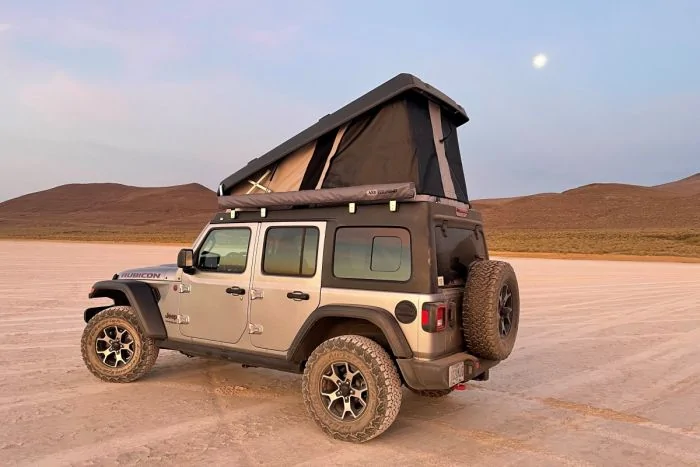

This company is supposedly making one for the Bronco
https://ursaminorvehicles.com/j30-pop-up-camper-jl-2.html

They have not in the past - but I pray they make the bed fold up, so you can use the back to stand up like this:


** The AluCab Hercules does this:
https://www.alu-cab.com/product/hercules-roof-conversion/

Im super doubtful AluCab will make a Bronco Pop-Up - which sux



dejones64

Black Diamond
Well-Known Member
First Name
Dan
Joined
Jul 24, 2020
Threads
5
Messages
1,622
Reaction score
2,465
Location
MN
Vehicle(s)
Bronco 2-dr Black Diamond
Your Bronco Model
Black Diamond
Clubs

Ask your insurance company.


indio22

Base
Well-Known Member
Joined
Aug 25, 2019
Threads
5
Messages
2,759
Reaction score
5,705
Location
Chicagoland, USA
Vehicle(s)
1972 Land Rover, 1985 CJ-7, 1998 TJ, 2014 BRZ
Your Bronco Model
Base
Vehicle Showcase
1
Thanks - yea basically just wanted to move the cross bar forward, to be able to stand up back there with a pop top camper.

This company is supposedly making one for the Bronco
https://ursaminorvehicles.com/j30-pop-up-camper-jl-2.html

They have not in the past - but I pray they make the bed fold up, so you can use the back to stand up like this:


** The AluCab Hercules does this:
https://www.alu-cab.com/product/hercules-roof-conversion/

Im super doubtful AluCab will make a Bronco Pop-Up - which sux

I've got an old Series Land Rover, and that reminds me, there was a camper option called the Dormobile. There were a few different variants, but similar to those photos you posted, the new popup top section replaced the upper portion of the hardtop.
