New Gear Ratios NOW AVAILABLE! Ford Performance M220 Rear Axle Assemblies!

[lethaljake]

Hey, All!

Ford Performance just released their new M220 Rear Axle Assemblies with a new range of Gear Ratios for 2021-2023 Bronco’s! (excluding Raptor)​

The new Gear Ratios now available with these kits are 5.38, 5.13, and 4.88.

Of course, they are still available in the original ratios the kits we’re released with, which are 4.70 and 4.46. All of which come standard with Ford’s Electronic Locking Differentials.​

Now for those who haven’t seen these yet, these axles assemblies are complete bolt-in units with everything needed for installation, including axle shafts and brake rotors (the rest of the OE components are to be re-used).

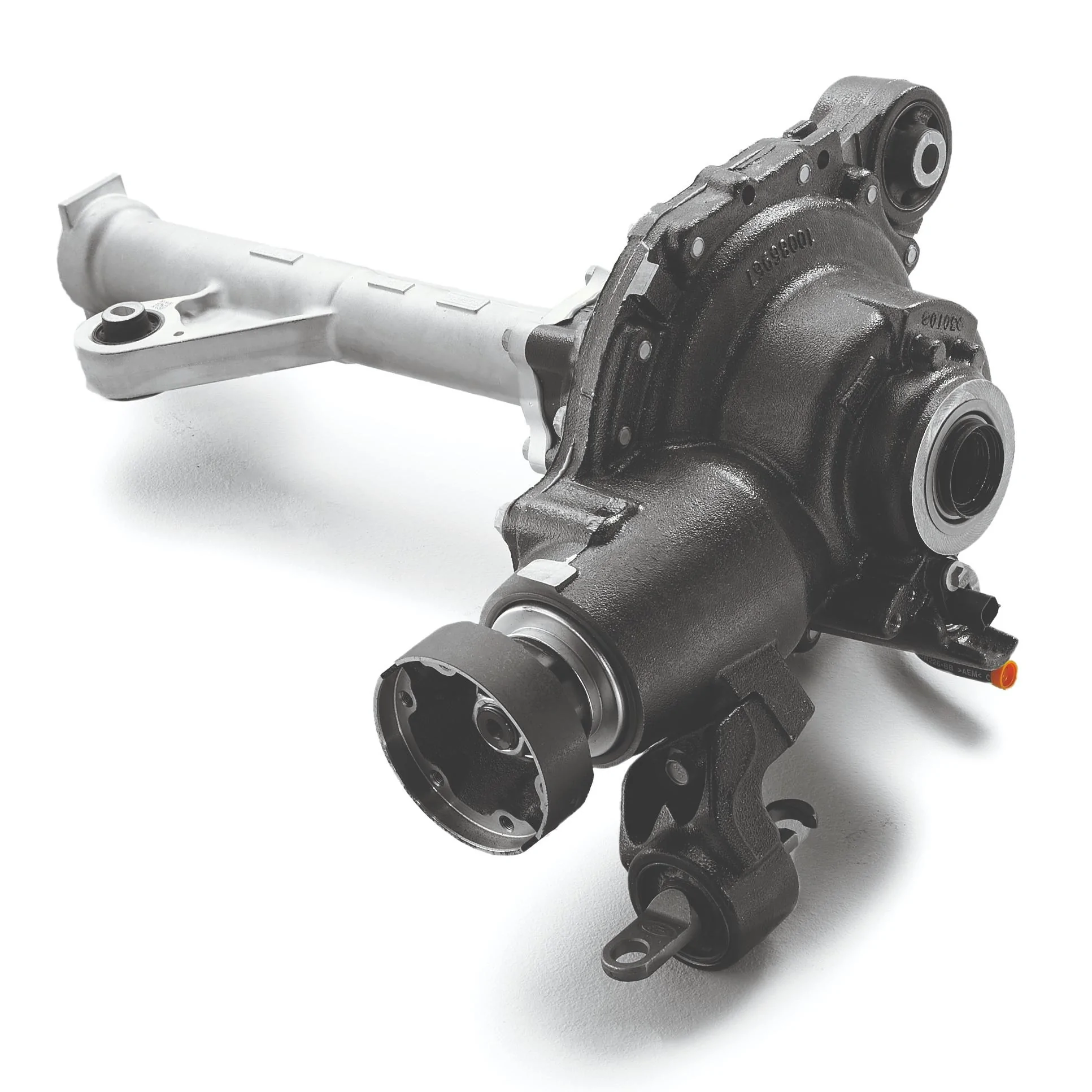

Now it is important to note that BOTH front and rear axles have to be the same ratio. Luckily, Ford Performance also offers the front drive units in corresponding ratios (apart from 4.88 at the moment).​

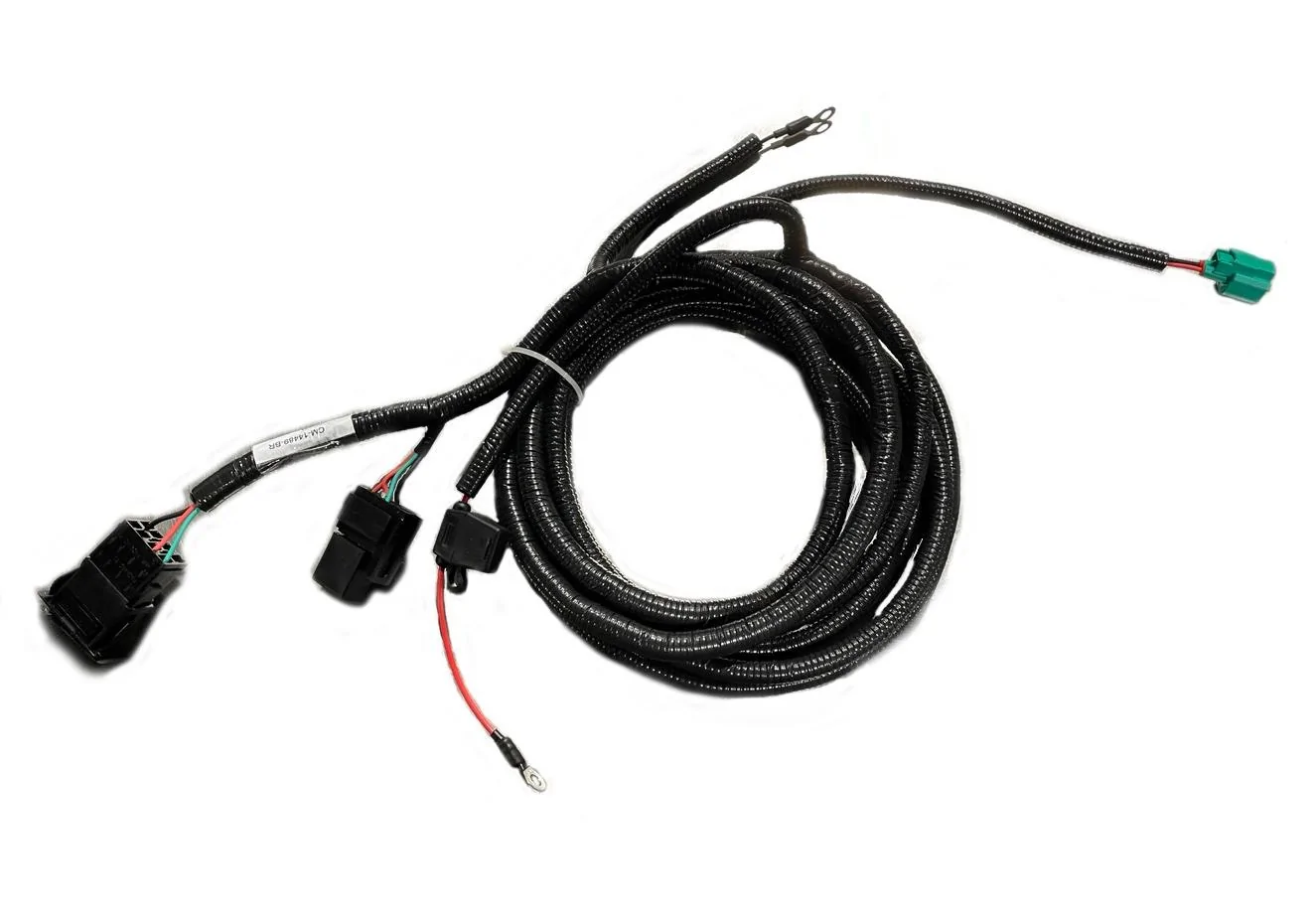

While these kits are made for Broncos equipped w/E-locker from the factory, we also have their wiring/switch kit to convert your Bronco into electronic-locking differential capable.​

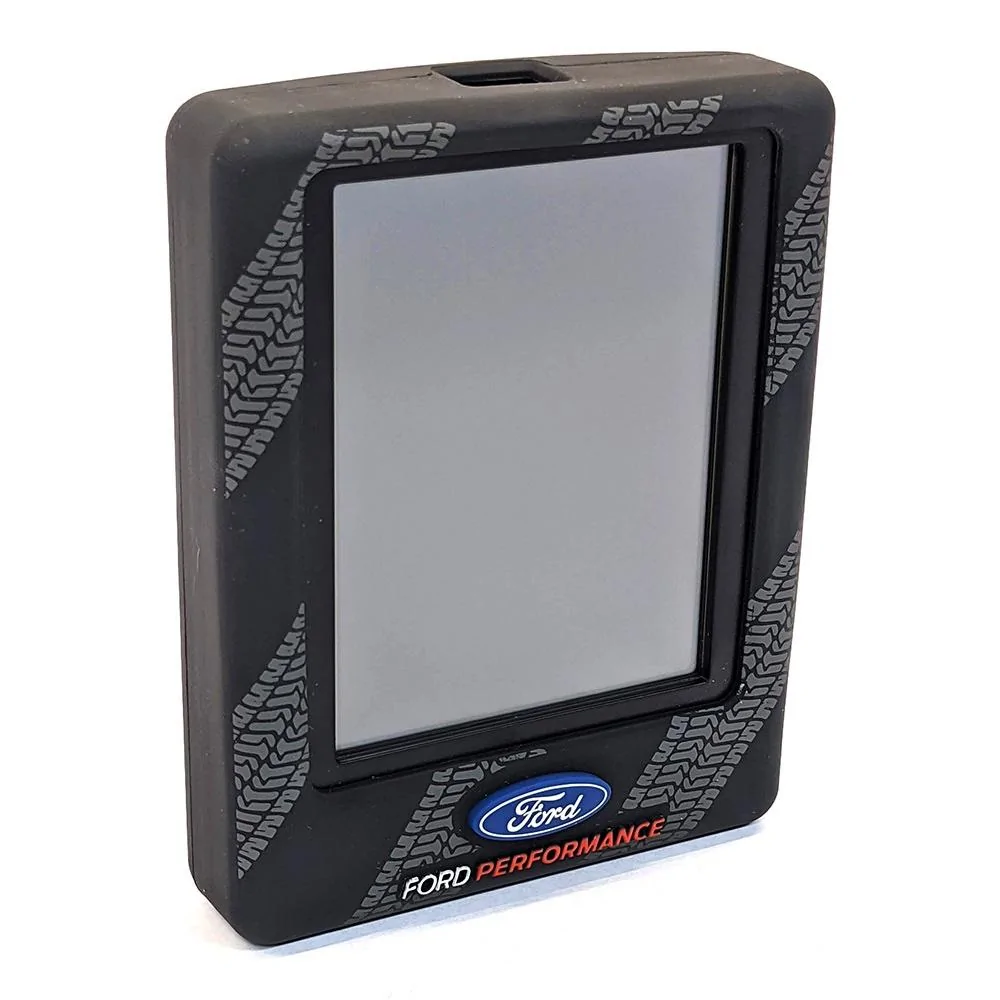

Lastly, if you’re changing axle ratios from the original, you will need a calibration for the speedometer and related-modules. Once again, Ford Performance has you covered with their ProCal Calibration kits.​

Of course, if you need help or have questions with Ford Performance products, feel free to reach out to any one of us here at Lethal Performance!

#teamlethal
#lethalperformance
#fordperformance​

Sponsored



[Toccoa]

No excuse not to put 40s on your Bronco now.



[MadMan4BamaNATL]

Anything different other than the ratios? New materials, Chromolly shafts? Anything?

If going with the same size M220, would be great if they were tougher. Guess I”m not the market for it, but it’s nice to see any upgrades.



[SubmarineNuke]

No excuse not to put 40s on your Bronco now.

That's not true...

the lack of funds in my bank account is a complete valid excuse...I don't have the funds to do the necessary lift for 40's or reconfigure my front end to accept them etc....there's a lot of excuses



[indio22]

"Lastly, if you’re changing axle ratios from the original, you will need a calibration for the speedometer and related-modules."

I'm wondering about the above statement. When installing larger diameter tires, I used Forscan to change my speedometer setting. Are there other modules requiring calibration when installing larger tires or changing axle diff gearing?



[GI_Jo_Nathan]

That's great! I just hate that both front and rear units are basically the same price. $2650 for the 5.13 for instance. Just the front dif is the same price as the entire rear assembly, with axles and disks. And I still have to buy new CV's and "allegedly" a driveshaft for the front. Gets out of hand real quick.



[mattymik]

"Lastly, if you’re changing axle ratios from the original, you will need a calibration for the speedometer and related-modules."

I'm wondering about the above statement. When installing larger diameter tires, I used Forscan to change my speedometer setting. Are there other modules requiring calibration when installing larger tires or changing axle diff gearing?

I'd think transmission, engine, & turbos have a number of computer-controlled parameters you'd need to calibrate to keep shifts, fuel pumps, boost, etc. operating in sync and in a way that's consistent with new tire size. But maybe I'm wrong.

I'm sure 33-->35 wouldn't be a big change. But 35-->40? I'm thinking you'd want to calibrate things.



[CarbonSteel]

No excuse not to put 40s on your Bronco now.

LOL - other than the fact a D44 axle is not rated for much of anything 37 or larger...

Housing deflection is more likely to occur which will result in damaged ring gear and pinion.



[0ne]

where’s the beef



[GI_Jo_Nathan]

where’s the beef

🫨



[Gluestick]

Call me silly, but why on earth include rotors?



[GI_Jo_Nathan]

Call me silly, but why on earth include rotors?

I wondered about that too. I wonder if it has something to do with the type of axles, I don't know enough about it.



[RubyRedGT]

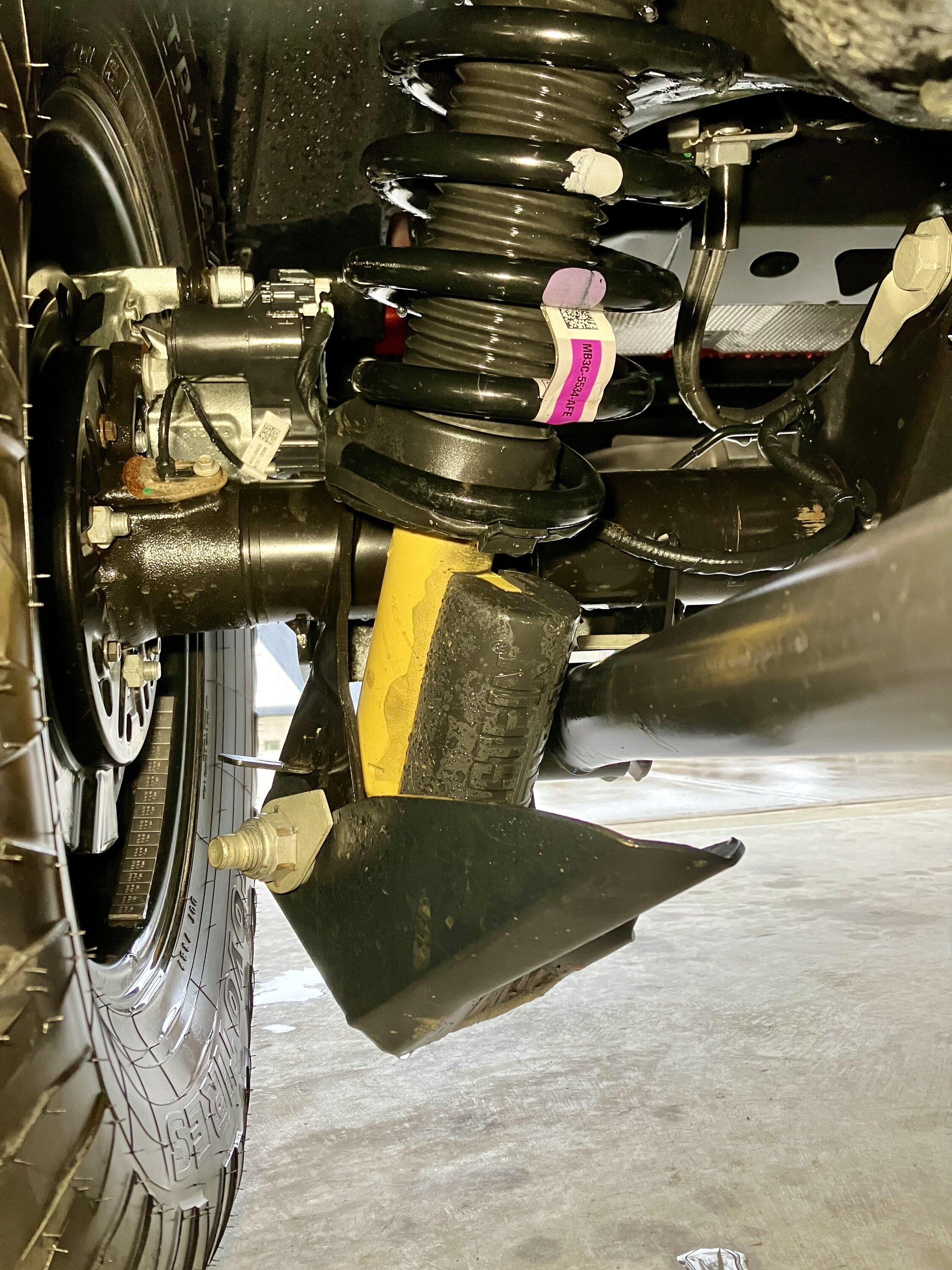

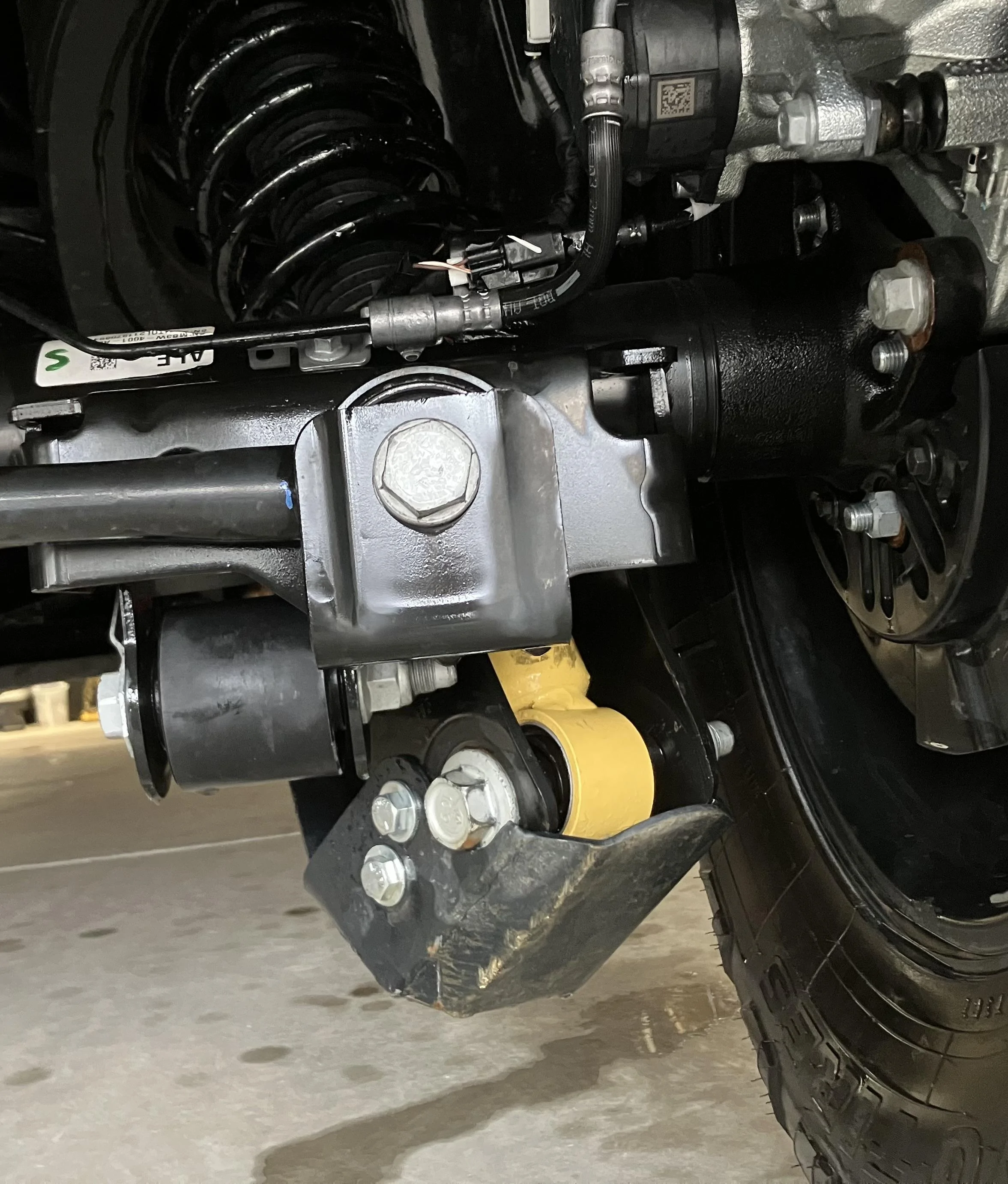

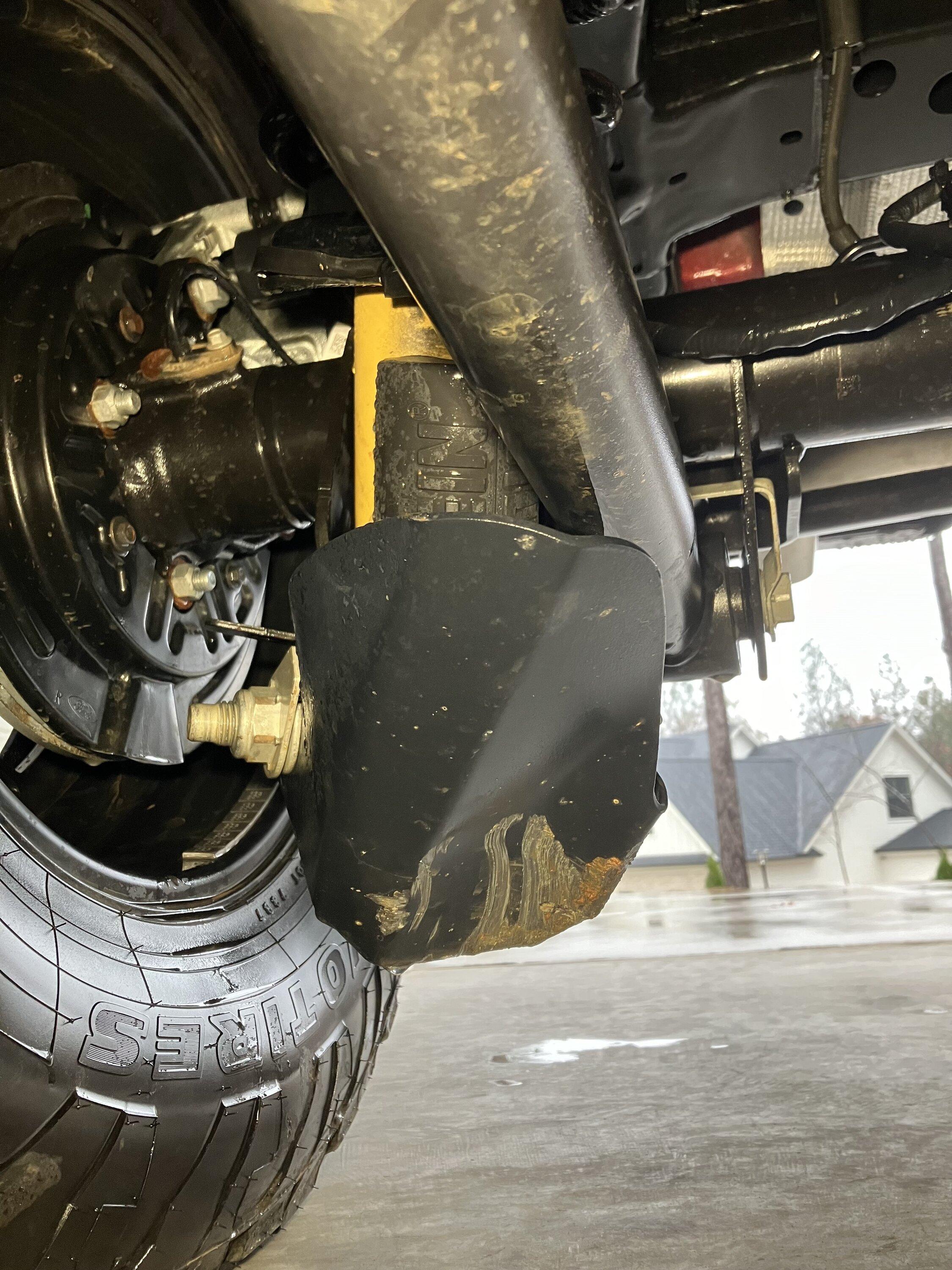

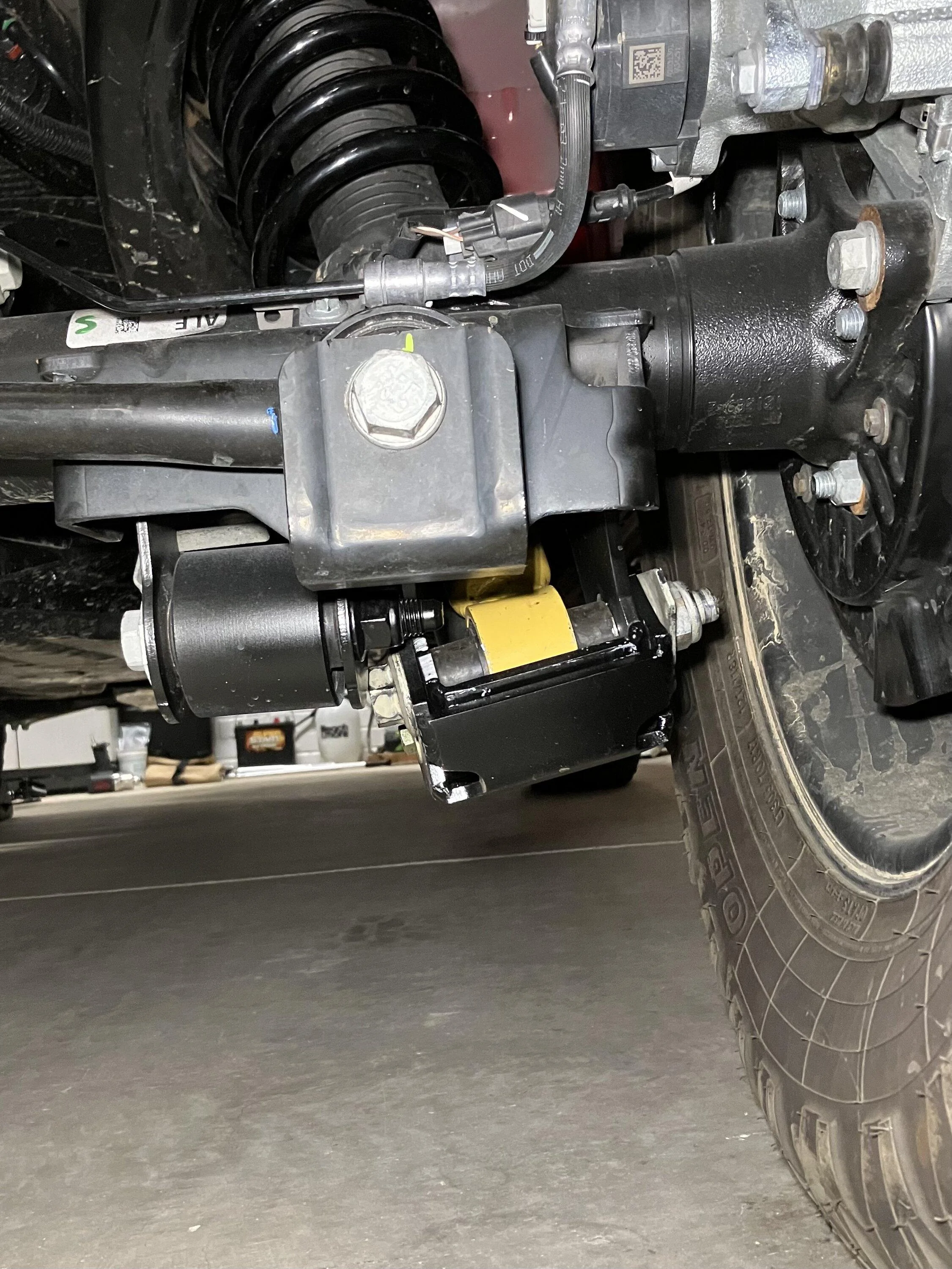

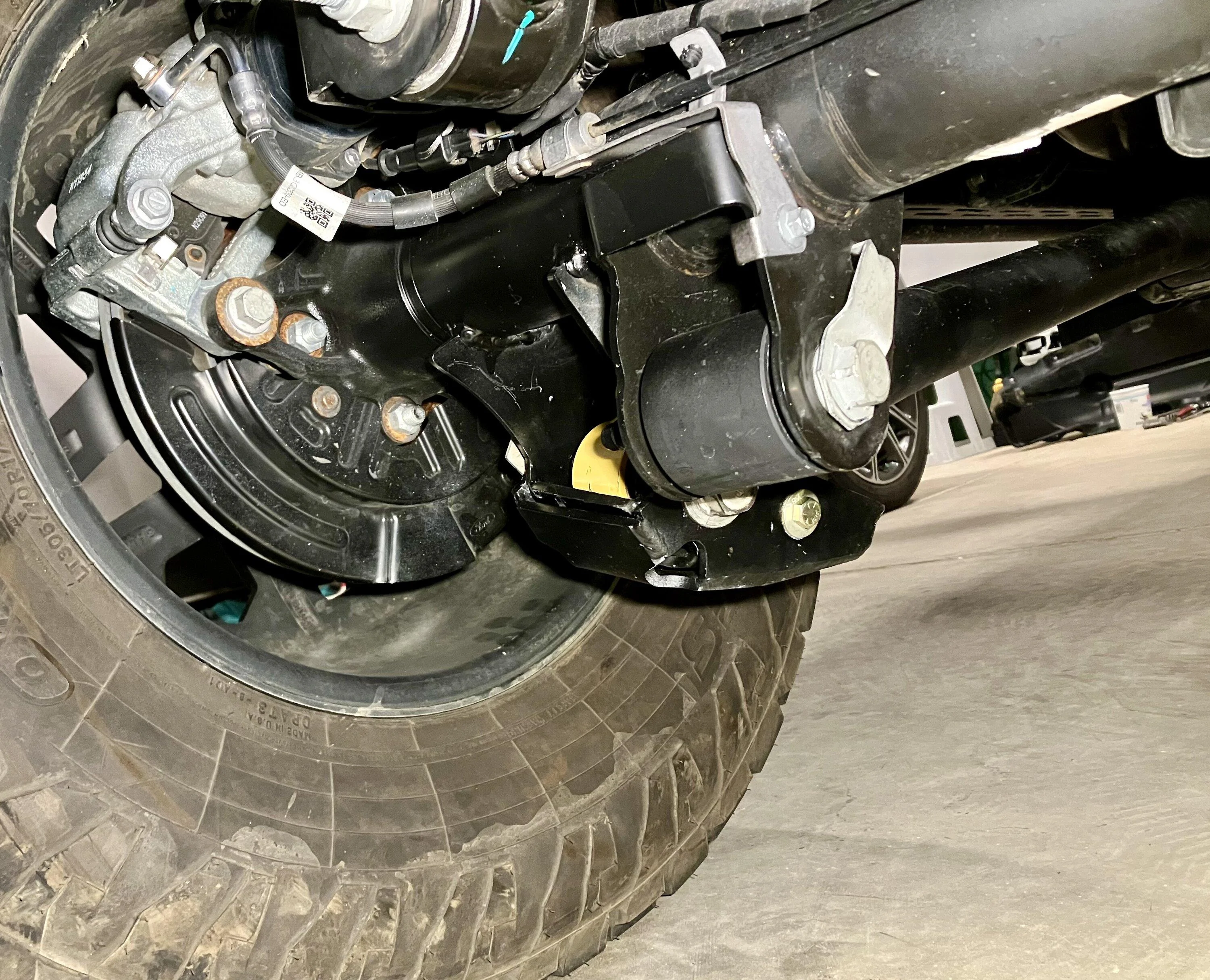

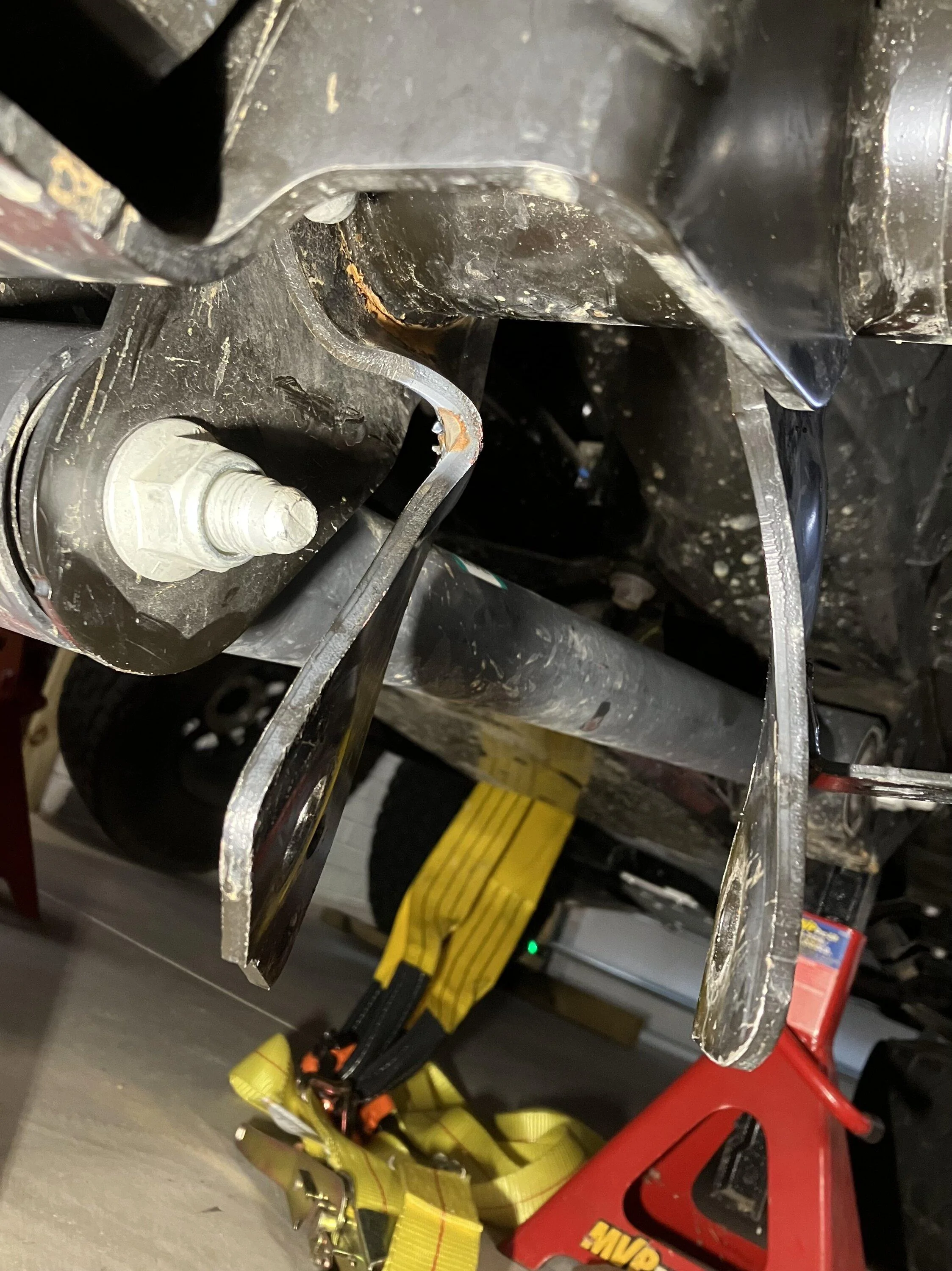

Hopefully they beefed up the thin crappy non-boxed lower shock mounts so they don’t bend easily with mild off-roading.



[NORCALGXP]

Hopefully they beefed up the thin crappy non-boxed lower shock mounts so they don’t bend easily with mild off-roading.

What's the real story behind your post? Where did the photos come from your profile and threads have never shown these before. The only reason I ask is i wheel the hell out my Bronco the last 2 1/2 years and have never seen any thing like this before.



[orion]

Hopefully they beefed up the thin crappy non-boxed lower shock mounts so they don’t bend easily with mild off-roading.

What's the real story behind your post? Where did the photos come from your profile and threads have never shown these before. The only reason I ask is i wheel the hell out my Bronco the last 2 1/2 years and have never seen any thing like this before.

Yeah, I don't think that's is from mild offroading, more like hitting a rock hard or winching with just that part against a rock until it bent...
