The rear bench seat of my Jeep spent most of it's life in a Christmas tree storage bag in my basement... and I had a similar plan once I traded the Jeep in for the Bronco. But I was pretty bummed to learn that it was a lot more work to add/remove the rear Bronco seats (bolts, sensors, and tools? wtf!)... so, I just went scorched earth and ripped everything out, along with the seatbelts.

With the rear seats out of the bronco, the floor is pretty ugly, with random bolts, holes, and cuts in the floor liner. It was gonna be pretty annoying to use as a "truck bed" this way, so I did what many others have done, and started researching/designing a flat "bed."

Goose Gear's system looks nice but is frankly overpriced. I didn't need the modularity that they offered, and didn't really like that the tool storage bin required more tools to open. I do like their fit and finish though, so I decided to build something similar, that fit my needs.

Materials:
  • Cabinet grade plywood (given to me by a trim carpenter buddy 😁)
  • double offset piano hinges
  • 2 - M12-1.75 x 60mm allen bolts
  • 8 - M8-1.25 x 40mm allen bolts
  • 4 - M8-1.25 x 20mm threaded inserts
  • 6 pocket screws
  • wood glue
  • black primer
  • raptor bed liner kit
And with that, I scribed everything out, made a cardboard template, and got to work. Here are the photos of my build...

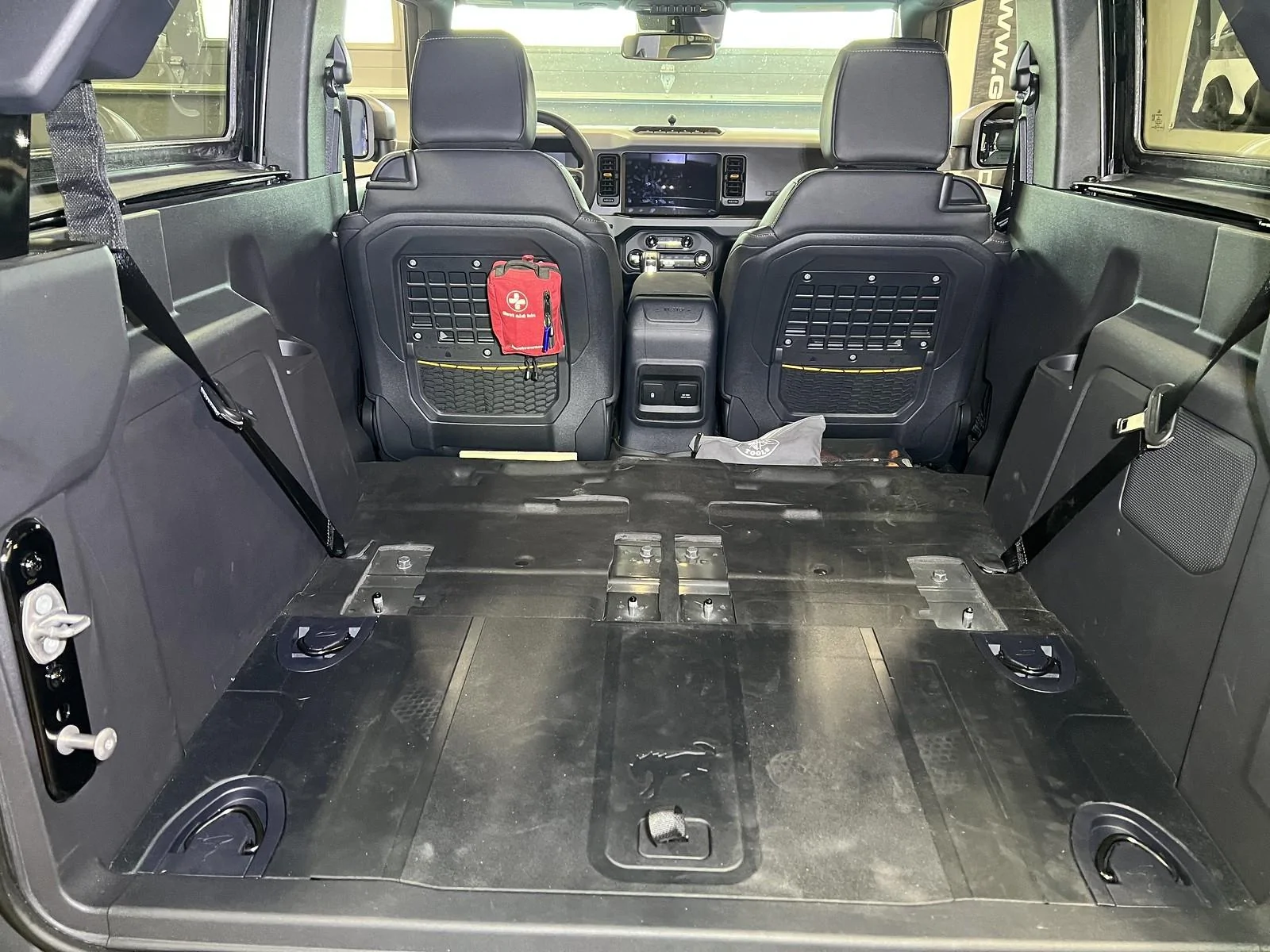

Ford Bronco Broox's DIY 2-Door Seat Delete + Raptor Lined Cargo Platform seats-out-next-remove-the-seatbelts-and-build-a

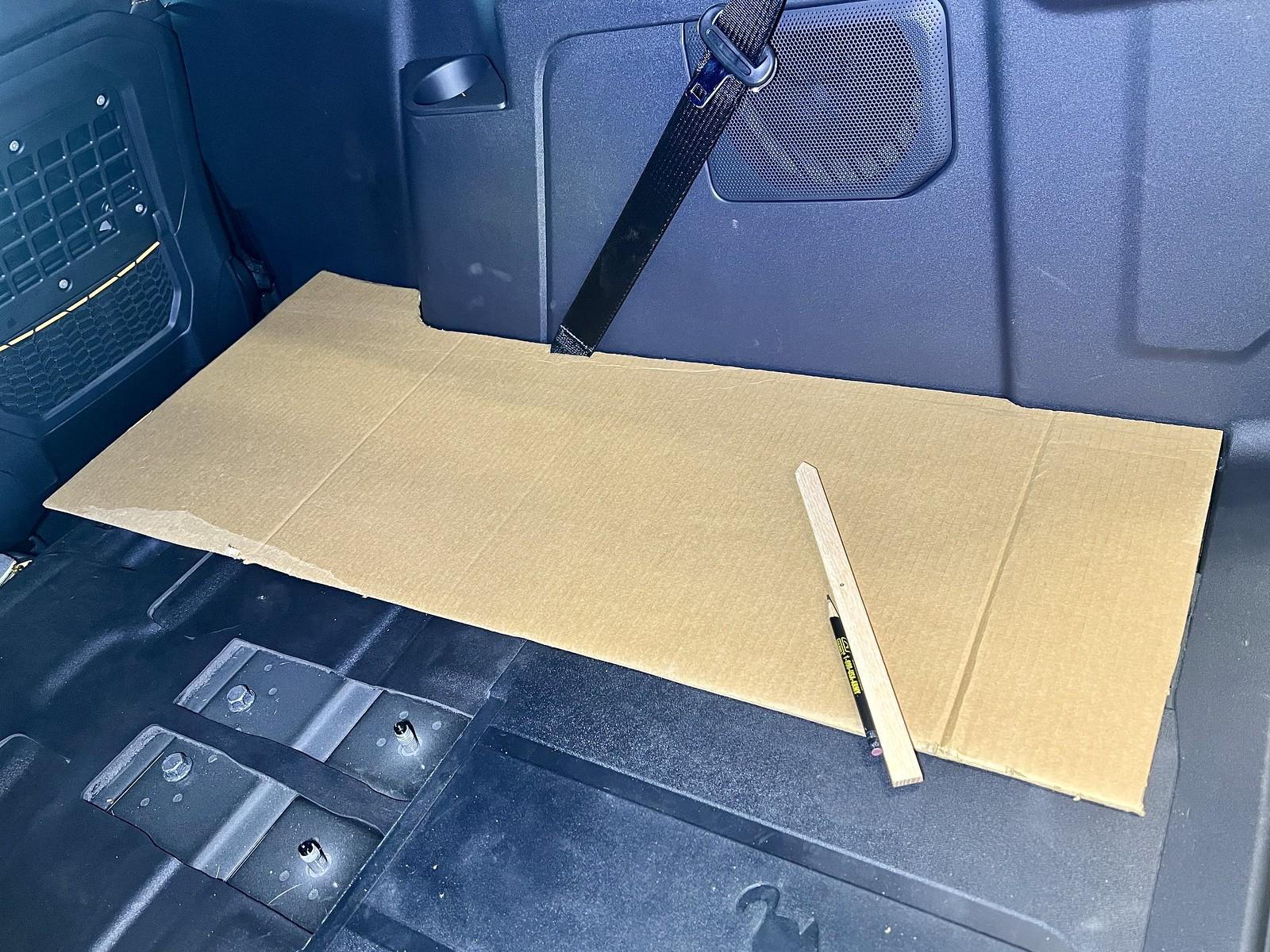

Ford Bronco Broox's DIY 2-Door Seat Delete + Raptor Lined Cargo Platform scribing-the-back-of-the-bronco

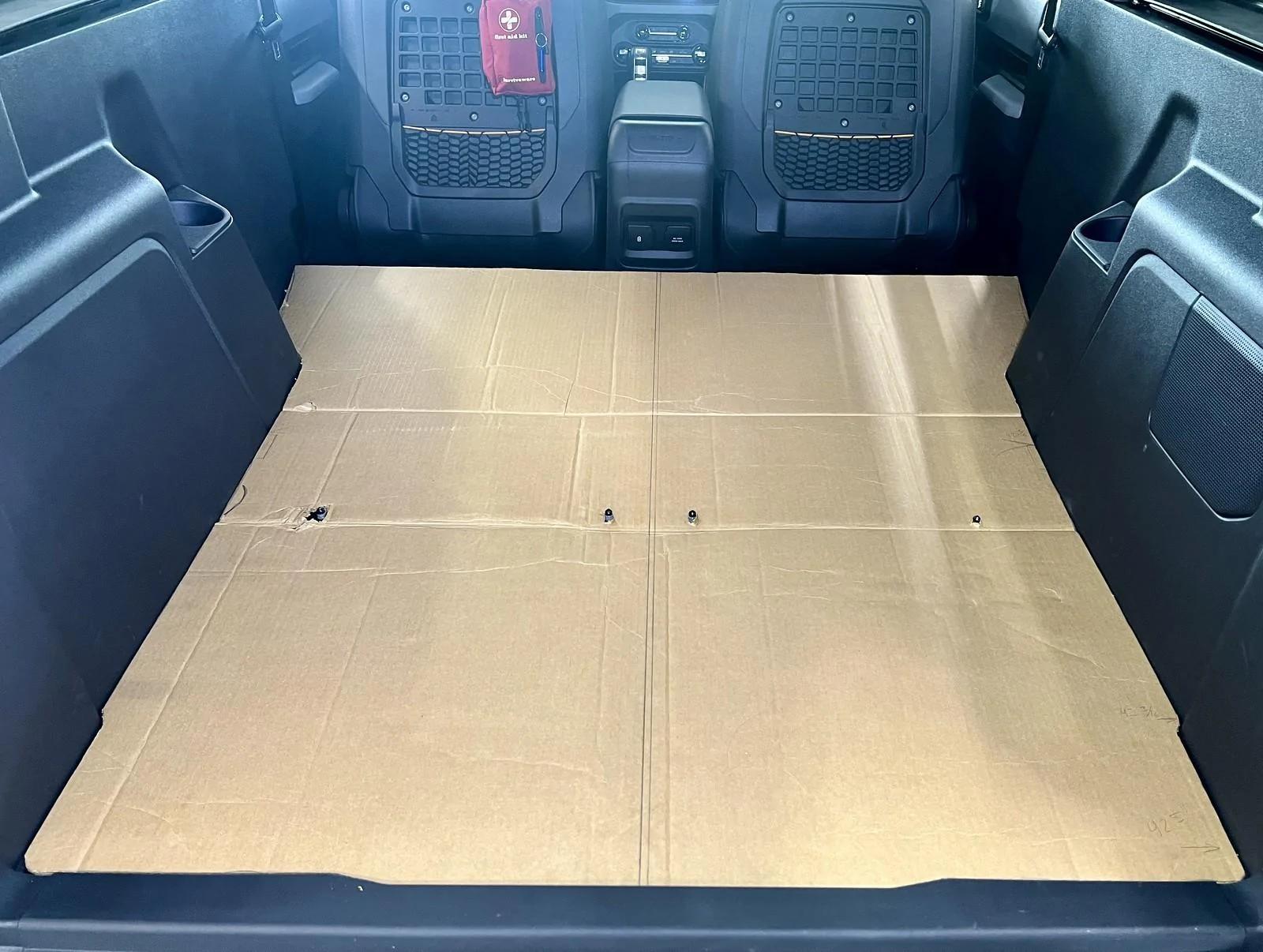

Ford Bronco Broox's DIY 2-Door Seat Delete + Raptor Lined Cargo Platform bronco-platform-template-cut-out

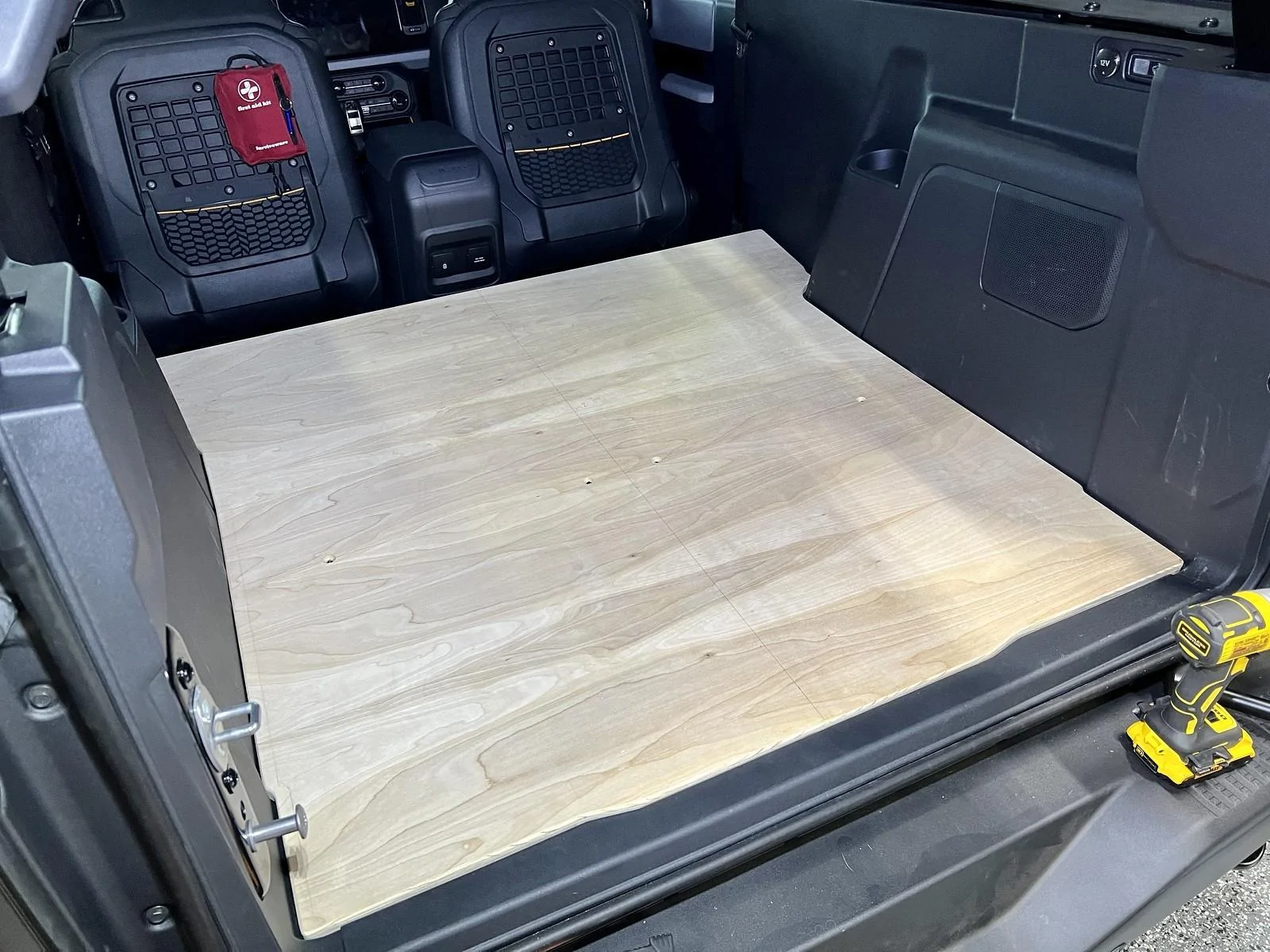

Ford Bronco Broox's DIY 2-Door Seat Delete + Raptor Lined Cargo Platform like-a-glove

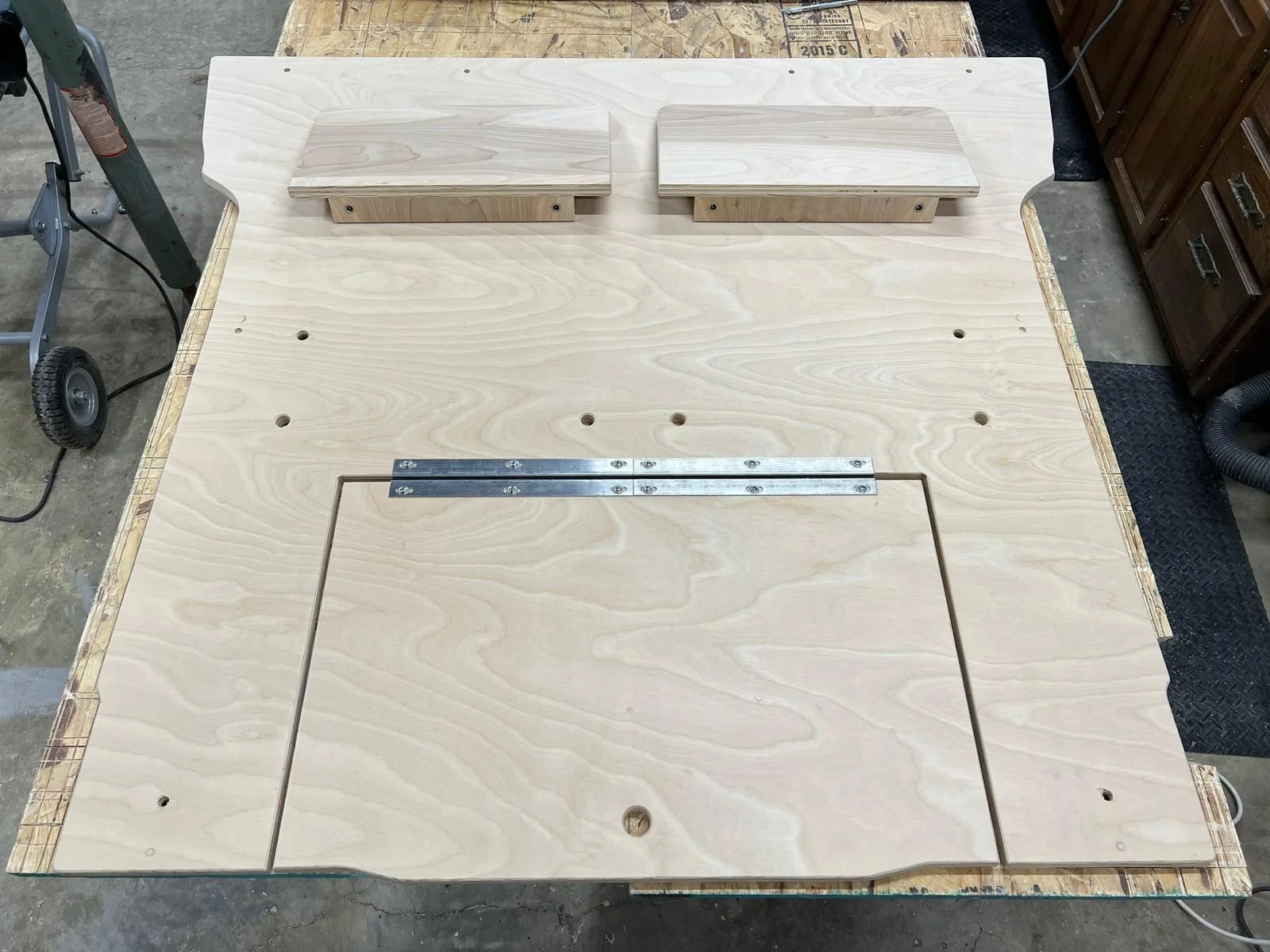

Ford Bronco Broox's DIY 2-Door Seat Delete + Raptor Lined Cargo Platform storage-hatch-front-supports-built-ready-for-paint

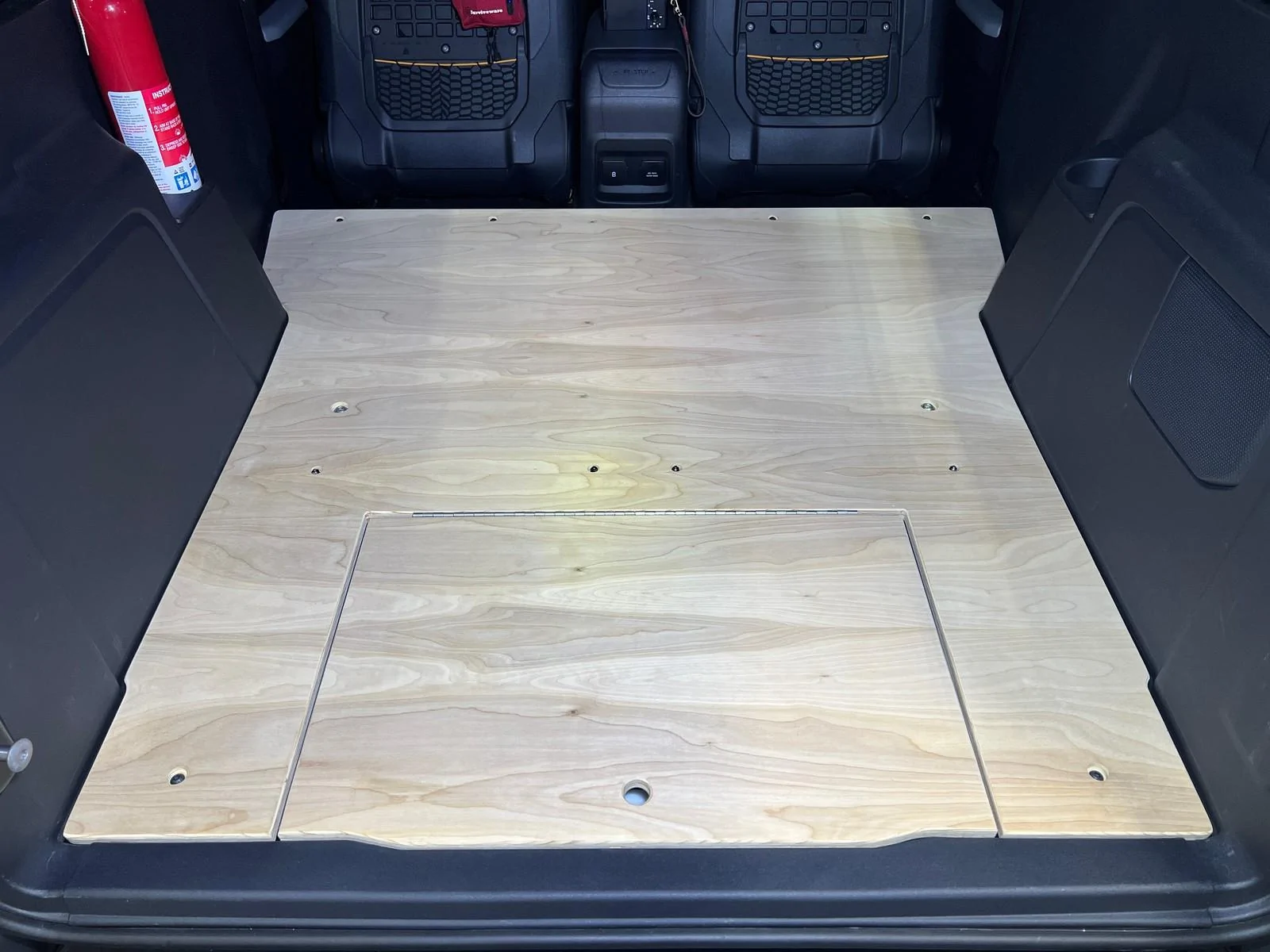

Ford Bronco Broox's DIY 2-Door Seat Delete + Raptor Lined Cargo Platform oh-yeah

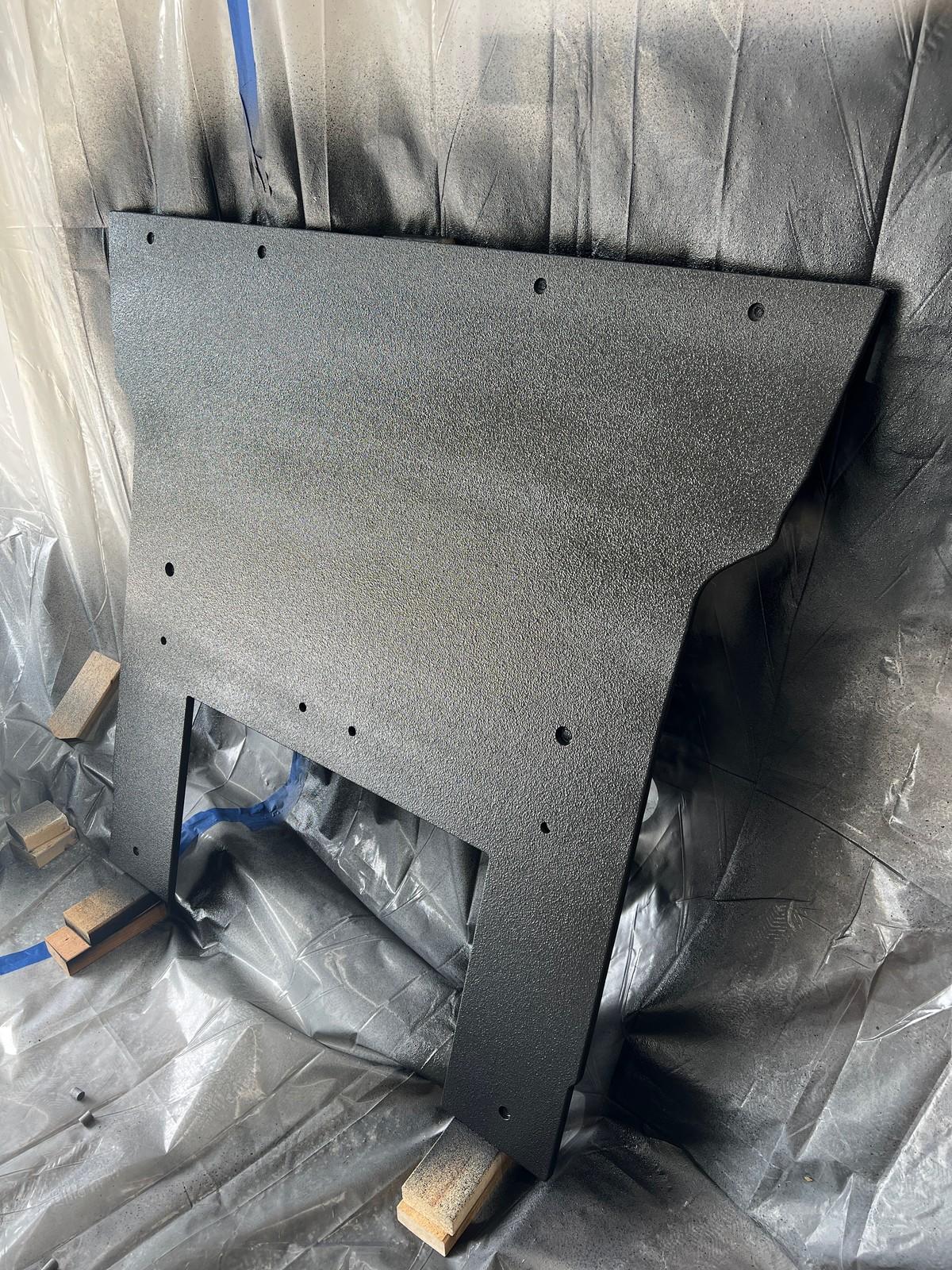

Ford Bronco Broox's DIY 2-Door Seat Delete + Raptor Lined Cargo Platform first-time-spraying-bedliner-got-a-bit-of-tiger-on

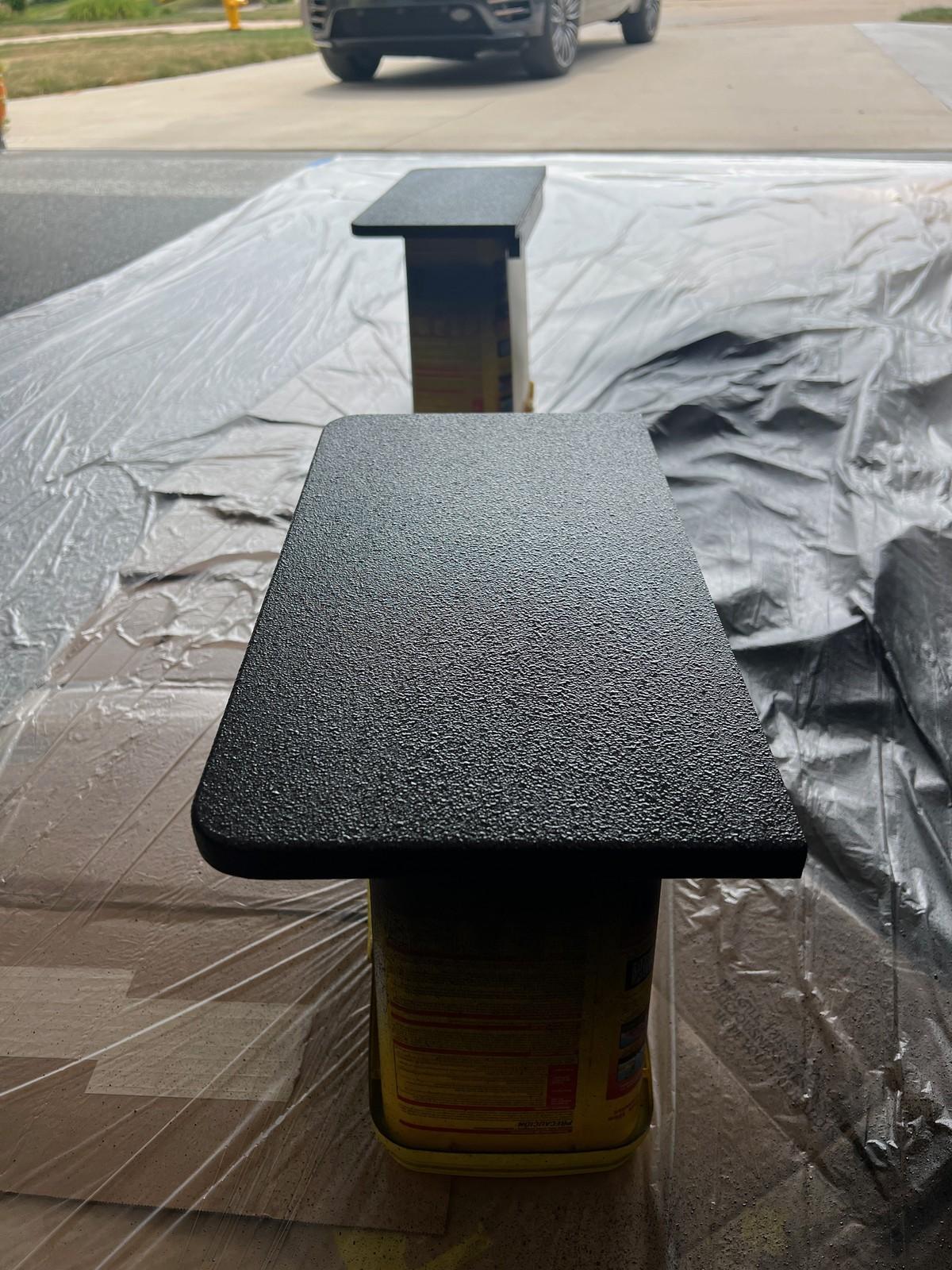

Ford Bronco Broox's DIY 2-Door Seat Delete + Raptor Lined Cargo Platform i-decided-to-spray-everything-with-bedliner-to-it

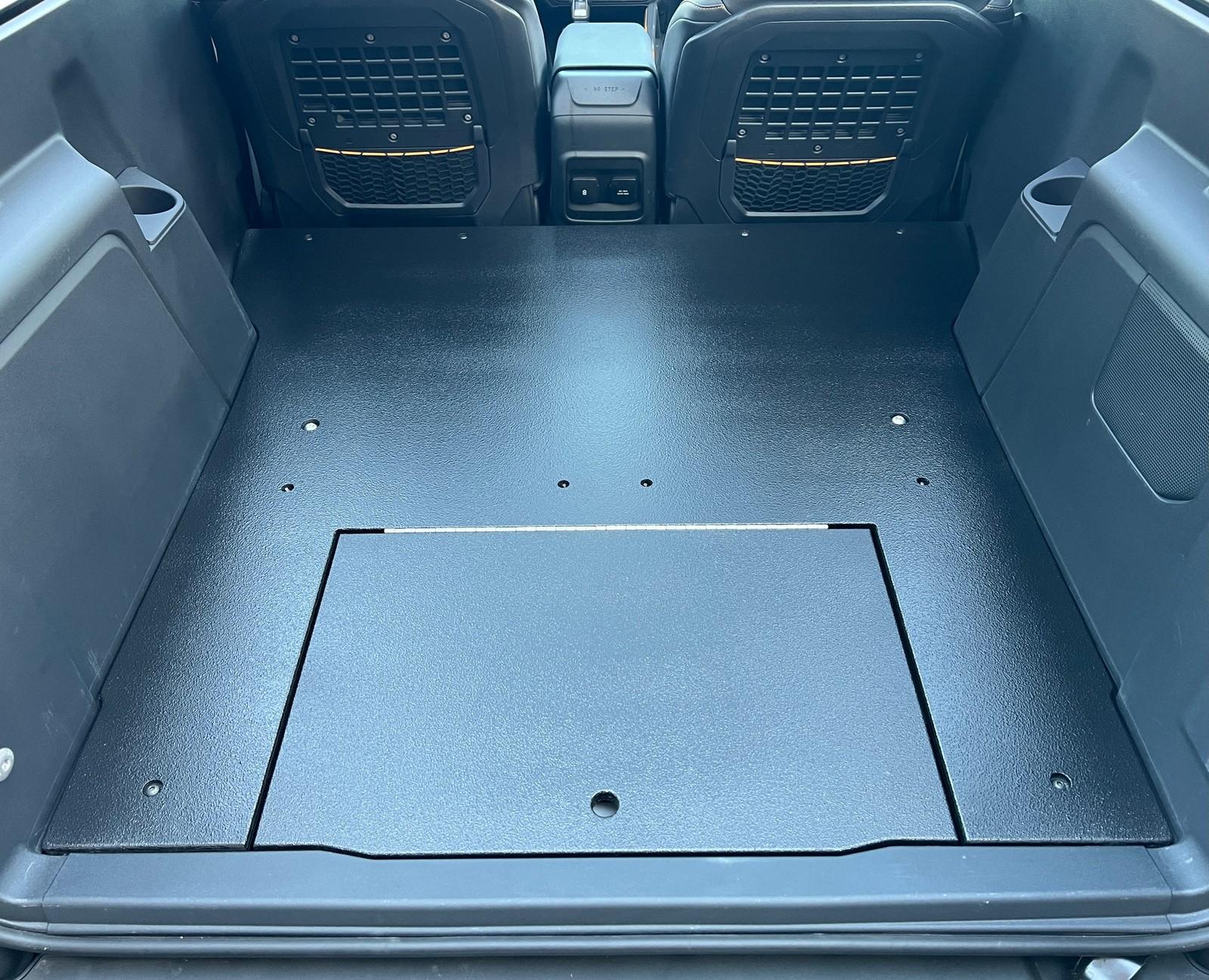

Ford Bronco Broox's DIY 2-Door Seat Delete + Raptor Lined Cargo Platform bronco-platform-installed

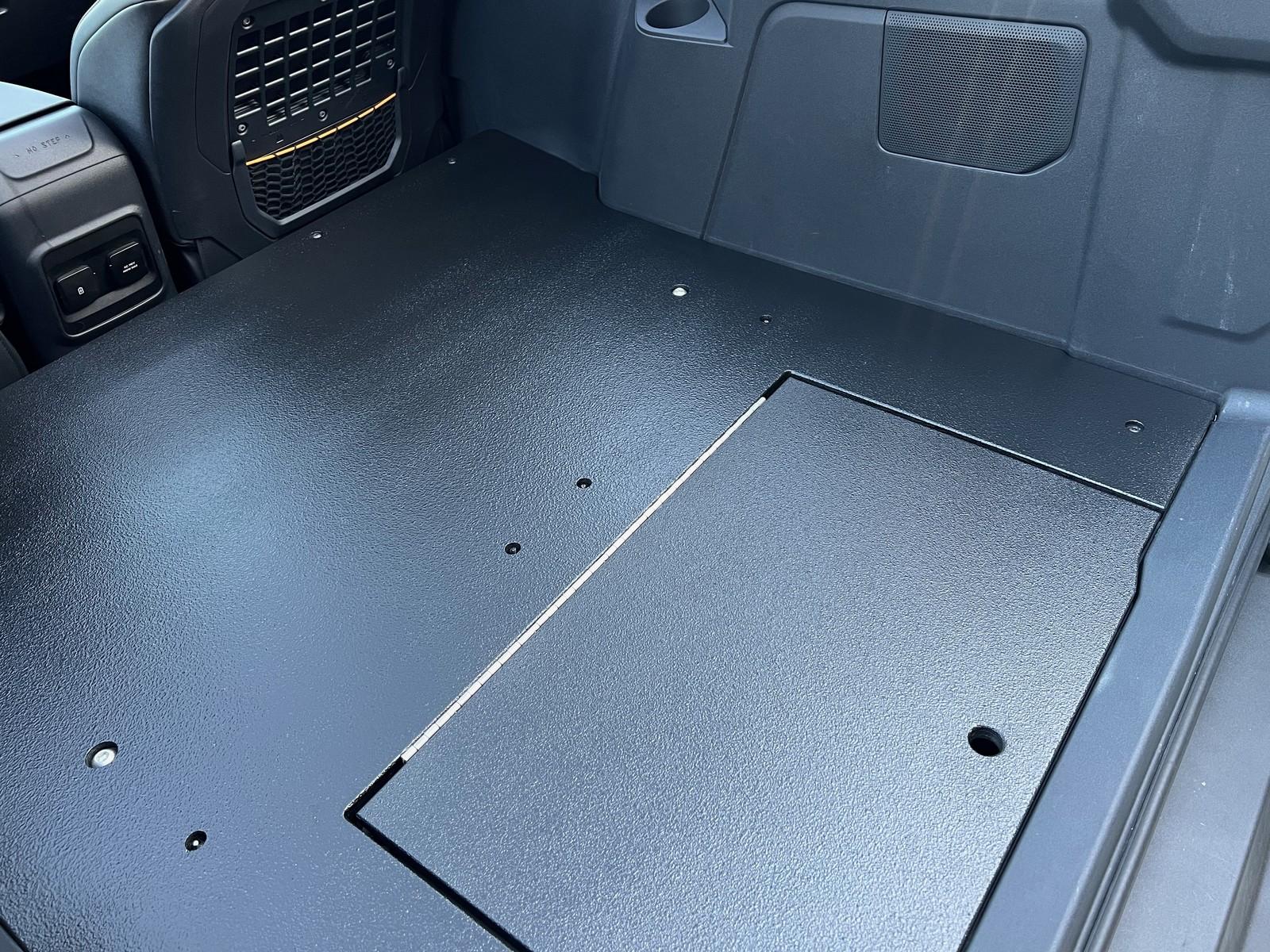

Ford Bronco Broox's DIY 2-Door Seat Delete + Raptor Lined Cargo Platform raptor-lined-bronco-platform-installed

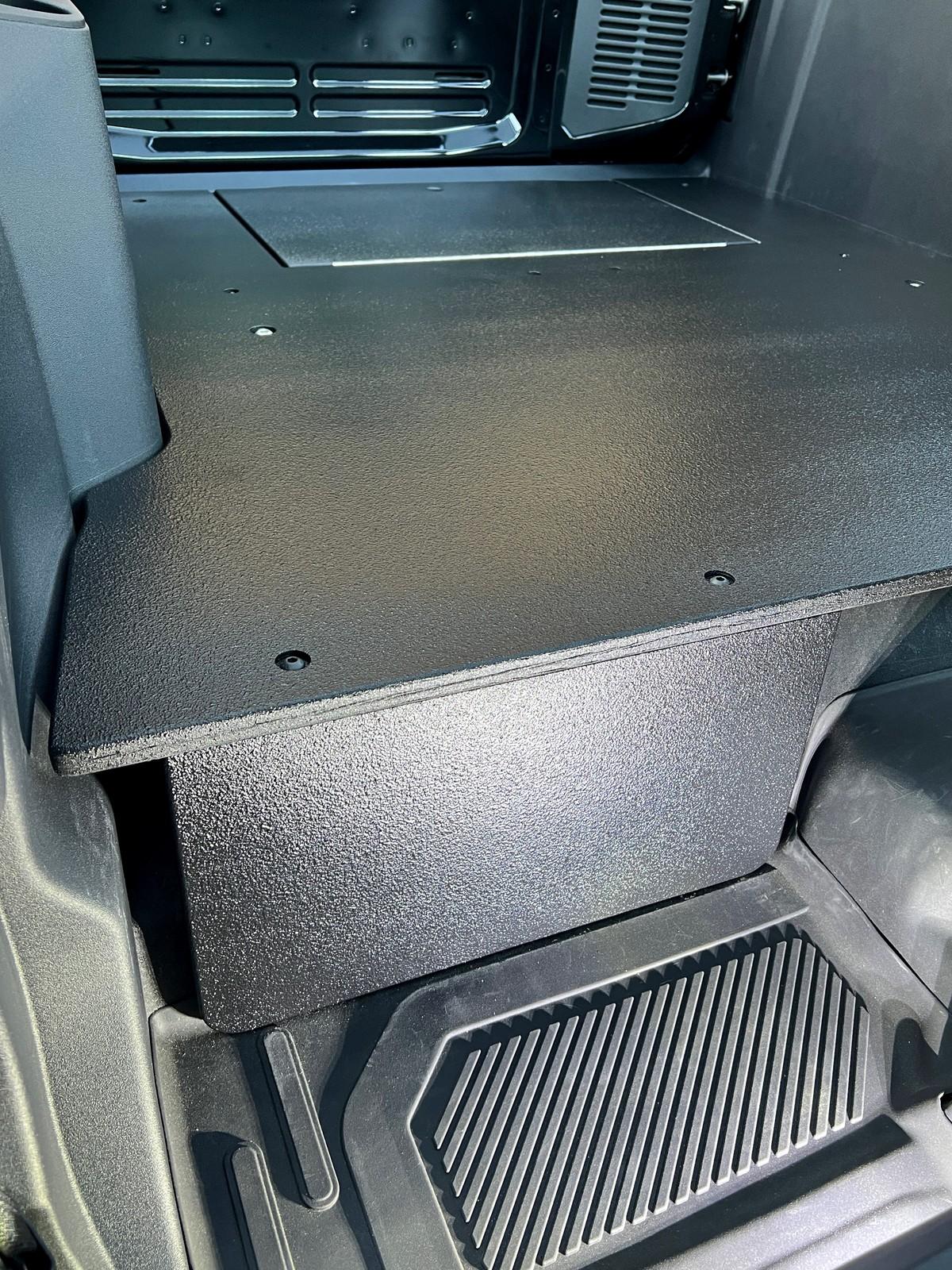

Ford Bronco Broox's DIY 2-Door Seat Delete + Raptor Lined Cargo Platform front-support (1)


I'm super happy with how it turned out, but like any project, I learned a couple things that I might do differently if I tackled again.
  1. I wish I would've waited to drill the finger hole in the hatch. I'm thinking about putting a keyed latch on the door so that the storage is actually secured while the top's off. I won't need the finger hole once I do that.
  2. I wish I would've masked the interior plastic with blue tape. Lightly dragging a piece of wood along the side to scribe my template was enough to scratch the plastic. I also got a few scuffs from taking the platform in/out during the build process. Cheap-ass Ford plastic...
    Ah well, it's a truck and a toy. These won't be the last blemishes. But uh, anyone have tips on how to make these scratches a bit less noticeable?
  3. I wish I had a bit more practice with spraying bedliner. This was my first time and I got a bit of tiger striping on the big piece. It's barely noticeable once installed, and I think it'll soften even more in time... but it still bugs me.
That said, I've got a couple small modifications planned already. I'll post updates here once I tackle em.

  1. I added a rubber mat to the top
